VAX Updates Vicon Access Control True WebBased Power

VAX Updates Vicon Access Control • True Web-Based, Power Over Ethernet, Access Control System Oct 2015 Sales Meeting

VAX 2. 5. x - ETA Late October/Early November 2015 Automatic change detection with auto panel update Ø Configurable at the partition Level Ø Tracks all panel affecting changes and displays warning about pending changes to user Ø Auto Panel Update. Timer is started after each panel affecting change, when timer elapses panels in affected partition(s) are automatically updated. Each change before timer elapses restarts timer. Enhanced Monitoring Screen Ø Ø Ø New Interface Additional configuration options Now supports camera integration Supports larger user profile images Supports persistent notification type templates

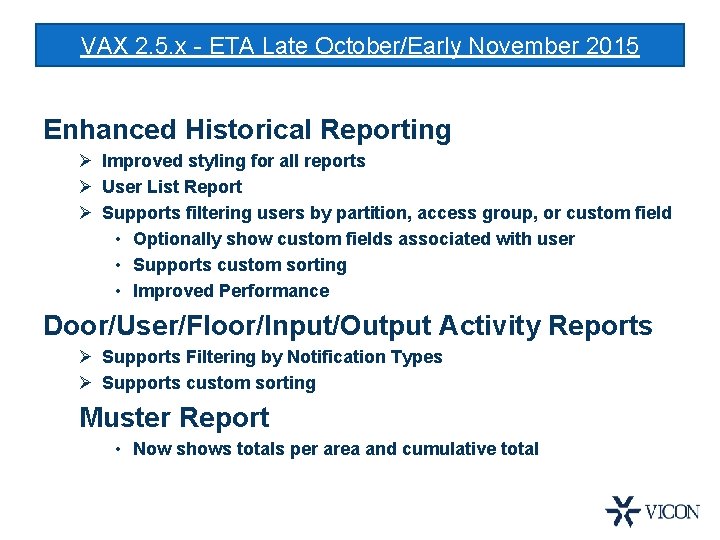

VAX 2. 5. x - ETA Late October/Early November 2015 Enhanced Historical Reporting Ø Improved styling for all reports Ø User List Report Ø Supports filtering users by partition, access group, or custom field • Optionally show custom fields associated with user • Supports custom sorting • Improved Performance Door/User/Floor/Input/Output Activity Reports Ø Supports Filtering by Notification Types Ø Supports custom sorting Muster Report • Now shows totals per area and cumulative total

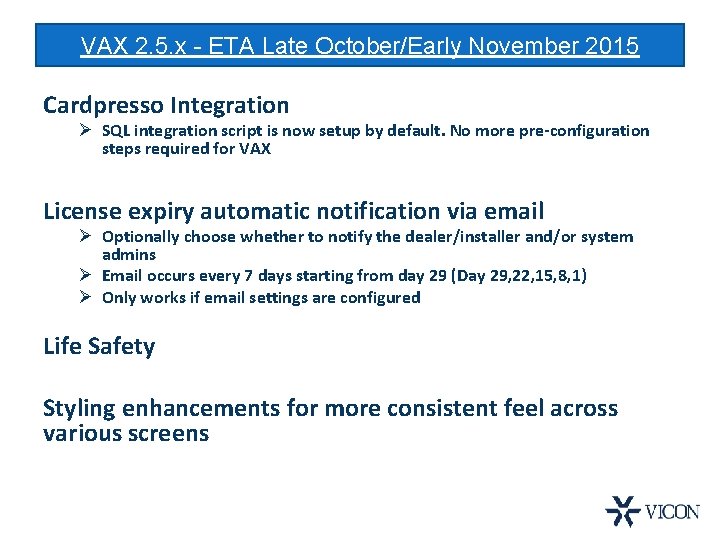

VAX 2. 5. x - ETA Late October/Early November 2015 Cardpresso Integration Ø SQL integration script is now setup by default. No more pre-configuration steps required for VAX License expiry automatic notification via email Ø Optionally choose whether to notify the dealer/installer and/or system admins Ø Email occurs every 7 days starting from day 29 (Day 29, 22, 15, 8, 1) Ø Only works if email settings are configured Life Safety Styling enhancements for more consistent feel across various screens

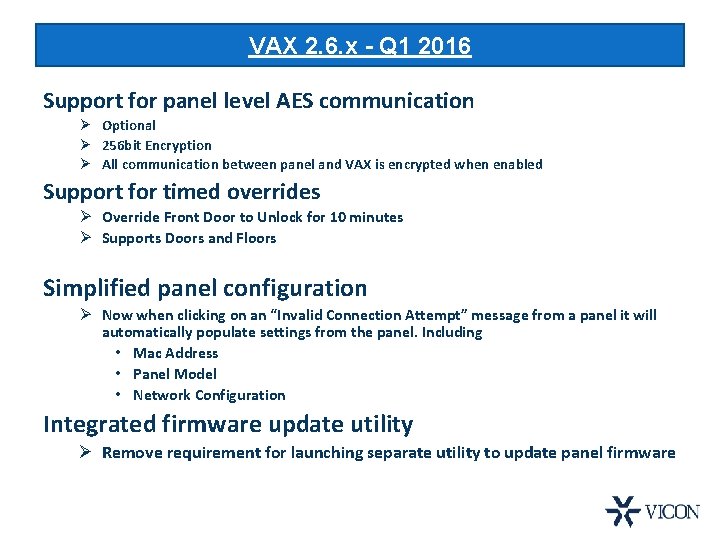

VAX 2. 6. x - Q 1 2016 Support for panel level AES communication Ø Optional Ø 256 bit Encryption Ø All communication between panel and VAX is encrypted when enabled Support for timed overrides Ø Override Front Door to Unlock for 10 minutes Ø Supports Doors and Floors Simplified panel configuration Ø Now when clicking on an “Invalid Connection Attempt” message from a panel it will automatically populate settings from the panel. Including • Mac Address • Panel Model • Network Configuration Integrated firmware update utility Ø Remove requirement for launching separate utility to update panel firmware

VAX 2. 7. x - Q 2 2016 Support for additional camera systems. Ø We are aiming to include support for 3 to 4 additional NVR systems. • Milestone • Other systems still being discussed Ø Functionality will mimic current Vicon. Net integration. With the exception of requiring silverlight. Depending on the systems selected however additional active x controls may be required.

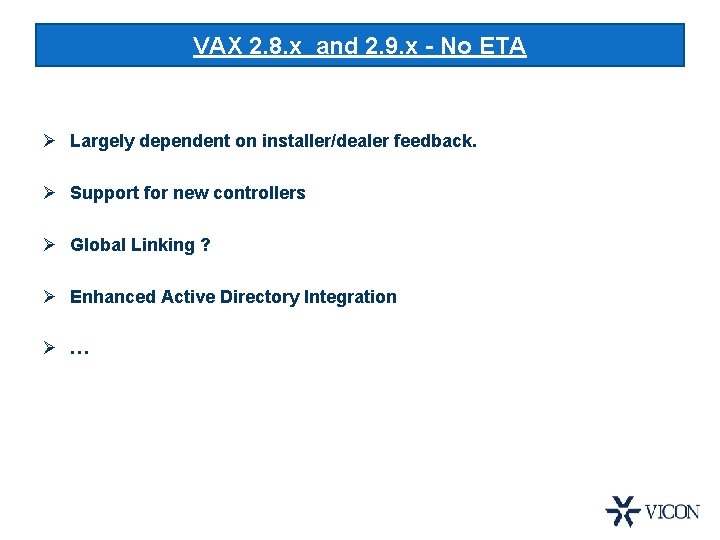

VAX 2. 8. x and 2. 9. x - No ETA Ø Largely dependent on installer/dealer feedback. Ø Support for new controllers Ø Global Linking ? Ø Enhanced Active Directory Integration Ø …

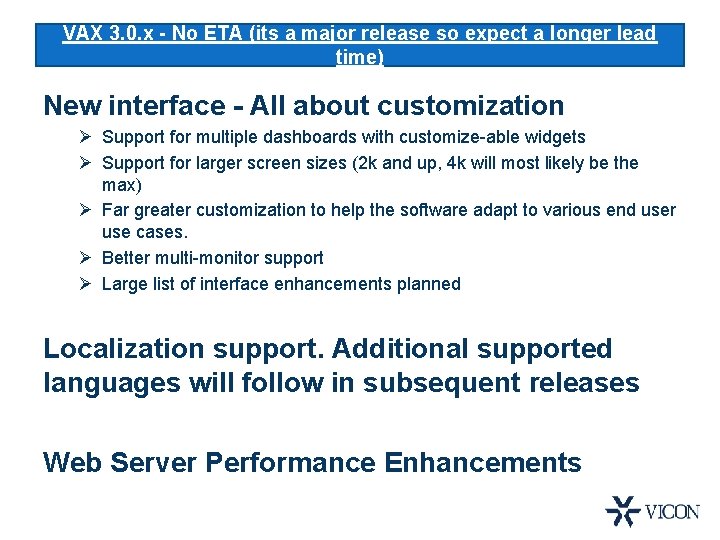

VAX 3. 0. x - No ETA (its a major release so expect a longer lead time) New interface - All about customization Ø Support for multiple dashboards with customize-able widgets Ø Support for larger screen sizes (2 k and up, 4 k will most likely be the max) Ø Far greater customization to help the software adapt to various end user use cases. Ø Better multi-monitor support Ø Large list of interface enhancements planned Localization support. Additional supported languages will follow in subsequent releases Web Server Performance Enhancements

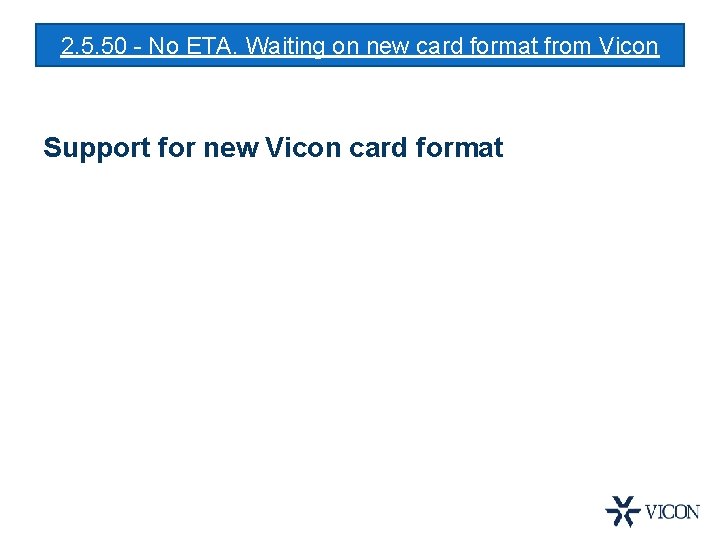

2. 5. 50 - No ETA. Waiting on new card format from Vicon Support for new Vicon card format

A & E Summit

Elevator Assembly A & E Summit

VAX Top Features and Benefits Review Hardware • Unique POE Single Door Controller embedded with request to exit motion detector. - Over the door install technique will significantly reduce cabling and manpower costs (50 - 75% as suggested by some current dealers). • Strong diagnostic onboard tools for testing and troubleshooting right at the door (if using that topology) • Full solid state construction with exceptional surge and overcurrent protection built-in • Lightning Fast 100 MB/Sec Communications • Fully Distributed Processing (field controllers not dependent on Server operation) • Flexible Inputs and Outputs Alarm integration, Auto Opener

VAX Top Features and Benefits Review Hardware (cont. ) • Supports Static or DHCP Connection Modes • 12 V 500 m. A / 24 V 250 m. A Wet Output. Power availability covers 80+% of most electric strikes used POE • Traditional Homerun Topology simplified with 2, 4, 6 and 8 door kits available • Elevator Controllers supporting up to 64 floors per cab with or without button sensing • Input Output Controllers with various programmable options.

ASSA ABLOY APERIO INTEGRATION P. O. E. VAC Application Server LAN/WAN VAX HCAperio 8 NCC-1701 Alternatively can be installed on a Windows Based P. C. RS 485 Aperio Cat 5 (RS 485 + Power) Control up to 8 Aperio devices from one Aperio Hub using only one single ODM Aperio Module e. Cylinder Cabinet Lock Institutional Lock Aluminum Glass Commercial Lock

VAX Features and Benefits Review Software System • Modern HTML 5 responsive design. • Ability to directly access the system on any web-enabled device such a Smart. Phones, T tablets, laptops and PC’s without having to install an APP. • Powerful partitioning with individual administrator permissions per partition Provides the ability to create partitions for specific customers and then subsites within each customer which is ideal for dealers that want to offer a hosted value added solution. • Simplified installer handles all prerequisites and windows/database permissions. No requirements to touch SQL, IIS or any other applications (With the exception of domain / server environments). Very installer friendly.

VAX Features and Benefits Review Software System • Once server is configured, the addition of controllers is essentially plug and play – no port forwarding. Controllers call to server, not the other way round. • REST API functionality for advanced users and developers • Truly unlimited product; scalability • unlimited doors, floors and IO’s) • unlimited users, access groups, time zones, administrators, …. • A new way to create user privilege rules • One time run time zones

Site A Unlimited number of controllers connected to network VAC Application Server ODM LAN/WAN NCC-1701 P. O. E Network Switch Single Door P. O. E. Controller Alternatively can be installed on a Windows Based P. C. Site B Unlimited number of controllers connected to network Wireless ODM Tablet Mobile Phone P. O. E Network Switch Single Door Controller ODM Single Door P. O. E. Controller Personal Computer Web-based Administration Access the application server from any HTML 5 enabled device via a secure web based connection Site C Unlimited number of controllers connected to network TDM Two Door Complete Flexibility: VAC is available with several controller configurations for ease of installation and reduction of overall costs. Multiple combinations of controller types can be installed at each site. Controller P. O. E Network Switch

Vicon VAC ODM (Over the door Module)Layout Reader Door 1 Reader Door 2 Power Over Ethernet Port 12 VDC Lock Door 1 Output LCD aiding in diagnostics and configuration 12 VDC output 12 VDC Lock Door 2 Output Solid State Output Fully Programmable Door Contact & Rex Input Door 1 Door Contact & Rex Input Door 2 Optional Motion Sensor Keyboard Control For Full Configuration External Status LED’s

Vicon VAC Where the hardware mounts • Above the door exactly where the request to exit motion would be located • Alternatively mount controllers back in electrical room and homerun all devices • Or directly within gate controller (wireless) Black Enclosure White Paintable Enclosure

Vicon VAC FLEXABLE INSTALLATION OPTIONS Available as a single door (ODM) or as a 2 door (TDM) Models Available with or without motion Does not have to be mounted at the door More then 1 controller can usually be mounted in most cans for retrofits Convenient back box with knockouts for concrete wall mount

VAC Application Server NCC-1701 Alternatively can be installed on a Windows Based P. C. LAN/WAN P. O. E. TDM LAYOUT FOR 2 DOOR SCENARIO

VAC Application Server LAN/WAN Alternatively can be installed on a Windows Based P. C. ODM LAYOUT FOR HARDWIRE AND WIFI

ODM Typical

ODM Typical with Auto Opener

ODM Gate Opener Typical

TDM Powering External Power for second lock

ODM Tied to Fire Panel, External Power

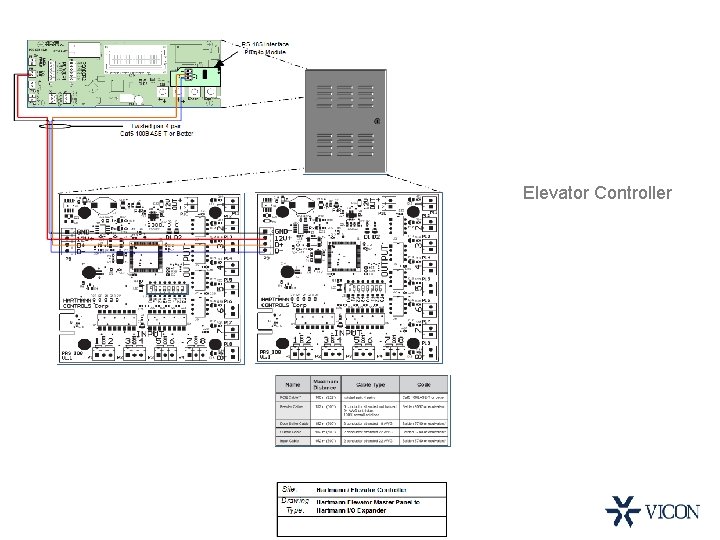

Elevator Controller
