VARIOUS ACTS CODES AND MANUALS VINEET GUPTA SPB1

VARIOUS ACTS, CODES AND MANUALS VINEET GUPTA SPB-1

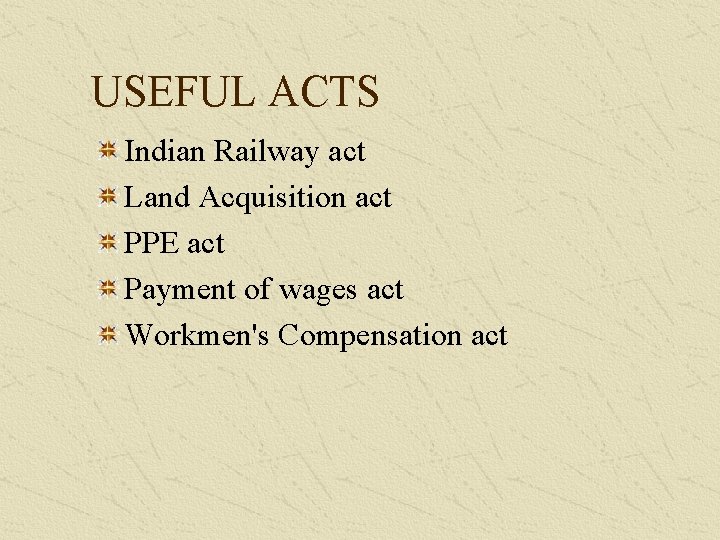

USEFUL ACTS Indian Railway act Land Acquisition act PPE act Payment of wages act Workmen's Compensation act

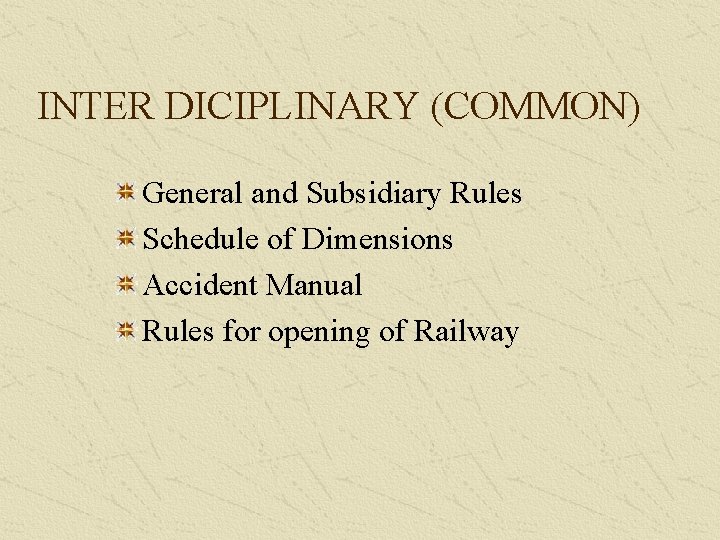

INTER DICIPLINARY (COMMON) General and Subsidiary Rules Schedule of Dimensions Accident Manual Rules for opening of Railway

OTHER DEPARTMENTS CODES AND MANUALS Indian Railways Establishment Code Volume- II Indian Railways Establishment Manual Volume-II Indian Railways Code for the Accounts Department Part – II Indian Railways Finance Code Volume – II

OTHER DEPARTMENTS CODES AND MANUALS Indian Railways Code for Traffic (Commercial) Department Indian Railway Commercial Manual Volume-II Indian Railways Code for the Stores Department volume – I Indian Railways Code for the Stores Department Volume – II Operating Manual for Indian Railways

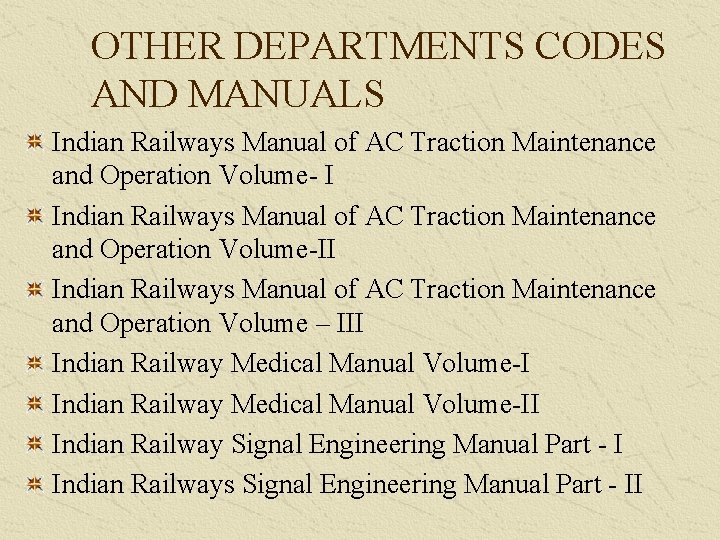

OTHER DEPARTMENTS CODES AND MANUALS Indian Railways Manual of AC Traction Maintenance and Operation Volume- I Indian Railways Manual of AC Traction Maintenance and Operation Volume-II Indian Railways Manual of AC Traction Maintenance and Operation Volume – III Indian Railway Medical Manual Volume-II Indian Railway Signal Engineering Manual Part - I Indian Railways Signal Engineering Manual Part - II

OTHER USEFUL DOCUMENTS Schedule of Rates (SOR) and standard specifications I. R. C. A. PART IV D&AR Rules HOER GCC Guidelines for Earthwork in Railway Projects Manual Of Inspection Schedules For Officials Of Engineering Department And other infinite number

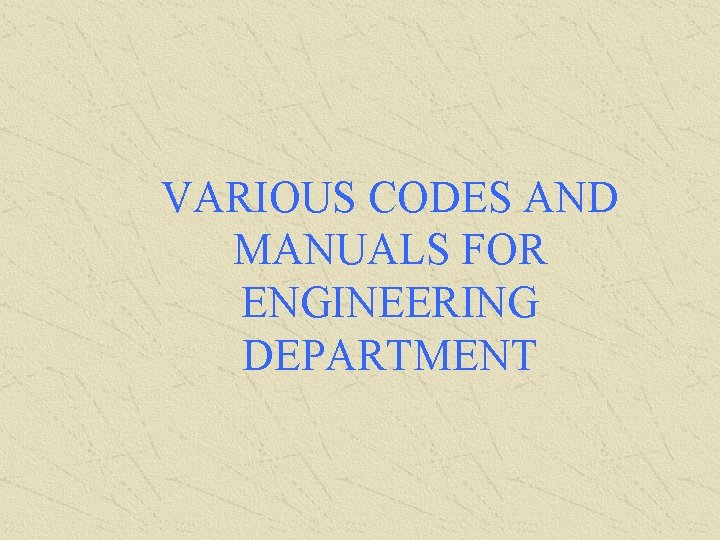

VARIOUS CODES AND MANUALS FOR ENGINEERING DEPARTMENT

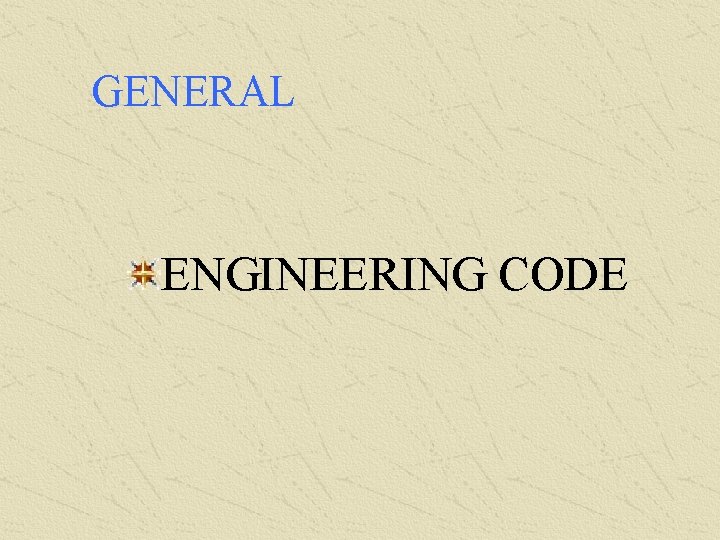

GENERAL ENGINEERING CODE

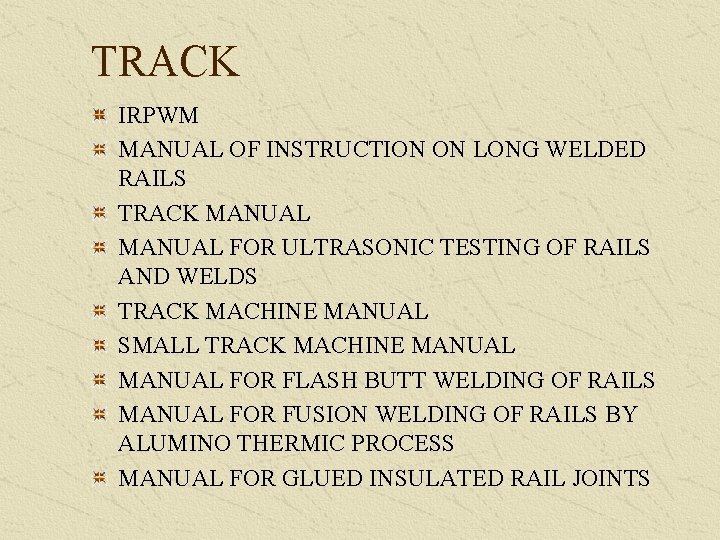

TRACK IRPWM MANUAL OF INSTRUCTION ON LONG WELDED RAILS TRACK MANUAL FOR ULTRASONIC TESTING OF RAILS AND WELDS TRACK MACHINE MANUAL SMALL TRACK MACHINE MANUAL FOR FLASH BUTT WELDING OF RAILS MANUAL FOR FUSION WELDING OF RAILS BY ALUMINO THERMIC PROCESS MANUAL FOR GLUED INSULATED RAIL JOINTS

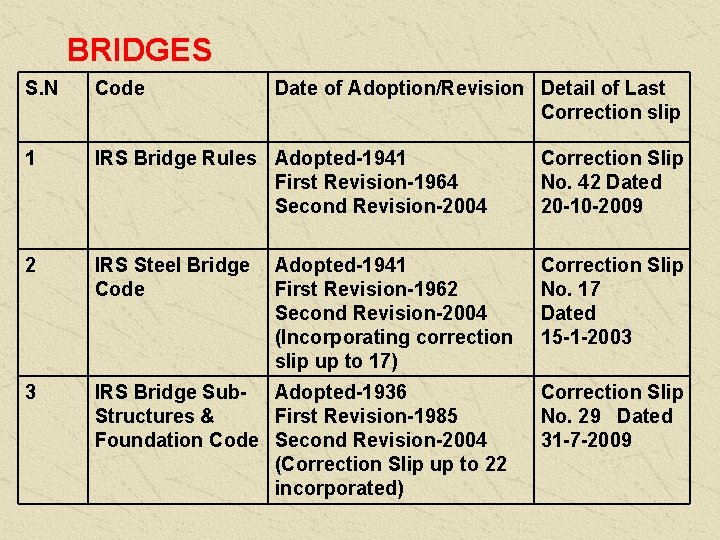

BRIDGES S. N Code Date of Adoption/Revision Detail of Last Correction slip 1 IRS Bridge Rules Adopted-1941 First Revision-1964 Second Revision-2004 Correction Slip No. 42 Dated 20 -10 -2009 2 IRS Steel Bridge Code Correction Slip No. 17 Dated 15 -1 -2003 3 IRS Bridge Sub- Adopted-1936 Structures & First Revision-1985 Foundation Code Second Revision-2004 (Correction Slip up to 22 incorporated) Adopted-1941 First Revision-1962 Second Revision-2004 (Incorporating correction slip up to 17) Correction Slip No. 29 Dated 31 -7 -2009

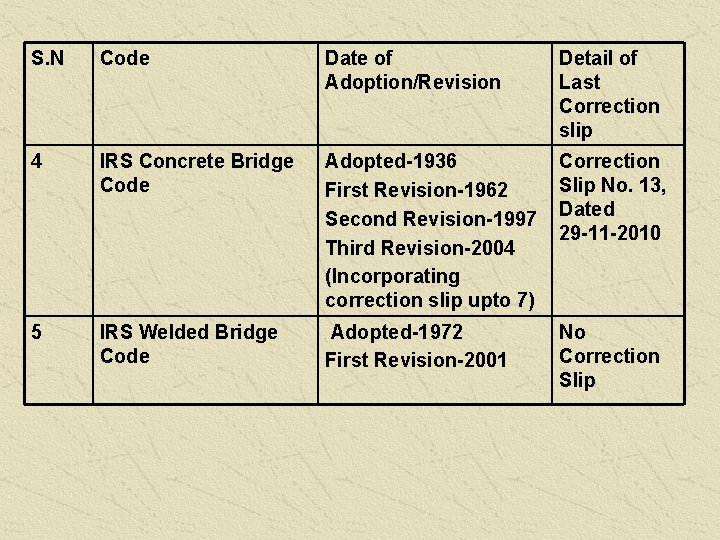

S. N Code Date of Adoption/Revision Detail of Last Correction slip 4 IRS Concrete Bridge Code Adopted-1936 First Revision-1962 Second Revision-1997 Third Revision-2004 (Incorporating correction slip upto 7) Correction Slip No. 13, Dated 29 -11 -2010 5 IRS Welded Bridge Code Adopted-1972 First Revision-2001 No Correction Slip

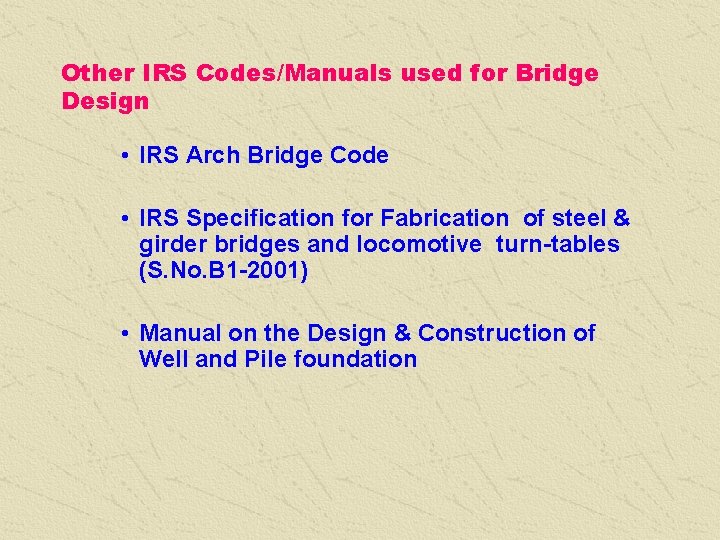

Other IRS Codes/Manuals used for Bridge Design • IRS Arch Bridge Code • IRS Specification for Fabrication of steel & girder bridges and locomotive turn-tables (S. No. B 1 -2001) • Manual on the Design & Construction of Well and Pile foundation

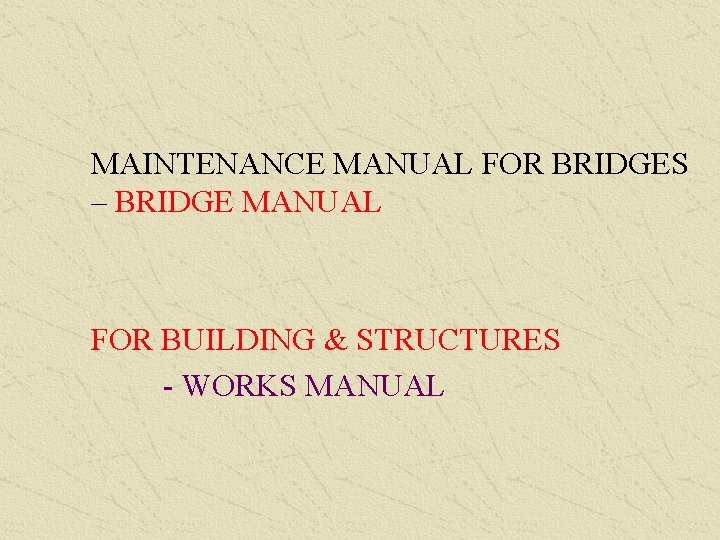

MAINTENANCE MANUAL FOR BRIDGES – BRIDGE MANUAL FOR BUILDING & STRUCTURES - WORKS MANUAL

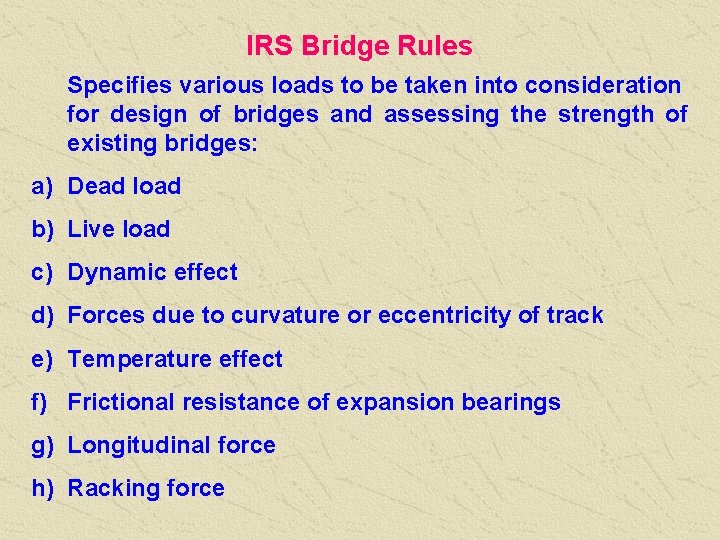

IRS Bridge Rules Specifies various loads to be taken into consideration for design of bridges and assessing the strength of existing bridges: a) Dead load b) Live load c) Dynamic effect d) Forces due to curvature or eccentricity of track e) Temperature effect f) Frictional resistance of expansion bearings g) Longitudinal force h) Racking force

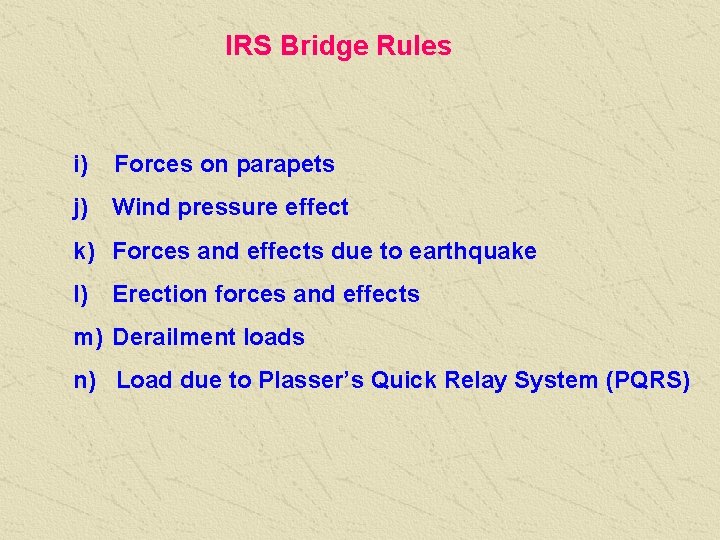

IRS Bridge Rules i) Forces on parapets j) Wind pressure effect k) Forces and effects due to earthquake l) Erection forces and effects m) Derailment loads n) Load due to Plasser’s Quick Relay System (PQRS)

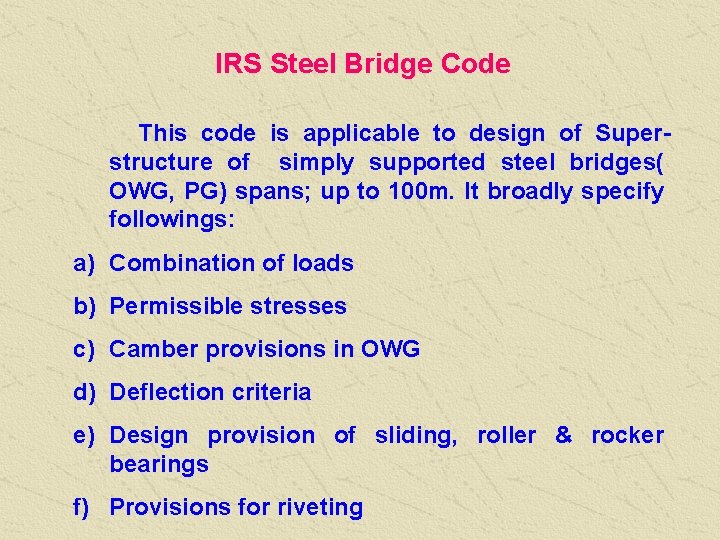

IRS Steel Bridge Code This code is applicable to design of Superstructure of simply supported steel bridges( OWG, PG) spans; up to 100 m. It broadly specify followings: a) Combination of loads b) Permissible stresses c) Camber provisions in OWG d) Deflection criteria e) Design provision of sliding, roller & rocker bearings f) Provisions for riveting

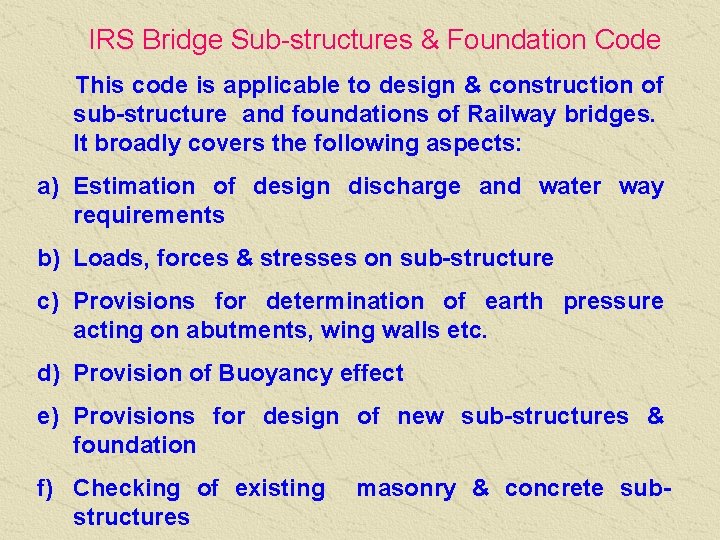

IRS Bridge Sub-structures & Foundation Code This code is applicable to design & construction of sub-structure and foundations of Railway bridges. It broadly covers the following aspects: a) Estimation of design discharge and water way requirements b) Loads, forces & stresses on sub-structure c) Provisions for determination of earth pressure acting on abutments, wing walls etc. d) Provision of Buoyancy effect e) Provisions for design of new sub-structures & foundation f) Checking of existing structures masonry & concrete sub-

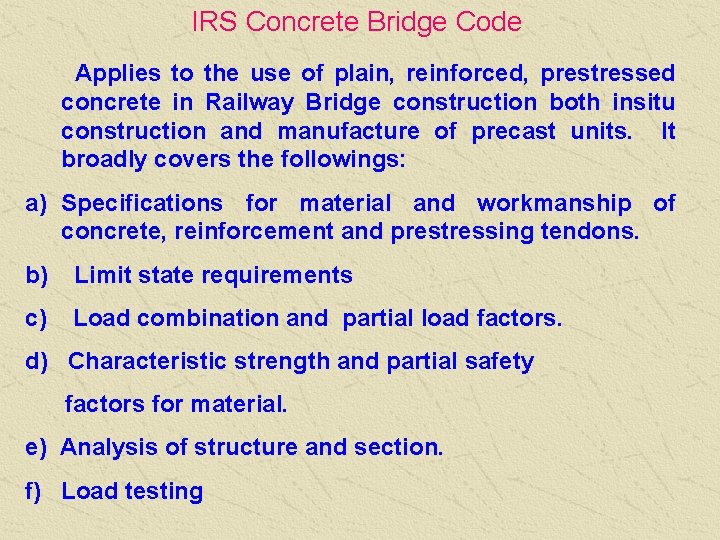

IRS Concrete Bridge Code Applies to the use of plain, reinforced, prestressed concrete in Railway Bridge construction both insitu construction and manufacture of precast units. It broadly covers the followings: a) Specifications for material and workmanship of concrete, reinforcement and prestressing tendons. b) Limit state requirements c) Load combination and partial load factors. d) Characteristic strength and partial safety factors for material. e) Analysis of structure and section. f) Load testing

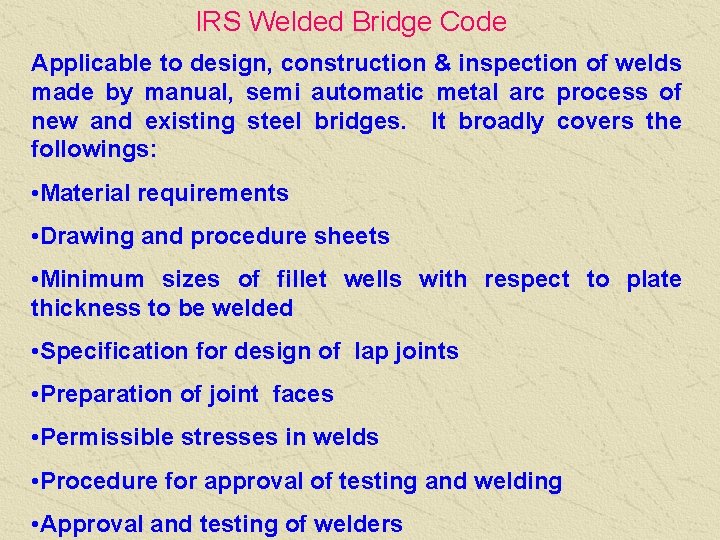

IRS Welded Bridge Code Applicable to design, construction & inspection of welds made by manual, semi automatic metal arc process of new and existing steel bridges. It broadly covers the followings: • Material requirements • Drawing and procedure sheets • Minimum sizes of fillet wells with respect to plate thickness to be welded • Specification for design of lap joints • Preparation of joint faces • Permissible stresses in welds • Procedure for approval of testing and welding • Approval and testing of welders

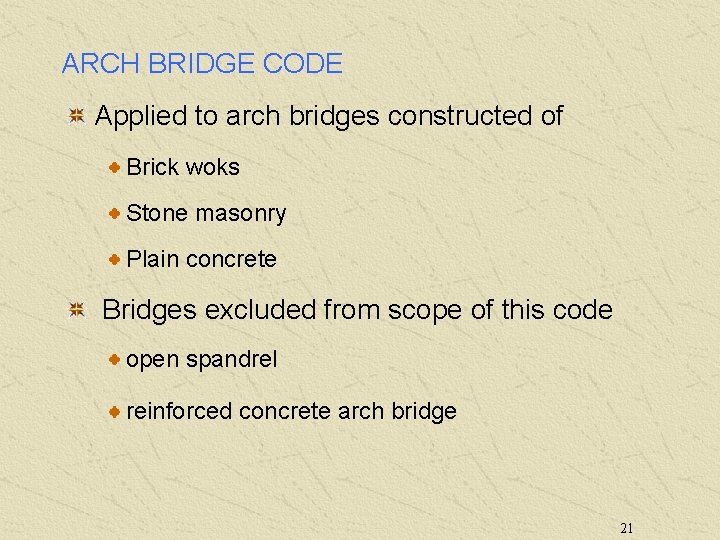

ARCH BRIDGE CODE Applied to arch bridges constructed of Brick woks Stone masonry Plain concrete Bridges excluded from scope of this code open spandrel reinforced concrete arch bridge 21

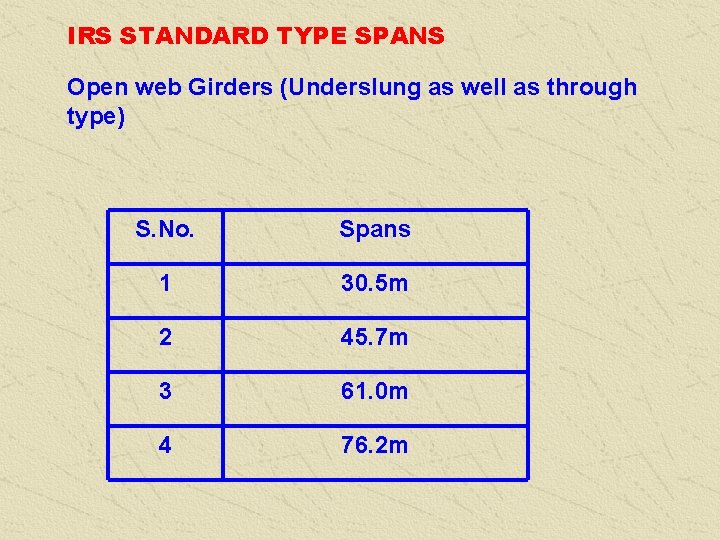

IRS STANDARD TYPE SPANS Open web Girders (Underslung as well as through type) S. No. Spans 1 30. 5 m 2 45. 7 m 3 61. 0 m 4 76. 2 m

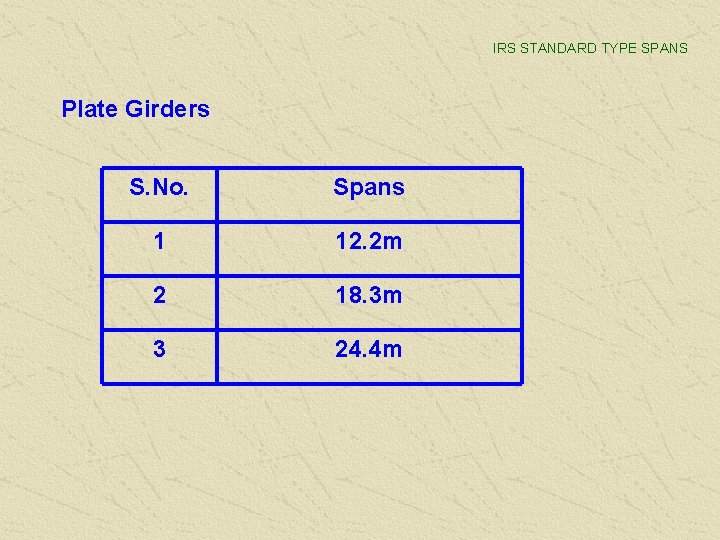

IRS STANDARD TYPE SPANS Plate Girders S. No. Spans 1 12. 2 m 2 18. 3 m 3 24. 4 m

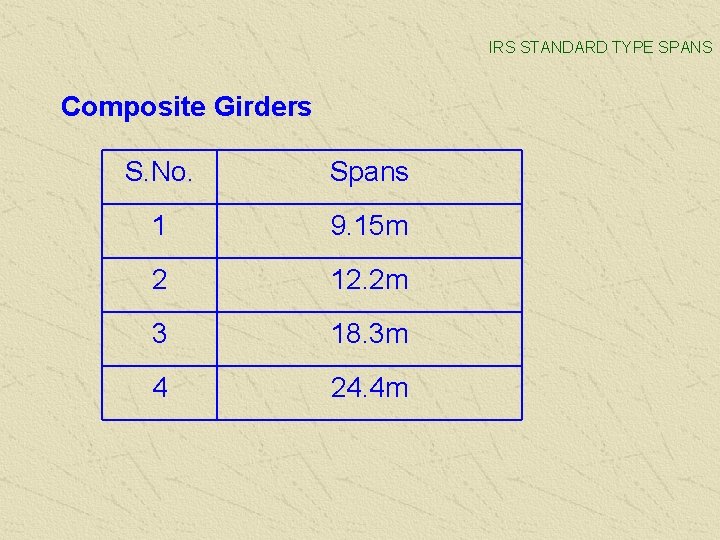

IRS STANDARD TYPE SPANS Composite Girders S. No. Spans 1 9. 15 m 2 12. 2 m 3 18. 3 m 4 24. 4 m

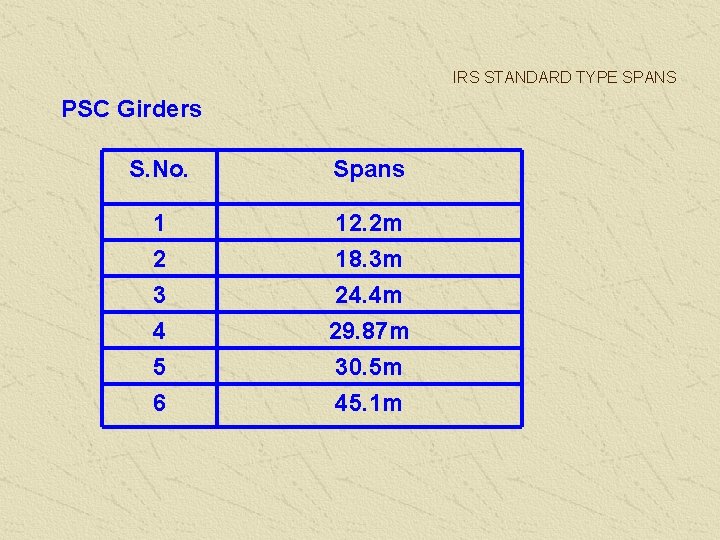

IRS STANDARD TYPE SPANS PSC Girders S. No. Spans 1 2 12. 2 m 18. 3 m 3 24. 4 m 4 5 6 29. 87 m 30. 5 m 45. 1 m

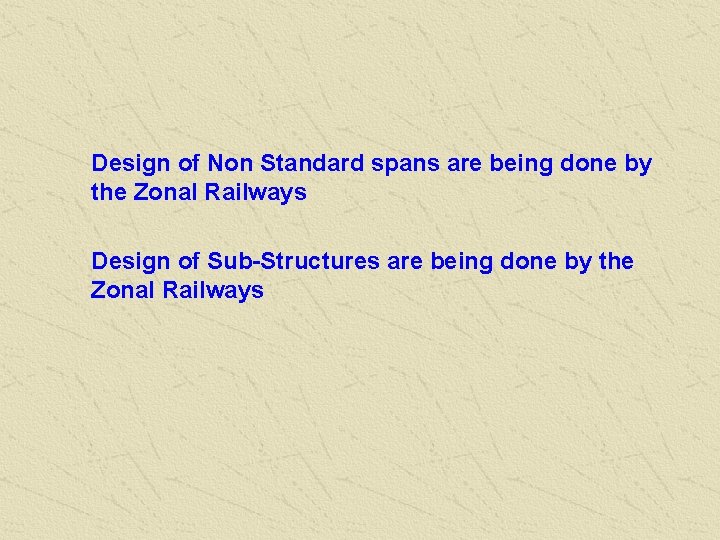

Design of Non Standard spans are being done by the Zonal Railways Design of Sub-Structures are being done by the Zonal Railways

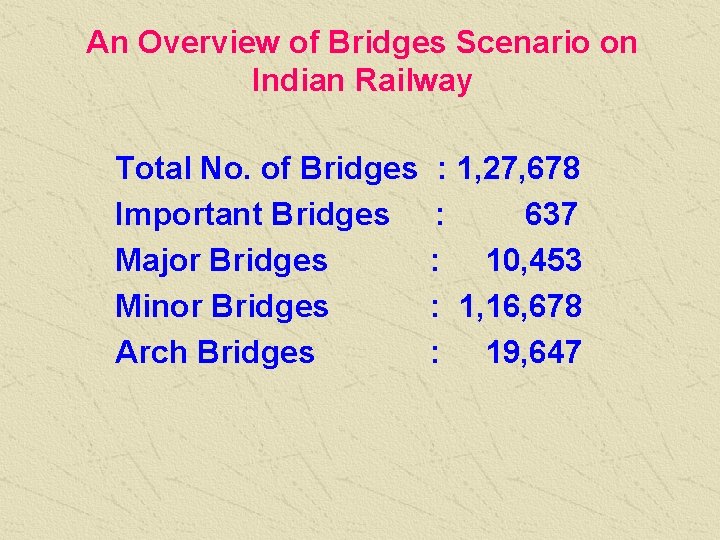

An Overview of Bridges Scenario on Indian Railway Total No. of Bridges Important Bridges Major Bridges Minor Bridges Arch Bridges : 1, 27, 678 : 637 : 10, 453 : 1, 16, 678 : 19, 647

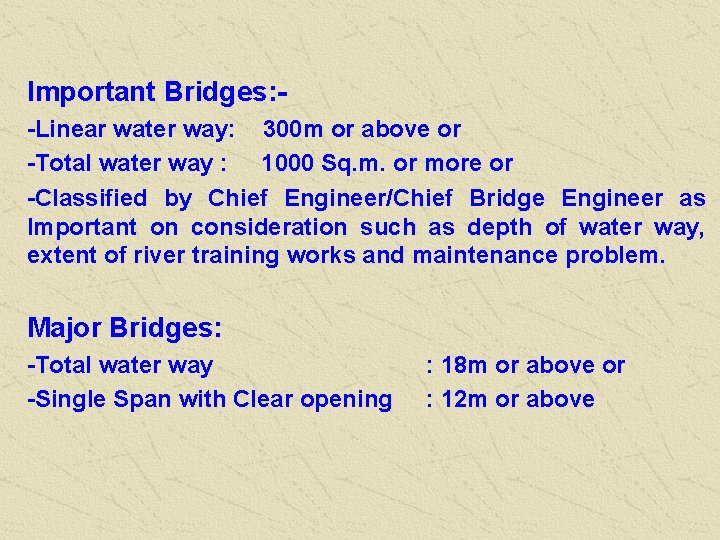

Important Bridges: -Linear water way: 300 m or above or -Total water way : 1000 Sq. m. or more or -Classified by Chief Engineer/Chief Bridge Engineer as Important on consideration such as depth of water way, extent of river training works and maintenance problem. Major Bridges: -Total water way -Single Span with Clear opening : 18 m or above or : 12 m or above

Thank You
