Variables in C Topics Naming Variables Declaring Variables
![Variables in C Topics • • Naming Variables Declaring Variables Using Variables The Assignment Variables in C Topics • • Naming Variables Declaring Variables Using Variables The Assignment](https://slidetodoc.com/presentation_image_h2/036d06ea04092e4a705f5e6d67ad7296/image-1.jpg)
Variables in C Topics • • Naming Variables Declaring Variables Using Variables The Assignment Statement Reading • Sections 2. 3 - 2. 4 CMSC 104, Version 9/01 1
![What Are Variables in C? • Variables in C have the same meaning as What Are Variables in C? • Variables in C have the same meaning as](http://slidetodoc.com/presentation_image_h2/036d06ea04092e4a705f5e6d67ad7296/image-2.jpg)
What Are Variables in C? • Variables in C have the same meaning as variables in algebra. That is, they represent some unknown, or variable, value. x=a+b z + 2 = 3(y - 5) • Remember that variables in algebra are represented by a single alphabetic character. CMSC 104, Version 9/01 2
![Naming Variables • Variables in C may be given representations containing multiple characters. But Naming Variables • Variables in C may be given representations containing multiple characters. But](http://slidetodoc.com/presentation_image_h2/036d06ea04092e4a705f5e6d67ad7296/image-3.jpg)
Naming Variables • Variables in C may be given representations containing multiple characters. But there are rules for these representations. • Variable names in C o o May only consist of letters, digits, and underscores May be as long as you like, but only the first 31 characters are significant May not begin with a number May not be a C reserved word (keyword) CMSC 104, Version 9/01 3
![Reserved Words (Keywords) in C • • auto case const default double enum float Reserved Words (Keywords) in C • • auto case const default double enum float](http://slidetodoc.com/presentation_image_h2/036d06ea04092e4a705f5e6d67ad7296/image-4.jpg)

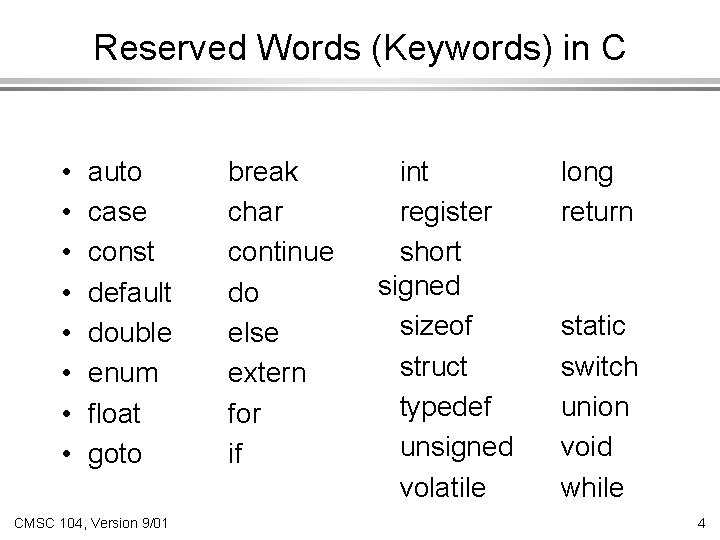

Reserved Words (Keywords) in C • • auto case const default double enum float goto CMSC 104, Version 9/01 break char continue do else extern for if int register short signed sizeof struct typedef unsigned volatile long return static switch union void while 4
![Naming Conventions • C programmers generally agree on the following conventions for naming variables. Naming Conventions • C programmers generally agree on the following conventions for naming variables.](http://slidetodoc.com/presentation_image_h2/036d06ea04092e4a705f5e6d67ad7296/image-5.jpg)
Naming Conventions • C programmers generally agree on the following conventions for naming variables. o o o Begin variable names with lowercase letters Use meaningful identifiers Separate “words” within identifiers with underscores or mixed upper and lower case. Examples: surface. Area surface_area Be consistent! CMSC 104, Version 9/01 5
![Naming Conventions (con’t) • Use all uppercase for symbolic constants (used in #define preprocessor Naming Conventions (con’t) • Use all uppercase for symbolic constants (used in #define preprocessor](http://slidetodoc.com/presentation_image_h2/036d06ea04092e4a705f5e6d67ad7296/image-6.jpg)

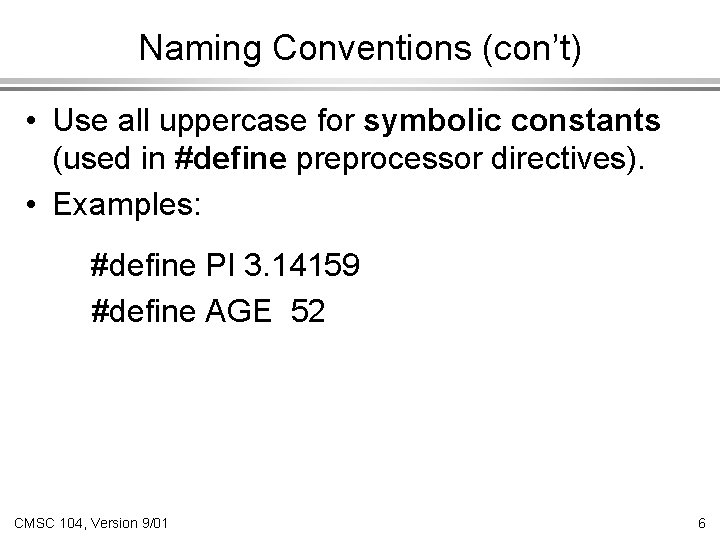

Naming Conventions (con’t) • Use all uppercase for symbolic constants (used in #define preprocessor directives). • Examples: #define PI 3. 14159 #define AGE 52 CMSC 104, Version 9/01 6
![Case Sensitivity • C is case sensitive o o It matters whether an identifier, Case Sensitivity • C is case sensitive o o It matters whether an identifier,](http://slidetodoc.com/presentation_image_h2/036d06ea04092e4a705f5e6d67ad7296/image-7.jpg)
Case Sensitivity • C is case sensitive o o It matters whether an identifier, such as a variable name, is uppercase or lowercase. Example: area AREA Ar. Ea are all seen as different variables by the compiler. CMSC 104, Version 9/01 7
![Which Are Legal Identifiers? AREA 3 D Last-Chance x_yt 3 num$ lucky*** CMSC 104, Which Are Legal Identifiers? AREA 3 D Last-Chance x_yt 3 num$ lucky*** CMSC 104,](http://slidetodoc.com/presentation_image_h2/036d06ea04092e4a705f5e6d67ad7296/image-8.jpg)
Which Are Legal Identifiers? AREA 3 D Last-Chance x_yt 3 num$ lucky*** CMSC 104, Version 9/01 area_under_the_curve num 45 #values pi %done 8
![Declaring Variables • Before using a variable, you must give the compiler some information Declaring Variables • Before using a variable, you must give the compiler some information](http://slidetodoc.com/presentation_image_h2/036d06ea04092e4a705f5e6d67ad7296/image-9.jpg)
Declaring Variables • Before using a variable, you must give the compiler some information about the variable; i. e. , you must declare it. • The declaration statement includes the data type of the variable. • Examples of variable declarations: int meatballs ; float area ; CMSC 104, Version 9/01 9
![Declaring Variables (con’t) • When we declare a variable o o o Space is Declaring Variables (con’t) • When we declare a variable o o o Space is](http://slidetodoc.com/presentation_image_h2/036d06ea04092e4a705f5e6d67ad7296/image-10.jpg)

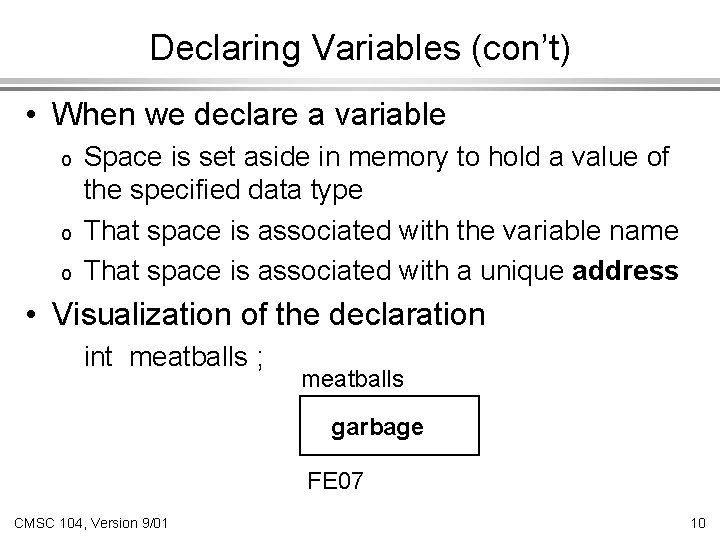

Declaring Variables (con’t) • When we declare a variable o o o Space is set aside in memory to hold a value of the specified data type That space is associated with the variable name That space is associated with a unique address • Visualization of the declaration int meatballs ; meatballs garbage FE 07 CMSC 104, Version 9/01 10
![More About Variables C has three basic predefined data types: • Integers (whole numbers) More About Variables C has three basic predefined data types: • Integers (whole numbers)](http://slidetodoc.com/presentation_image_h2/036d06ea04092e4a705f5e6d67ad7296/image-11.jpg)

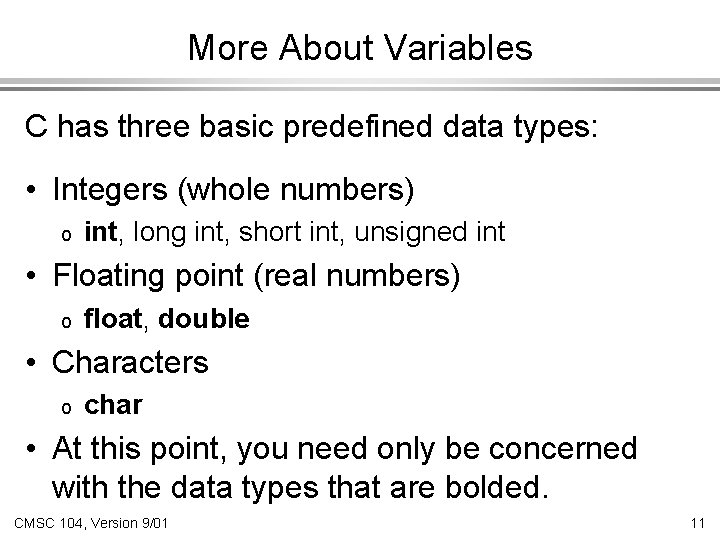

More About Variables C has three basic predefined data types: • Integers (whole numbers) o int, long int, short int, unsigned int • Floating point (real numbers) o float, double • Characters o char • At this point, you need only be concerned with the data types that are bolded. CMSC 104, Version 9/01 11
![Using Variables: Initialization • Variables may be be given initial values, or initialized, when Using Variables: Initialization • Variables may be be given initial values, or initialized, when](http://slidetodoc.com/presentation_image_h2/036d06ea04092e4a705f5e6d67ad7296/image-12.jpg)

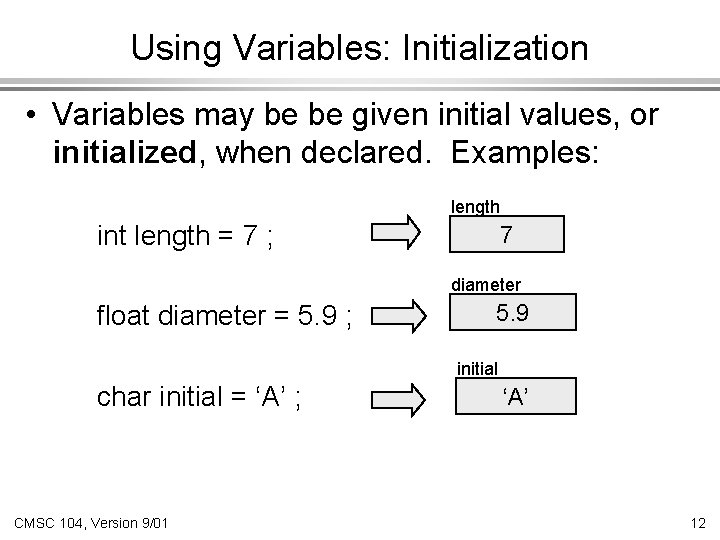

Using Variables: Initialization • Variables may be be given initial values, or initialized, when declared. Examples: length int length = 7 ; 7 diameter float diameter = 5. 9 ; 5. 9 initial char initial = ‘A’ ; CMSC 104, Version 9/01 ‘A’ 12
![Using Variables: Initialization (con’t) • Do not “hide” the initialization o o o put Using Variables: Initialization (con’t) • Do not “hide” the initialization o o o put](http://slidetodoc.com/presentation_image_h2/036d06ea04092e4a705f5e6d67ad7296/image-13.jpg)

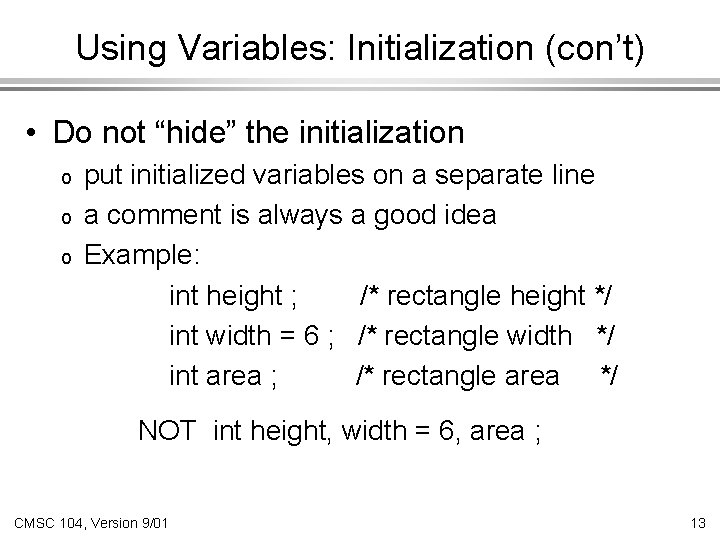

Using Variables: Initialization (con’t) • Do not “hide” the initialization o o o put initialized variables on a separate line a comment is always a good idea Example: int height ; /* rectangle height */ int width = 6 ; /* rectangle width */ int area ; /* rectangle area */ NOT int height, width = 6, area ; CMSC 104, Version 9/01 13
![Using Variables: Assignment • Variables may have values assigned to them through the use Using Variables: Assignment • Variables may have values assigned to them through the use](http://slidetodoc.com/presentation_image_h2/036d06ea04092e4a705f5e6d67ad7296/image-14.jpg)
Using Variables: Assignment • Variables may have values assigned to them through the use of an assignment statement. • Such a statement uses the assignment operator = • This operator does not denote equality. It assigns the value of the righthand side of the statement (the expression) to the variable on the lefthand side. • Examples: diameter = 5. 9 ; area = length * width ; Note that only single variables may appear on the lefthand side of the assignment operator. CMSC 104, Version 9/01 14
![Example: Declarations and Assignments #include <stdio. h> inches int main( ) { int inches, Example: Declarations and Assignments #include <stdio. h> inches int main( ) { int inches,](http://slidetodoc.com/presentation_image_h2/036d06ea04092e4a705f5e6d67ad7296/image-15.jpg)

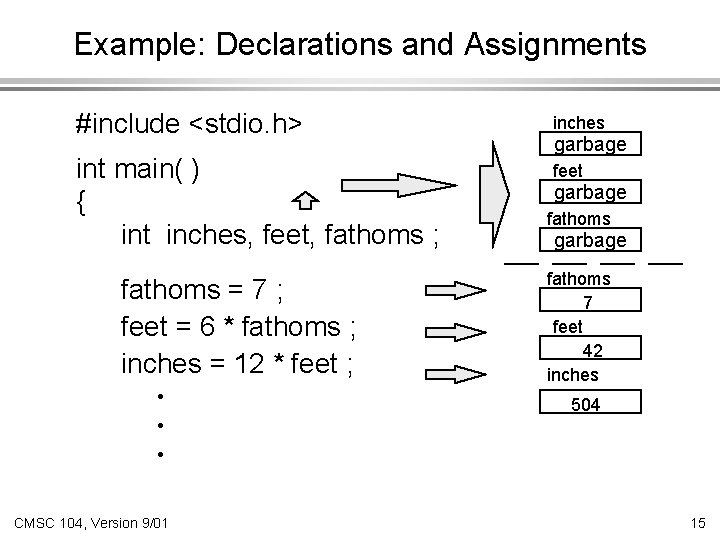

Example: Declarations and Assignments #include <stdio. h> inches int main( ) { int inches, feet, fathoms ; feet fathoms = 7 ; feet = 6 * fathoms ; inches = 12 * feet ; • • • CMSC 104, Version 9/01 garbage fathoms 7 feet 42 inches 504 15
![Example: Declarations and Assignments (cont’d) • • • printf (“Its depth at sea: n”) Example: Declarations and Assignments (cont’d) • • • printf (“Its depth at sea: n”)](http://slidetodoc.com/presentation_image_h2/036d06ea04092e4a705f5e6d67ad7296/image-16.jpg)
Example: Declarations and Assignments (cont’d) • • • printf (“Its depth at sea: n”) ; printf (“ %d fathoms n”, fathoms) ; printf (“ %d feet n”, feet) ; printf (“ %d inches n”, inches) ; } return 0 ; CMSC 104, Version 9/01 16
![Enhancing Our Example • What if the depth were really 5. 75 fathoms? Our Enhancing Our Example • What if the depth were really 5. 75 fathoms? Our](http://slidetodoc.com/presentation_image_h2/036d06ea04092e4a705f5e6d67ad7296/image-17.jpg)
Enhancing Our Example • What if the depth were really 5. 75 fathoms? Our program, as it is, couldn’t handle it. • Unlike integers, floating point numbers can contain decimal portions. So, let’s use floating point, rather than integer. • Let’s also ask the user to enter the number of fathoms, rather than “hard-coding” it in. CMSC 104, Version 9/01 17
![Enhanced Program #include <stdio. h> int main ( ) { float inches, feet, fathoms Enhanced Program #include <stdio. h> int main ( ) { float inches, feet, fathoms](http://slidetodoc.com/presentation_image_h2/036d06ea04092e4a705f5e6d67ad7296/image-18.jpg)
Enhanced Program #include <stdio. h> int main ( ) { float inches, feet, fathoms ; printf (“Enter the depth in fathoms : ”) ; scanf (“%f”, &fathoms) ; feet = 6 * fathoms ; inches = 12 * feet ; printf (“Its depth at sea: n”) ; printf (“ %f fathoms n”, fathoms) ; printf (“ %f feet n”, feet) ; printf (“ %f inches n”, inches) ; return 0 ; } CMSC 104, Version 9/01 18
![Final “Clean” Program #include <stdio. h> int main( ) { float inches ; /* Final “Clean” Program #include <stdio. h> int main( ) { float inches ; /*](http://slidetodoc.com/presentation_image_h2/036d06ea04092e4a705f5e6d67ad7296/image-19.jpg)

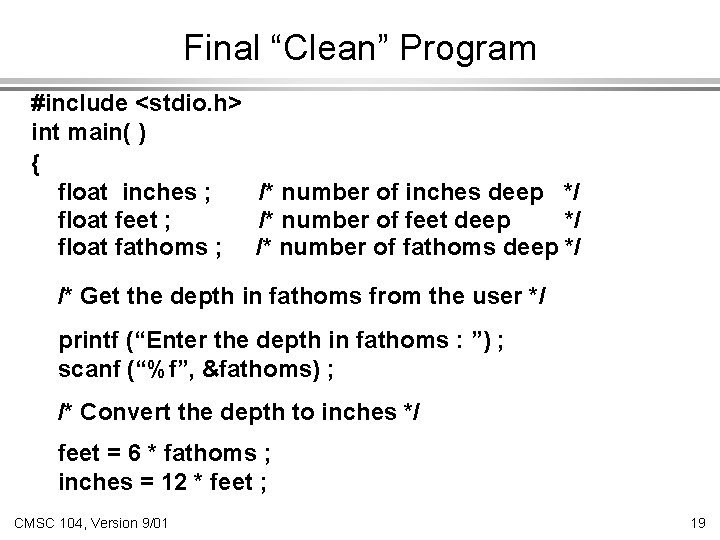

Final “Clean” Program #include <stdio. h> int main( ) { float inches ; /* number of inches deep */ float feet ; /* number of feet deep */ float fathoms ; /* number of fathoms deep */ /* Get the depth in fathoms from the user */ printf (“Enter the depth in fathoms : ”) ; scanf (“%f”, &fathoms) ; /* Convert the depth to inches */ feet = 6 * fathoms ; inches = 12 * feet ; CMSC 104, Version 9/01 19
![Final “Clean” Program (con’t) /* Display the results */ printf (“Its depth at sea: Final “Clean” Program (con’t) /* Display the results */ printf (“Its depth at sea:](http://slidetodoc.com/presentation_image_h2/036d06ea04092e4a705f5e6d67ad7296/image-20.jpg)
Final “Clean” Program (con’t) /* Display the results */ printf (“Its depth at sea: n”) ; printf (“ %f fathoms n”, fathoms) ; printf (“ %f feet n”, feet); printf (“ %f inches n”, inches); return 0 ; } CMSC 104, Version 9/01 20
![Good Programming Practices • Place each variable declaration on its own line with a Good Programming Practices • Place each variable declaration on its own line with a](http://slidetodoc.com/presentation_image_h2/036d06ea04092e4a705f5e6d67ad7296/image-21.jpg)
Good Programming Practices • Place each variable declaration on its own line with a descriptive comment. • Place a comment before each logical “chunk” of code describing what it does. • Do not place a comment on the same line as code (with the exception of variable declarations). • Use spaces around all arithmetic and assignment operators. • Use blank lines to enhance readability. CMSC 104, Version 9/01 21
![Good Programming Practices (con’t) • Place a blank line between the last variable declaration Good Programming Practices (con’t) • Place a blank line between the last variable declaration](http://slidetodoc.com/presentation_image_h2/036d06ea04092e4a705f5e6d67ad7296/image-22.jpg)

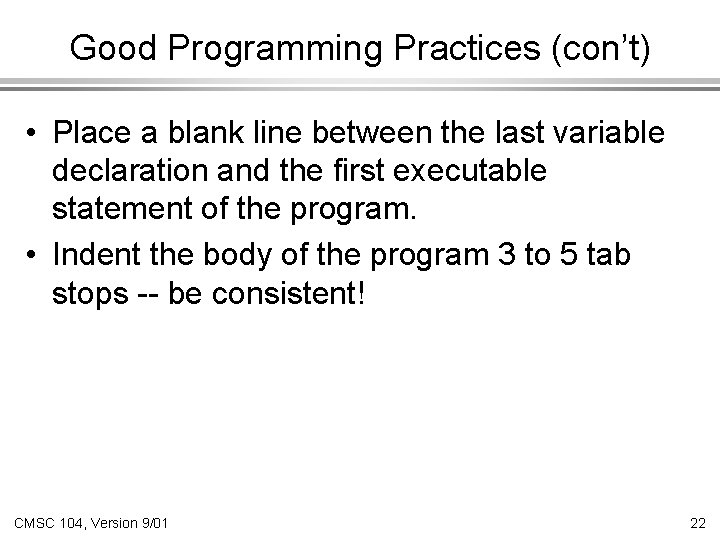

Good Programming Practices (con’t) • Place a blank line between the last variable declaration and the first executable statement of the program. • Indent the body of the program 3 to 5 tab stops -- be consistent! CMSC 104, Version 9/01 22
