Vantage Report 3 0 Product Sales Guide Yvonne

Vantage Report 3. 0 Product Sales Guide Yvonne Wu Product Marketing & Management Network Security & Application Division Zy. XEL Communications Corp. Sept 03, 2006

Agenda § Overview § Positioning § Key Feature § Benefit § License & SKU § Where to get VRPT 3. 0 § Application Scenario • Architecture • Application Scenario PSG_ Security (VRPT 2. 3) – Page 2 All rights reserved © 2005, Zy. XEL

Overview § VRPT is a cost-effective solution that allows the administrator from any location to easily monitor and analyze report of Zy. XEL devices § It delivers rich formats of statistical report for IT staff to have a thorough understanding about bandwidth usage, security event and web traffic analysis § With Vantage Report 3. 0, IT staff can easily monitor network traffic/security event and anticipate future bandwidth usage PSG_ Security (VRPT 2. 3) – Page 3 All rights reserved © 2005, Zy. XEL

VRPT Positioning § A Centralized Reporting System • Quickly and conveniently collect and/or analyze log originated by Zy. XEL devices across distributed networks § Easy-to-Use • Provides IT staff a simple method to monitor/analyze the associated Zy. XEL device and log PSG_ Security (VRPT 2. 3) – Page 4 All rights reserved © 2005, Zy. XEL

Key Features of VRPT 3. 0 1 High capacity management 2 Identify security events occurred 3 Comprehensive Set of Graphical Reports 4 Executed Dashboard 5 Customized report template 6 Hostname reverse and Zy. WALL 1050 user aware PSG_ Security (VRPT 2. 3) – Page 5 All rights reserved © 2005, Zy. XEL

1 High capacity management § Model List Please check latest device support list on Zy. XEL website • All Zy. WALL Series (Zy. NOS v 3. 62 and later) • Zy. WALL IDP 10 (v 2. 00) • Zy. WALL 1050(v 1. 01) New – Only support in Full version § Capacity • Up to 100 devices support • 1500 logs/second PSG_ Security (VRPT 2. 3) – Page 6 All rights reserved © 2005, Zy. XEL New

2 Identify Security Events § Attack Report § § § • Analyze security events originated by Zy. WALL devices Intrusion report • Identify and analyze security events triggered by intrusion detection and prevention system Anti-Virus report • Identify and analyze security events triggered by virus-scanning engine Anti-Spam report • Identify and analyze security events triggered by spam mail rating mechanism Web Filter Report • Identify the status of web access policy compliance Authentication Report • Report for login failure and success PSG_ Security (VRPT 2. 3) – Page 7 All rights reserved © 2005, Zy. XEL

3 Comprehensive Set of Graphical Reports § Real time Monitor Report • • • Bandwidth WEB, Email, FTP and VPN traffic UTM (Firewall, Virus, Spam, Intrusion) PSG_ Security (VRPT 2. 3) – Page 8 All rights reserved © 2005, Zy. XEL

3 Comprehensive Set of Graphical Reports § Historical Reports • • • Traffic Reports – Bandwidth – WEB, Email, FTP and VPN traffic Network Attacks Report – UTM (Firewall, Virus, Spam, Intrusion) Security Policy Report – Web Filter – Authentication § Top N Reports: • • w e N w • Ne Summary Top-10 hosts (source) Top-10 sites (destination) Top-10 hostname Top-10 user (only for ZW 1050) PSG_ Security (VRPT 2. 3) – Page 9 All rights reserved © 2005, Zy. XEL

4 Executive Dashboard New § Provides a quick and top level summary of activity across firewalls § Giving the option to easily drill down to generate instant reports on any area of interest PSG_ Security (VRPT 2. 3) – Page 10 All rights reserved © 2005, Zy. XEL

5 Customized Schedule Report Template § Vantage Report supports customized report template § Template format • Template name • Template Title • Template logo § Scheduling reports by Email • Daily • Weekly § Up to 500 scheduling profiles § Report Format • HTML • PDF PSG_ Security (VRPT 2. 3) – Page 11 All rights reserved © 2005, Zy. XEL New

New Hostname Reverse and 6 Zy. WALL 1050 User Aware § Support ZW 1050 user aware feature and reverse IP to hostname § Organizations to analyze employ behavior , ensure high employee productivity PSG_ Security (VRPT 2. 3) – Page 12 All rights reserved © 2005, Zy. XEL

Benefits § Availability • Simple and direct method of monitoring multiple Zy. WALL Internet security and IDP appliances. § Easier and quicker and tracking network activity • Enabling to be aware of suspicious activity and to ensure high employee productivity. • Offers administrator a quicker view of network healthy and log analysis of important device. § Create MSSP business • Easily manage and troubleshoot for customer device remotely • Easily provide customized reports to your customers daily or weekly § Lower TCO for supporting multiple devices PSG_ Security (VRPT 2. 3) – Page 13 All rights reserved © 2005, Zy. XEL

Application Scenario

Architecture 1. Login Vantage Report and add device 2. Configure Zyw. ALL to send syslog to Vantage Report 3. Vantage Report receives syslog data and store in database. 4. Vantage Report server generates the report per client’s request accordingly. Online Query from Client with IE Zy. WALL Branch A IDP 10 Branch B Zy. WALL 1050 Branch B PSG_ Security (VRPT 2. 3) – Page 15 All rights reserved © 2005, Zy. XEL Syslog Search Internet Syslog Retrieve Vantage Report with syslog svr.

Application Scenario 1. Configure email address of Vantage Report Users 2. Configure customized schedule reports (Daily, Weekly & Overtime Report) on VRPT and set destination E-mail address 3. The report is sent to corresponded email address accordingly Internet Vantage Report Server PSG_ Security (VRPT 2. 3) – Page 16 All rights reserved © 2005, Zy. XEL

License & SKU Install -- Basic Function • Same as VRPT 2. 2 Enable Trial -- Full Function • VRPT 2. 2 + UTM report+ ZW 1050 report • 1 month trial Trial Expired -- Back to Basic Function • Same as VRPT 2. 2 1 device Enable License -- Full Function -- no time limitation 5 devices -- Full Function -- no time limitation 25 devices -- Full Function -- no time limitation 100 device -- Full Function -- no time limitation PSG_ Security (VRPT 2. 3) – Page 17 All rights reserved © 2005, Zy. XEL Enable License

Matrix of Basic/Full Feature Set Basic Full Web Filter Report Yes Attack Report Yes Intrusion Report for IDP 10 Yes Intrusion Report for Zy. WALL No Yes Anti. Virus Report No Yes Anti. Spam Report No Yes Authentication Report Yes Schedule report No Yes Log Viewer Yes PSG_ Security (VRPT 2. 3) – Page 18 All rights reserved © 2005, Zy. XEL UTM

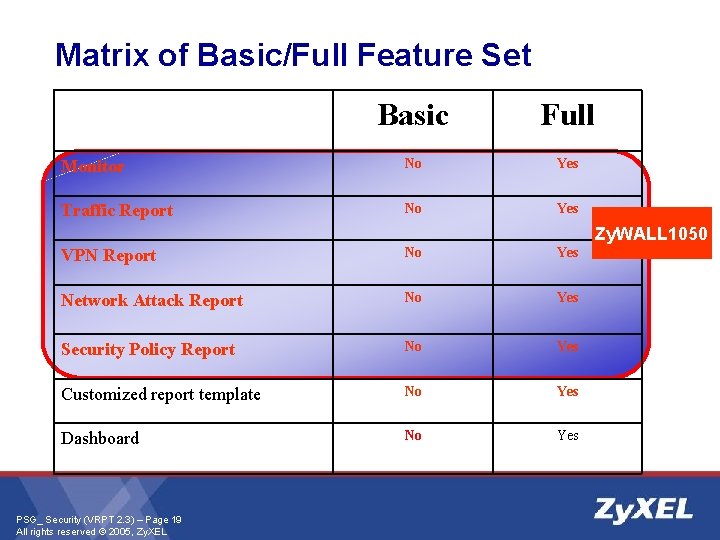

Matrix of Basic/Full Feature Set Basic Full Monitor No Yes Traffic Report No Yes Zy. WALL 1050 VPN Report No Yes Network Attack Report No Yes Security Policy Report No Yes Customized report template No Yes Dashboard No Yes PSG_ Security (VRPT 2. 3) – Page 19 All rights reserved © 2005, Zy. XEL

License & SKUs § After software installation, basic functions as VRPT 2. 2 are available by default (1 node with STD feature) § PRO feature (1 node) are available after activating trial; Trial period is 30 -days. § When trial expires, VRPT falls back to basic (STD) function § License upgrade to PRO function without time limitation § VRPT 3. 0 Standard Pack: 4 SKUs: 1, 5, 25, 100 nodes. • People who want to use “Full” features or want to manage more than 1 -device § VRPT 3. 0 Trial Pack • For distributor, who wants to distribute (promote) in exhibition PSG_ Security (VRPT 2. 3) – Page 20 All rights reserved © 2005, Zy. XEL

Where to get VRPT 3. 0 § 1. Standard License Pack – 1, 5, 25, 100 devices SKU • Package: 1 CD + 1 License key + 1 QSG § 2. Trial Pack for promotion, physical demo • Package: 1 CD + 1 QSG § 3. Download Library • Package: No package § 4. Software CD in Zy. WALL package • Package: 1 CD PSG_ Security (VRPT 2. 3) – Page 21 All rights reserved © 2005, Zy. XEL
