Valves Systems Total Hydronic Balancing Comfort and Energy

Valves + Systems Total Hydronic Balancing Comfort and Energy Savings for Heating and Cooling Systems

Valves + Systems German Engineered Quality and Value Application Guides Electrothermal Actuators Non Electric Actuators Distribution Pressure Activated Bypass Stations Zone Valves Balancing Valves Thermostatic Radiator Valves Diverting and Mixing Valves

Products and Applications Energy Saving Integrated Packages Mechanical Systems for the 21 st Century Energy Efficient Hydronic Heating & Cooling Balancing Energy Solar Energy Award Winning Quality and Value Administration Building in Melbourne, Australia European Parliament In Strasbourg, France

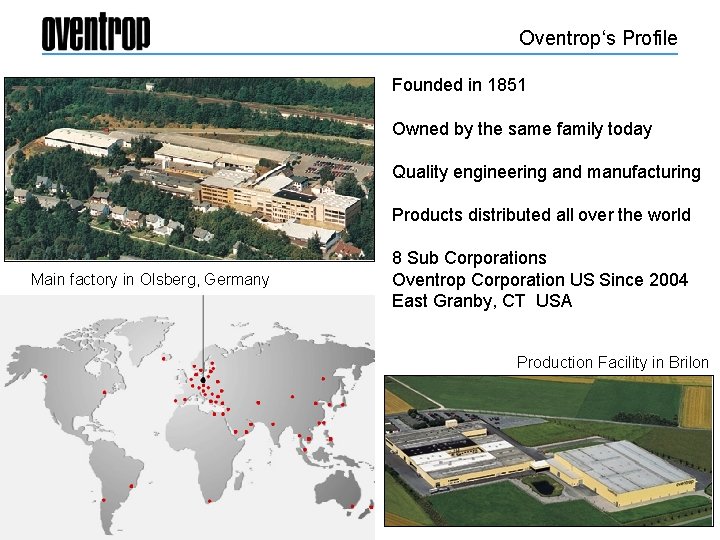

Oventrop‘s Profile Founded in 1851 Owned by the same family today Quality engineering and manufacturing Products distributed all over the world Main factory in Olsberg, Germany 8 Sub Corporations Oventrop Corporation US Since 2004 East Granby, CT USA Production Facility in Brilon

Design Awards for Excellence Good design means excellent quality and good value North Rhine Westfalia Industrial Forum Design Hannover Design Centre Essen German Institute for Copper Berlin Pragotherm Prague Design Laboratory Hamburg Design Museum London

Oventrop Radiator Valves and Thermostatic Operators Unique and Quality Components

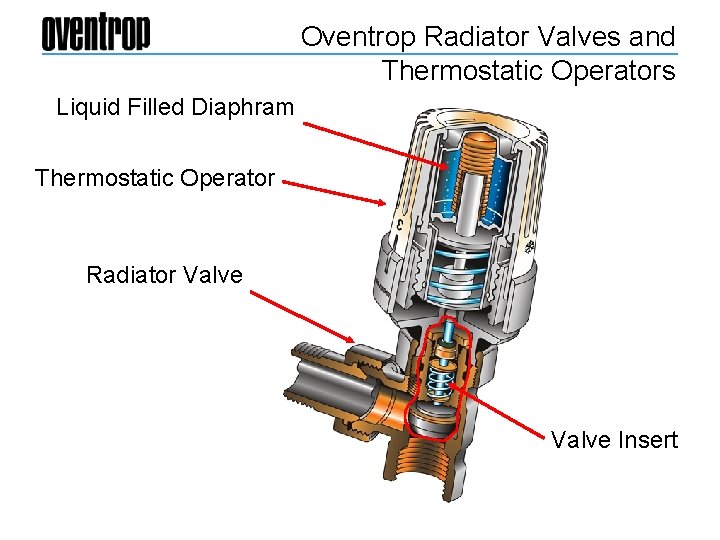

Oventrop Radiator Valves and Thermostatic Operators Liquid Filled Diaphram Thermostatic Operator Radiator Valve Insert

Liquid filled diaphram • hand calibrated Oventrop Radiator Valves and Thermostatic Operators Expand- Close Contract- Open Thermostat Radiator Valve Connection connection M 30 x 1. 5 Closed- no flow Open- modulating flow

Oventrop Radiator Valves and Thermostatic Operators • Standard model Uni XH and Uni XD • Appearance Uni LH • Compact Vindo • Slow Reaction Uni DH • Exclusive Uni SH • Lockshield Uni LBH • Electronic R-Tronic • Remote Control Uni FH and Uni FD

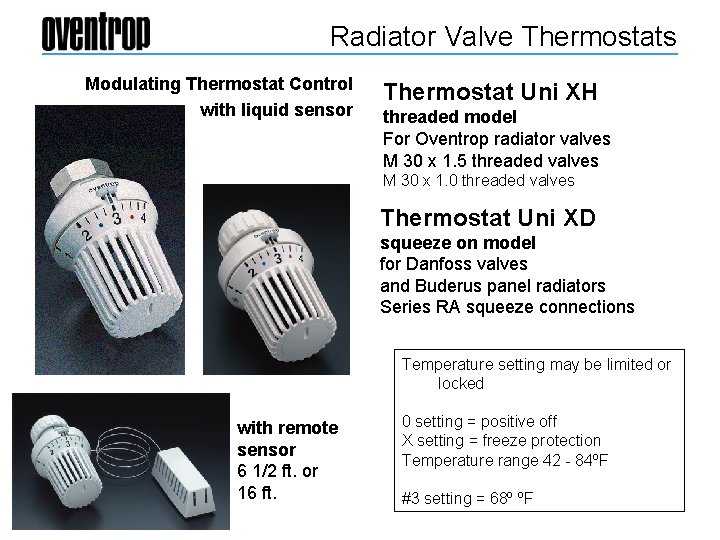

Radiator Valve Thermostats Modulating Thermostat Control with liquid sensor Thermostat Uni XH threaded model For Oventrop radiator valves M 30 x 1. 5 threaded valves M 30 x 1. 0 threaded valves Thermostat Uni XD squeeze on model for Danfoss valves and Buderus panel radiators Series RA squeeze connections Temperature setting may be limited or locked with remote sensor 6 1/2 ft. or 16 ft. 0 setting = positive off X setting = freeze protection Temperature range 42 - 84ºF #3 setting = 68º ºF

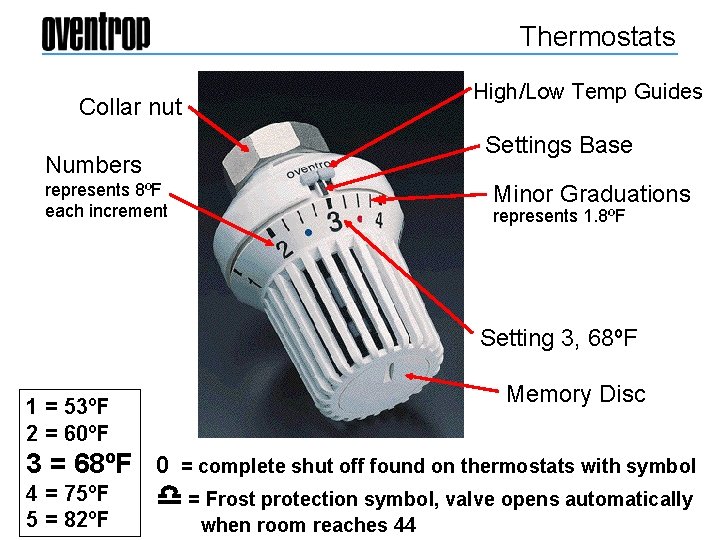

Thermostats High/Low Temp Guides Collar nut Settings Base Numbers represents 8ºF each increment Minor Graduations represents 1. 8ºF Setting 3, 68ºF Memory Disc 1 = 53ºF 2 = 60ºF 3 = 68ºF 0 = complete shut off found on thermostats with symbol 4 = 75ºF = Frost protection symbol, valve opens automatically 5 = 82ºF when room reaches 44

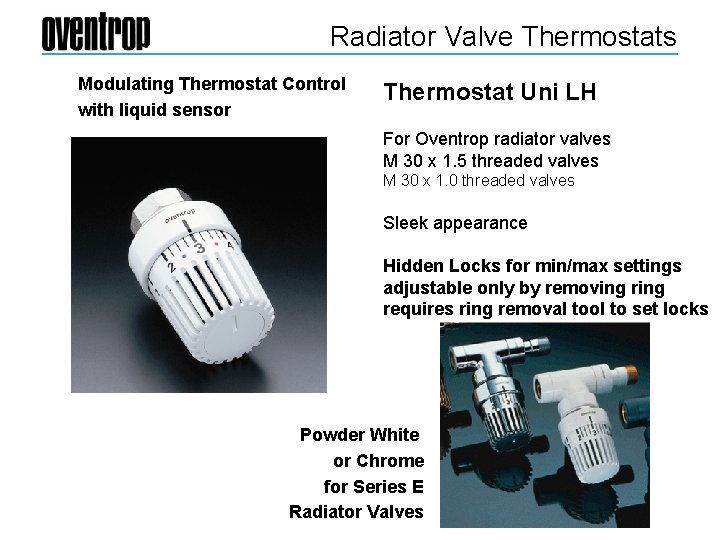

Radiator Valve Thermostats Modulating Thermostat Control with liquid sensor Thermostat Uni LH For Oventrop radiator valves M 30 x 1. 5 threaded valves M 30 x 1. 0 threaded valves Sleek appearance Hidden Locks for min/max settings adjustable only by removing requires ring removal tool to set locks Powder White or Chrome for Series E Radiator Valves

Radiator Valve Thermostats Modulating Thermostat Control with liquid sensor Thermostat Vindo M 30 x 1. 5 threaded or Squeeze connection Sleek appearance Economical Benefits • Compact • lockable • limitable

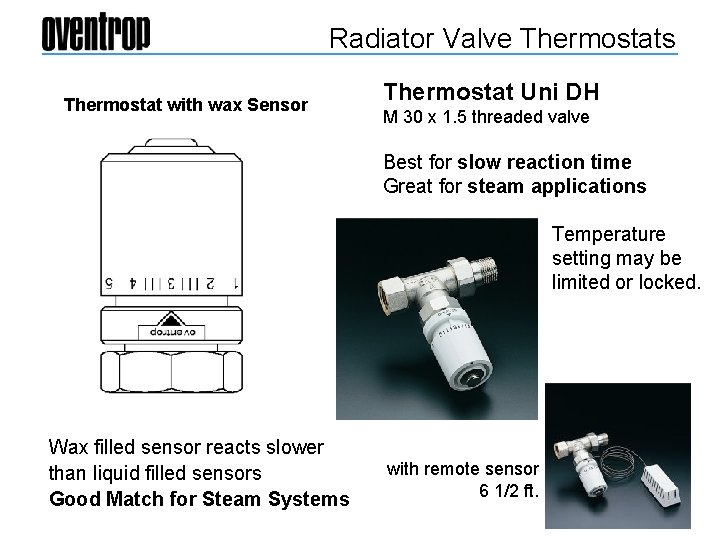

Radiator Valve Thermostats Thermostat with wax Sensor Thermostat Uni DH M 30 x 1. 5 threaded valve Best for slow reaction time Great for steam applications Temperature setting may be limited or locked. Wax filled sensor reacts slower than liquid filled sensors Good Match for Steam Systems with remote sensor 6 1/2 ft.

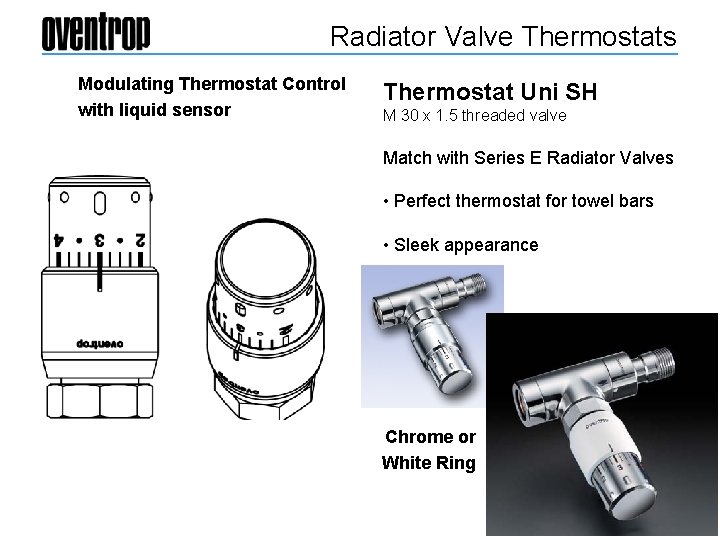

Radiator Valve Thermostats Modulating Thermostat Control with liquid sensor Thermostat Uni SH M 30 x 1. 5 threaded valve Match with Series E Radiator Valves • Perfect thermostat for towel bars • Sleek appearance Chrome or White Ring

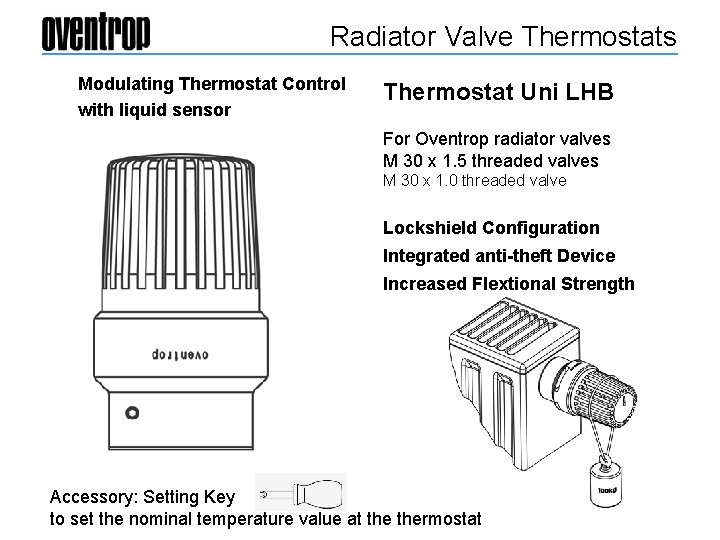

Radiator Valve Thermostats Modulating Thermostat Control with liquid sensor Thermostat Uni LHB For Oventrop radiator valves M 30 x 1. 5 threaded valves M 30 x 1. 0 threaded valve Lockshield Configuration Integrated anti-theft Device Increased Flextional Strength Accessory: Setting Key to set the nominal temperature value at thermostat

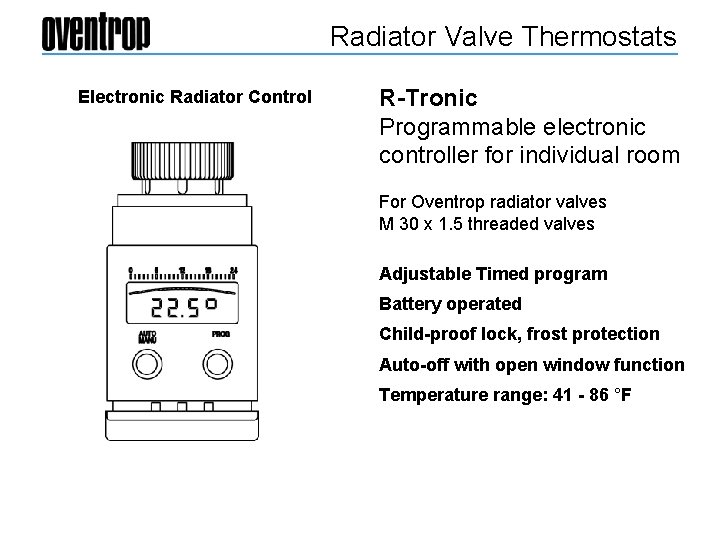

Radiator Valve Thermostats Electronic Radiator Control R-Tronic Programmable electronic controller for individual room For Oventrop radiator valves M 30 x 1. 5 threaded valves Adjustable Timed program Battery operated Child-proof lock, frost protection Auto-off with open window function Temperature range: 41 - 86 °F

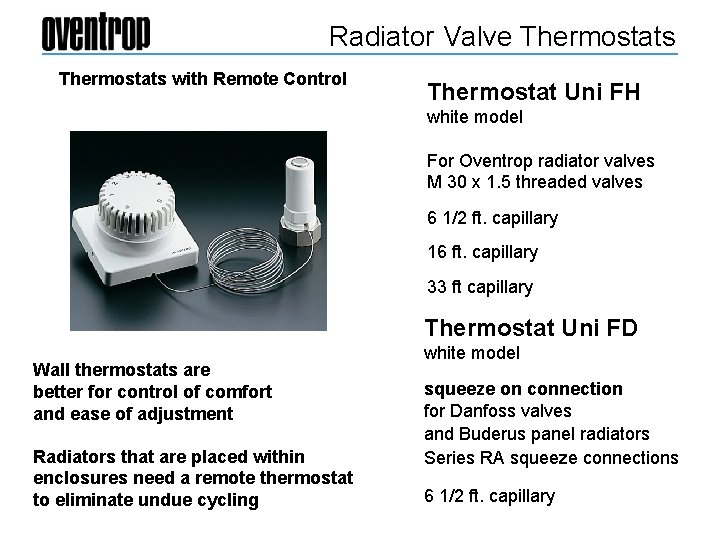

Radiator Valve Thermostats with Remote Control Thermostat Uni FH white model For Oventrop radiator valves M 30 x 1. 5 threaded valves 6 1/2 ft. capillary 16 ft. capillary 33 ft capillary Thermostat Uni FD Wall thermostats are better for control of comfort and ease of adjustment Radiators that are placed within enclosures need a remote thermostat to eliminate undue cycling white model squeeze on connection for Danfoss valves and Buderus panel radiators Series RA squeeze connections 6 1/2 ft. capillary

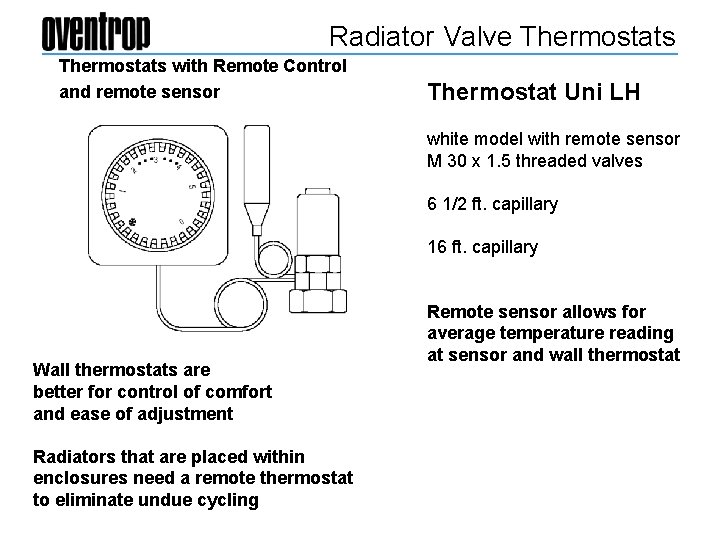

Radiator Valve Thermostats with Remote Control and remote sensor Thermostat Uni LH white model with remote sensor M 30 x 1. 5 threaded valves 6 1/2 ft. capillary 16 ft. capillary Wall thermostats are better for control of comfort and ease of adjustment Radiators that are placed within enclosures need a remote thermostat to eliminate undue cycling Remote sensor allows for average temperature reading at sensor and wall thermostat

Valves for Thermostats Series AZ Hot Water Radiator Valve • M 30 x 1. 5 threaded 30 mm diameter 1. 5 thread pitch • brass, nickel plated • highest Cv at 1. 28 These valves can be used with 4 types of actuators 1. Manual adjuster (included) 2. Thermostatic (non-electric) 3. Thermostatic remote capillary (non-electric) 4. 24 V electric for on/off control

Valves for Thermostats Series AZ Manual adjuster Valve Patterns Angle Pattern Valve Sizes: 1/2, 3/4, 1, 1 -1/4 inch Straight Pattern Valve Sizes: 1/2, 3/4, 1, 1 -1/4 inch Reverse Angle Pattern Angle Sizes: 1/2, 3/4 inch

Valves for Thermostats Series AZ Valve Patterns Double Angle Pattern: Thermostat extends from valve forward horizontally Double Angle Pattern Left 1/2 inch Double Angle Pattern Right 1/2 inch

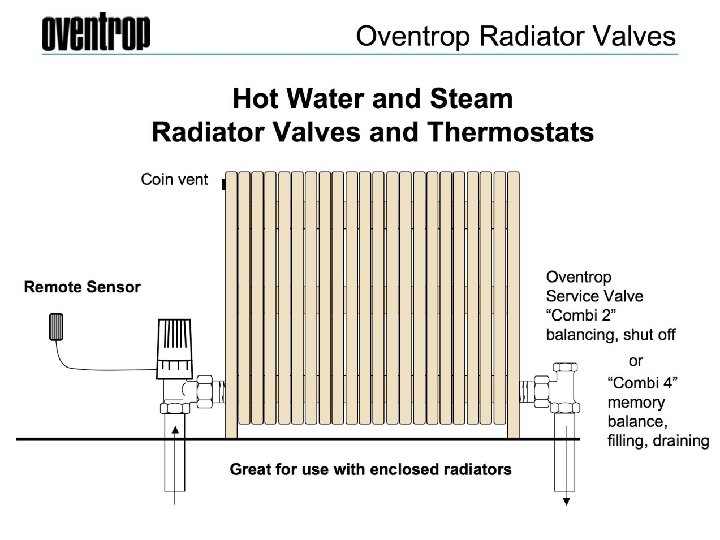

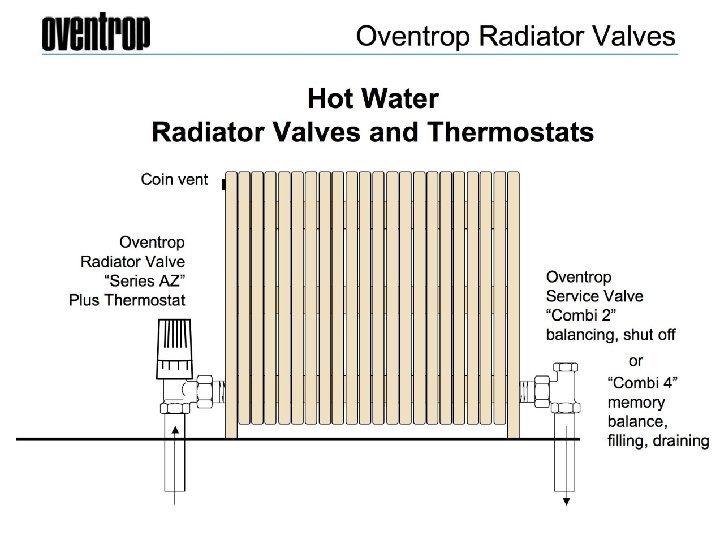

Valves for Thermostats Service Valves for Return Side of Radiator Combi 2 Balancing and shut off Combi 4 NPT x NPT SWT x SWT Sizes in 1/2 and 3/4 inch Combi 4 Balancing with memory, filling, draining, and shut off Nickel Plated Angle and Straight Pattern NPT x NPT Sizes in 1/2 and 3/4 inch

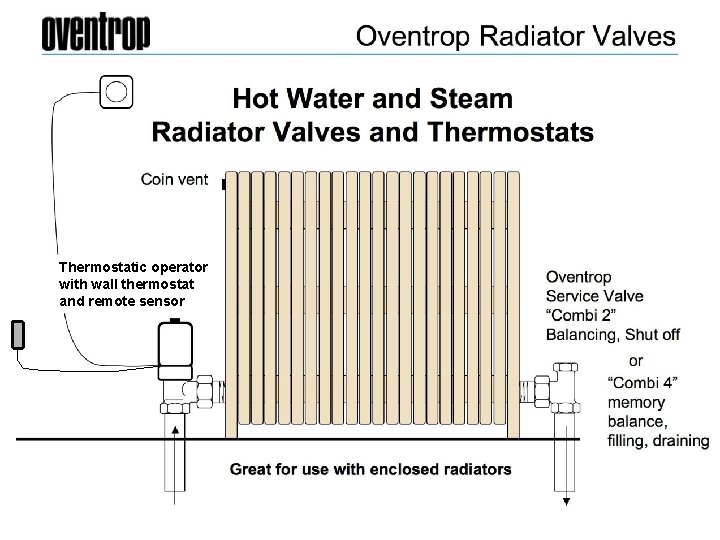

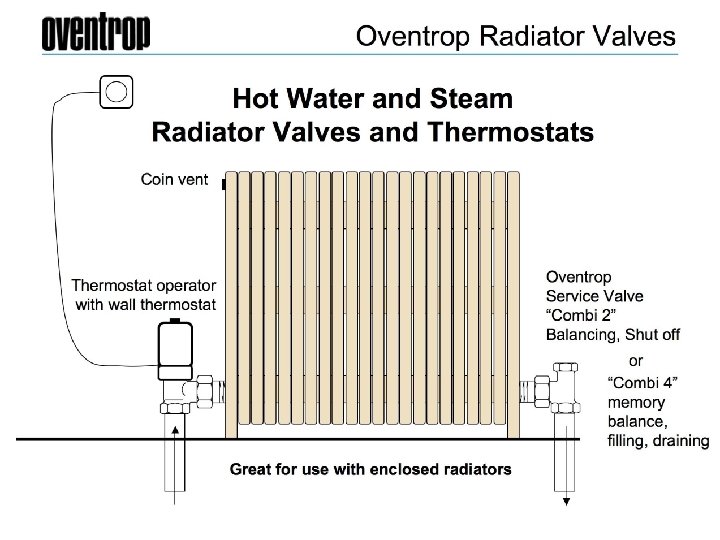

Thermostatic operator with wall thermostat and remote sensor

Valves for Thermostats Exclusive Designer Series E Perfect for towel bar warmers Radiator Valve Series E • M 30 x 1. 5 threaded • angle or straight pattern • chrome or white Include return side Service valve Combi E for radiator or towel rack matching appearance Available in 1/2 inch isolating, balancing fill and drain

Valves for Thermostats Thermostat location Series E Valve Patterns 1/2 inch valves Angle Pattern Valve Double Angle Pattern Right Straight Pattern Valve Double Angle Pattern Left

Valves for Thermostats Return Side Service Valve Combi E Valve Patterns 1/2 inch valves Angle Pattern Valve Straight Pattern Valve

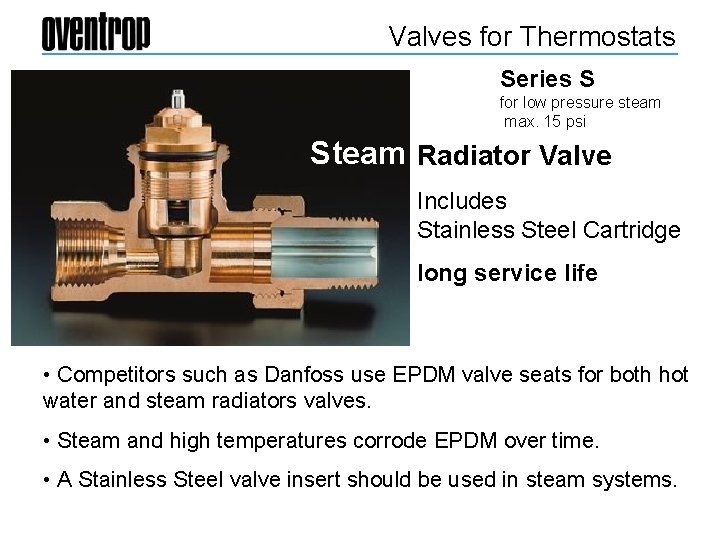

Valves for Thermostats Series S for low pressure steam max. 15 psi Steam Radiator Valve Includes Stainless Steel Cartridge long service life • Competitors such as Danfoss use EPDM valve seats for both hot water and steam radiators valves. • Steam and high temperatures corrode EPDM over time. • A Stainless Steel valve insert should be used in steam systems.

Valves for Thermostats Series S (Steam) Valve Patterns Angle Pattern Valve Sizes: 1/2, 3/4, 1, 1 -1/4 inch Straight Pattern Valve Sizes: 1/2, 3/4, 1, 1 -1/4 inch Reverse Angle Pattern Angle Sizes: 1/2, 3/4 inch

Valves for Thermostats airvent port One-pipe Steam Radiator Valve Includes Stainless Steel Cartridge long service life Room Thermostat Control for a one pipe steam radiator systems The 1/8 inch air vent on a one pipe steam radiator can be removed and replaced with a one pipe steam radiator valve The air vent is reinstalled vertically into the one pipe radiator valve.

Oventrop Radiator Valves One Pipe Steam Radiator Valve and Thermostat Air vent 1/8 inch NPT into radiator vent Oventrop One-pipe Steam with wax sensor Thermostat UNI DH

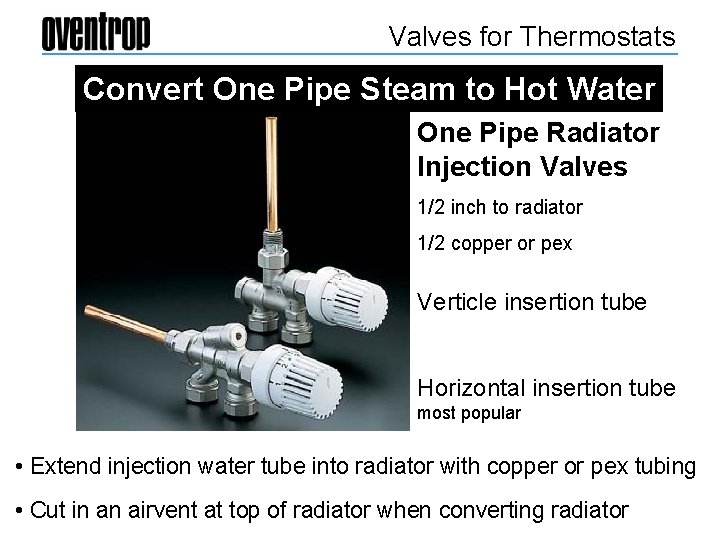

Valves for Thermostats Convert One Pipe Steam to Hot Water One Pipe Radiator Injection Valves 1/2 inch to radiator 1/2 copper or pex Verticle insertion tube Horizontal insertion tube most popular • Extend injection water tube into radiator with copper or pex tubing • Cut in an airvent at top of radiator when converting radiator

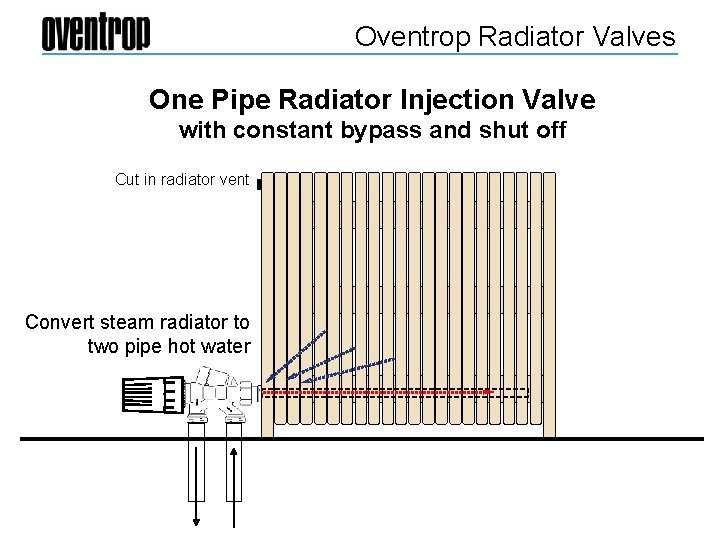

Oventrop Radiator Valves One Pipe Radiator Injection Valve with constant bypass and shut off Cut in radiator vent Convert steam radiator to two pipe hot water

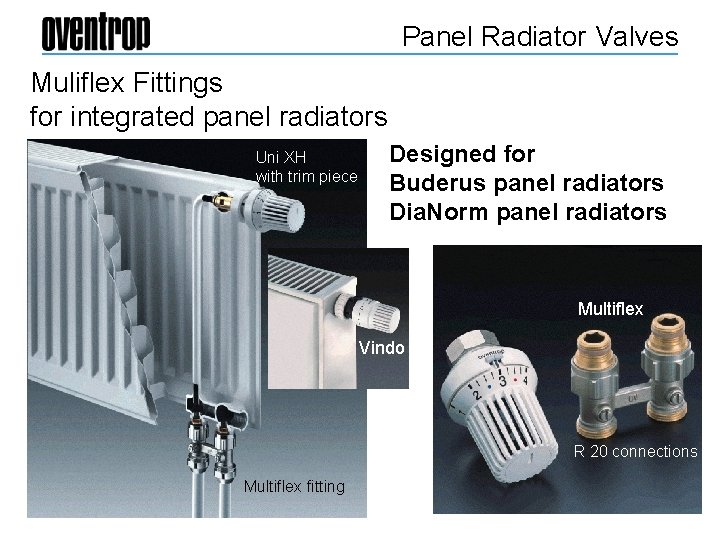

Panel Radiator Valves Muliflex Fittings for integrated panel radiators Uni XH with trim piece Designed for Buderus panel radiators Dia. Norm panel radiators Multiflex Vindo R 20 connections Multiflex fitting

Panel Radiator Valves Multiflex fittings Diverter Valves for one pipe systems for series loop systems radiators piped in series Connection 1/2 x 3/4 inch thread 90 degree angle straight pass

Panel Radiator Valves 2 - pipe systems isolating valves pipe radiators in parallel 90 degree angle Multiflex fittings Connection 1/2 x 3/4 inch thread straight pass Compression Fittings for Multiflex Transition to Pex or Copper

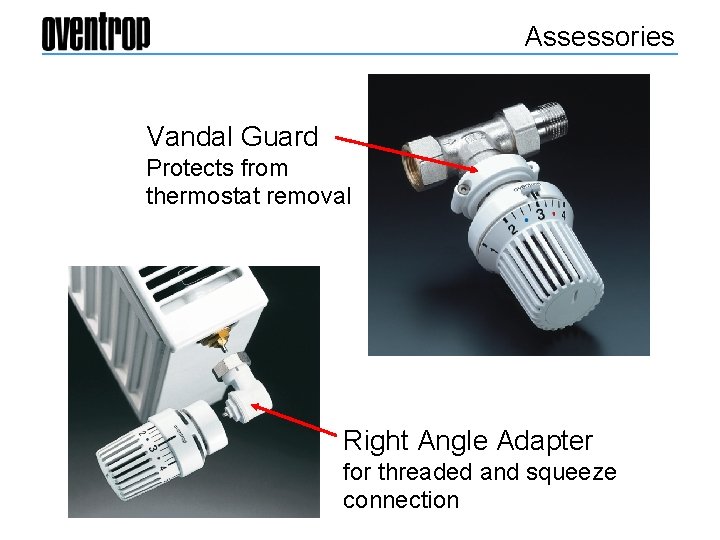

Assessories Vandal Guard Protects from thermostat removal Right Angle Adapter for threaded and squeeze connection

Valve Inserts Insert Type "AZ" • Function: – Standard valve insert with hot water valves. This valve insert has the highest Cv of all inserts. • Cv value : – 1. 28 • Application: – Standard for most radiator valve applications

Valve Inserts Insert Type "AV 6" • Function: Key for flow rate setting AV 6 inserts – Adjustable Cv value insert, allows technician to balance flow rate with six different settings. • Cv value : – 0. 75 • Application: – This insert is used where radiator return balancing can not be used.

Valve Inserts Landlord model • Function: Insert Type "ADV 6" Key for flow rate setting AV 6 inserts – Adjustable Cv value insert with six settings. – If thermostat is removed from the valve the flow will be restricted to 5% of normal flow. • Cv value : – 0. 75 • Application: – This insert is used where radiator return balancing can not be used and vandalism is an issue.

Valve Inserts Insert Type "Stainless Steel Seat" • Function: – This insert has a stainless steel valve seat for steam applications. • Cv value : – 0. 70 • Application: – This insert is used for steam applications.

Valve Inserts Insert Type "Special" • Function: – This insert has a low Cv value. • Cv value : – 0. 52 • Application: – The low Cv value is used to correct reversed supply and return hookup.

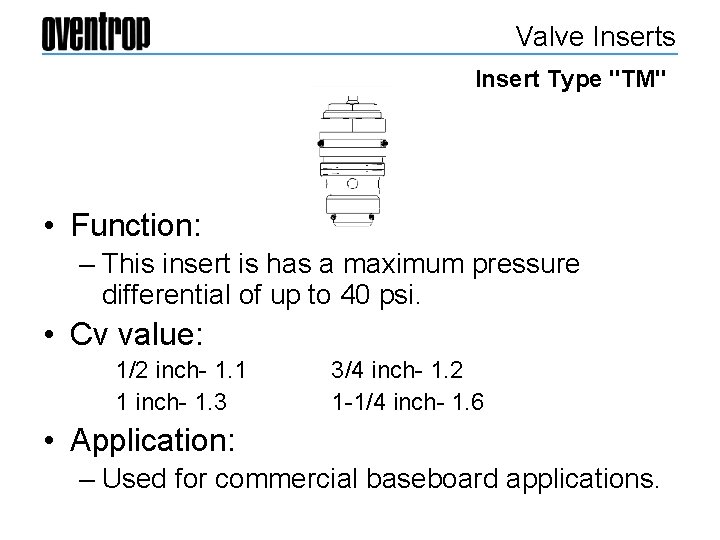

Valve Inserts Insert Type "TM" • Function: – This insert is has a maximum pressure differential of up to 40 psi. • Cv value: 1/2 inch- 1. 1 1 inch- 1. 3 3/4 inch- 1. 2 1 -1/4 inch- 1. 6 • Application: – Used for commercial baseboard applications.

Demo-Bloc Radiator valve Special tool for replacing Oventrop valve inserts under working conditions drain port Step 1: screw demo-bloc into radiator valve Step 2: remove valve insert with demo-bloc stem handle, open drain port for stem handle retraction Step 3: close demo-bloc ball valve, remove stem with attached valve insert, remove valve insert Valve insert Step 4: Install new valve stem back into radiator valve, remove demo-bloc

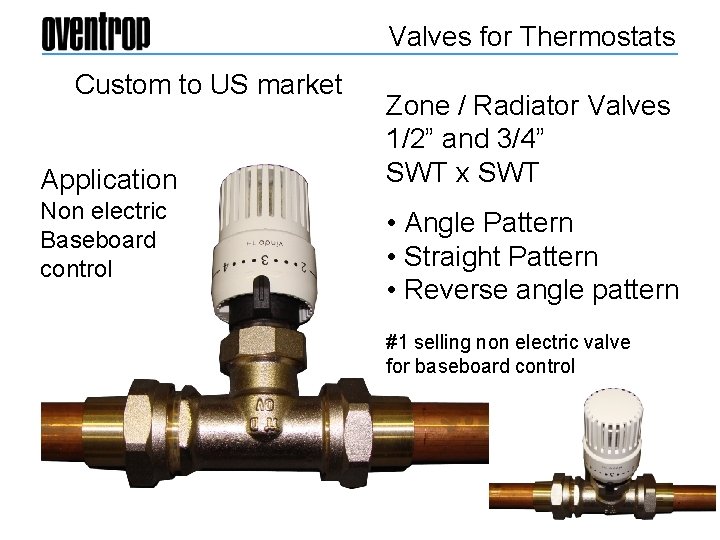

Valves for Thermostats Custom to US market Application Non electric Baseboard control Zone / Radiator Valves 1/2” and 3/4” SWT x SWT • Angle Pattern • Straight Pattern • Reverse angle pattern #1 selling non electric valve for baseboard control

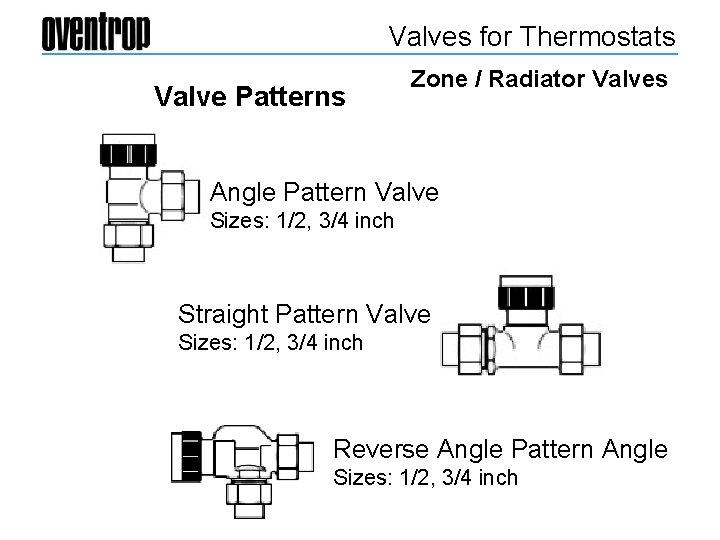

Valves for Thermostats Valve Patterns Zone / Radiator Valves Angle Pattern Valve Sizes: 1/2, 3/4 inch Straight Pattern Valve Sizes: 1/2, 3/4 inch Reverse Angle Pattern Angle Sizes: 1/2, 3/4 inch

Non Electric Wall Thermostats Thermostat Uni LH 6 1/2 ft. capillary Application Non electric baseboard control 16 ft. capillary 33 ft capillary Wall Thermostat For ease and convenient control

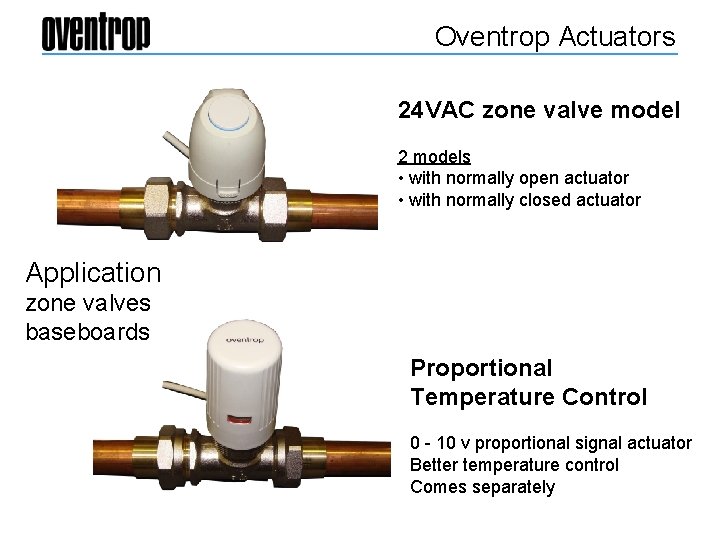

Oventrop Actuators 24 VAC zone valve model 2 models • with normally open actuator • with normally closed actuator Application zone valves baseboards Proportional Temperature Control 0 - 10 v proportional signal actuator Better temperature control Comes separately

Electrothermal Actuators 24 VAC on/off Models: 1 - Normally closed, with end switch 2 - Normally closed 3 - Normally open M 30 x 1. 5 threads standard Slow acting to prevent water hammer Low profile, compact design 24 V, 2 watt Adapter for M 30 x 1. 0 threads For use with: Diverting valve Radiator valves Manifolds

Electromotive Actuators Proportional Actuator 24 VAC Proportional actuator for temperature mixing and flow control For use with: • Three-way mixing valve • Radiator valves • Manifolds 0 – 10 v input signal

Valve Thermostats Non-electric actuator Proportional Regulator Non-electric actuator with strap on sensor and transfer unit. For use with two- and three-way valves. The control range may be limited and locked. Connection thread M 30 x 1. 5 Handwheel scale 1 2 3 4 5 6 7 Temperature setting in F 86 95 104 113 122 131 140

Oventrop Zone Valve 24 VAC to open 2 wire actuator with manual lever 3. 3 CV value Zone valve motor can be attached to M 30 x 1. 5 Oventrop radiator valve

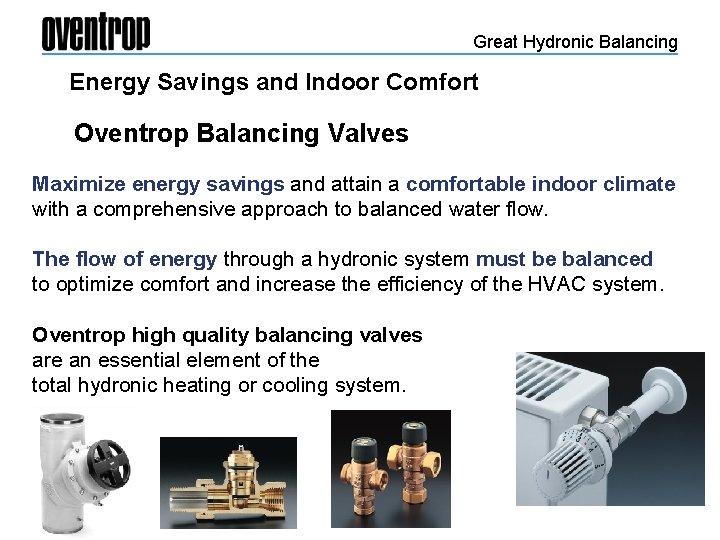

Great Hydronic Balancing Energy Savings and Indoor Comfort Oventrop Balancing Valves Maximize energy savings and attain a comfortable indoor climate with a comprehensive approach to balanced water flow. The flow of energy through a hydronic system must be balanced to optimize comfort and increase the efficiency of the HVAC system. Oventrop high quality balancing valves are an essential element of the total hydronic heating or cooling system.
