Value to OTT consumers Value to OTT providers

Смена концепции Тарифных Планов провайдерами Value to OTT consumers Value to OTT providers 4 February 26, 2021

Концепция Контроля , Управления и Тарификации трафика От Dump Pipe к Приложениям и Услугам Allot DPI OCS SMP-Policy Server Social Networking Package: $37. 99 Service (Policy Control) Policy Qo. S Usage Cap Rate Regular Usage 250 Kbps 4 GB $24. 99 Max Overage 100 Kbps 1 GB $10 160 Kbps unlimited 450 Kbps 2 GB $1. 50 /GB 120 Kbps 1 GB $0. 50 / mn (Enforcement) 5 February 26, 2021 N/A (Charging)

Основные компоненты портфеля Аллот Абонентские и Сетевые Сервисы Service Protector Cell Wise Tier Manager Media Swift Web Safe Steering Services Revenue Generation Quota Manager Policy & Charging Инструментарии Управления , Тарификации , Статистики и Аналитики Net. Xplorer Mobile Analytics Reports Tethering Subscriber Management Platform PCEF - Gx , Gy , Gz Interface UDS – User Defined Signature Интеллектуальность Intelligence Dynamic Actionable Recognition Technology (DART) DPI Платформа Net. Enforcer Service Gateway 6 February 26, 2021 DPI Platforms

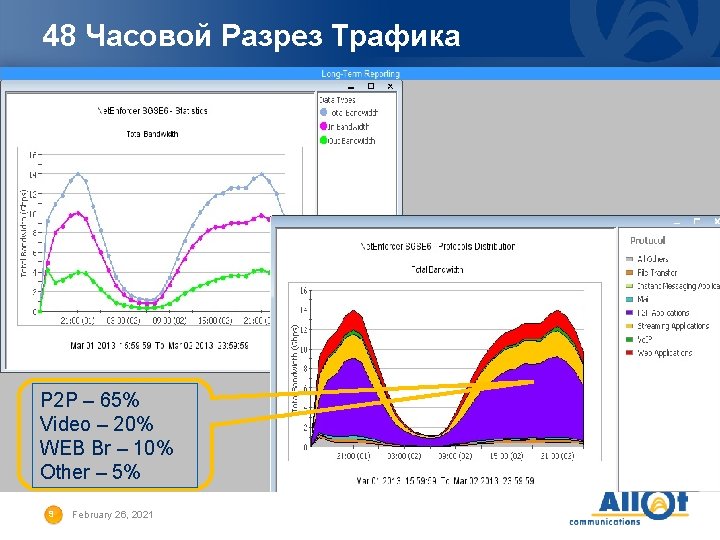

48 Часовой Разрез Трафика P 2 P – 65% Video – 20% WEB Br – 10% Other – 5% 9 February 26, 2021

P 2 P и Video Streaming Протоколы и Ресурсы Encrypted – 60% You. Tube & YTube HD – 50% Vkontakte Video – 15% 10 February 26, 2021

Allot – Линейка продуктов DPI Allot Net. Enforcer Allot Service Gateway Speed 160 G Cost Effective 10 G Links 60 G SG-Sigma E SG-Sigma 16 G AC-6000 8 G AC-3000 2 G AC-1400 400 M AC-500 Common Allot Operating System and Feature Set 12 February 26, 2021

SG-Sigma E: Две модели, Множество конфигураций 13 14 -slot chassis 6 -slot chassis Up to 16 x 10 GE ports Up to 8 x 10 GE ports Up to 160 Gbps (2 -10 blades) Up to 64 Gbps (1 -4 blades) Up to 8 Service blades Up to 3 Service blades Up to 8 million subscribers Up to 3. 2 million subscribers Internal or external Bypass February 26, 2021

Net. Xplorer Централизованный сервер управления, статистики и мониторинга Централизованное управление l High scalability Назначение и конфигурирование политик l Application control Мониторинг в реальном времени l Network troubleshooting Отчеты за любой период времени l Capacity planning l Single point of control l Subscriber management l Problem analysis l Usage tracking l Trend analysis Оповещение событий и аварий 14 February 26, 2021 l Early warning l Proactive management

Пример Steering WWW Clients / Subscribers 17 17 February 26, 2021 Кеширование Антивирус Родительский Контроль Parental Control Service Plan 1 X Service Plan 2 X Service Plan 3 X Antivirus Media Caching X X X

Web. Safe URL фильтрация – алгоритм 1. User requests a forbidden page 2. URL filtering card processes the request and extracts the URL 4. SIGMA drops the packets SG www. illegalcontent. com Access Network www. illegalcontent. com User WWW www. illegalcontent. com 5. SG sends the user a Block page 3. URL is matched to the blacklist 20 February 26, 2021 Web server

Уникальная Архитектура и Преимущества Out-of-band, иерархическая, разделение плоскости управления и данных Превосходная производительность и упрощённое развёртывание Технологически лёгкая интеграция Tier 1 / Peering Interconnect other areas IP Core Control Plane MSWE Controller Data Plane MSWE Cache Server GGSN Area B Mobile Broadband Network Broadband Access Network OLT/FTTx 22 February 26, 2021 MSWE Cache Server Area A DSLAM Data Plane MSWE Cache Server CMTS

Заказчики Allot Tier 1 Telcos – Fixed and Mobile Tier 2 - Telcos and ISP INTERNATIONAL Satellite & Cables Large Enterprise & Education Aena NYBo. E 31 February 26, 2021
