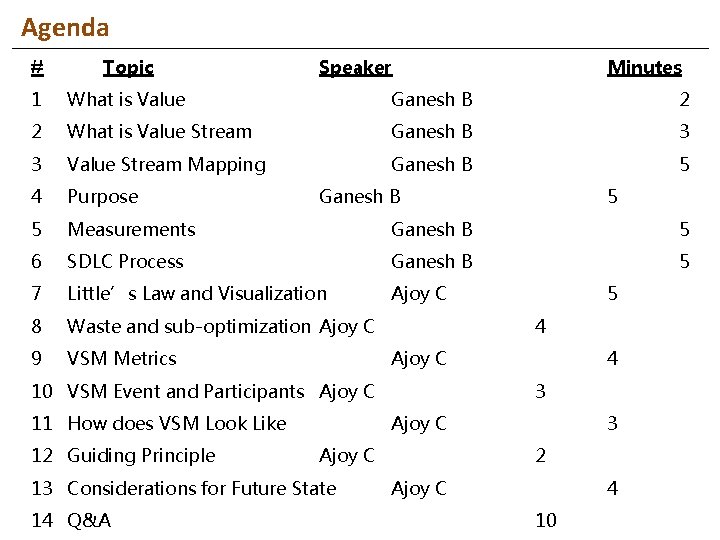

Agenda # Topic Speaker 1 What is Value Ganesh B 2 2 What is Value Stream Ganesh B 3 3 Value Stream Mapping Ganesh B 5 4 Purpose 5 Measurements Ganesh B 5 6 SDLC Process Ganesh B 5 7 Little’s Law and Visualization Ajoy C 8 Waste and sub-optimization Ajoy C 9 VSM Metrics Ganesh B 5 Ajoy C 11 How does VSM Look Like 4 3 Ajoy C 13 Considerations for Future State 14 Q&A 5 4 10 VSM Event and Participants Ajoy C 12 Guiding Principle Minutes 3 2 Ajoy C 4 10

"There is only one boss: the customer. And he can fire everybody in the company, from the chairman on down, simply by spending his money somewhere else. " Samuel M. Walton Wal-Mart Stores, Inc. Chairman & Chief Executive Officer

What is Value? “Value” is something that the customer would be willing to pay for. “Value” varies from customer to customer. Examples of Value v Features/Specifications v Availability when needed/Timely Delivery v Price/Cost v Customer Service/Support v Politeness v Relationship OR Use “Value” as your starting point Photo Source: Wikimedia Commons Align business to customer demands

What is Value Stream? Value Stream is the set of all actions performed to bring a Product or Service into the hands of customer along which the information or material flows. Some of the Value Streams v Portfolio Management § v Projects and Programs Management § v Requirements, Design, Development, Testing, Deployment processes Operations Support Management v Initiation, planning, execution, monitoring and control and closure processes Software Development Life Cycle § v Identifying, prioritizing, authorizing business cases, governance and compliance to achieve strategic business objectives Production Support, Upgrades, Incident Management, etc. , Service Management § Catalog, SLAs, Capability, Availability Management, etc. ,

Value Stream Mapping (VSM) Value stream mapping visually maps the flow of materials and information through all processes until the Product or Service reaches the Customer. It is a tool that helps us to visually see and understand the flow of material and information as a product or service makes its way through the value stream. The steps are laid out from left to right and top to bottom, with specific shapes used to denote the process components. v Identifies Value and Waste v Used to analyze the current state and design the future state v At Toyota, it is known as "material and information flow v

Purpose of VSM Purpose of value stream mapping is to identify the Waste (lead time/wait time, duplicates, non value added, and improper sequence of activities) in the current state so that they can later be improved or eliminated in future. Current State Future State

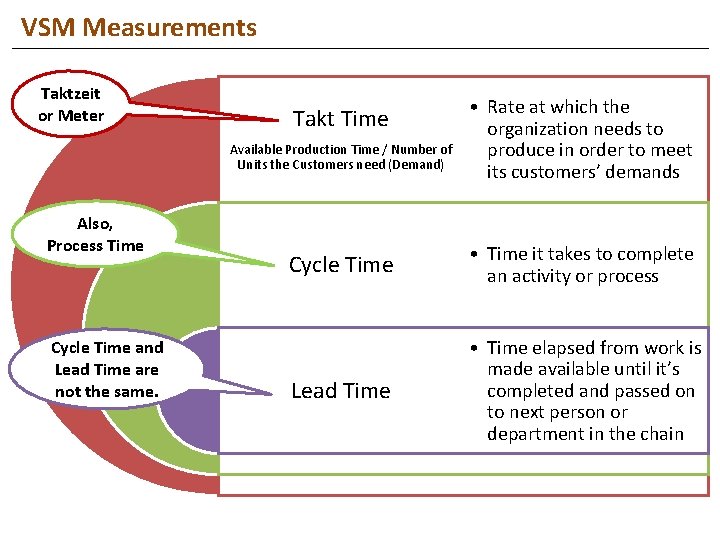

VSM Measurements Taktzeit or Meter Takt Time Available Production Time / Number of Units the Customers need (Demand) Also, Process Time Cycle Time and Lead Time are not the same. • Rate at which the organization needs to produce in order to meet its customers’ demands Cycle Time • Time it takes to complete an activity or process Lead Time • Time elapsed from work is made available until it’s completed and passed on to next person or department in the chain

SDLC Example 2 weeks 4 weeks Business Requirements Acceptance Test UA Test Cases 1 week 3 weeks 1 week 2 weeks System Requirements System Test Cases 2 weeks 1 week 2 weeks 3 weeks Component Design 3 weeks Integration Test Cases 2 weeks 1 week 4 weeks 2 weeks Program Specs Unit Test Cases 1 week 12 weeks 1 week Code Cycle Time = 42 weeks, Wait Time = 10 weeks Lead Time = 42 weeks + 10 weeks = 52 weeks

Deep Dive into Business Requirements Process Types of Requirements 2 Days Identify Stakeholders 1 Day Schedule Meetings 4 Days Elicit Requirements 1 Day Document BRD 2 Days 3 Days 1 Day Review Requirements 2 Days ● Business Requirements Why the product is needed and its benefits for both customers and the business 1 Day Baseline Requirements 2 Days ● User Functional Requirements The tasks or business processes a user will be able to perform with this product ● Non-Functional Requirements, Quality attributes such as Reliability, Performance, Availability, Maintainability, etc. , Cycle Time = 12 Days, Wait Time = 8 Days Lead Time = 12 Days + 8 Days = 20 Days (4 weeks) Deep Dive into Suppliers, Inputs, Process Steps, Outputs, Customers, Responsible Roles, How long it takes for the Responsible persons to perform their activities (Cycle Time), How long those persons wait before starting their activity, Reasons for waiting (Wait Time), Lead Time, etc. , and identify the improvements needed for future state.

Little’s Law In a stable system, L=λW L – Average number of customers in the store λ – average customer arrival rate W – average time a customer stays in the store Example, In a stable system, i. e. arrival rate and departure rate being same, if 20 customers arrive per hour and stays for 15 min on an average, we should find 5 customers at any given time Little’s Law makes the basis of queue management in Lean process WIP = T L WIP – average number of items/ activities/ process in progress or Work in Progress T – average departure rate, i. e. Throughput or inverse of Cycle Time L – average time an item/ activity/ process spends in the system or Lead Time

Visualizing the Chain × Mura × Muda Type 1 Type 2 × Muri √ Kaizen √ Kata √ Poka-yoke Lead Time Process n-1 Process n +1 Work Made Available Work Passed to Next Step Process Time Lead Time = ∑ Process Time + ∑ Essential non-value added Time + ∑ Unnecessary non-value added Time + ∑ Waste/ Delay

Types of Waste

Sub-Optimization “Sub-optimization is when everyone is for himself. Optimization is when everyone is working to help the company" Edwards Deming Management Consultant and Author Example: Chundan Vallam • Similarity, not difference focused approach • Collaboration • Optimization of the Value Stream will increase performance of the system. Suboptimization may lead to wastage

VSM Metrics Ø Activity Ratio = ∑ Process Time / ∑ Lead Time § 1 – Activity Ratio = Idle Ratio Ø % Complete and Accurate (%C&A) § Percentage of input in a process that is deemed usable as-is by the resources doing the work § Measured by the immediate downstream customer or process owner § Similar to first pass yield in manufacturing (=Output/Input) Ø Rolled First Pass Yield (RFPY) = ∑ (%C&A)n Ø Freed Capacity = Current State FTE – Future State FTE

VSM Event Who should participate Value Stream Mapping? Define Product Family Leaders and Process stakeholders up in the chain who can authorize an innovative change on current state Document Current State Design Future State How long usually is a VSM event? Usually 3 days What is the future state definition? The state, 3 -6 months down the line Create Implementation Plan Implement 3 days It is always a team activity. The team obtains current state metrics from the Gemba Repeat Is it not a Team Activity?

VSM Roles Strategic Who Executive Leadership What • What are the wastes and nonvalue added spends? • What change has to happen? How Value Stream Mapping Tactical Middle Management Workforce • How changes can be executed? Projects, Kaizen

How does it look like?

Some of the Symbols used in VSM

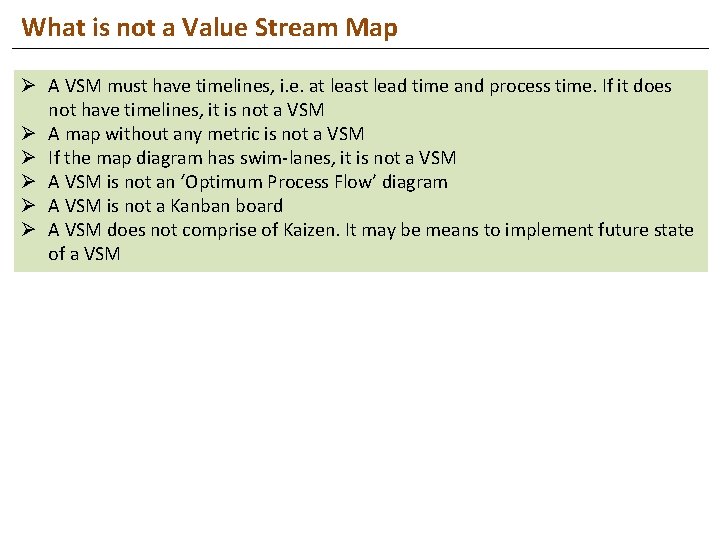

What is not a Value Stream Map Ø A VSM must have timelines, i. e. at least lead time and process time. If it does not have timelines, it is not a VSM Ø A map without any metric is not a VSM Ø If the map diagram has swim-lanes, it is not a VSM Ø A VSM is not an ‘Optimum Process Flow’ diagram Ø A VSM is not a Kanban board Ø A VSM does not comprise of Kaizen. It may be means to implement future state of a VSM

VSM Guiding Principles Define the value from end customer’s standpoint VALUE STREAM PERFECTION As you manage toward perfection So the customer can pull PULL FLOW Identify the value stream for each product family Make the product flow

Considerations for Future State Map Ø Ø Ø Ø Ø Eliminate steps/ handoffs Combine steps Create parallel paths Alter sequence Alter timing Implement pull systems Optimize batches Improve quality Reduce manual error monitoring/ automate Create an organized workplace Make handshaking seamless Eliminate motion and transportation Standardize work Reduce/ Eliminate unnecessary NVA immediately Co-locate functions Create cells of cross-functional staffs Balance work to meet Takt time
