Value Engineering Dresser Rand Compressor Case SENIOR DESIGN PROJECT P 08455 Stephen Papa (IE- Project Manager), Chris Bulawa (ME), John Foley (ME), Eric Hodecker (ME) and John Roylance-(IE)

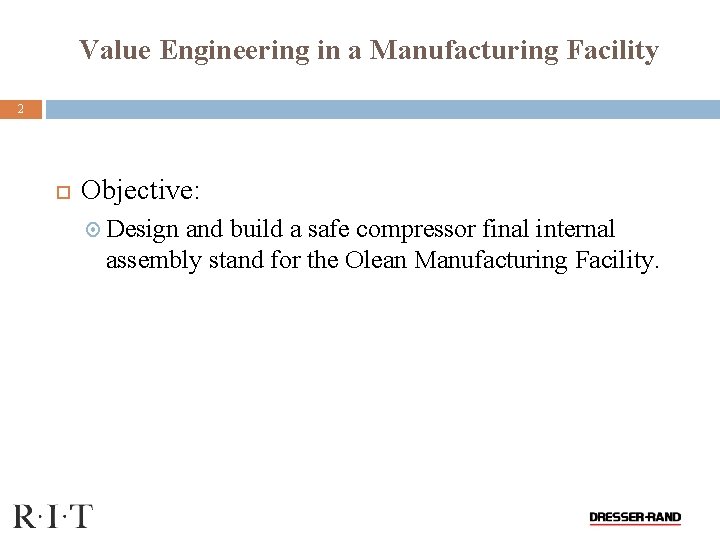

Value Engineering in a Manufacturing Facility 2 Objective: Design and build a safe compressor final internal assembly stand for the Olean Manufacturing Facility.

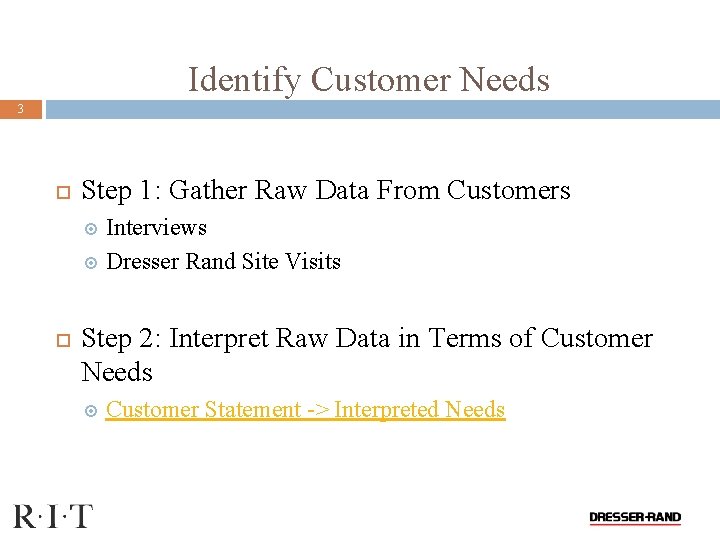

Identify Customer Needs 3 Step 1: Gather Raw Data From Customers Interviews Dresser Rand Site Visits Step 2: Interpret Raw Data in Terms of Customer Needs Customer Statement -> Interpreted Needs

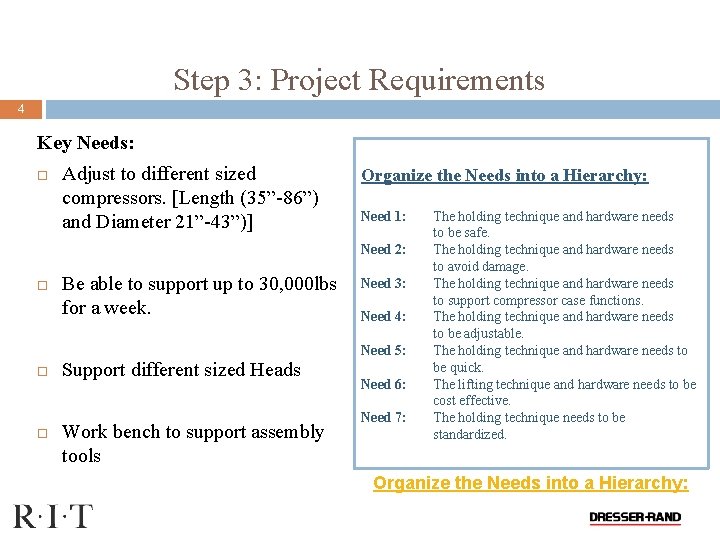

Step 3: Project Requirements 4 Key Needs: Adjust to different sized compressors. [Length (35”-86”) and Diameter 21”-43”)] Organize the Needs into a Hierarchy: Need 1: Need 2: Be able to support up to 30, 000 lbs for a week. Need 3: Need 4: Need 5: Support different sized Heads Work bench to support assembly tools Need 6: Need 7: The holding technique and hardware needs to be safe. The holding technique and hardware needs to avoid damage. The holding technique and hardware needs to support compressor case functions. The holding technique and hardware needs to be adjustable. The holding technique and hardware needs to be quick. The lifting technique and hardware needs to be cost effective. The holding technique needs to be standardized. Organize the Needs into a Hierarchy:

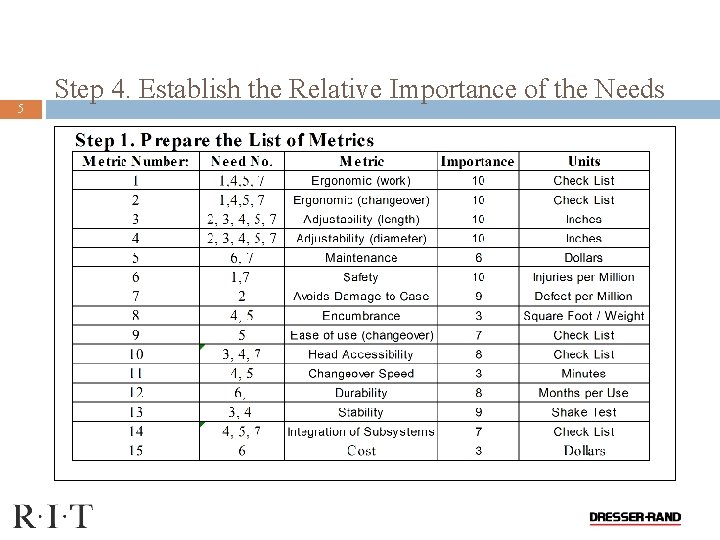

5 Step 4. Establish the Relative Importance of the Needs

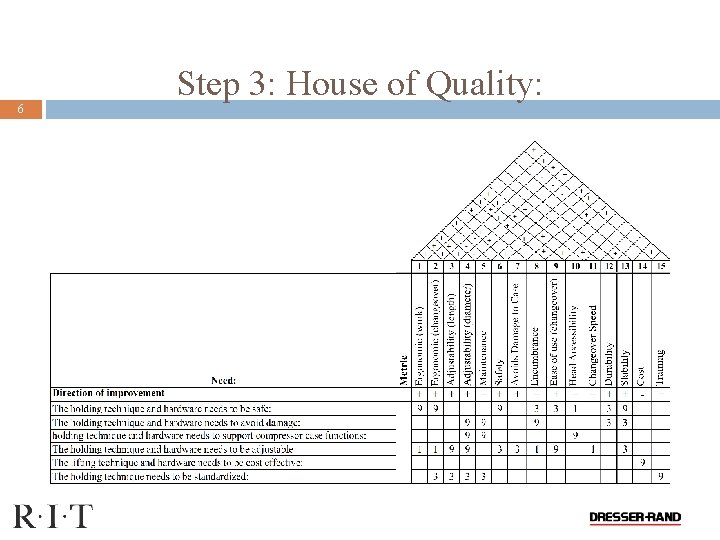

6 Step 3: House of Quality:

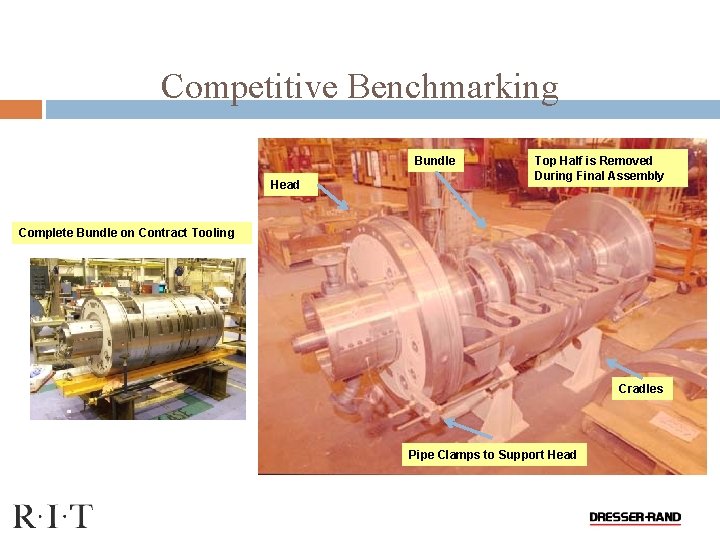

Competitive Benchmarking Bundle Head Top Half is Removed During Final Assembly Complete Bundle on Contract Tooling Cradles Pipe Clamps to Support Head 7

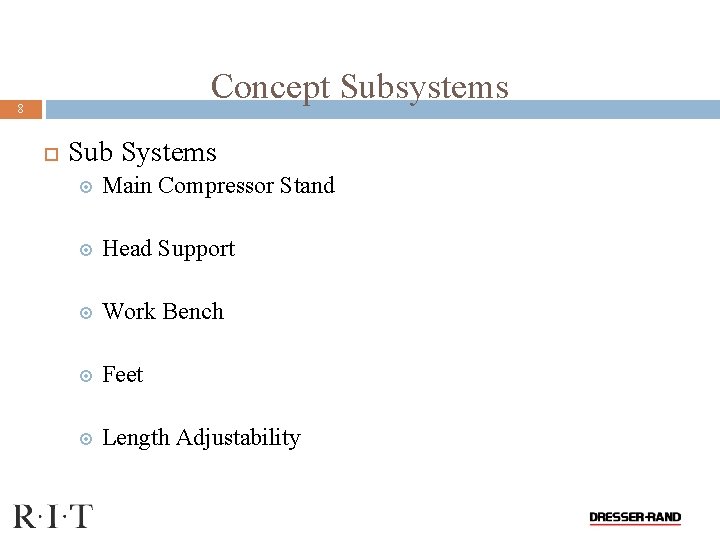

Concept Subsystems 8 Sub Systems Main Compressor Stand Head Support Work Bench Feet Length Adjustability

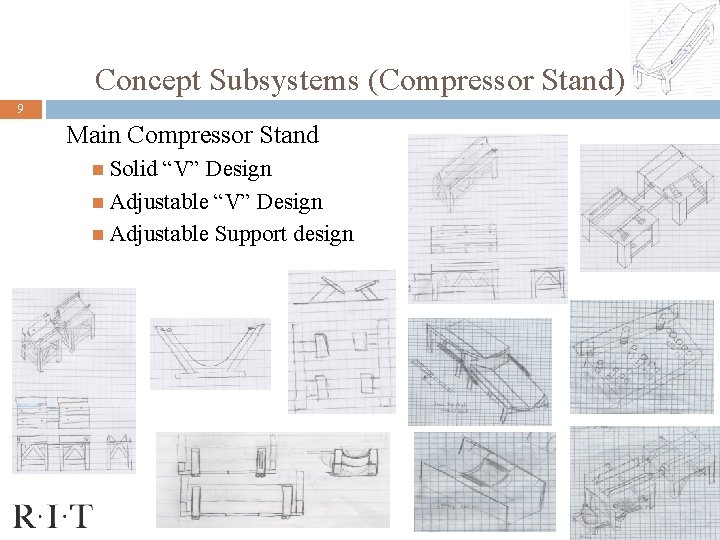

Concept Subsystems (Compressor Stand) 9 Main Compressor Stand Solid “V” Design Adjustable Support design

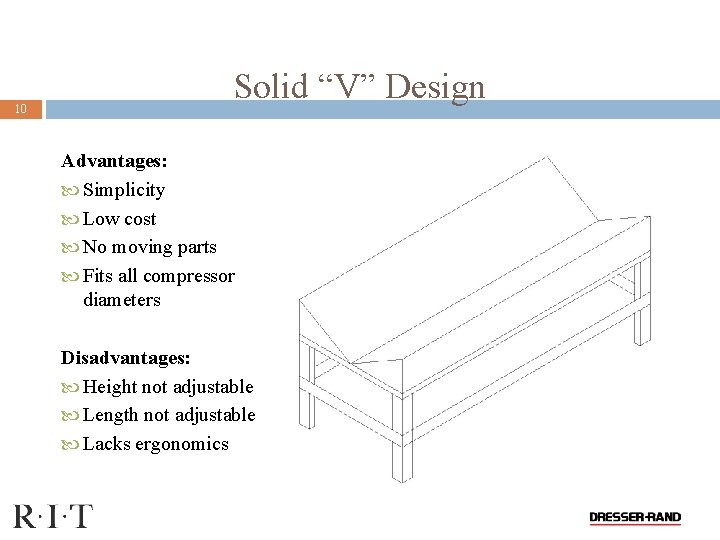

10 Solid “V” Design Advantages: Simplicity Low cost No moving parts Fits all compressor diameters Disadvantages: Height not adjustable Length not adjustable Lacks ergonomics

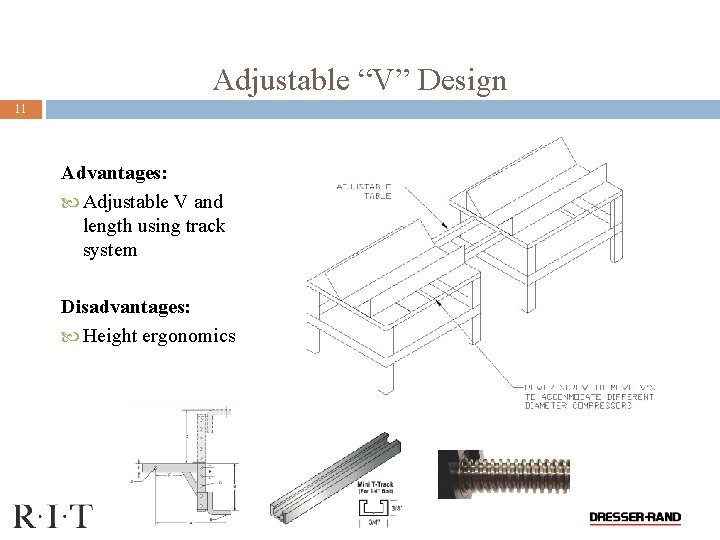

Adjustable “V” Design 11 Advantages: Adjustable V and length using track system Disadvantages: Height ergonomics

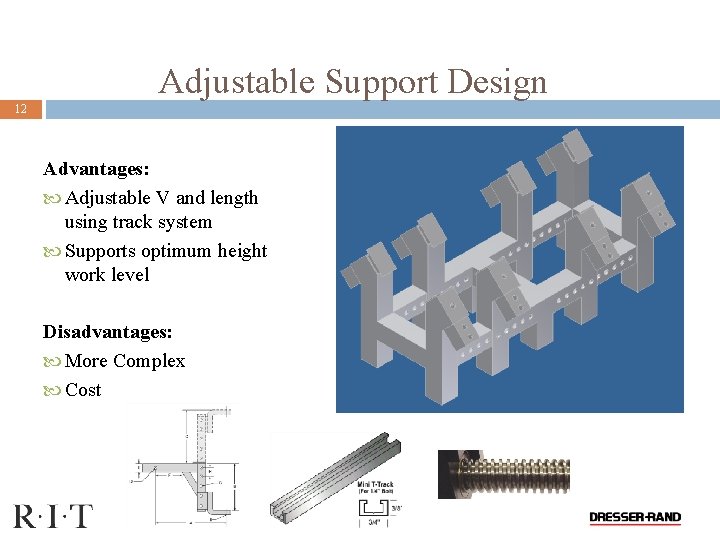

Adjustable Support Design 12 Advantages: Adjustable V and length using track system Supports optimum height work level Disadvantages: More Complex Cost

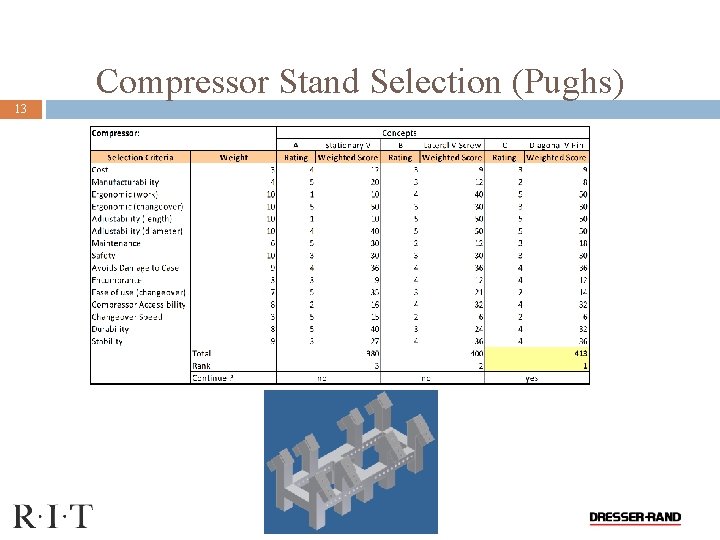

Compressor Stand Selection (Pughs) 13

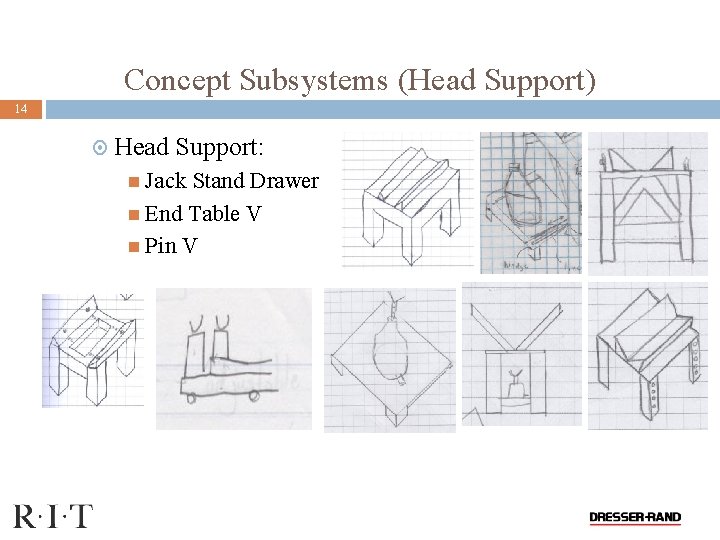

Concept Subsystems (Head Support) 14 Head Support: Jack Stand Drawer End Table V Pin V

Jack Stand Drawer 15 Advantages: Integrated into compressor stand Industry used jack stand Disadvantages: Maintenance of track Drawer support

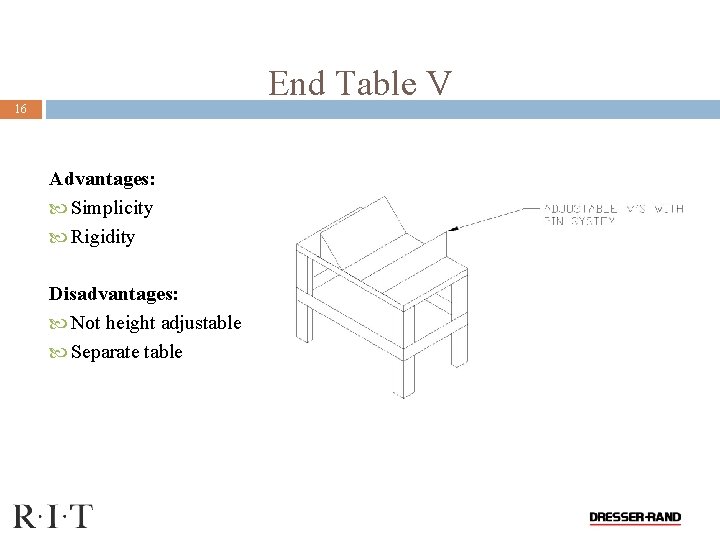

End Table V 16 Advantages: Simplicity Rigidity Disadvantages: Not height adjustable Separate table

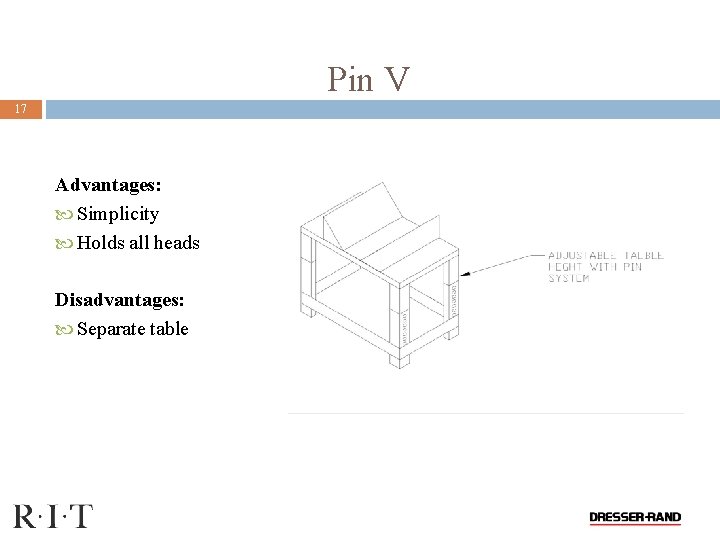

Pin V 17 Advantages: Simplicity Holds all heads Disadvantages: Separate table

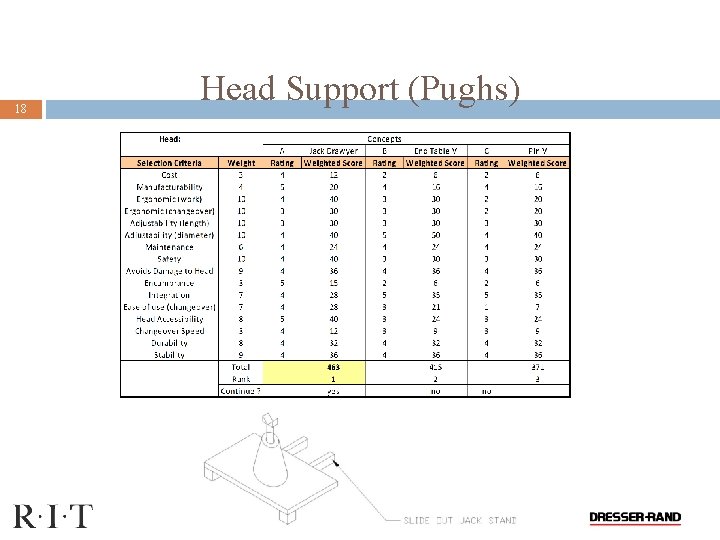

18 Head Support (Pughs)

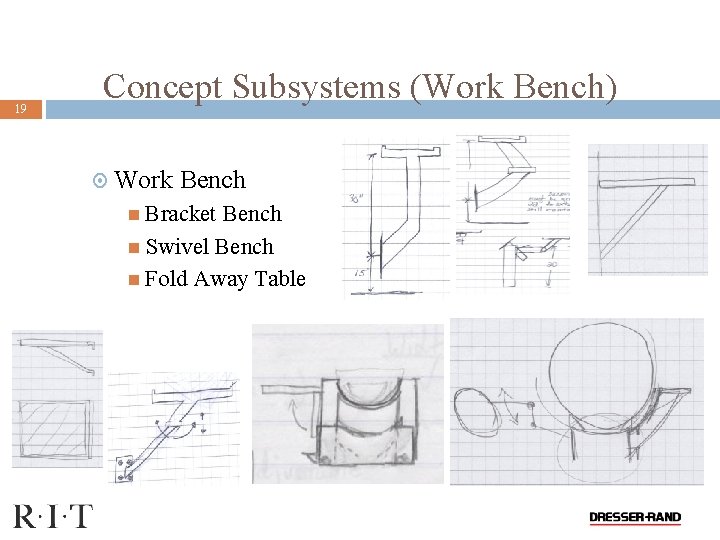

19 Concept Subsystems (Work Bench) Work Bench Bracket Bench Swivel Bench Fold Away Table

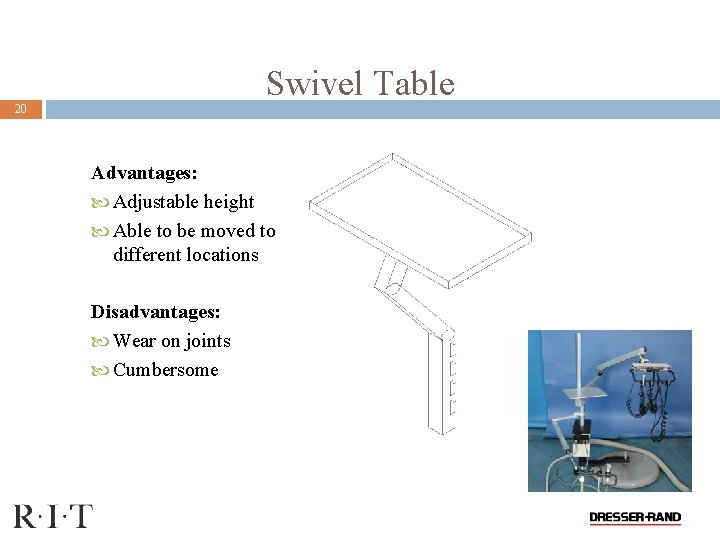

Swivel Table 20 Advantages: Adjustable height Able to be moved to different locations Disadvantages: Wear on joints Cumbersome

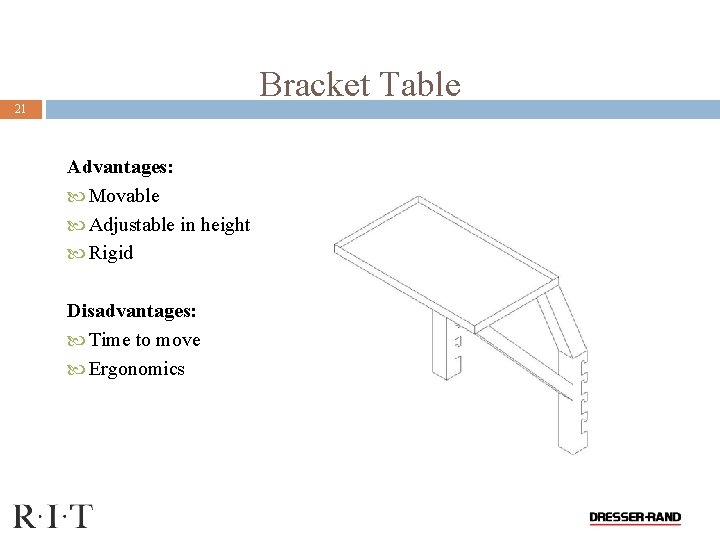

Bracket Table 21 Advantages: Movable Adjustable in height Rigid Disadvantages: Time to move Ergonomics

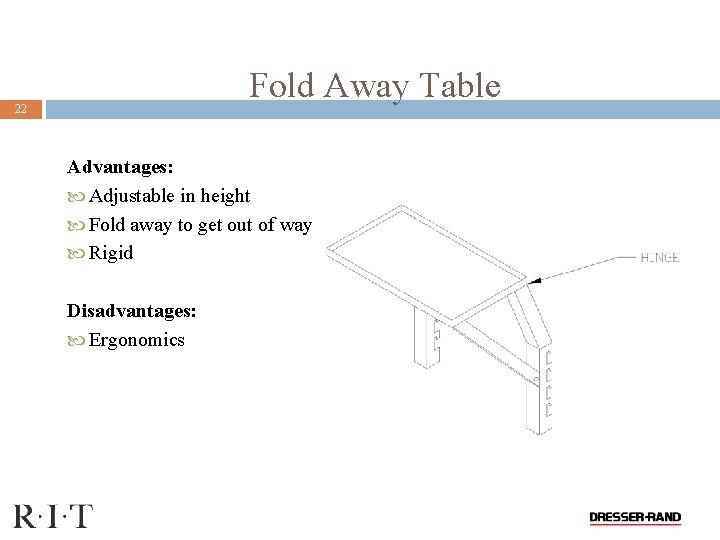

Fold Away Table 22 Advantages: Adjustable in height Fold away to get out of way Rigid Disadvantages: Ergonomics

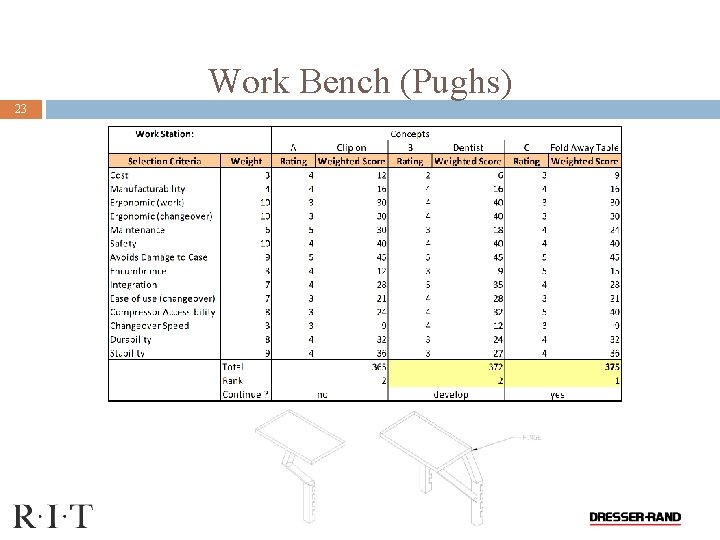

Work Bench (Pughs) 23

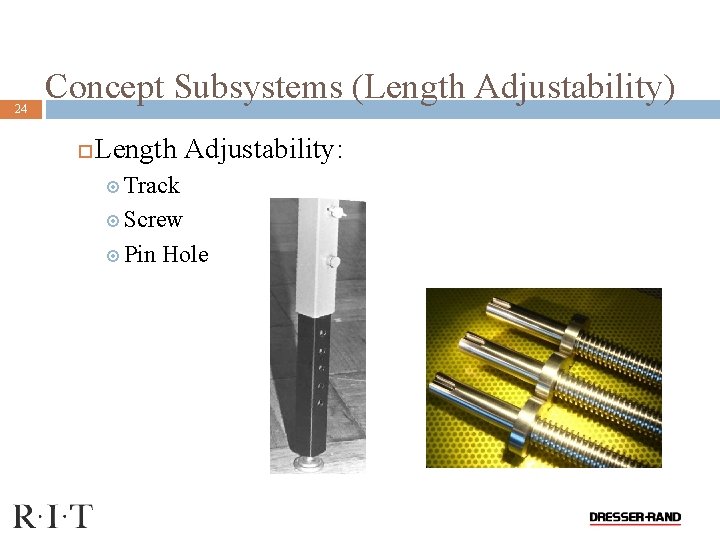

24 Concept Subsystems (Length Adjustability) Length Adjustability: Track Screw Pin Hole

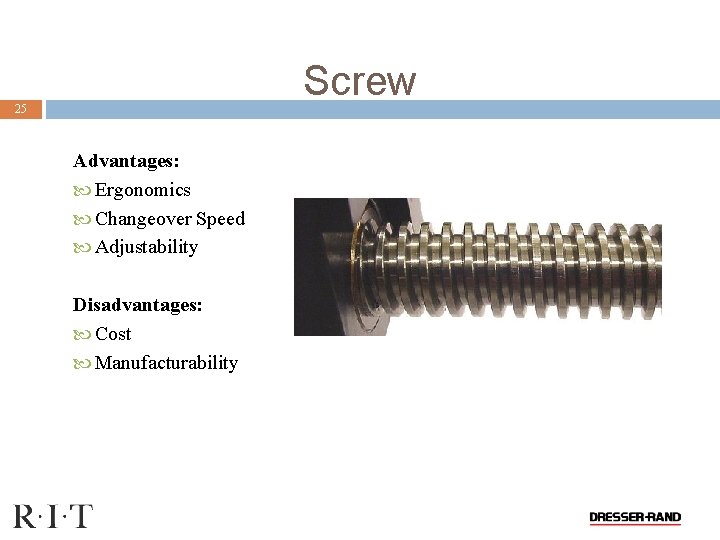

Screw 25 Advantages: Ergonomics Changeover Speed Adjustability Disadvantages: Cost Manufacturability

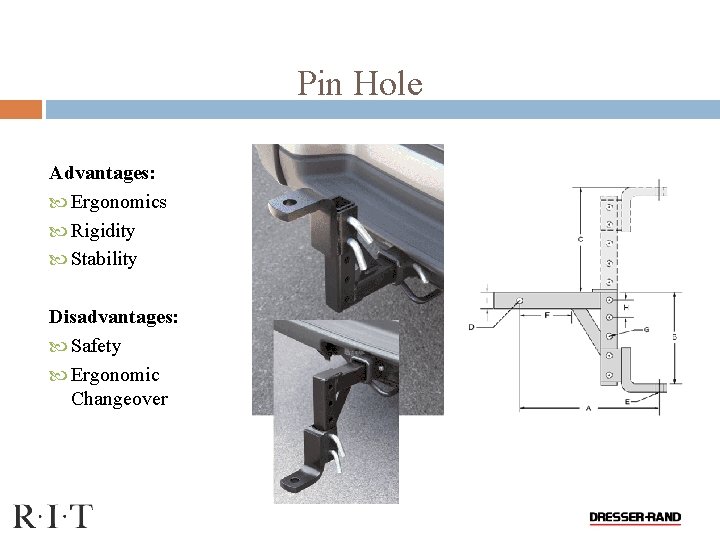

Pin Hole Advantages: Ergonomics Rigidity Stability Disadvantages: Safety Ergonomic Changeover

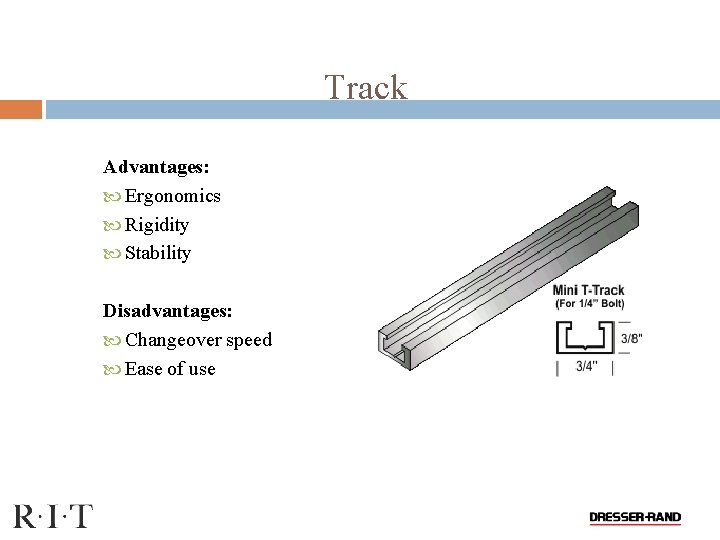

Track Advantages: Ergonomics Rigidity Stability Disadvantages: Changeover speed Ease of use

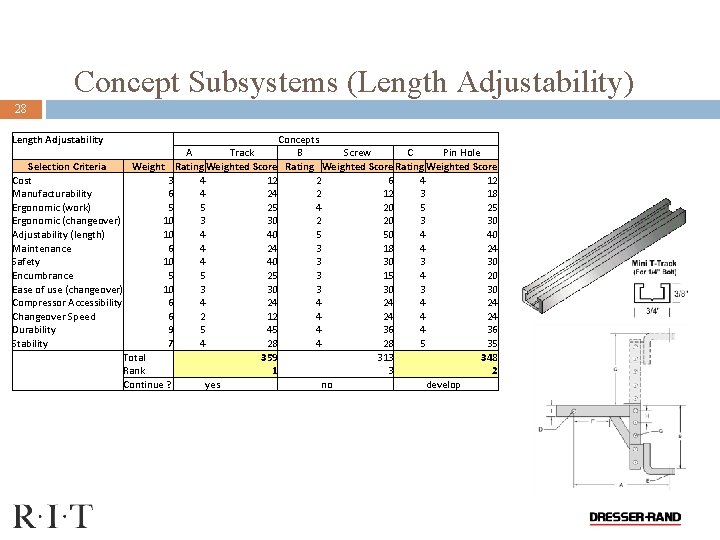

Concept Subsystems (Length Adjustability) 28 Length Adjustability Concepts A Track B Screw C Pin Hole Selection Criteria Weight Rating Weighted Score Cost 3 4 12 2 6 4 12 Manufacturability 6 4 24 2 12 3 18 Ergonomic (work) 5 5 25 4 20 5 25 Ergonomic (changeover) 10 3 30 2 20 3 30 Adjustability (length) 10 4 40 5 50 4 40 Maintenance 6 4 24 3 18 4 24 Safety 10 4 40 3 30 Encumbrance 5 5 25 3 15 4 20 Ease of use (changeover) 10 3 30 Compressor Accessibility 6 4 24 Changeover Speed 6 2 12 4 24 Durability 9 5 45 4 36 Stability 7 4 28 5 35 Total 359 313 348 Rank 1 3 2 Continue ? yes no develop

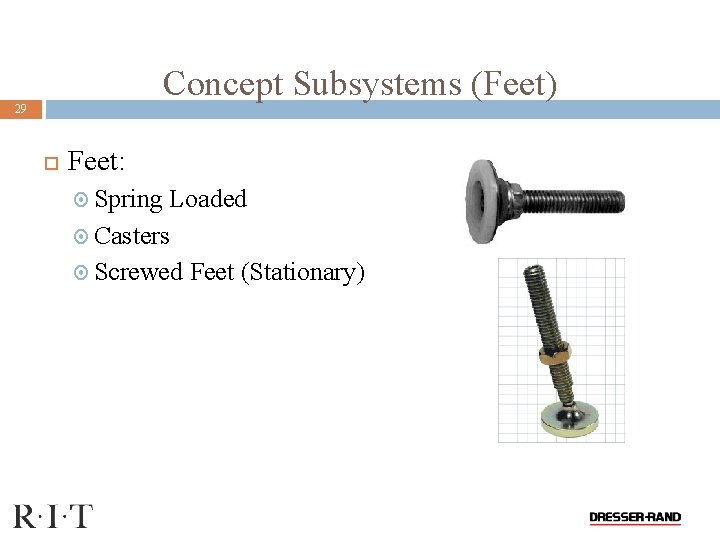

Concept Subsystems (Feet) 29 Feet: Spring Loaded Casters Screwed Feet (Stationary)

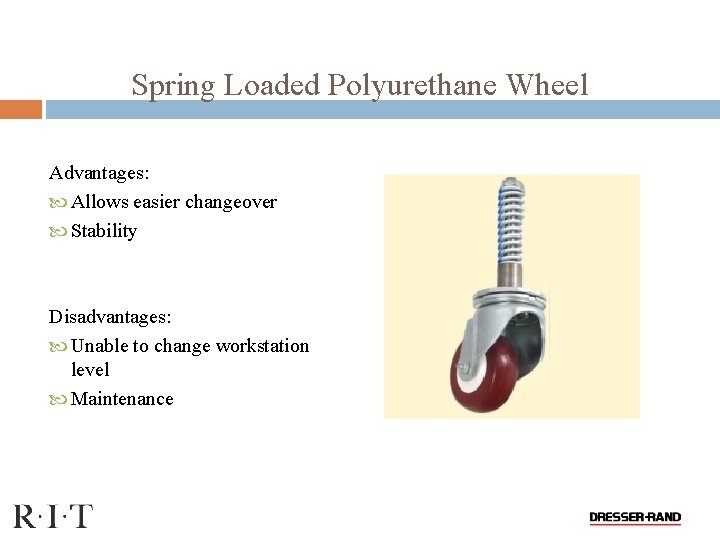

Spring Loaded Polyurethane Wheel Advantages: Allows easier changeover Stability Disadvantages: Unable to change workstation level Maintenance

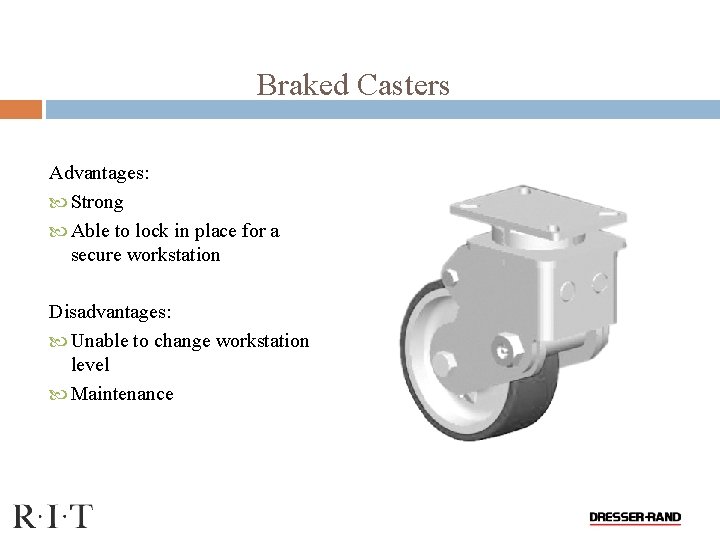

Braked Casters Advantages: Strong Able to lock in place for a secure workstation Disadvantages: Unable to change workstation level Maintenance

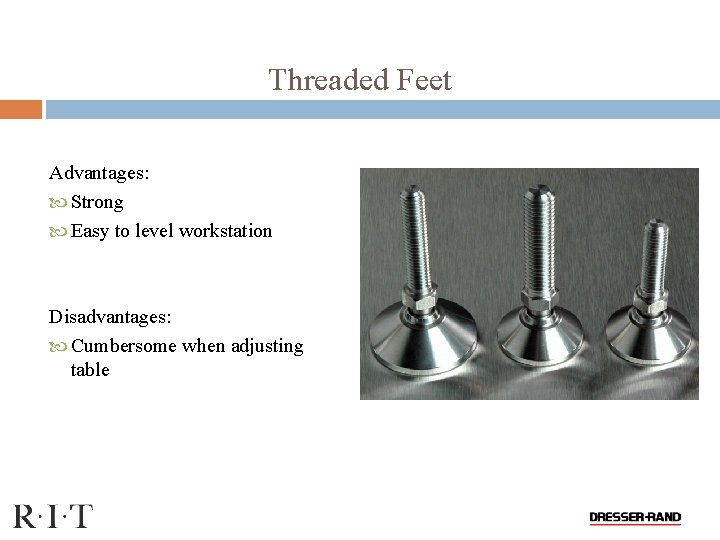

Threaded Feet Advantages: Strong Easy to level workstation Disadvantages: Cumbersome when adjusting table

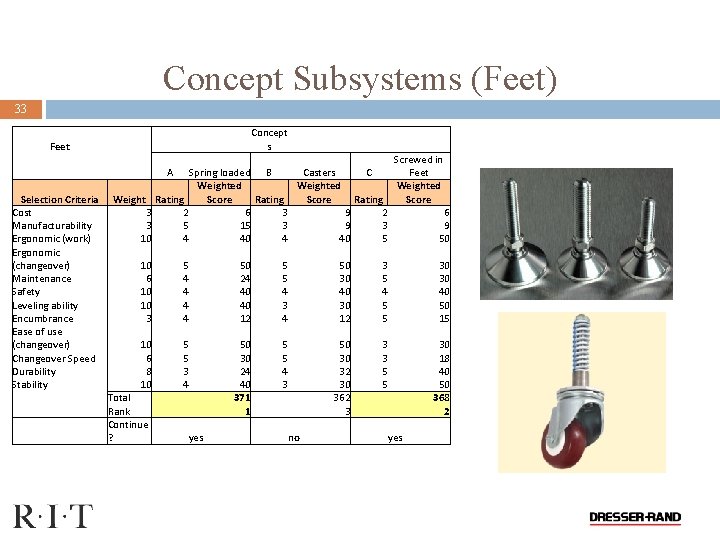

Concept Subsystems (Feet) 33 Concept s Feet A Selection Criteria Cost Manufacturability Ergonomic (work) Ergonomic (changeover) Maintenance Safety Leveling ability Encumbrance Ease of use (changeover) Changeover Speed Durability Stability Weight 3 3 10 Spring loaded Weighted Rating Score 2 6 5 15 4 40 Screwed in B Casters C Feet Weighted Rating Score 3 9 2 6 3 9 4 40 5 50 10 6 10 10 3 5 4 4 50 24 40 40 12 5 5 4 3 4 50 30 40 30 12 3 5 4 5 5 30 30 40 50 15 10 6 8 10 5 5 3 4 50 30 24 40 371 1 5 5 4 3 50 30 32 30 362 3 3 3 5 5 30 18 40 50 368 2 Total Rank Continue ? yes no yes

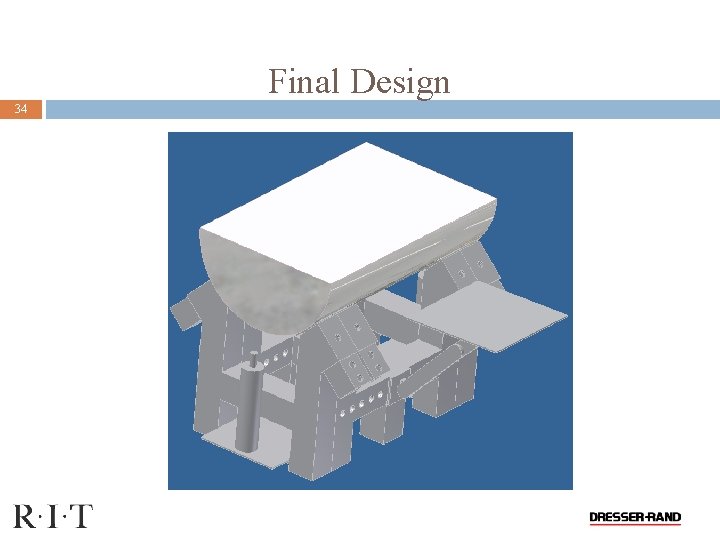

Final Design 34
