Validating Distributed Object Component Designs Wolfgang Emmerich and

Validating Distributed Object & Component Designs Wolfgang Emmerich and Nima Kaveh London Software Systems University College London http: //www. cs. ucl. ac. uk/lss {n. kaveh|w. emmerich}@cs. ucl. ac. uk © 2003 Wolfgang Emmerich 1

Outline ¨ Distributed Systems ¨ Middleware ¨ Advanced Communication in Object and Component Middleware ¨ Design Issues for Distributed Objects and Components ¨ Design Validation using Model Checking ¨ Conclusions © 2003 Wolfgang Emmerich 2

Distributed System Example © 2003 Wolfgang Emmerich 3

What is a Distributed System? Component 1 Componentn Middleware Network Operating System Hardware Hostn-1 Host 2 Component 1 Componentn Middleware Network Operating System Hardware Host 1 © 2003 Wolfgang Emmerich Component 1 Componentn Middleware Network Operating System Network Hardware Hostn 4

What is a Distributed System? ¨ A distributed system is a collection of autonomous hosts that are connected through a computer network. Each host executes components and operates a distribution middleware, which enables the components to coordinate their activities in such a way that users perceive the system as a single, integrated computing facility. © 2003 Wolfgang Emmerich 5

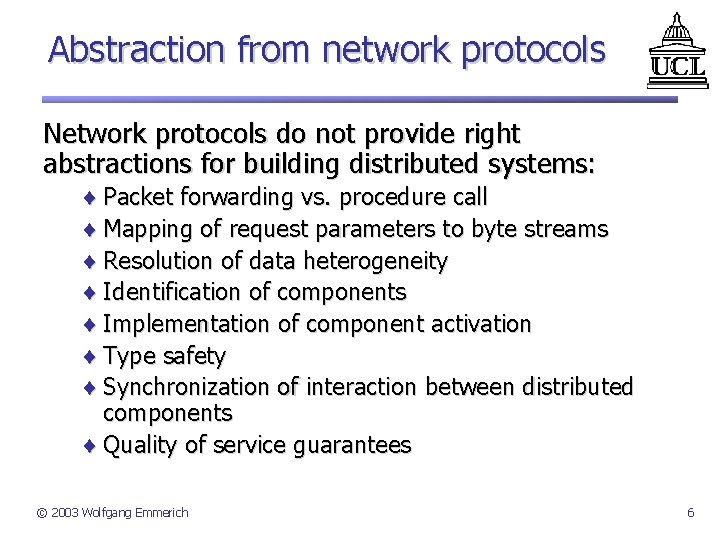

Abstraction from network protocols Network protocols do not provide right abstractions for building distributed systems: ¨ Packet forwarding vs. procedure call ¨ Mapping of request parameters to byte streams ¨ Resolution of data heterogeneity ¨ Identification of components ¨ Implementation of component activation ¨ Type safety ¨ Synchronization of interaction between distributed components ¨ Quality of service guarantees © 2003 Wolfgang Emmerich 6

Outline ¨ Distributed Systems ¨ Middleware ¨ Advanced Communication in Object and Component Middleware ¨ Design Issues for Distributed Objects and Components ¨ Design Validation using Model Checking ¨ Conclusions © 2003 Wolfgang Emmerich 7

Middleware ¨ Layered between Application and OS/Network ¨ Makes distribution transparent ¨ Resolves heterogeneity of ¨ Hardware ¨ Operating Systems ¨ Networks ¨ Programming Languages ¨ Provides development and run-time environment for distributed systems.

ISO/OSI Reference Model Application Presentation Session Transport Network Middleware Network Operating System Data link

Forms of Middleware ¨ Transaction-Oriented ¨ IBM CICS ¨ BEA Tuxedo ¨ Encina ¨ Message-Oriented ¨ IBM MQSeries ¨ DEC Message Queue ¨ NCR Top. End ¨ RPC Systems ¨ ¨ Object-Oriented ¨ OMG/CORBA ¨ DCOM ¨ Java/RMI ¨ Distributed-Components ¨ ¨ ¨ J 2 EE. NET CCM ANSA Sun ONC OSF/DCE © 2003 Wolfgang Emmerich 10

Remote Procedure Calls ¨ Enable procedure calls across host boundaries ¨ Call interfaces are defined using an Interface Definition Language (IDL) ¨ RPC compiler generates presentation and session layer implementation from IDL © 2003 Wolfgang Emmerich 11

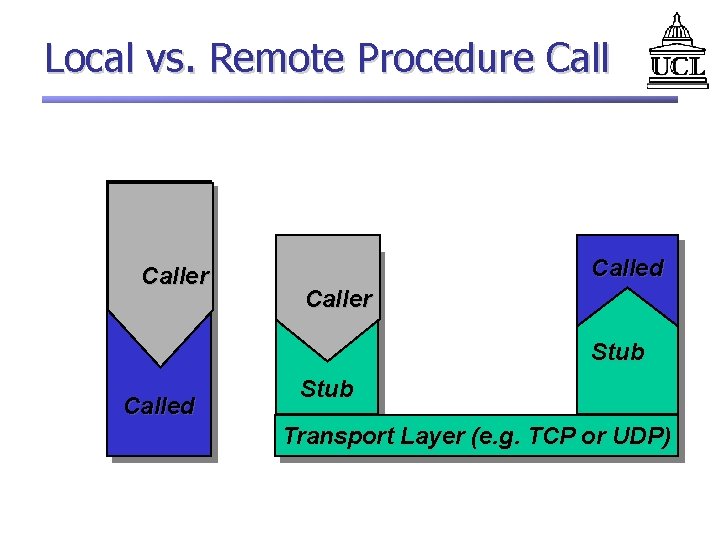

Local vs. Remote Procedure Caller Called Caller Stub Called Stub Transport Layer (e. g. TCP or UDP)

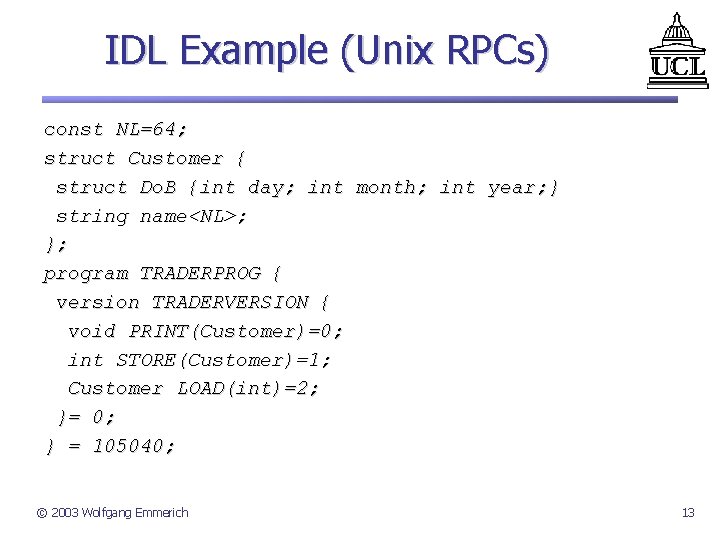

IDL Example (Unix RPCs) const NL=64; struct Customer { struct Do. B {int day; int month; int year; } string name<NL>; }; program TRADERPROG { version TRADERVERSION { void PRINT(Customer)=0; int STORE(Customer)=1; Customer LOAD(int)=2; }= 0; } = 105040; © 2003 Wolfgang Emmerich 13

Presentation Layer ¨ Resolve data heterogeneity ¨ Common data representation ¨ Transmission of data declaration ¨ Map complex data structures to network transport ¨ Static marshalling/unmarshalling ¨ Dynamic marshalling/unmarshalling © 2003 Wolfgang Emmerich 14

Marshalling and Unmarshalling ¨ ¨ char * marshal() { char * msg; msg=new char[4*(sizeof(int)+1) + Marshalling: Disassemble strlen(name)+1]; sprintf(msg, "%d %d %s", data structures into dob. day, dob. month, dob. year, transmittable form strlen(name), name); return(msg); }; void unmarshal(char * msg) { int name_len; sscanf(msg, "%d %d ", Unmarshalling: &dob. day, &dob. month, &dob. year, &name_len); Reassemble the = new char[name_len+1]; complex data structure. name sscanf(msg, "%d %d %s", &dob. day, &dob. month, &dob. year, &name_len, name); © 2003 Wolfgang Emmerich 15 };

Stubs ¨ Creating code for marshalling and unmarshalling is tedious and error-prone. ¨ Code can be generated fully automatically from interface definition. ¨ Code is embedded in stubs for client and server. ¨ Client stub represents server for client, Server stub represents client for serve. ¨ Stubs achieve type safety. ¨ Stubs also perform synchronization. © 2003 Wolfgang Emmerich 16

Type Safety ¨ How can we make sure that ¨ servers are able to perform operations requested by clients? ¨ actual parameters provided by clients match the expected parameters of the server? ¨ results provided by the server match the expectations of client? ¨ Middleware acts as mediator between client and server to ensure type safety. ¨ Achieved by interface definition in an agreed language. © 2003 Wolfgang Emmerich 17

Facilitating Type Safety Request Client Server Reply Interface Definition © 2003 Wolfgang Emmerich 18

Synchronization ¨ What should client do while server executes ¨ Wait? ¨ Not care? ¨ Proceed concurrently and re-synchronise later? ¨ What should server do if clients request operations concurrently ¨ Process them sequentially? ¨ Process them concurrently? ¨ Each of these reasonable ¨ Most supported by middleware primitives © 2003 Wolfgang Emmerich 19

Outline ¨ Distributed Systems ¨ Middleware ¨ Advanced Communication in Object and Component Middleware ¨ Design Issues for Distributed Objects and Components ¨ Design Validation using Model Checking ¨ Related Work ¨ Conclusions © 2003 Wolfgang Emmerich 20

Policies & Primitives ¨ Mainstream object middleware provides few primitives and policies ¨ Threading Policies (Server-side): ¨ Single Threaded ¨ Multi Threaded ¨ Synchronization Primitives (Client-side): ¨ Synchronous Requests ¨ Deferred Synchronous Requests ¨ One-way Requests ¨ Asynchronous Requests © 2003 Wolfgang Emmerich 21

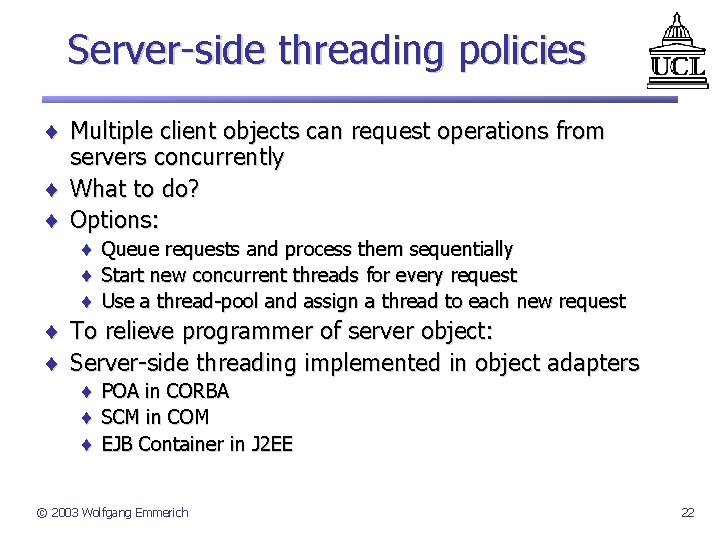

Server-side threading policies ¨ Multiple client objects can request operations from servers concurrently ¨ What to do? ¨ Options: ¨ ¨ ¨ Queue requests and process them sequentially Start new concurrent threads for every request Use a thread-pool and assign a thread to each new request ¨ To relieve programmer of server object: ¨ Server-side threading implemented in object adapters ¨ POA in CORBA ¨ SCM in COM ¨ EJB Container in J 2 EE © 2003 Wolfgang Emmerich 22

CORBA Architecture Object Implementation Client Dynamic Invocation Client Stubs ORB Interface Implementation Skeletons POA ORB Core One standardised interface One interface per object operation One interface per object adapter ORB-dependent interface

POA Threading Policies ¨ Single-threaded: ¨ Use when object implementations are not thread safe ¨ Default threading policy in CORBA ¨ ORB-controlled: ¨ Threads to execute object implementations are started, managed and stopped by the ORB ¨ Programmer has to be aware that implementations will be called concurrently and make them thread safe (e. g. for stateful objects) ¨ Unspecified how ORB implements thread management. © 2003 Wolfgang Emmerich 24

Client-side Synchronisation Primitives Overview ¨ Synchronous (Rendevous): Client-blocked until server finished execution of requested operation ¨ Oneway: Client continues after request taken by middleware, no synchronisation happens at all ¨ Deferred synchronous: Client continues after request taken by middleware, client polls for result ¨ Asynchronous: Client continues after request taken by middleware and server informs about the result © 2003 Wolfgang Emmerich 25

Request Synchronization ¨ OO-Middleware default: synchronous requests. : Client Op() : Server ¨ Synchronous requests might block clients unnecessarily. Examples: ¨ User Interface Components ¨ Concurrent Requests from different servers © 2003 Wolfgang Emmerich 26

Oneway Requests ¨ Return control to client as soon as request has been taken by middleware ¨ Client and server are not synchronized ¨ Use if ¨ Server does not produce a result ¨ Failures of operation can be ignored by client : Client : Server oneway() © 2003 Wolfgang Emmerich 27

Oneway using Java Threads class Print. Squad { static void main(String[] args) { Team team; Date date; // initializations of team and date omitted. . . Oneway. Req. Print. Squad a=new Oneway. Req. Print. Squad(team, date); a. start(); // continue to do work while request thread is blocked. . . } } // thread that invokes remote method class Oneway. Req. Print. Squad extends Thread { Team team; Date date; Oneway. Req. Print. Squad(Team t, Date d) { team=t; date=d; } public void run() { team. print(date); // call remote method and then die } } © 2003 Wolfgang Emmerich 28

Oneway requests in CORBA ¨ Declared statically in the interface definition of the server object ¨ IDL compiler validates that ¨ operation has a void return type ¨ does not have any out or inout parameters ¨ does not raise type specific exceptions ¨ Example: interface Team { oneway void mail_timetable(in string tt); }; © 2003 Wolfgang Emmerich 29

Oneway requests in CORBA ¨ If oneway declarations cannot be used: Use dynamic invocation

Deferred Synchronous Requests ¨ Return control to client as soon as request has been taken by middleware ¨ Client initiates synchronization ¨ Use if ¨ Requests take long time ¨ Client should not be blocked ¨ Clients can bear overhead of synchronization : Client send() : Request op() : Server get_result() © 2003 Wolfgang Emmerich 31

Deferred Synchronous Requests with Threads class Print. Squad { public void print(Team t, Date d) { Def. Sync. Req. Print. Squad a=new Def. Sync. Req. Print. Squad(t, d); // do something else here. a. join(this); // wait for request thread to die. System. out. println(a. get. Result()); //get result and print } } // thread that invokes remote method class Def. Sync. Req. Print. Squad extends Thread { String s; Team team; Date date; Def. Sync. Req. Print. Squad(Team t, Date d) {team=t; date=d; } public String get. Result() {return s; } public void run() { String s; s=team. as. String(date); // call remote method and die } } © 2003 Wolfgang Emmerich 32

CORBA Deferred Synchronous Requests ¨ Determined at run-time with using DII ¨ By invoking send() from a Request object ¨ And using get_response() to obtain result : Client r=create_request(“op”) send() : Server r: Request op() get_response() © 2003 Wolfgang Emmerich 33

Asynchronous Requests ¨ Return control to client as soon as request has been taken by middleware ¨ Server initiates synchronization ¨ Use if ¨ Requests take long time ¨ Client should not be blocked ¨ Server can bear overhead of synchronization : Client op() © 2003 Wolfgang Emmerich : Server 34

Asynchronous Requests with Threads ¨ Client has interface for callback ¨ Perform request in a newly created thread ¨ Client continues in main thread ¨ New thread is blocked ¨ Requested operation invokes callback to pass result ¨ New thread dies when request is complete © 2003 Wolfgang Emmerich 35

Asynchronous Requests with Threads interface Callback { public void result(String s); } class Print. Squad implements Callback { public void Print(Team team, Date date){ A=new Async. Req. Print. Squad(team, date, this); A. start(); // and then do something else } public void result(String s){ System. out. print(s); } } class Async. Req. Print. Squad extends Thread { Team team; Date date; Callback call; Async. Req. Print. Squad(Team t, Date d, Callback c) { team=t; date=d; call=c; } public void run() { String s=team. As. String(date); call. result(s); } } © 2003 Wolfgang Emmerich 36

Asynchronous Requests using Message Passing ¨ Message passing is starting to be provided by object- and component-oriented middleware ¨ Microsoft Message Queue ¨ CORBA Notification Service ¨ Java Messaging Service ¨ Request and reply explicitly as messages ¨ Asynchronous requests can be achieved using two message queues © 2003 Wolfgang Emmerich 37

Asynchronous Requests using Message Queues enter remove Request Queue Client Server remove enter Reply

Difference between Threading and MQs Threads ¨ Communication is immediate ¨ Do not achieve guaranteed delivery of request ¨ Can be achieved using language/OS primitives © 2003 Wolfgang Emmerich Message Queues ¨ Buffer Request and Reply messages ¨ Persistent storage may achieve guaranteed delivery ¨ Imply additional licensing costs for Messaging 39

Outline ¨ Distributed Systems ¨ Middleware ¨ Advanced Communication in Object and Component Middleware ¨ Design Problems for Distributed Objects and Components ¨ Design Validation using Model Checking ¨ Related Work ¨ Conclusions © 2003 Wolfgang Emmerich 40

Design Problems ¨ Client and server objects execute concurrently (or even in parallel when residing on different machines) ¨ This concurrency gives raise to the usual problems: ¨ Deadlocks ¨ Safety Property violations ¨ Liveness © 2003 Wolfgang Emmerich 41

Deadlock Example © 2003 Wolfgang Emmerich 42

Safety Properties ¨ Notifications of new price are sent only in response to trade update ¨ Only traders that have subscribed for notifications will receive them ¨ Equity server cannot accept new trade unless notification of previous trade is complete © 2003 Wolfgang Emmerich 43

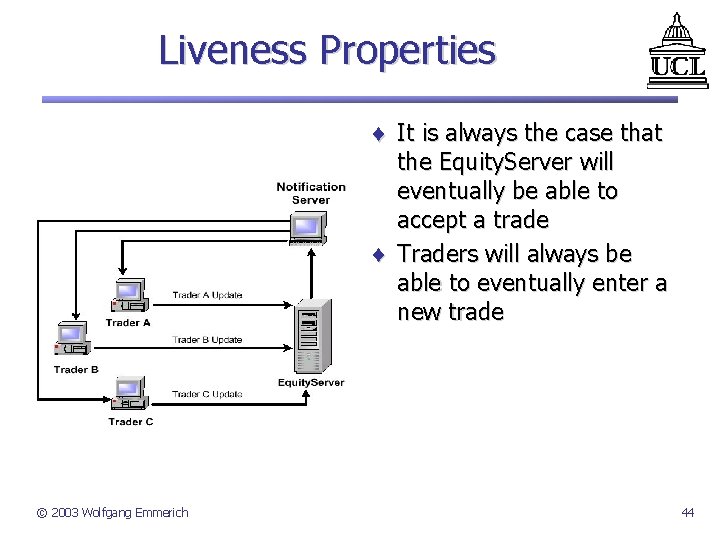

Liveness Properties ¨ It is always the case that the Equity. Server will eventually

Outline ¨ Distributed Systems ¨ Middleware ¨ Advanced Communication in Object and Component Middleware ¨ Design Issues for Distributed Objects and Components ¨ Design Validation using Model Checking ¨ Related Work ¨ Conclusions © 2003 Wolfgang Emmerich 45

Motivations & Challenges ¨ Confront complexities by offering developers design aid ¨ Complement existing Software Engineering validation and verification techniques ¨ Only expose designers to the UML notation they are likely to be familiar with ¨ Solution not dependent on any specific semantic notation ¨ Build on existing tools and notations © 2003 Wolfgang Emmerich 46

Approach ¨ Exploit the fact that object and component middleware provide only few primitives for synchronization of distributed objects ¨ Representation of these primitives as stereotypes in UML models ¨ Formal specification of stereotype semantics ¨ Model checking of UML models against given safety and liveness properties © 2003 Wolfgang Emmerich 47

Approach Overview Stereotype UML Class & Statechart diagrams + props. Process Algebra Generation Results – UML Sequence diagrams Model Checking Design Domain © 2003 Wolfgang Emmerich Verification Domain 48

Policies & Primitives ¨ Mainstream object middleware provides few primitives and policies ¨ Synchronization Primitives (Client-side): ¨ Synchronous Requests ¨ Deferred Synchronous Requests ¨ One-way Requests ¨ Asynchronous Requests ¨ Threading Policies (Server-side): ¨ Single Threaded ¨ Multi Threaded © 2003 Wolfgang Emmerich 49

Approach Overview Stereotype UML Class & Statechart diagrams + props Process Algebra Generation Results – UML Sequence diagrams Model Checking Developer Domain © 2003 Wolfgang Emmerich Verification Domain 50

Trading Class Diagram <<single. Threaded>> Notification. Server receive. Equity. Data() add. Trader() remove. Trader() my. Update. Server traders <<single. Threaded>> Trader receive. Server. Updates() my. Equity. Server controller notifier <<single. Threaded>> Equity. Server traders receive. Trader. Update() © 2003 Wolfgang Emmerich 51

Notification Server Statechart add. Trader remove. Trader idle receive. Equity. Data finishedsendout preparing data reply sending © 2003 Wolfgang Emmerich <<synchronous>> traders. receive. Server. Updates() 52

Equity Server Statechart idle receive. Trader. Update reply update <<synchronous>> notifier. receive. Equity. Data()

Object Diagram trader 3: Trader trader 2: Trader trader 1: Trader equity. Server 1: Equity. Server notifier 1: Notification. Server Used to depict run-time configuration of the system © 2003 Wolfgang Emmerich 54

User-defined properties ¨ Designers must specify properties that the modelled system must adhere to ¨ Enforce restriction on parallel execution of state diagram models ¨ Safety ¨ Nothing bad happens during execution ¨ Deadlock, event ordering ¨ Liveness ¨ Something good eventually happens ¨ Eventual termination © 2003 Wolfgang Emmerich 55

Safety Property 0 Equity. Server. receive. Trader. Update Trader. receive. Server. Updates 1 Notification. Server. receive. Equity. Data 2 Specifies action ordering across the three state diagrams © 2003 Wolfgang Emmerich 56

Liveness Property <<single. Threaded>> Notification. Server <<single. Threaded>> my. Update. Server Trader <<progress>> receive. Equity. Data() add. Trader() <<progress>> receive. Server. Updates() traders remove. Trader() my. Equity. Server controller notifier <<single. Threaded>> traders Equity. Server <<progress>> receive. Trader. Update() Progress evaluates to the temporal logic property of “always eventually” © 2003 Wolfgang Emmerich 58

Approach Overview Stereotype UML Class & Statechart diagrams + props Process Algebra Generation Results – UML Sequence diagrams Model Checking Developer Domain © 2003 Wolfgang Emmerich Verification Domain 59

Process Algebra Generation ¨ Use Finite State Process algebra (Magee & Kramer 99) to model object synchronisation ¨ Finite number of synchronization primitives and activation policies Þ Define FSP fragments for all primitive/policy combinations ¨ Compose FSP fragments along the combination of client/server primitives and the object diagram ¨ Define fragments and composition in OCL. © 2003 Wolfgang Emmerich 60

Process Algebra Generation Trading Class Diagram Equity Server Statechart <<single. Threaded>> Notification. Server idle controller receive. Trader. Update reply notifier <<single. Threaded>> Equity. Server update <<synchronous>> notifier. receive. Equity. Data() updates completed Combination of single threaded server and synchronous invocation detected © 2003 Wolfgang Emmerich 61

Application FSP Specification EQUITYSERVER=(startserver->Idle), Idle=(receivetraderupdate->Update), Update=(notifier. receiveequitydata->receive. Invocation. Reply ->Updatescompleted), Updatescompleted=(reply->Idle). NOTIFICATIONSERVER=(startnotificationserver->Idle), Idle=(receiveequitydata->Preparingdata | addtrader->Idle | removetrader->Idle), Preparingdata=(reply->Sending), Sending=(traders. receiveserverupdates->receive. Invocation. Reply ->Sending | finishedsendout->Idle). NOTIFIER_OA =(receive. Request->relay. Request->receive. Reply->relay. Reply->NOTIFIER_OA). ||TRADING_SYSTEM = (notifier 1: NOTIFICATIONSERVER || equityserver 1: EQUITYSERVER || notificationserver. OA: NOTIFIER_OA ) /{ equityserver 1. notifier. receiveequitydata / notificationserver. OA. receive. Request, equityserver 1. receive. Invocation. Reply / notificationserver. OA. relay. Reply, notifier 1. receiveequitydata / notificationserver. OA. relay. Request, © 2003 Wolfgang Emmerich notifier 1. reply / notificationserver. OA. receive. Reply }. 62

$User-defined Property FSP Specification Safety: property SFY_1= ({trader 1, trader 2}. equity. Server 1.$

User-defined Property FSP Specification Safety: property SFY_1= ({trader 1, trader 2}. equity. Server 1. receivetraderupdate->S 1), S 1= ({equity. Server 1}. notifier 1. receiveequitydata->S 2), S 2= ( {notifier 1}. trader 1. receiveserverupdates->SFY_1 | {notifier 1}. trader 2. receiveserverupdates->SFY_1). Liveness: progress EQUITYSERVER_PRG={ trader 1. equity. Server 1. receivetraderupdate, trader 2. equity. Server 1. receivetraderupdate} progress NOTIFICSERVER_PRG ={equity. Server 1. notifier 1. receiveequitydata } progress TRADER_PRG = {notifier 1. trader 1. receiveserverupdates, notifier 1. trader 2. receiveserverupdates } © 2003 Wolfgang Emmerich 63

Approach Overview Stereotype UML Class & Statechart diagrams + props Process Algebra Generation Generate UML Sequence diagrams for results Model Checking Developer Domain © 2003 Wolfgang Emmerich Verification Domain 64

Model Checking ¨ Generate a Labelled Transition System from the input process algebra ¨ Carry out an exhaustive search in state space of the underlying LTS for action traces leading to property violations ¨ In case of violation, produce an action trace ¨ Trace is used to construct a UML sequence diagram to show scenario leading to the property violation ¨ For liveness violations the sequence diagram depicts the trace to the terminal set © 2003 Wolfgang Emmerich 65

Context aware minimization ¨ Model checking suffers from the state explosion problem ¨ Optimisation is achieved by: ¨ Only modelling the synchronization behaviour of a middleware application ¨ Building a state space of transitions in state diagrams that only correspond to remote requests Trader © 2003 Wolfgang Emmerich Trader. OA 66

Approach Overview Stereotyped UML Class & Statechart diagrams + props Process Algebra Generation Results – UML Sequence diagrams Model Checking Developer Domain © 2003 Wolfgang Emmerich Verification Domain 67

Relating Results ¨ Model Checker produces trace in LTS, e. g. : Trace to DEADLOCK: trader 1. equity. Server 1. receivetraderupdate equity. Server 1. notifier 1. receiveequitydata notifier 1. trader 1. receiveserverupdates_reply notifier 1. receiveequitydata_reply equity. Server 1. receivetraderupdate_reply trader 1. equity. Server 1. receivetraderupdate notifier 1. trader 1. receiveserverupdate equity. Server 1. notifier 1. receiveequitydata trader 2. equity. Server 1. receivetraderupdate © 2003 Wolfgang Emmerich 68

Relating Results More meaningful in UML notation trader 1: Trader equity. Server 1: Equity. Server notifier 1 : Notification. Server receive. Trader. Update receive. Equity. Data receive. Server. Updates receive. Trader. Update receive. Server. Updates receive. Equity. Data © 2003 Wolfgang Emmerich 69

Tool Support: Architecture © 2003 Wolfgang Emmerich 70

Tool Support: Design © 2003 Wolfgang Emmerich 71

Evaluation: Experiment ¨ How many concurrent objects can we support ¨ Vary number of traders in architecture below tradern: Trader … trader 2: Trader trader 1: Trader equity. Server 1: Equity. Server © 2003 Wolfgang Emmerich notifier 1: Notification. Server 72

Evaluation: State Space © 2003 Wolfgang Emmerich 73

Outline ¨ Distributed Systems ¨ Middleware ¨ Advanced Communication in Object and Component Middleware ¨ Design Issues for Distributed Objects and Components ¨ Design Validation using Model Checking ¨ Related Work ¨ Conclusions © 2003 Wolfgang Emmerich 74

Some Related Work ¨ Cheung & Kramer, 1999. Checking Safety Properties using Compositional Reachability Analysis, TOSEM 8(1) ¨ Inverardi et al. 2001. Automated Checking of Architectural Models using SPIN, ASE 2001. ¨ Mc. Umber & Cheung, 2001. A general Framework formalizing UML with Formal Languages. ICSE 2001. © 2003 Wolfgang Emmerich 75

Outline ¨ Distributed Systems ¨ Middleware ¨ Advanced Communication in Object and Component Middleware ¨ Design Issues for Distributed Objects and Components ¨ Design Validation using Model Checking ¨ Related Work ¨ Conclusions © 2003 Wolfgang Emmerich 76

Conclusions ¨ Detect synchronisation problems in oomiddleware systems at design ¨ Define semantics for client/server communication primitives ¨ Use model checking to detect potential execution traces that leading to property violations ¨ Confine designers to a pure UML interaction only ¨ Introduce no new notations © 2003 Wolfgang Emmerich 77

Future Work ¨ Investigate heuristic approaches such as pattern detection in the UML design diagrams ¨ Carry out an industrial case study to analyse the scalability and feasibility of our approach ¨ Provide semantic mapping to the Promela (SPIN), to demonstrate the general applicability of our concepts © 2003 Wolfgang Emmerich 78
