Valencia November 2006 Artistic Geometry Carlo H Squin

Valencia, November 2006 Artistic Geometry Carlo H. Séquin U. C. Berkeley

Homage a Keizo Ushio

Performance Art at ISAMA’ 99 San Sebastian 1999 (also in 2007) Keizo Ushio and his “OUSHI ZOKEI”

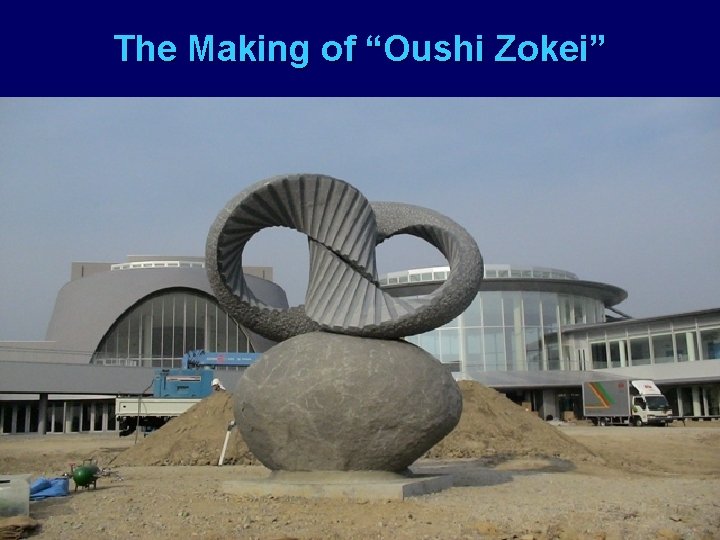

The Making of “Oushi Zokei”

The Making of “Oushi Zokei” (1) Fukusima, March’ 04 Transport, April’ 04

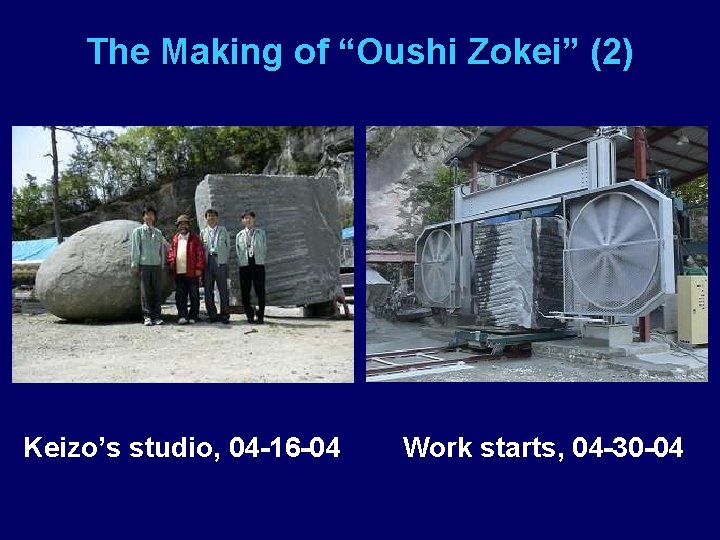

The Making of “Oushi Zokei” (2) Keizo’s studio, 04 -16 -04 Work starts, 04 -30 -04

The Making of “Oushi Zokei” (3) Drilling starts, 05 -06 -04 A cylinder, 05 -07 -04

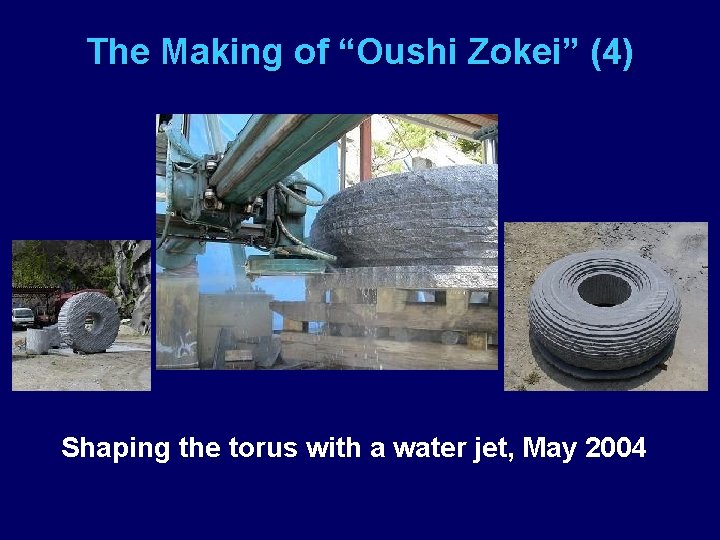

The Making of “Oushi Zokei” (4) Shaping the torus with a water jet, May 2004

The Making of “Oushi Zokei” (5) A smooth torus, June 2004

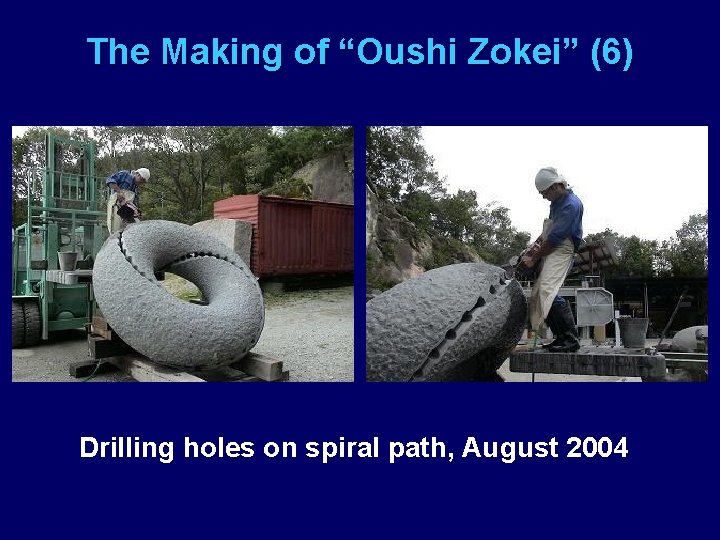

The Making of “Oushi Zokei” (6) Drilling holes on spiral path, August 2004

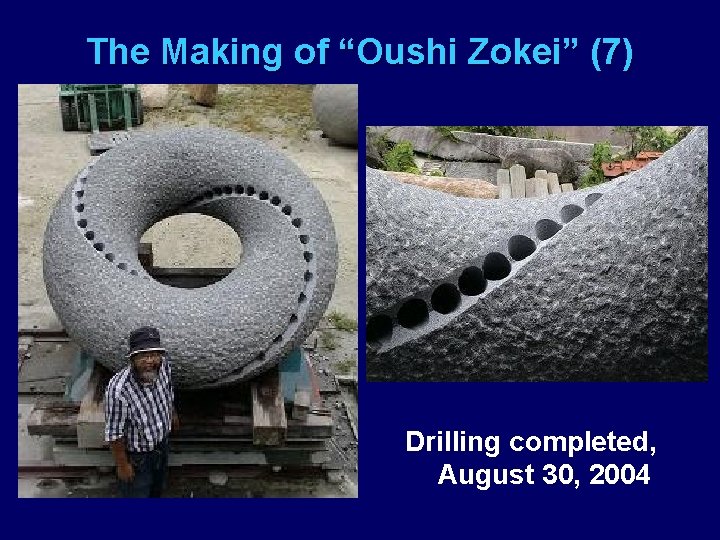

The Making of “Oushi Zokei” (7) Drilling completed, August 30, 2004

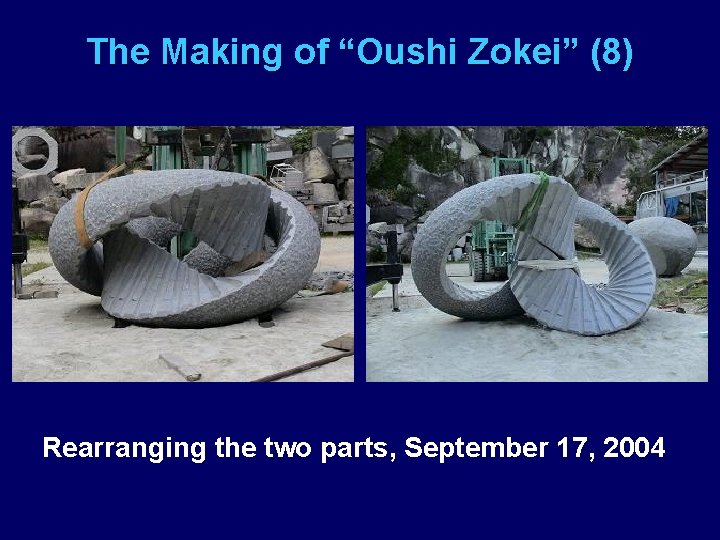

The Making of “Oushi Zokei” (8) Rearranging the two parts, September 17, 2004

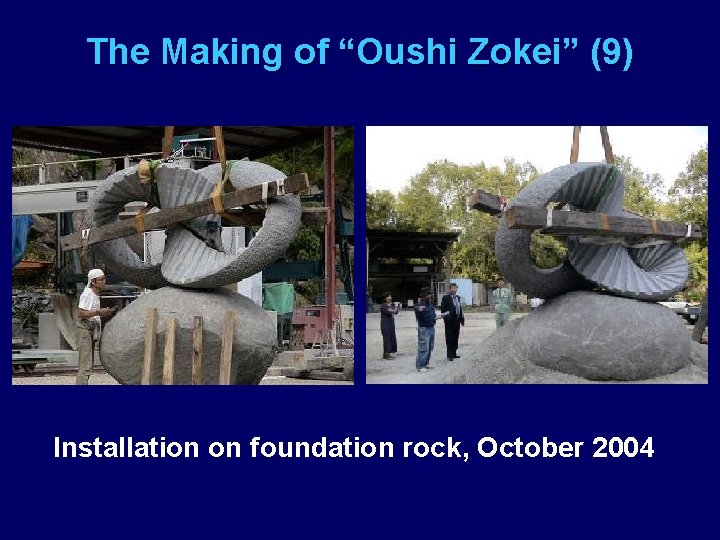

The Making of “Oushi Zokei” (9) Installation on foundation rock, October 2004

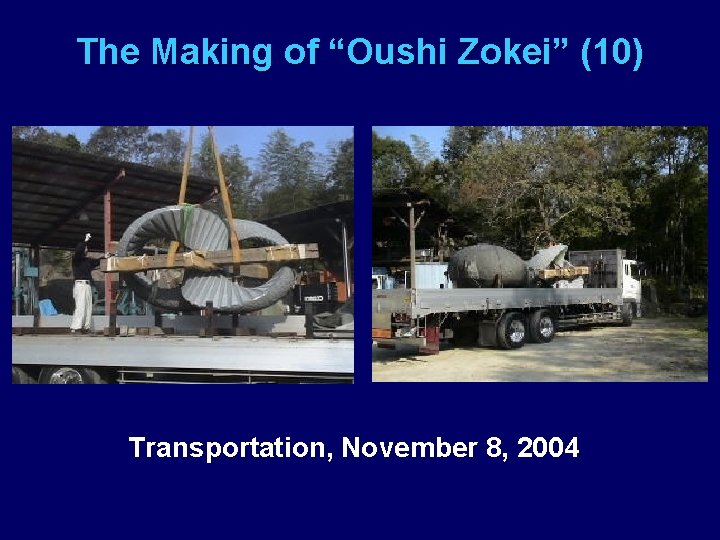

The Making of “Oushi Zokei” (10) Transportation, November 8, 2004

The Making of “Oushi Zokei” (11) Installation in Ono City, November 8, 2004

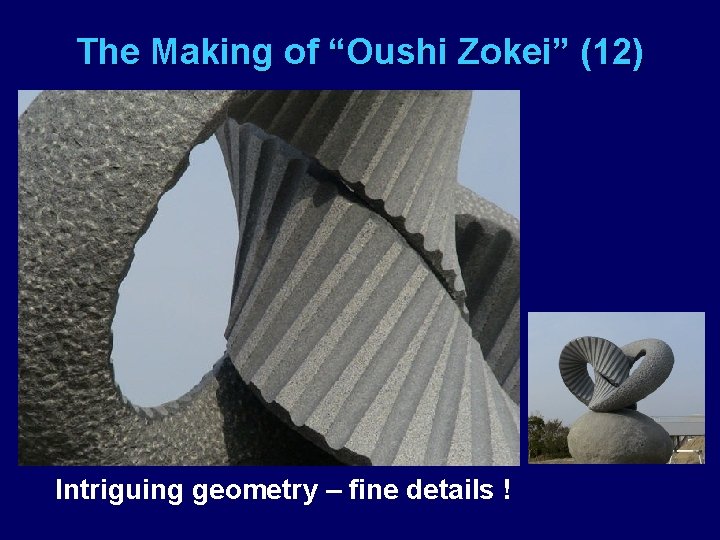

The Making of “Oushi Zokei” (12) Intriguing geometry – fine details !

Schematic of 2 -Link Torus 360° Small FDM (fused deposition model)

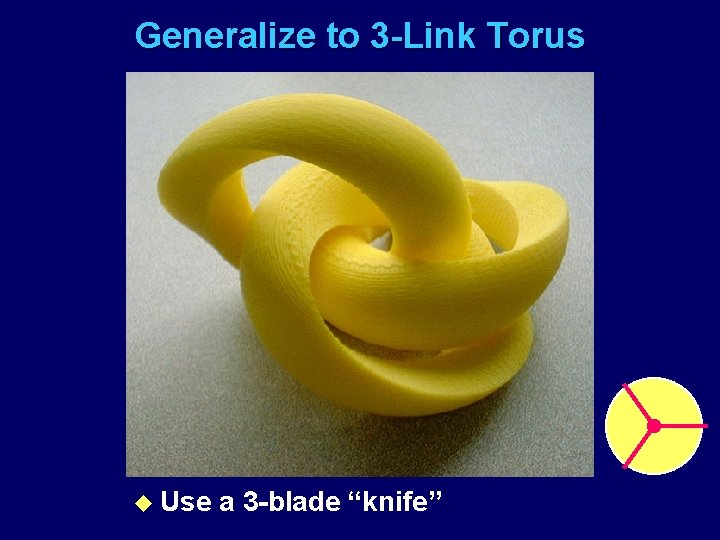

Generalize to 3 -Link Torus u Use a 3 -blade “knife”

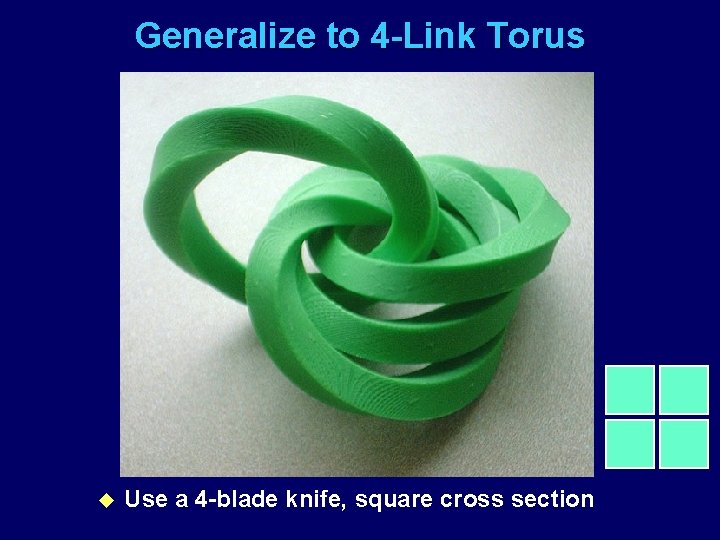

Generalize to 4 -Link Torus u Use a 4 -blade knife, square cross section

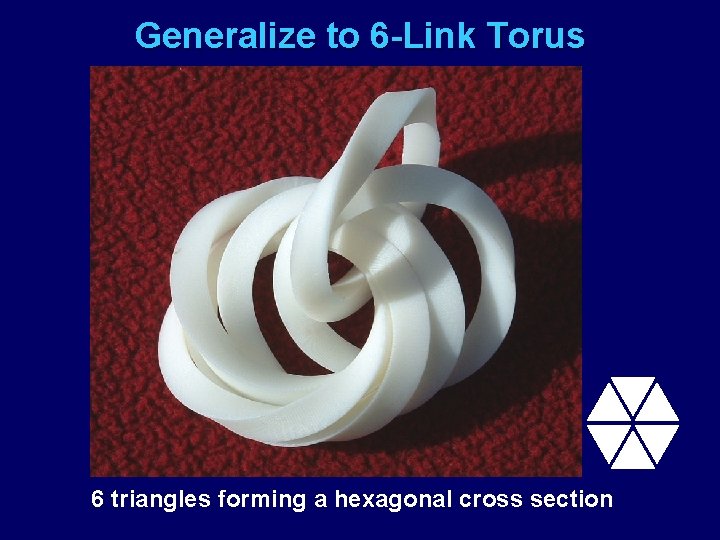

Generalize to 6 -Link Torus 6 triangles forming a hexagonal cross section

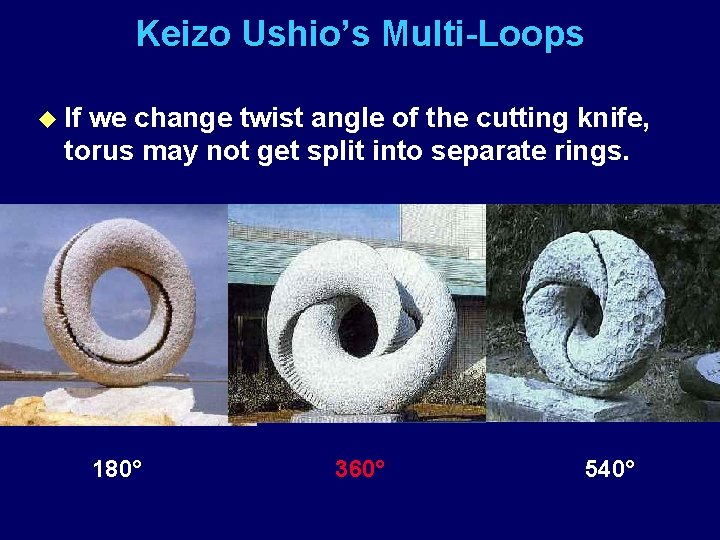

Keizo Ushio’s Multi-Loops u If we change twist angle of the cutting knife, torus may not get split into separate rings. 180° 360° 540°

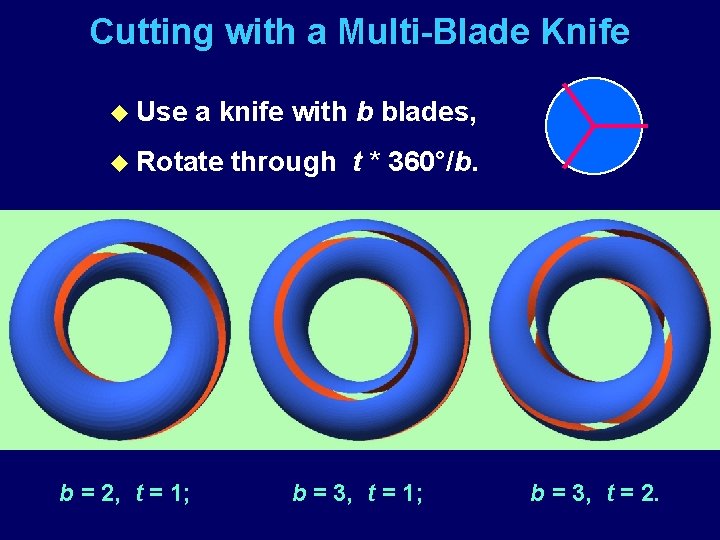

Cutting with a Multi-Blade Knife u Use a knife with b blades, u Rotate b = 2, t = 1; through t * 360°/b. b = 3, t = 1; b = 3, t = 2.

Cutting with a Multi-Blade Knife. . . u results in a (t, b)-torus link; u each component is a (t/g, b/g)-torus knot, u where g = GCD (t, b). b = 4, t = 2 two double loops.

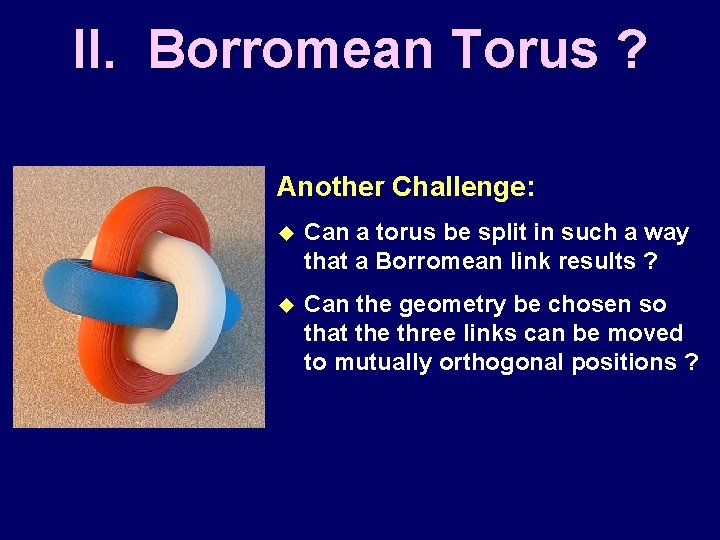

II. Borromean Torus ? Another Challenge: u Can a torus be split in such a way that a Borromean link results ? u Can the geometry be chosen so that the three links can be moved to mutually orthogonal positions ?

“Reverse Engineering” u Make a Borromean Link from Play-Dough u Smash the Link into a toroidal shape.

Result: A Toroidal Braid u Three strands forming a circular braid

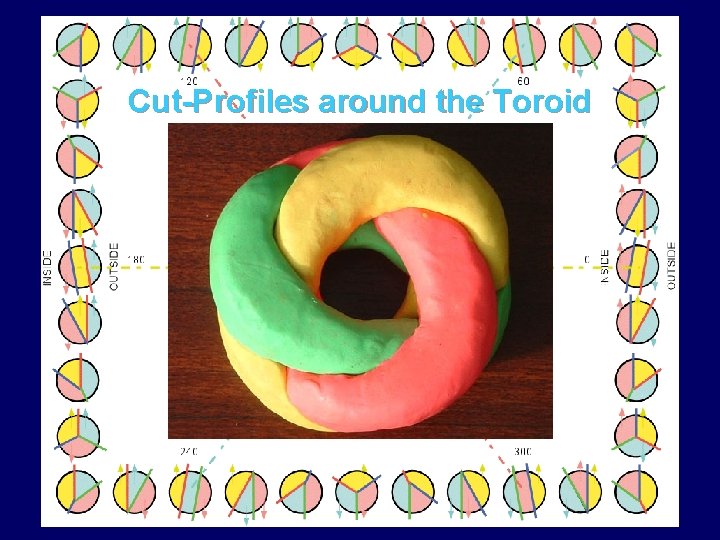

Cut-Profiles around the Toroid

Splitting a Torus into Borromean Rings u Make sure the loops can be moved apart.

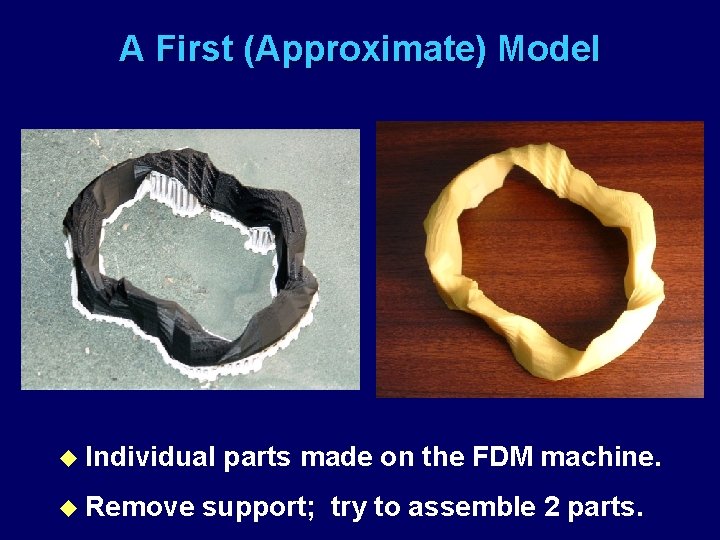

A First (Approximate) Model u Individual u Remove parts made on the FDM machine. support; try to assemble 2 parts.

Assembled Borromean Torus With some fine-tuning, the parts can be made to fit.

A Better Model u Made on a Zcorporation 3 D-Printer. u Define the cuts rather than the solid parts.

Separating the Three Loops u. A little widening of the gaps was needed. . .

The Open Borromean Torus

III. Focus on SPACE ! Splitting a Torus for the sake of the resulting SPACE !

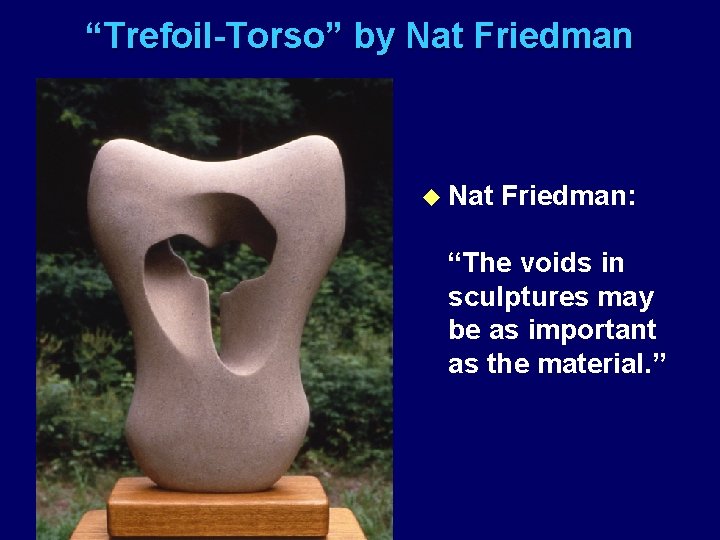

“Trefoil-Torso” by Nat Friedman u Nat Friedman: “The voids in sculptures may be as important as the material. ”

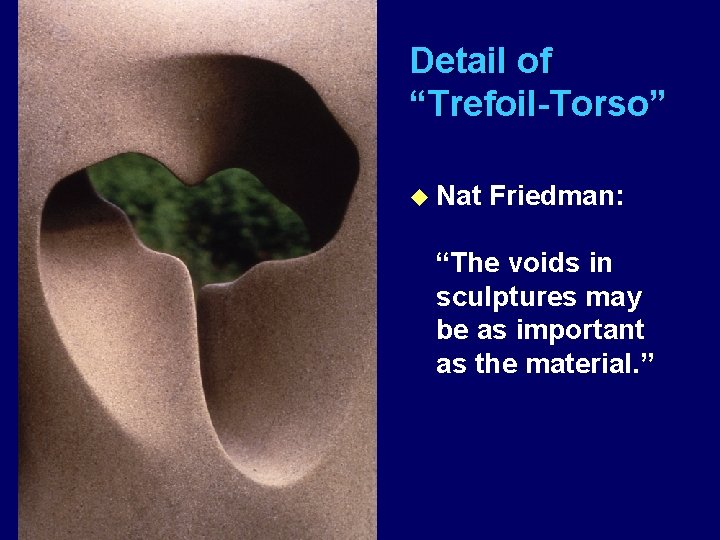

Detail of “Trefoil-Torso” u Nat Friedman: “The voids in sculptures may be as important as the material. ”

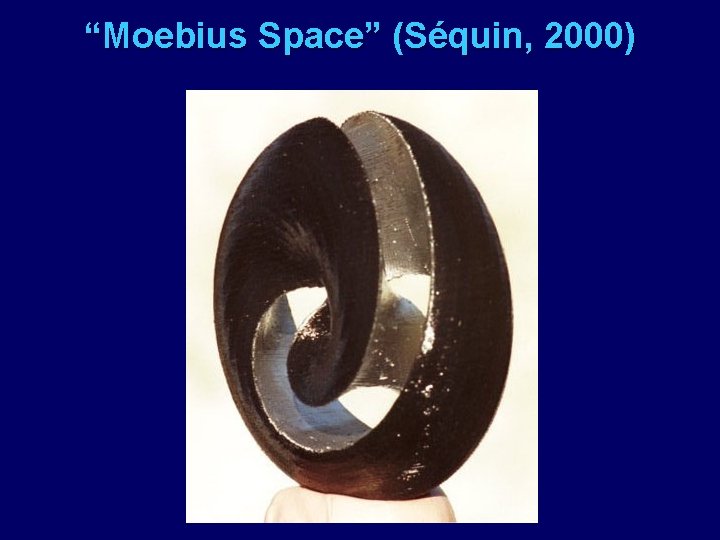

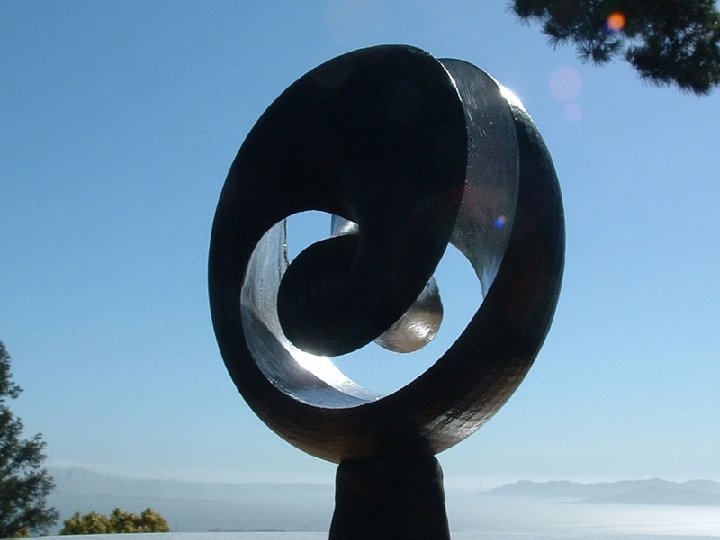

“Moebius Space” (Séquin, 2000)

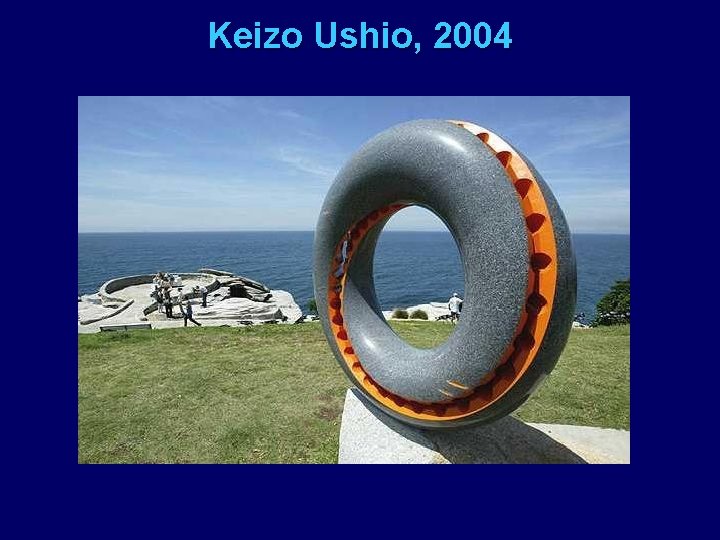

Keizo Ushio, 2004

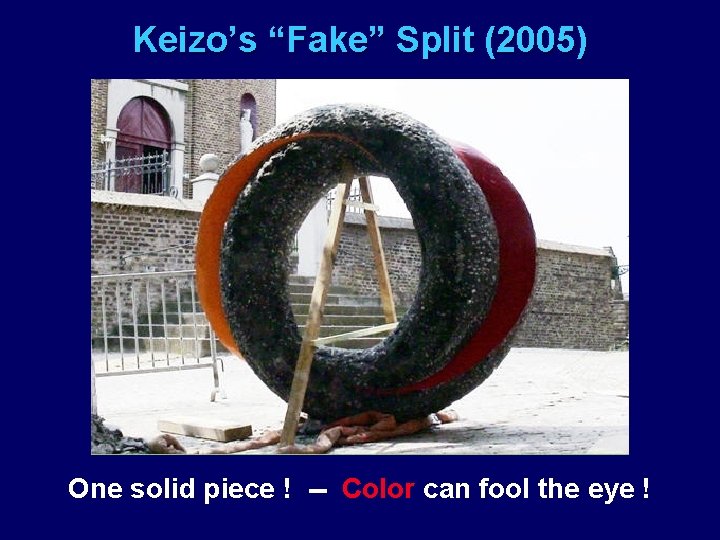

Keizo’s “Fake” Split (2005) One solid piece ! -- Color can fool the eye !

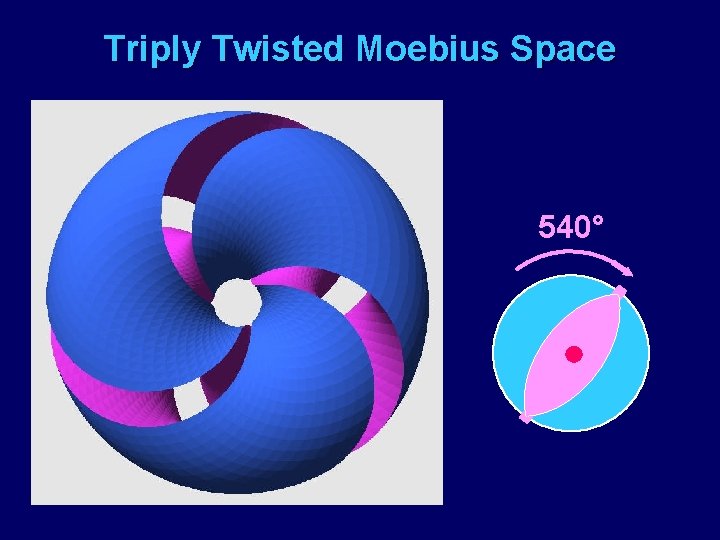

Triply Twisted Moebius Space 540°

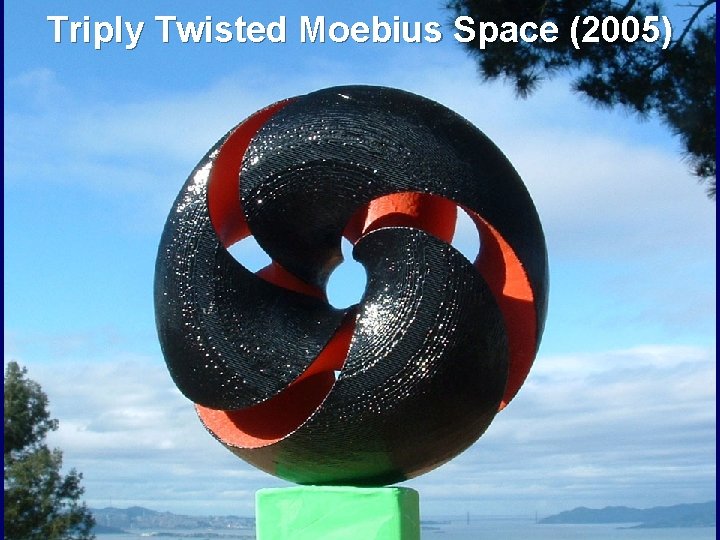

Triply Twisted Moebius Space (2005)

IV. Splitting Other Stuff What if we started with something more intricate than a torus ? . . . and then split it.

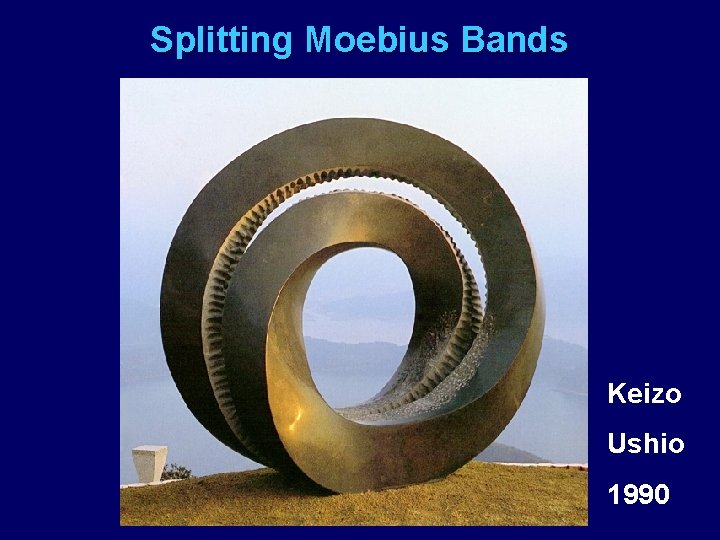

Splitting Moebius Bands Keizo Ushio 1990

Splitting Moebius Bands M. C. Escher FDM-model, thin FDM-model, thick

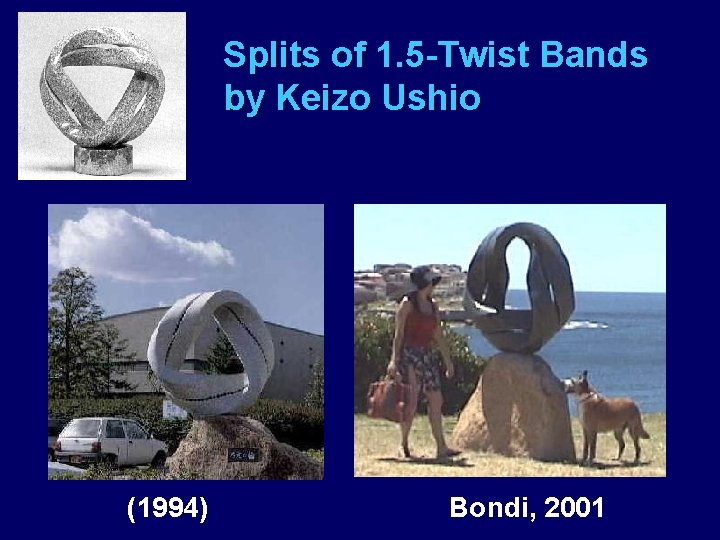

Splits of 1. 5 -Twist Bands by Keizo Ushio (1994) Bondi, 2001

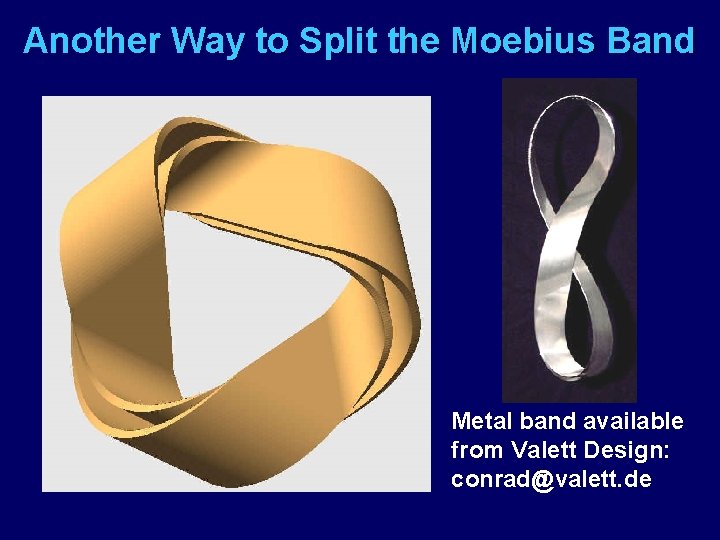

Another Way to Split the Moebius Band Metal band available from Valett Design: conrad@valett. de

Splitting Knots u Splitting a Moebius band comprising 3 half-twists results in a trefoil knot.

Splitting a Trefoil u This trefoil seems to have no “twist. ” u However, the Frenet frame undergoes about 270° of torsional rotation. u When the tube is split 4 ways it stays connected, (forming a single strand that is 4 times longer).

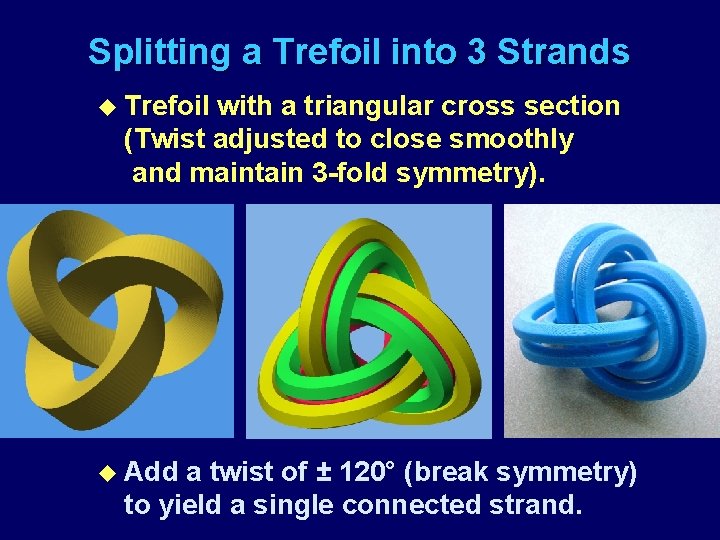

Splitting a Trefoil into 3 Strands u Trefoil with a triangular cross section (Twist adjusted to close smoothly and maintain 3 -fold symmetry). u Add a twist of ± 120° (break symmetry) to yield a single connected strand.

Splitting a Trefoil into 2 Strands u Trefoil with a rectangular cross section u Maintaining 3 -fold symmetry makes this a single-sided Moebius band. u Split results in double-length strand.

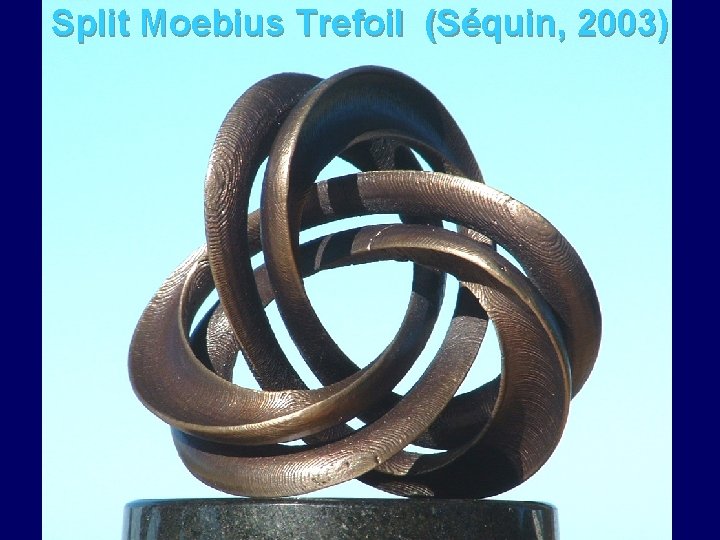

Split Moebius Trefoil (Séquin, 2003)

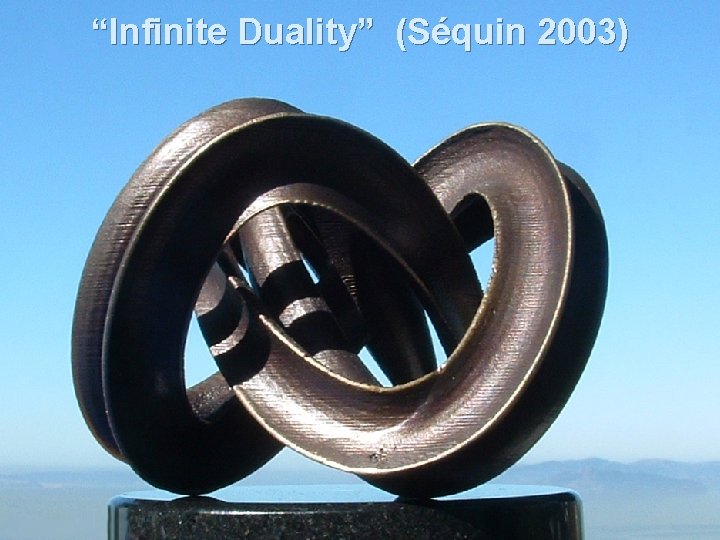

“Infinite Duality” (Séquin 2003)

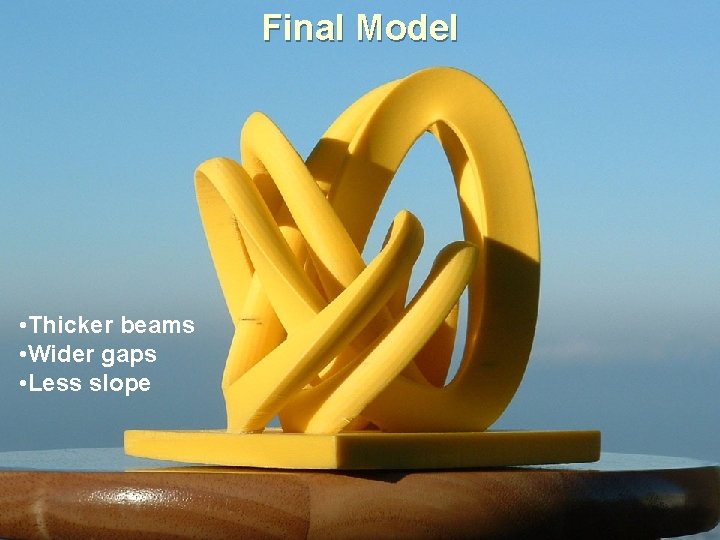

Final Model • Thicker beams • Wider gaps • Less slope

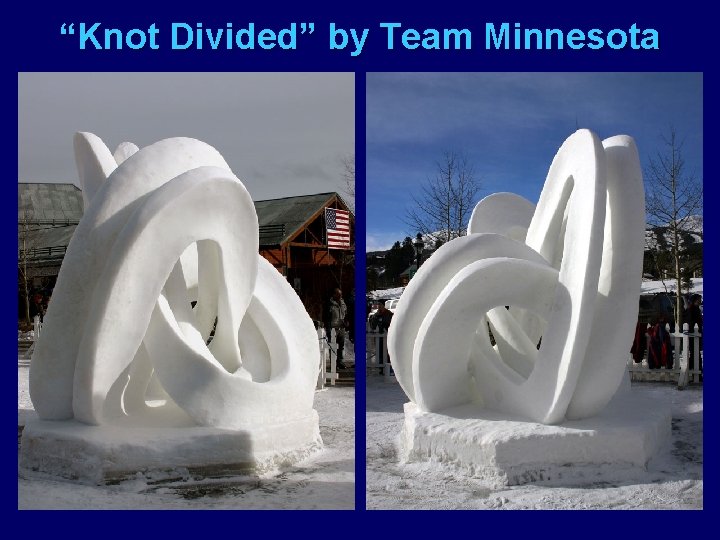

“Knot Divided” by Team Minnesota

What would happen if the original band were double-sided? u ==> True split into two knots ! u Probably tangled result u How tangled is it ? u How much can the 2 parts move ? u Explore these issues, and others. . .

Splitting the Knot into 3 Strands 3 -deep stack

Another 3 -Way Split Parts are different, but maintain 3 -fold symmetry

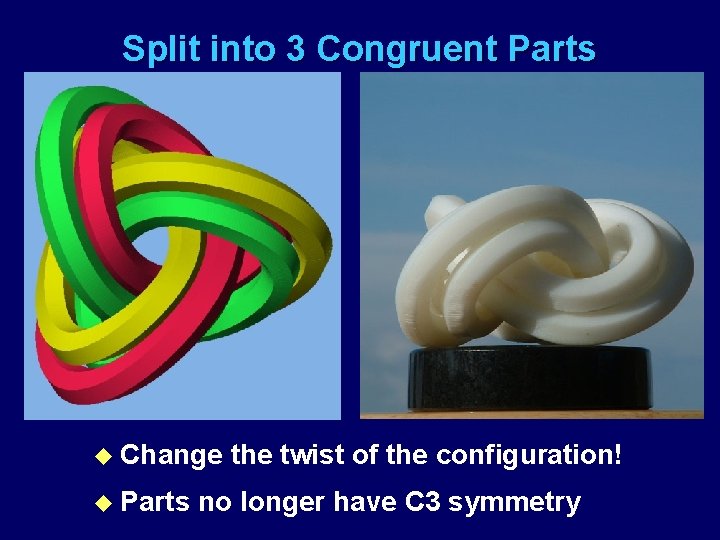

Split into 3 Congruent Parts u Change u Parts the twist of the configuration! no longer have C 3 symmetry

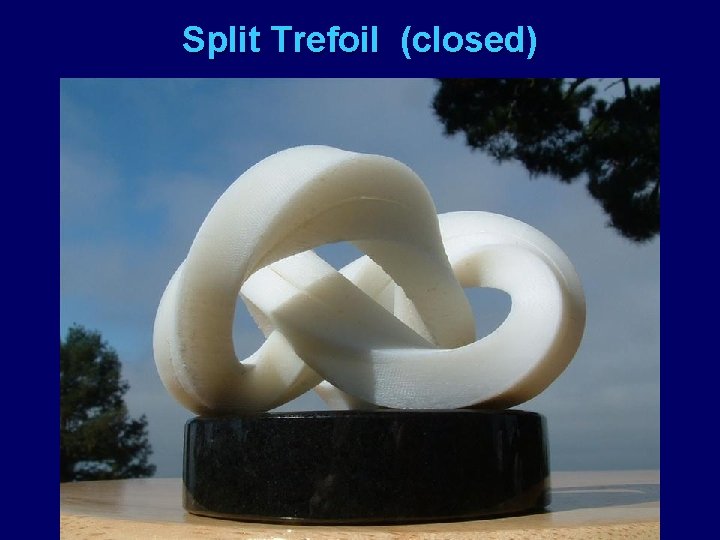

Split Trefoil (closed)

Split Trefoil (open)

Triple-Strand Trefoil (closed)

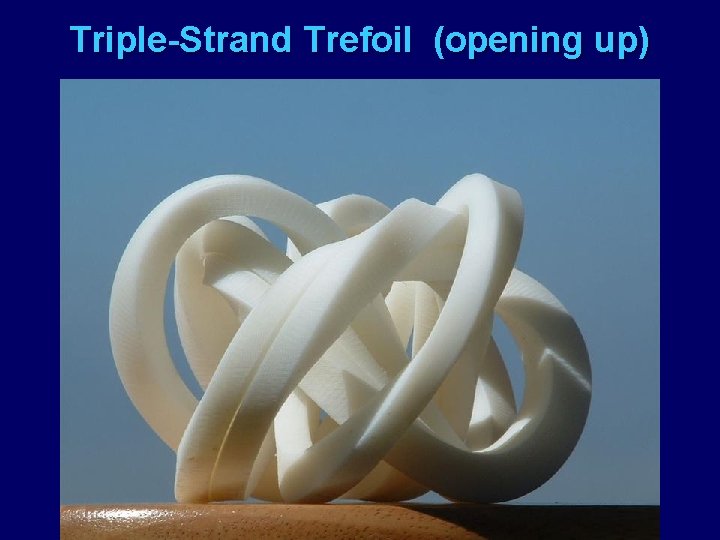

Triple-Strand Trefoil (opening up)

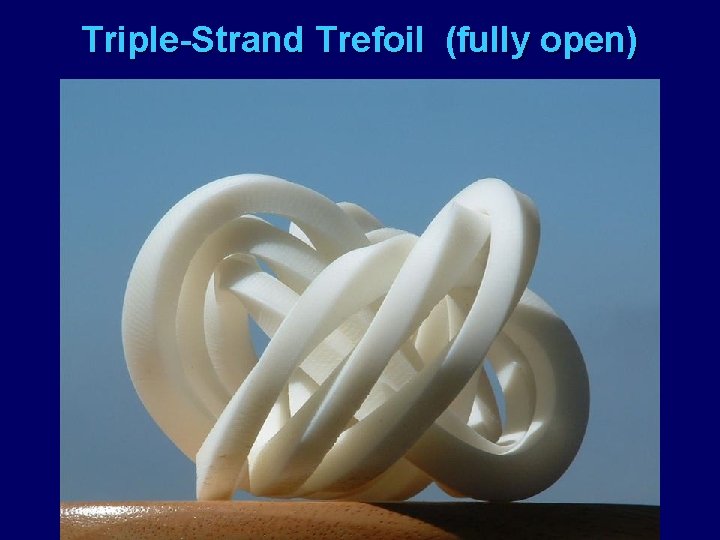

Triple-Strand Trefoil (fully open)

How Much Wiggle Room ? u Take a simple trefoil knot u Split it lengthwise u See what happens. . .

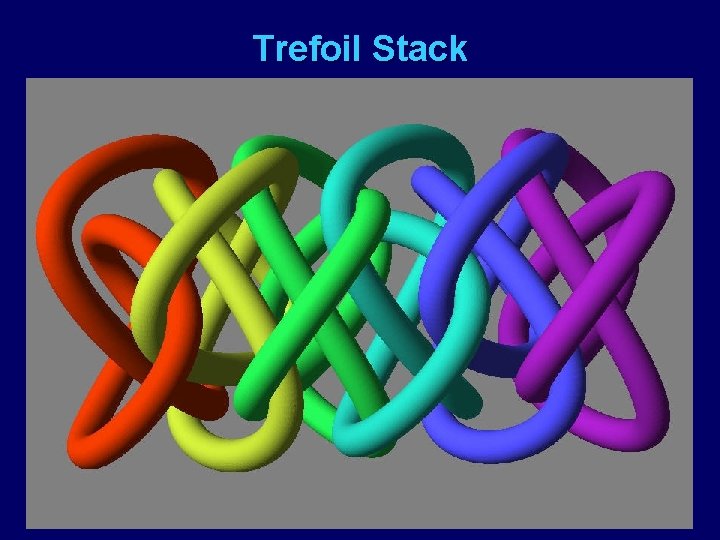

Trefoil Stack

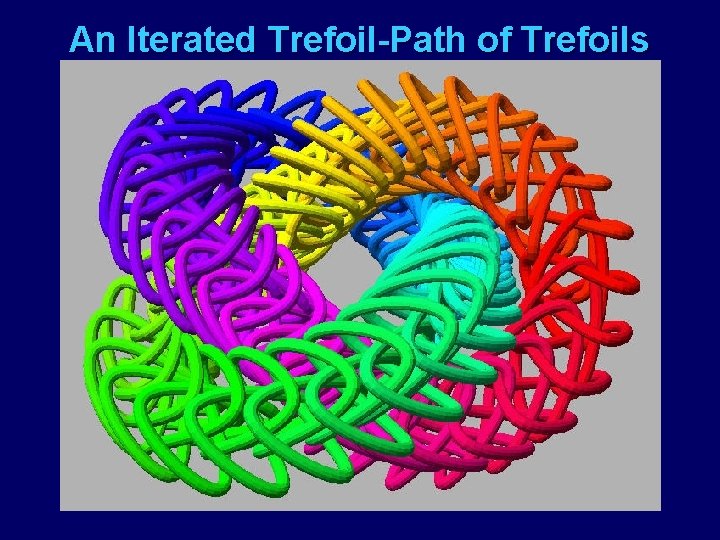

An Iterated Trefoil-Path of Trefoils

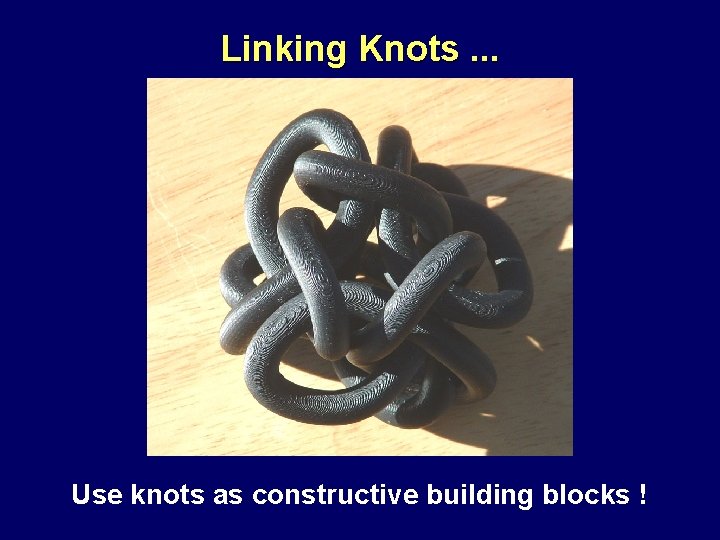

Linking Knots. . . Use knots as constructive building blocks !

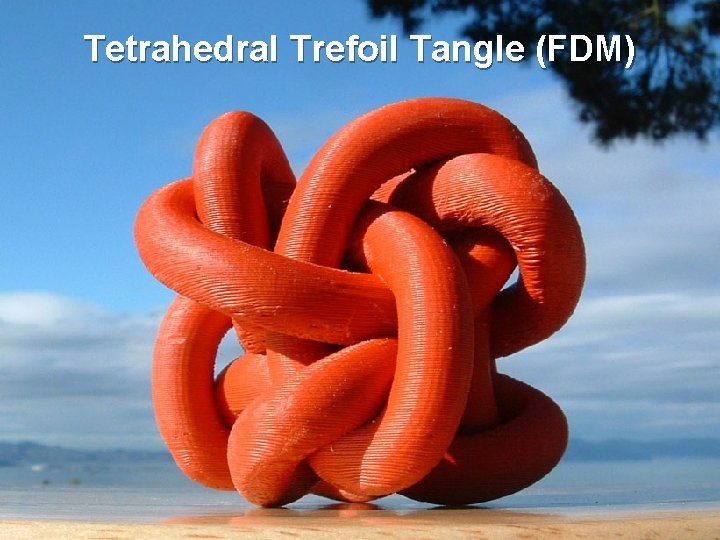

Tetrahedral Trefoil Tangle (FDM)

Tetra Trefoil Tangles u Simple linking (1) -- Complex linking (2)

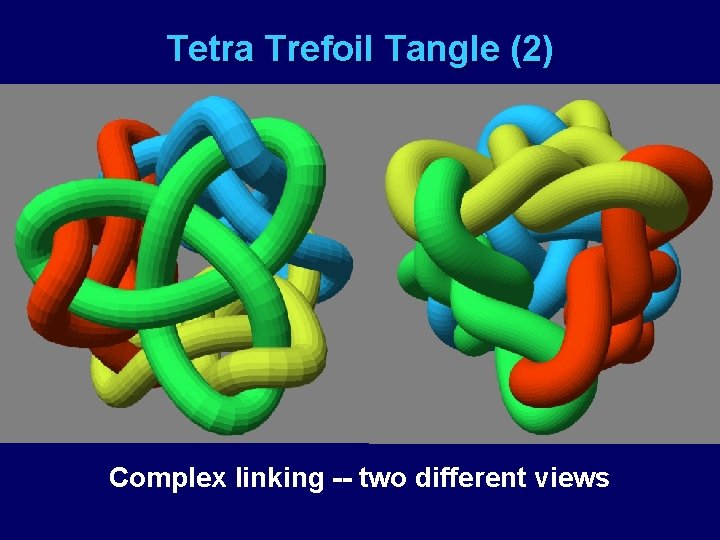

Tetra Trefoil Tangle (2) Complex linking -- two different views

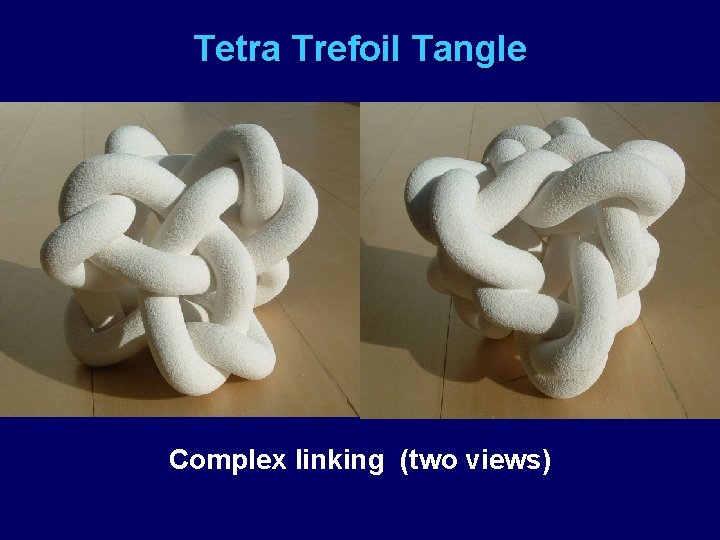

Tetra Trefoil Tangle Complex linking (two views)

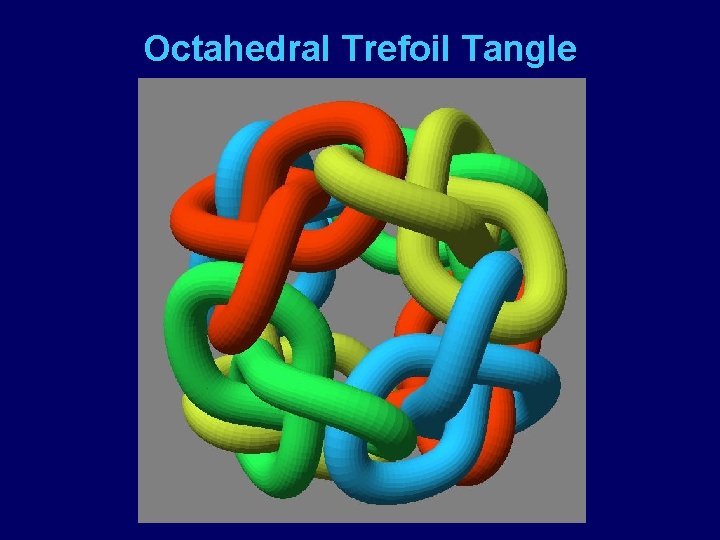

Octahedral Trefoil Tangle

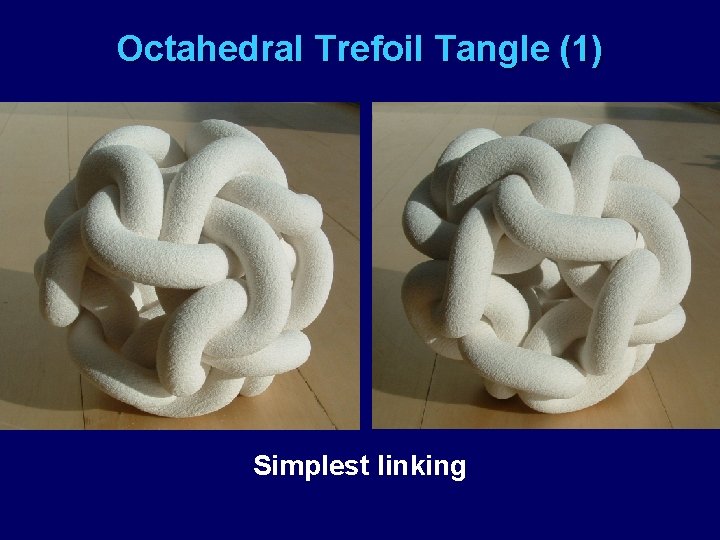

Octahedral Trefoil Tangle (1) Simplest linking

Platonic Trefoil Tangles ü u Take ü a Platonic polyhedron made from triangles, u Add a trefoil knot on every face, u Link with neighboring knots across shared edges. u Tetrahedron, Octahedron, . . . done !

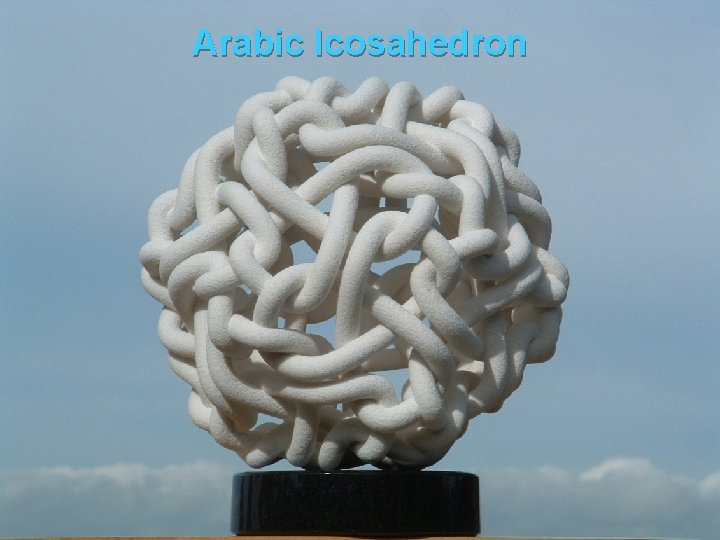

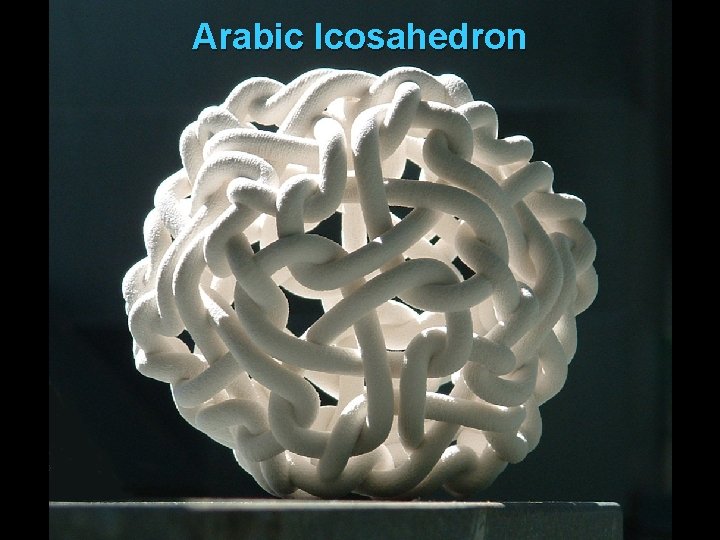

Arabic Icosahedron

Icosahedral Trefoil Tangle Simplest linking (type 1)

Icosahedral Trefoil Tangle (Type 3) u Doubly linked with each neighbor

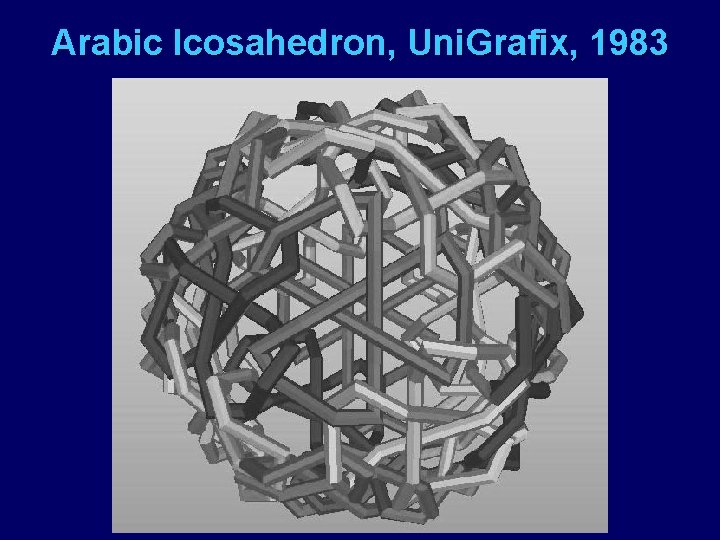

Arabic Icosahedron, Uni. Grafix, 1983

Arabic Icosahedron

Is It Math ? Is It Art ? u It is: “KNOT-ART”

Space-filling Sculptures u Can we pack knots so tightly u that they fill all of 3 D space ? u First: Review of Space-Filling Curves

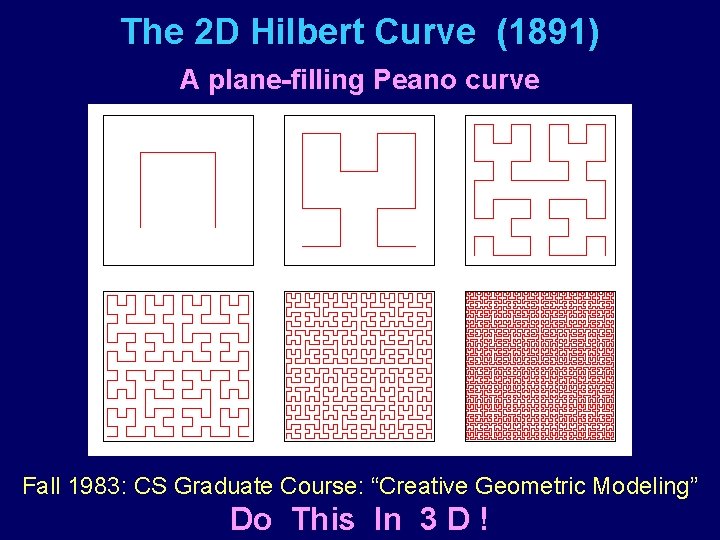

The 2 D Hilbert Curve (1891) A plane-filling Peano curve Fall 1983: CS Graduate Course: “Creative Geometric Modeling” Do This In 3 D !

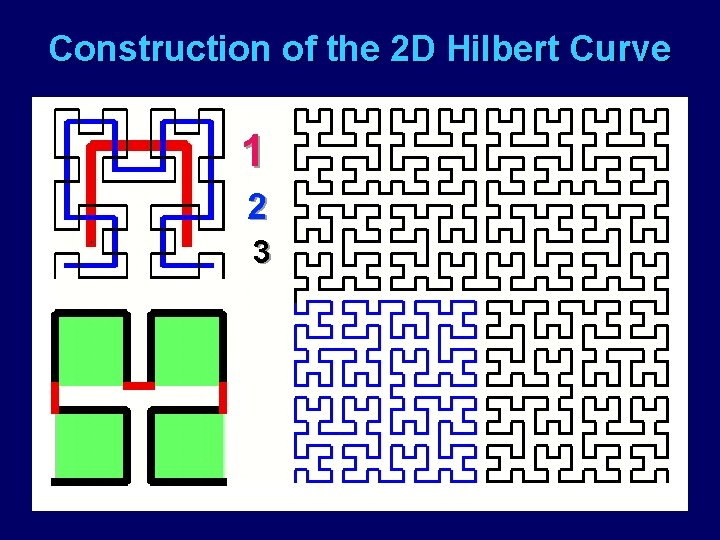

Construction of the 2 D Hilbert Curve 1 2 3

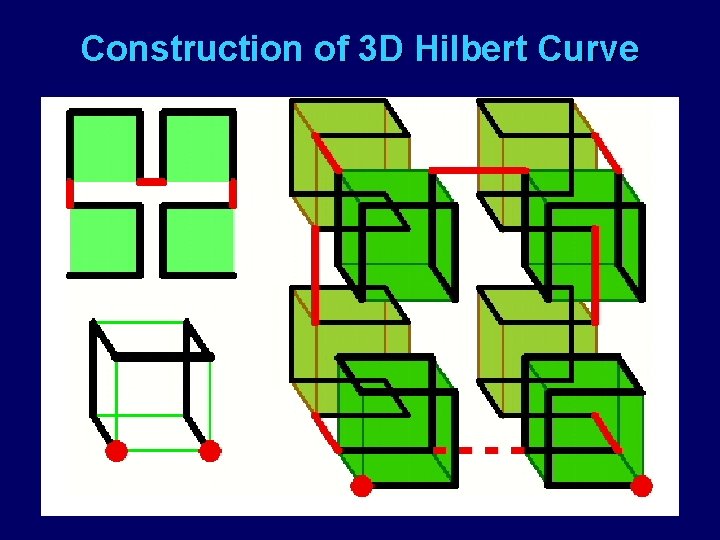

Construction of 3 D Hilbert Curve

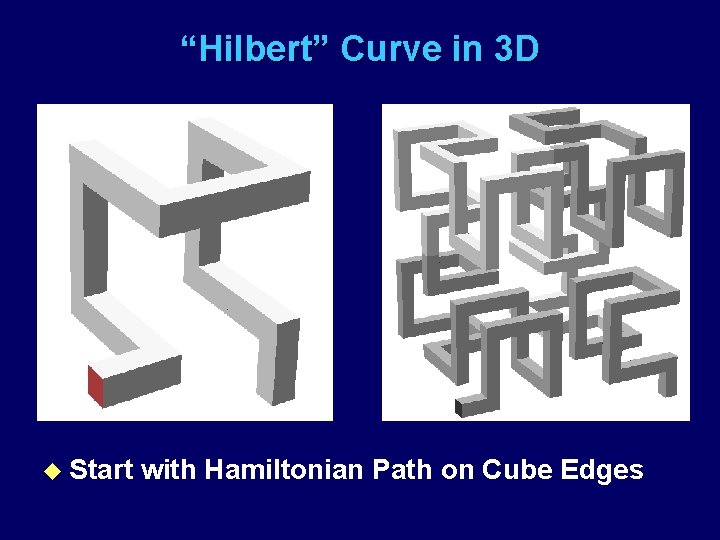

“Hilbert” Curve in 3 D u Start with Hamiltonian Path on Cube Edges

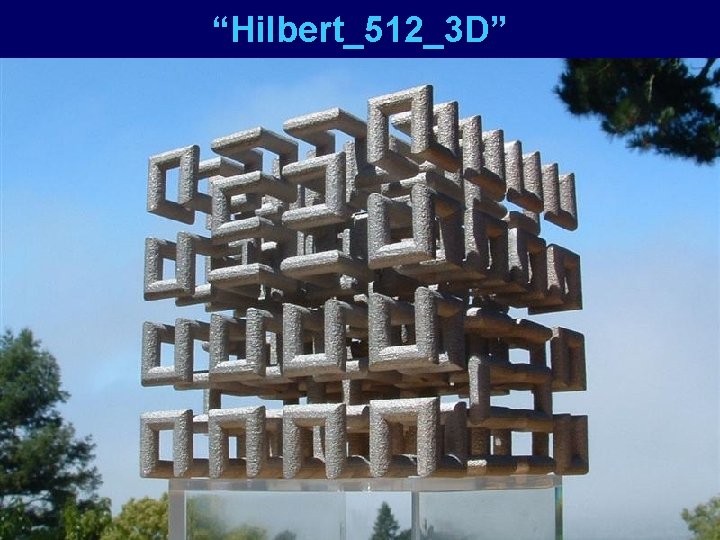

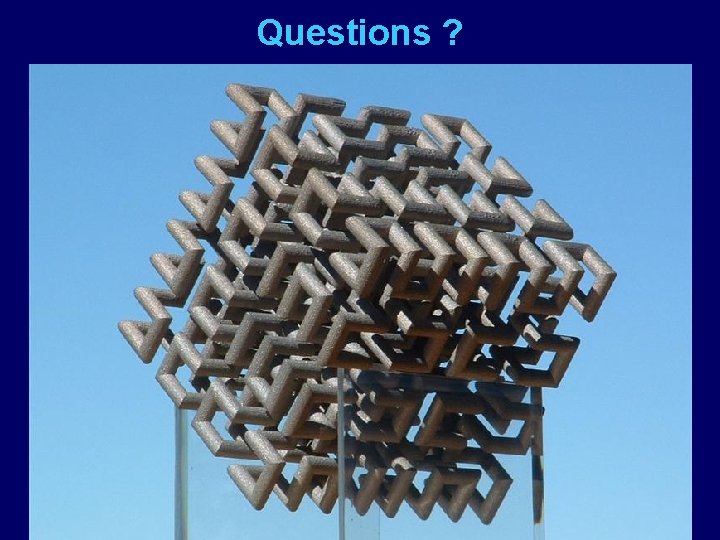

“Hilbert_512_3 D”

Pro. Metal Division of Ex One Company Headquarters in Irwin, Pennsylvania, USA.

Questions ?

Spares

V. Splitting Graphs u Take a graph with no loose ends u Split all edges of that graph u Reconnect u Ideally, them, so there are no junctions make this a single loop!

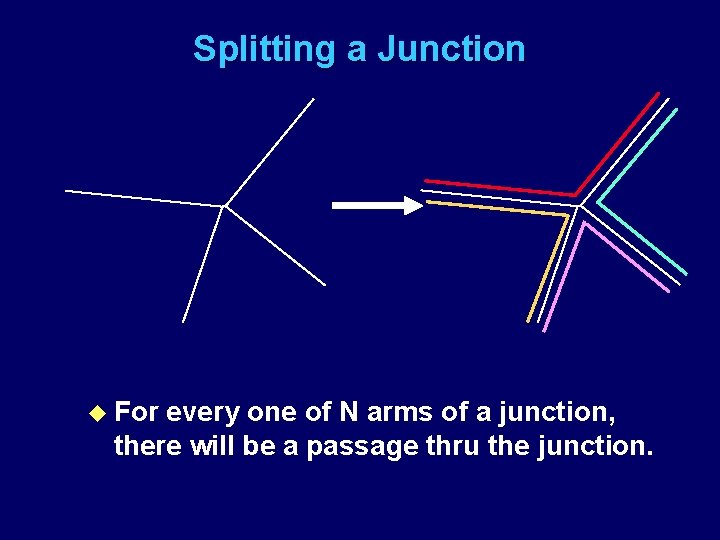

Splitting a Junction u For every one of N arms of a junction, there will be a passage thru the junction.

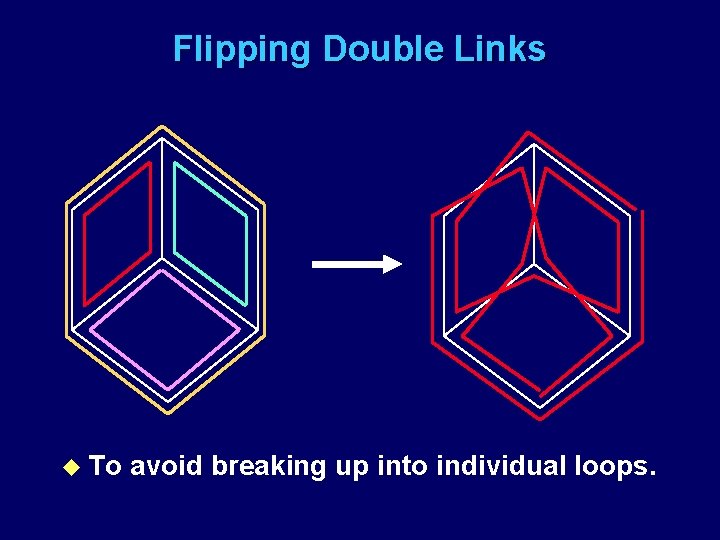

Flipping Double Links u To avoid breaking up into individual loops.

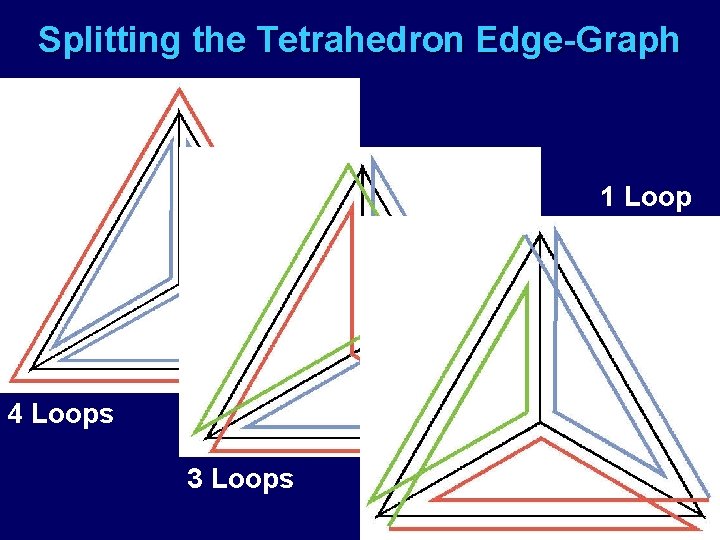

Splitting the Tetrahedron Edge-Graph 1 Loop 4 Loops 3 Loops

“Alter-Knot” by Bathsheba Grossman u Has some T-junctions

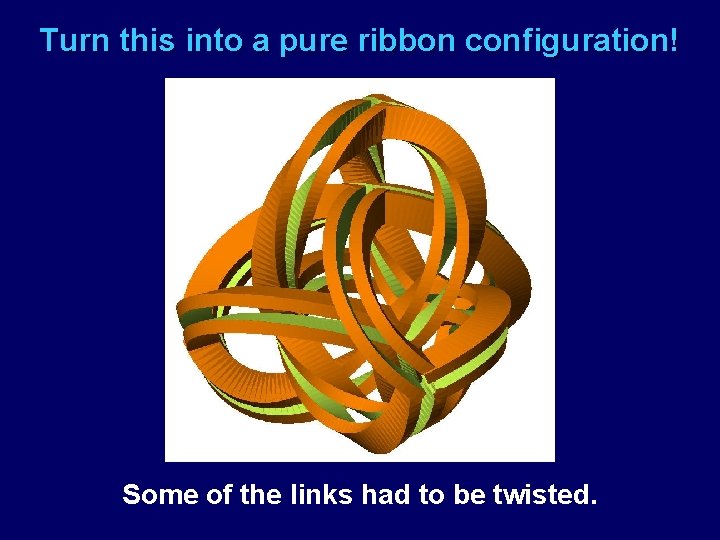

Turn this into a pure ribbon configuration! Some of the links had to be twisted.

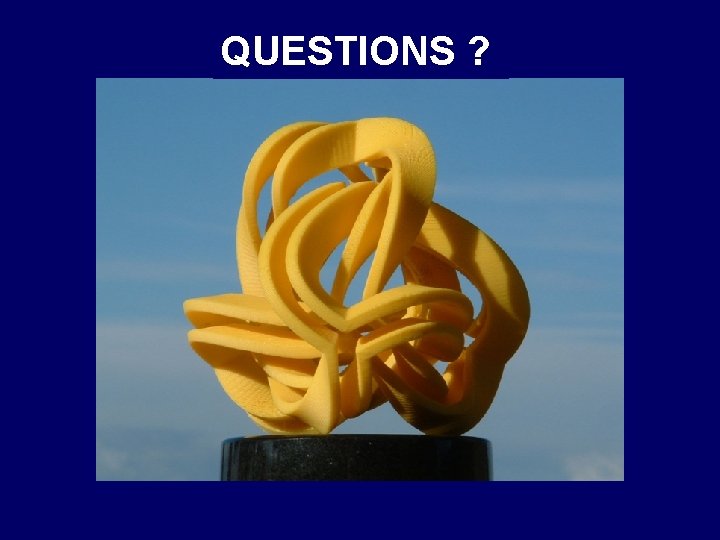

“Alter-Alterknot QUESTIONS ? ” Inspired by Bathsheba Grossman
