VACUUM SYNOPTIC UCPCVAC Basic synoptic Current synoptic UCPCVAC
VACUUM SYNOPTIC UCPC-VAC Basic synoptic Current synoptic UCPC-VAC Diagnostic synoptic

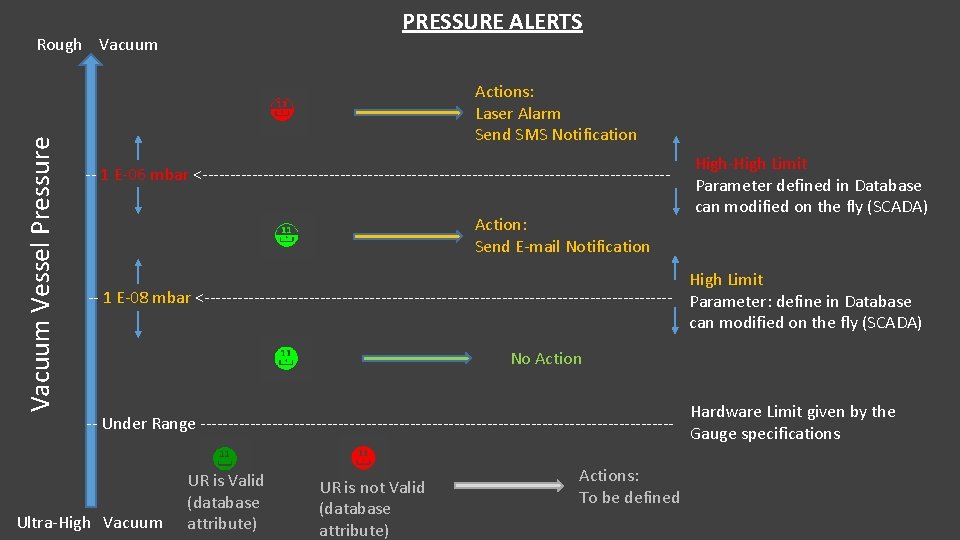

PRESSURE ALERTS Vacuum Vessel Pressure Rough Vacuum Actions: Laser Alarm Send SMS Notification -- 1 E-06 mbar <------------------------------------------Action: Send E-mail Notification High-High Limit Parameter defined in Database can modified on the fly (SCADA) High Limit -- 1 E-08 mbar <------------------------------------------- Parameter: define in Database can modified on the fly (SCADA) No Action -- Under Range ------------------------------------------- Ultra-High Vacuum UR is Valid (database attribute) UR is not Valid (database attribute) Actions: To be defined Hardware Limit given by the Gauge specifications
VACUUM WIDGET ANIMATION Data Quality and WARNING Let-ter PRIORITY Data Quality and WARNING Letter PRIORITY Invalid data N Highest Stop interlock (PLC software) S Highest Old (connection with PLC lost) O Start interlock (PLC software) I Hardware full interlock (hardwired) H Alarm A Hardware on/open interlock (hardwired) h High-High threshold alarm HH Field object Error E High threshold warning H Warning (Feedback <> order or Manual/Force order <> Auto order) W Mask and Block info Letter PRIORITY Alarm Blocked (PLC) B Highest Alarm Masked (only SCADA) M event Masked (only SCADA) e Lowest Letter PRIORITY Lowest MAIN STATUS BODY FILL COLOR PRIORITY Not Connected Grey Highest Invalid/undefined Cyan Lock Device Error Unacknowledged Red Blinking Device selected by another user (no action allowed) Device Error Acknowledged Red Forced mode Yellow Device Under Range (HV instrument) Dark Green Device OK Green Lowest ADDITIONAL Comment is active Letter Lowest NA MODE Letter PRIORITY Local Mode L Highest PRIORITY Force Mode F NA Manual Mode M Lowest
