UT2 Humanlike Behavior via Neuroevolution of Combat Behavior

UT^2: Human-like Behavior via Neuroevolution of Combat Behavior and Replay of Human Traces Jacob Schrum (schrum 2@cs. utexas. edu) Igor V. Karpov (ikarpov@cs. utexas. edu) Risto Miikkulainen (risto@cs. utexas. edu)

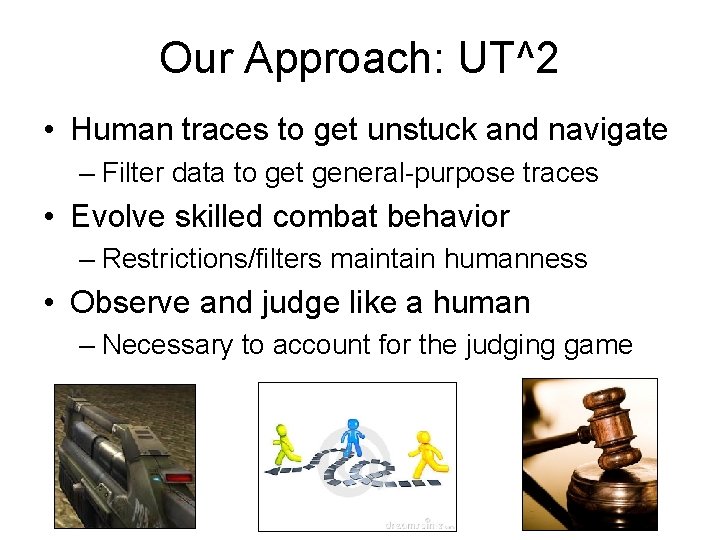

Our Approach: UT^2 • Human traces to get unstuck and navigate – Filter data to get general-purpose traces • Evolve skilled combat behavior – Restrictions/filters maintain humanness • Observe and judge like a human – Necessary to account for the judging game

Bot Architecture

Human Trace Replay


Record and Index Human Games Synthetic pose data Indexed by nearest navpoint Replay nearest trace when needed

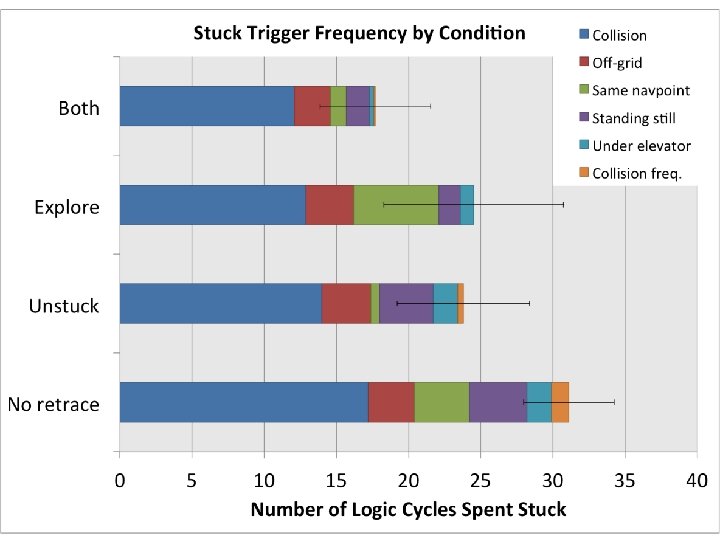

Unstuck Controller • Mix scripted responses and human traces – Previous UT^2 used only human traces Stuck Condition Response Still Move Forward Collide With Wall Move Away Frequent Collisions Dodge Away Under Elevator Goto Nearest Item or Dodge Bump Agent Move Away Same Navpoint Human Traces Off Navpoint Grid Human Traces • Human traces also used after repeated failures

Explorative Retrace • Explore the level like a human • Collisions allowed when using RETRACE – Humans often bump walls with no problem • If RETRACE fails – No trace available, or trace gets bot stuck – Fall through to PATH module (Nav graph)


Evolved Battle Controller

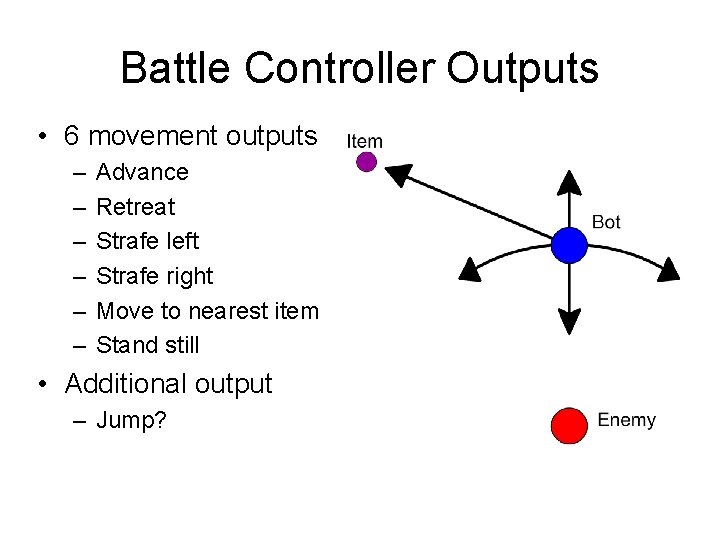

Battle Controller Outputs • 6 movement outputs – – – Advance Retreat Strafe left Strafe right Move to nearest item Stand still • Additional output – Jump?

Battle Controller Inputs Pie slice sensors for enemies Ray traces for walls/level geometry Other misc. sensors for current weapon properties, nearby item properties, etc.

Battle Controller Inputs • Opponent movement sensors – Opponent performing movement action X? – Opponents modeled as moving like bot – Approximation used

Constructive Neuroevolution • • Genetic Algorithms + Neural Networks Build structure incrementally (complexification) Good at generating control policies Three basic mutations (no crossover used) Perturb Weight Add Connection Add Node

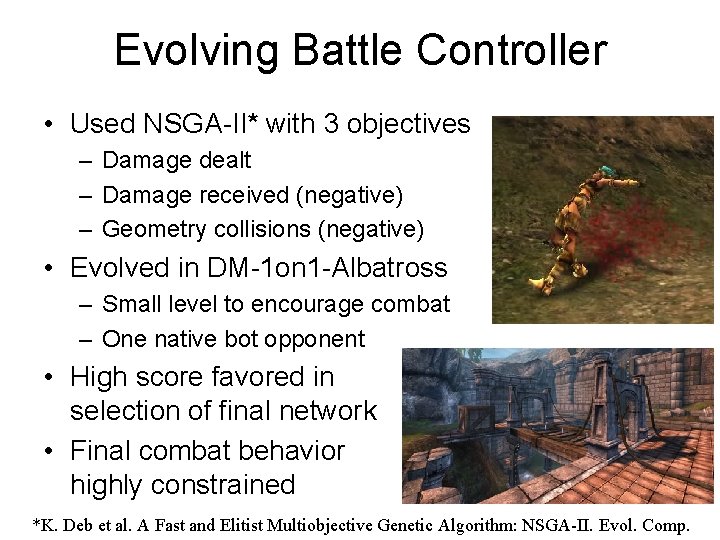

Evolving Battle Controller • Used NSGA-II* with 3 objectives – Damage dealt – Damage received (negative) – Geometry collisions (negative) • Evolved in DM-1 on 1 -Albatross – Small level to encourage combat – One native bot opponent • High score favored in selection of final network • Final combat behavior highly constrained *K. Deb et al. A Fast and Elitist Multiobjective Genetic Algorithm: NSGA-II. Evol. Comp.

Action Filtering • Network choice not always used – Forced to stand still sometimes • Sniping, not threatened, high ground – – – Prevented from jumping while still Prevented from jumping near walls/opponents Prevented from going to unwanted items Prevented from strafing/retreating into walls Etc… • Forced lower accuracy • Forced delays to simulate human response time • Evolution constrained to look human

Importance of Observing • Humans don’t just want max score • Human goal is to judge correctly – Requires observation w/o fighting • Observe module – Bot hasn’t judged opponent – Avoids crowds • Judging module – Lengthy observation leads to judging

Observation Behavior Still Approach Use Battle Controller Retreat

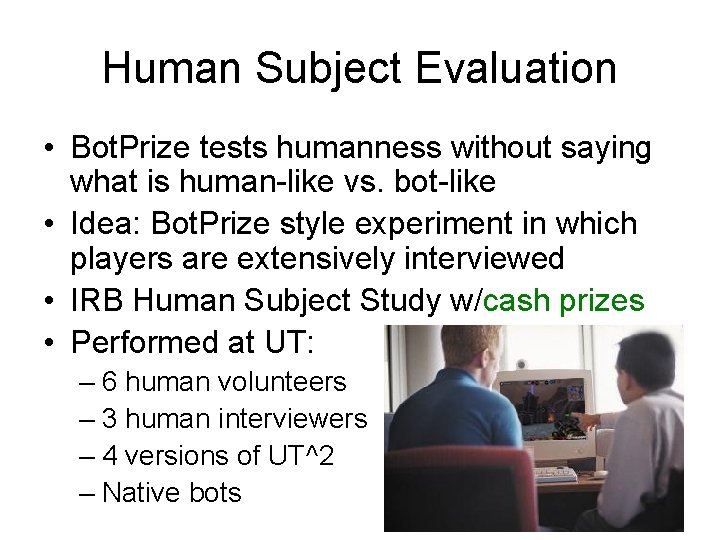

Human Subject Evaluation • Bot. Prize tests humanness without saying what is human-like vs. bot-like • Idea: Bot. Prize style experiment in which players are extensively interviewed • IRB Human Subject Study w/cash prizes • Performed at UT: – 6 human volunteers – 3 human interviewers – 4 versions of UT^2 – Native bots

Justify Judgments • Record each match and replay to human • Human explains rationale for judgments • Downsides: – Humans forget – Humans make things up – Humans change their minds • Still, many common themes emerged:

Humans Aren’t Killing Machines • Accuracy affected by movement/distraction • Pause before responding to surprises • Humans don’t fire non-stop – Waiting for opportune shot – Saving ammo • Few weapon switches • Pause to observe

Humans Aren’t Stupid • Humans rapidly correct mistakes – Get unstuck quickly – Move/dodge when fired upon – Don’t stare at walls • Humans know their limitations – Prefer weapons requiring less accuracy – Don’t fight with a weak weapon

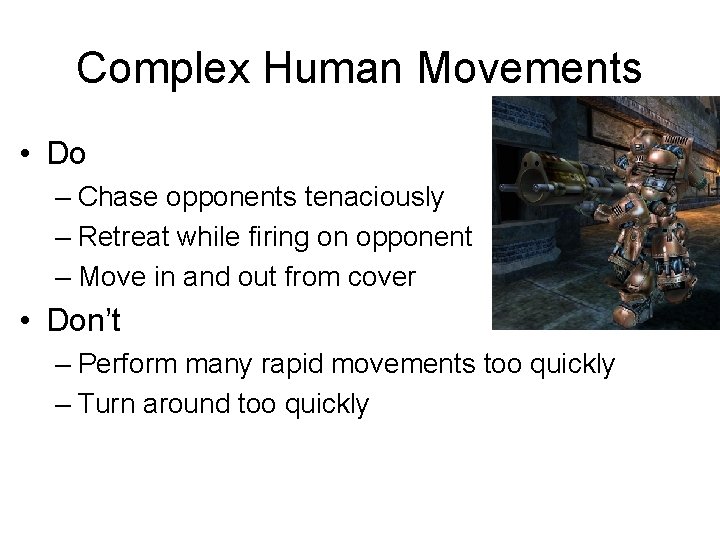

Complex Human Movements • Do – Chase opponents tenaciously – Retreat while firing on opponent – Move in and out from cover • Don’t – Perform many rapid movements too quickly – Turn around too quickly

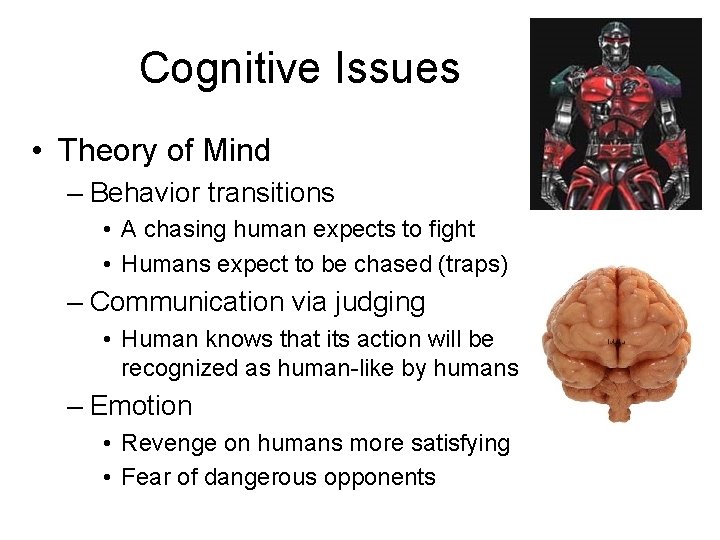

Cognitive Issues • Theory of Mind – Behavior transitions • A chasing human expects to fight • Humans expect to be chased (traps) – Communication via judging • Human knows that its action will be recognized as human-like by humans – Emotion • Revenge on humans more satisfying • Fear of dangerous opponents

Conclusion • Human trace replay provides human style exploration and gets bot unstuck • Multiobjective neuroevolution provides combat behavior • Simulated observation makes bot seem more human-like • Future work: Incorporate Theory of Mind

Questions? Jacob Schrum (schrum 2@cs. utexas. edu) Igor V. Karpov (ikarpov@cs. utexas. edu) Risto Miikkulainen (risto@cs. utexas. edu)

Auxiliary Slides

Multiobjective Optimization • Game with two objectives: High health but did not deal much damage – Damage Dealt – Remaining Health • A dominates B iff A is strictly better in one objective and at least as good in others • Population of points not dominated are best: Pareto Front • Weighted-sum provably incapable of capturing -convex front Tradeoff between objectives Dealt lot of damage, but lost lots of health non

NSGA-II • Evolution: natural approach for finding optimal population • Non-Dominated Sorting Genetic Algorithm II* – – Population P with size N; Evaluate P Use mutation to get P´ size N; Evaluate P´ Calculate non-dominated fronts of {P È P´} size 2 N New population size N from highest fronts of {P È P´} *K. Deb et al. A Fast and Elitist Multiobjective Genetic Algorithm: NSGA-II. Evol. Comp.
