Using Web Structure for Classifying and Describing Web Pages Eric J. Glover 1, Kostas Tsioutsiouliklis 1, 2, Steve Lawrence 1, David M. Pennock 1, Gary W. Flake 1 International World Wide Web Conference, 2002 Presented by Zaihan Yang CSE Web Mining

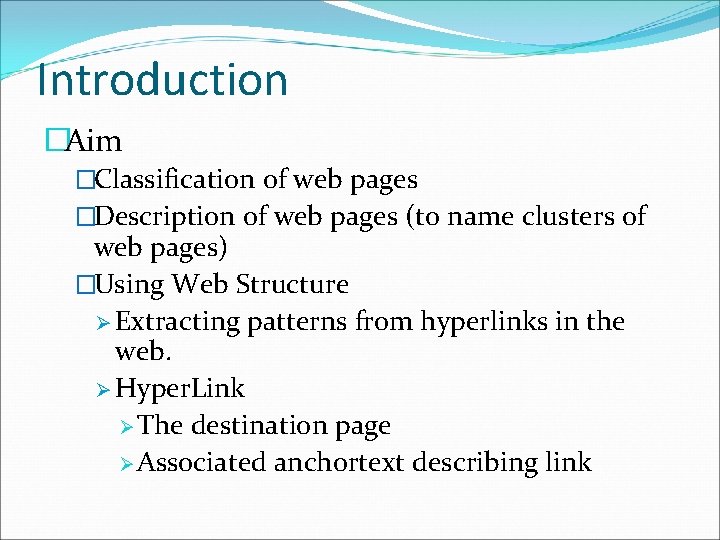

Introduction �Aim �Classification of web pages �Description of web pages (to name clusters of web pages) �Using Web Structure Ø Extracting patterns from hyperlinks in the web. Ø Hyper. Link Ø The destination page Ø Associated anchortext describing link

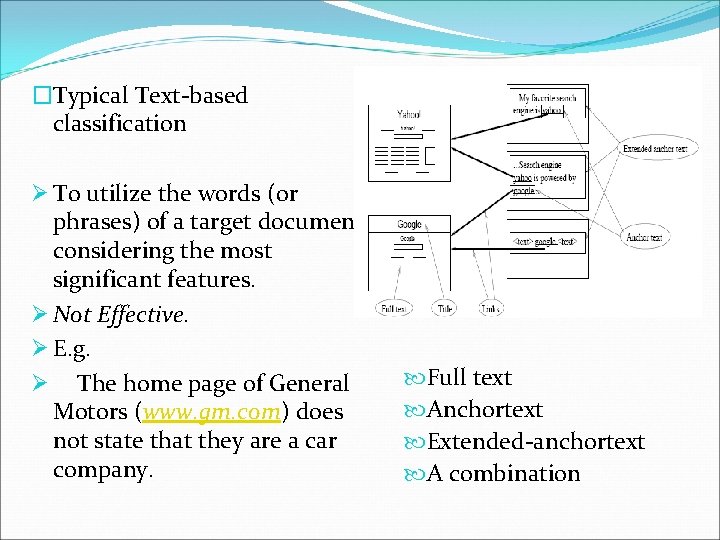

�Typical Text-based classification Ø To utilize the words (or phrases) of a target document, considering the most significant features. Ø Not Effective. Ø E. g. Ø The home page of General Motors (www. gm. com) does not state that they are a car company. Full text Anchortext Extended-anchortext A combination

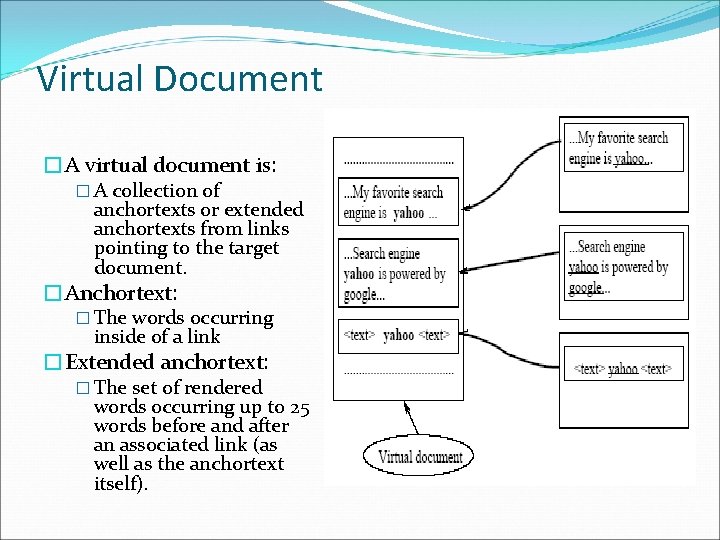

Virtual Document �A virtual document is: � A collection of anchortexts or extended anchortexts from links pointing to the target document. �Anchortext: � The words occurring inside of a link �Extended anchortext: � The set of rendered words occurring up to 25 words before and after an associated link (as well as the anchortext itself).

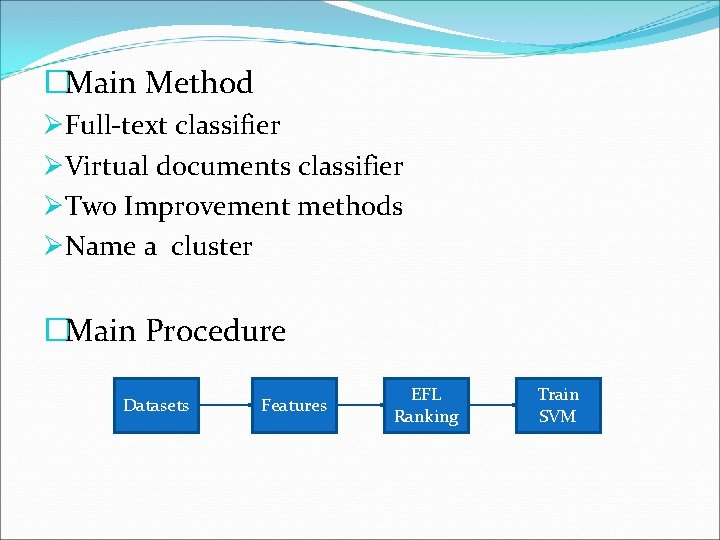

�Main Method ØFull-text classifier ØVirtual documents classifier ØTwo Improvement methods ØName a cluster �Main Procedure Datasets Features EFL Ranking Train SVM

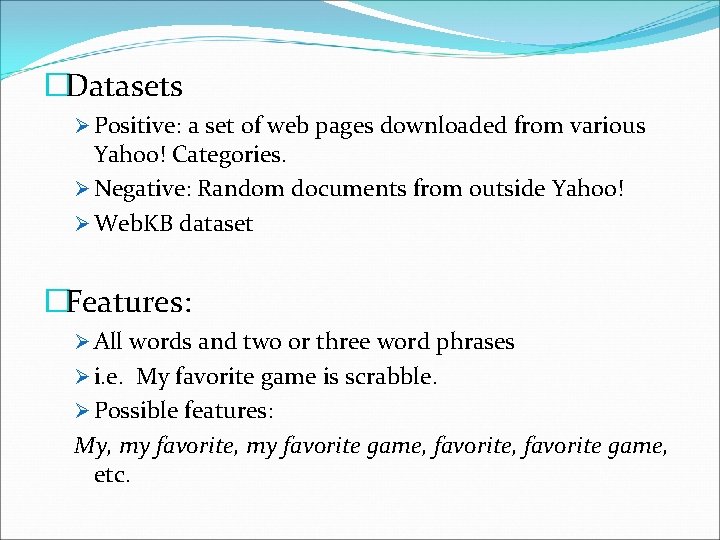

�Datasets Ø Positive: a set of web pages downloaded from various Yahoo! Categories. Ø Negative: Random documents from outside Yahoo! Ø Web. KB dataset �Features: Ø All words and two or three word phrases Ø i. e. My favorite game is scrabble. Ø Possible features: My, my favorite game, etc.

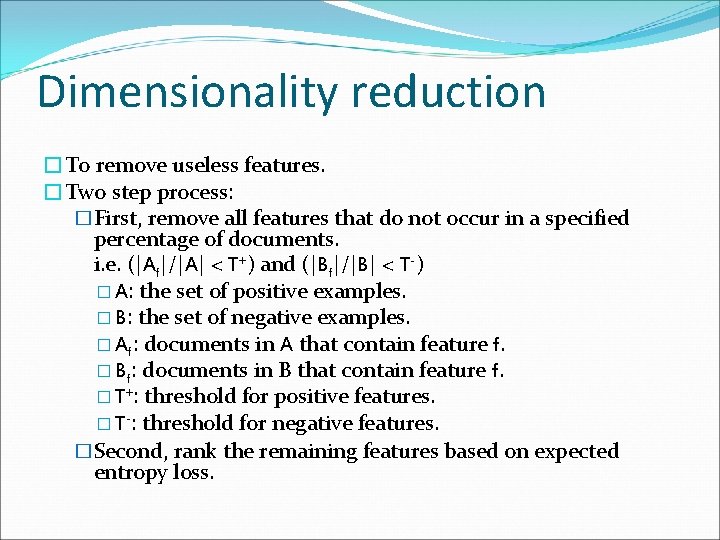

Dimensionality reduction �To remove useless features. �Two step process: �First, remove all features that do not occur in a specified percentage of documents. i. e. (|Af|/|A| < T+) and (|Bf|/|B| < T-) � A: the set of positive examples. � B: the set of negative examples. � Af: documents in A that contain feature f. � Bf: documents in B that contain feature f. � T+: threshold for positive features. � T-: threshold for negative features. �Second, rank the remaining features based on expected entropy loss.

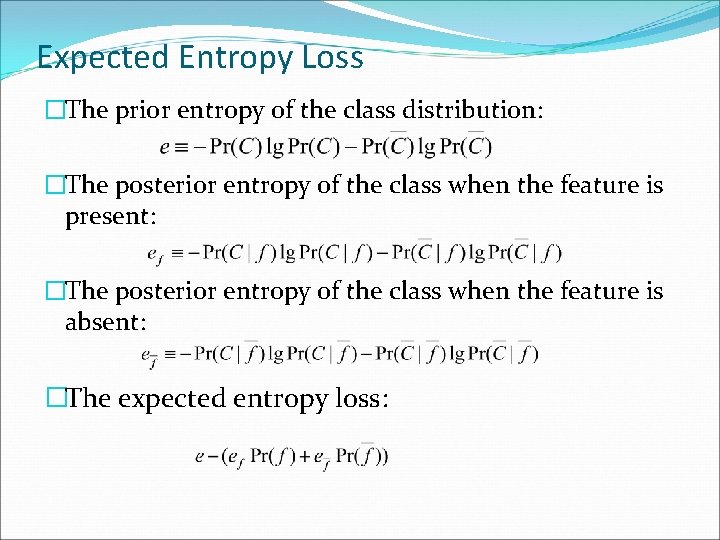

Expected Entropy Loss �The prior entropy of the class distribution: �The posterior entropy of the class when the feature is present: �The posterior entropy of the class when the feature is absent: �The expected entropy loss:

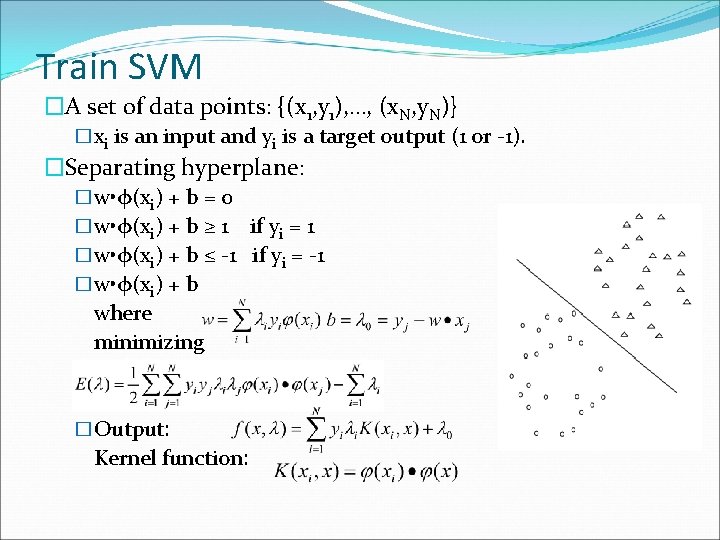

Train SVM �A set of data points: {(x 1, y 1), …, (x. N, y. N)} �xi is an input and yi is a target output (1 or -1). �Separating hyperplane: �w • φ(xi) + b = 0 �w • φ(xi) + b ≥ 1 if yi = 1 �w • φ(xi) + b ≤ -1 if yi = -1 �w • φ(xi) + b where minimizing �Output: Kernel function:

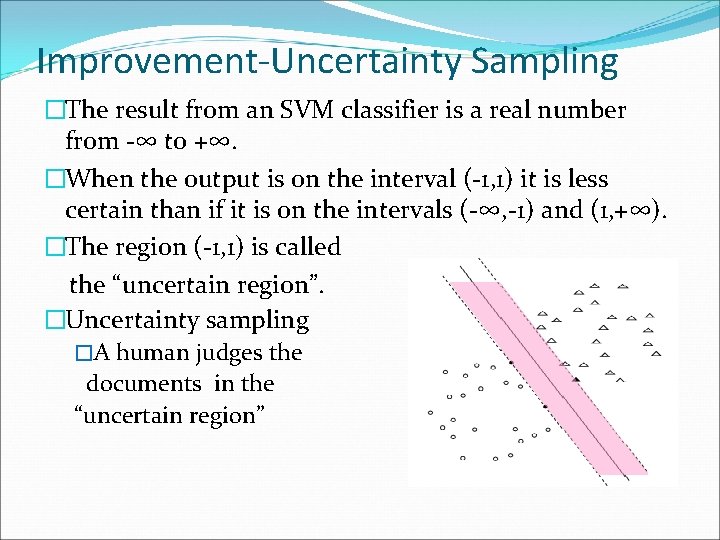

Improvement-Uncertainty Sampling �The result from an SVM classifier is a real number from -∞ to +∞. �When the output is on the interval (-1, 1) it is less certain than if it is on the intervals (-∞, -1) and (1, +∞). �The region (-1, 1) is called the “uncertain region”. �Uncertainty sampling �A human judges the documents in the “uncertain region”

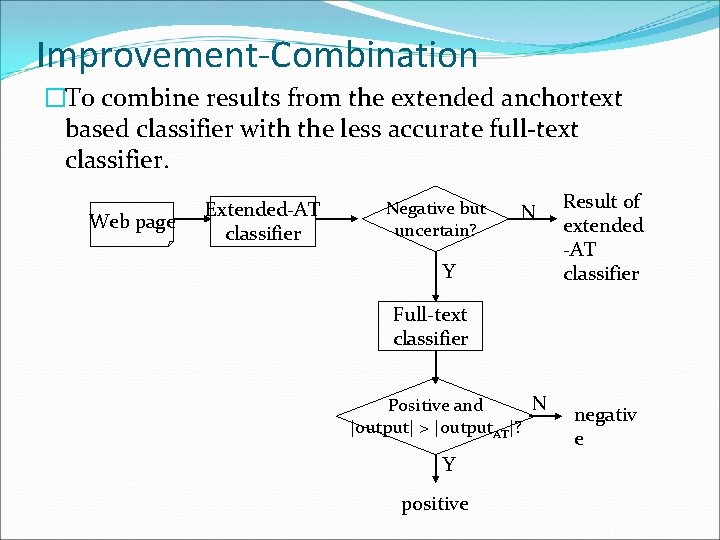

Improvement-Combination �To combine results from the extended anchortext based classifier with the less accurate full-text classifier. Web page Extended-AT classifier Negative but uncertain? N Y Result of extended -AT classifier Full-text classifier N Positive and |output| > |output. AT|? Y positive negativ e

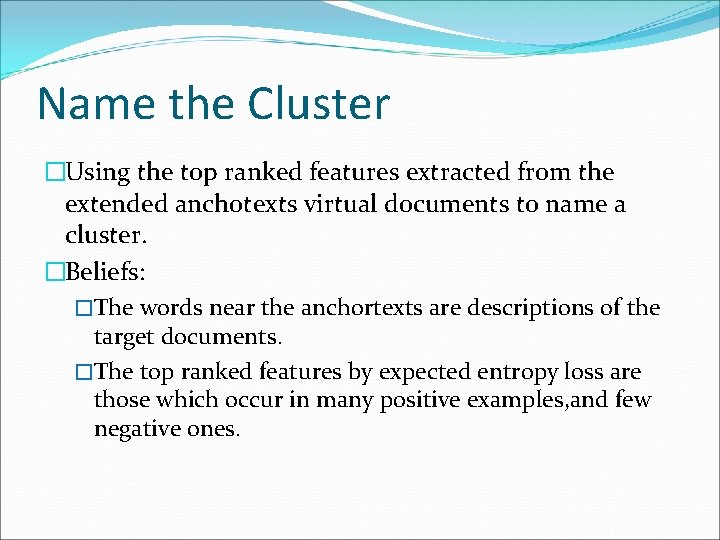

Name the Cluster �Using the top ranked features extracted from the extended anchotexts virtual documents to name a cluster. �Beliefs: �The words near the anchortexts are descriptions of the target documents. �The top ranked features by expected entropy loss are those which occur in many positive examples, and few negative ones.

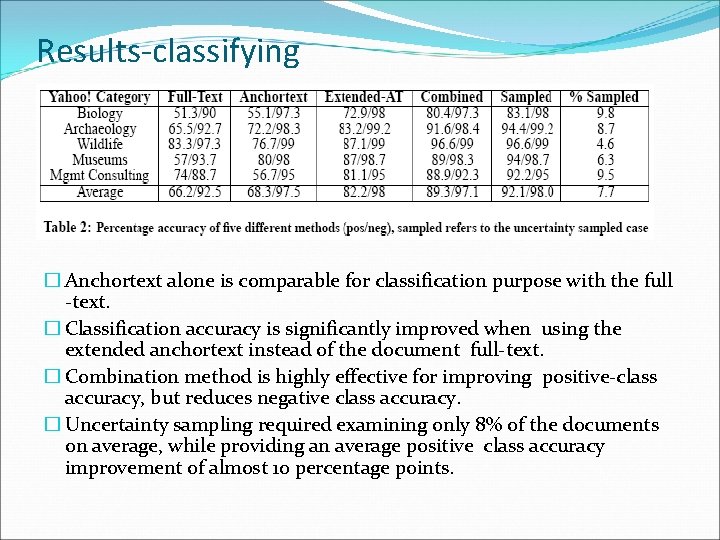

Results-classifying � Anchortext alone is comparable for classification purpose with the full -text. � Classification accuracy is significantly improved when using the extended anchortext instead of the document full-text. � Combination method is highly effective for improving positive-class accuracy, but reduces negative class accuracy. � Uncertainty sampling required examining only 8% of the documents on average, while providing an average positive class accuracy improvement of almost 10 percentage points.

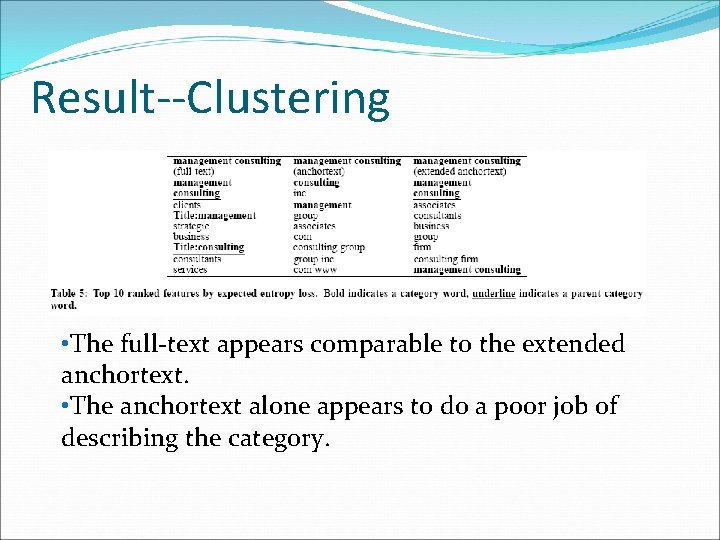

Result--Clustering • The full-text appears comparable to the extended anchortext. • The anchortext alone appears to do a poor job of describing the category.

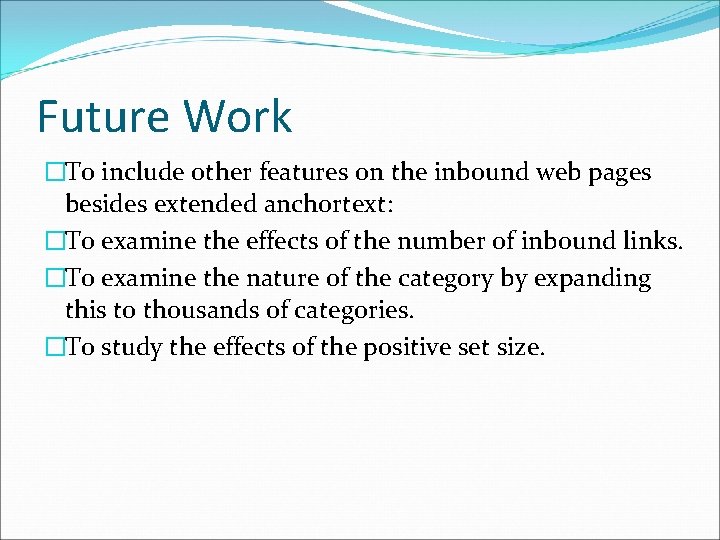

Future Work �To include other features on the inbound web pages besides extended anchortext: �To examine the effects of the number of inbound links. �To examine the nature of the category by expanding this to thousands of categories. �To study the effects of the positive set size.
