USING UTM, MGRS & USNG Monica Spicker Some slides adapted from Harry Frank 2008 BMOC
Objectives Understanding UTM system Finding coordinates of a point Plotting a point BMOC

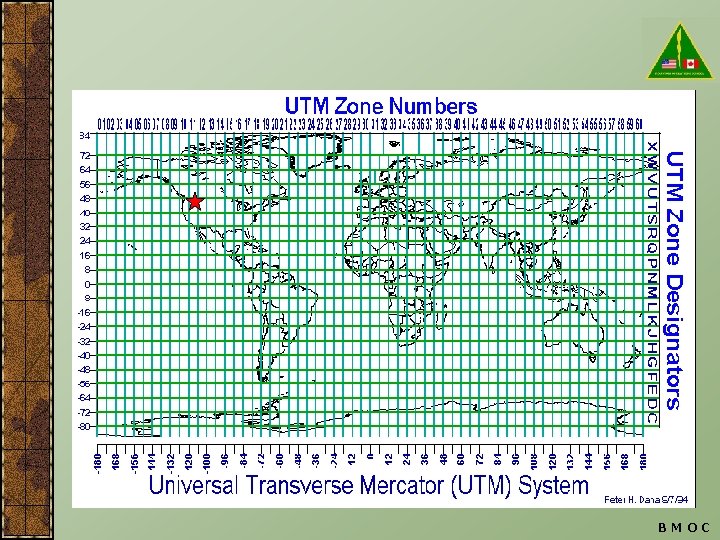

Universal Transverse Mercator (UTM) þ þ þ þ NATO system Metric units (meters) World is split into 60, 6º degree zones Spokane area is Zone 11 N Distorted above North 84º, and South 80º, not applied above these latitudes. Smallest grid unit on USGS 1: 24000 maps is 1 km. May be different on different scale maps! Coordinates get larger going east (easting) from the zone meridian and larger going north (northing) from the equator. BMOC
BMOC
BMOC
Identifying the grid 466 467 5157 (Easting) 5157 Map 5156 (Northing) 466 467 BMOC
Determining Coordinates: Easting the easting first: to the Find the. Determine nearest smaller coordinate From. LEFT the object map ( ) go (W) ofon your point to the bottom (or top) edge of the map 5157 5156 465 466 BMOC
Determining Coordinates: Easting 4 6 5 0 0 0 BMOC
Determining Coordinates: Easting Divide the distance between the coordinate to the left of your point and the coordinate to the right of your point into tenths 3 tenths 465 This is hundreds of meters 466 BMOC
Determining Coordinates: Easting 4 6 5 3 0 0 BMOC
Determining Coordinates: Northing Find From the nearest pointcoordinate on map ( below ) look(S) to the of your left point (or right) edge of the map 5157 5156 465 466 BMOC
Determining Coordinates: Northing 5 1 5 6 0 0 0 BMOC
Determining Coordinates: Northing Count or estimate the number of tenths from the coordinate BELOW your point TO the corner. 5157 8 Tenths This is hundreds of meters 5156 BMOC
Determining Coordinates: Northing 5 1 5 6 8 0 0 BMOC
Final Coordinates of 465300 E 5165800 N But we can go finer, if we use a template BMOC

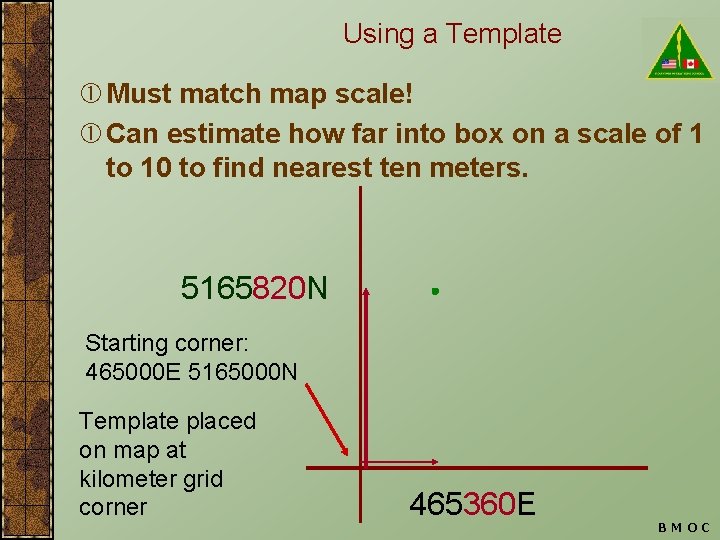

Using a Template Must match map scale! Can estimate how far into box on a scale of 1 to 10 to find nearest ten meters. 5165820 N Starting corner: 465000 E 5165000 N Template placed on map at kilometer grid corner 465360 E BMOC
Another Way to Use the Template Put the 0 corner of the template on the point. Read where the block margin hits the template scales. 465360 E Starting corner: 465000 E 5165000 N 5165820 N BMOC
Determining Coordinates 489520 E 5315440 N Start here. 489000 E, 5315000 N BMOC
Practice Exercises BMOC
Plotting Points Underline the last 3 digits of each coordinate. What’s not underlined are the margin coordinates. Example: 490150 E 5315325 N Use template to determine position within the kilometer box. BMOC
490120 E 5315340 N Start here. 490, 5315 Plotting 490120 E 5315340 N BMOC
Practice Exercises BMOC
MGRS and USNG Military Grid Reference System US National Grid System USNG and MGRS are identical Based on UTM Default datum is NAD 83 Includes Ø UTM zone (number and letter) Ø A two letter grid designator that replaces the smaller written UTM number in the margin Ø only the ending 5 numbers. More can be truncated, if you are not going down to single meters. Most GPS support MGRS. Most commercial maps do NOT. BMOC
Example in UTM: 11 T 490150 E 5315325 N in MGRS: 11 T MP 90150 E 15325 N NAD 83 : 1 meter 11 T MP 9015 E 1532 N NAD 83 : nearest 10 meters 11 T MP 901 E : nearest 100 meters 153 N NAD 83 BMOC
