Using UML, Patterns, and Java Object-Oriented Software Engineering Chapter 10, Mapping Models to Code

Overview ¨ Operations on the object model: Optimizations to address performance requirements ¨ Implementation of class model components: Realization of associations Realization of operation contracts ¨ Self reading Realizing entity objects based on selected storage strategy Mapping the class model to a storage schema Bernd Bruegge & Allen H. Dutoit Object-Oriented Software Engineering: Using UML, Patterns, and Java 2

Characteristics of Object Design Activities ¨ ¨ ¨ Developers perform transformations to the object model to improve its modularity and performance. Developers transform the associations of the object model into collections of object references, because programming languages do not support the concept of association. If the programming language does not support contracts, the developer needs to write code for detecting and handling contract violations. Self reading In C++? In Java? Developers often revise the interface specification to accommodate new requirements from the client. All these activities are intellectually not challenging However, they have a repetitive and mechanical flavor that makes them error prone. Bernd Bruegge & Allen H. Dutoit Object-Oriented Software Engineering: Using UML, Patterns, and Java 3

State of the Art of Model-based Software Engineering ¨ The Vision During object design we would like to implement a system that realizes the use cases specified during requirements elicitation and system design. Recall our discussion ¨ The Reality Different developers usually handle contract violations differently. Undocumented parameters are often added to the API to address a requirement change. Additional attributes are usually added to the object model, but are not handled by the persistent data management system, possibly because of a miscommunication. And lack of traceability? Many improvised code changes and workarounds are made ad hoc, which eventually leads to a severe degradation of the system. Bernd Bruegge & Allen H. Dutoit Object-Oriented Software Engineering: Using UML, Patterns, and Java 4

Model transformations Forward engineering Refactoring Model transformation Reverse engineering Model space Source code space 1 -1 mapping? Bernd Bruegge & Allen H. Dutoit Object-Oriented Software Engineering: Using UML, Patterns, and Java 5

Model Transformation Example Object design model before transformation League. Owner +email: Address Object design model after transformation: Player Advertiser +email: Address User +email: Address League. Owner Bernd Bruegge & Allen H. Dutoit Advertiser Object-Oriented Software Engineering: Using UML, Patterns, and Java Player 6

Refactoring Example: Pull Up Field public class User { private String email; } public class Player { private String email; //. . . } public class League. Owner { private String e. Mail; //. . . } public class Advertiser { private String email_address; //. . . } Bernd Bruegge & Allen H. Dutoit public class Player extends User { //. . . } public class League. Owner extends User { //. . . } public class Advertiser extends User { //. . . } Object-Oriented Software Engineering: Using UML, Patterns, and Java 7

Refactoring Example: Pull Up Constructor Body public class User { public User(String email) { private String email; this. email = email; } public class Player extends User { public Player(String email) { } } public class Player extends User { public Player(String email){ this. email = email; super(email); } } } public class League. Owner extends User{ public League. Owner(String email) { this. email = email; } public class League. Owner extends User { public League. Owner(String email) { super(email); } } Bernd Bruegge & Allen H. Dutoit } Object-Oriented Software Engineering: Using UML, Patterns, and Java 8

Other Mapping Activities ¨ Optimizing the Object Design Model Collapsing objects Delaying expensive computations ¨ ¨ ¨ Mapping Associations Mapping Contracts to Exceptions Mapping Object Models to Tables Bernd Bruegge & Allen H. Dutoit Self reading Object-Oriented Software Engineering: Using UML, Patterns, and Java 9

Collapsing an object without interesting behavior Object design model before transformation Person Social. Security number: String Object design model after transformation ? Person SSN: String Bernd Bruegge & Allen H. Dutoit Object-Oriented Software Engineering: Using UML, Patterns, and Java 10

Self reading Delaying expensive computations Object design model before transformation Image filename: String data: byte[] paint() Object design model after transformation Image filename: String paint() ? A good model? Proxy Pattern Image. Proxy filename: String paint() Bernd Bruegge & Allen H. Dutoit image 1 0. . 1 Real. Image data: byte[] paint() Object-Oriented Software Engineering: Using UML, Patterns, and Java 11

Other Mapping Activities ü Ø ¨ ¨ Optimizing the Object Design Model Mapping Associations Mapping Contracts to Exceptions Mapping Object Models to Tables Bernd Bruegge & Allen H. Dutoit Object-Oriented Software Engineering: Using UML, Patterns, and Java 12

Realization of a unidirectional, one-to-one association Which direction? Object design model before transformation Advertiser 1 1 Source code after transformation Account Role name? public class Advertiser { private Account account; public Advertiser() { account = new Account(); } public Account get. Account() { return account; } } Bernd Bruegge & Allen H. Dutoit Object-Oriented Software Engineering: Using UML, Patterns, and Java 13

Bidirectional one-to-one association Object design model before transformation Advertiser 1 1 Source code after transformation Account Role name? public class Account { public class Advertiser { /* The account field is initialized /* The owner field is initialized * during the constructor and * in the constructor and never * never modified. */ * modified. */ private Advertiser owner; private Account account; public Account(owner: Advertiser) { public Advertiser() { this. owner = owner; account = new Account(this); } } public Advertiser get. Owner() { public Account get. Account() { return owner; return account; } } Bernd Bruegge & Allen H. Dutoit Object-Oriented Software Engineering: Using UML, Patterns, and Java 14

Bidirectional, one-to-many association Object design model before transformation Advertiser Source code after transformation 1 * Account constructor? public class Account { private Advertiser owner; public void set. Owner(Advertiser new. Owner) { public Advertiser() { if (owner != new. Owner) { accounts = new Hash. Set(); Advertiser old = owner; } owner = new. Owner; public void add. Account(Account if (new. Owner != null) a) { accounts. add(a); new. Owner. add. Account(this); a. set. Owner(this); if (old. Owner != null) } public void old. remove. Account(this); remove. Account(Account a) { } accounts. remove(a); } complete? a. set. Owner(null); Object-Oriented Software } Engineering: Using UML, Patterns, and Java 15 }Bernd Bruegge & Allen H. Dutoit public class Advertiser { private Set accounts;

Bidirectional, many-to-many association Object design model before transformation Tournament * {ordered} * Player Source code after transformation public class Tournament { private List players; public class Player { private List tournaments; /* ordered collection = sequence */ public Tournament() { public Player() { players = new Array. List(); tournaments = new Array. List(); /* implements List */ } } public void add. Player(Player p) public void add. Tournament(Tournament { t) { if (!players. contains(p)) { if (!tournaments. contains(t)) { players. add(p); tournaments. add(t); p. add. Tournament(this); t. add. Player(this); } } } Bernd Bruegge & Allen H. Dutoit Object-Oriented Software Engineering: Using UML, Patterns, and Java 16

Transformation of an association class Object design model before transformation Statistics +get. Average. Stat(name) +get. Total. Stat(name) +update. Stats(match) Tournament * Player * What’s the change? Object design model after transformation: 1 class and two binary associations Statistics +get. Average. Stat(name) +get. Total. Stat(name) +update. Stats(match) 1 1 Tournament Bernd Bruegge & Allen H. Dutoit * * Object-Oriented Software Engineering: Using UML, Patterns, and Java Player 17

Other Mapping Activities ü ü ü Ø Optimizing the Object Design Model Mapping Associations Mapping Contracts to Exceptions Self Mapping Object Models to Tables Bernd Bruegge & Allen H. Dutoit reading Object-Oriented Software Engineering: Using UML, Patterns, and Java 18

Mapping an object model to a relational database ¨ UML object models can be mapped to relational databases: Some degradation occurs because all UML constructs must be mapped to a single relational database construct - the table. ¨ Mapping of classes, attributes and associations ¨ 1 -1 mapping? Each class is mapped to a table Each class attribute is mapped onto a column in the table An instance of a class represents a row in the table A many-to-many association is mapped into its own table A one-to-many association is implemented as buried foreign key Methods are not mapped Bernd Bruegge & Allen H. Dutoit Object-Oriented Software Engineering: Using UML, Patterns, and Java 19

Mapping the User class to a database table User +first. Name: String +login: String +email: String User table id: long first. Name: text[25] Bernd Bruegge & Allen H. Dutoit login: text[8] Object-Oriented Software Engineering: Using UML, Patterns, and Java email: text[32] 20

Primary and Foreign Keys ¨ ¨ Any set of attributes that could be used to uniquely identify any data record in a relational table is called a candidate key. The actual candidate key that is used in the application to identify the records is called the primary key. The primary key of a table is a set of attributes whose values uniquely identify the data records in the table. ¨ A foreign key is an attribute (or a set of attributes) that references the primary key of another table. Bernd Bruegge & Allen H. Dutoit Object-Oriented Software Engineering: Using UML, Patterns, and Java 21

Example for Primary and Foreign Keys Primary key User table first. Name login email “alice” “am 384@mail. org” “john” “js 289” “john@mail. de” “bob” “bd” “bobd@mail. ch” Candidate key League table name Candidate key login “tictactoe. Novice” “am 384” “tictactoe. Expert” “am 384” “chess. Novice” “js 289” Foreign key referencing User table Bernd Bruegge & Allen H. Dutoit Object-Oriented Software Engineering: Using UML, Patterns, and Java 22

Buried Associations with multiplicity “one” can be implemented using a foreign key. Because the association vanishes in the table, we call this a buried association. ¨ For one-to-many associations we add the foreign key to the table representing the class on the “many” end. ¨ For all other associations we can select either class at the end of the association. ¨ League. Owner 1 * League. Owner table id: long . . . 1 -1 mapping? Bernd Bruegge & Allen H. Dutoit League table id: long . . . What about the 1 (*) side? Object-Oriented Software Engineering: Using UML, Patterns, and Java owner: long 23

Another Example for Buried Association Transaction Portfolio * portfolio. ID. . . transaction. ID Transaction Table transaction. ID Portfolio Table portfolio. ID . . . Foreign Key 1 -1 mapping? Bernd Bruegge & Allen H. Dutoit What about the 1 (*) side? Object-Oriented Software Engineering: Using UML, Patterns, and Java 24

Mapping Many-To-Many Associations In this case we need a separate table for the association City * Serves * city. Name Airport airport. Code airport. Name Separate table for the association “Serves” Primary Key City Table city. Name Houston Albany Munich Hamburg Bernd Bruegge & Allen H. Dutoit Airport Table airport. Code IAH HOU ALB MUC HAM airport. Name Intercontinental Hobby Albany County Munich Airport Hamburg Airport Object-Oriented Software Engineering: Using UML, Patterns, and Java Serves Table city. Name airport. Code IAH Houston HOU Houston ALB Albany MUC Munich HAM Hamburg What are these? 25

Another Many-to-Many Association Mapping We need the Tournament/Player association as a separate table Tournament * * Player Tournament table id name 23 novice 24 expert Bernd Bruegge & Allen H. Dutoit . . . Player table Tournament. Player. Association table tournament player 23 56 23 79 id name 56 alice 79 john . . . What about the keys – primary & foreign? Object-Oriented Software Engineering: Using UML, Patterns, and Java 26

Realizing Inheritance ¨ ¨ Relational databases do not support inheritance Two possibilities to map an inheritance association to a database schema With a separate table (”vertical mapping”) t The attributes of the superclass and the subclasses are mapped to different tables /* flattening By duplicating columns (”horizontal mapping”) t There is no table for the superclass t Each subclass is mapped to a table containing the attributes of the subclass and the attributes of the superclass Bernd Bruegge & Allen H. Dutoit Object-Oriented Software Engineering: Using UML, Patterns, and Java 27

Realizing inheritance with a separate table (”vertical mapping”) User name Player credits League. Owner max. Num. Leagues User table id name 56 zoe 79 john . . . role League. Owner Player League. Owner table id 56 max. Num. Leagues 12 Bernd Bruegge & Allen H. Dutoit Player table. . . id credits 79 126 . . . What should be done to retrieve player info? Object-Oriented Software Engineering: Using UML, Patterns, and Java 28

Realizing inheritance by duplicating columns (”horizontal mapping”) User name League. Owner max. Num. Leagues Player credits League. Owner table id name 56 zoe Player table max. Num. Leagues. . . id name credits 12 79 john 126 What should be done. Object-Oriented when Software the. Engineering: “name” of a user changes? 29 Bernd Bruegge & Allen H. Dutoit Using UML, Patterns, and Java . . .

Comparison: Separate Tables vs Duplicated Columns ¨ The trade-off is between modifiability and response time How likely is a change of the superclass? If high, which one? What are the performance requirements for queries? ¨ Separate table mapping (”vertical mapping”) J We can add attributes to the superclass easily by adding a column to the superclass table L Searching for the attributes of an object requires a join operation. ¨ Duplicated columns (”horizontal mapping”) e. g. , a hierachy L Modifying the database schema is more complex and error-prone J Individual objects are not fragmented across a number of tables, resulting in faster queries Bernd Bruegge & Allen H. Dutoit Object-Oriented Software Engineering: Using UML, Patterns, and Java 30

Heuristics for Transformations ¨ For a given transformation use the same tool If you are using a CASE tool to map associations to code, use the tool to change association multiplicities. ¨ Keep the contracts in the source code, not in the object design model By keeping the specification as a source code comment, they are more likely to be updated when the source code changes. ¨ Use the same names for the same objects If the name is changed in the model, change the name in the code and or in the database schema. Provides ¨ traceability among the models Have a style guide for transformations By making transformations explicit in a manual, all developers can apply the transformation in the same way. Bernd Bruegge & Allen H. Dutoit Object-Oriented Software Engineering: Using UML, Patterns, and Java 31

Summary ¨ ¨ Undisciplined changes => degradation of the system model Four mapping concepts were introduced Model transformation improves the compliance of the object design model with a design goal Forward engineering improves the consistency of the code with respect to the object design model Refactoring improves the readability or modifiability of the code Reverse engineering attempts to discover the design from the code. ¨ We reviewed model transformation and forward engineering techniques: Optiziming the class model Mapping associations to collections Mapping contracts to exceptions Mapping class model to storage schemas Bernd Bruegge & Allen H. Dutoit Object-Oriented Software Engineering: Using UML, Patterns, and Java 32

Additional Slides Bernd Bruegge & Allen H. Dutoit Object-Oriented Software Engineering: Using UML, Patterns, and Java 33

Forward Engineering Example Object design model before? transformation League. Owner +max. Num. Leagues: int User +email: String +notify(msg: String) Source code after transformation public class User { private String email; public String get. Email() { return email; } public void set. Email(String value){ email = value; } public void notify(String msg) { //. . } /* Other methods omitted */ } Bernd Bruegge & Allen H. Dutoit public class League. Owner extends User { private int max. Num. Leagues; public int get. Max. Num. Leagues() { return max. Num. Leagues; } public void set. Max. Num. Leagues (int value) { max. Num. Leagues = value; } /* Other methods omitted */ } Object-Oriented Software Engineering: Using UML, Patterns, and Java 34

Other Mapping Activities ü ü Ø ¨ Optimizing the Object Design Model Mapping Associations Mapping Contracts to Exceptions Self Mapping Object Models to Tables Bernd Bruegge & Allen H. Dutoit reading Object-Oriented Software Engineering: Using UML, Patterns, and Java 35

Self reading Bidirectional qualified association Object design model before transformation League * * Player nick. Name Object design model before forward engineering League nick. Name * 0. . 1 Player Source code after forward engineering Bernd Bruegge & Allen H. Dutoit Object-Oriented Software Engineering: Using UML, Patterns, and Java 36

Self reading Bidirectional qualified association (continued) Object design model before forward engineering League nick. Name * 0. . 1 Player Source code after forward engineering public class League { private Map players; public class Player { private Map leagues; public void add. Player (String nick. Name, Player p) { if (!players. contains. Key(nick. Name)) { players. put(nick. Name, p); p. add. League(nick. Name, this); } } } Bernd Bruegge & Allen H. Dutoit public void add. League (String nick. Name, League l) { if (!leagues. contains. Key(l)) { leagues. put(l, nick. Name); l. add. Player(nick. Name, this); } } } Object-Oriented Software Engineering: Using UML, Patterns, and Java 37

Self reading Exceptions as building blocks for contract violations ¨ ¨ Many object-oriented languages, including Java do not include built-in support for contracts. However, we can use their exception mechanisms as building blocks for signaling and handling contract violations In Java we use the try-throw-catch mechanism Example: Let us assume the accept. Player() operation of Tournament. Control is invoked with a player who is already part of the Tournament. In this case accept. Player() should throw an exception of type Known. Player. UML model Source code Bernd Bruegge & Allen H. Dutoit Object-Oriented Software Engineering: Using UML, Patterns, and Java 38

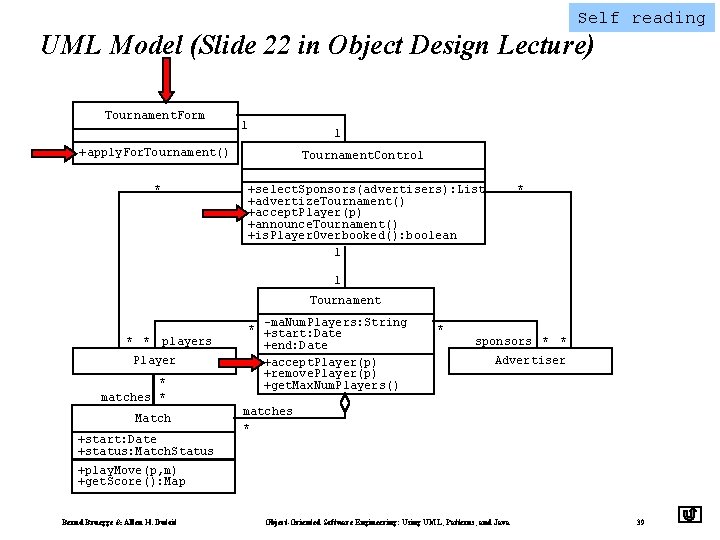

Self reading UML Model (Slide 22 in Object Design Lecture) Tournament. Form 1 1 +apply. For. Tournament() * Tournament. Control * +select. Sponsors(advertisers): List +advertize. Tournament() +accept. Player(p) +announce. Tournament() +is. Player. Overbooked(): boolean 1 1 Tournament * * players Player * matches * Match +start: Date +status: Match. Status -ma. Num. Players: String * +start: Date +end: Date +accept. Player(p) +remove. Player(p) +get. Max. Num. Players() * sponsors * * Advertiser matches * +play. Move(p, m) +get. Score(): Map Bernd Bruegge & Allen H. Dutoit Object-Oriented Software Engineering: Using UML, Patterns, and Java 39

Self reading The try-throw-catch Mechanism in Java public class Tournament. Control { private Tournament tournament; public void add. Player(Player p) throws Known. Player. Exception { if (tournament. is. Player. Accepted(p)) { throw new Known. Player. Exception(p); } //. . . Normal add. Player behavior } } public class Tournament. Form { private Tournament. Control control; private Array. List players; public void process. Player. Applications() { // Go through all the players for (Iteration i = players. iterator(); i. has. Next(); ) { try { // Delegate to the control object. control. accept. Player((Player)i. next()); } catch (Known. Player. Exception e) { // If an exception was caught, // log it to the console Error. Console. log(e. get. Message()); } } Bernd Bruegge & Allen H. Dutoit Object-Oriented Software Engineering: Using UML, Patterns, and Java 40 } }

Self reading Implementing a contract For each operation in the contract, do the following ¨ Check precondition: Check the precondition before the beginning of the method with a test that raises an exception if the precondition is false. ¨ Check postcondition: Check the postcondition at the end of the method and raise an exception if the contract is violoated. If more than one postcondition is not satisfied, raise an exception only for the first violation. ¨ Check invariant: Check invariants at the same time as postconditions. ¨ Deal with inheritance: Encapsulate the checking code for preconditions and postconditions into separate methods that can be called from subclasses. Bernd Bruegge & Allen H. Dutoit Object-Oriented Software Engineering: Using UML, Patterns, and Java 41

Self reading A complete implementation of the Tournament. add. Player() contract «invariant» get. Max. Num. Players() > 0 «precondition» !is. Player. Accepted(p) Tournament -max. Num. Players: int +get. Num. Players(): int +get. Max. Num. Players(): int +is. Player. Accepted(p: Player): boolean +add. Player(p: Player) «precondition» get. Num. Players() < get. Max. Num. Players() Bernd Bruegge & Allen H. Dutoit «postcondition» is. Player. Accepted(p) Object-Oriented Software Engineering: Using UML, Patterns, and Java 42

Heuristics for Mapping Contracts to Exceptions Be pragmatic, if you don’t have enough time, change your tests in the following order: 1. Omit checking code for postconditions and invariants. Often redundant, if you are confident that the code accomplishes the functionality of the method Not likely to detect many bugs unless written by a separate tester 2. 3. Omit the checking code for private and protected methods. Focus on components with the longest life Focus on entity objects, not on boundary objects associated with the user interface. 4. Reuse constraint checking code. Many operations have similar preconditions. Encapsulate constraint checking code into methods so that they can share the same exception classes. Bernd Bruegge & Allen H. Dutoit Object-Oriented Software Engineering: Using UML, Patterns, and Java 43

More Terminology ¨ Roundtrip Engineering Forward Engineering + reverse engineering Inventory analysis: Determine the Delta between Object Model and Code Together-J and Rationale provide tools for reverse engineering ¨ Reengineering Used in the context of project management: Provding new functionality (customer dreams up new stuff) in the context of new technology (technology enablers) Bernd Bruegge & Allen Dutoit Object-Oriented Software Engineering: Conquering Complex and Changing Systems 44

Statistics as a product in the Game Abstract Factory Game Tournament create. Statistics() Chess. Game Tic. Tac. Toe. Game Statistics update() get. Stat() TTTStatistics. Chess. Statistics. Default. Statistics Bernd Bruegge & Allen H. Dutoit Object-Oriented Software Engineering: Using UML, Patterns, and Java 45

N-ary association class Statistics relates League, Tournament, and Player Statistics 1 * 1 1 0. . 1 Game Bernd Bruegge & Allen H. Dutoit 0. . 1 League 0. . 1 Tournament Object-Oriented Software Engineering: Using UML, Patterns, and Java 0. . 1 Player 46

Realization of the Statistics Association Tournament. Control Statistics. View Statistics. Vault update(match) get. Stat. Names(game) get. Stat(name, game, player) get. Stat(name, league, player) get. Stat(name, tournament, player) Statistics update(match, player) get. Stat. Names() get. Stat(name) Game create. Statistics() Bernd Bruegge & Allen H. Dutoit Object-Oriented Software Engineering: Using UML, Patterns, and Java 47

Statistics. Vault as a Facade Tournament. Control Statistics. View Statistics. Vault update(match) get. Stat. Names(game) get. Stat(name, game, player) get. Stat(name, league, player) Statistics update(match, player) get. Stat. Names() get. Stat(name) Game get. Stat(name, tournament, player) create. Statistics() Bernd Bruegge & Allen H. Dutoit Object-Oriented Software Engineering: Using UML, Patterns, and Java 48

Public interface of the Statistics. Vault class public class Statistics. Vault { public void update(Match m) throws Invalid. Match, Match. Not. Completed {. . . } public List get. Stat. Names() {. . . } public double get. Stat(String name, Game g, Player p) throws Unknown. Statistic, Invalid. Scope {. . . } public double get. Stat(String name, League l, Player p) throws Unknown. Statistic, Invalid. Scope {. . . } public double get. Stat(String name, Tournament t, Player p) throws Unknown. Statistic, Invalid. Scope {. . . } } Bernd Bruegge & Allen H. Dutoit Object-Oriented Software Engineering: Using UML, Patterns, and Java 49

Database schema for the Statistics Association Statistics table id: long scopetype: long player: long Statistic. Counters table id: long name: text[25] value: double Game table id: long . . . Bernd Bruegge & Allen H. Dutoit League table id: long . . . Object-Oriented Software Engineering: Using UML, Patterns, and Java Tournament table id: long . . . 50

Restructuring Activities ¨ ¨ ¨ Realizing associations Revisiting inheritance to increase reuse Revising inheritance to remove implementation dependencies Bernd Bruegge & Allen Dutoit Object-Oriented Software Engineering: Conquering Complex and Changing Systems 51

Realizing Associations ¨ Strategy for implementing associations: Be as uniform as possible Individual decision for each association ¨ Example of uniform implementation 1 -to-1 association: t Role names are treated like attributes in the classes and translate to references 1 -to-many association: t t "Ordered many" : Translate to Vector "Unordered many" : Translate to Set Qualified association: t Translate to Hash table Bernd Bruegge & Allen Dutoit Object-Oriented Software Engineering: Conquering Complex and Changing Systems 52
