Using the Vernier Caliper and the Micrometer A Powerpoint Presentation by Mr. Fernando D. Nolasco

Try this. • When you use your ruler, how do you measure the diameter of a PENCIL OR A PEN TUBE?

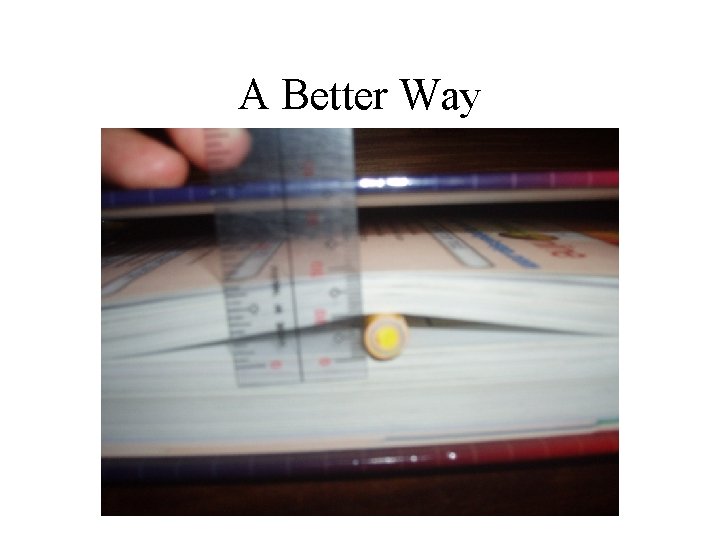

A Better Way

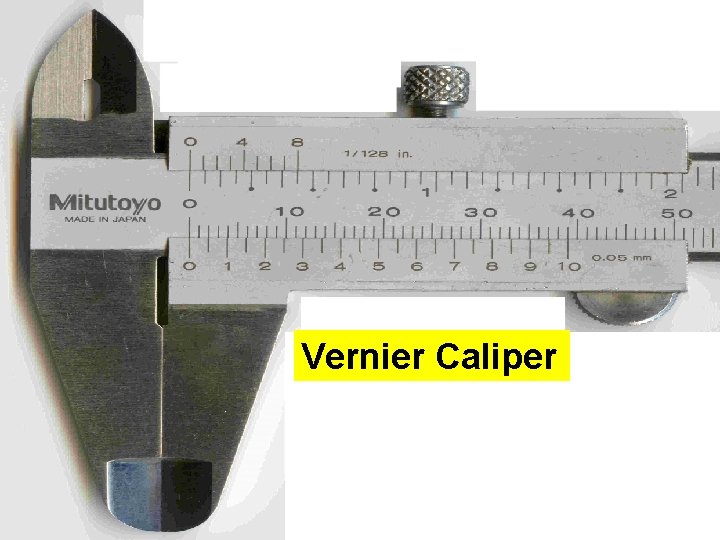

Vernier Caliper

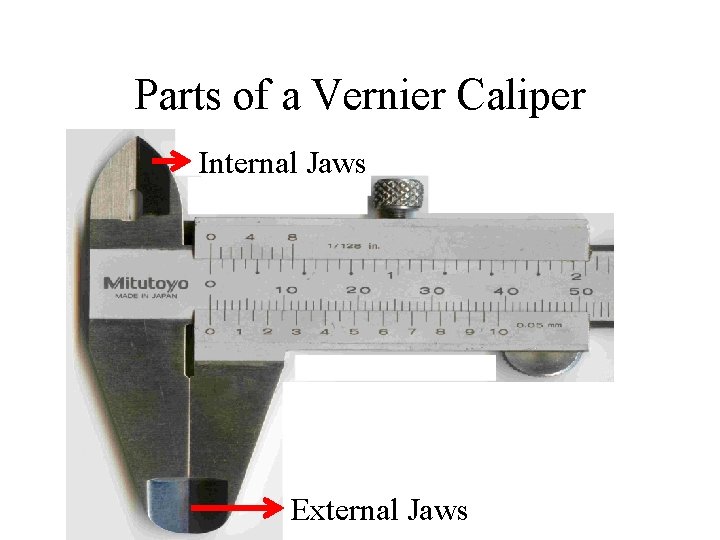

Parts of a Vernier Caliper Internal Jaws External Jaws

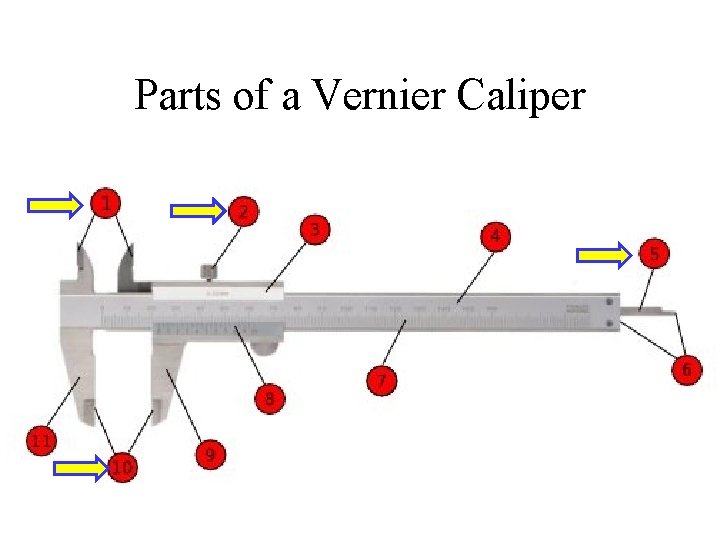

Parts of a Vernier Caliper

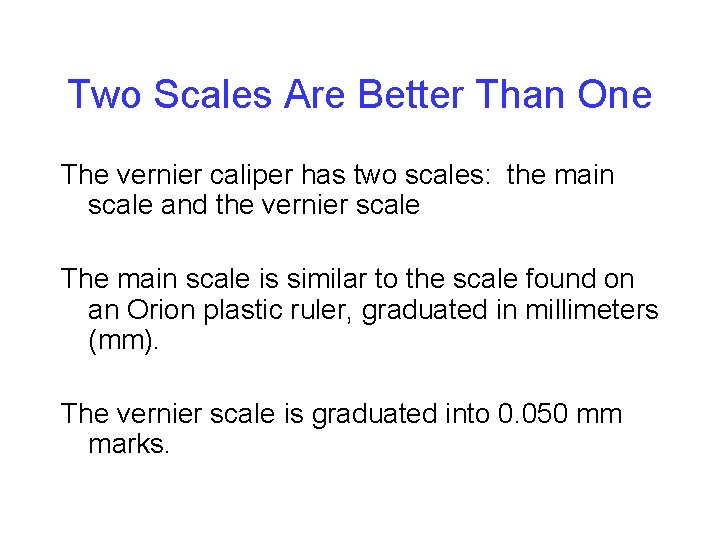

Two Scales Are Better Than One The vernier caliper has two scales: the main scale and the vernier scale The main scale is similar to the scale found on an Orion plastic ruler, graduated in millimeters (mm). The vernier scale is graduated into 0. 050 mm marks.

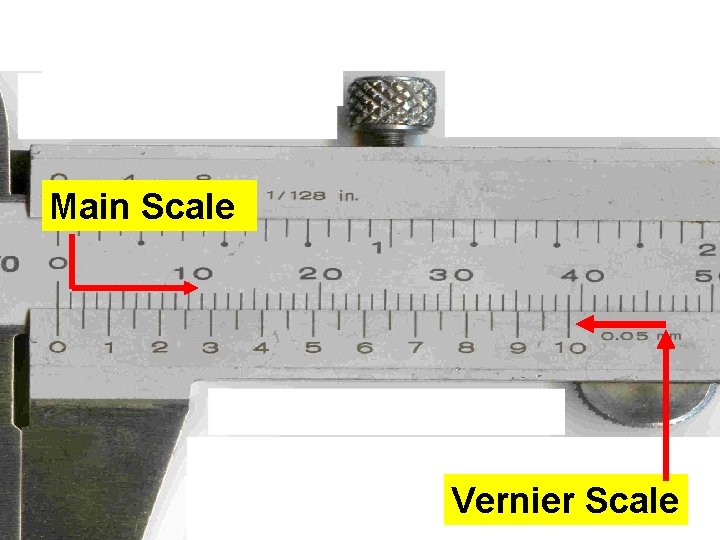

Main Scale Vernier Scale

0. 000, 0. 050 0. 100, 0. 150, 0. 200, 0. 250, 0. 300, etc Vernier Scale

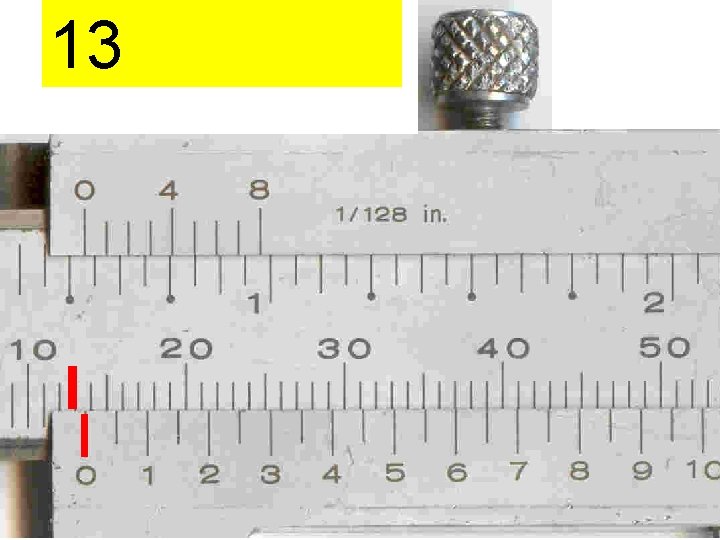

Reading the Vernier Caliper 1. Locate the “ 0” mark on the vernier scale. 2. Determine the last mark on the main scale which was passed by the “ 0” mark of the vernier scale. (to the left) 3. Determine which mark on the vernier scale lines up with ANY mark on the main scale. 4. Complete the reading by adding the doubtful figure, usually “ 0” and the units (i. e. mm)

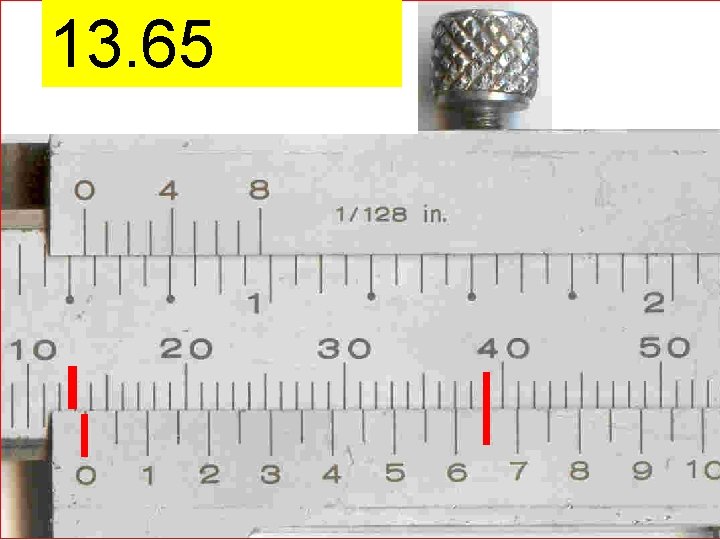

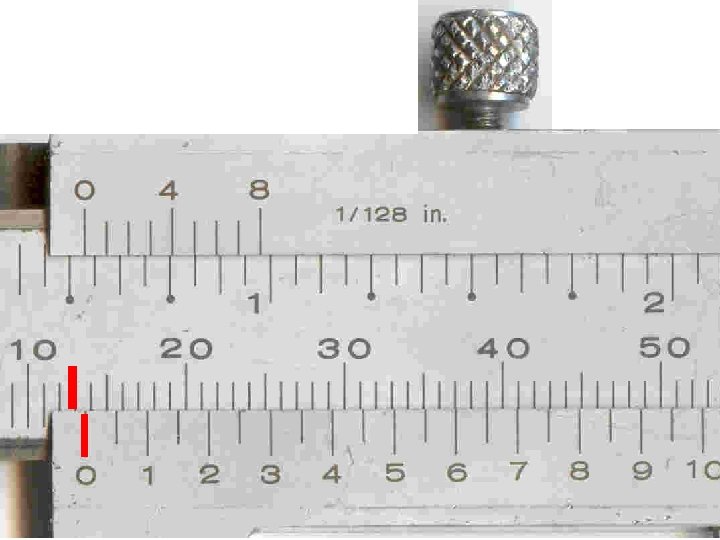

13. 65

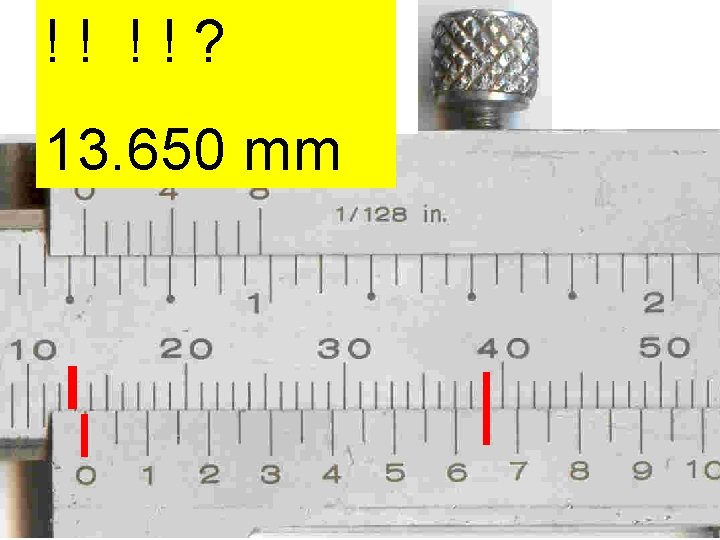

!! !!? 13. 650 mm

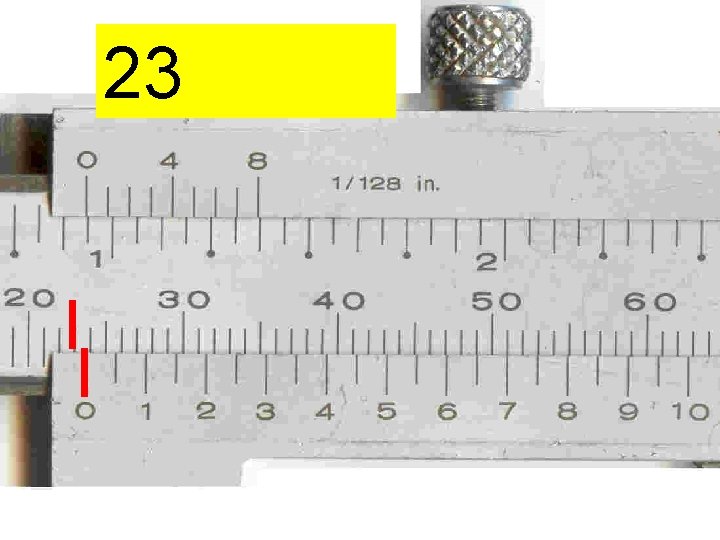

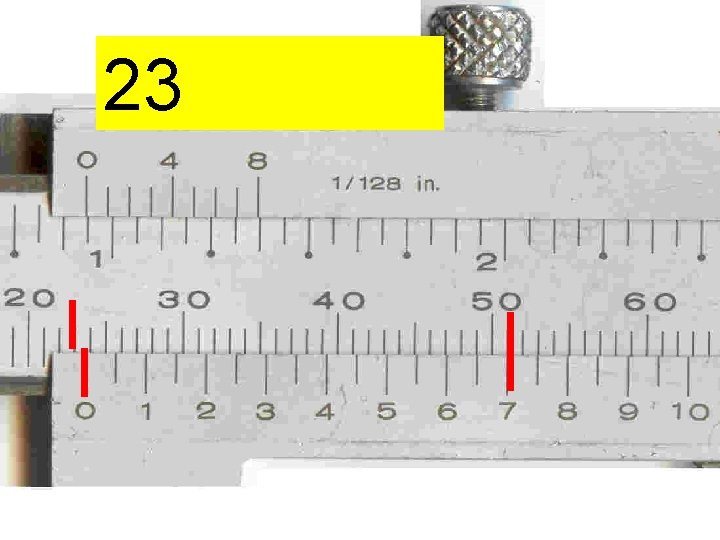

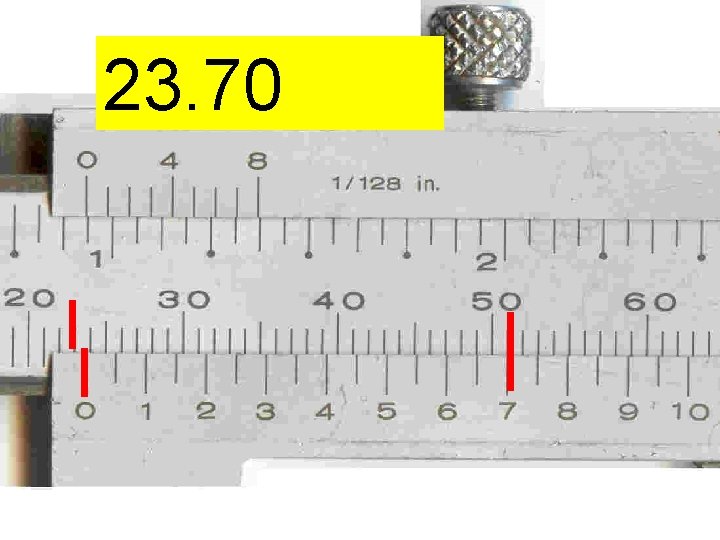

23. 70

!! !!? 23. 700 mm

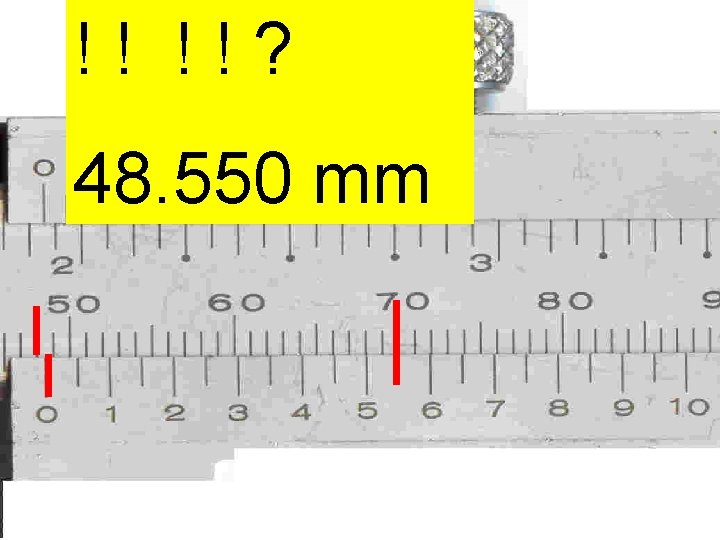

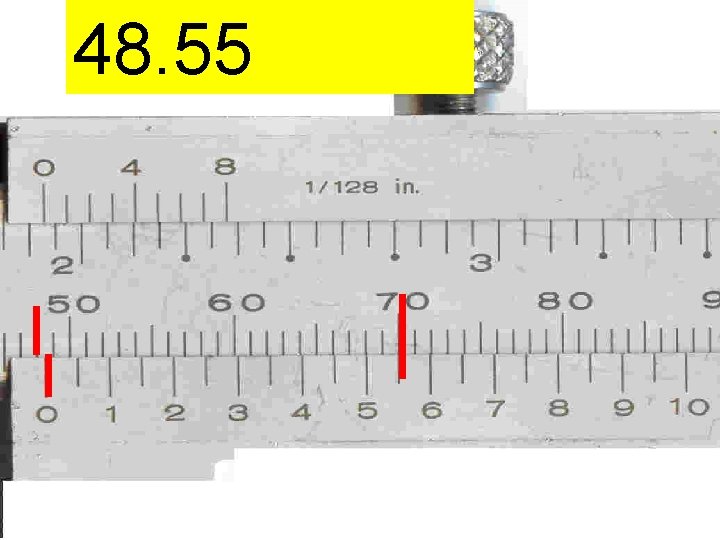

48. 55

!! !!? 48. 550 mm

75. 40

!! !!? 75. 400 mm

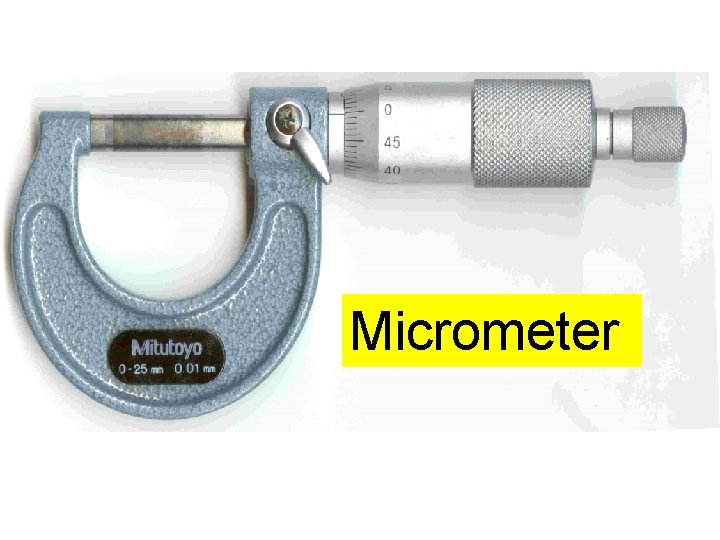

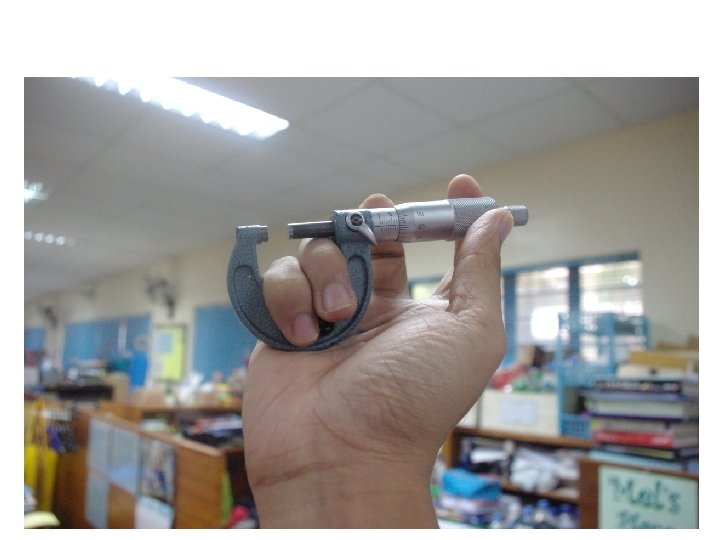

Micrometer

http: //feh. eng. ohio-state. edu/tutorials/micrometer/parts. html

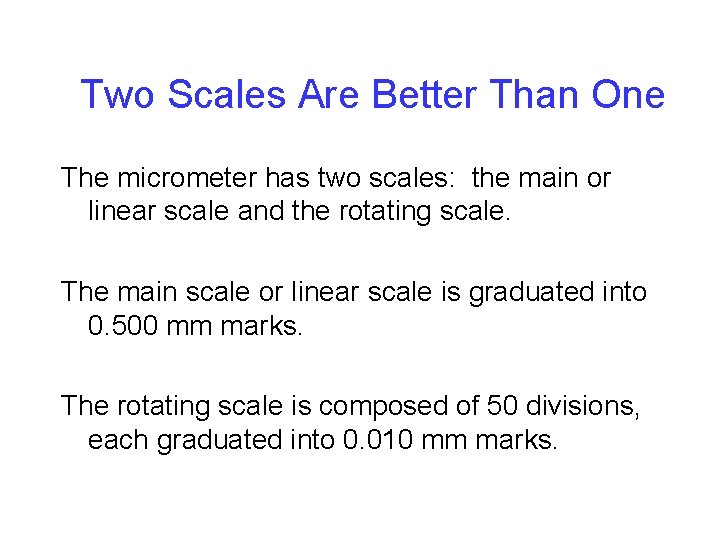

Two Scales Are Better Than One The micrometer has two scales: the main or linear scale and the rotating scale. The main scale or linear scale is graduated into 0. 500 mm marks. The rotating scale is composed of 50 divisions, each graduated into 0. 010 mm marks.

Linear scale divided into 0. 500 mm marks

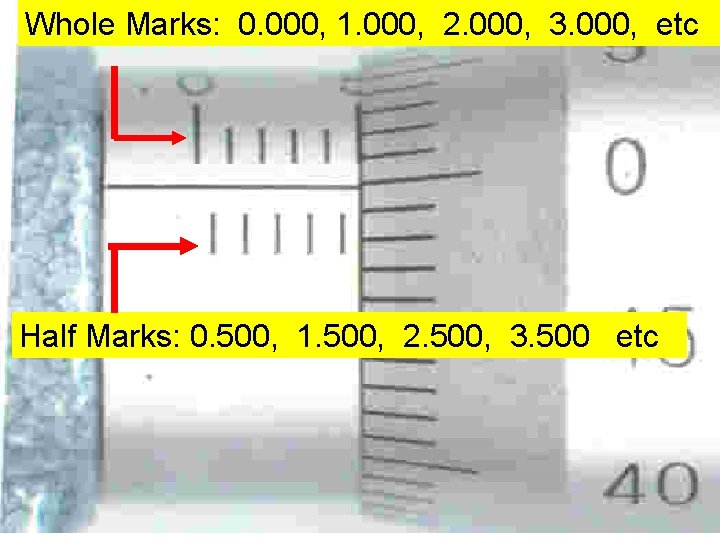

Whole Marks: 0. 000, 1. 000, 2. 000, 3. 000, etc Half Marks: 0. 500, 1. 500, 2. 500, 3. 500 etc

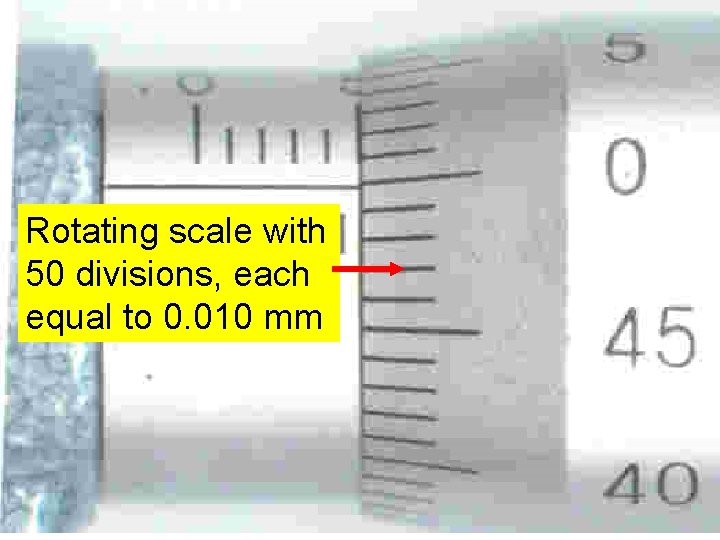

Rotating scale with 50 divisions, each equal to 0. 010 mm

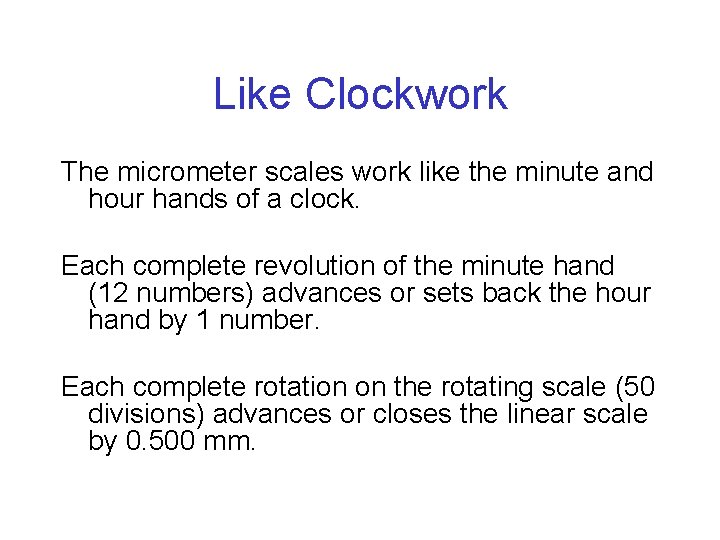

Like Clockwork The micrometer scales work like the minute and hour hands of a clock. Each complete revolution of the minute hand (12 numbers) advances or sets back the hour hand by 1 number. Each complete rotation on the rotating scale (50 divisions) advances or closes the linear scale by 0. 500 mm.

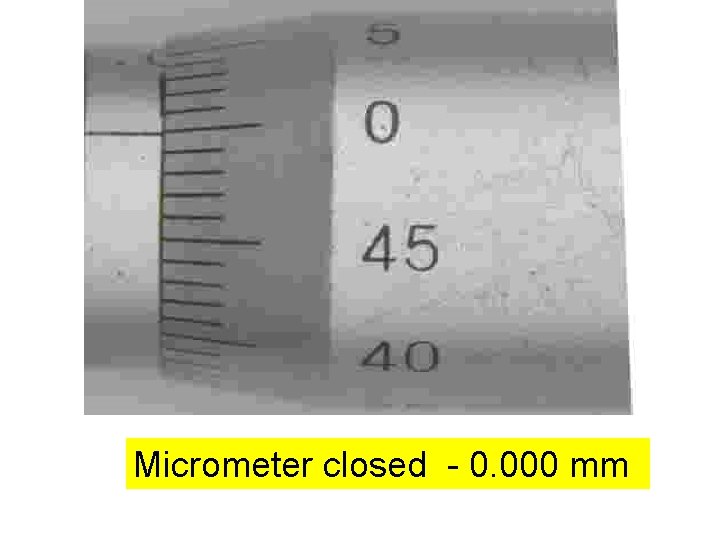

Micrometer closed - 0. 000 mm

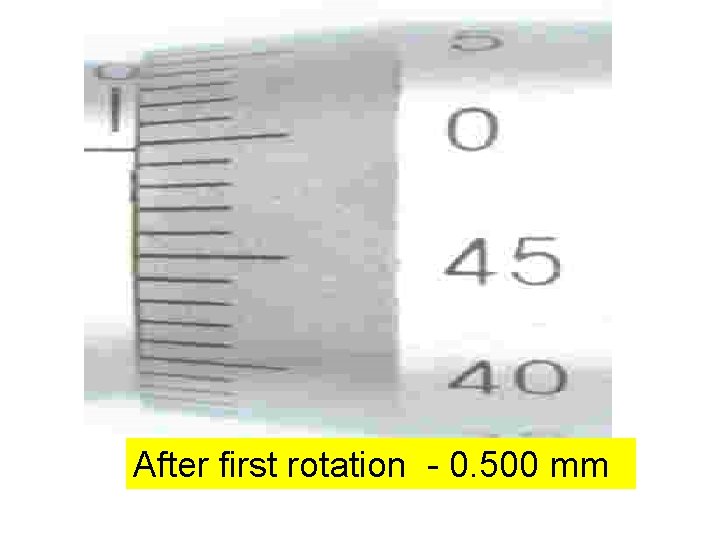

After first rotation - 0. 500 mm

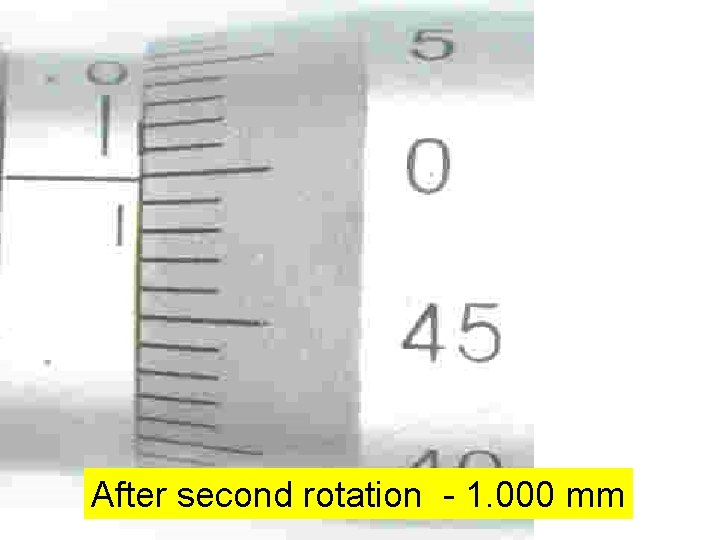

After second rotation - 1. 000 mm

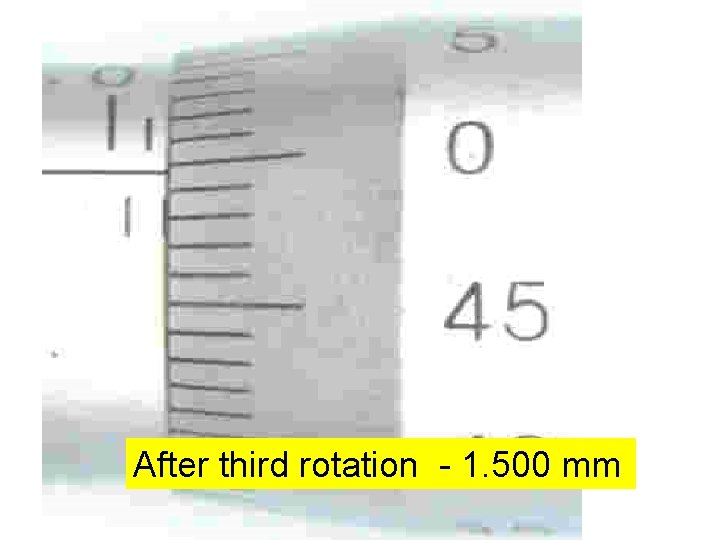

After third rotation - 1. 500 mm

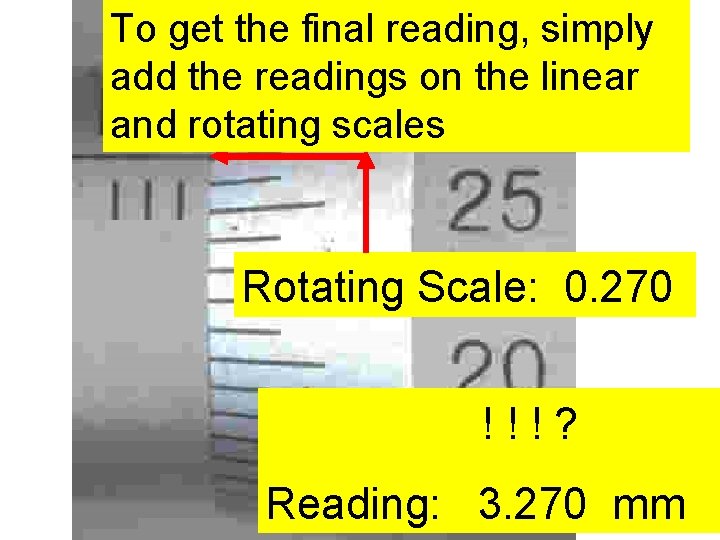

To get the final reading, Linear Scale: simply 3. 000 add the readings on the linear and rotating scales Rotating Scale: 0. 270 !!!? Reading: 3. 270 mm

Linear scale: 6. 500 Rotating scale: 0. 170 ! ! !? Reading: 6. 670 mm

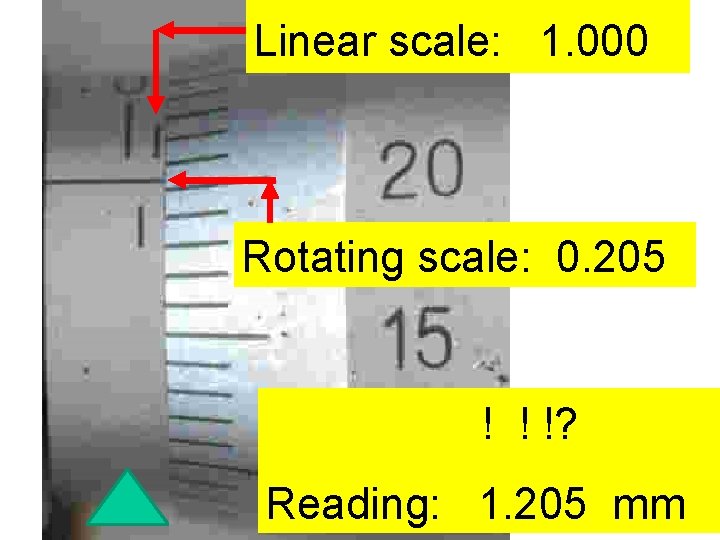

Linear scale: 1. 000 Rotating scale: 0. 205 ! ! !? Reading: 1. 205 mm
