Using the Polar Si 8000 Excel Interface • Getting started with the Polar Si

Using the Polar Si 8000 Excel Interface • Getting started with the Polar Si 8000 Controlled Impedance Field Solver

The Polar Si 8000 Field Solver The Polar Instruments Si 8000 Field Solver uses

The Polar Si 8000 Field Solver The Polar Instruments Si 8000 Field Solver uses the familiar Microsoft Excel for Windows interface for easy graphing and data sharing. Using Excel’s powerful Autofill and Chart Wizard features, the Si 8000 can rapidly chart Z 0 against a varying parameter, providing easy comparison and evaluation of the behaviour of most popular controlled impedance structures. The tutorial assumes you have a basic working knowledge of Microsoft Excel. 2 The Si 8000 formulas included in Microsoft Excel format enable advanced functions, for example, sensitivity analysis and graphing the effects of a range of parameter value changes.

Graphing impedance, Z 0 vs dielectric height, H 1 In this tutorial we use

Graphing impedance, Z 0 vs dielectric height, H 1 In this tutorial we use Excel to graph impedance, Z 0, vs dielectric height, H 1, in a single dielectric surface microstrip structure and predict impedance change due to variations in laminate thickness. 3 Knowing how Z 0 varies with H can help you increase yields by making process adjustments to compensate for base material variation.

How to use this tutorial Please run through all the slides in this presentation

How to use this tutorial Please run through all the slides in this presentation to give yourself an overview. Then launch the Si 8000 and click the Surface Microstrip graphic and work through the examples. The Si 8000. xls workbook includes pre-built sample data worksheets incorporating tables of functions and their associated parameters. If you are not familiar with some of the features of Excel, you may find it worth taking a brief course to get the best from your Si 8000. 4 The Field Solver functions for each controlled impedance structure are built into the Excel workbooks Si 8000. xls and Si 8000 Expert. xls.

Choosing the Si 8000 structure In this introductory tutorial we view the Si 8000’s

Choosing the Si 8000 structure In this introductory tutorial we view the Si 8000’s structure page and choose the Surface Microstrip controlled impedance structure Launch the Si 8000 and click the Surface Microstrip graphic 5

Si 8000 Surface Microstrip structure Each Si 8000 structure page includes a table containing

Si 8000 Surface Microstrip structure Each Si 8000 structure page includes a table containing the structure function along with its associated parameters (shown supplied with predefined values) and an embedded chart that uses the table as its data source 6

Si 8000 Surface Microstrip structure We use Excel’s Fill Handle to copy the formula

Si 8000 Surface Microstrip structure We use Excel’s Fill Handle to copy the formula to the cells below 7 The chart defaults to graphing Z 0, impedance against H 1, the substrate height. You can use the Excel Chart Wizard to change the chart source data to show results for other columns.

Si 8000 Surface Microstrip structure Excel’s Fill Handle (the black + sign at the

Si 8000 Surface Microstrip structure Excel’s Fill Handle (the black + sign at the lower right corner of the active cell) provides a convenient way to copy data or formulas to adjacent cells. Drag and copy the formula down to the target height 8

Si 8000 Surface Microstrip structure Now click Calculate 9 Change the X axis to

Si 8000 Surface Microstrip structure Now click Calculate 9 Change the X axis to display the range of Height values We use the Excel Chart Wizard to change the chart source data to reflect the new range of H 1 values.

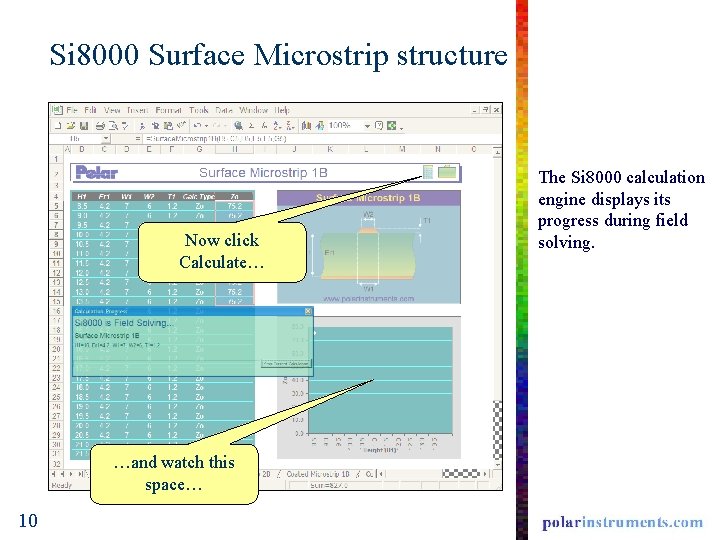

Si 8000 Surface Microstrip structure Now click Calculate… …and watch this space… 10 The

Si 8000 Surface Microstrip structure Now click Calculate… …and watch this space… 10 The Si 8000 calculation engine displays its progress during field solving.

Si 8000 Surface Microstrip structure The Si 8000 fills in the correct values in

Si 8000 Surface Microstrip structure The Si 8000 fills in the correct values in the table. Now from the chart we can see how Z 0 changes with core dimensions. We can easily change other parameters in the table, recalculate and chart the effects. 11

Si 8000 Surface Microstrip structure Move the mouse over the Calc Type label to

Si 8000 Surface Microstrip structure Move the mouse over the Calc Type label to see which characteristics are available for a structure. 12 To calculate other characteristics for the selected parameters, enter the value D, L, C, etc. , in the associated cell in the Calc Type column (labelled Calc Type), move to another cell and press the Calculate button. Relabel the results column if necessary.

Thank you for using this presentation This presentation is just one of a series

Thank you for using this presentation This presentation is just one of a series of hands-on tutorials designed to help you get the most out of your Si 8000 Field solver Please view our other step-by-step presentations available on the Polar Instruments web site www. polarinstruments. com 13

• For more information contact Polar now: • • Phone: USA / Canada

• For more information contact Polar now: • • Phone: USA / Canada / Mexico Ken Taylor ( 503) 356 5270 • • Asia / Pacific Calvin Sie • • Japan Terumitsu Tsuji +81 45 339 0155 +65 6873 7470 UK / Europe Neil Chamberlain +44 23 9226 9113 • Germany / Austria / Switzerland Hermann Reischer +43 7666 20041 -0 • www. polarinstruments. com
