Using TEMS Investigation Introduction § § This presentation shows the basics about how to configure and uses TEMS Investigation UMTS (HSDPA 1. 0. 3) The topics cover on this presentation are: – – – – – prepared by Julio Velo Starting using TEMS Open Logs Play Logs Basic Information Working with Workspaces Analyzing Logs Customizing the Map Exporting Files New in TEMS 7. 0 Ericsson Confidential 2 Using TEMS Investigation 2006 -05 -02

Starting using TEMS Using TEMS Investigation The first time that you open TEMS Investigation (TI) you will be using the standard workspace. You will see worksheets with different kind of information such as Overview, Data, Signaling, etc. prepared by Julio Velo Ericsson Confidential 3 Using TEMS Investigation 2006 -05 -02

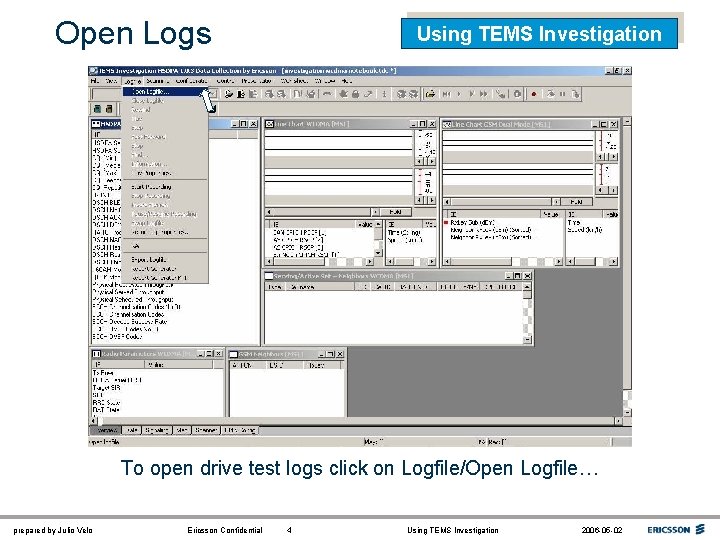

Open Logs Using TEMS Investigation To open drive test logs click on Logfile/Open Logfile… prepared by Julio Velo Ericsson Confidential 4 Using TEMS Investigation 2006 -05 -02

Open Logs con’t Using TEMS Investigation Select the log that you want to analyze and press Open prepared by Julio Velo Ericsson Confidential 5 Using TEMS Investigation 2006 -05 -02

Play Logs Using TEMS Investigation Once you have opened the drive test log the you can play it prepared by Julio Velo Ericsson Confidential 6 Using TEMS Investigation 2006 -05 -02

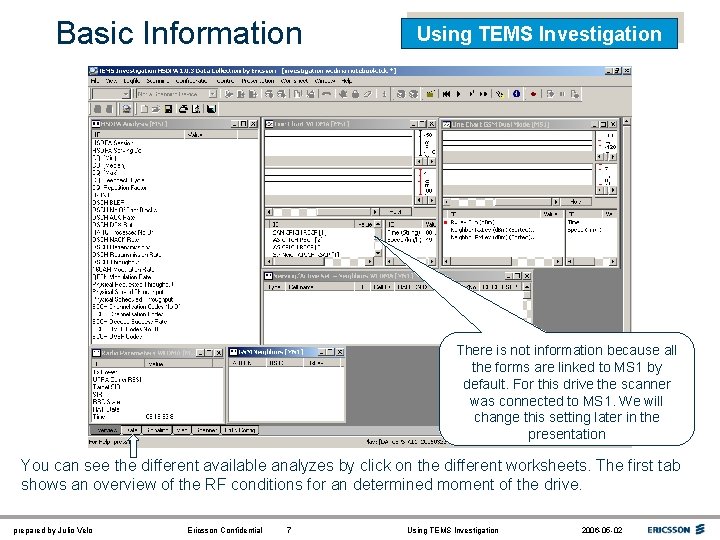

Basic Information Using TEMS Investigation There is not information because all the forms are linked to MS 1 by default. For this drive the scanner was connected to MS 1. We will change this setting later in the presentation You can see the different available analyzes by click on the different worksheets. The first tab shows an overview of the RF conditions for an determined moment of the drive. prepared by Julio Velo Ericsson Confidential 7 Using TEMS Investigation 2006 -05 -02

Basic Information con’t Using TEMS Investigation RLC Throughput On this worksheets you can see information related to packet such as throughput, session information and HSDPA prepared by Julio Velo Ericsson Confidential 8 Using TEMS Investigation 2006 -05 -02

Basic Information con’t Using TEMS Investigation On the Signaling worksheet you can review the layer 2 and layer 3 messages, events and mode report. prepared by Julio Velo Ericsson Confidential 9 Using TEMS Investigation 2006 -05 -02

Basic Information con’t Using TEMS Investigation This worksheet shows a map with the name, location and sectors azimuth/horizontal beamwidth for the cells on the network. Layers with streets, clusters and RNCs boundaries are shown as well prepared by Julio Velo Ericsson Confidential 10 Using TEMS Investigation 2006 -05 -02

Basic Information con’t Using TEMS Investigation In this screen is shown the information related to the scanner. You can notice that this worksheet shows more information than the previous one. This is because MS 1 was used for the scanner and all the forms are associated to MS 1 by default. prepared by Julio Velo Ericsson Confidential 11 Using TEMS Investigation 2006 -05 -02

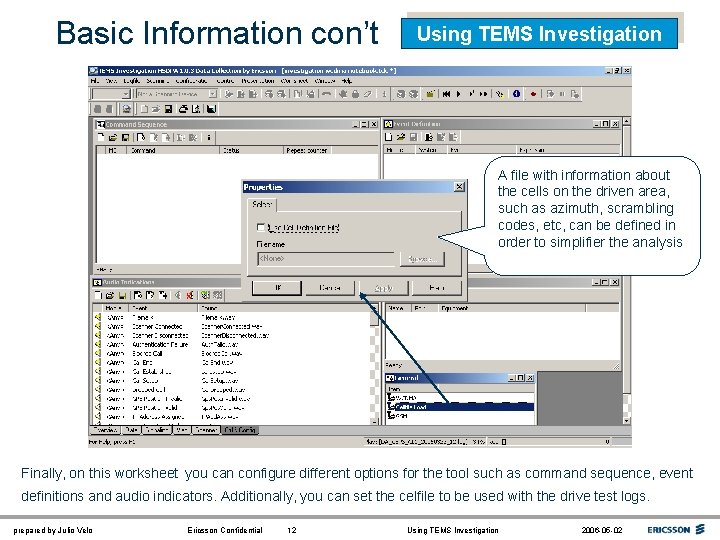

Basic Information con’t Using TEMS Investigation A file with information about the cells on the driven area, such as azimuth, scrambling codes, etc, can be defined in order to simplifier the analysis Finally, on this worksheet you can configure different options for the tool such as command sequence, event definitions and audio indicators. Additionally, you can set the celfile to be used with the drive test logs. prepared by Julio Velo Ericsson Confidential 12 Using TEMS Investigation 2006 -05 -02

Using TEMS Investigation Working with Workspaces § § § As you noticed in the previous slides, it is not easy to do an analysis with the default setting for TEMS. However, TEMS investigation allows the creation/modification of worksheets and workspaces. Each one of the worksheets in TEMS investigation can be customized. Information from the different terminals can be shown in the same worksheet. In the same way, each worksheet can be customized to shown information from a unique MS. More worksheets can be added (up to 10 tabs). Existing worksheets can be deleted as well (not recommended) prepared by Julio Velo Ericsson Confidential 13 Using TEMS Investigation 2006 -05 -02

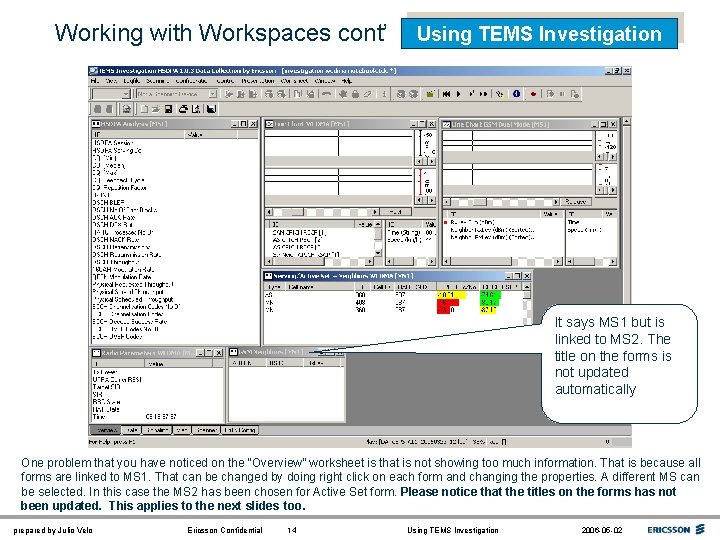

Working with Workspaces cont’ Using TEMS Investigation It says MS 1 but is linked to MS 2. The title on the forms is not updated automatically One problem that you have noticed on the “Overview” worksheet is that is not showing too much information. That is because all forms are linked to MS 1. That can be changed by doing right click on each form and changing the properties. A different MS can be selected. In this case the MS 2 has been chosen for Active Set form. Please notice that the titles on the forms has not been updated. This applies to the next slides too. prepared by Julio Velo Ericsson Confidential 14 Using TEMS Investigation 2006 -05 -02

Working with Workspaces cont’ Using TEMS Investigation You can also add a new worksheets in order to create a view closer to your preferences. Just right click over any tab and the menu for adding/removing worksheet will appear. prepared by Julio Velo Ericsson Confidential 15 Using TEMS Investigation 2006 -05 -02

Working with Workspaces cont’ Using TEMS Investigation On the new worksheet you can add any form available on the presentation menu. There are five different submenus. GSM and WCDMA refer to information for each on those technologies. Signaling is about L 2, L 3 messages and mode. Positioning includes form related to maps. Finally, Templates is just some forms with non- predefined settings. prepared by Julio Velo Ericsson Confidential 16 Using TEMS Investigation 2006 -05 -02

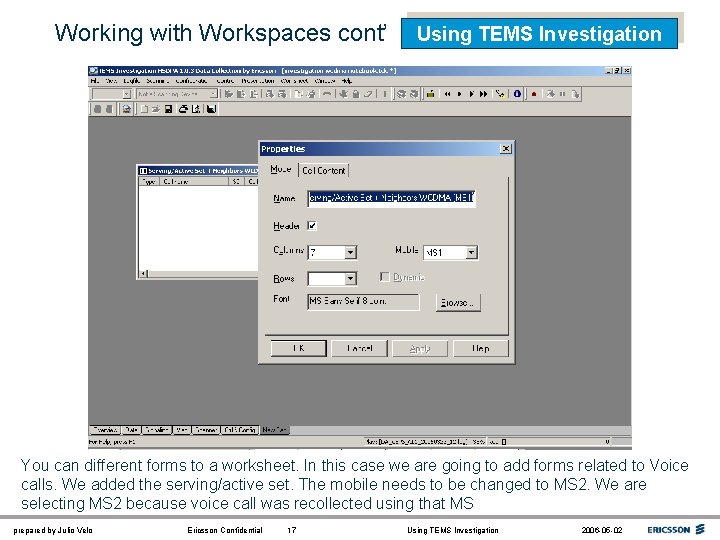

Working with Workspaces cont’ Using TEMS Investigation You can different forms to a worksheet. In this case we are going to add forms related to Voice calls. We added the serving/active set. The mobile needs to be changed to MS 2. We are selecting MS 2 because voice call was recollected using that MS prepared by Julio Velo Ericsson Confidential 17 Using TEMS Investigation 2006 -05 -02

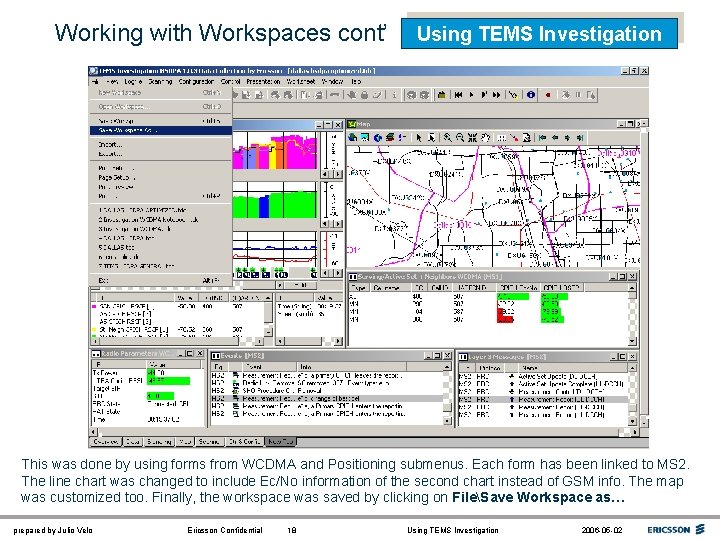

Working with Workspaces cont’ Using TEMS Investigation This was done by using forms from WCDMA and Positioning submenus. Each form has been linked to MS 2. The line chart was changed to include Ec/No information of the second chart instead of GSM info. The map was customized too. Finally, the workspace was saved by clicking on FileSave Workspace as… prepared by Julio Velo Ericsson Confidential 18 Using TEMS Investigation 2006 -05 -02

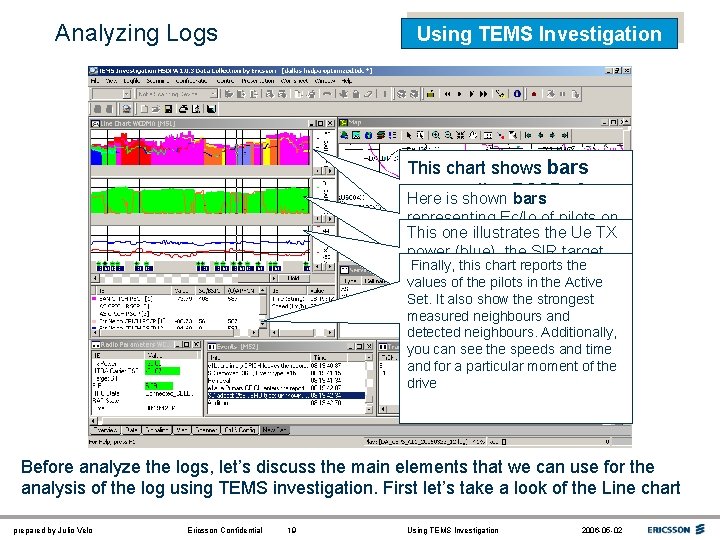

Analyzing Logs Using TEMS Investigation This chart shows bars representing RSCP of Here is shown bars pilots on the. Ec/Io Active Set and representing of pilots on This one illustrates the Uend. TX lines showing RSCP the Active Set (1 stthe green, 2 rd violet) power the SIRshowing target blue, 3(blue), for the pilots oflines the Finally, this chart reports (green, notfor available forthe RSCP the pilots ofand the measured neighbours values of the pilots in the Active Samsung) and SIR value measured neighbours Set. It also show the strongest detected neighbours. (red). (orange) detected measured and neighbours and detected neighbours (red). Additionally, you can see the speeds and time and for a particular moment of the drive Before analyze the logs, let’s discuss the main elements that we can use for the analysis of the log using TEMS investigation. First let’s take a look of the Line chart prepared by Julio Velo Ericsson Confidential 19 Using TEMS Investigation 2006 -05 -02

Analyzing Logs cont’ Using TEMS Investigation Service/Active Set form shows SC, Cell Id (if celfile exists), CPICH Ec/No and RSCP. The different colors for Ec/No and RSCP (green good, yellow so. This form shows On this keyform, the different The BLER% for the. Finally, different this form provide so and red bad) represent information such events asthat Ue happened TX during transport channels is information shown about the L 3 visual indicator of the quality. power, RSSIthe of drive the serving test are reported. on this form messages. Again you can click The colors and ranges can be cell, Target SIR You (upon can click on them in order on a message to get more customized. availability), to SIR, get. RRC morestate, details about them. details. RAT state and again. Now, let’s review other elements such as Serving/Active Set + Neighbours, Radio Parameters, Events, BLER, and Layer 3 Messages. prepared by Julio Velo Ericsson Confidential 20 Using TEMS Investigation 2006 -05 -02

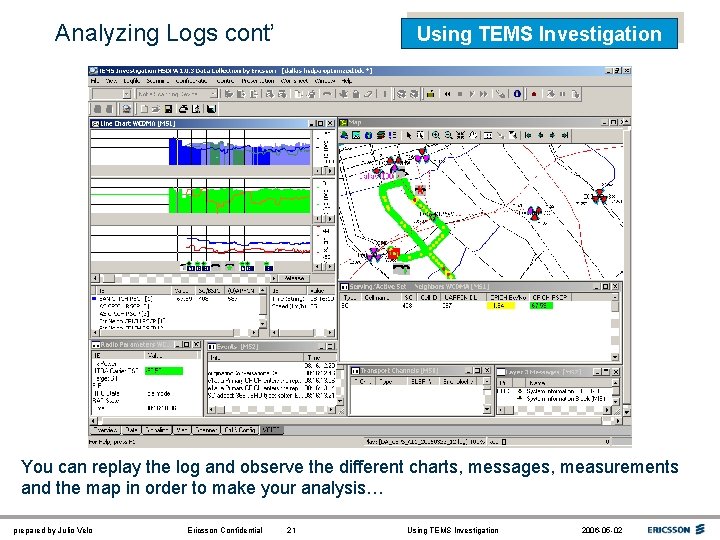

Analyzing Logs cont’ Using TEMS Investigation You can replay the log and observe the different charts, messages, measurements and the map in order to make your analysis… prepared by Julio Velo Ericsson Confidential 21 Using TEMS Investigation 2006 -05 -02

Analyzing Logs cont’ Using TEMS Investigation Before the last removal, RSCP was good and Ec/NO was acceptable The cells in the active set are indicated by blue lines that go from the cell to the selected point. The service sector is painted on green (DXU 0057 Z). Additionally, in the Serving/Active Cell are specified as AS. You can see that the sector DXU 3013 Z is out of the Active Set window, that is why on is removed control the later You can get information about an specific point by clicking on the line chart. All the forms are synchronized. … or play the whole log and move back or forward by using the scroll line chart. Let’s move the scroll bottom back to the first drop call and analyze it prepared by Julio Velo Ericsson Confidential 22 Using TEMS Investigation 2006 -05 -02

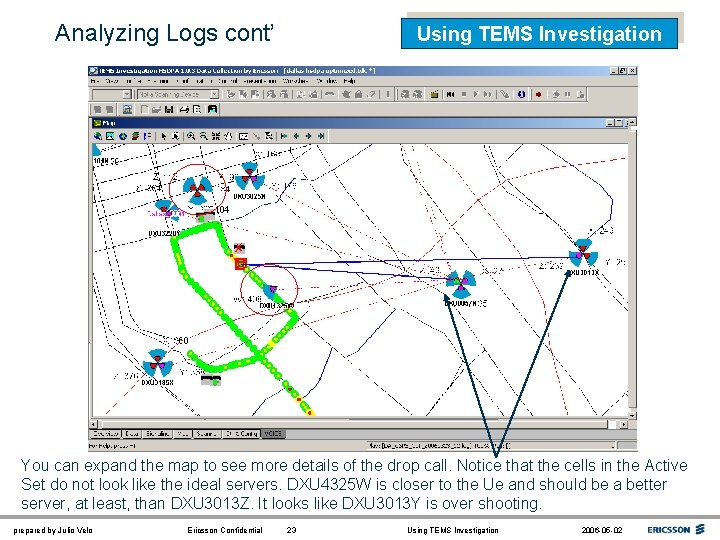

Analyzing Logs cont’ Using TEMS Investigation You can expand the map to see more details of the drop call. Notice that the cells in the Active Set do not look like the ideal servers. DXU 4325 W is closer to the Ue and should be a better server, at least, than DXU 3013 Z. It looks like DXU 3013 Y is over shooting. prepared by Julio Velo Ericsson Confidential 23 Using TEMS Investigation 2006 -05 -02

Analyzing Logs cont’ Using TEMS Investigation After the last radio link removal, the Ec/Io of the Service cell, DXU 0057 degrades so fast that the SHO to a better cell did not happen even tough e 1 a messages were sent. BLER is high too. The call is dropped because interference. prepared by Julio Velo Ericsson Confidential 24 Using TEMS Investigation 2006 -05 -02

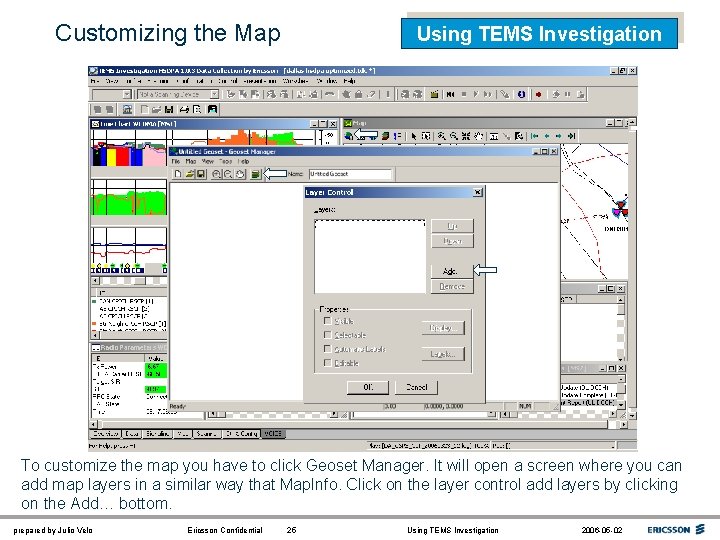

Customizing the Map Using TEMS Investigation To customize the map you have to click Geoset Manager. It will open a screen where you can add map layers in a similar way that Map. Info. Click on the layer control add layers by clicking on the Add… bottom. prepared by Julio Velo Ericsson Confidential 25 Using TEMS Investigation 2006 -05 -02

Customizing the Map cont’ Using TEMS Investigation The layer control works similar to the one for Map. Info. You can change the display and labels options by pressing on the corresponding bottoms. prepared by Julio Velo Ericsson Confidential 26 Using TEMS Investigation 2006 -05 -02

Customizing the Map cont’ Using TEMS Investigation Add and modify as many layer as you want and save them as a Geoset by clicking on FileSave Geoset prepared by Julio Velo Ericsson Confidential 27 Using TEMS Investigation 2006 -05 -02

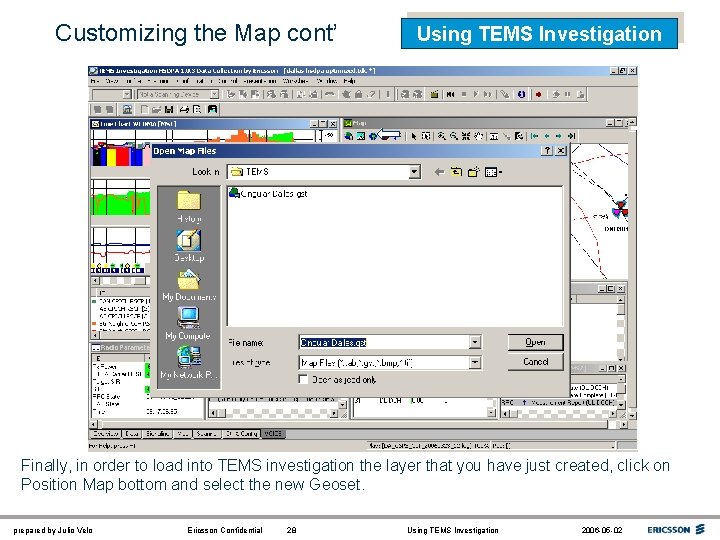

Customizing the Map cont’ Using TEMS Investigation Finally, in order to load into TEMS investigation the layer that you have just created, click on Position Map bottom and select the new Geoset. prepared by Julio Velo Ericsson Confidential 28 Using TEMS Investigation 2006 -05 -02

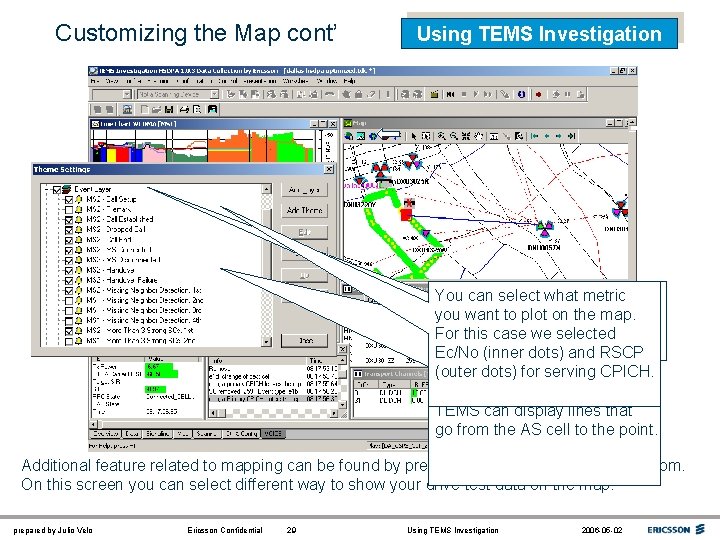

Customizing the Map cont’ Using TEMS Investigation You On Finally, this canoptions different select what you event can metric can select be whether you plotted wantas totoshow well; plot like on in a the special map. color For dropped this (green) case call the we shown selected service in the cell map and other Ec/No (inner cells dots) in active and RSCP set (purple). (outer dots) Neighbours for serving are CPICH. represented by lines. Also, TEMS can display lines that go from the AS cell to the point. Additional feature related to mapping can be found by pressing the Add / Edit Themes bottom. On this screen you can select different way to show your drive test data on the map. prepared by Julio Velo Ericsson Confidential 29 Using TEMS Investigation 2006 -05 -02

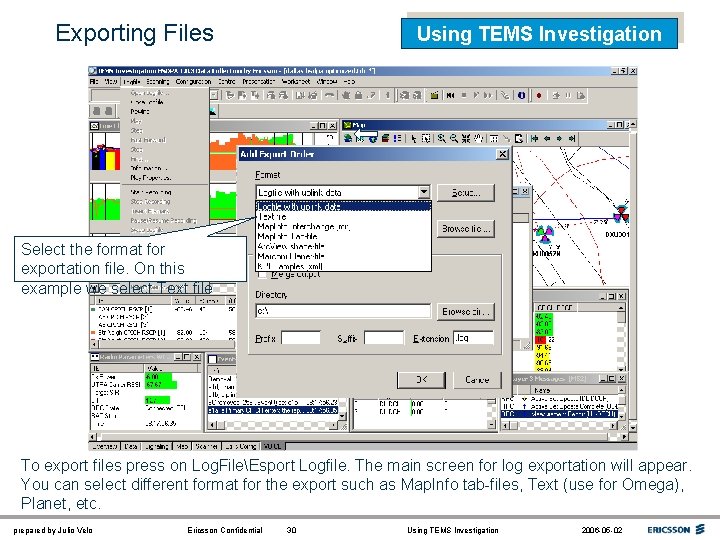

Exporting Files Using TEMS Investigation Select the format for exportation file. On this example we select Text file To export files press on Log. FileEsport Logfile. The main screen for log exportation will appear. You can select different format for the export such as Map. Info tab-files, Text (use for Omega), Planet, etc. prepared by Julio Velo Ericsson Confidential 30 Using TEMS Investigation 2006 -05 -02

Exporting Files cont’ Using TEMS Investigation Finally, press ok to finish apply the profile that you have loaded For instance for this field you have to to show selectall which fields can decide. You whether Youpress can edit the you want to export and the mobiles used during the Youan can save your information thatselection …you load existing > to added to the output drive test or just onecan asexportation fileyou to future use or… wantfile. export profile for the field This case we arefor loading the profile using for Omega tool Then select the fields that you want to export by clicking setup. You can modify the information to be exported on each fields. Finally you can create a profile with the options that you have selected or you can load a profile that you created before. prepared by Julio Velo Ericsson Confidential 31 Using TEMS Investigation 2006 -05 -02

Exporting Files cont’ Using TEMS Investigation Select the drive test logs… … you can export all log in one file by selecting this option… … select the output folder… … or define a common prefix or suffix for the file name… …finally press ok to finish with the file selection!!! After you have finished setting up the format of exportation file, you have to select the files that you have to export and the output folder for the file. You can also merge all the logs in one exportation file. prepared by Julio Velo Ericsson Confidential 32 Using TEMS Investigation 2006 -05 -02

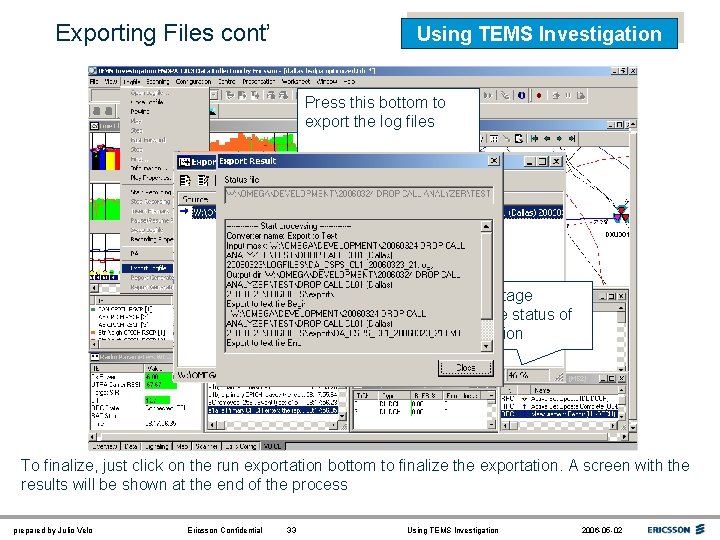

Exporting Files cont’ Using TEMS Investigation Press this bottom to export the log files This percentage indicates the status of the exportation To finalize, just click on the run exportation bottom to finalize the exportation. A screen with the results will be shown at the end of the process prepared by Julio Velo Ericsson Confidential 33 Using TEMS Investigation 2006 -05 -02

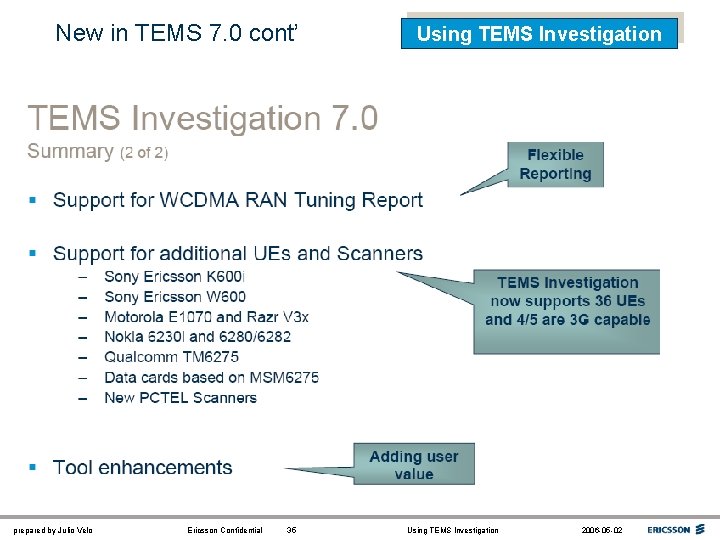

New in TEMS 7. 0 prepared by Julio Velo Ericsson Confidential Using TEMS Investigation 34 Using TEMS Investigation 2006 -05 -02
