Using Open Roads Effectively Marc Bachand P E

Using Open. Roads Effectively Marc Bachand P. E.

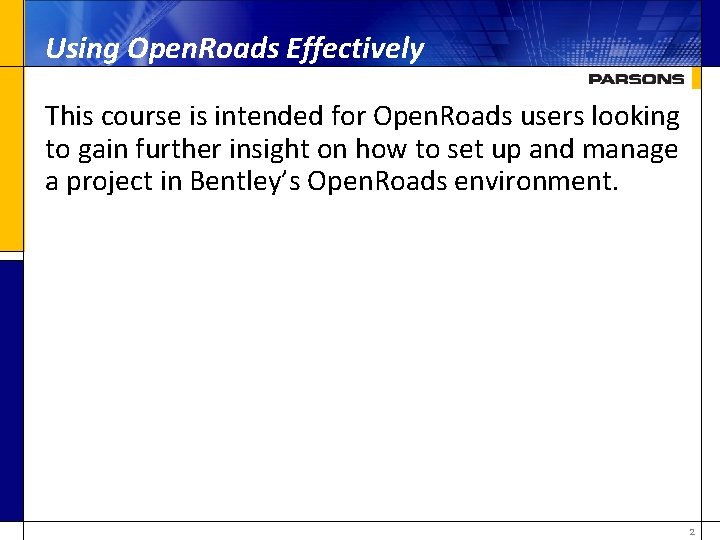

Using Open. Roads Effectively This course is intended for Open. Roads users looking to gain further insight on how to set up and manage a project in Bentley’s Open. Roads environment. 2

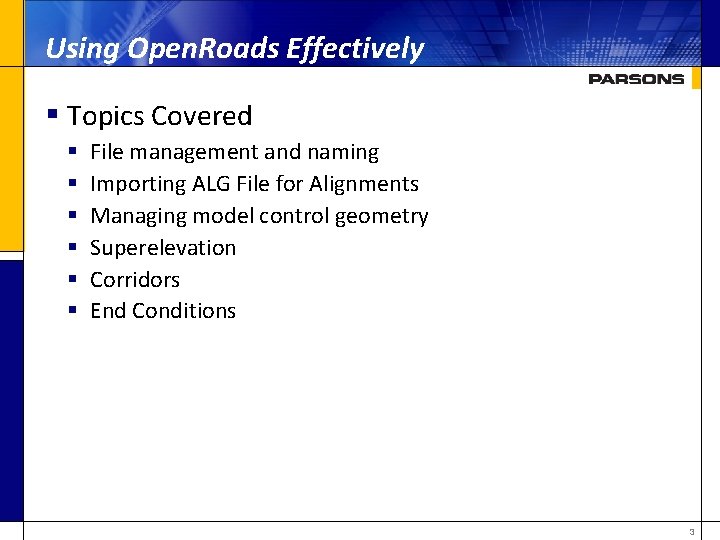

Using Open. Roads Effectively § Topics Covered § § § File management and naming Importing ALG File for Alignments Managing model control geometry Superelevation Corridors End Conditions 3

Using Open. Roads Effectively § Effective Open. Roads Use = Effective File Management § Open. Roads files are Microstation files § Open. Roads files contain model information not just graphics § Attaching a file as a reference allows access to the data contained within the reference file. § The more model information you add to a file the “heavier” it gets. Adding all model information to a single file, while possible, is not an effective way to manage Open. Roads data § Slower file load times § Slower processing times § Unexpected modeling results § Potential for complete data loss due to file corruption 4

Using Open. Roads Effectively § Effective Open. Roads Use = Effective File Management (cont. ) § Parsons “Lean and Mean” file management approach to Open. Roads data § Model information is separated into individual files, grouped by model category type § i. e. Alignments, Corridors, Superelevation, End Conditions, etc. § Model file data is accessed using reference files § The amount of data broken in to separate files is user dependent. § ALWAYS CREATE NEW OPENROADS FILES FROM SEED FILE. NEVER USE “SAVE AS”. § Be careful of Live Nesting; only use it when necessary. 5

Using Open. Roads Effectively § Open. Roads File Management at Parsons § File Naming Project Description Segment ID Inroads File Type* Description 123456 0 1 A 1 B 2 3 ITL COR GEO BRD INT Template Corridor Geometry Structure Intersection Corridor Name Bridge ID Intersecting Streets 4 A SUP Superelevation 4 B 5 CTN Container * File type in not all inclusive. Additional file types may be required to complete modeling. § Example § 123456_2_COR_EBWB. dgn = Segment 2 Corridor file for EB to WB ramp § 123456_3_GEO_ALG. dgn = Segment 3 ALG geometry (more to come on this later on) 6

Using Open. Roads Effectively ALG Alignments Model Geometry Corridors (Backbones) Cor A Cor B For Corridor Clipping Cor C End Conditions EC A Corridor Container EC C End Condition Container Bridge 1 Bridge 2 Bridge Container EC B Bridges Super elevation Open. Roads Model Live Nesting Depth = 2 7

Using Open. Roads Effectively § Implementing Open. Roads § ALG Alignments § The ALG file from native Inroads SS 2 is maintained as the management tool for alignment geometry (Horizontal and Vertical control geometry and sometimes model geometry) § Benefits of maintaining an ALG file as source geometry § Requires no additional training for users § Supports copying of alignments, both horizontal and vertical § ALG is required for plan production even if Open. Roads geometry is fully implemented § ALG alignments are imported in to the DGN file. § As changes are made to the alignments in the ALG file they are reimported, updating the information previously imported. 8

Using Open. Roads Effectively Import alignments from ALG file Open the ALG file using Inroads Explorer. Then select this button. Import Inroads from Memory Alignments that have not been imported previously are NOT checked here. No need for Civil Rules so uncheck this box when importing 9

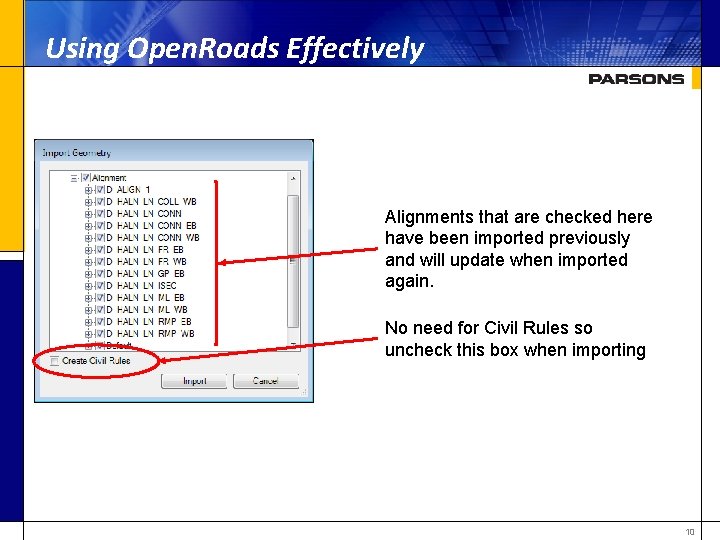

Using Open. Roads Effectively Alignments that are checked here have been imported previously and will update when imported again. No need for Civil Rules so uncheck this box when importing 10

Using Open. Roads Effectively § ALG Alignments (cont. ) § Do’s and Don’ts when working with the ALG Model § DO NOT delete the imported graphics from previous ALG imports. Corridors are tied to the GUID of these particular graphical elements. Deleting them will render you corridors useless. § Importing a previously imported alignment will simply modify the graphics § You MUST maintain the original name of the internal ALG file and the imported alignments for proper updating to occur. § Graphics are imported on the active Microstation symbology. You can change the symbology after the fact or assign an Open. Roads feature definition. § Do not assign a feature definition that allows auto-export of the ALG graphics. 11

Using Open. Roads Effectively § Model Control Geometry § Geometry used for model manipulation § Edge of pavement, shoulder, turn lane transitions, of any other geometry required to properly model corridors. § The ALG graphics are referenced to this file § Geometry in this file can be developed using SS 4 ruled geometry or imported and managed in an ALG file § Ruled Geometry § Updates as changes are made to control geometry § Better suited for new construction work or when geometry has some definable relationship to control geometry, i. e consistent offsets, tapers, etc. 12

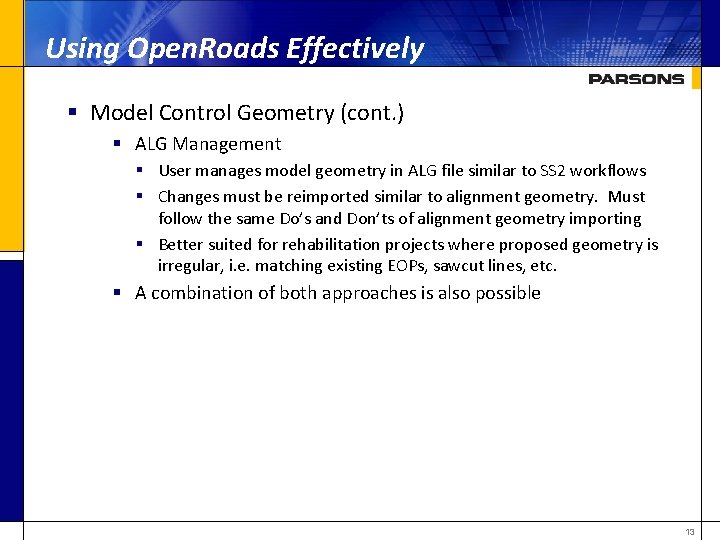

Using Open. Roads Effectively § Model Control Geometry (cont. ) § ALG Management § User manages model geometry in ALG file similar to SS 2 workflows § Changes must be reimported similar to alignment geometry. Must follow the same Do’s and Don’ts of alignment geometry importing § Better suited for rehabilitation projects where proposed geometry is irregular, i. e. matching existing EOPs, sawcut lines, etc. § A combination of both approaches is also possible 13

Using Open. Roads Effectively § Superelevation § Developed in a separate file with ALG model referenced § Superelevation sections for each corridor are developed in this file. § Create unique levels to help manage the display of multiple superelevation sections. For example: § Levels based on type of roadway i. e. freeway, ramp, arterials § Levels for each corridor/alignment 14

Using Open. Roads Effectively § Superelevation (cont. ) § Standards file for calculations? § Allows quick calculation of maximum “e” and transition rates § Changes to alignment geometry will propagate through and super sections will update automatically § If manual edits to super stations have been made these changes will be lost due to automatic updates § Tip: Set minimum tangent length between curves to 100, 000 so that one section is developed over entire alignment length 15

Using Open. Roads Effectively § Corridors § One corridor per DGN file is the preferred approach but not required. § Alignments and Model Control Geometry are referenced to corridor files as well as any CAD design files (i. e. proposed work or base mapping files) § Attach superelevation file as required § Corridors are pulled together using a container file. § Can be backbone only or backbone and end conditions (user choice). 16

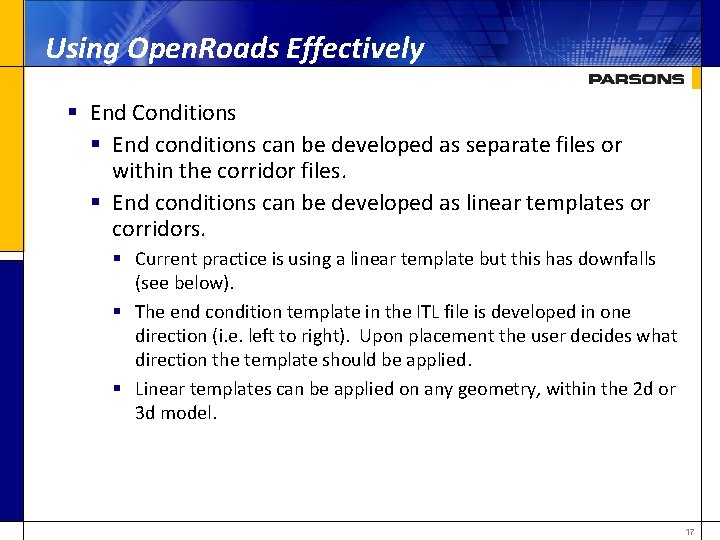

Using Open. Roads Effectively § End Conditions § End conditions can be developed as separate files or within the corridor files. § End conditions can be developed as linear templates or corridors. § Current practice is using a linear template but this has downfalls (see below). § The end condition template in the ITL file is developed in one direction (i. e. left to right). Upon placement the user decides what direction the template should be applied. § Linear templates can be applied on any geometry, within the 2 d or 3 d model. 17

Using Open. Roads Effectively § End Conditions (cont. ) § Benefits of Linear Templates: § Only one template is developed and maintained. The user decides whether to apply the template to the left or right side of the geometry § Greater control on the ranges where particular end condition solutions are applied. Multiple liner templates can be developed and applied over different station ranges of the corridor. § Drawbacks of Linear Templates: § Cannot specify key stations. Template drop intervals are based on linear stroking definition of origin element. § Cannot include critical stations like external control points § You might not get a template drop at locations where you would ideally want one. 18

Using Open. Roads Effectively § Open. Roads in Use 19

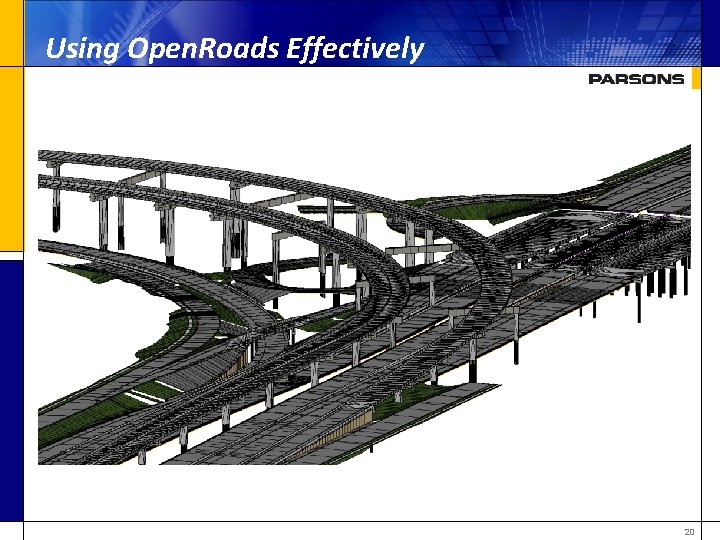

Using Open. Roads Effectively 20

Using Open. Roads Effectively § Level 1 § Level 2 § Level 3 § Level 4 § Level 5 21
