Using molecular replacement to exploit multiple crystal forms Randy Read, Airlie Mc. Coy & Gábor Bunkóczi Tom Terwilliger

Solving the structure of angiotensinogen • Human: 1 crystal form • • Rat: 2 crystal forms • • • 3. 3Å, 1 copy, P 41212 2. 8Å, 2 copies, C 2 3. 15Å, 2 copies, P 3221 Mouse: 2 crystal forms • • 2. 1Å, 1 copy, P 6122 2. 95Å, 4 copies, C 2221

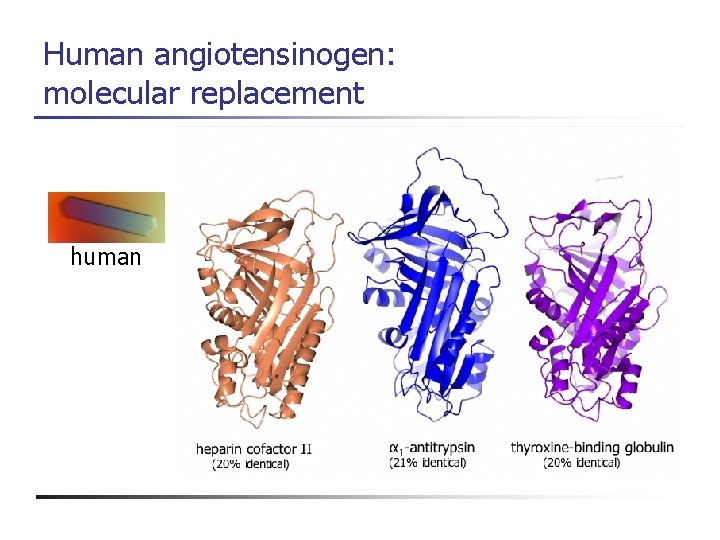

Human angiotensinogen: molecular replacement human

Human angiotensinogen: molecular replacement human

Human angiotensinogen: molecular replacement human

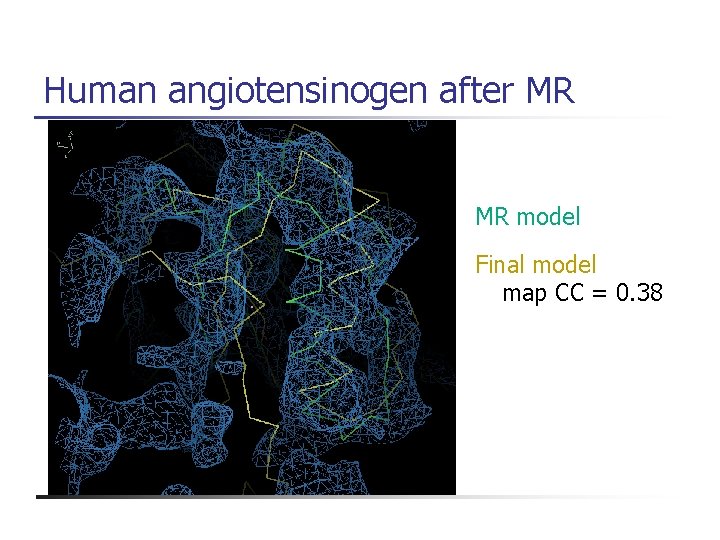

Human angiotensinogen after MR MR model Final model map CC = 0. 38

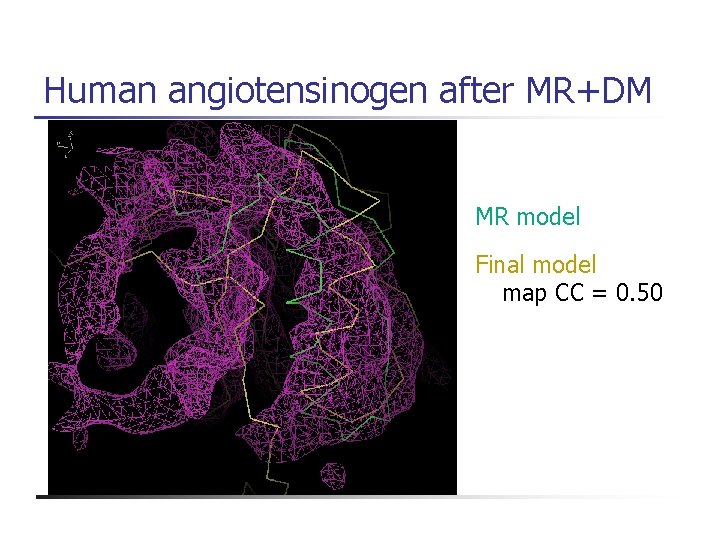

Human angiotensinogen after MR+DM MR model Final model map CC = 0. 50

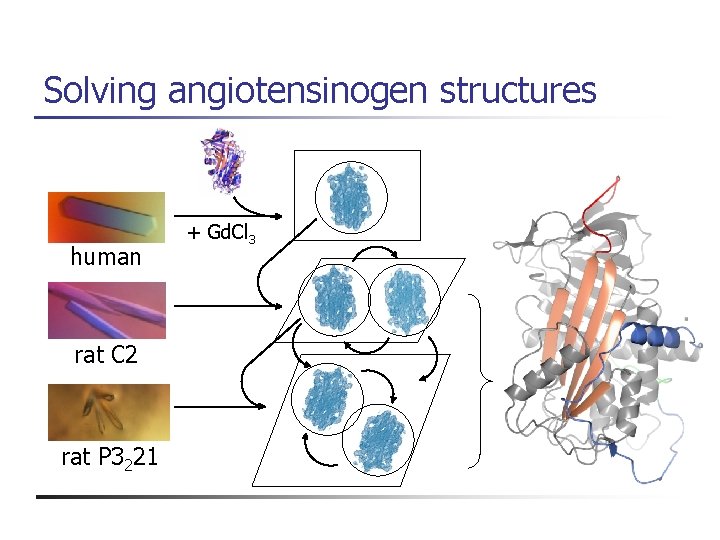

Solving angiotensinogen structures human rat C 2 rat P 3221 + Gd. Cl 3

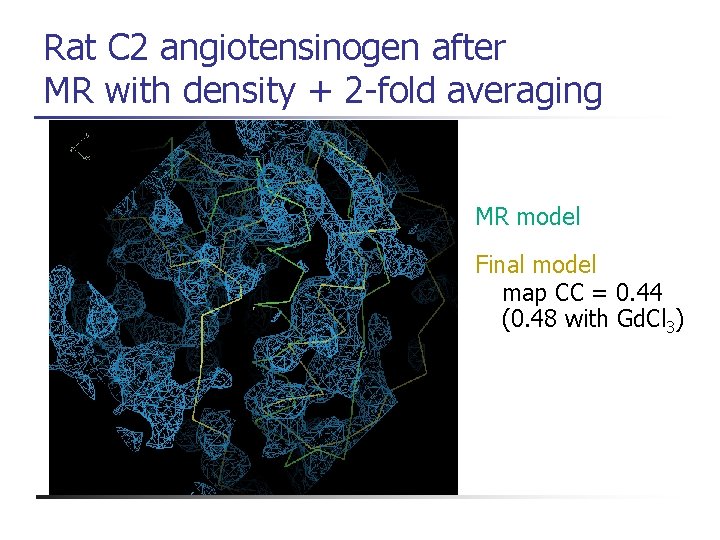

Rat C 2 angiotensinogen after MR with density + 2 -fold averaging MR model Final model map CC = 0. 44 (0. 48 with Gd. Cl 3)

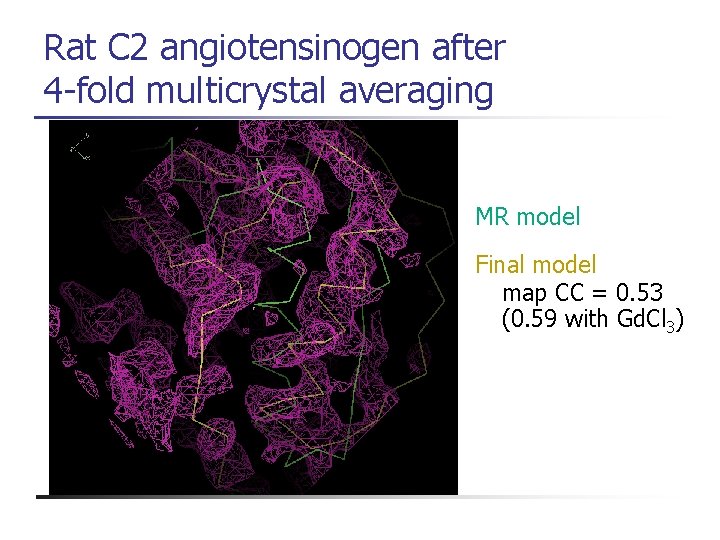

Rat C 2 angiotensinogen after 4 -fold multicrystal averaging MR model Final model map CC = 0. 53 (0. 59 with Gd. Cl 3)

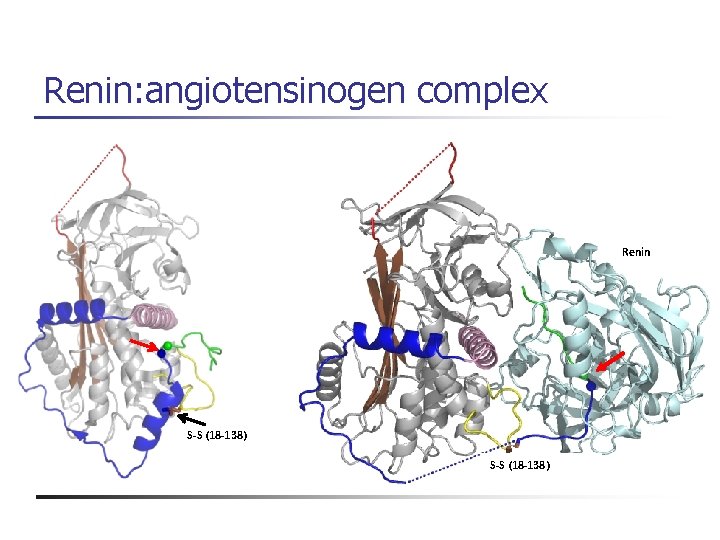

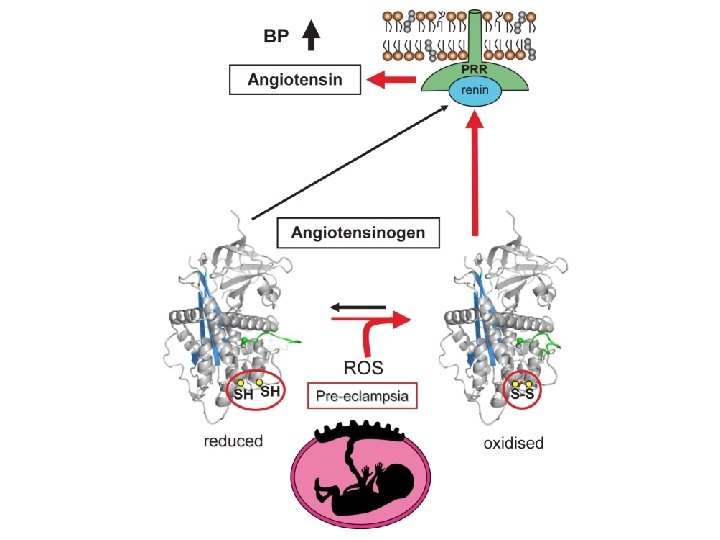

Renin: angiotensinogen complex Renin S-S (18 -138)

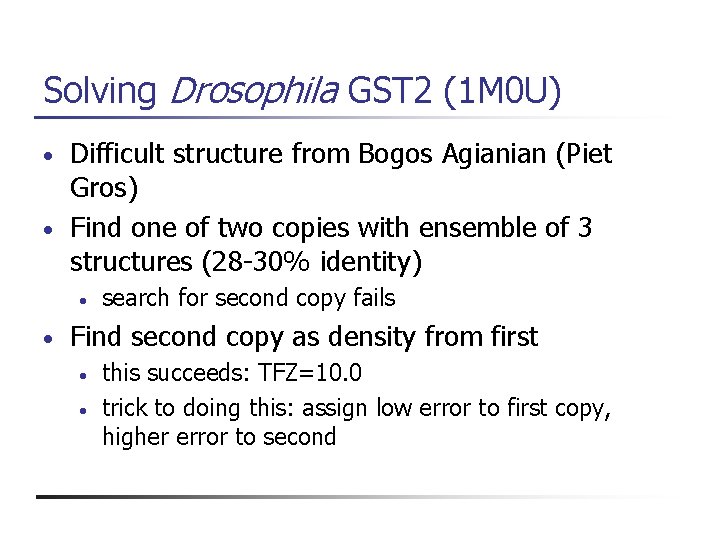

Solving Drosophila GST 2 (1 M 0 U) Difficult structure from Bogos Agianian (Piet Gros) • Find one of two copies with ensemble of 3 structures (28 -30% identity) • • • search for second copy fails Find second copy as density from first • • this succeeds: TFZ=10. 0 trick to doing this: assign low error to first copy, higher error to second

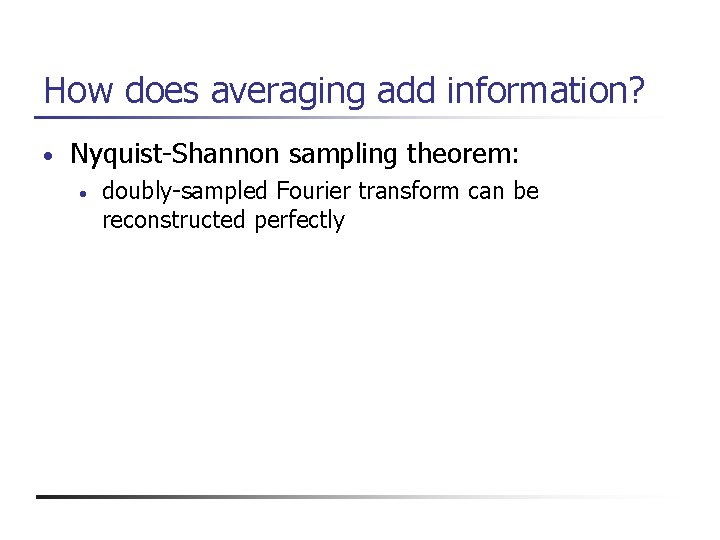

How does averaging add information? • Nyquist-Shannon sampling theorem: • doubly-sampled Fourier transform can be reconstructed perfectly

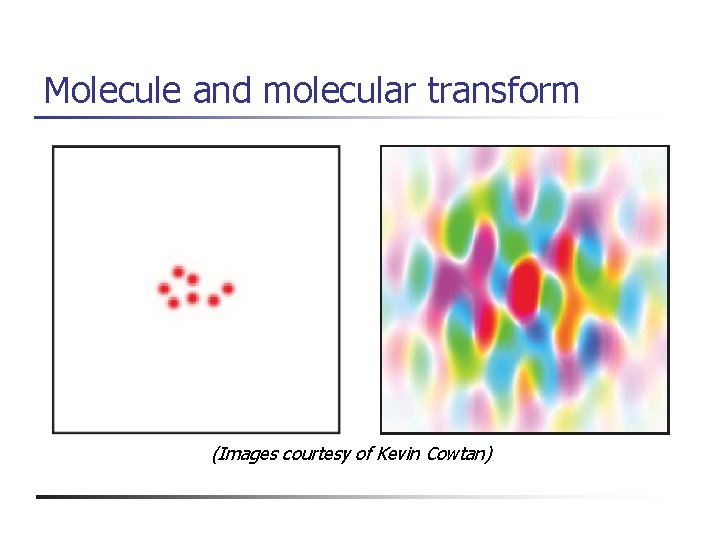

Molecule and molecular transform (Images courtesy of Kevin Cowtan)

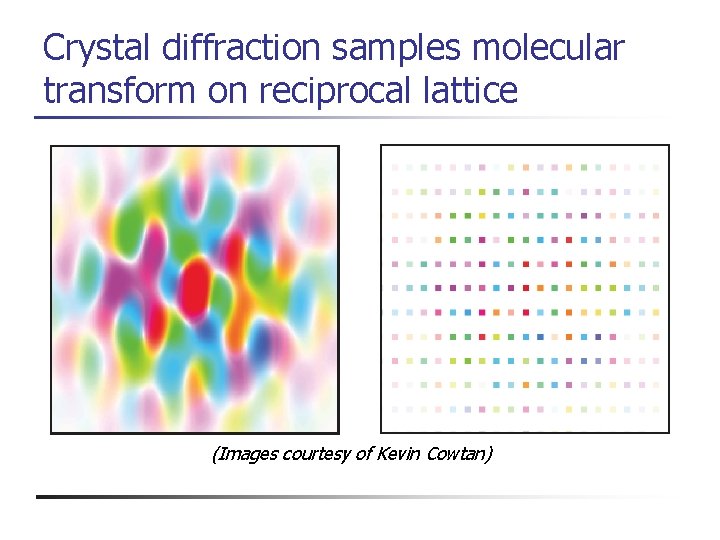

Crystal diffraction samples molecular transform on reciprocal lattice (Images courtesy of Kevin Cowtan)

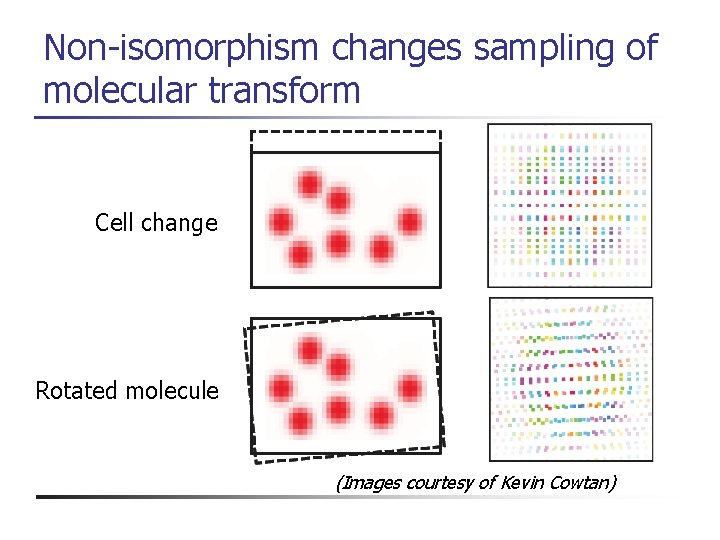

Non-isomorphism changes sampling of molecular transform Cell change Rotated molecule (Images courtesy of Kevin Cowtan)

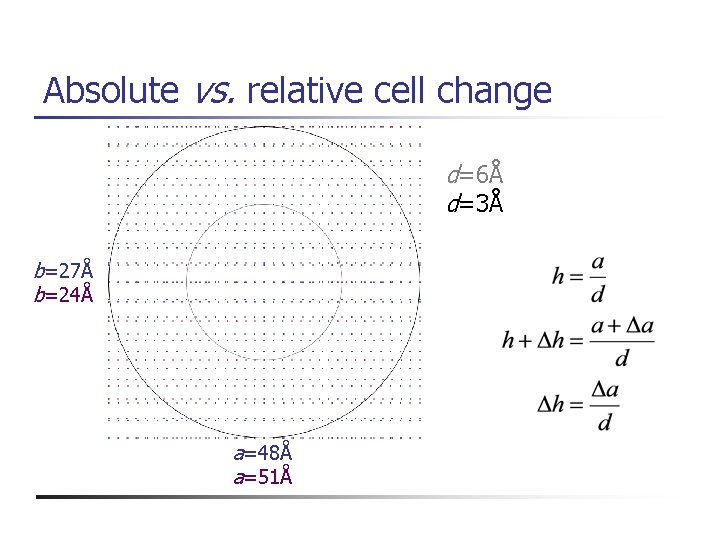

Absolute vs. relative cell change d=6Å d=3Å b=27Å b=24Å a=48Å a=51Å

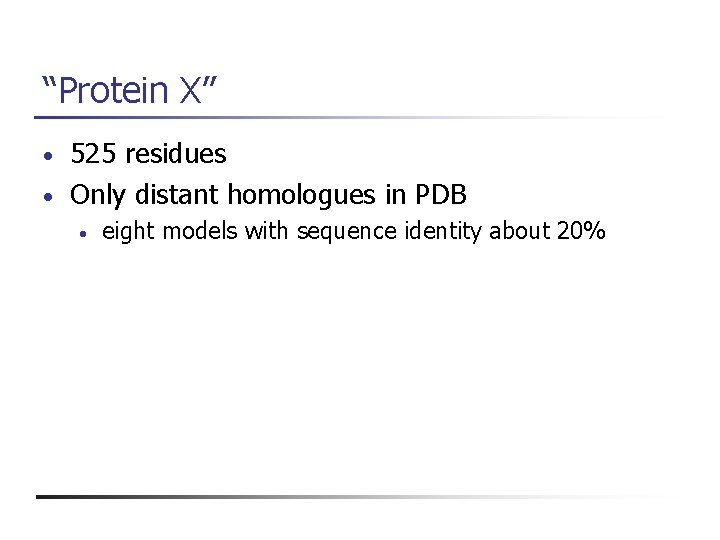

“Protein X” 525 residues • Only distant homologues in PDB • • eight models with sequence identity about 20%

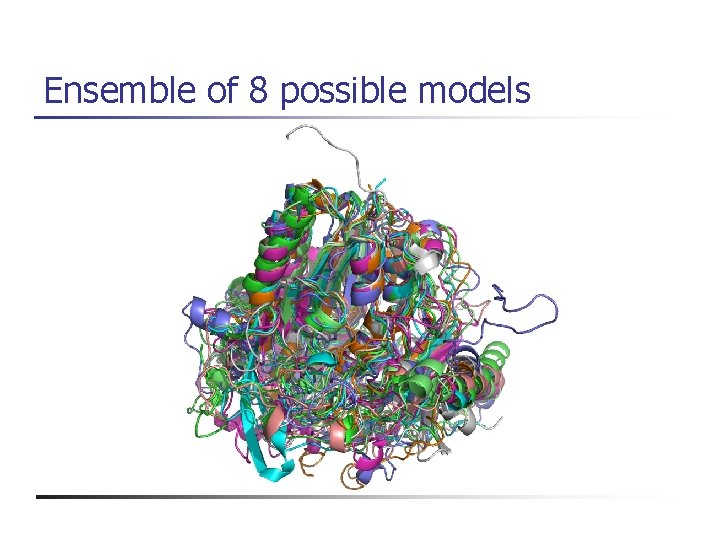

Ensemble of 8 possible models

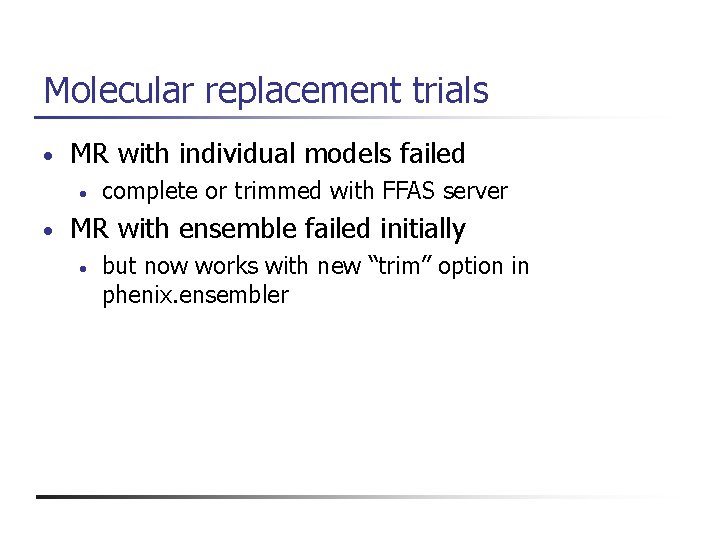

Molecular replacement trials • MR with individual models failed • • complete or trimmed with FFAS server MR with ensemble failed initially • but now works with new “trim” option in phenix. ensembler

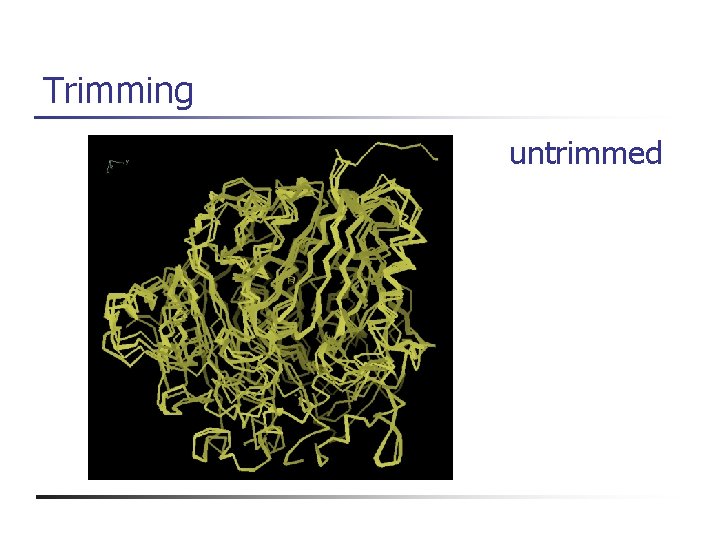

Trimming untrimmed

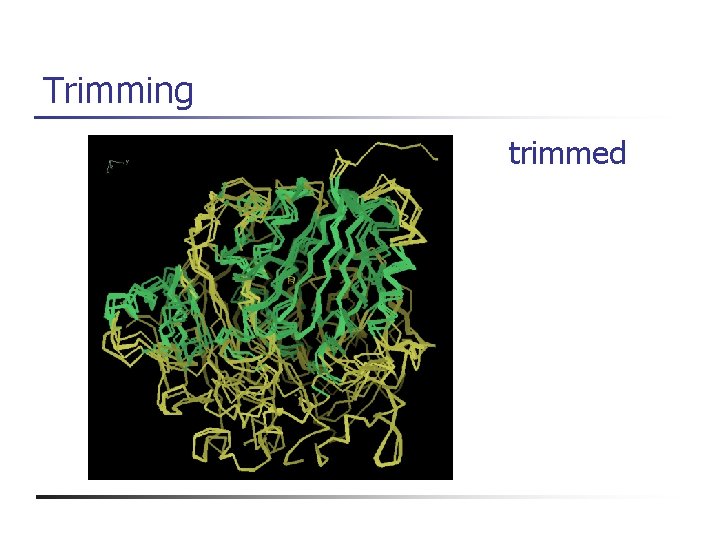

Trimming trimmed

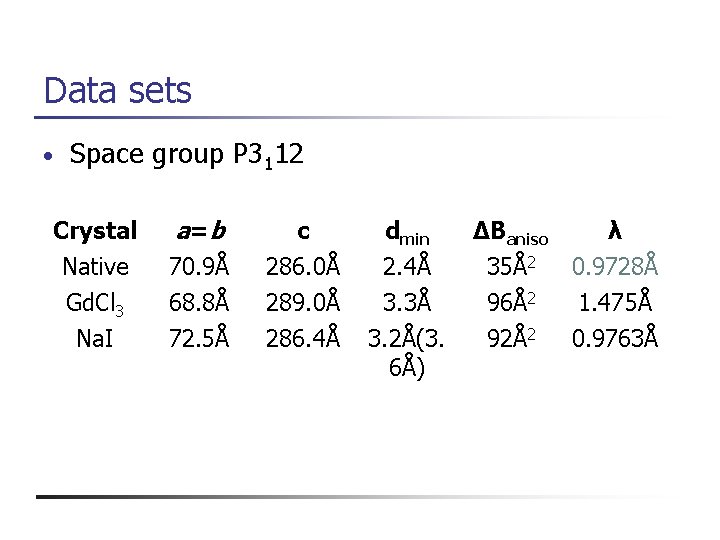

Data sets • Space group P 3112 Crystal Native Gd. Cl 3 Na. I a =b 70. 9Å 68. 8Å 72. 5Å c 286. 0Å 289. 0Å 286. 4Å dmin 2. 4Å 3. 3Å 3. 2Å(3. 6Å) ΔBaniso λ 35Å2 0. 9728Å 96Å2 1. 475Å 92Å2 0. 9763Å

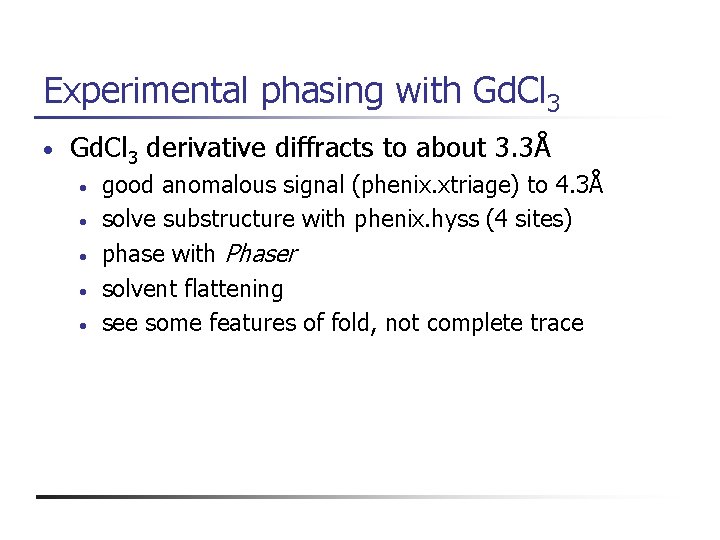

Experimental phasing with Gd. Cl 3 • Gd. Cl 3 derivative diffracts to about 3. 3Å • • • good anomalous signal (phenix. xtriage) to 4. 3Å solve substructure with phenix. hyss (4 sites) phase with Phaser solvent flattening see some features of fold, not complete trace

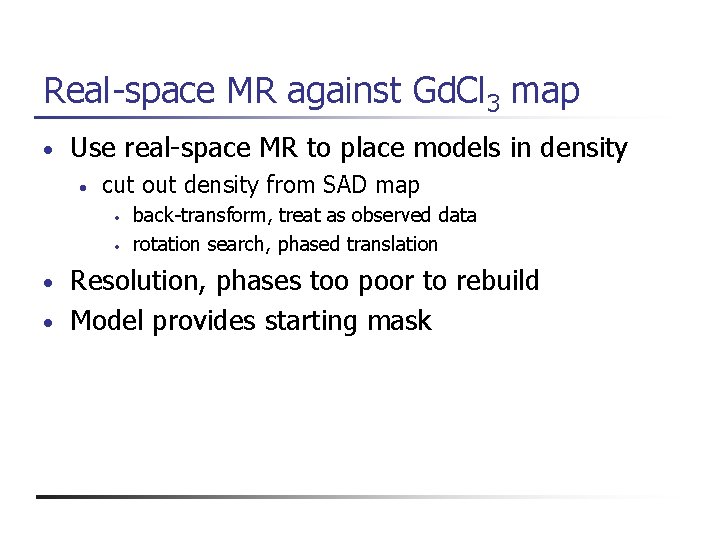

Real-space MR against Gd. Cl 3 map • Use real-space MR to place models in density • cut out density from SAD map • • back-transform, treat as observed data rotation search, phased translation Resolution, phases too poor to rebuild • Model provides starting mask •

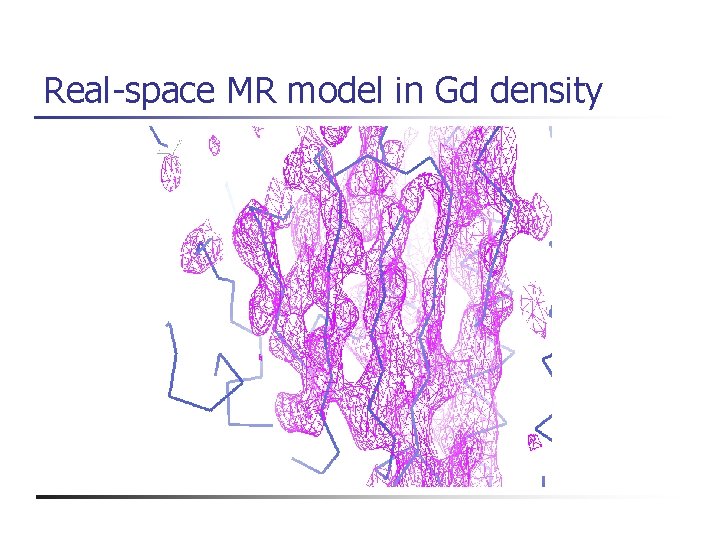

Real-space MR model in Gd density

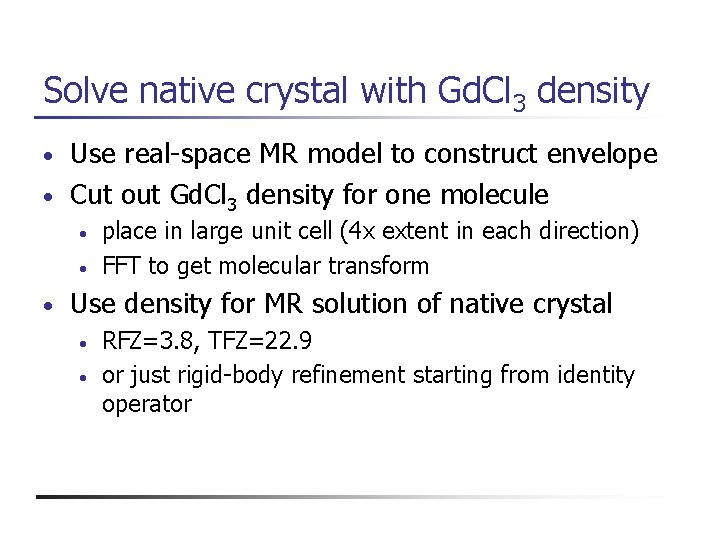

Solve native crystal with Gd. Cl 3 density Use real-space MR model to construct envelope • Cut out Gd. Cl 3 density for one molecule • • place in large unit cell (4 x extent in each direction) FFT to get molecular transform Use density for MR solution of native crystal • • RFZ=3. 8, TFZ=22. 9 or just rigid-body refinement starting from identity operator

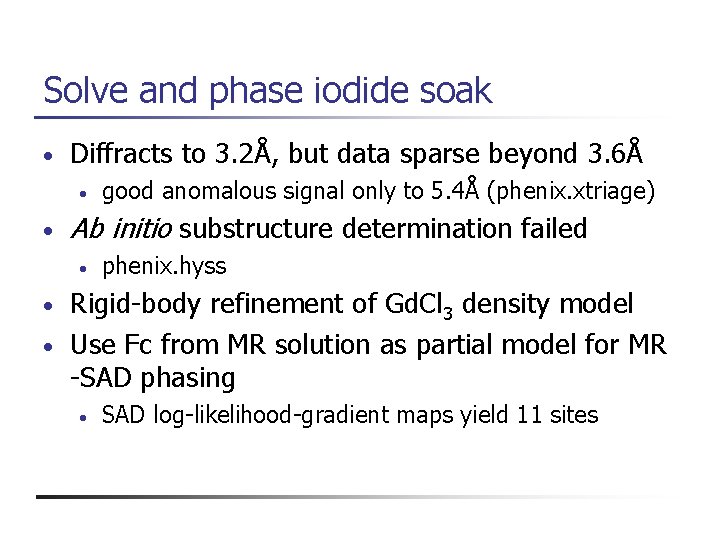

Solve and phase iodide soak • Diffracts to 3. 2Å, but data sparse beyond 3. 6Å • • good anomalous signal only to 5. 4Å (phenix. xtriage) Ab initio substructure determination failed • phenix. hyss Rigid-body refinement of Gd. Cl 3 density model • Use Fc from MR solution as partial model for MR -SAD phasing • • SAD log-likelihood-gradient maps yield 11 sites

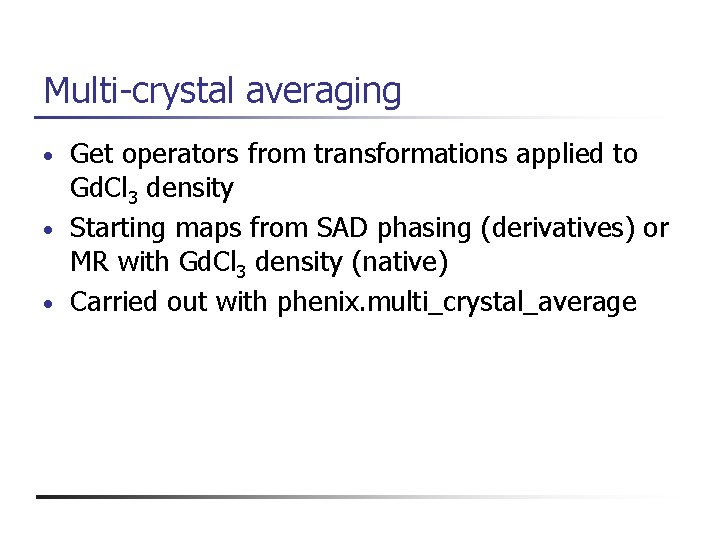

Multi-crystal averaging Get operators from transformations applied to Gd. Cl 3 density • Starting maps from SAD phasing (derivatives) or MR with Gd. Cl 3 density (native) • Carried out with phenix. multi_crystal_average •

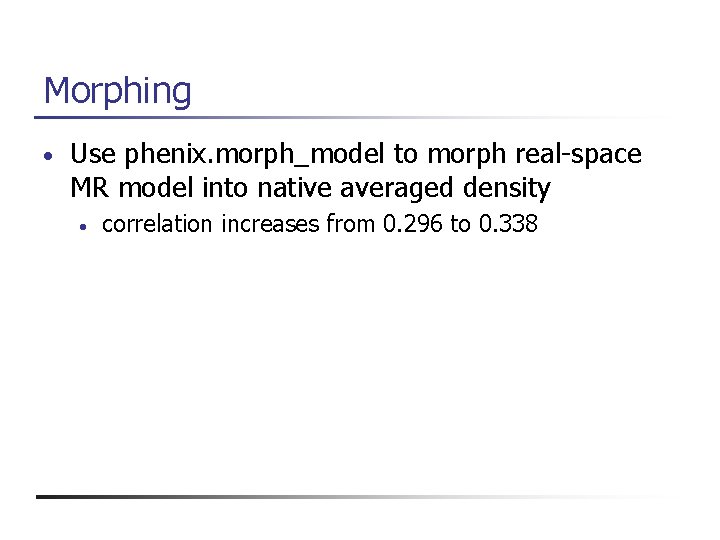

Morphing • Use phenix. morph_model to morph real-space MR model into native averaged density • correlation increases from 0. 296 to 0. 338

Initial model-building • Build with phenix. autobuild into averaged native map, start from morphed MR model • • 364 residues, 177 assigned to sequence R=0. 42, Rfree=0. 48

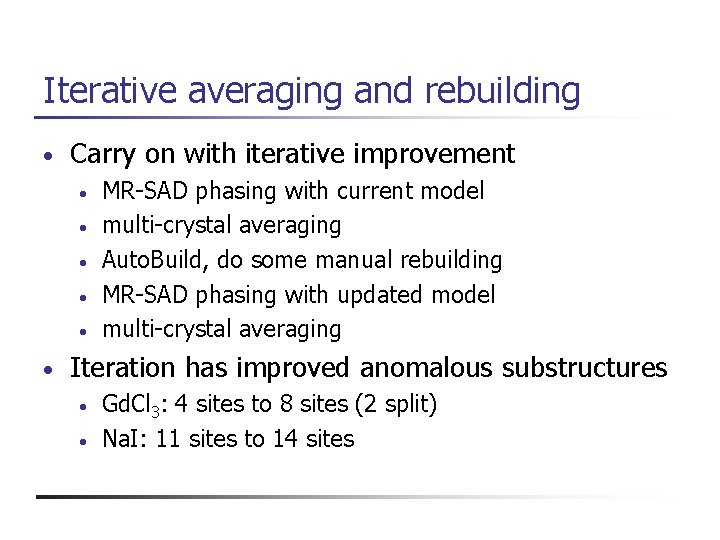

Iterative averaging and rebuilding • Carry on with iterative improvement • • • MR-SAD phasing with current model multi-crystal averaging Auto. Build, do some manual rebuilding MR-SAD phasing with updated model multi-crystal averaging Iteration has improved anomalous substructures • • Gd. Cl 3: 4 sites to 8 sites (2 split) Na. I: 11 sites to 14 sites

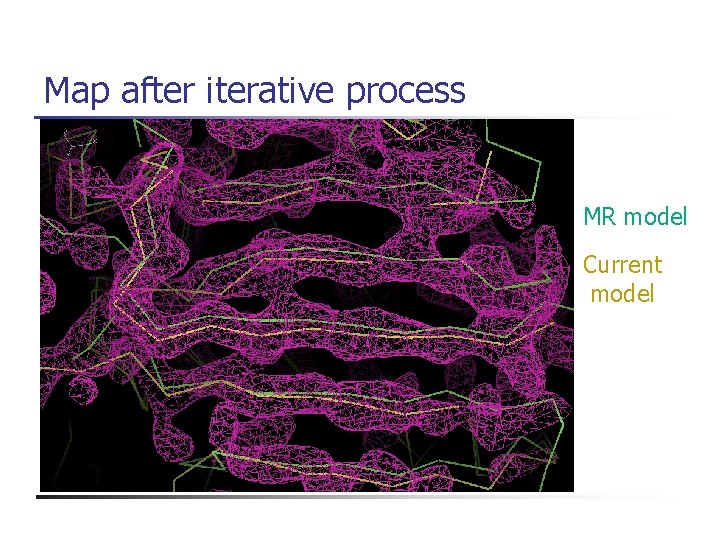

Map after iterative process MR model Current model

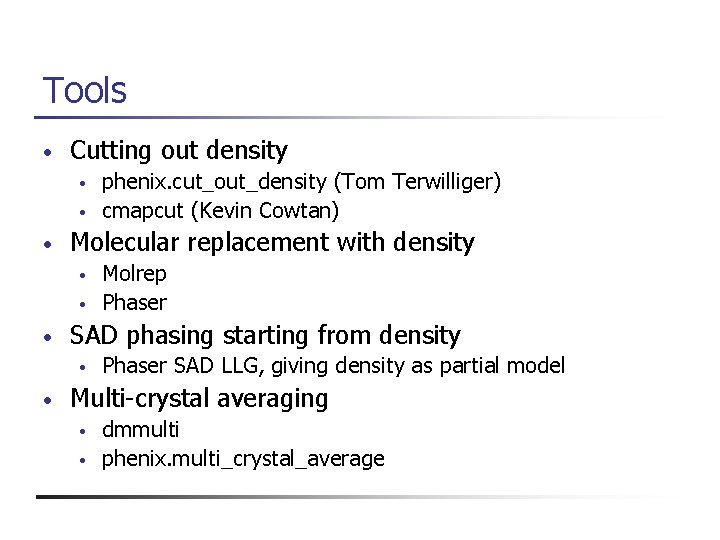

Tools • Cutting out density • • • Molecular replacement with density • • • Molrep Phaser SAD phasing starting from density • • phenix. cut_out_density (Tom Terwilliger) cmapcut (Kevin Cowtan) Phaser SAD LLG, giving density as partial model Multi-crystal averaging • • dmmulti phenix. multi_crystal_average

Acknowledgements • Phaser: • • Angiotensinogen: • • • Airlie Mc. Coy, Gabor Bunkoczi Penny Stein, Robin Carrell, Aiwu Zhou Mike Murphy, Fiona Broughton Pipkin “Protein X” • Mykhaylo Demydchuk, Aiwu Zhou, Janet Deane, Penny Stein
