Using Manifold Structure for Partially Labeled Classification by Belkin and Niyogi, NIPS 2002 Presented by Chunping Wang Machine Learning Group, Duke University November 16, 2007

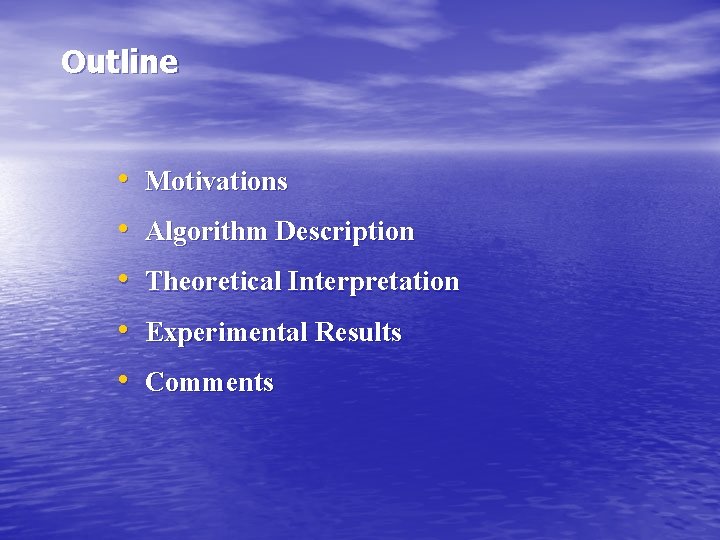

Outline • • • Motivations Algorithm Description Theoretical Interpretation Experimental Results Comments

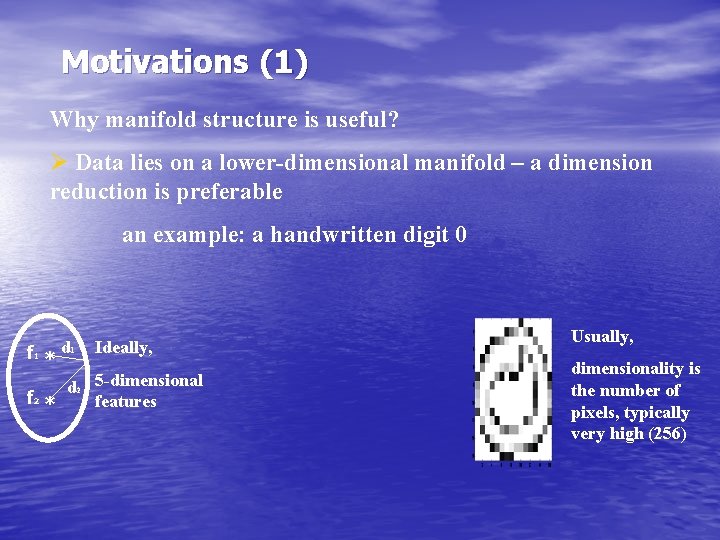

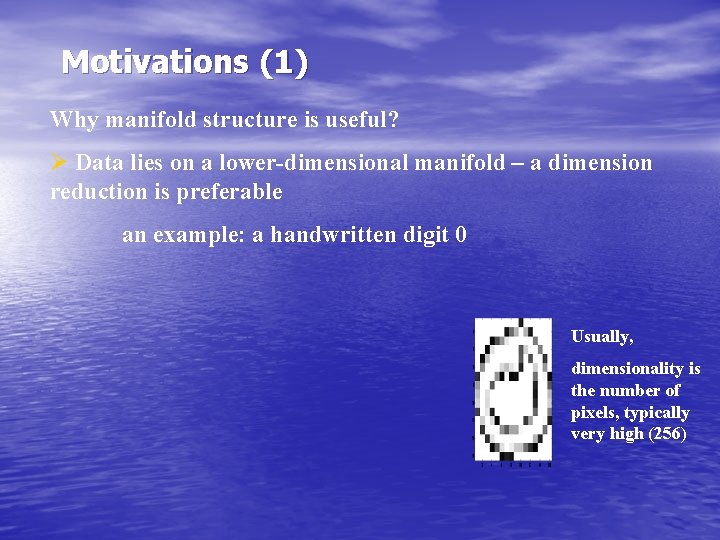

Motivations (1) Why manifold structure is useful? Ø Data lies on a lower-dimensional manifold – a dimension reduction is preferable an example: a handwritten digit 0 Usually, dimensionality is the number of pixels, typically very high (256)

Motivations (1) Why manifold structure is useful? Ø Data lies on a lower-dimensional manifold – a dimension reduction is preferable an example: a handwritten digit 0 f 1 * f 2 * d 1 d 2 Ideally, 5 -dimensional features Usually, dimensionality is the number of pixels, typically very high (256)

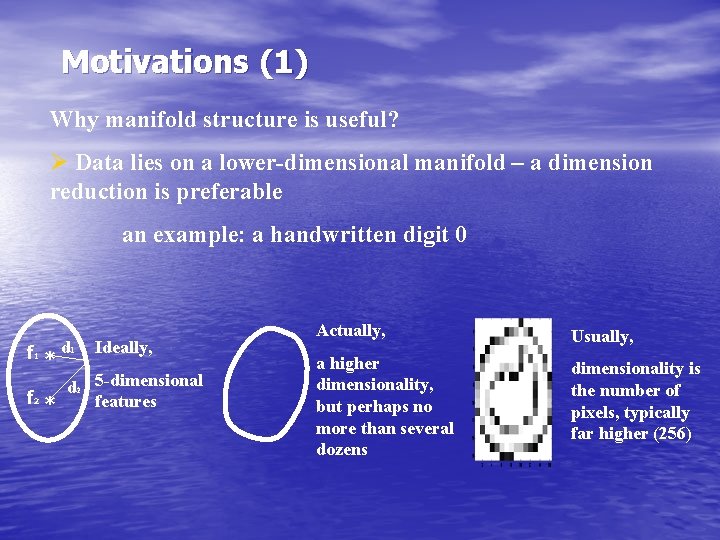

Motivations (1) Why manifold structure is useful? Ø Data lies on a lower-dimensional manifold – a dimension reduction is preferable an example: a handwritten digit 0 f 1 * f 2 * d 1 d 2 Ideally, 5 -dimensional features Actually, Usually, a higher dimensionality, but perhaps no more than several dozens dimensionality is the number of pixels, typically far higher (256)

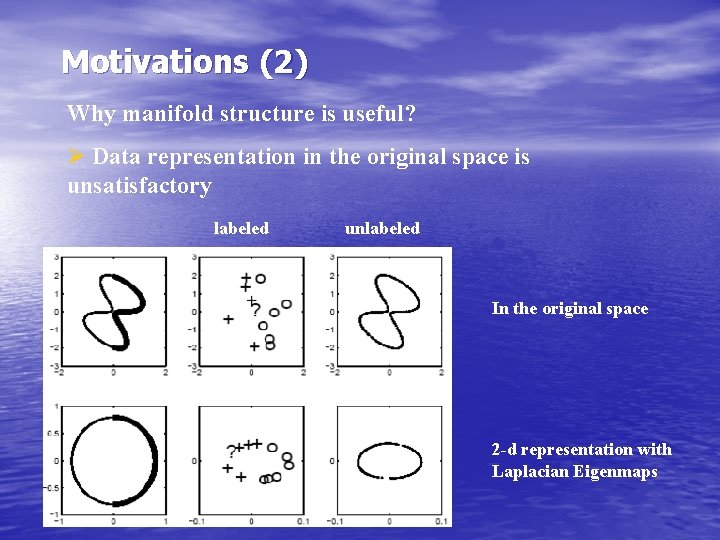

Motivations (2) Why manifold structure is useful? Ø Data representation in the original space is unsatisfactory labeled unlabeled In the original space 2 -d representation with Laplacian Eigenmaps

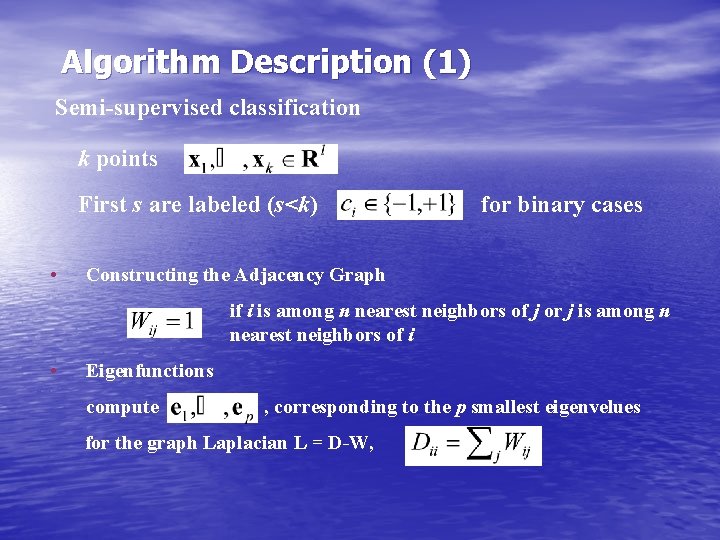

Algorithm Description (1) Semi-supervised classification k points First s are labeled (s<k) • for binary cases Constructing the Adjacency Graph if i is among n nearest neighbors of j or j is among n nearest neighbors of i • Eigenfunctions compute , corresponding to the p smallest eigenvelues for the graph Laplacian L = D-W,

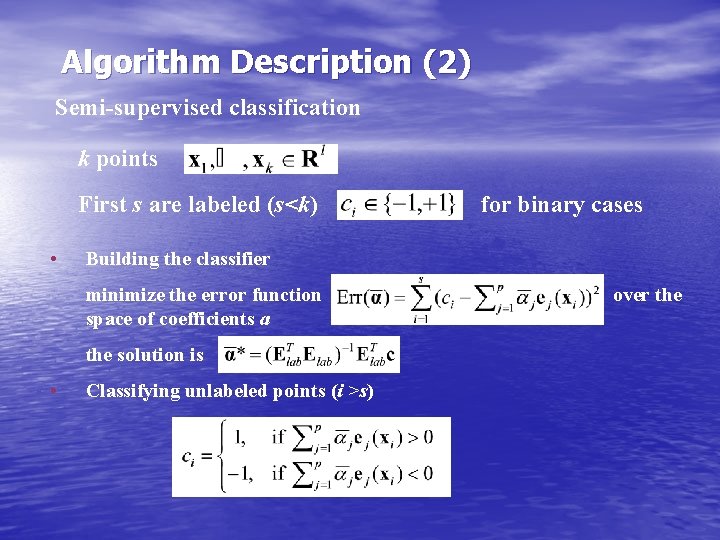

Algorithm Description (2) Semi-supervised classification k points First s are labeled (s<k) • Building the classifier minimize the error function space of coefficients a the solution is • for binary cases Classifying unlabeled points (i >s) over the

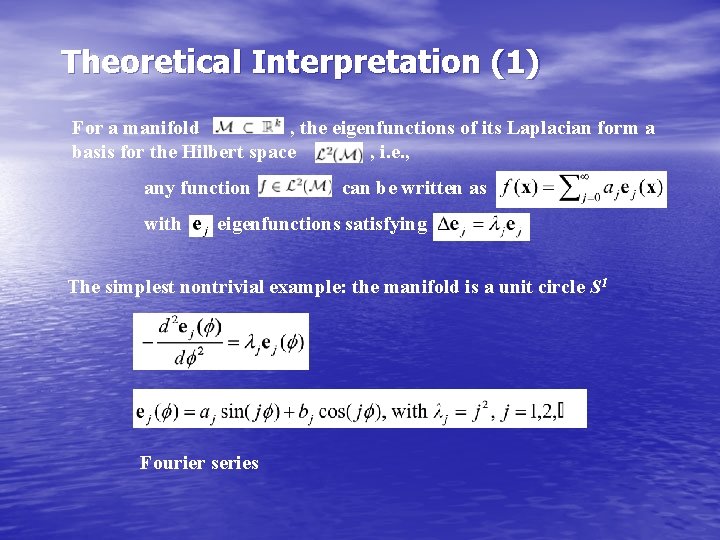

Theoretical Interpretation (1) For a manifold , the eigenfunctions of its Laplacian form a basis for the Hilbert space , i. e. , any function with can be written as eigenfunctions satisfying The simplest nontrivial example: the manifold is a unit circle S 1 Fourier series

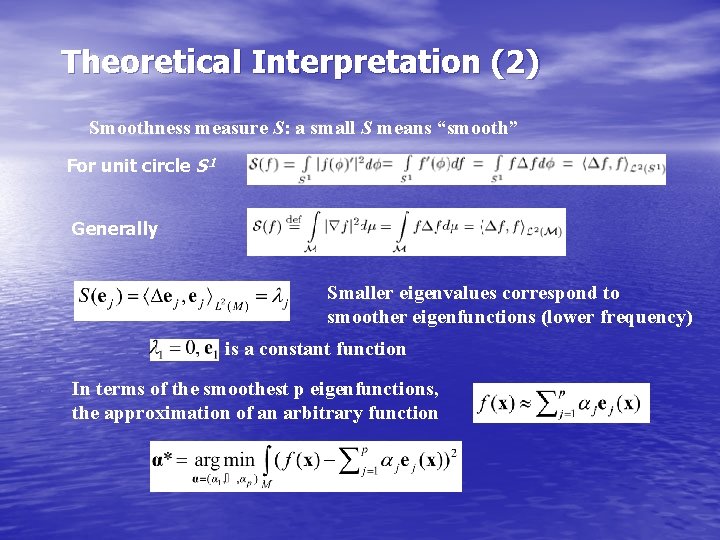

Theoretical Interpretation (2) Smoothness measure S: a small S means “smooth” For unit circle S 1 Generally Smaller eigenvalues correspond to smoother eigenfunctions (lower frequency) is a constant function In terms of the smoothest p eigenfunctions, the approximation of an arbitrary function

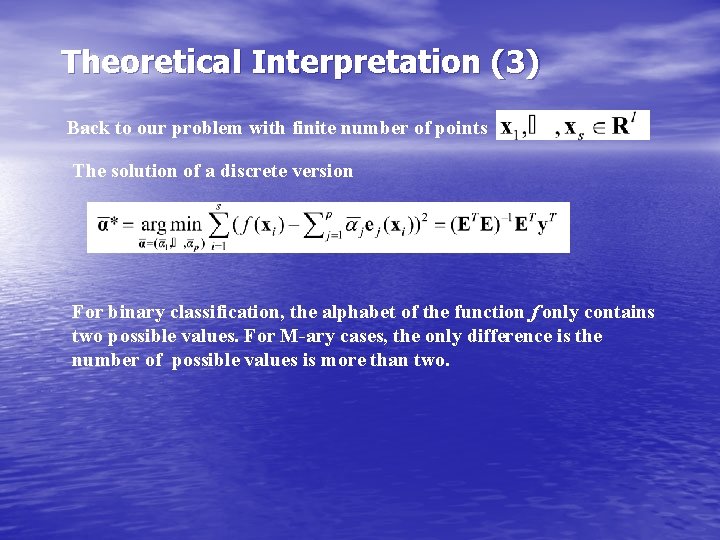

Theoretical Interpretation (3) Back to our problem with finite number of points The solution of a discrete version For binary classification, the alphabet of the function f only contains two possible values. For M-ary cases, the only difference is the number of possible values is more than two.

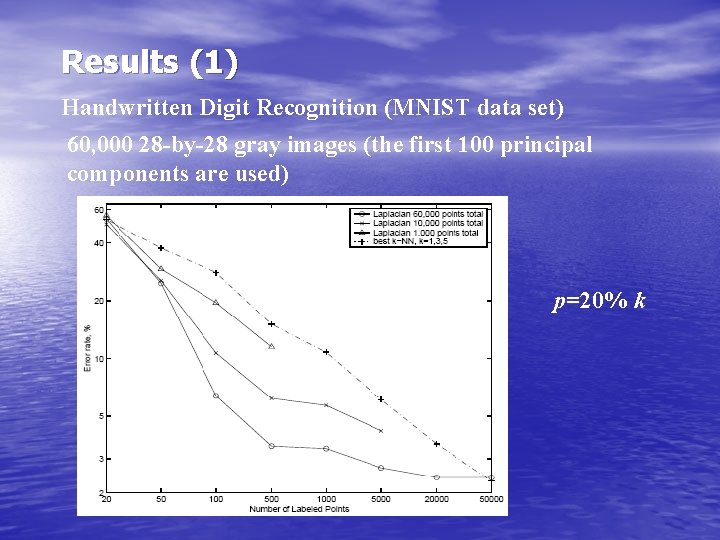

Results (1) Handwritten Digit Recognition (MNIST data set) 60, 000 28 -by-28 gray images (the first 100 principal components are used) p=20% k

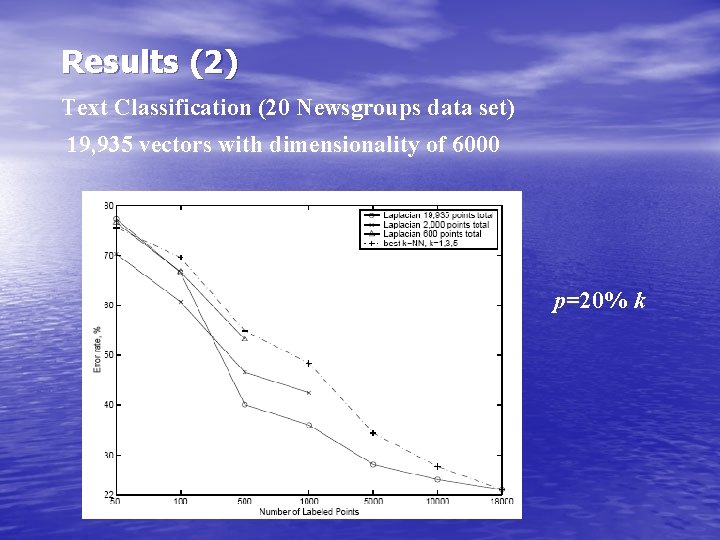

Results (2) Text Classification (20 Newsgroups data set) 19, 935 vectors with dimensionality of 6000 p=20% k

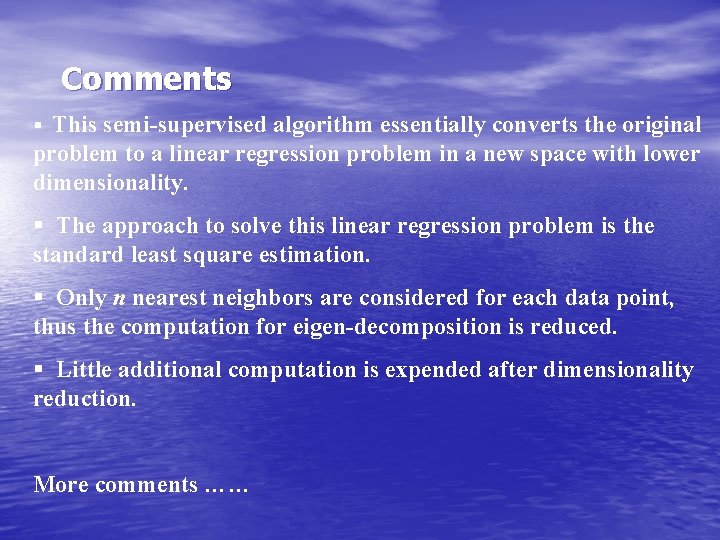

Comments § This semi-supervised algorithm essentially converts the original problem to a linear regression problem in a new space with lower dimensionality. § The approach to solve this linear regression problem is the standard least square estimation. § Only n nearest neighbors are considered for each data point, thus the computation for eigen-decomposition is reduced. § Little additional computation is expended after dimensionality reduction. More comments ……
