Using latest Pix Lib Release for RCE installed

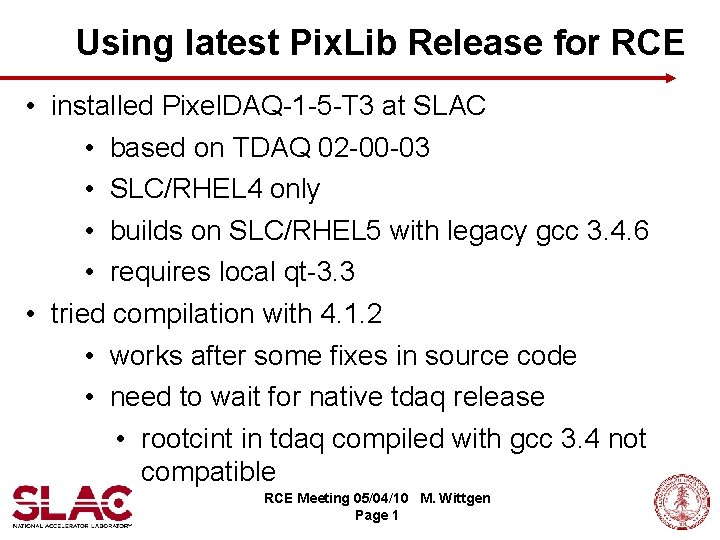

Using latest Pix. Lib Release for RCE • installed Pixel. DAQ-1 -5 -T 3 at SLAC • based on TDAQ 02 -00 -03 • SLC/RHEL 4 only • builds on SLC/RHEL 5 with legacy gcc 3. 4. 6 • requires local qt-3. 3 • tried compilation with 4. 1. 2 • works after some fixes in source code • need to wait for native tdaq release • rootcint in tdaq compiled with gcc 3. 4 not compatible RCE Meeting 05/04/10 M. Wittgen Page 1
Running Pixel. DAQ infrastructure • fixed xml configuration DB for SLAC • runs on RHEL 5 rddev 103 and rddev 105 • Pix. Actions. Server fails • no VME RCE Meeting 05/04/10 M. Wittgen Page 2

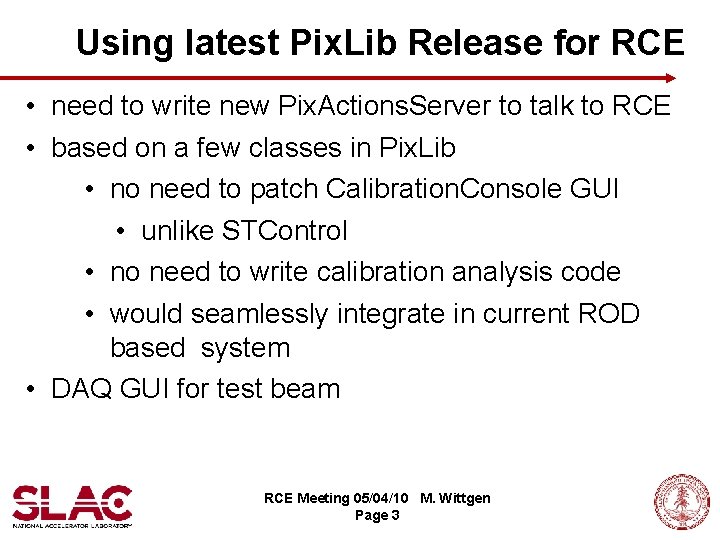

Using latest Pix. Lib Release for RCE • need to write new Pix. Actions. Server to talk to RCE • based on a few classes in Pix. Lib • no need to patch Calibration. Console GUI • unlike STControl • no need to write calibration analysis code • would seamlessly integrate in current ROD based system • DAQ GUI for test beam RCE Meeting 05/04/10 M. Wittgen Page 3
STcontrol Status • CVS head compiles again • sync with rcecalib version • histogram enabled missing on RCE • need to move To. T calculation to its own end-ofloop action • now threshold fitting needs to enabled • tuning scans crash after some loop steps • all scans defined in STControl should work in principle • based on OCCUPANCY/THRESHOLD/TOT RCE Meeting 05/04/10 M. Wittgen Page 4

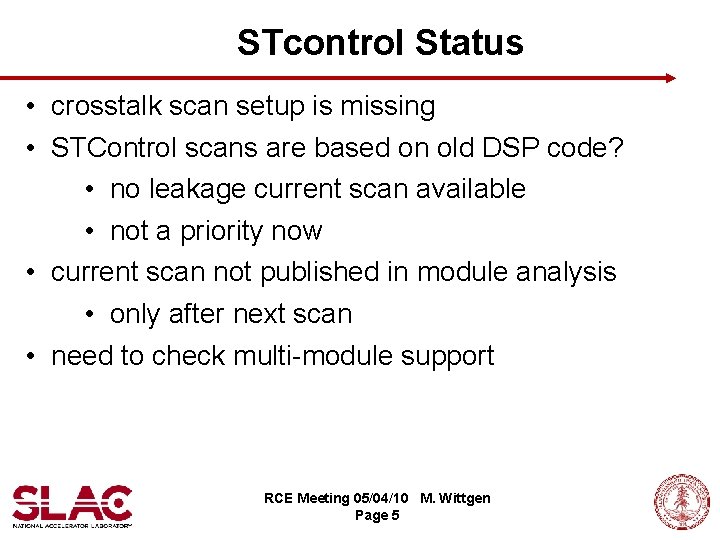

STcontrol Status • crosstalk scan setup is missing • STControl scans are based on old DSP code? • no leakage current scan available • not a priority now • current scan not published in module analysis • only after next scan • need to check multi-module support RCE Meeting 05/04/10 M. Wittgen Page 5

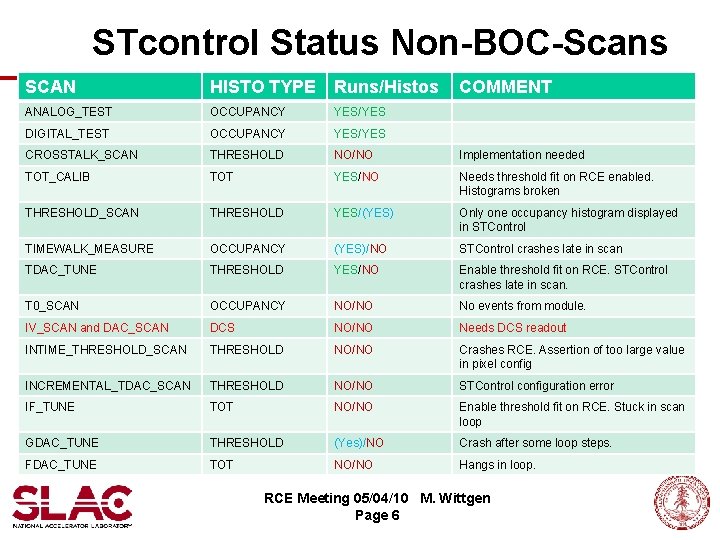

STcontrol Status Non-BOC-Scans SCAN HISTO TYPE Runs/Histos COMMENT ANALOG_TEST OCCUPANCY YES/YES DIGITAL_TEST OCCUPANCY YES/YES CROSSTALK_SCAN THRESHOLD NO/NO Implementation needed TOT_CALIB TOT YES/NO Needs threshold fit on RCE enabled. Histograms broken THRESHOLD_SCAN THRESHOLD YES/(YES) Only one occupancy histogram displayed in STControl TIMEWALK_MEASURE OCCUPANCY (YES)/NO STControl crashes late in scan TDAC_TUNE THRESHOLD YES/NO Enable threshold fit on RCE. STControl crashes late in scan. T 0_SCAN OCCUPANCY NO/NO No events from module. IV_SCAN and DAC_SCAN DCS NO/NO Needs DCS readout INTIME_THRESHOLD_SCAN THRESHOLD NO/NO Crashes RCE. Assertion of too large value in pixel config INCREMENTAL_TDAC_SCAN THRESHOLD NO/NO STControl configuration error IF_TUNE TOT NO/NO Enable threshold fit on RCE. Stuck in scan loop GDAC_TUNE THRESHOLD (Yes)/NO Crash after some loop steps. FDAC_TUNE TOT NO/NO Hangs in loop. RCE Meeting 05/04/10 M. Wittgen Page 6
