Using IB symbols sketch a series circuit including

• Using IB symbols - sketch a series circuit including • battery • lamp • heating element • wires with 1 switch • The current direction real & conventional. • Show the current measurement with an ammeter symbol. • Show the measurement of p. d. around bulb and battery with the voltmeter.

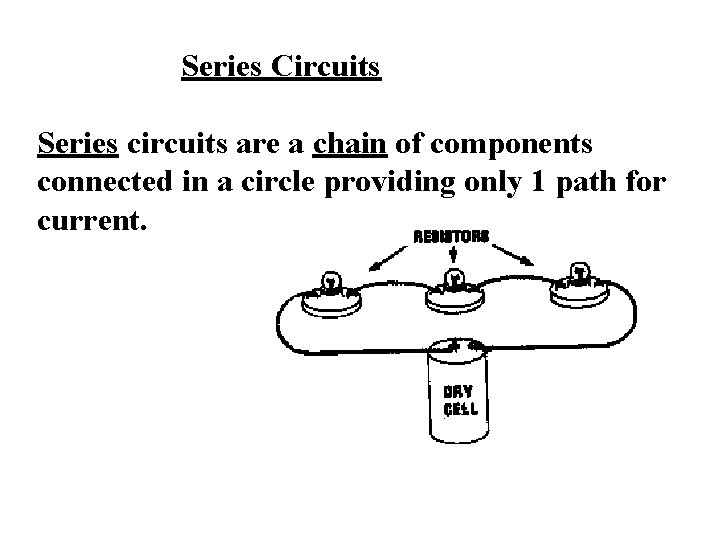

Series Circuits Series circuits are a chain of components connected in a circle providing only 1 path for current.

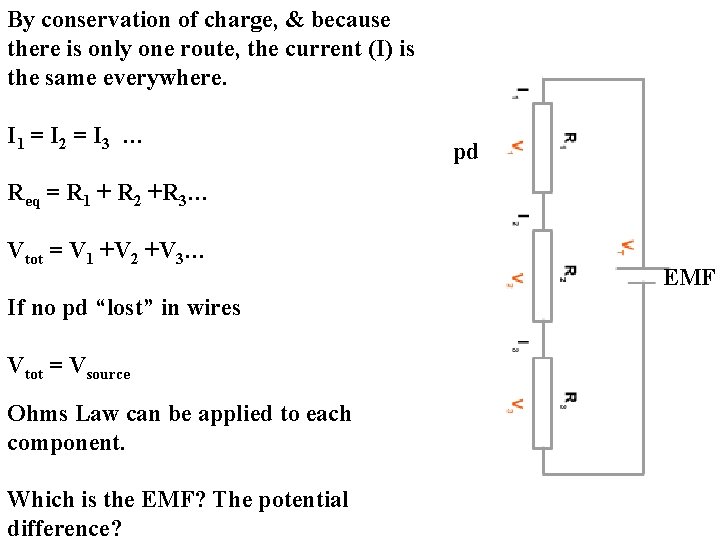

By conservation of charge, & because there is only one route, the current (I) is the same everywhere. I 1 = I 2 = I 3 … pd Req = R 1 + R 2 +R 3… Vtot = V 1 +V 2 +V 3… If no pd “lost” in wires Vtot = Vsource Ohms Law can be applied to each component. Which is the EMF? The potential difference? EMF

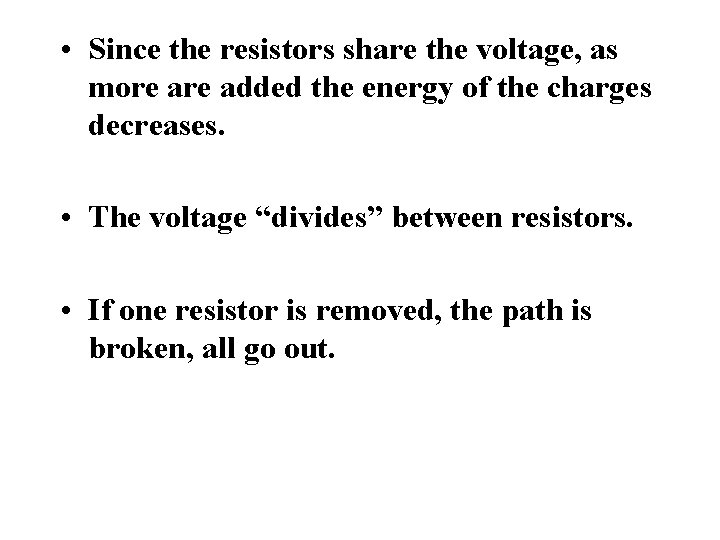

• Since the resistors share the voltage, as more added the energy of the charges decreases. • The voltage “divides” between resistors. • If one resistor is removed, the path is broken, all go out.

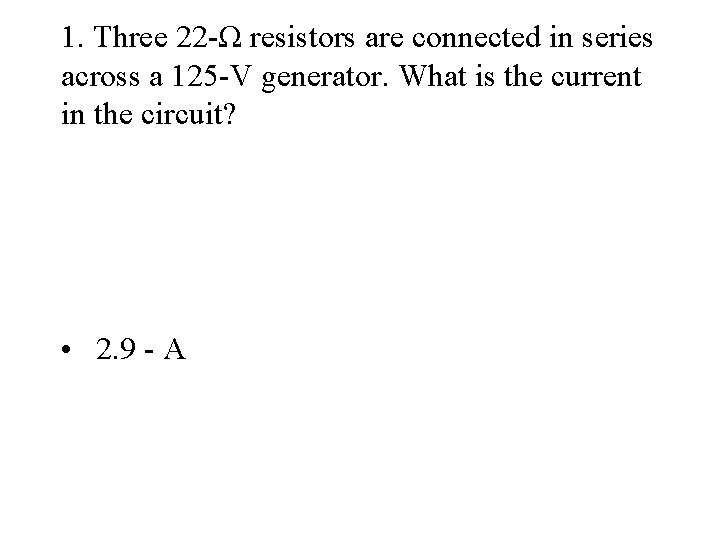

1. Three 22 -Ω resistors are connected in series across a 125 -V generator. What is the current in the circuit? • 2. 9 - A

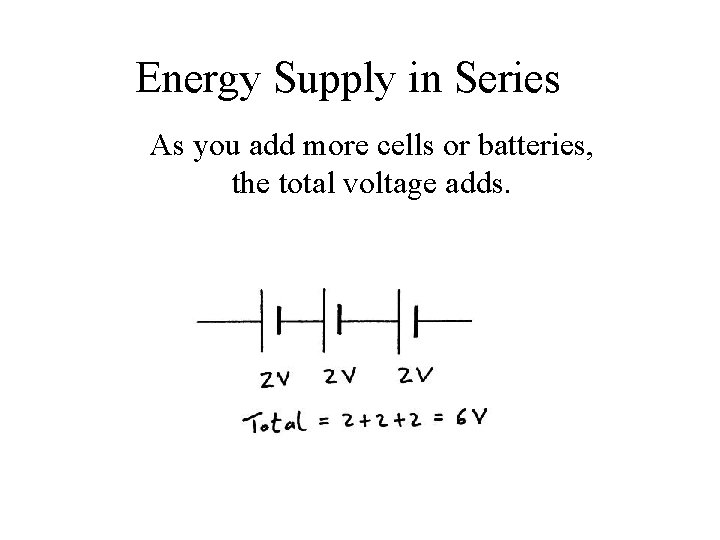

Energy Supply in Series As you add more cells or batteries, the total voltage adds.

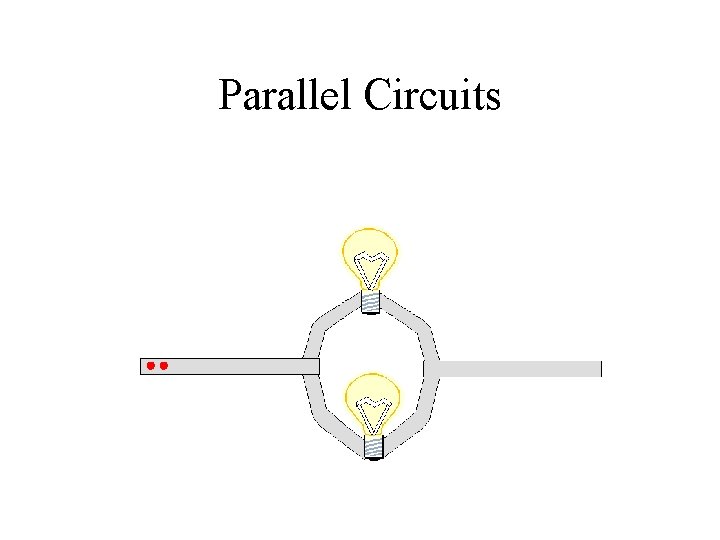

Parallel Circuits

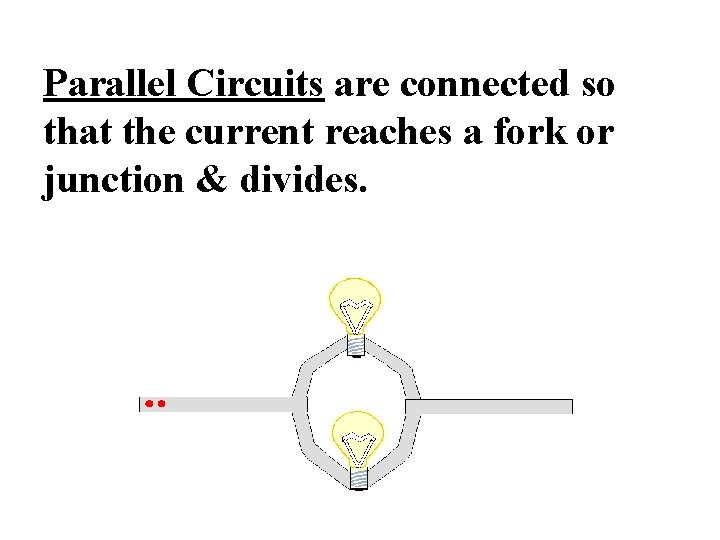

Parallel Circuits are connected so that the current reaches a fork or junction & divides.

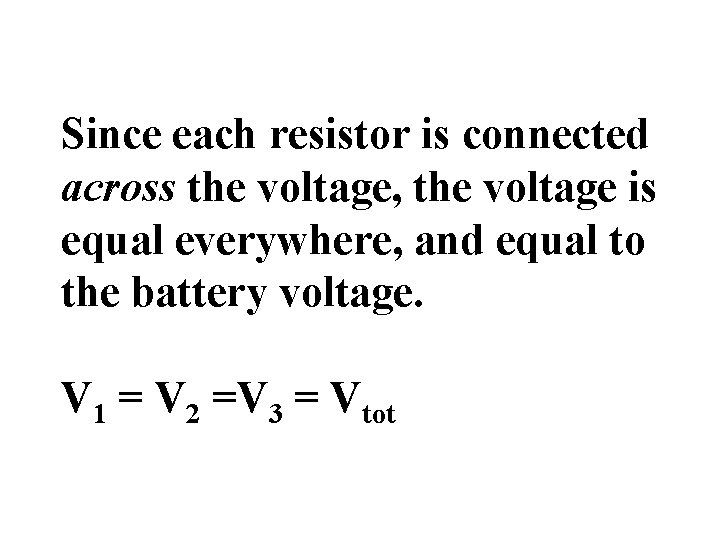

Since each resistor is connected across the voltage, the voltage is equal everywhere, and equal to the battery voltage. V 1 = V 2 =V 3 = Vtot

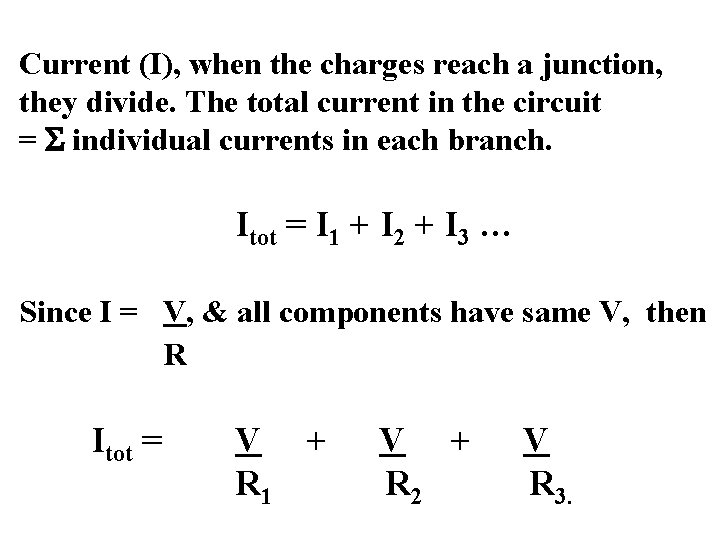

Current (I), when the charges reach a junction, they divide. The total current in the circuit = S individual currents in each branch. Itot = I 1 + I 2 + I 3 … Since I = V, & all components have same V, then R Itot = V + R 1 V + R 2 V R 3.

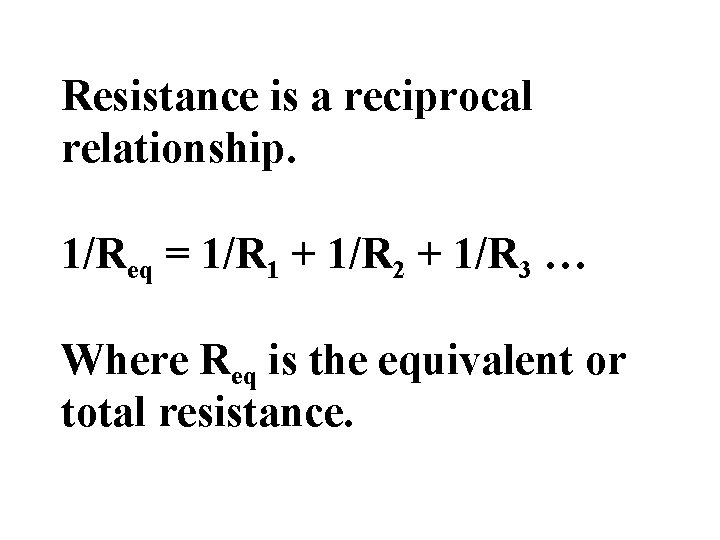

Resistance is a reciprocal relationship. 1/Req = 1/R 1 + 1/R 2 + 1/R 3 … Where Req is the equivalent or total resistance.

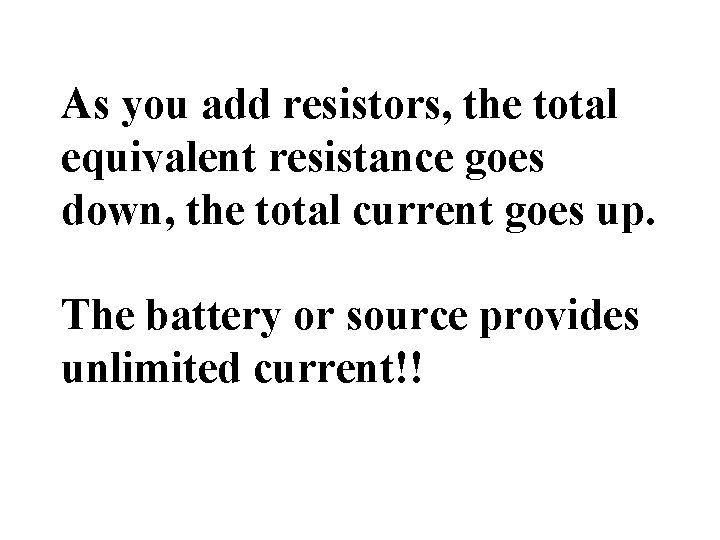

As you add resistors, the total equivalent resistance goes down, the total current goes up. The battery or source provides unlimited current!!

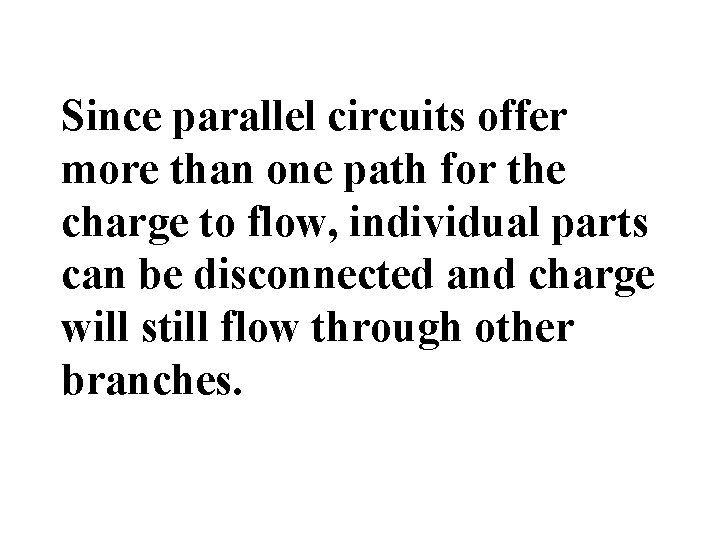

Since parallel circuits offer more than one path for the charge to flow, individual parts can be disconnected and charge will still flow through other branches.

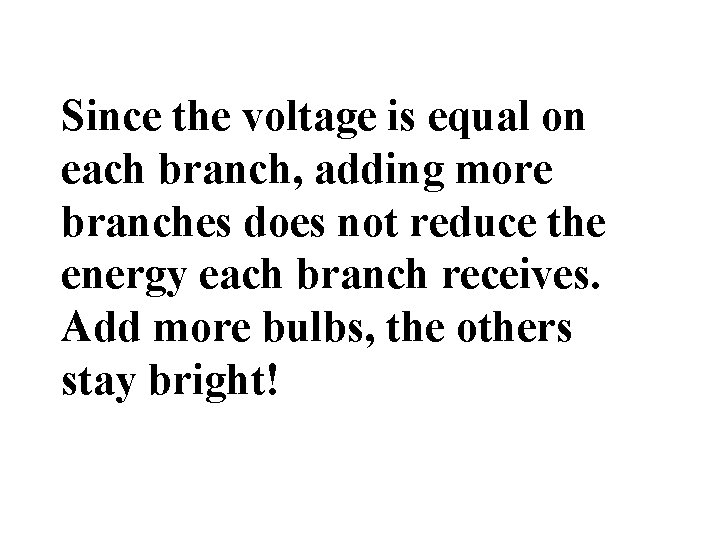

Since the voltage is equal on each branch, adding more branches does not reduce the energy each branch receives. Add more bulbs, the others stay bright!

Ammeters measure current & are connected in series on the circuit. Current must flow through them.

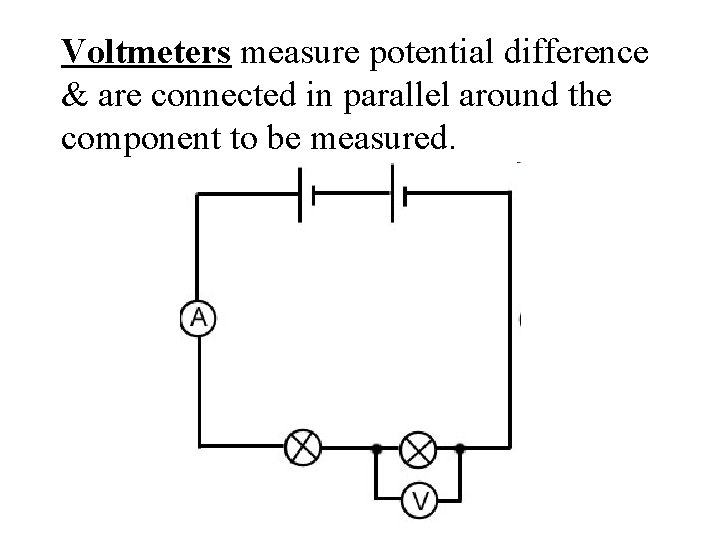

Voltmeters measure potential difference & are connected in parallel around the component to be measured.

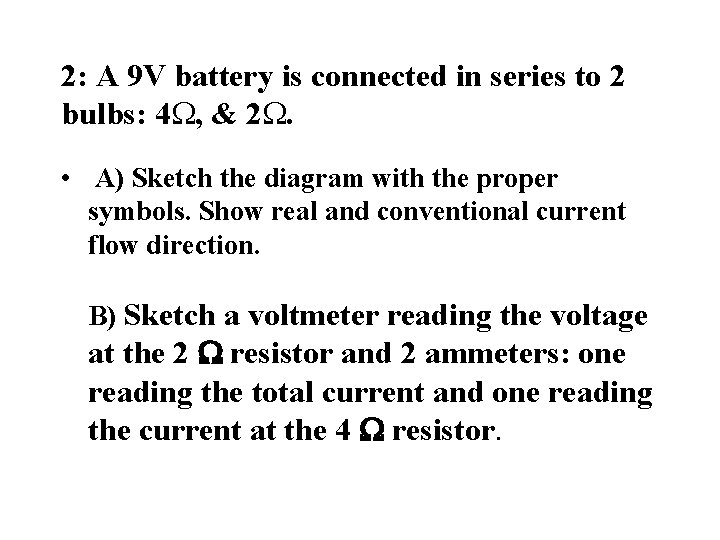

2: A 9 V battery is connected in series to 2 bulbs: 4 W, & 2 W. • A) Sketch the diagram with the proper symbols. Show real and conventional current flow direction. B) Sketch a voltmeter reading the voltage at the 2 W resistor and 2 ammeters: one reading the total current and one reading the current at the 4 W resistor.

• C) Find the equivalent or total resistance on the circuit. D) Find the total current in the circuit. E) What is the voltage in each resistor? F) What is the current flowing through the 4 W resistor?

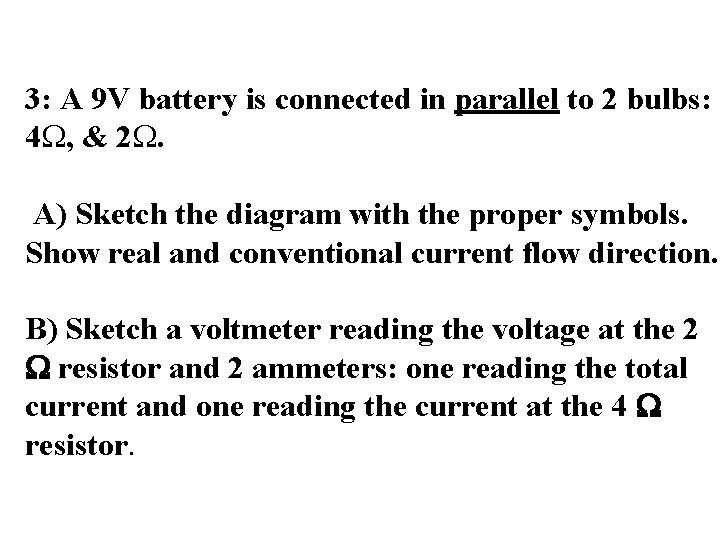

3: A 9 V battery is connected in parallel to 2 bulbs: 4 W, & 2 W. A) Sketch the diagram with the proper symbols. Show real and conventional current flow direction. B) Sketch a voltmeter reading the voltage at the 2 W resistor and 2 ammeters: one reading the total current and one reading the current at the 4 W resistor.

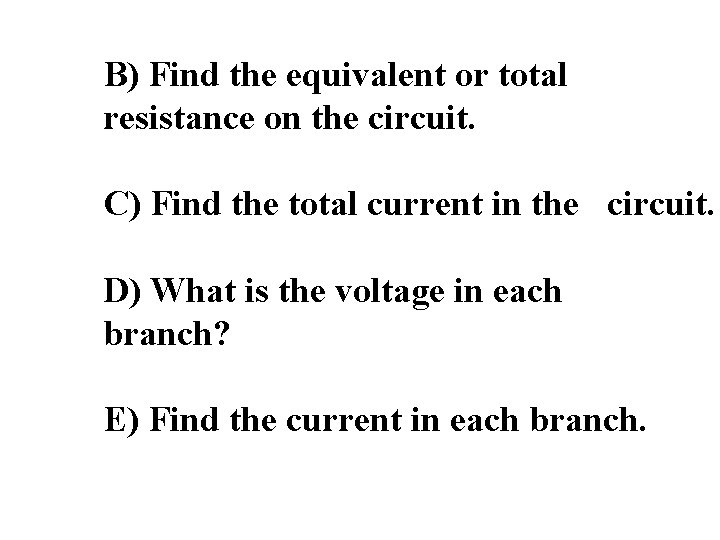

B) Find the equivalent or total resistance on the circuit. C) Find the total current in the circuit. D) What is the voltage in each branch? E) Find the current in each branch.

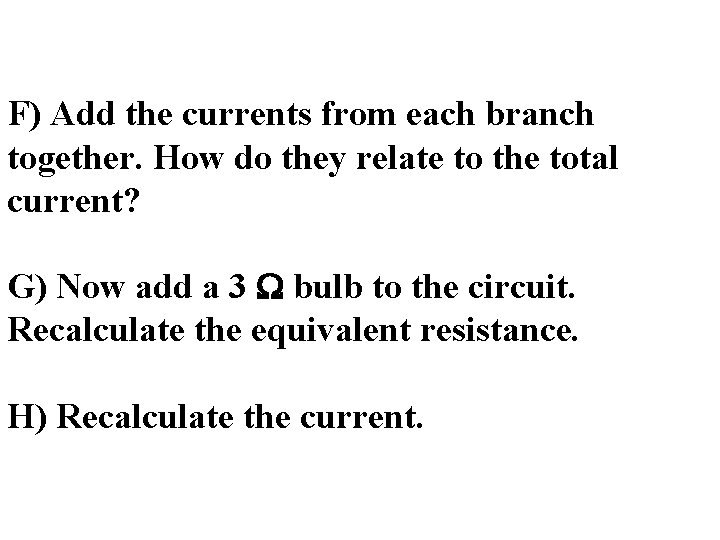

F) Add the currents from each branch together. How do they relate to the total current? G) Now add a 3 W bulb to the circuit. Recalculate the equivalent resistance. H) Recalculate the current.

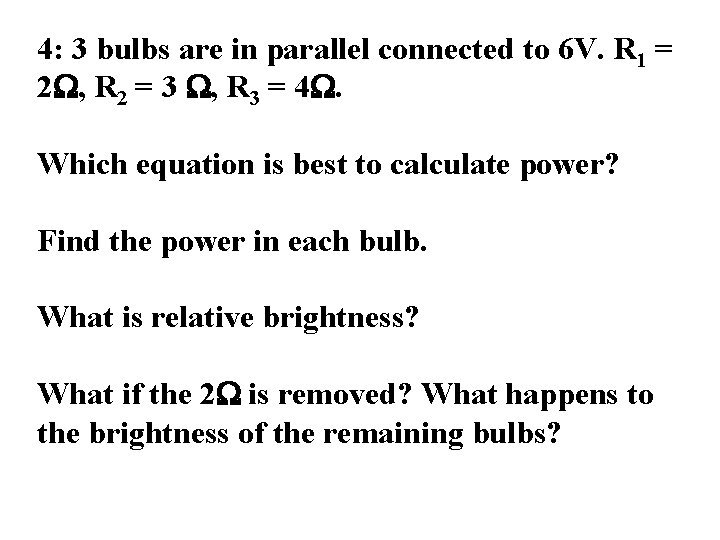

4: 3 bulbs are in parallel connected to 6 V. R 1 = 2 W, R 2 = 3 W, R 3 = 4 W. Which equation is best to calculate power? Find the power in each bulb. What is relative brightness? What if the 2 W is removed? What happens to the brightness of the remaining bulbs?

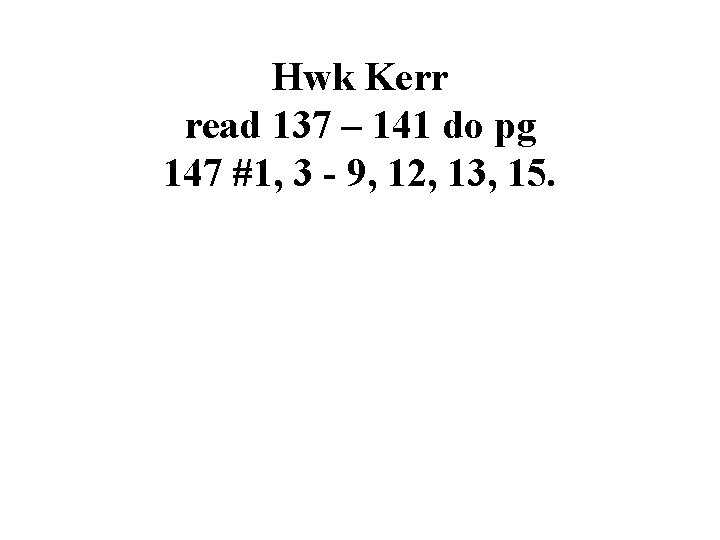

Hwk Kerr read 137 – 141 do pg 147 #1, 3 - 9, 12, 13, 15.

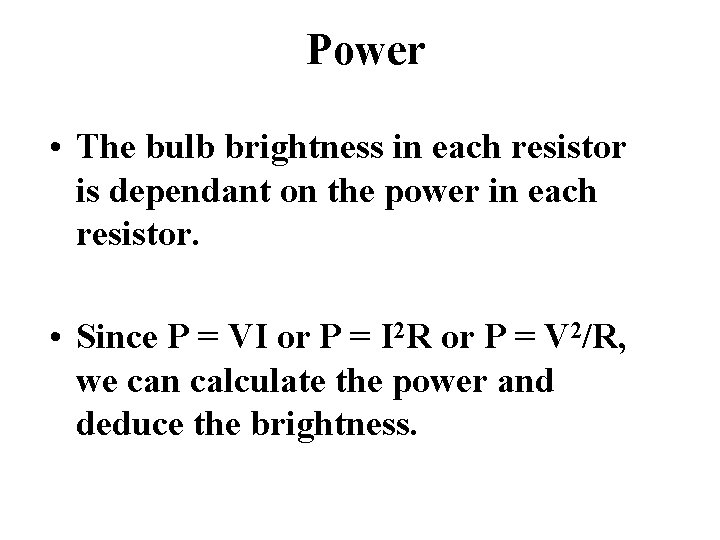

Power • The bulb brightness in each resistor is dependant on the power in each resistor. • Since P = VI or P = I 2 R or P = V 2/R, we can calculate the power and deduce the brightness.

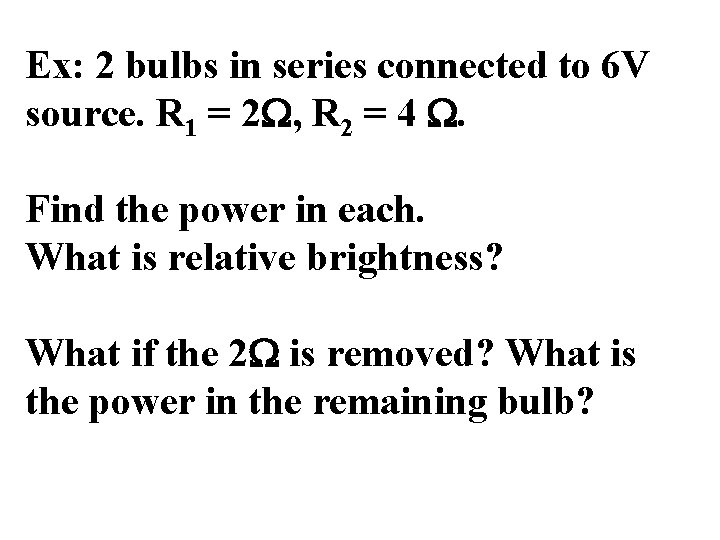

Ex: 2 bulbs in series connected to 6 V source. R 1 = 2 W, R 2 = 4 W. Find the power in each. What is relative brightness? What if the 2 W is removed? What is the power in the remaining bulb?

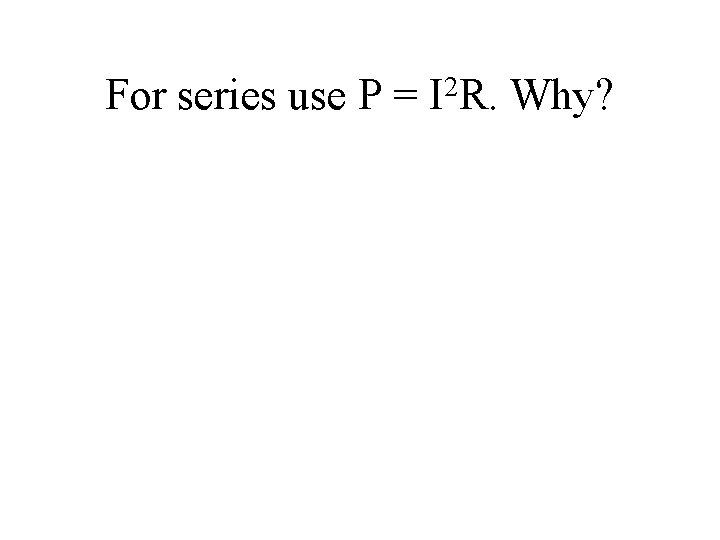

For series use P = 2 I R. Why?

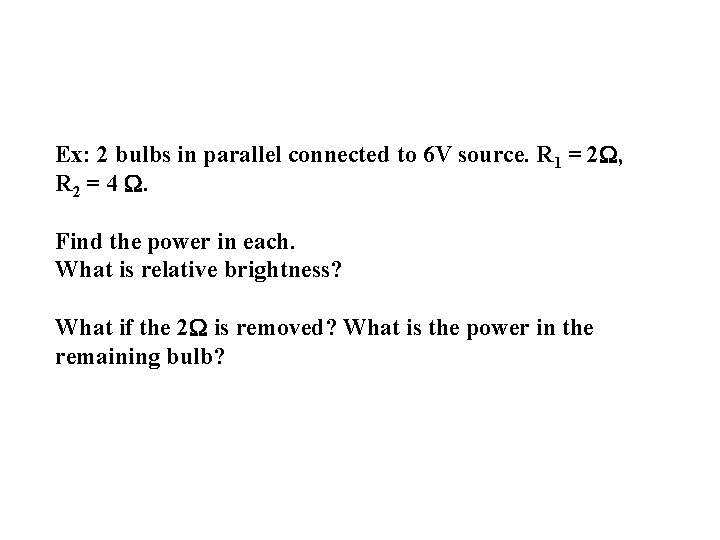

Ex: 2 bulbs in parallel connected to 6 V source. R 1 = 2 W, R 2 = 4 W. Find the power in each. What is relative brightness? What if the 2 W is removed? What is the power in the remaining bulb?

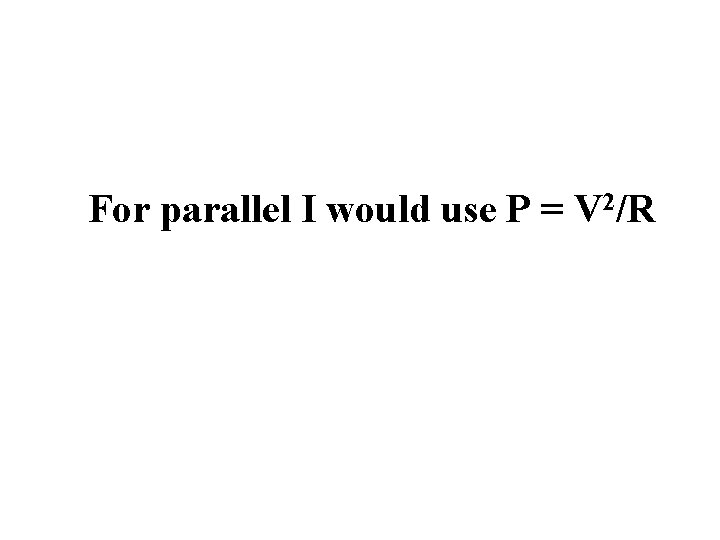

For parallel I would use P = V 2/R

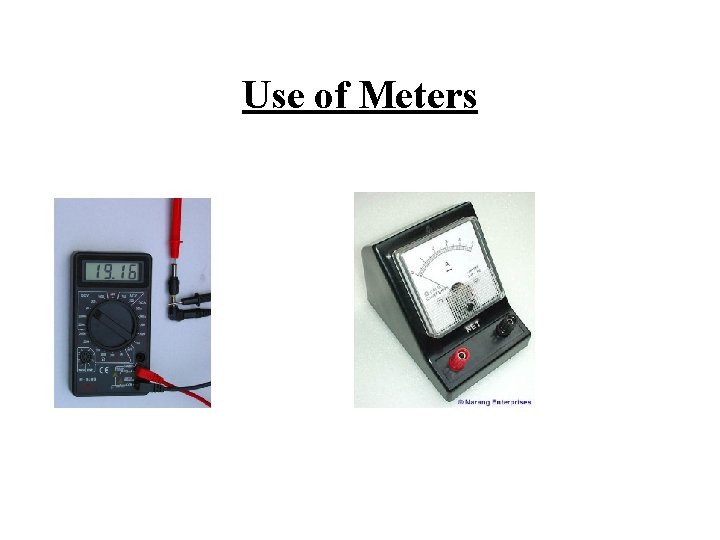

Use of Meters

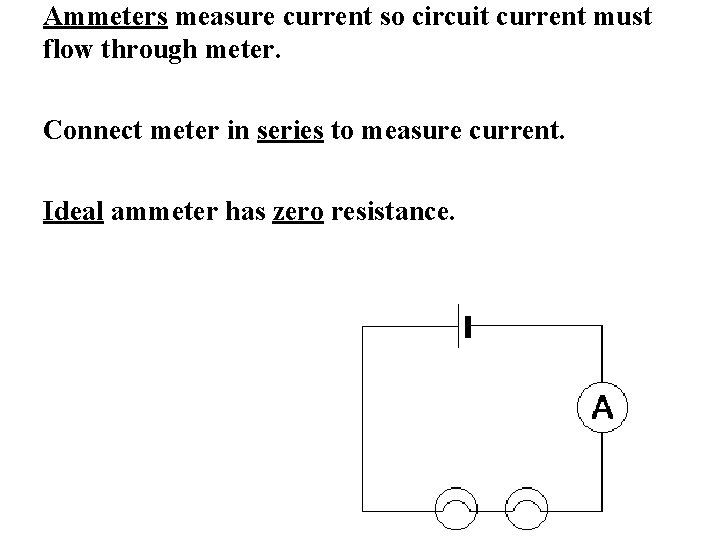

Ammeters measure current so circuit current must flow through meter. Connect meter in series to measure current. Ideal ammeter has zero resistance.

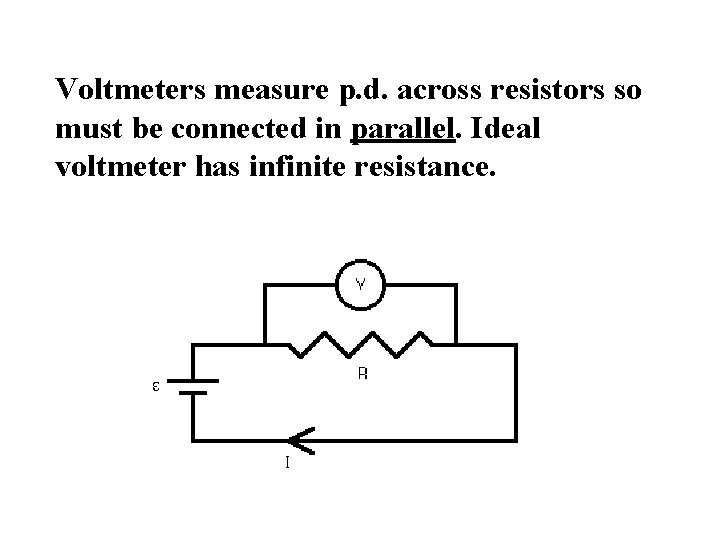

Voltmeters measure p. d. across resistors so must be connected in parallel. Ideal voltmeter has infinite resistance.

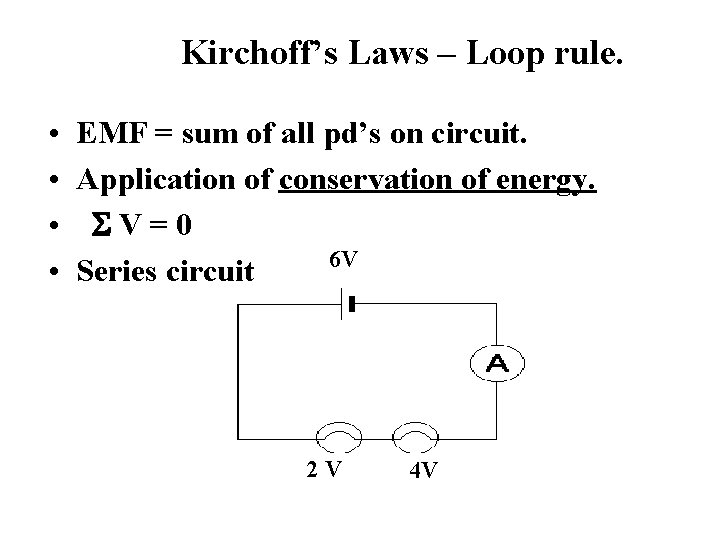

Kirchoff’s Laws – Loop rule. • • EMF = sum of all pd’s on circuit. Application of conservation of energy. SV=0 6 V Series circuit 2 V 4 V

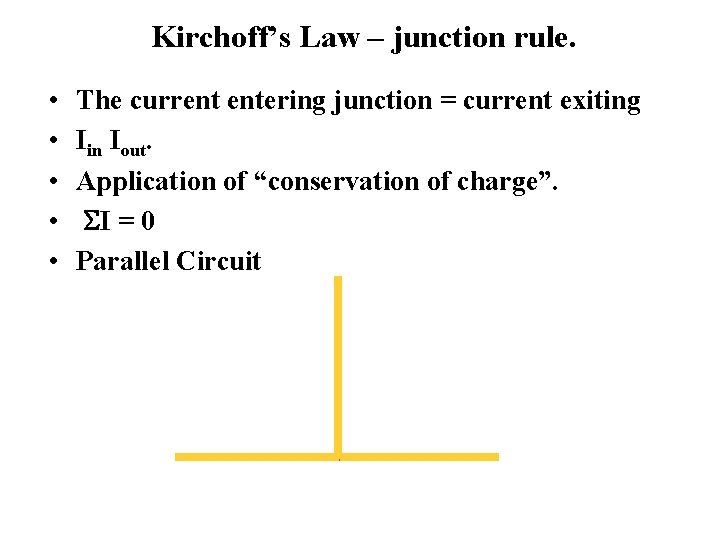

Kirchoff’s Law – junction rule. • • • The current entering junction = current exiting Iin Iout. Application of “conservation of charge”. SI = 0 Parallel Circuit

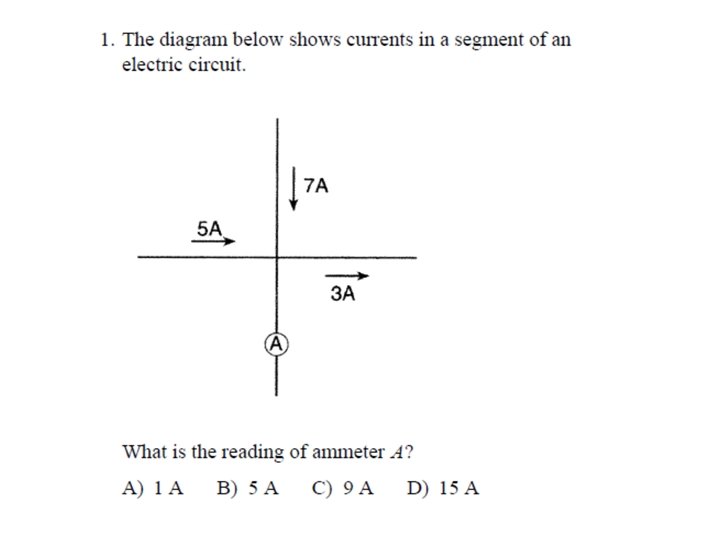

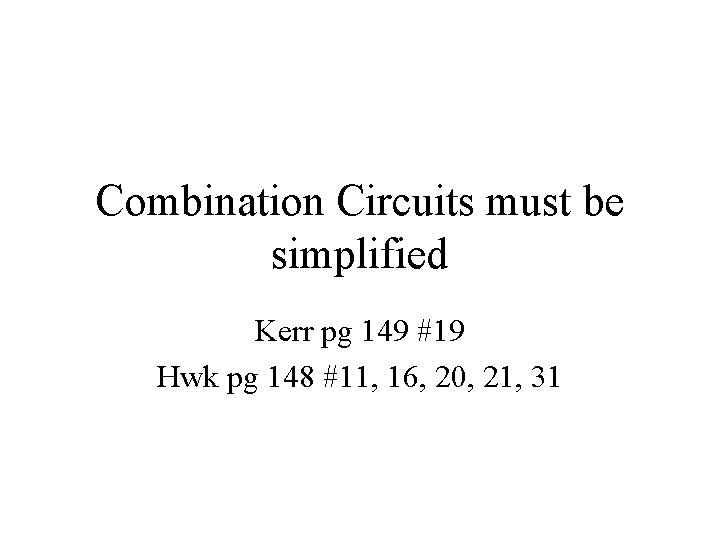

Combination Circuits must be simplified Kerr pg 149 #19 Hwk pg 148 #11, 16, 20, 21, 31
