GENI Wi. MAX 2015 • 26 Wimax Base Stations in 13 Sites • Uniform experimenter experience using yellow nodes • 90 android handsets available to experimenters 36 wireless (yellow) nodes • Sliced, virtualized and interconnected through AL 2 S • Sponsored by the National Science Foundation GENI Wi. MAX Tutorial – 19 September 2015 www. geni. net 2

GENI Wireless Campus deployment Campus Network Eth 1 Netspan IP (e. NBs Management) IP eth 1: 10. 3. 10. 7 / 255. 0 IPeth 0 : 130. 127. 106. 90 GPS Antenna Netspan EPC eth 0 EMS IP 10. 3. 10 MME IP 10. 3. 10. 11 SGW IP 10. 3. 10. 12 PGW IP 10. 3. 10. 13 HSS IP 10. 3. 10. 14 VLAN X 10. 3. 10. 200 EPC VM GENI Rack AL 2 S 130. 127. 49. 73 EPC eth 1 PDN IP 130. 127. 38. 1/24 GW to Internet (for UEs) 130. 127. 38. 1 Sponsored by the National Science Foundation UEs IP range (For EPC Config, ) 130. 127. 38. 231130. 127. 38. 254 GENI Wi. MAX Tutorial – 19 September 2015 www. geni. net 3

GENI Wireless Campus Deployment 4 G Clients LG Nexus 5 Android 5 Test SIM Netgear 341 U USB Modem Linux Driver Test SIM Sponsored by the National Science Foundation GENI Wi. MAX Tutorial – 19 September 2015 www. geni. net 4

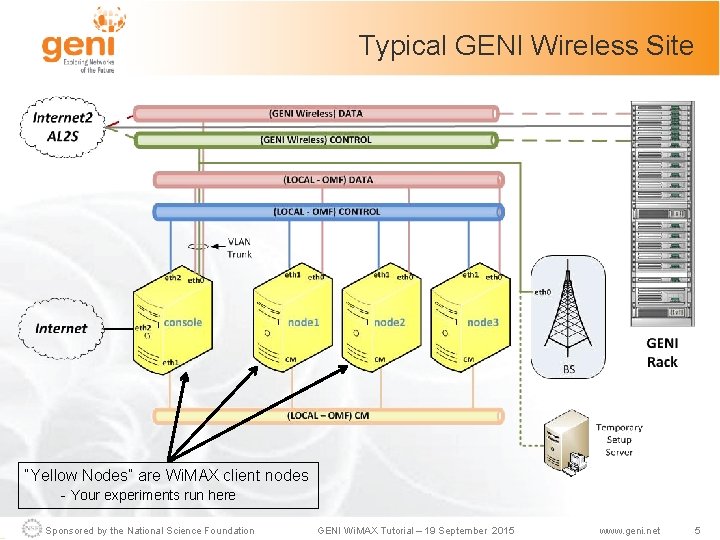

Typical GENI Wireless Site “Yellow Nodes” are Wi. MAX client nodes - Your experiments run here Sponsored by the National Science Foundation GENI Wi. MAX Tutorial – 19 September 2015 www. geni. net 5

Experiment Control using OMF functions - deploy and configure experiment - initiate and control experiment - measure and collect data Experiment description - written in Ruby OMF is used by many different testbeds Sponsored by the National Science Foundation GENI Wi. MAX Tutorial – 19 September 2015 www. geni. net 6

Wireless Testbed at NYU Poly Today we will run our experiments at NYU Poly Sponsored by the National Science Foundation GENI Wi. MAX Tutorial – 19 September 2015 www. geni. net 7

Testbed at NYU Testbed console - Experimenter logs in to submit experiment script - Experiment controller uses aggregate manager to find nodes for experiment - Aggregate manager gives relevant portions of script to node resource controllers - Resource controllers translate script to OS commands 12 “Yellow Nodes” Sponsored by the National Science Foundation GENI Wi. MAX Tutorial – 19 September 2015 www. geni. net 8

Preparing to run your Experiment Project lead wireless enables your project Reserve the testbed Each wireless testbed has its own calendar Get an i. RODS account Open source data management software http: //irods. org Initialize i. RODS Sponsored by the National Science Foundation GENI Wi. MAX Tutorial – 19 September 2015 www. geni. net 9

Get an i. RODS Account Go to “Manage Accounts” “Manage i. RODS Account” DO NOT LOSE YOUR i. RODS PASSWORD Sponsored by the National Science Foundation GENI Wi. MAX Tutorial – 19 September 2015 www. geni. net 10

Initialize i. RODS 1. ssh to witestlab. poly. edu – using your GENI private key – Username: geni-<your-GENI-username> • E. g. : geni-vthomas 2. Run command iinit – Username: geni-<your-GENI-username> – Password: i. RODS password Sponsored by the National Science Foundation GENI Wi. MAX Tutorial – 19 September 2015 www. geni. net 11

Run Exercises Instructions: http: //witestlab. poly. edu/respond/sites/genitutorial/ Start with “Run an experiment” Sponsored by the National Science Foundation GENI Wi. MAX Tutorial – 19 September 2015 www. geni. net 12
