Using Engineered Timber Products in Commercial & Residential Applications Stephen Bolden Product Development Manager Hyne Timber Engineered Timber Products Building an Innovative, Sustainable Future

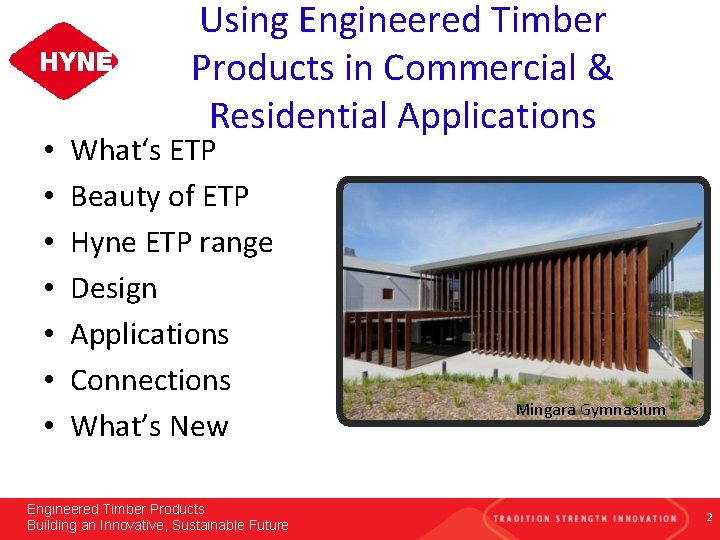

• • Using Engineered Timber Products in Commercial & Residential Applications What‘s ETP Beauty of ETP Hyne ETP range Design Applications Connections What’s New Engineered Timber Products Building an Innovative, Sustainable Future Mingara Gymnasium 2

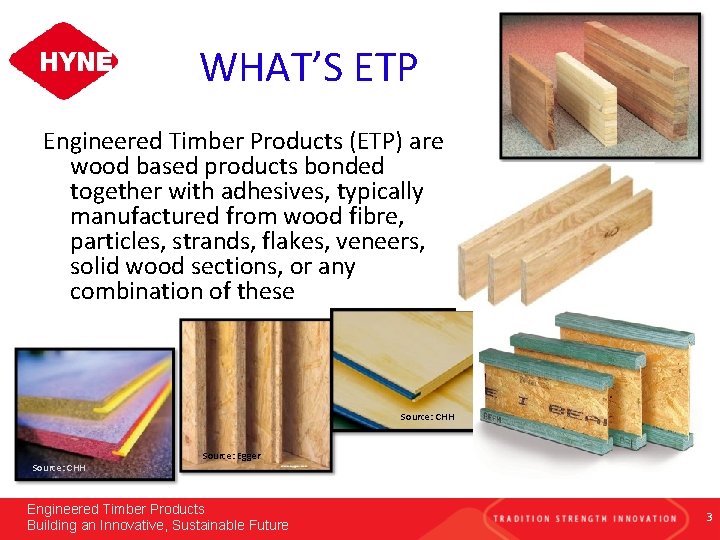

WHAT’S ETP Engineered Timber Products (ETP) are wood based products bonded together with adhesives, typically manufactured from wood fibre, particles, strands, flakes, veneers, solid wood sections, or any combination of these Source: CHH Source: Egger Engineered Timber Products Building an Innovative, Sustainable Future 3

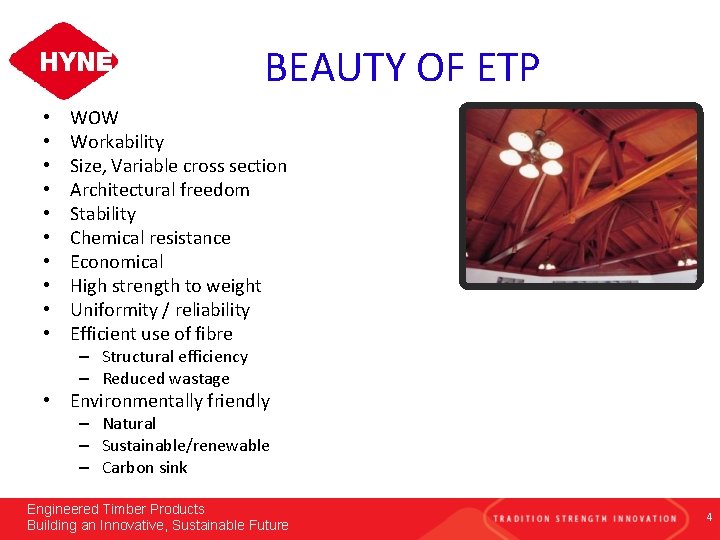

BEAUTY OF ETP • • • WOW Workability Size, Variable cross section Architectural freedom Stability Chemical resistance Economical High strength to weight Uniformity / reliability Efficient use of fibre – Structural efficiency – Reduced wastage • Environmentally friendly – Natural – Sustainable/renewable – Carbon sink Engineered Timber Products Building an Innovative, Sustainable Future 4

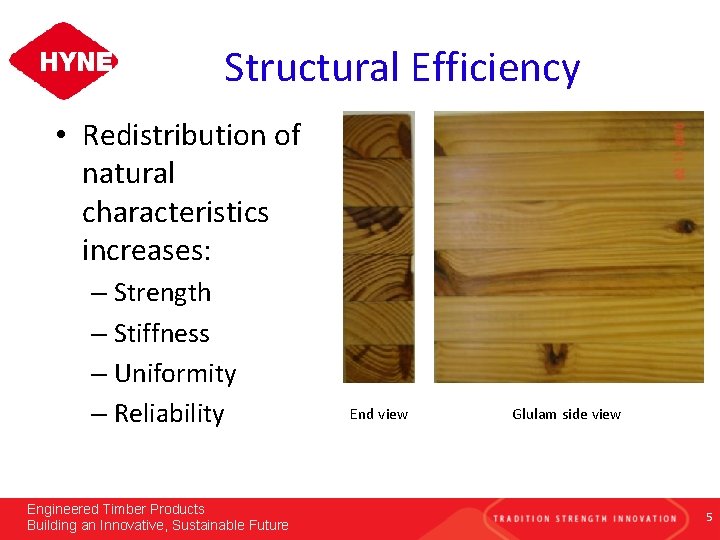

Structural Efficiency • Redistribution of natural characteristics increases: – Strength – Stiffness – Uniformity – Reliability Engineered Timber Products Building an Innovative, Sustainable Future End view Glulam side view 5

Structural efficiency 101 4 X 424 Bending stiffness performance, EI x 109 (N. mm 2) Note: comparing 140 x 35 MGP 12 with HI 20070 Engineered Timber Products Building an Innovative, Sustainable Future 6

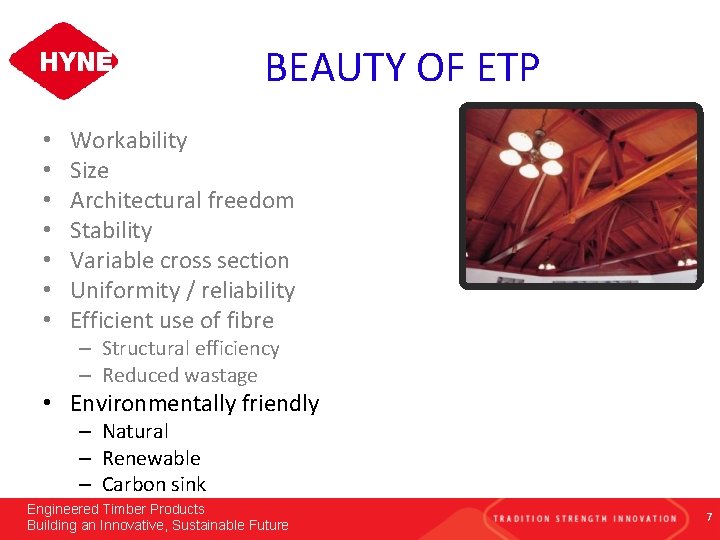

BEAUTY OF ETP • • Workability Size Architectural freedom Stability Variable cross section Uniformity / reliability Efficient use of fibre – Structural efficiency – Reduced wastage • Environmentally friendly – Natural – Renewable – Carbon sink Engineered Timber Products Building an Innovative, Sustainable Future 7

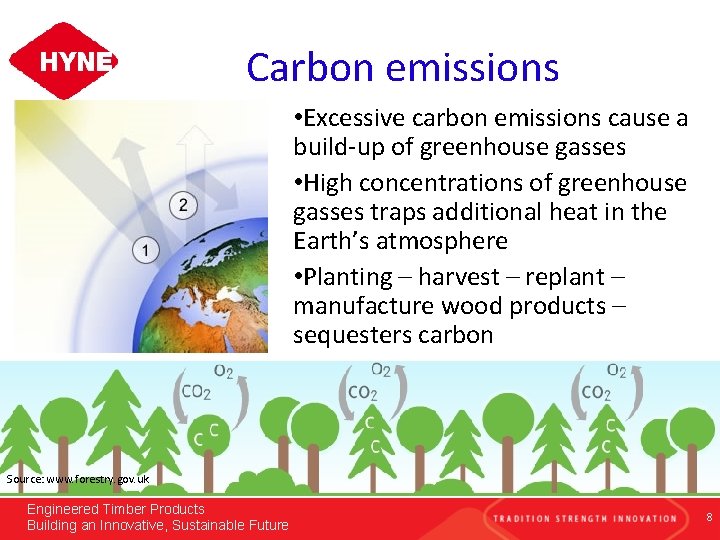

Carbon emissions • Excessive carbon emissions cause a build-up of greenhouse gasses • High concentrations of greenhouse gasses traps additional heat in the Earth’s atmosphere • Planting – harvest – replant – manufacture wood products – sequesters carbon Source: www. forestry. gov. uk Engineered Timber Products Building an Innovative, Sustainable Future 8

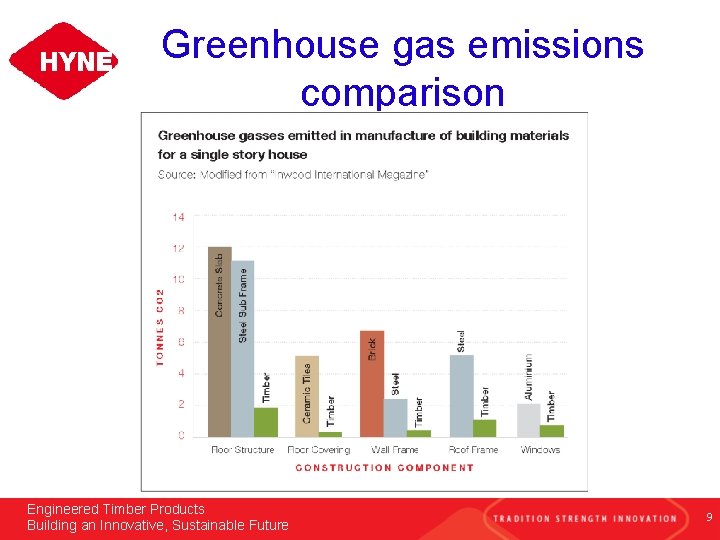

Greenhouse gas emissions comparison Engineered Timber Products Building an Innovative, Sustainable Future 9

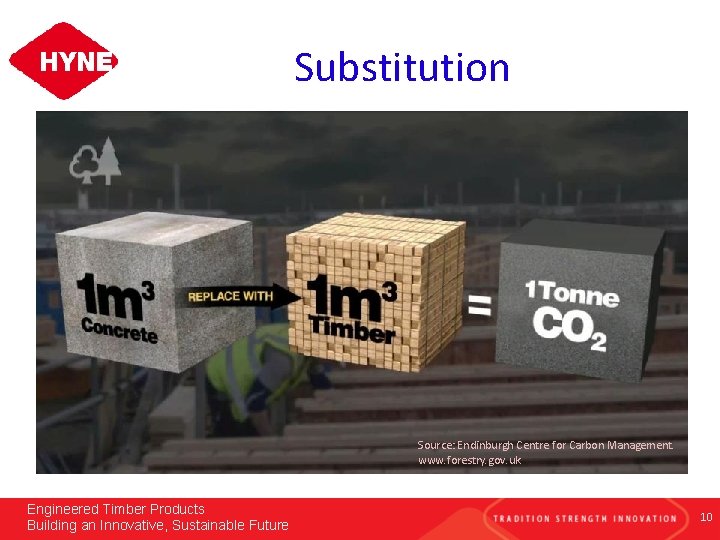

Substitution Source: Endinburgh Centre for Carbon Management. www. forestry. gov. uk Engineered Timber Products Building an Innovative, Sustainable Future 10

Beauty of ETP • Timber and ETP – Renewable – Sustainable – Carbon store Source: www. forestry. gov. uk Engineered Timber Products Building an Innovative, Sustainable Future 11

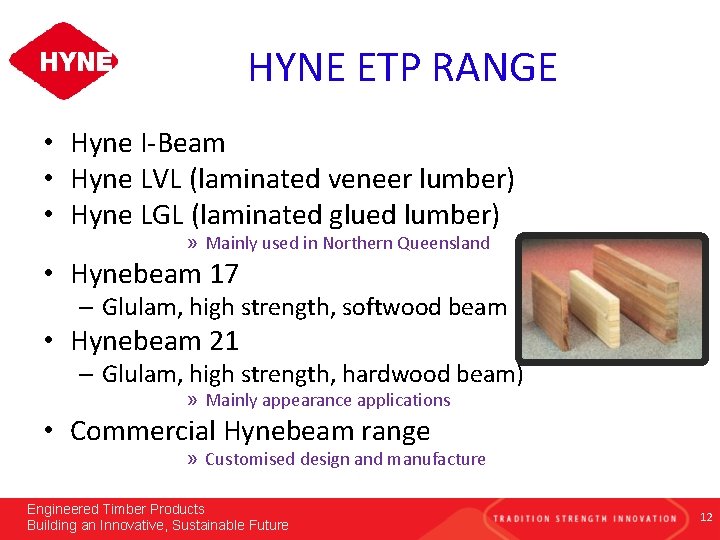

HYNE ETP RANGE • Hyne I-Beam • Hyne LVL (laminated veneer lumber) • Hyne LGL (laminated glued lumber) » Mainly used in Northern Queensland • Hynebeam 17 – Glulam, high strength, softwood beam • Hynebeam 21 – Glulam, high strength, hardwood beam) » Mainly appearance applications • Commercial Hynebeam range » Customised design and manufacture Engineered Timber Products Building an Innovative, Sustainable Future 12

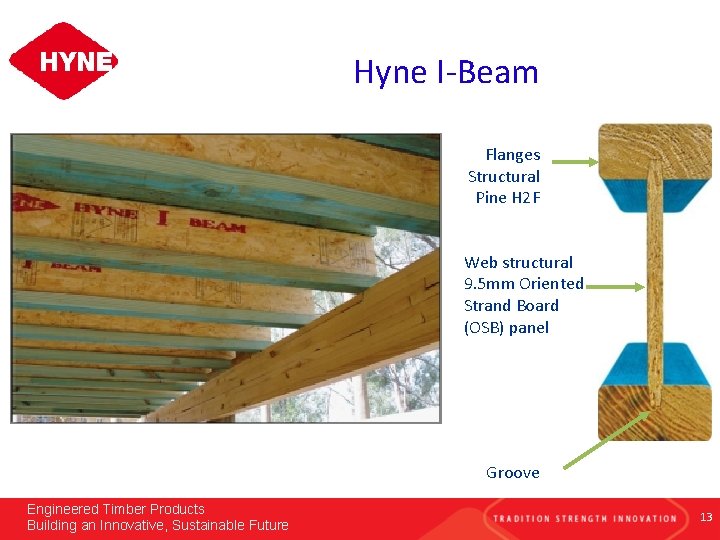

Hyne I-Beam Flanges Structural Pine H 2 F Web structural 9. 5 mm Oriented Strand Board (OSB) panel Groove Engineered Timber Products Building an Innovative, Sustainable Future 13

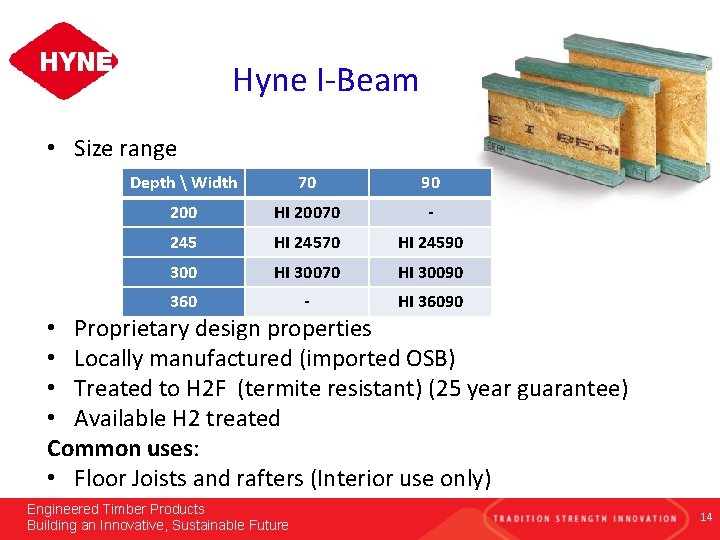

Hyne I-Beam • Size range Depth Width 70 90 200 HI 20070 - 245 HI 24570 HI 24590 300 HI 30070 HI 30090 360 - HI 36090 • Proprietary design properties • Locally manufactured (imported OSB) • Treated to H 2 F (termite resistant) (25 year guarantee) • Available H 2 treated Common uses: • Floor Joists and rafters (Interior use only) Engineered Timber Products Building an Innovative, Sustainable Future 14

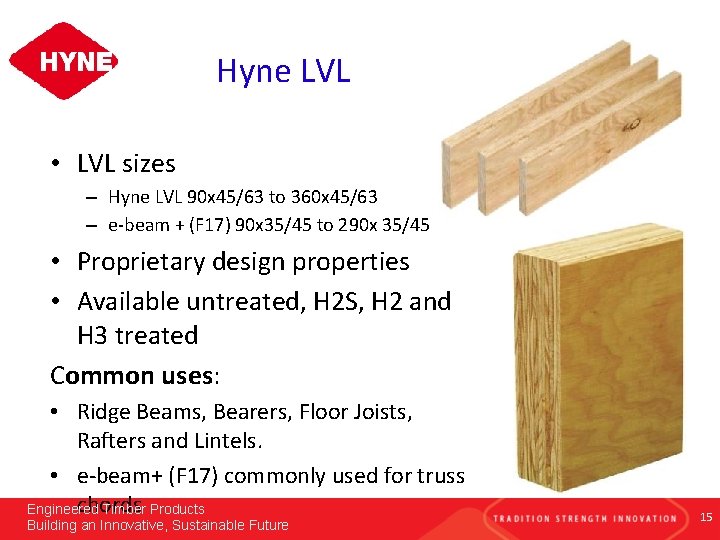

Hyne LVL • LVL sizes – Hyne LVL 90 x 45/63 to 360 x 45/63 – e-beam + (F 17) 90 x 35/45 to 290 x 35/45 • Proprietary design properties • Available untreated, H 2 S, H 2 and H 3 treated Common uses: • Ridge Beams, Bearers, Floor Joists, Rafters and Lintels. • e-beam+ (F 17) commonly used for truss chords Engineered Timber Products Building an Innovative, Sustainable Future 15

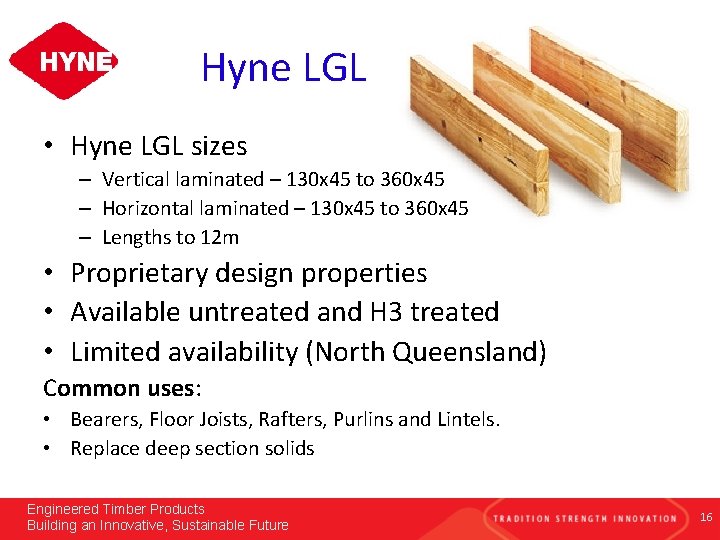

Hyne LGL • Hyne LGL sizes – Vertical laminated – 130 x 45 to 360 x 45 – Horizontal laminated – 130 x 45 to 360 x 45 – Lengths to 12 m • Proprietary design properties • Available untreated and H 3 treated • Limited availability (North Queensland) Common uses: • Bearers, Floor Joists, Rafters, Purlins and Lintels. • Replace deep section solids Engineered Timber Products Building an Innovative, Sustainable Future 16

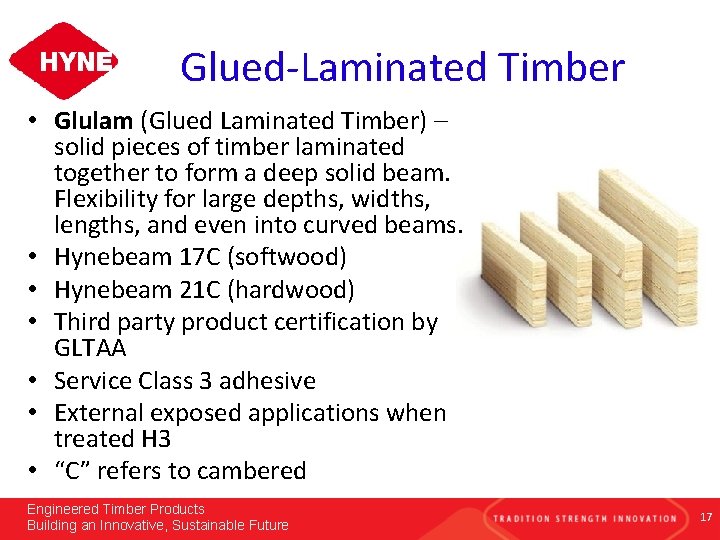

Glued-Laminated Timber • Glulam (Glued Laminated Timber) – solid pieces of timber laminated together to form a deep solid beam. Flexibility for large depths, widths, lengths, and even into curved beams. • Hynebeam 17 C (softwood) • Hynebeam 21 C (hardwood) • Third party product certification by GLTAA • Service Class 3 adhesive • External exposed applications when treated H 3 • “C” refers to cambered Engineered Timber Products Building an Innovative, Sustainable Future 17

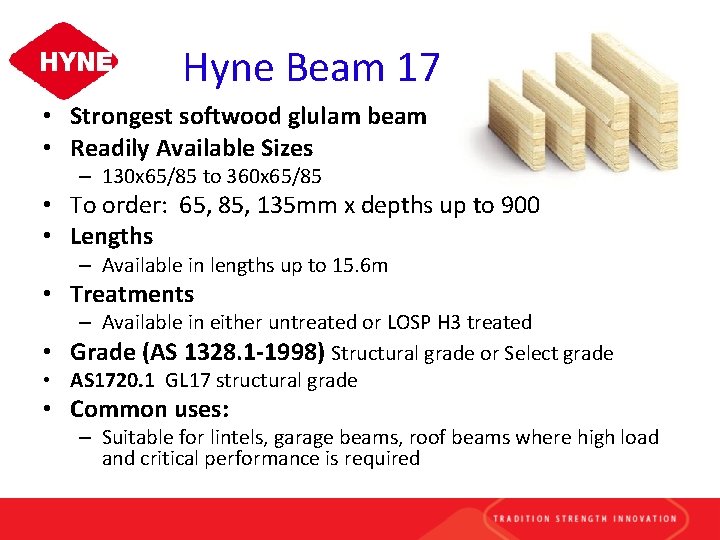

Hyne Beam 17 • Strongest softwood glulam beam • Readily Available Sizes – 130 x 65/85 to 360 x 65/85 • To order: 65, 85, 135 mm x depths up to 900 • Lengths – Available in lengths up to 15. 6 m • Treatments – Available in either untreated or LOSP H 3 treated • Grade (AS 1328. 1 -1998) Structural grade or Select grade • AS 1720. 1 GL 17 structural grade • Common uses: – Suitable for lintels, garage beams, roof beams where high load and critical performance is required

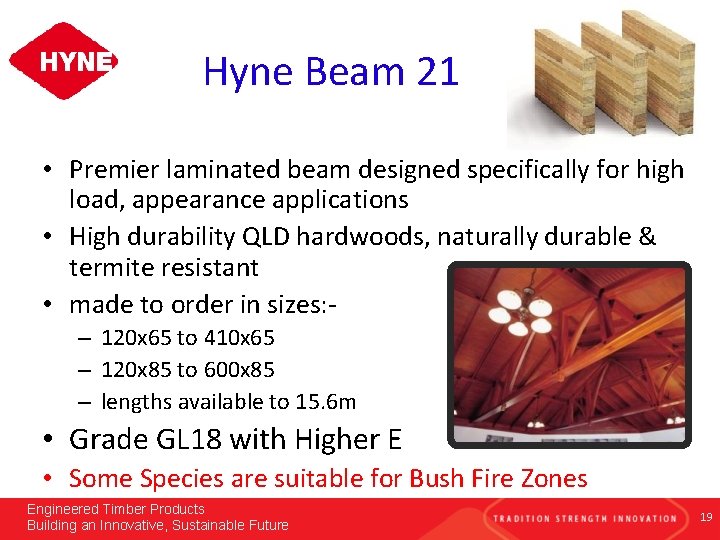

Hyne Beam 21 • Premier laminated beam designed specifically for high load, appearance applications • High durability QLD hardwoods, naturally durable & termite resistant • made to order in sizes: – 120 x 65 to 410 x 65 – 120 x 85 to 600 x 85 – lengths available to 15. 6 m • Grade GL 18 with Higher E • Some Species are suitable for Bush Fire Zones Engineered Timber Products Building an Innovative, Sustainable Future 19

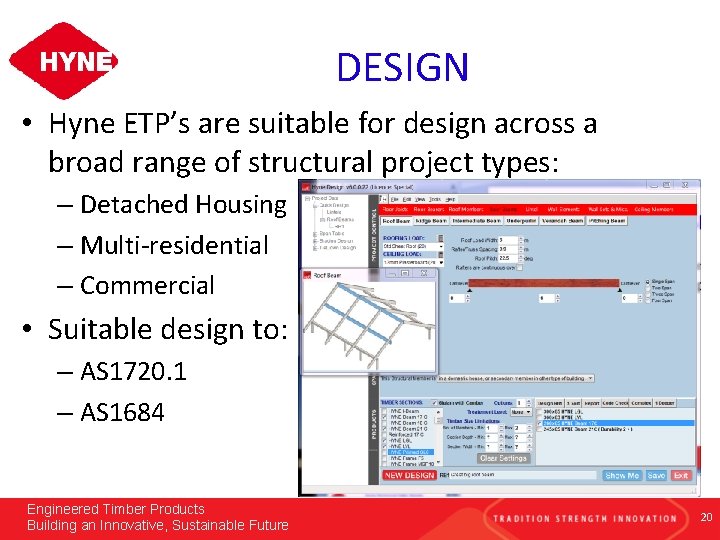

DESIGN • Hyne ETP’s are suitable for design across a broad range of structural project types: – Detached Housing – Multi-residential – Commercial • Suitable design to: – AS 1720. 1 – AS 1684 Engineered Timber Products Building an Innovative, Sustainable Future 20

Hyne Design Software • Hyne Design Software is an easy to use, free - software program, engineer written, backed and supported by Hyne. • Excellent design tool • User friendly • Widely used A free copy of Hyne Design is available to download from our website. Discs are also available. Engineered Timber Products Building an Innovative, Sustainable Future 21

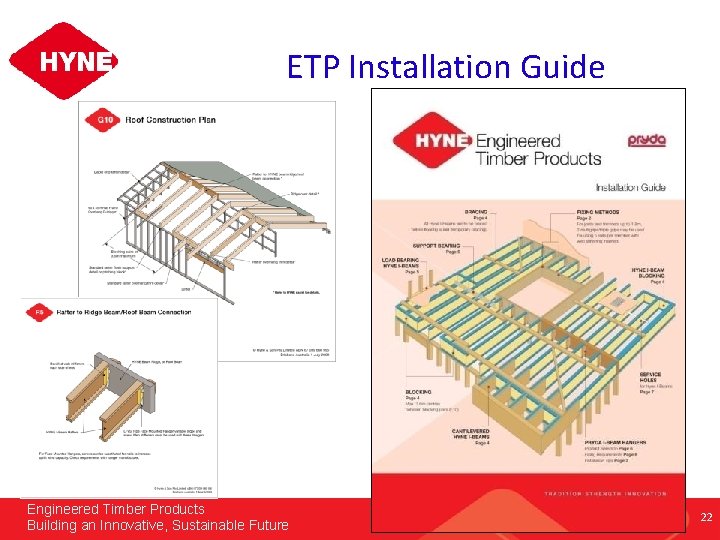

ETP Installation Guide Engineered Timber Products Building an Innovative, Sustainable Future 22

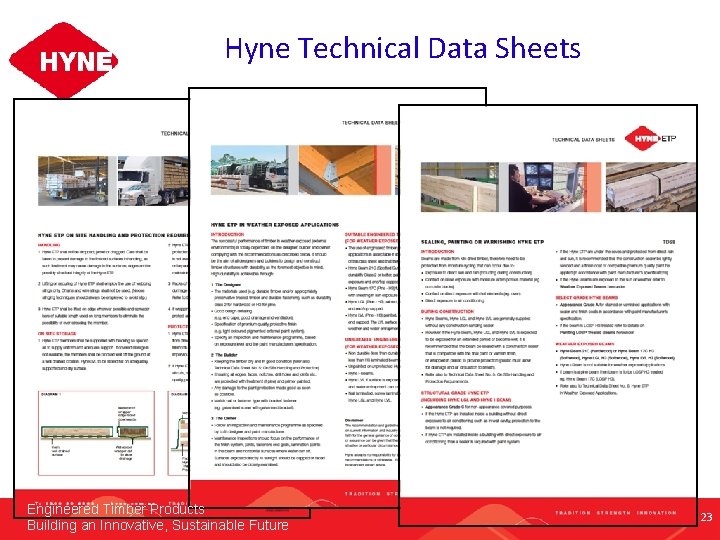

Hyne Technical Data Sheets Engineered Timber Products Building an Innovative, Sustainable Future 23
