Using a PV system to power an emergency water disinfection system Curt Elmore, Associate Professor of Geological Engineering Mariesa Crow, Director of the Energy Research and Development Center Matt Vitello, Graduate Student University of Missouri Energy Summit Columbia, Missouri April 23, 2009

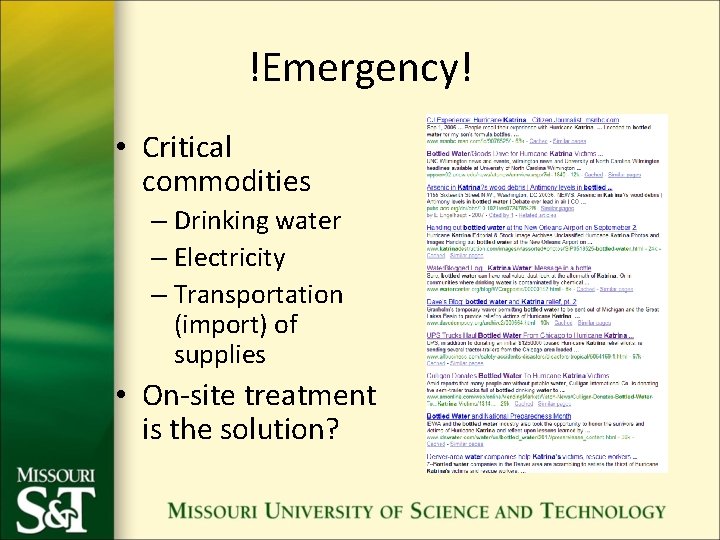

!Emergency! • Critical commodities – Drinking water – Electricity – Transportation (import) of supplies • On-site treatment is the solution?

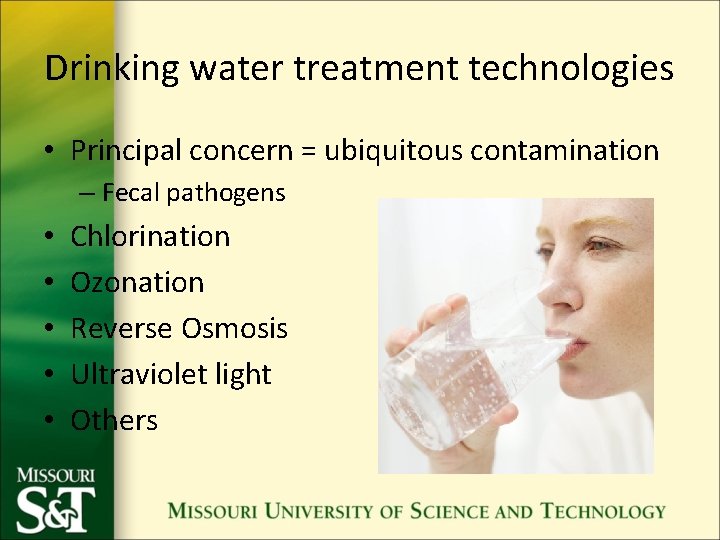

Drinking water treatment technologies • Principal concern = ubiquitous contamination – Fecal pathogens • • • Chlorination Ozonation Reverse Osmosis Ultraviolet light Others

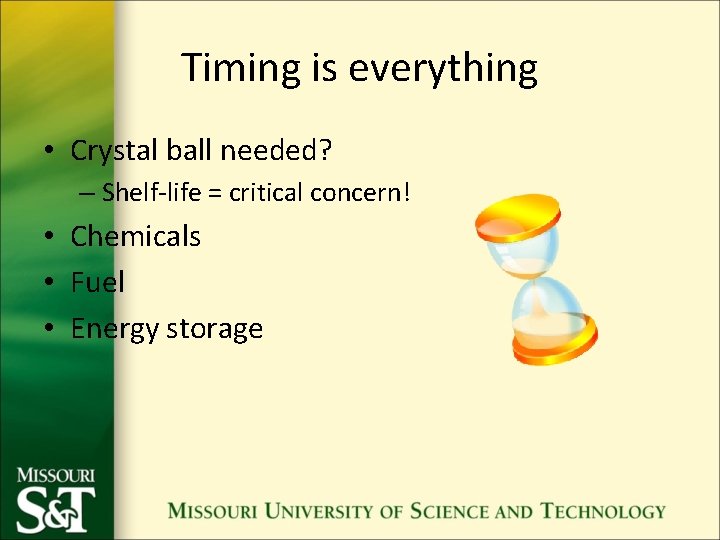

Timing is everything • Crystal ball needed? – Shelf-life = critical concern! • Chemicals • Fuel • Energy storage

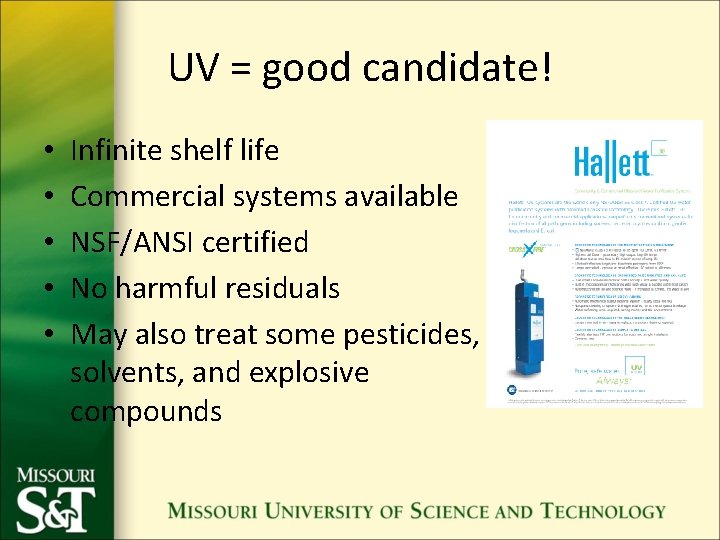

UV = good candidate! • • • Infinite shelf life Commercial systems available NSF/ANSI certified No harmful residuals May also treat some pesticides, solvents, and explosive compounds

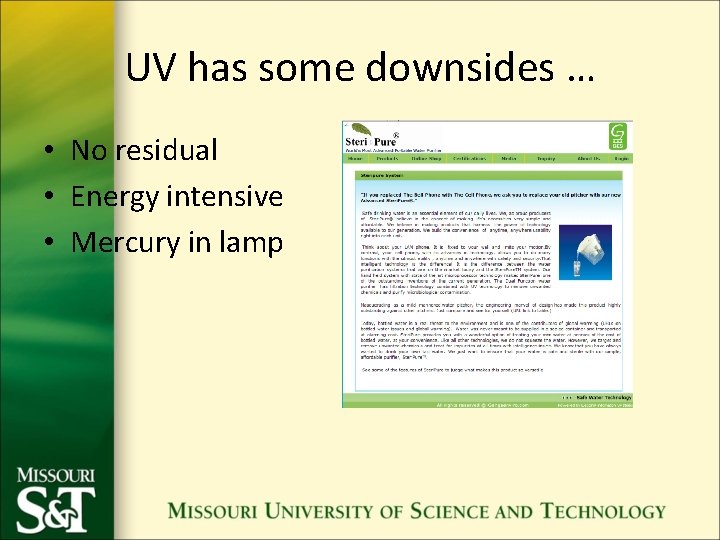

UV has some downsides … • No residual • Energy intensive • Mercury in lamp

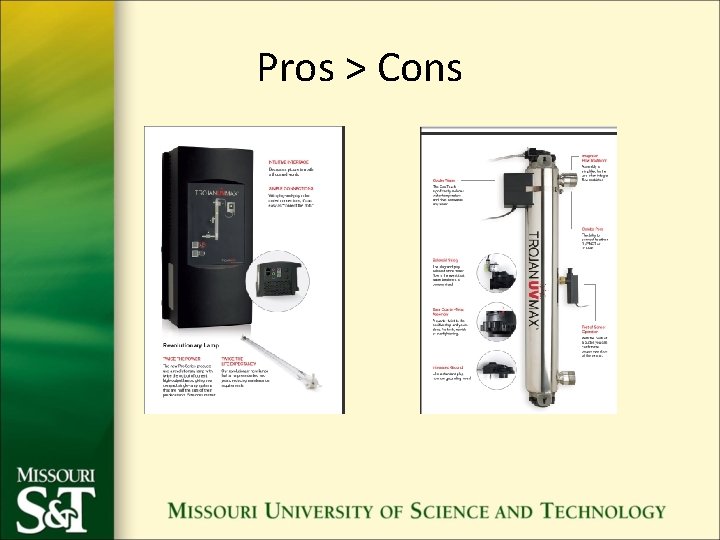

Pros > Cons

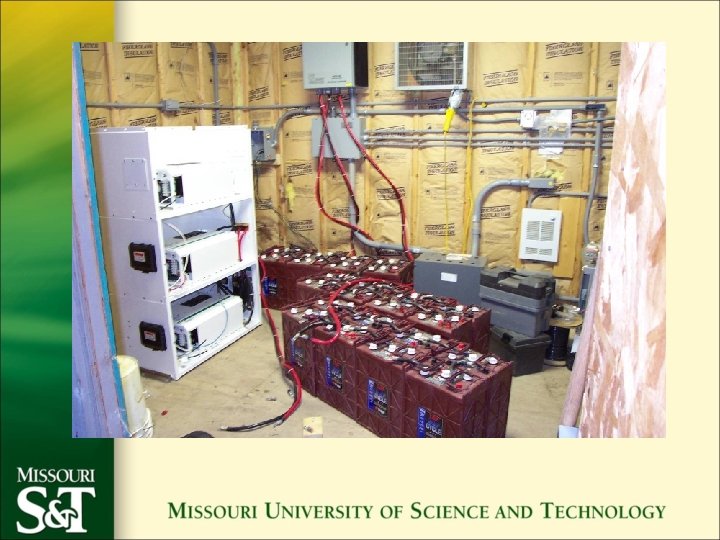

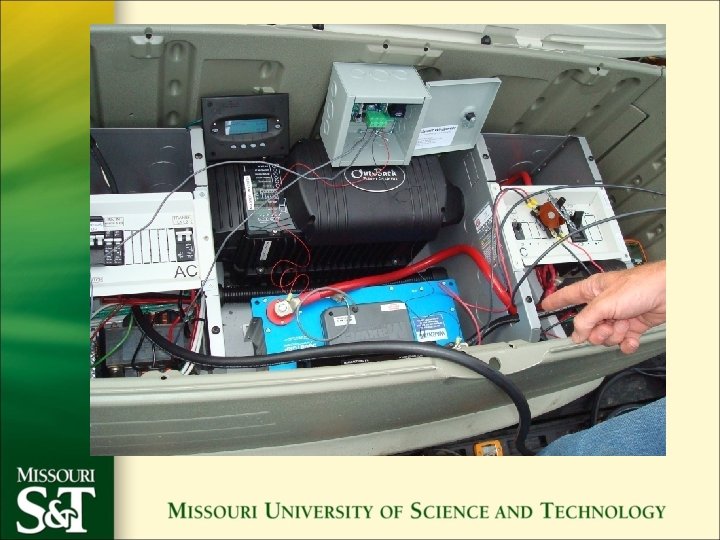

Renewable Energy System

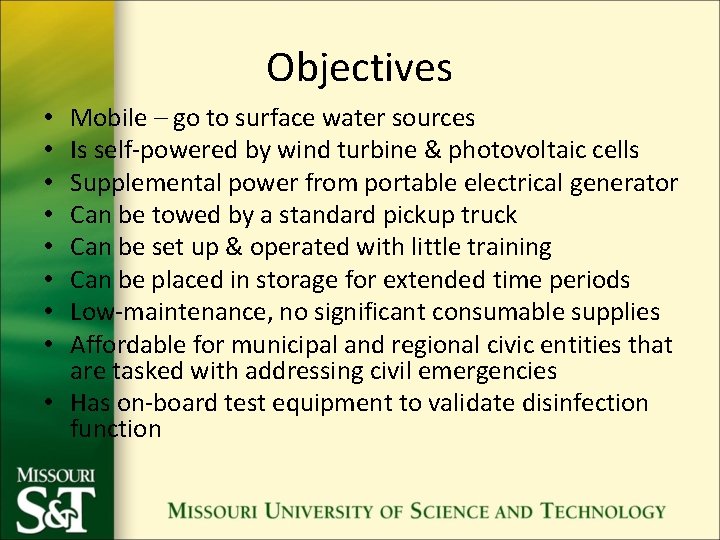

Objectives Mobile – go to surface water sources Is self-powered by wind turbine & photovoltaic cells Supplemental power from portable electrical generator Can be towed by a standard pickup truck Can be set up & operated with little training Can be placed in storage for extended time periods Low-maintenance, no significant consumable supplies Affordable for municipal and regional civic entities that are tasked with addressing civil emergencies • Has on-board test equipment to validate disinfection function • •

Concept

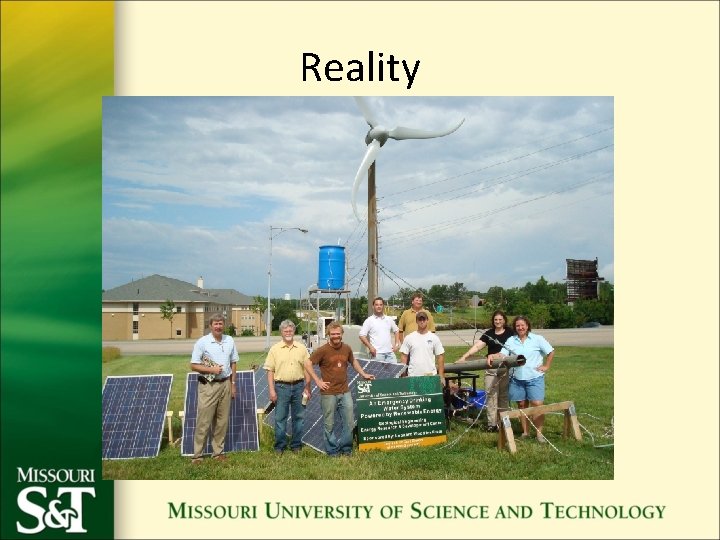

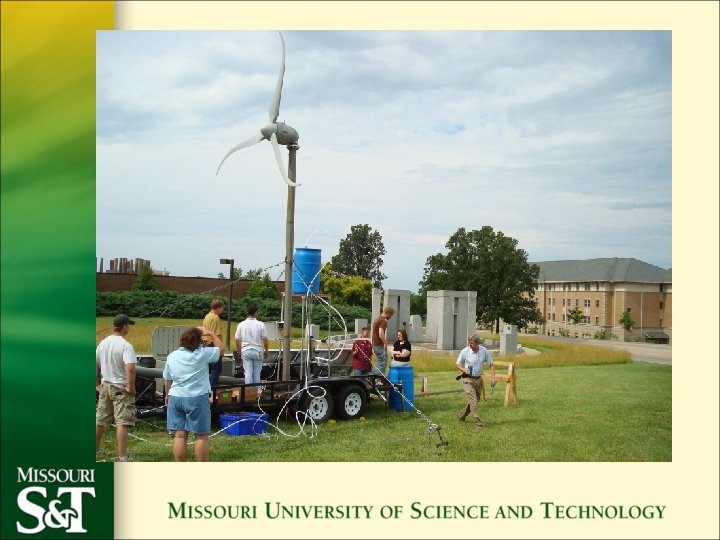

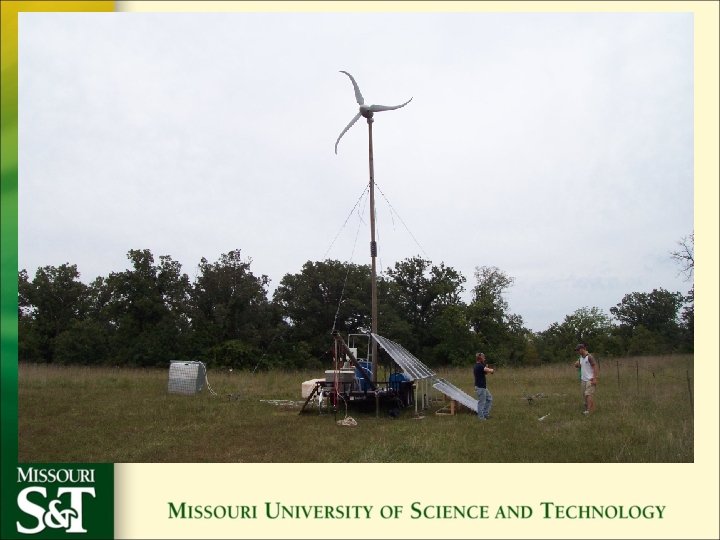

Reality

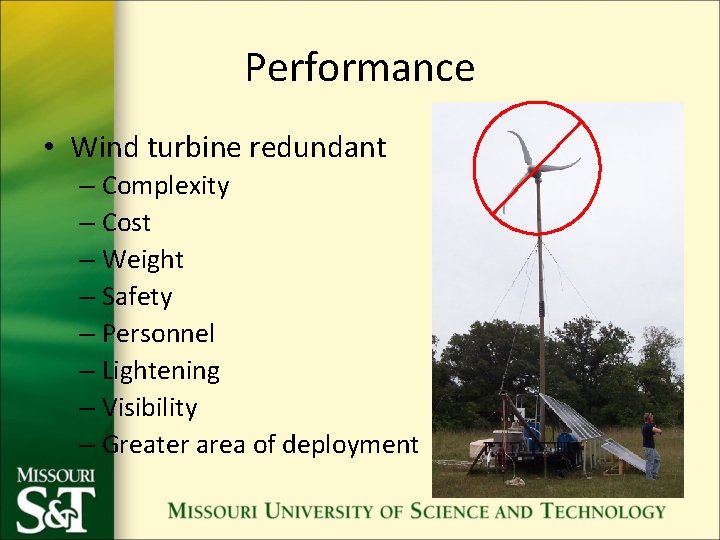

Performance • Wind turbine redundant – Complexity – Cost – Weight – Safety – Personnel – Lightening – Visibility – Greater area of deployment

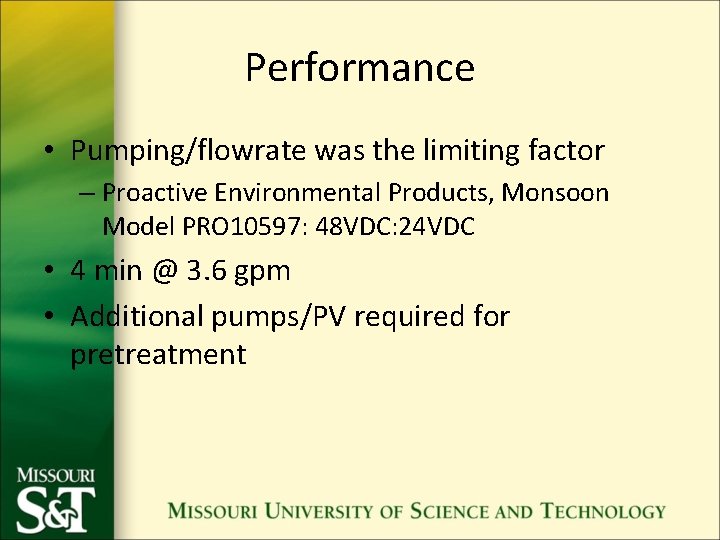

Performance • Pumping/flowrate was the limiting factor – Proactive Environmental Products, Monsoon Model PRO 10597: 48 VDC: 24 VDC • 4 min @ 3. 6 gpm • Additional pumps/PV required for pretreatment

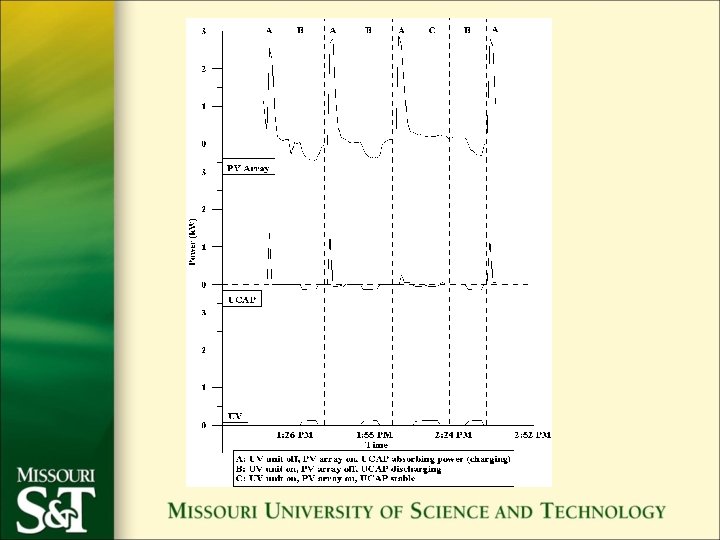

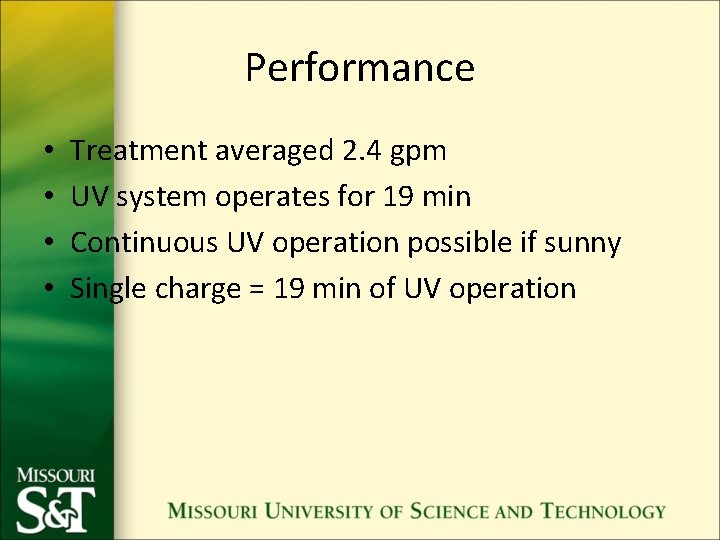

Performance • • Treatment averaged 2. 4 gpm UV system operates for 19 min Continuous UV operation possible if sunny Single charge = 19 min of UV operation

Performance • Disinfection met coliform standards for “natural” water • Disinfection met coliform standards for spiked water • Coliscan MF for colony enumeration • IDEXX Colilert for presence/absence • Other parameters OK

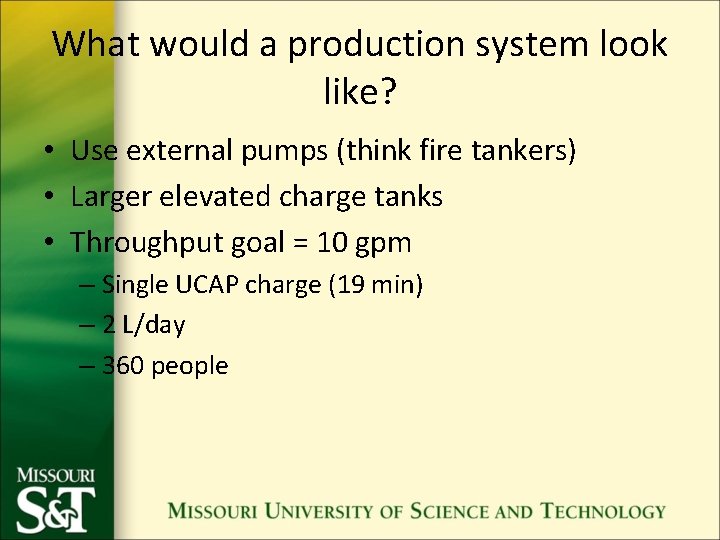

What would a production system look like? • Use external pumps (think fire tankers) • Larger elevated charge tanks • Throughput goal = 10 gpm – Single UCAP charge (19 min) – 2 L/day – 360 people

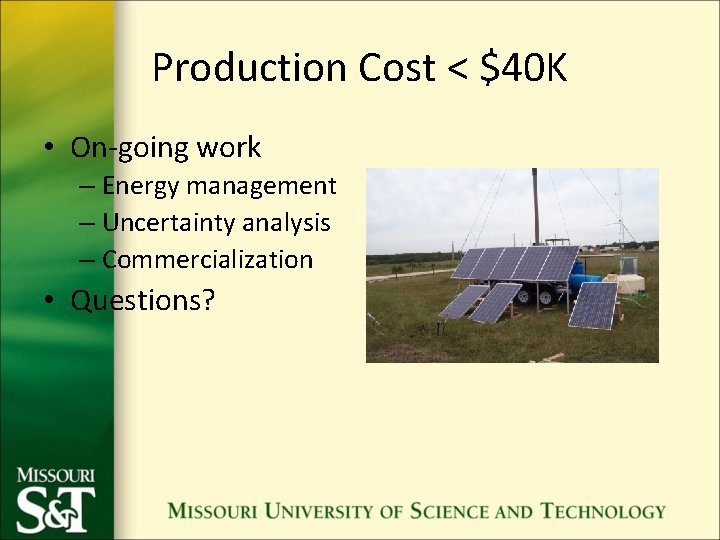

Production Cost < $40 K • On-going work – Energy management – Uncertainty analysis – Commercialization • Questions?
