Using a Multimeter Part 1 Magic of Electrons

Using a Multimeter Part 1 Magic of Electrons © 2011 Project Lead The Way, Inc.

What is a Multimeter? Multimeter - An instrument for measuring the properties of an electrical circuit

Who Uses Multimeters? • Electrical Engineers • Electronics Engineers • Scientists • Technicians • Electricians • Chemists • Networking Engineers • Computer Engineers • Many Others. . .

Manual vs. Auto Ranging Manual The user is responsible for choosing a setting by anticipating the output. Always choose a setting higher than what you think the reading will be.

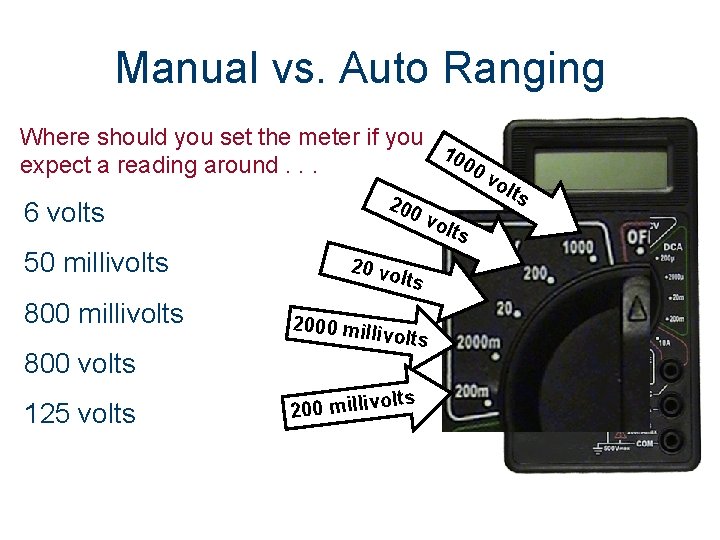

Manual vs. Auto Ranging Where should you set the meter if you 10 00 expect a reading around. . . vo lts 20 6 volts 50 millivolts 800 volts 125 volts 0 v 20 vo lts 2000 mil livolts 200 milliv olt s

Manual vs. Auto Ranging Auto The meter adjusts based on the input to provide the most detailed reading. Auto ranging meters are generally a little more expensive.

Test Leads Standard Test Leads Hook Leads Alligator Clip Leads

Continuity The continuous flow of electrons through a component or an entire circuit. If the answer to the questions below is yes, then there is continuity. Is the material a conductor? Is there an uninterrupted path between the two points?

Testing for Continuity Method 1 There will be a speaker icon where resistance is measured. The meter will beep to indicate continuity.

Testing for Continuity Method 2 Turn the dial to a setting for Ohms. The meter will read zero to indicate continuity.
