Users and Uses of Bibliographic Data: The Promise and Paradox of Bibliographic Control NCSU Case study: Faceted Navigation Andrew K. Pace Head, Information Technology NCSU Libraries 9/9/2020 Library of Congress Working Group on the Future of Bibliographic Control ~ March 8, 2007
Library of Congress Working Group on the Future of Bibliographic Control ~ March 8, 2007

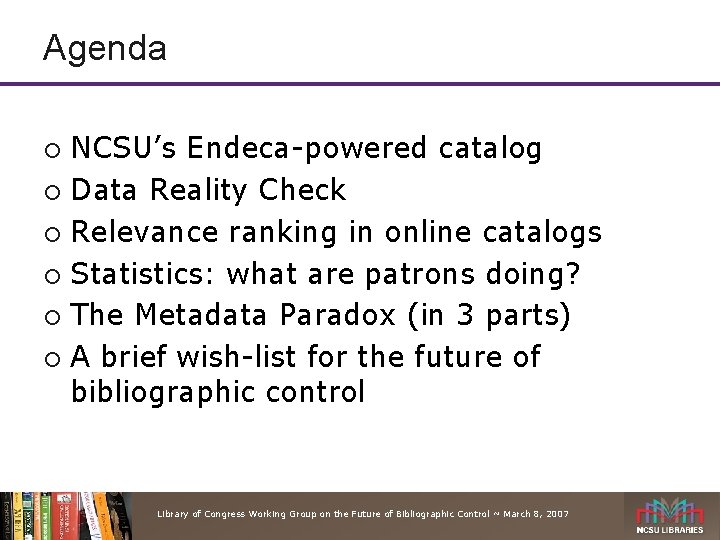

Agenda NCSU’s Endeca-powered catalog ¡ Data Reality Check ¡ Relevance ranking in online catalogs ¡ Statistics: what are patrons doing? ¡ The Metadata Paradox (in 3 parts) ¡ A brief wish-list for the future of bibliographic control ¡ Library of Congress Working Group on the Future of Bibliographic Control ~ March 8, 2007

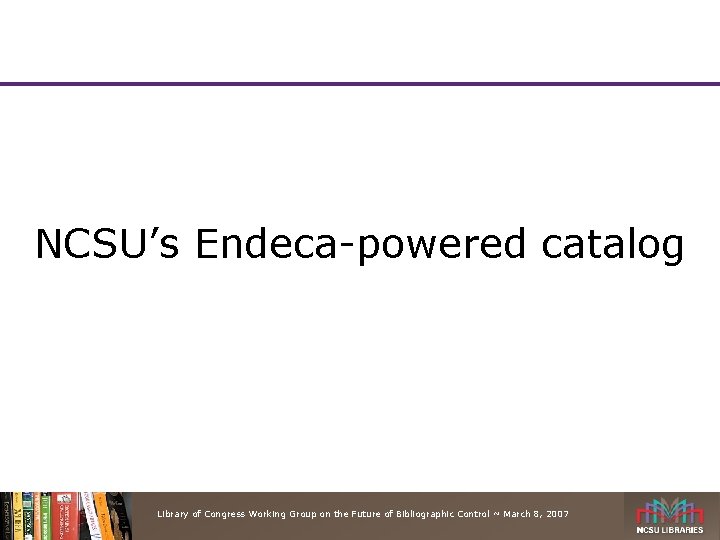

NCSU’s Endeca-powered catalog Library of Congress Working Group on the Future of Bibliographic Control ~ March 8, 2007
Rumsfeld’s Law of Bibliographic Control You search the data you have, not the data you wish you had. Library of Congress Working Group on the Future of Bibliographic Control ~ March 8, 2007

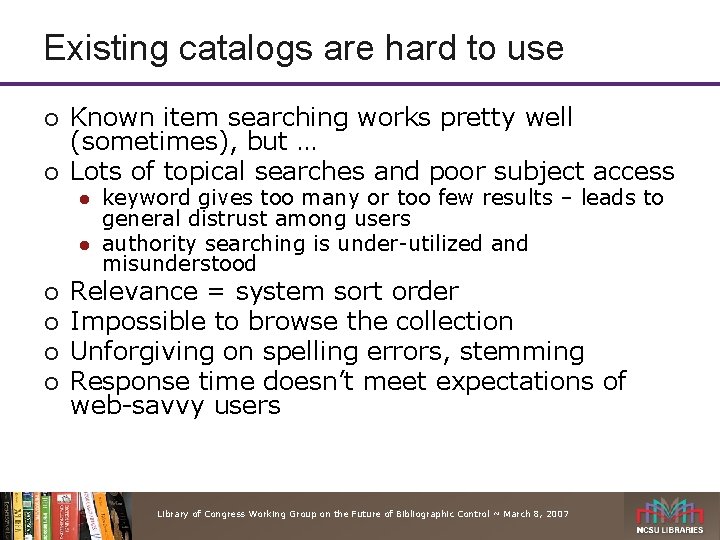

Existing catalogs are hard to use ¡ ¡ Known item searching works pretty well (sometimes), but … Lots of topical searches and poor subject access l l ¡ ¡ keyword gives too many or too few results – leads to general distrust among users authority searching is under-utilized and misunderstood Relevance = system sort order Impossible to browse the collection Unforgiving on spelling errors, stemming Response time doesn’t meet expectations of web-savvy users Library of Congress Working Group on the Future of Bibliographic Control ~ March 8, 2007

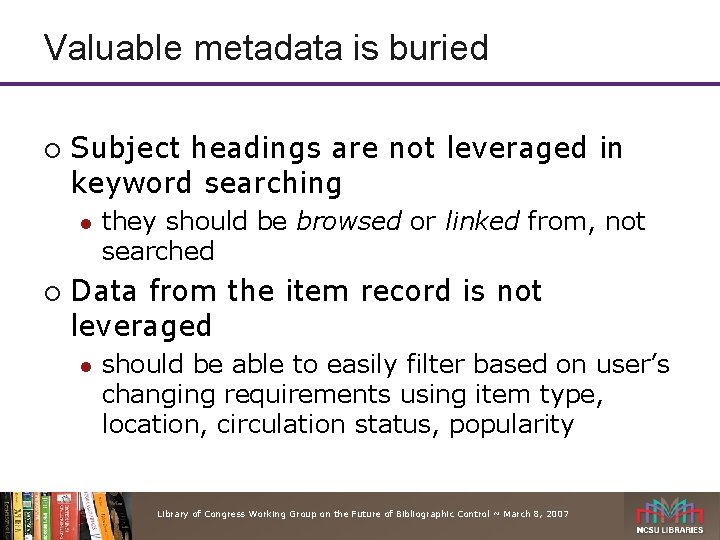

Valuable metadata is buried ¡ Subject headings are not leveraged in keyword searching l ¡ they should be browsed or linked from, not searched Data from the item record is not leveraged l should be able to easily filter based on user’s changing requirements using item type, location, circulation status, popularity Library of Congress Working Group on the Future of Bibliographic Control ~ March 8, 2007

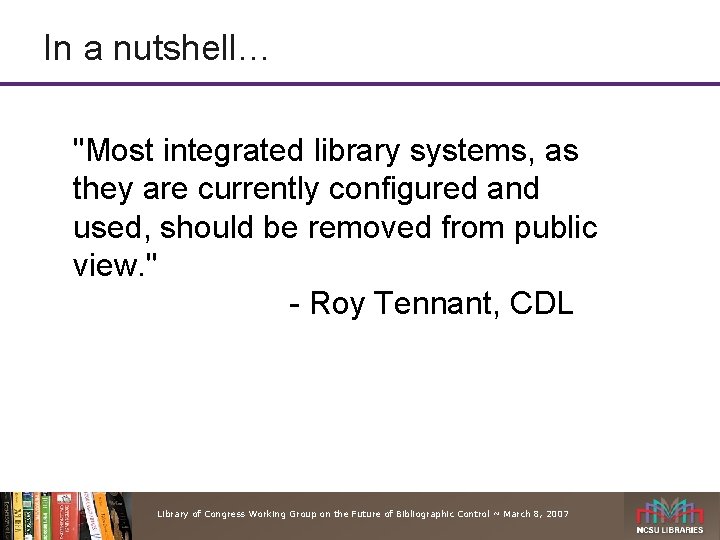

In a nutshell… "Most integrated library systems, as they are currently configured and used, should be removed from public view. " - Roy Tennant, CDL Library of Congress Working Group on the Future of Bibliographic Control ~ March 8, 2007

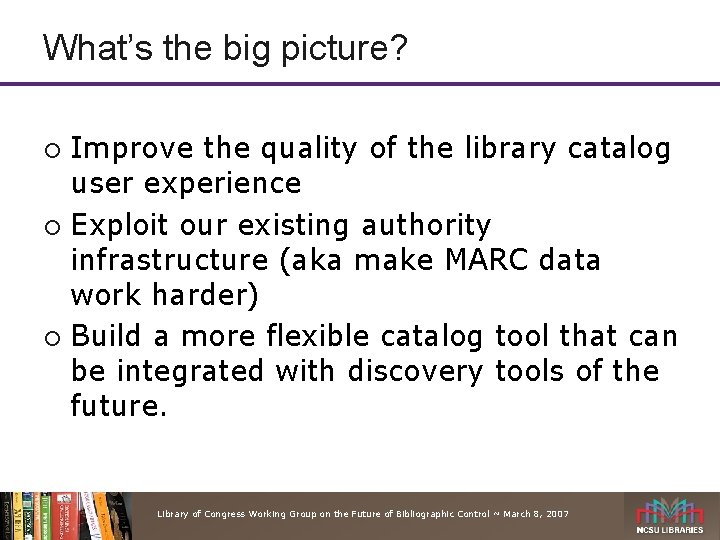

What’s the big picture? Improve the quality of the library catalog user experience ¡ Exploit our existing authority infrastructure (aka make MARC data work harder) ¡ Build a more flexible catalog tool that can be integrated with discovery tools of the future. ¡ Library of Congress Working Group on the Future of Bibliographic Control ~ March 8, 2007

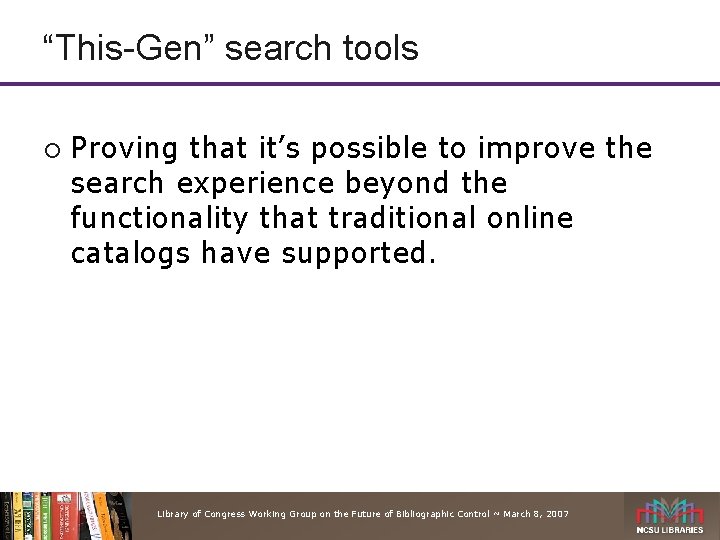

“This-Gen” search tools ¡ Proving that it’s possible to improve the search experience beyond the functionality that traditional online catalogs have supported. Library of Congress Working Group on the Future of Bibliographic Control ~ March 8, 2007

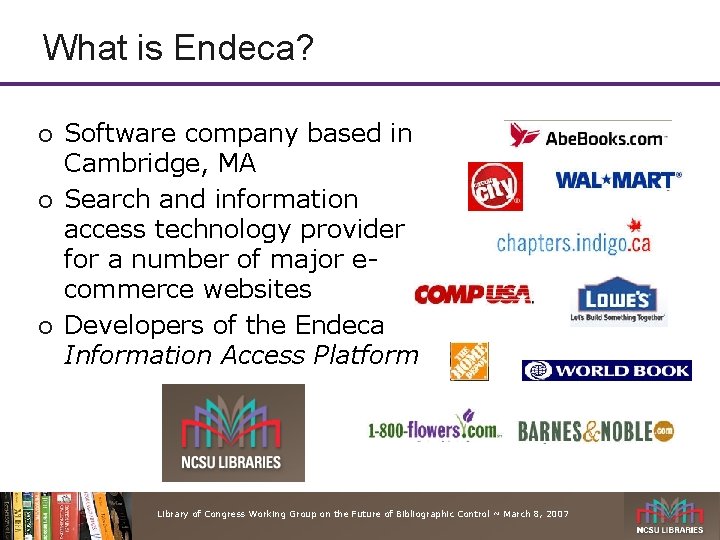

What is Endeca? ¡ ¡ ¡ Software company based in Cambridge, MA Search and information access technology provider for a number of major ecommerce websites Developers of the Endeca Information Access Platform Library of Congress Working Group on the Future of Bibliographic Control ~ March 8, 2007

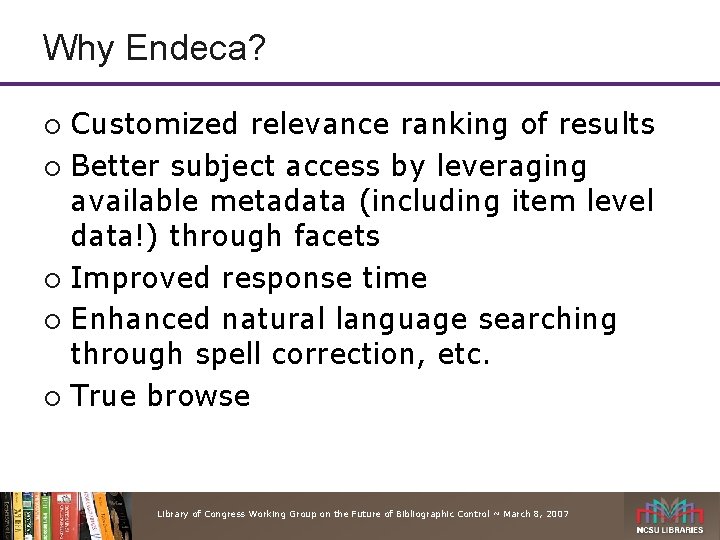

Why Endeca? Customized relevance ranking of results ¡ Better subject access by leveraging available metadata (including item level data!) through facets ¡ Improved response time ¡ Enhanced natural language searching through spell correction, etc. ¡ True browse ¡ Library of Congress Working Group on the Future of Bibliographic Control ~ March 8, 2007

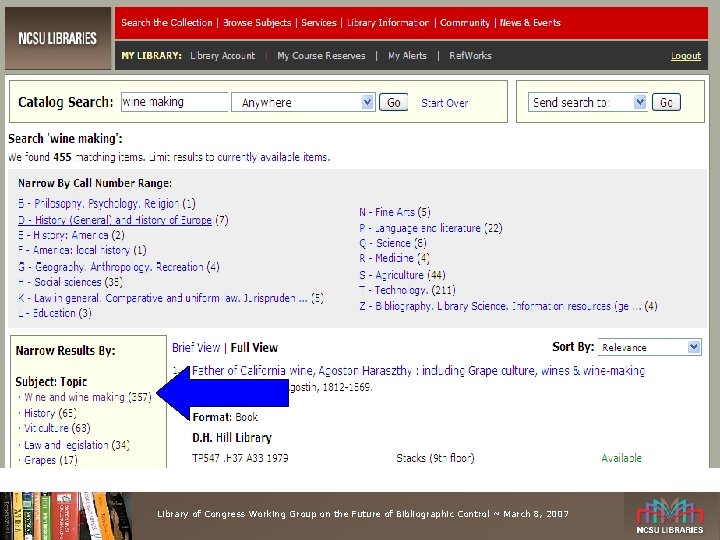

Demo Library of Congress Working Group on the Future of Bibliographic Control ~ March 8, 2007

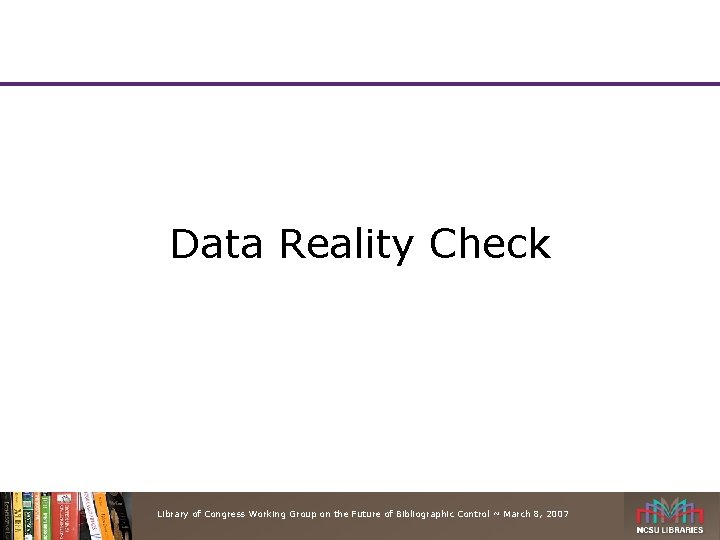

Data Reality Check Library of Congress Working Group on the Future of Bibliographic Control ~ March 8, 2007

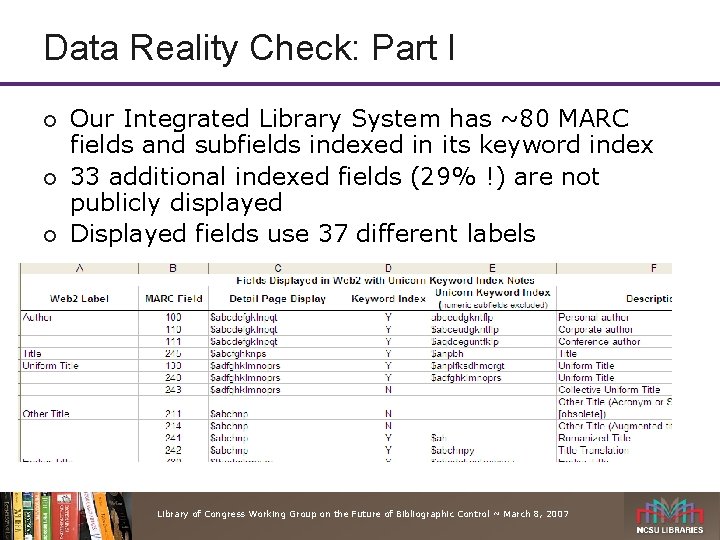

Data Reality Check: Part I ¡ ¡ ¡ Our Integrated Library System has ~80 MARC fields and subfields indexed in its keyword index 33 additional indexed fields (29% !) are not publicly displayed Displayed fields use 37 different labels Library of Congress Working Group on the Future of Bibliographic Control ~ March 8, 2007

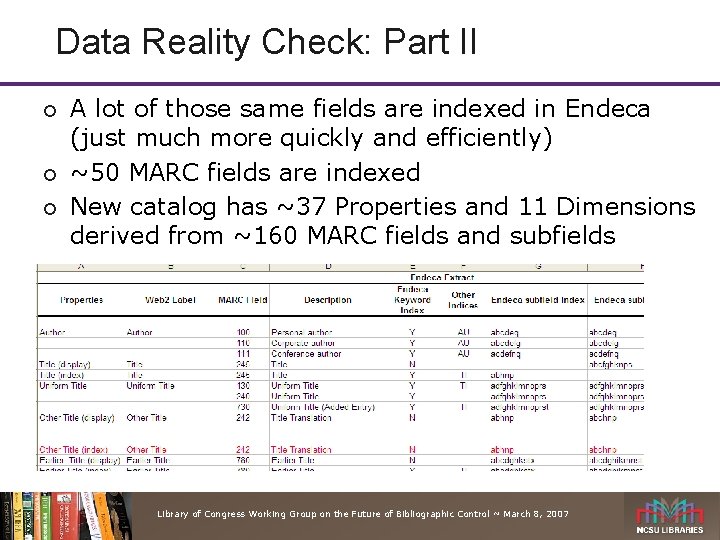

Data Reality Check: Part II ¡ ¡ ¡ A lot of those same fields are indexed in Endeca (just much more quickly and efficiently) ~50 MARC fields are indexed New catalog has ~37 Properties and 11 Dimensions derived from ~160 MARC fields and subfields Library of Congress Working Group on the Future of Bibliographic Control ~ March 8, 2007

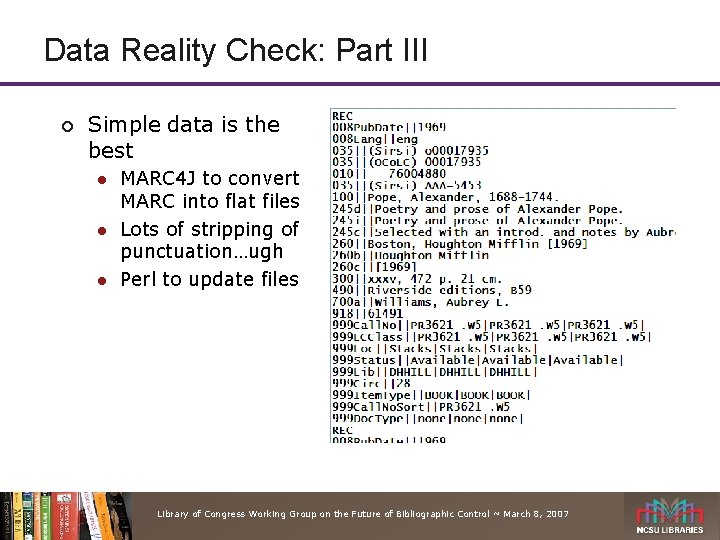

Data Reality Check: Part III ¡ Simple data is the best l l l MARC 4 J to convert MARC into flat files Lots of stripping of punctuation…ugh Perl to update files Library of Congress Working Group on the Future of Bibliographic Control ~ March 8, 2007

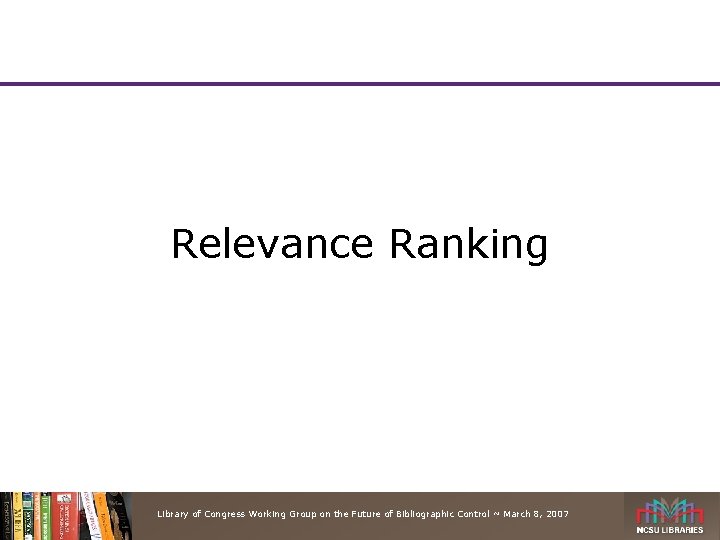

Relevance Ranking Library of Congress Working Group on the Future of Bibliographic Control ~ March 8, 2007

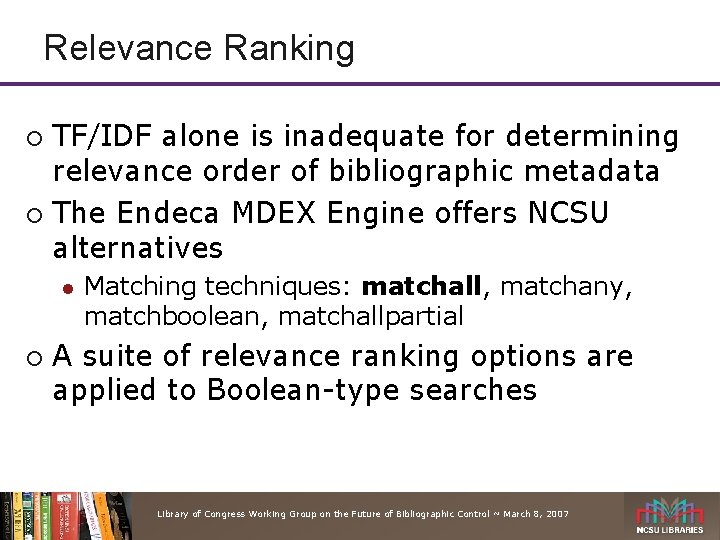

Relevance Ranking TF/IDF alone is inadequate for determining relevance order of bibliographic metadata ¡ The Endeca MDEX Engine offers NCSU alternatives ¡ l ¡ Matching techniques: matchall, matchany, matchboolean, matchallpartial A suite of relevance ranking options are applied to Boolean-type searches Library of Congress Working Group on the Future of Bibliographic Control ~ March 8, 2007

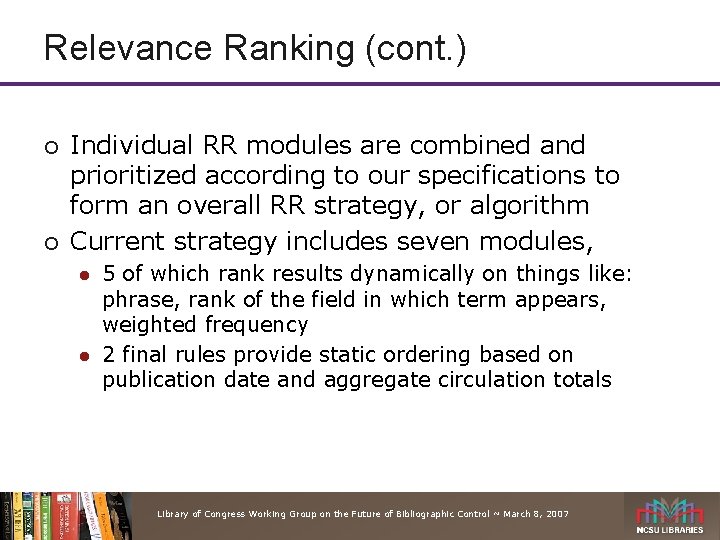

Relevance Ranking (cont. ) ¡ ¡ Individual RR modules are combined and prioritized according to our specifications to form an overall RR strategy, or algorithm Current strategy includes seven modules, l l 5 of which rank results dynamically on things like: phrase, rank of the field in which term appears, weighted frequency 2 final rules provide static ordering based on publication date and aggregate circulation totals Library of Congress Working Group on the Future of Bibliographic Control ~ March 8, 2007

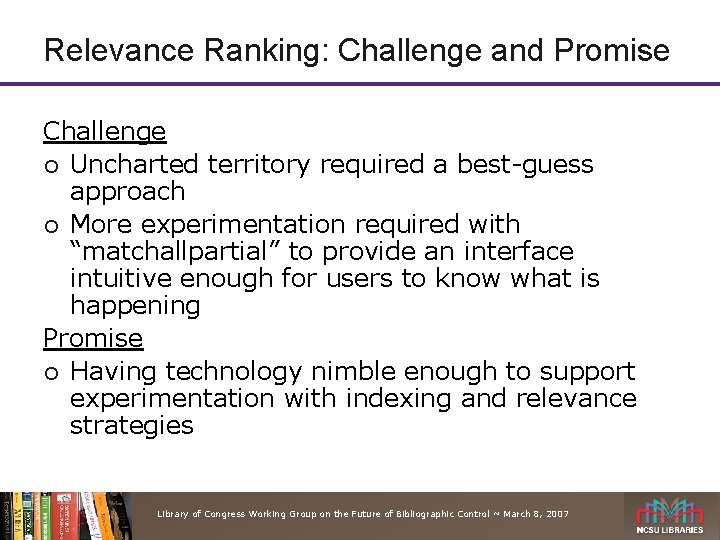

Relevance Ranking: Challenge and Promise Challenge ¡ Uncharted territory required a best-guess approach ¡ More experimentation required with “matchallpartial” to provide an interface intuitive enough for users to know what is happening Promise ¡ Having technology nimble enough to support experimentation with indexing and relevance strategies Library of Congress Working Group on the Future of Bibliographic Control ~ March 8, 2007

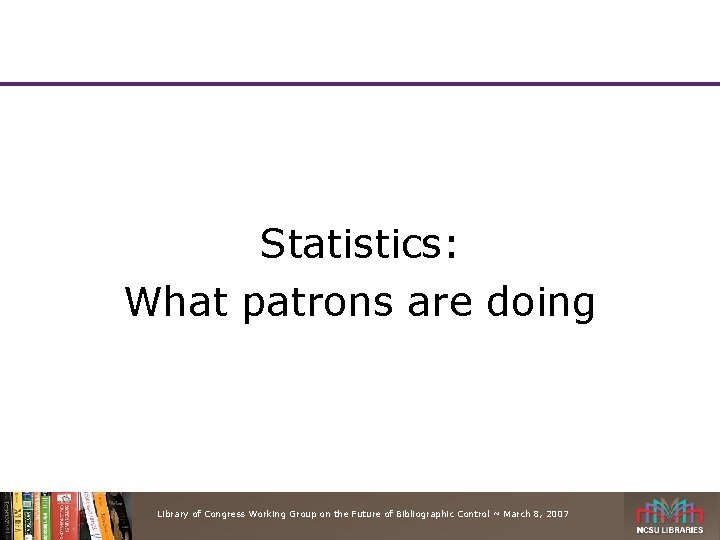

Statistics: What patrons are doing Library of Congress Working Group on the Future of Bibliographic Control ~ March 8, 2007
July 06 – Jan 07 Library of Congress Working Group on the Future of Bibliographic Control ~ March 8, 2007
July 06 – Jan 07 Library of Congress Working Group on the Future of Bibliographic Control ~ March 8, 2007
July 06 – Jan 07 19. 4% Subj. /Class Library of Congress Working Group on the Future of Bibliographic Control ~ March 8, 2007
July 06 – Jan 07 Library of Congress Working Group on the Future of Bibliographic Control ~ March 8, 2007
July 06 – Jan 07 Library of Congress Working Group on the Future of Bibliographic Control ~ March 8, 2007
July 06 – Jan 07 Library of Congress Working Group on the Future of Bibliographic Control ~ March 8, 2007
July 06 – Jan 07 Library of Congress Working Group on the Future of Bibliographic Control ~ March 8, 2007

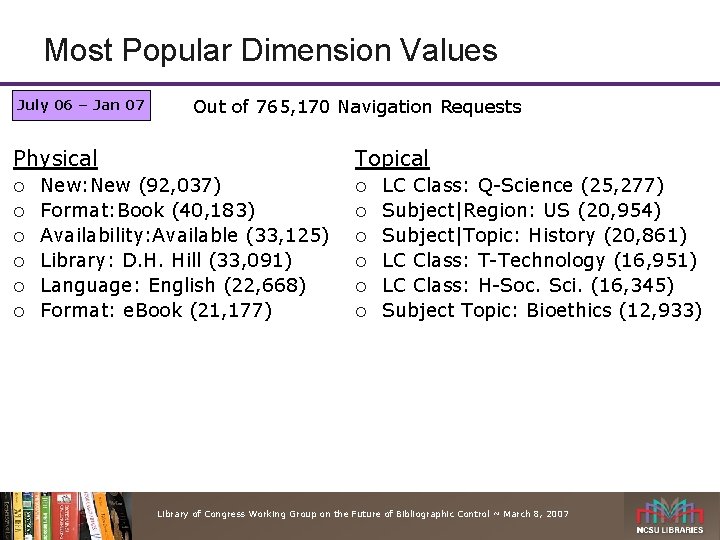

Most Popular Dimension Values July 06 – Jan 07 Out of 765, 170 Navigation Requests Physical ¡ ¡ ¡ Topical New: New (92, 037) Format: Book (40, 183) Availability: Available (33, 125) Library: D. H. Hill (33, 091) Language: English (22, 668) Format: e. Book (21, 177) ¡ ¡ ¡ LC Class: Q-Science (25, 277) Subject|Region: US (20, 954) Subject|Topic: History (20, 861) LC Class: T-Technology (16, 951) LC Class: H-Soc. Sci. (16, 345) Subject Topic: Bioethics (12, 933) Library of Congress Working Group on the Future of Bibliographic Control ~ March 8, 2007

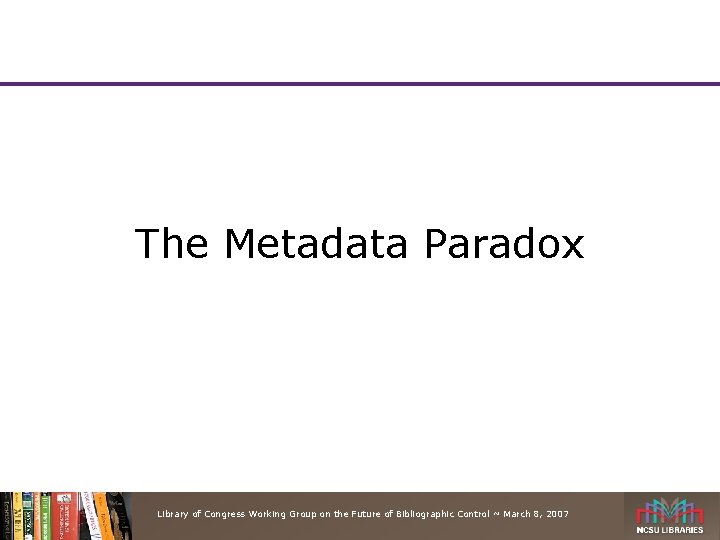

The Metadata Paradox Library of Congress Working Group on the Future of Bibliographic Control ~ March 8, 2007

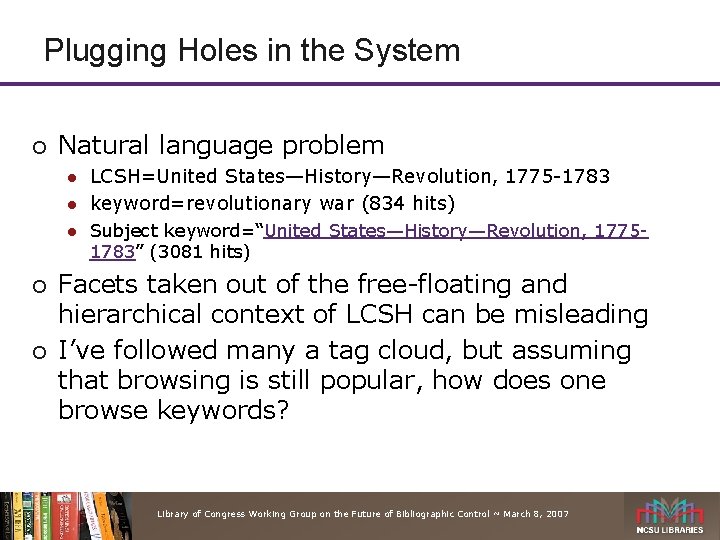

Plugging Holes in the System ¡ Natural language problem l l l ¡ ¡ LCSH=United States—History—Revolution, 1775 -1783 keyword=revolutionary war (834 hits) Subject keyword=“United States—History—Revolution, 17751783” (3081 hits) Facets taken out of the free-floating and hierarchical context of LCSH can be misleading I’ve followed many a tag cloud, but assuming that browsing is still popular, how does one browse keywords? Library of Congress Working Group on the Future of Bibliographic Control ~ March 8, 2007

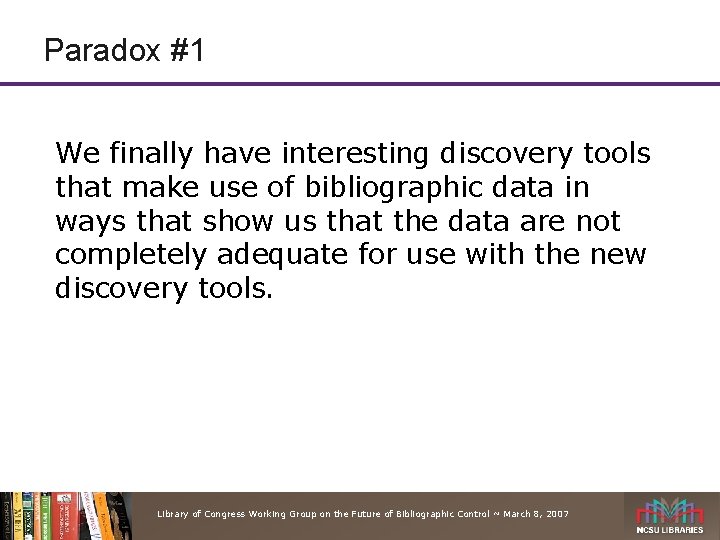

Paradox #1 We finally have interesting discovery tools that make use of bibliographic data in ways that show us that the data are not completely adequate for use with the new discovery tools. Library of Congress Working Group on the Future of Bibliographic Control ~ March 8, 2007
![“Subject Keywords” “[from Recommendations: ] …. Abandon the attempt to do comprehensive subject analysis](http://slidetodoc.com/presentation_image/01886361b7d00496c40435bd435283b6/image-34.jpg "“Subject Keywords” “[from Recommendations: ] …. Abandon the attempt to do comprehensive subject analysis")

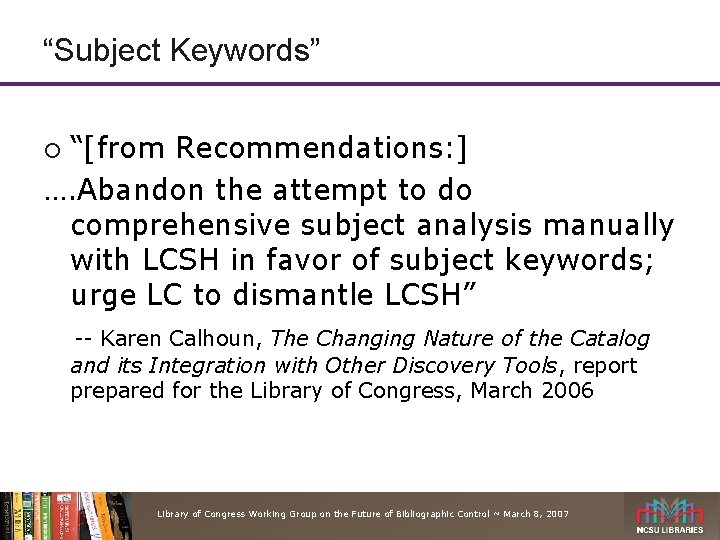

“Subject Keywords” “[from Recommendations: ] …. Abandon the attempt to do comprehensive subject analysis manually with LCSH in favor of subject keywords; urge LC to dismantle LCSH” ¡ -- Karen Calhoun, The Changing Nature of the Catalog and its Integration with Other Discovery Tools, report prepared for the Library of Congress, March 2006 Library of Congress Working Group on the Future of Bibliographic Control ~ March 8, 2007

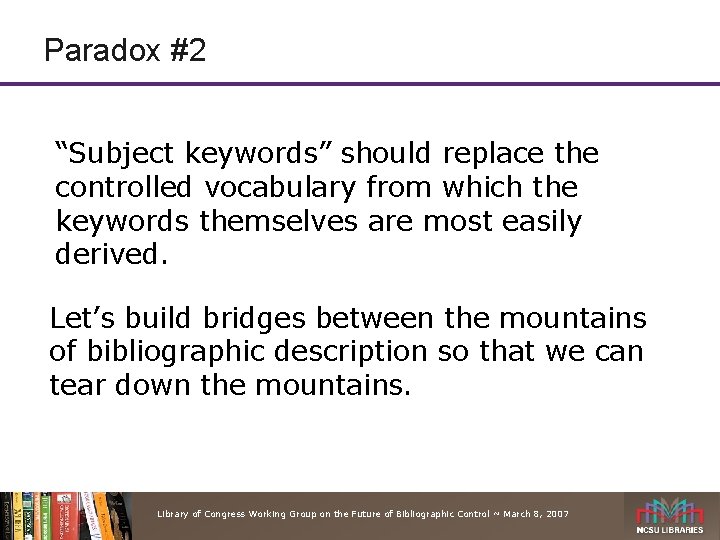

Paradox #2 “Subject keywords” should replace the controlled vocabulary from which the keywords themselves are most easily derived. Let’s build bridges between the mountains of bibliographic description so that we can tear down the mountains. Library of Congress Working Group on the Future of Bibliographic Control ~ March 8, 2007
If not LCSH, then what? (with some help from colleague Charley Pennell, Principle Cataloger for Metadata, NCSU) ¡ Dissertation Abstracts Model l ¡ Social Tagging Model l ¡ Constrained list of subject terms Dissertations are at the edge of scholarship, so granular preexisting thesaurus is inadequate Vocabulary cannot be “thwarted” by authors Human intervention times n users New difficulty of matching tags between creators Contrary to the “literary warrant” that requires a hierarchical thesaurus to differentiate thousands of titles from one another Full Text Model l Good for currency: hypothetically uses the most contemporary language Harder for research: some sort of citation analysis required; but arguably could be solved computationally The question of scale Library of Congress Working Group on the Future of Bibliographic Control ~ March 8, 2007

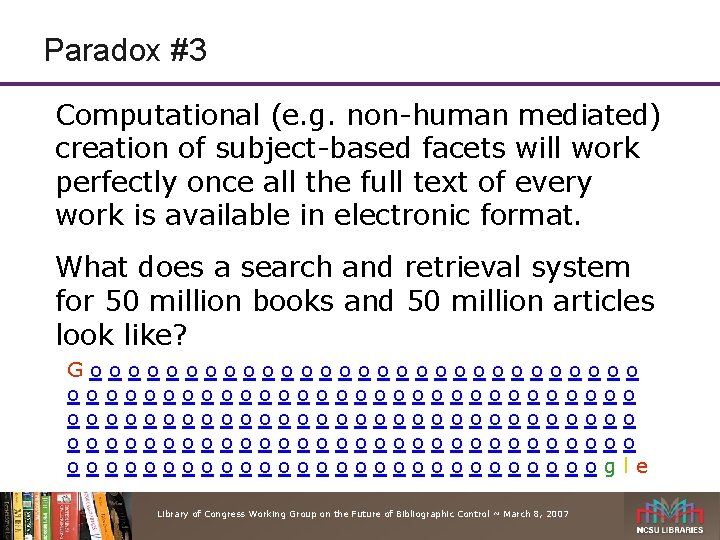

Paradox #3 Computational (e. g. non-human mediated) creation of subject-based facets will work perfectly once all the full text of every work is available in electronic format. What does a search and retrieval system for 50 million books and 50 million articles look like? Goooooooooooooooooooooooooooooo ooooooooooooooogle Library of Congress Working Group on the Future of Bibliographic Control ~ March 8, 2007

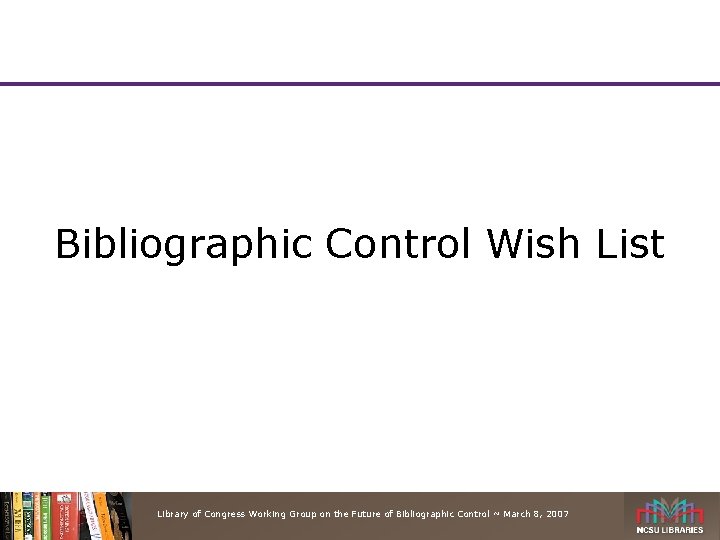

Bibliographic Control Wish List Library of Congress Working Group on the Future of Bibliographic Control ~ March 8, 2007

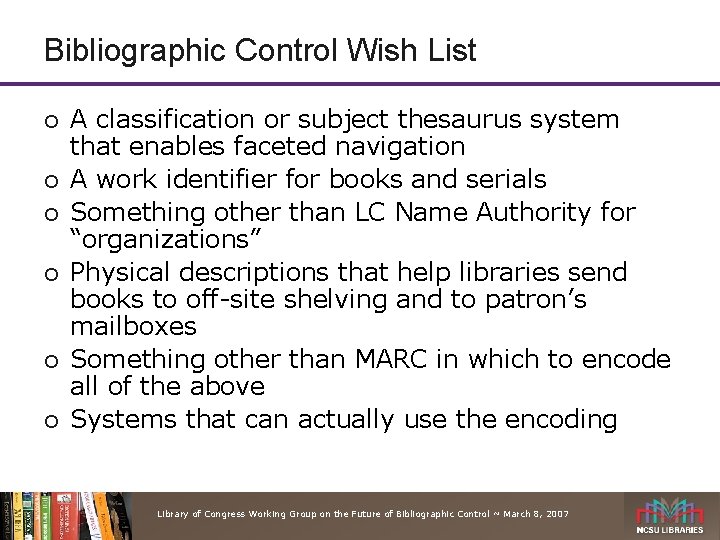

Bibliographic Control Wish List ¡ ¡ ¡ A classification or subject thesaurus system that enables faceted navigation A work identifier for books and serials Something other than LC Name Authority for “organizations” Physical descriptions that help libraries send books to off-site shelving and to patron’s mailboxes Something other than MARC in which to encode all of the above Systems that can actually use the encoding Library of Congress Working Group on the Future of Bibliographic Control ~ March 8, 2007

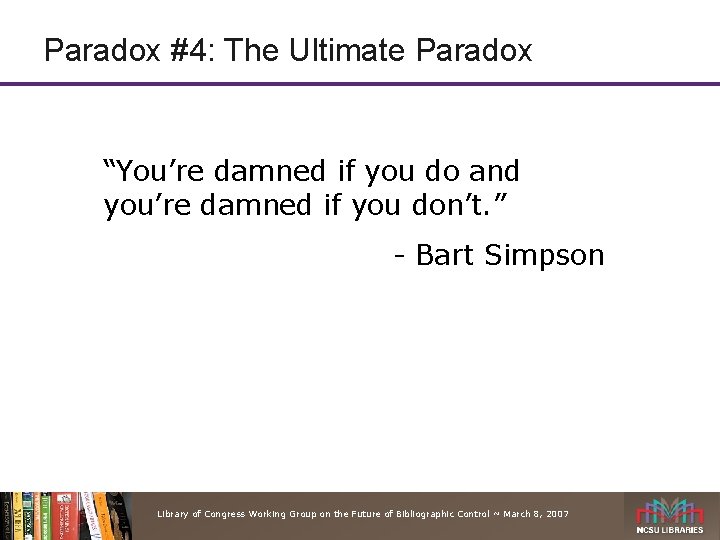

Paradox #4: The Ultimate Paradox “You’re damned if you do and you’re damned if you don’t. ” - Bart Simpson Library of Congress Working Group on the Future of Bibliographic Control ~ March 8, 2007

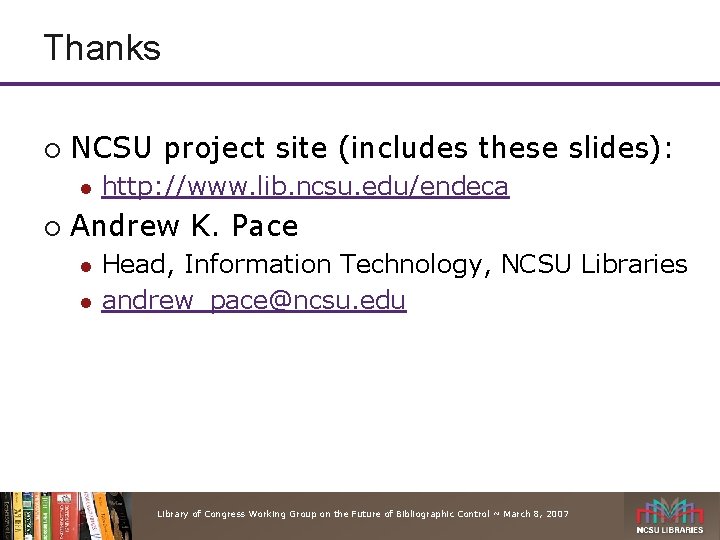

Thanks ¡ NCSU project site (includes these slides): l ¡ http: //www. lib. ncsu. edu/endeca Andrew K. Pace l l Head, Information Technology, NCSU Libraries andrew_pace@ncsu. edu Library of Congress Working Group on the Future of Bibliographic Control ~ March 8, 2007
