User Requirements Notation URN Application and Research Areas

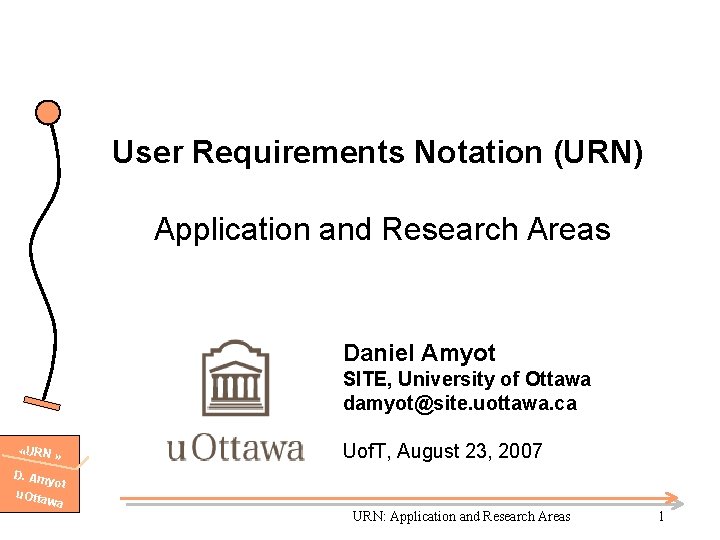

User Requirements Notation (URN) Application and Research Areas Daniel Amyot SITE, University of Ottawa damyot@site. uottawa. ca «URN » D. Am yot u. Otta wa Uof. T, August 23, 2007 URN: Application and Research Areas 1

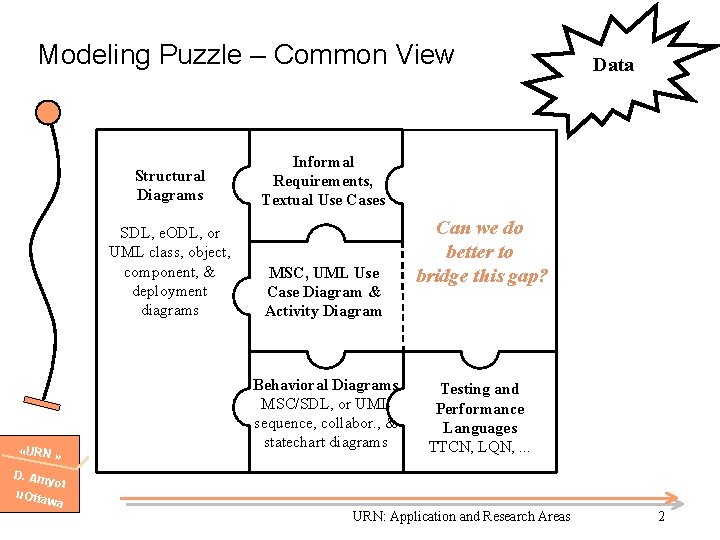

Modeling Puzzle – Common View Structural Diagrams SDL, e. ODL, or UML class, object, component, & deployment diagrams «URN » D. Am yot u. Otta wa Data Informal Requirements, Textual Use Cases MSC, UML Use Case Diagram & Activity Diagram Behavioral Diagrams MSC/SDL, or UML sequence, collabor. , & statechart diagrams Can we do better to bridge this gap? Testing and Performance Languages TTCN, LQN, . . . URN: Application and Research Areas 2

Overview of the Presentation «URN » D. Am yot u. Otta wa Overview of URN • Goal-oriented Requirements Language (GRL) • Use Case Maps (UCM) URN Analysis Techniques • GRL Strategies • UCM Scenarios Application and Research Areas • Transformations to Message Sequence Charts and test goals • Architectural Evaluations • Performance engineering • Business process modelling and management • Requirements management and policy compliance • Pattern formalization • Reverse engineering • Aspect-oriented requirements engineering URN: Application and Research Areas 3

User Requirements Notation (URN) • ITU-T Languages in Study Group 17 — SDL, MSC, ASN. 1, TTCN-3, e. ODL, URN, … — UML 2. 0 profiles • ITU-T Z. 150: User Requirements Notation (URN) — Focus on early stages of development with goals and scenarios «URN » D. Am yot u. Otta wa URN: Application and Research Areas 4

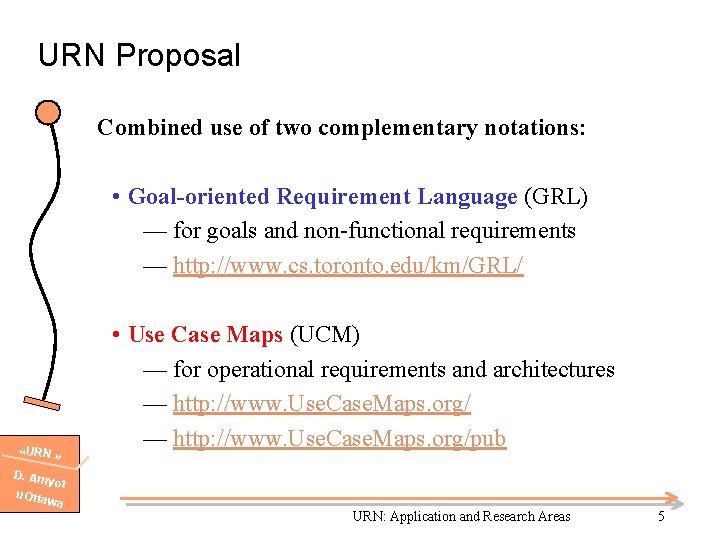

URN Proposal Combined use of two complementary notations: • Goal-oriented Requirement Language (GRL) — for goals and non-functional requirements — http: //www. cs. toronto. edu/km/GRL/ «URN » D. Am yot u. Otta wa • Use Case Maps (UCM) — for operational requirements and architectures — http: //www. Use. Case. Maps. org/pub URN: Application and Research Areas 5

GRL in a Nutshell Goal-oriented Requirement Language • graphical notation • connects requirements to business objectives • allows reasoning about (non-functional) requirements • has its roots in i* and the NFR framework GRL models the “why” aspect • objectives, alternatives, as well as decision rationales • little or no operational details Supports goal and trade-off analysis and evaluations «URN » D. Am yot u. Otta wa URN: Application and Research Areas 6

Basic GRL Notation Softgoal ? System Security Break Hurt Some- Unknown AND Decomposition Make Help Some+ Equal . Access Authorization Cost of Terminal Security of Terminal . Make Contribution Encryption Task AND Correlation (side-effect) Security of Host Authentication Identification Goal OR Belief Cardkey «URN » D. Am yot u. Otta wa Password Biometrics is no regular off-the-shelf technology URN: Application and Research Areas 7

Advanced GRL Notation • GRL graphs can be allocated to actors • Dependencies can be defined between actors, together with intermediate resources. «URN » D. Am yot u. Otta wa URN: Application and Research Areas 10

Why GRL? «URN » D. Am yot u. Otta wa • Goals are an important driver for requirements elaboration • GRL expresses and clarifies tentative, ill-defined and ambiguous requirements — Supports argumentation, negotiation, conflict detection & resolution, and decisions — Captures decision rationale and criteria (documentation!) • GRL identifies alternatives (requirements, architectures, means…) • GRL provides traceability from strategic objectives to technical requirements • GRL allows reuse of stable higher-level goals when the system evolves • Nothing quite like this in UML… URN: Application and Research Areas 11

UCMs in a Nutshell «URN » D. Am yot u. Otta wa Use Case Maps • graphical scenario notation • causal relationships between responsibilities • scenario elements may (optionally) be allocated to components UCMs model the “what” aspects • functional requirements as scenarios • integration and reusability of scenarios • guidance for architecture and detailed behaviour Performance analysis, conflict detection, transformations URN: Application and Research Areas 14

UCM Example Pool Start Point Stub AND-Fork Slot End Point Responsibility Component a) Root UCM c) Pass. Word Plug-in b) Biometrics Plug-In Timer «URN » D. Am yot u. Otta wa Bindings for Authorize: [at. Night] Biometrics {(IN 1, Bio), (OUT 1, Yes), (OUT 2, No)} [!at. Night] Pass. Word {(IN 1, PW), (OUT 1, Yes), (OUT 2, No)} OR-Fork OR-Foin URN: Application and Research Areas 15

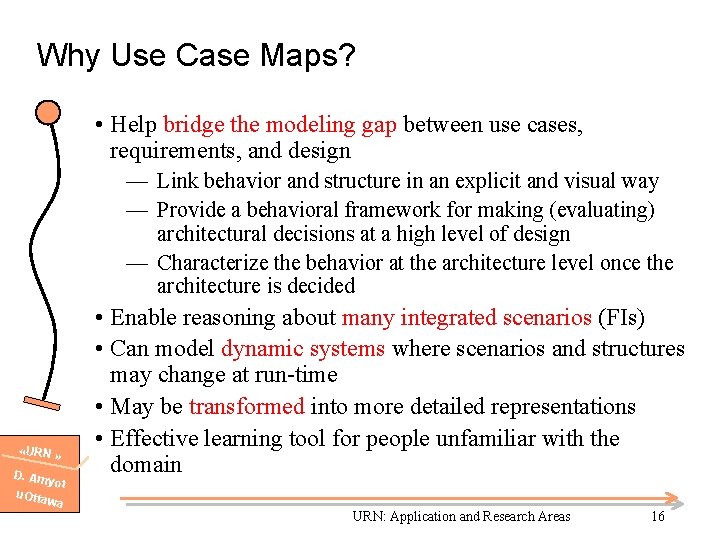

Why Use Case Maps? • Help bridge the modeling gap between use cases, requirements, and design — Link behavior and structure in an explicit and visual way — Provide a behavioral framework for making (evaluating) architectural decisions at a high level of design — Characterize the behavior at the architecture level once the architecture is decided «URN » D. Am yot u. Otta wa • Enable reasoning about many integrated scenarios (FIs) • Can model dynamic systems where scenarios and structures may change at run-time • May be transformed into more detailed representations • Effective learning tool for people unfamiliar with the domain URN: Application and Research Areas 16

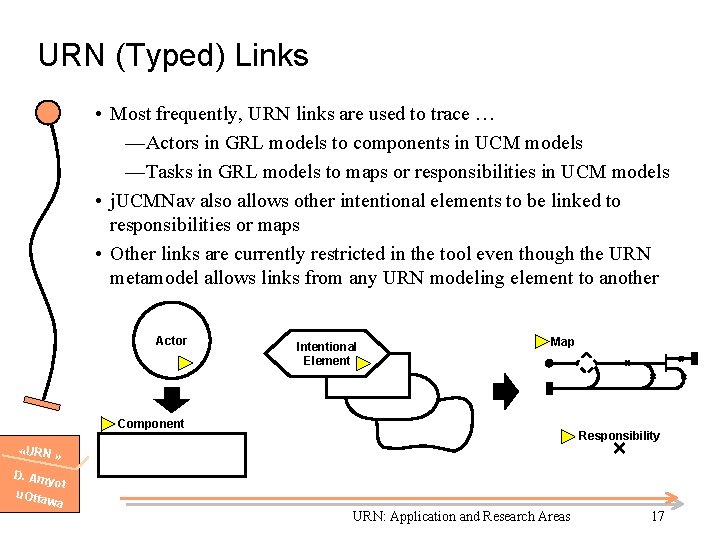

URN (Typed) Links • Most frequently, URN links are used to trace … —Actors in GRL models to components in UCM models —Tasks in GRL models to maps or responsibilities in UCM models • j. UCMNav also allows other intentional elements to be linked to responsibilities or maps • Other links are currently restricted in the tool even though the URN metamodel allows links from any URN modeling element to another Actor Intentional Element Map Component Responsibility «URN » D. Am yot u. Otta wa URN: Application and Research Areas 17

Overview of the Presentation «URN » D. Am yot u. Otta wa Overview of URN • Goal-oriented Requirements Language (GRL) • Use Case Maps (UCM) URN Analysis Techniques • GRL Strategies • UCM Scenarios Application and Research Areas • Transformations to Message Sequence Charts and test goals • Architectural Evaluations • Performance engineering • Business process modelling and management • Requirements management and policy compliance • Pattern formalization • Reverse engineering • Aspect-oriented requirements engineering URN: Application and Research Areas 18

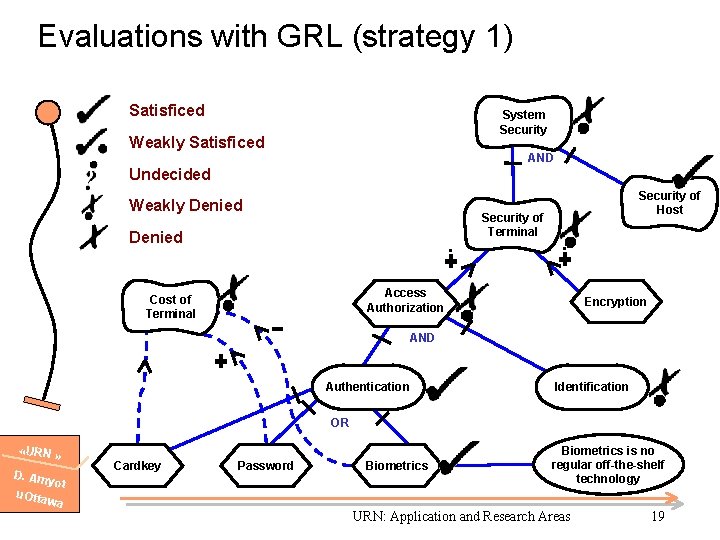

Evaluations with GRL (strategy 1) Satisficed System Security Weakly Satisficed AND Undecided Weakly Denied Security of Terminal Security of Host . Access Authorization Cost of Terminal Encryption AND Authentication Identification OR «URN » D. Am yot u. Otta wa Cardkey Password Biometrics is no regular off-the-shelf technology URN: Application and Research Areas 19

Evaluations with GRL • Evaluations of GRL graphs show the impact of qualitative decisions on high level softgoals • Propagation is usually bottom-up • Fuzzy evaluation of satisfaction level • Takes into consideration four parameters: — Degrees of satisfaction of children (satisficed, denied, …) — Composition operators (AND, OR) — Contributions and correlations (+/-, sufficient or not) — Dependencies «URN » D. Am yot u. Otta wa • More complete than simple pros/cons tables or criteria evaluation matrices • One could use numerical values and functions instead of qualitative values (see j. UCMNav tool) URN: Application and Research Areas 20

Evaluations with GRL (strategy 2) Satisficed System Security Weakly Satisficed AND Undecided Weakly Denied Security of Terminal Security of Host . Access Authorization Cost of Terminal Encryption AND Authentication Identification OR «URN » D. Am yot u. Otta wa Cardkey Password Biometrics is no regular off-the-shelf technology URN: Application and Research Areas 21

GRL Strategies «URN » D. Am yot u. Otta wa • User defined sets of initial evaluations • Propagated to the rest of the model • Numerical interpretation of satisfaction levels • Implemented using the strategies view • Visual coloured feedback • Cycles permitted • Evaluation of the impact of strategies on the operational and architectural aspects, using URN links URN: Application and Research Areas 22

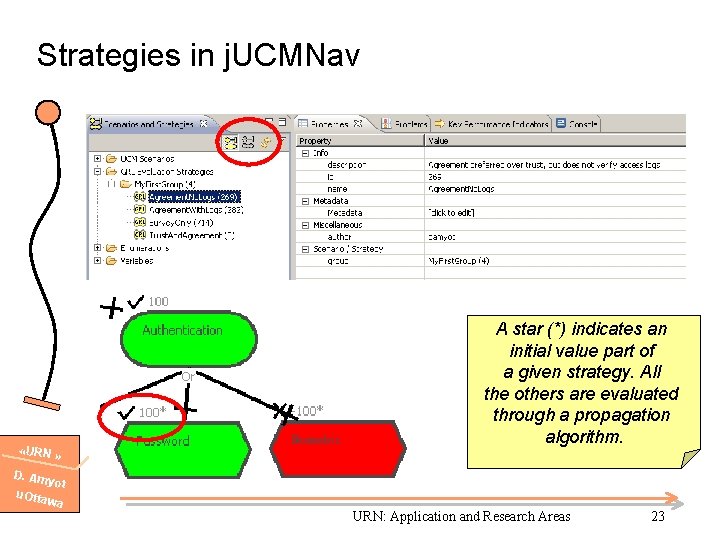

Strategies in j. UCMNav «URN » D. Am yot u. Otta wa A star (*) indicates an initial value part of a given strategy. All the others are evaluated through a propagation algorithm. URN: Application and Research Areas 23

Numerical Evaluation in j. UCMNav Evaluation between -100 and 100. E = -100 Denied -100 < E < 0 Weakly Denied E = 0 Undecided 0 < E < 100 Weakly Satisficed 100 Satisficed «URN » D. Am yot u. Otta wa URN: Application and Research Areas 24

Numerical Evaluation: Decompositions Minimum for AND, maximum for OR «URN » D. Am yot u. Otta wa And Decomposition Or Decomposition URN: Application and Research Areas 25

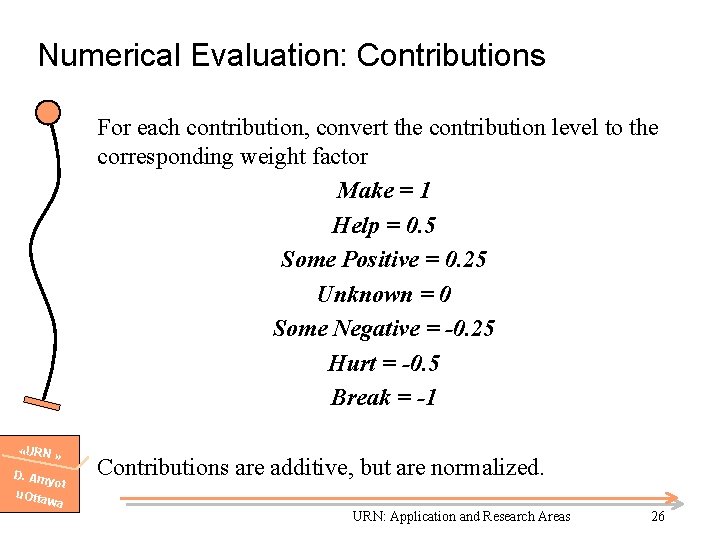

Numerical Evaluation: Contributions For each contribution, convert the contribution level to the corresponding weight factor Make = 1 Help = 0. 5 Some Positive = 0. 25 Unknown = 0 Some Negative = -0. 25 Hurt = -0. 5 Break = -1 «URN » D. Am yot u. Otta wa Contributions are additive, but are normalized. URN: Application and Research Areas 26

Numerical Evaluation: Dependencies Intentional element evaluation is set to the minimal value in the set of dependees evaluation or it current evaluation «URN » D. Am yot u. Otta wa URN: Application and Research Areas 27

Actor Evaluation • Evaluations deal with negotiations between stakeholders • Actor evaluations help analyzing and comparing the satisfaction levels of each actor based on the selected strategy • Computed from priority and criticality attributes of intentional element references bound to actors «URN » D. Am yot u. Otta wa URN: Application and Research Areas 28

Numerical Evaluation: Actor Evaluation «URN » D. Am yot u. Otta wa Priority = Low Criticality = None Priority = None Criticality = High URN: Application and Research Areas 29

UCM Scenario Definitions and Path Traversal (Highlight) «URN » D. Am yot u. Otta wa • Extraction of individual scenarios based on a traversal algorithm • Conditions attached to selection/start/end points • Initialization of global variables, and selection of start points and expected end points • Data types: Boolean, integer, enumerations • Used for validation and transformations URN: Application and Research Areas 30

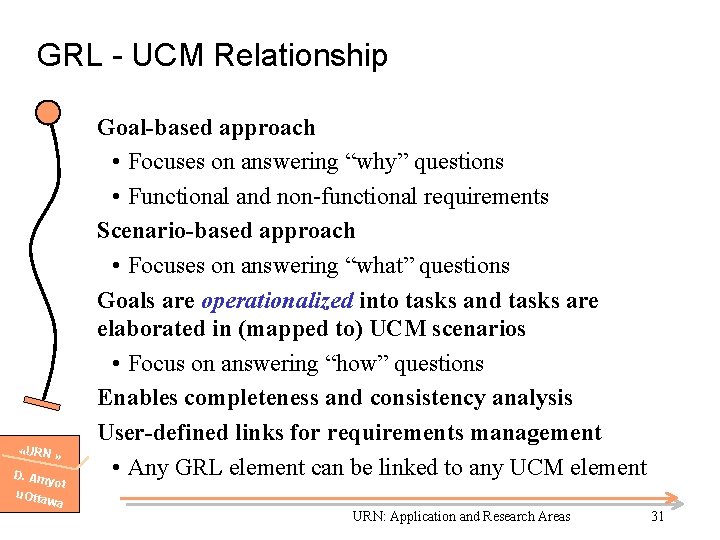

GRL - UCM Relationship «URN » D. Am yot u. Otta wa Goal-based approach • Focuses on answering “why” questions • Functional and non-functional requirements Scenario-based approach • Focuses on answering “what” questions Goals are operationalized into tasks and tasks are elaborated in (mapped to) UCM scenarios • Focus on answering “how” questions Enables completeness and consistency analysis User-defined links for requirements management • Any GRL element can be linked to any UCM element URN: Application and Research Areas 31

Modeling Puzzle — URN Structural Diagrams SDL, e. ODL, or UML class, object, component, & deployment diagrams «URN » D. Am yot u. Otta wa UCMs visually associate behavior and structure at the system level Data Informal Requirements, Textual Use Cases ? ? URN-GRL Goals, non-functional requirements, alternatives, rationales UCMs link to operationalizations and actors in GRL models URN-UCM MSC, UML Use Superimpose Case Diagram visually & system level behavior onto Activity structures Diagram of abstract components. Can replace UML use case / deployment diagrams. UCMs represent visually use cases in terms of causal responsibilities Behavioral Diagrams MSC/SDL, or UML sequence, collabor. , & statechart diagrams UCMs provide a framework for making high level and detailed design decisions Testing and Performance Languages TTCN, LQN, . . . URN: Application and Research Areas 32

Overview of the Presentation «URN » D. Am yot u. Otta wa Overview of URN • Goal-oriented Requirements Language (GRL) • Use Case Maps (UCM) URN Analysis Techniques • GRL Strategies • UCM Scenarios Application and Research Areas • Transformations to Message Sequence Charts and test goals • Architectural Evaluations • Performance engineering • Business process modelling and management • Requirements management and policy compliance • Pattern formalization • Reverse engineering • Aspect-oriented requirements engineering URN: Application and Research Areas 34

Several Known URN Application Domains • Telecommunication/telep hony services • Wireless systems • Object-oriented software • Multi-agent systems • Web applications and Web services • Railway control systems • Embedded systems • User interfaces «URN » D. Am yot u. Otta wa • Access control procedures • Network protocols • e-Business applications • Supply chain management • e-Health applications • Software product lines • Operating systems • Information retrieval systems • Vehicle communication systems • … URN: Application and Research Areas 35

«URN » D. Am yot u. Otta wa j. UCMNav supports -Scenario definition (with data types, pre/post conditions, start/end points, and scenario inclusion) -Problems View -Scenario highlight URN: Application and Research Areas 36

j. UCMNav Scenario Export Groups of scenarios can be run together Scenarios can be exported to: • UCM model where all scenarios are linearized — Stubs flattened and choices resolved (but documented with special waiting places) • UCM model where all scenarios are linearized and well-formed — From graph to “tree” (especially for AND-joins) — Some concurrency may be lost along the way • MSC model with one diagram per scenario • Can be visualized with embedded MSC viewer «URN » D. Am yot u. Otta wa URN: Application and Research Areas 37

j. UCMNav supports -MSC viewer -Reordering of instances -MSC export to images «URN » D. Am yot u. Otta wa URN: Application and Research Areas 38

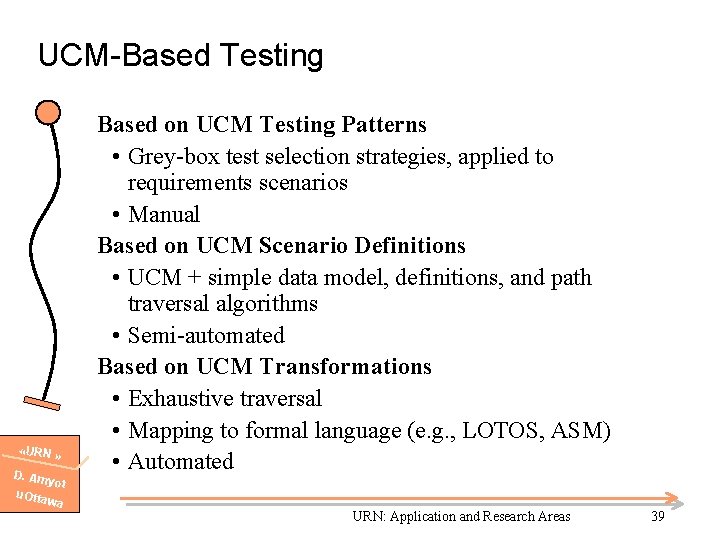

UCM-Based Testing «URN » D. Am yot u. Otta wa Based on UCM Testing Patterns • Grey-box test selection strategies, applied to requirements scenarios • Manual Based on UCM Scenario Definitions • UCM + simple data model, definitions, and path traversal algorithms • Semi-automated Based on UCM Transformations • Exhaustive traversal • Mapping to formal language (e. g. , LOTOS, ASM) • Automated URN: Application and Research Areas 39

Comparison «URN » D. Am yot u. Otta wa URN: Application and Research Areas 40

Towards Test Case Generation Communication and calls • Messages, parameters, interfaces, protocols. . . Data • Must endure that the scenario is feasible Temporal information • UCM timers currently have no quantitative time Implementation, sequencing, execution, clean-up Many other challenges! «URN » D. Am yot u. Otta wa There are however some partial results available… • Use of UCMNav, scenario definitions, and Fitnesse to generate executable test cases for a typical Web application. URN: Application and Research Areas 41

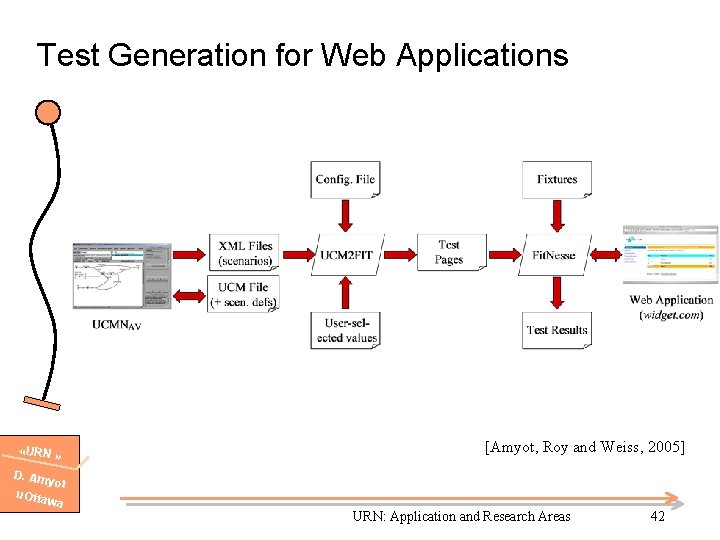

Test Generation for Web Applications «URN » D. Am yot u. Otta wa [Amyot, Roy and Weiss, 2005] URN: Application and Research Areas 42

Overview of the Presentation «URN » D. Am yot u. Otta wa Overview of URN • Goal-oriented Requirements Language (GRL) • Use Case Maps (UCM) URN Analysis Techniques • GRL Strategies • UCM Scenarios Application and Research Areas • Transformations to Message Sequence Charts and test goals • Architectural Evaluations • Performance engineering • Business process modelling and management • Requirements management and policy compliance • Pattern formalization • Reverse engineering • Aspect-oriented requirements engineering URN: Application and Research Areas 43

Three Alternative Architectures (a) Service in Mob. SC «URN » D. Am yot (b) Service in Mob. SC, SDF in SN u. Otta wa (c) Service and SDF in SCP URN: Application and Research Areas 45

Two Resulting MSCs Service in Mob. SC (option a) «URN » D. Am yot u. Otta wa Service and SDF in SCP (option c) URN: Application and Research Areas 46

Quantitative Performance Engineering with UCMs Workload Characteristics • Poisson, periodic… • Population size • Open/closed Resource Characteristics • Passive/active, external operations • Disks, processors, … • Operation time • Multiplicity Tax. Payer Access Security E_Accountant Check. Bio Continue Ready Rejected Components • Allocated responsibilities • Resource assignment «URN » D. Am yot u. Otta wa OR Forks and Dynamic Stubs • Probability Responsibilities • Host demand • External op. demands • Multiplicity Automated translation to Core Scenario Model (CSM) for analytical evaluations and simulations. URN: Application and Research Areas 47

Resource Management «URN » D. Am yot u. Otta wa URN: Application and Research Areas 48

Demand Workload Management «URN » D. Am yot u. Otta wa URN: Application and Research Areas 49

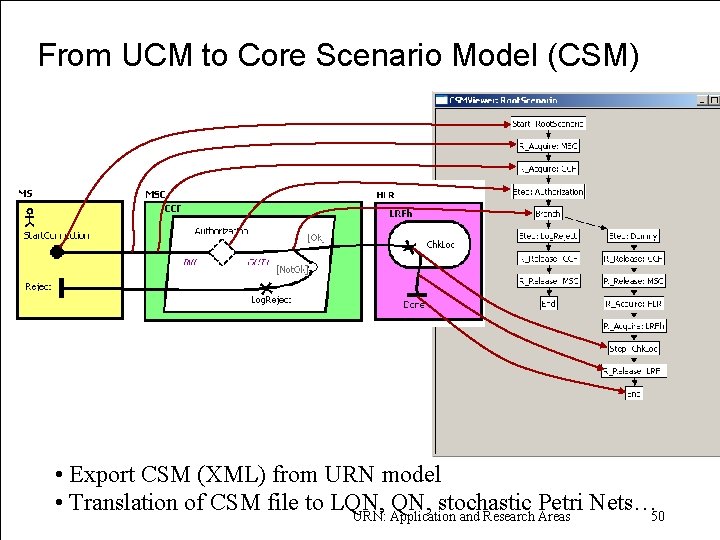

From UCM to Core Scenario Model (CSM) «URN » • Export CSM (XML) from URN model • Translation of CSM file to LQN, stochastic Petri Nets… 50 URN: Application and Research Areas D. Am yot u. Otta wa

Typical Performance Analysis Results… • Ex: Via conversion to Layered Queueing Networks • General statistics: elapsed time, system time… • Measured quantities: service demands, number of blocking and non-blocking calls, call delays, synchronization delays. • Service times: for every entry and activity, with confidence intervals and variances (where relevant) • Throughputs and utilizations for every entry and activity, with confidence intervals • Utilizations and waiting times for devices (by entry) «URN » D. Am yot u. Otta wa URN: Application and Research Areas 52

Overview of the Presentation «URN » D. Am yot u. Otta wa Overview of URN • Goal-oriented Requirements Language (GRL) • Use Case Maps (UCM) URN Analysis Techniques • GRL Strategies • UCM Scenarios Application and Research Areas • Transformations to Message Sequence Charts and test goals • Architectural Evaluations • Performance engineering • Business process modelling and management • Requirements management and policy compliance • Pattern formalization • Reverse engineering • Aspect-oriented requirements engineering URN: Application and Research Areas 53

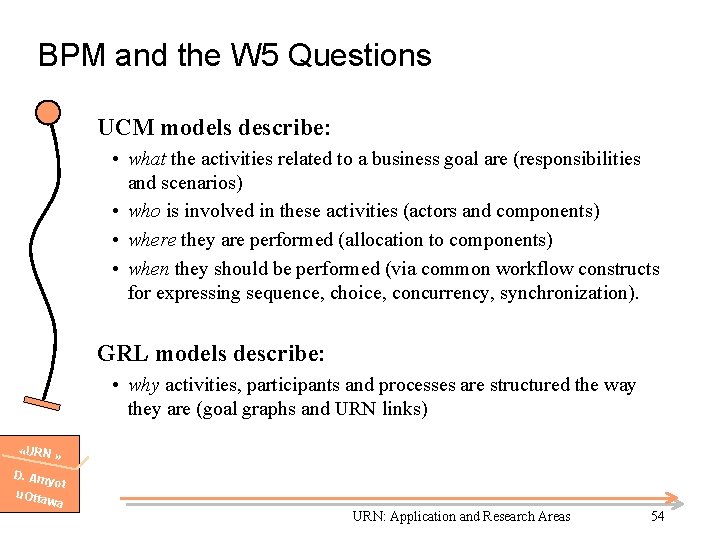

BPM and the W 5 Questions UCM models describe: • what the activities related to a business goal are (responsibilities and scenarios) • who is involved in these activities (actors and components) • where they are performed (allocation to components) • when they should be performed (via common workflow constructs for expressing sequence, choice, concurrency, synchronization). GRL models describe: • why activities, participants and processes are structured the way they are (goal graphs and URN links) «URN » D. Am yot u. Otta wa URN: Application and Research Areas 54

Simple Supply Chain Management BPM Agent: actor Team: role the actor plays «URN » D. Am yot u. Otta wa URN: Application and Research Areas 55

Alternative Process Architectures (1/2) Consumer Retailer Warehouse Order. Processing: R Manufacturer Inventory. Management: W Inventory. Management Production: M Production Warehouse: M a) CURRENT: Sell to stock via warehouse and retailer (R) Consumer Warehouse Manufacturer Inventory. Management: W Production: M Warehouse: M Order. Processing: W «URN » D. Am yot u. Otta wa b) Sell to stock via warehouse (W) URN: Application and Research Areas 56

Alternative Process Architectures (2/2) Consumer Manufacturer Warehouse Order. Processing: M Inventory. Management: W Production: M Warehouse: M c) Sell direct to consumer with external warehouse (MW) Consumer Manufacturer Order. Processing: M Inventory. Management: M Warehouse: M Production: M «URN » D. Am yot u. Otta wa d) Sell direct to consumer with internal warehouse (M) URN: Application and Research Areas 57

When to Evolve our Process Architecture? Low Risk «URN » D. Am yot u. Otta wa URN: Application and Research Areas 58

UCM Maps for Business Process (M) «URN » D. Am yot u. Otta wa URN: Application and Research Areas 59

Business Process Analysis and Monitoring • How can we model and monitor business processes and determine how well they meet their business goals and performance requirements? • Can monitoring information be used to better align business processes and goals? ? Key Performance Indicator (KPI) Model «URN » D. Am yot u. Otta wa URN: Application and Research Areas 60

BP Analysis and Monitoring (e. g. with KPI, using Cognos 8) «URN » D. Am yot u. Otta wa URN: Application and Research Areas 61

GRL with KPI Extensions for BAM «URN » D. Am yot u. Otta wa URN: Application and Research Areas 62

KPI: Fed from Outside & Impact on GRL «URN » D. Am yot u. Otta wa URN: Application and Research Areas 63

URN Model Export to DOORS (DXL Library) Enables - Requirements management - Traceability to/from other external requirements or models - Impact analysis, etc. «URN » D. Am yot u. Otta wa URN: Application and Research Areas 64

Autolinking URN Models • Internal GRL and UCM links created automatically • Manual links between UCM model and higher/lower level requirements • Link auto-completion uses some manual links and internal links to infer and generate other links automatically «URN » D. Am yot u. Otta wa URN: Application and Research Areas 65

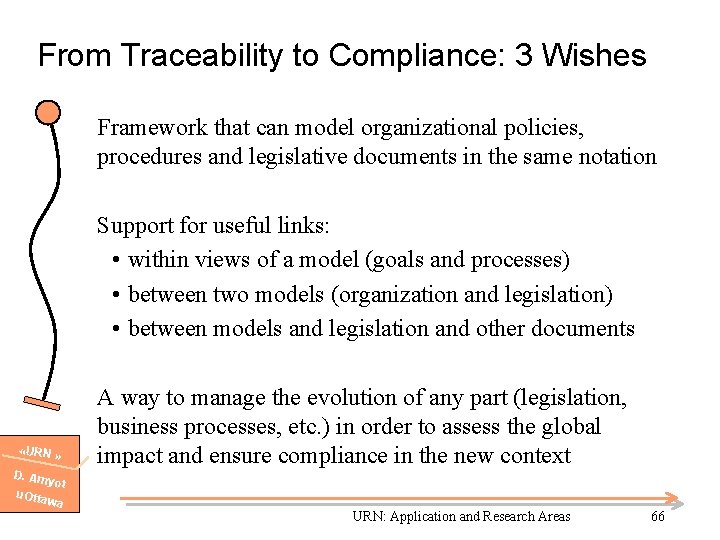

From Traceability to Compliance: 3 Wishes Framework that can model organizational policies, procedures and legislative documents in the same notation Support for useful links: • within views of a model (goals and processes) • between two models (organization and legislation) • between models and legislation and other documents «URN » D. Am yot u. Otta wa A way to manage the evolution of any part (legislation, business processes, etc. ) in order to assess the global impact and ensure compliance in the new context URN: Application and Research Areas 66

Compliance Management Framework • Provides a set of links to connect the policy and procedure documents of an organization to legislation documents • Other links/models provide little return on investment «URN » D. Am yot u. Otta wa URN: Application and Research Areas 67

Framework Metamodel (DOORS View) Organization Metamodel Law Metamodel «URN » D. Am yot u. Otta wa URN: Application and Research Areas 68

Case Study – PHIPA Compliance at Ontario Hospital HIC Policy Document - All requests for data from data warehouse will be evaluated based on technical feasibility, data availability, resource availability and REB approval for research. -Policy 2… Protect Privacy and Confidentiality of Hospital Data Ensure Accountability of Data User Check Request Form Get to An Agreement with Data User Privacy Officer review. Request get. To. An. Agreement X X amend. Documents [New. Request] X [Give. Up] sp Hospital re And HIC Ask for Compliance Agreement Ask for REB Approval Check Research Plan And re request. For. PHI Accept s p resp Check Users Safeguards GRL Model of PHIPA Limit Disclosure of Data ce res Researcher D. Am Reject yot u. Otta wa tra PHIPA Document Protect Confidentiality Prevent Unauthorized Disclosure sp Check Ethical Issues Check with Privacy and Confidentiality Legislations «URN » Satisfy Privacy Regulations DW Administrator Prevent Unauthorized Use REB and Disclosure UCM Model of Hospital complies source GRL Model of Hospital PHIPA Document -HIC: Person or organization who has custody of PHI. - A HIC may disclose PHI to a researcher if he/she, (a) submits: (i) an application, (ii) a research plan, (iii) a copy of REB approval (b) enters into the agreement … source Hospital Document get. Rejection X REB Committee Check Adequate Safeguards Check Ethical Issues V Discrepancies could be detected during modelling… URN: Application and Research Areas 69

Overview of the Presentation «URN » D. Am yot u. Otta wa Overview of URN • Goal-oriented Requirements Language (GRL) • Use Case Maps (UCM) URN Analysis Techniques • GRL Strategies • UCM Scenarios Application and Research Areas • Transformations to Message Sequence Charts and test goals • Architectural Evaluations • Performance engineering • Business process modelling and management • Requirements management and policy compliance • Pattern formalization • Reverse engineering • Aspect-oriented requirements engineering URN: Application and Research Areas 70

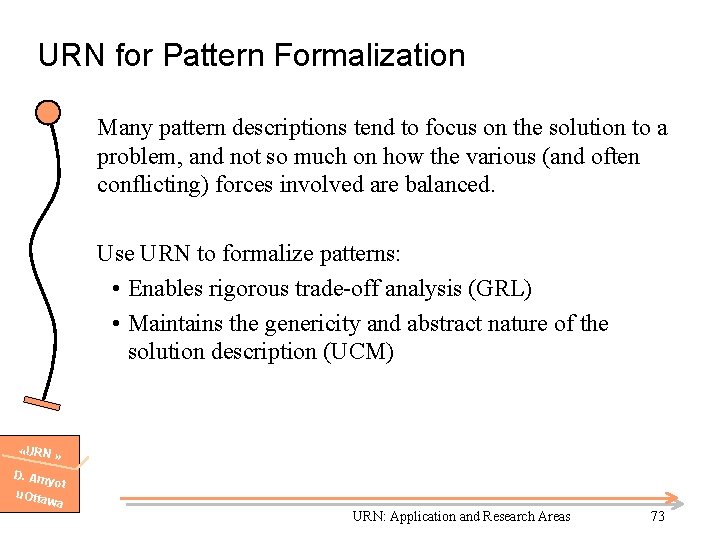

URN for Pattern Formalization Many pattern descriptions tend to focus on the solution to a problem, and not so much on how the various (and often conflicting) forces involved are balanced. Use URN to formalize patterns: • Enables rigorous trade-off analysis (GRL) • Maintains the genericity and abstract nature of the solution description (UCM) «URN » D. Am yot u. Otta wa URN: Application and Research Areas 73

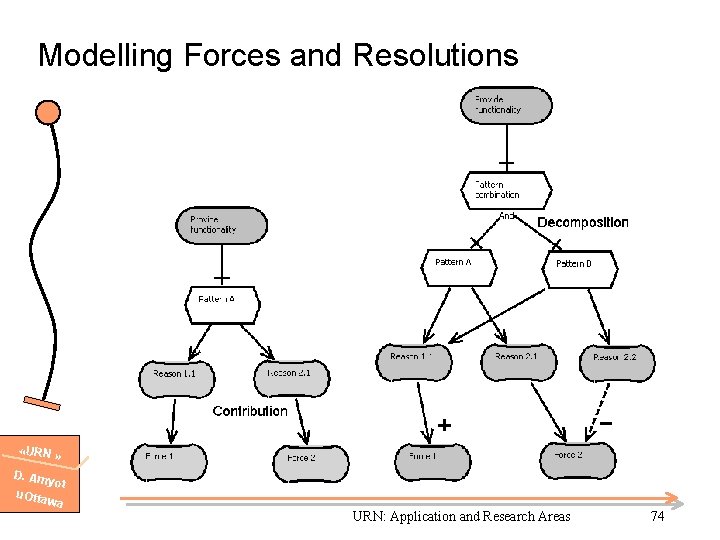

Modelling Forces and Resolutions «URN » D. Am yot u. Otta wa URN: Application and Research Areas 74

Considering Alternative Combinations «URN » D. Am yot u. Otta wa [Mussbacher, Amyot and Weiss, 2007] URN: Application and Research Areas 75

Reverse-Engineering UCM Models from Code Instrument and execute Execution traces • But they are usually huge and impossible to understand Filter out “utilities” Abstraction — Sometimes millions of events! UCM model generation UCM model D. Am yot u. Otta wa OK? • Need abstraction and visualisation • UCMs provide and abstract view of scenarios Validation «URN » • Execution traces can help us understand functionalities and other dynamic aspects in an existing program [no] [A. Hamou-Lhadj et al. , 2005] [yes] URN: Application and Research Areas 76

Correspondence of UCM Elements (Example) Trace element UCM element Package Component (Agent), shown as a rectangle with thick border. Class Component (Team), shown as a rectangle with narrow border. Object Component (Object), shown as a rounded-corner rectangle. Thread Component (Process), shown as a parallelogram. Beginning / End of trace Start point (circle) / End point (bar) (also used as connectors for linking sub-scenarios to the parent stub) Instruction Responsibility (shown as a X on a path) Block of 3 or more instructions in the same class/object Stub (diamond) with the name of the first instruction that is not a constructor. This stub contains a plug-in (another sub-map) showing the sub-sequence with one responsibility per instruction. Repeated instruction Responsibility with repetition count (number between curly brackets) Repeated sequence Loop (with loop count between curly brackets) Symbol … …IN 1 …{2} … … OUT 1 … {2} «URN » Condition D. Am yot u. Otta wa Condition (between square brackets) [cond] {2} URN: Application and Research Areas 77

Example of Trace Viewed as UCM (TConfig) Start End «URN » D. Am yot u. Otta wa URN: Application and Research Areas 78

Background on Aspects: The Problem “Structurally, the units of interest in the requirements domain are fundamentally different from the units of interest in object-oriented software. Requirements units of interest generally are not, and cannot readily be, encapsulated in the software. ” [Cl. Ba 05] Not limited to only OO Class. A Requirement Unit 1 (R 1) “Scattering: design elements to support R 1 in many places of the OO design” Requirement Unit 2 (R 2) R 1 elements Class. B Class. C Class. G R 1 elements Class. F “Tangling: single OO design unit has elements for many requirements units” Requirement Unit 3 (R 3) … Requirement Unit. N (RN) «URN » Class. D Class. E R 1 elements R 2 elements R 3 elements RN elements D. Am yot u. Otta Clarke, w S. aand Baniassad, E. : Aspect-Oriented Analysis and Design: Theme Approach. Addison-Wesley, 2005, www. thethemeapproach. com URN: Application and Research Areas 79

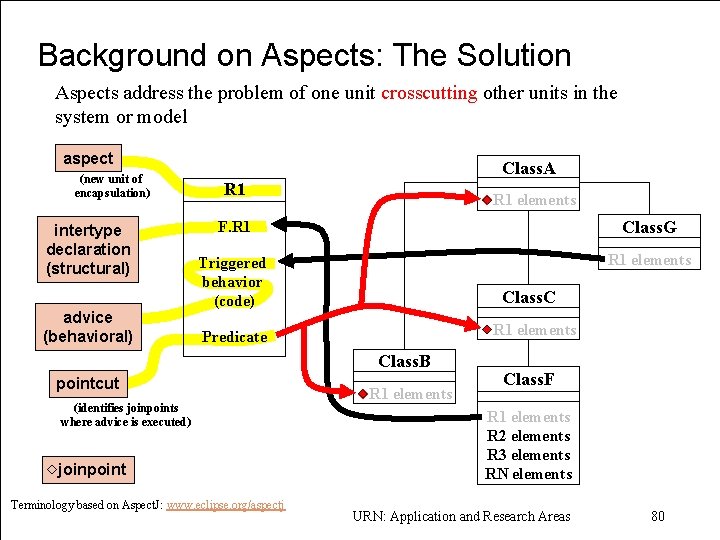

Background on Aspects: The Solution Aspects address the problem of one unit crosscutting other units in the system or model aspect (new unit of encapsulation) intertype declaration (structural) advice (behavioral) Class. A R 1 elements F. R 1 Class. G Triggered behavior (code) R 1 elements Class. C R 1 elements Predicate Class. B pointcut (identifies joinpoints where advice is executed) «URN » D. Am joinpoint yot u. Otta wa based on Aspect. J: www. eclipse. org/aspectj Terminology R 1 elements Class. F R 1 elements R 2 elements R 3 elements RN elements URN: Application and Research Areas 80

Aspect-oriented URN (Ao. URN) «URN » D. Am yot u. Otta wa • By Ph. D. student Gunter Mussbacher • URN extended to support aspects-oriented modelling • Demonstrated that UCM (with their dynamic stubs) can be a more expressive concern composition language for requirements than most AO languages • Same language (UCM) used for base models, advices, and pointcuts • URN metamodel additions (very few), composition algorithm, and examples are available • Extended to support Ao. GRL • Metrics defined to measure effectiveness of Ao. URN: Application and Research Areas 81

Ao. UCM: Advice and Pointcut Maps Base Model A Start. Point End. Point R 0 B End. Point R 1 Advice Map C Pointcut start P Advice. before [success] Advice. after_success [fail] Advice. after_fail end. Fail Pointcut Map «URN » D. Am yot u. Otta wa end. Success * • An aspect is a group of UCMs (some may be advice maps) • An advice map visually describes the advice of an aspect • An advice map contains one (zero) or more pointcut stubs (other than that it is a standard UCM) • A pointcut stub contains one (zero) or more pointcut maps (other than that it is a standard stub) • A pointcut map visually describes a pointcut expression (other than that it is a standard UCM) • A pointcut map is matched against the base model in order to identify the joinpoints that are affected by the aspect URN: Application and Research Areas 82

Composition of Ao. UCM with Aspect Stubs Base Model Composed System A A Start. Point End. Point Start. Point R 0 Aspect A A R 0 B End. Point Aspect R 1 End. Point A R 1 Advice Map C C Pointcut start P Advice. before [success] Advice. after_success [fail] e 1 start s 3 Advice. before end. Success s 2 Advice. after_success Advice. after_fail end. Fail Pointcut Map «URN » D. Am yot u. Otta wa end. Success * Composition is achieved by inserting aspect stubs at the joinpoints in the base model identified by the mapped pointcut expression URN: Application and Research Areas 83

Prototype Support for Concerns «URN » D. Am yot u. Otta wa URN: Application and Research Areas 84

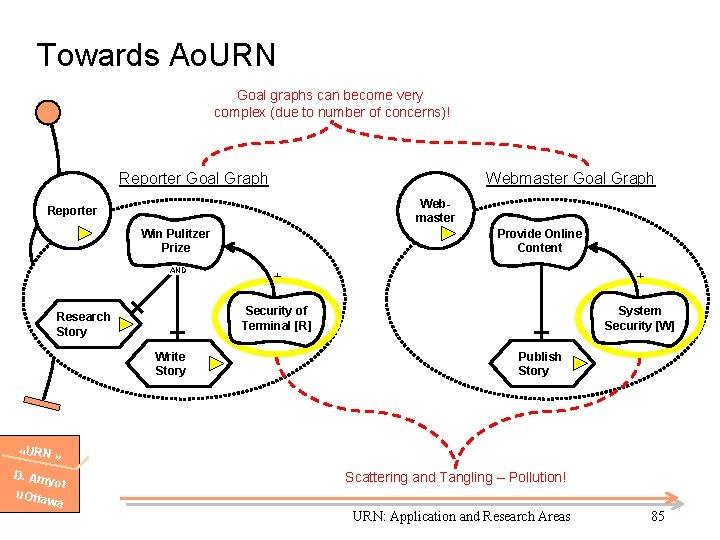

Towards Ao. URN Goal graphs can become very complex (due to number of concerns)! Reporter Goal Graph Webmaster Reporter Win Pulitzer Prize AND Research Story Write Story Provide Online Content + + Security of Terminal [R] System Security [W] Publish Story «URN » D. Am yot u. Otta wa Scattering and Tangling – Pollution! URN: Application and Research Areas 85

Example: Ao. GRL Webmaster Goal Graph Reporter Goal Graph Webmaster Reporter Win Pulitzer Prize Provide Online Content AND Write Story Research Story Reporter Security Aspect: Pointcut Graph 1 Win Pulitzer Prize «URN » D. Am yot u. Otta wa + 100 * Fingerprint Publish Story Security of Terminal 100 * Encryption Priority: medium Webmaster Security Aspect: Pointcut Graph 2 Provide Online Content + 100 * Cardkey System Security 100 * Priority: high Encryption URN: Application and Research Areas 86

Example: Ao. GRL Security Aspect: Advice Graph System Security +. + Security of Host Security of Terminal Cost of Terminal . . _ + + Access Authorization + Authentication AND OR Encryption 100 * Identification Cardkey Password Fingerprint «URN » D. Am yot u. Otta wa URN: Application and Research Areas 87

Summary «URN » D. Am yot u. Otta wa URN • Allows engineers to specify or discover requirements for proposed and evolving systems, and review such requirements for correctness and completeness. • Combines goals and scenarios • Helps bridging the gap between informal and formal concepts, and between requirements models and design models • Big benefits for little modeling investment, even when used informally GRL • For incomplete, tentative, (non-functional) requirements • Capture goals, objectives, alternatives and rationales UCM • For operational requirements and architectures • Enables analysis and transformations • Architectural alternatives and dynamic systems URN: Application and Research Areas 88

Outlook Still many aspects under development • In j. UCMNav — — • • • Support for improved workflow semantics for UCM Transformations to UML, test cases Aspect-oriented Use Case Maps Report generation URN-based aspect-oriented modeling Link definition and exploitation between GRL and UCM Formal semantics of URN models (LOTOS, ASM, SDL, …) Integration with UML (profiles and tools) Improved round-trip requirements and performance engineering Many more topics! «URN » D. Am yot u. Otta wa URN: Application and Research Areas 89

For More Information Virtual Library • http: //www. Use. Case. Maps. org/pub/ «URN » D. Am yot u. Otta wa Introduction to URN • Weiss, M. and Amyot, D. , Business Process Modeling with URN. International Journal of E-Business Research, 1(3), 63– 90, July-September 2005. • Amyot, D. , Introduction to the User Requirements Notation: Learning by Example. Computer Networks, Volume 42, Issue 3, pp. 285 -301, June 2003. JUCMNav • Roy, J. -F. Kealey, and Amyot, D. (2006) Towards Integrated Tool Support for the User Requirements Notation. Fifth Workshop on System Analysis and Modelling (SAM’ 06), Kaiserslautern, Germany, May. Test • Amyot, D. , Roy, J. -F. , and Weiss. M. , UCM-Driven Testing of Web Applications. 12 th SDL Forum (SDL'05), Grimstad, Norway, June 2005. LNCS 3530, Springer, 247 -264. Reverse-engineering • Hamou-Lhadj, A. , Braun, E. , Amyot, D. , and Lethbridge, T. , Recovering Behavioral Design Models from Execution Traces. CSMR’ 05, Manchester, UK, March 2005. IEEE Computer Society, 112 -121. Scenario generation • Amyot, D. , Cho, D. Y. , He, X. , and He, Y. , Generating Scenarios from Use Case Map Specifications. QSIC’ 03, Dallas, November 2003. IEEE Computer Society, 108 -115. UCMNav/j. UCMNav and DOORS • Jiang, B. Combining Graphical Scenarios with a Requirements Management System. MSc. thesis, u. Ottawa, June 2005 Performance analysis • Petriu, D. B. , Amyot, D. , and Woodside, M. , Scenario-Based Performance Engineering with UCMNav. 11 th SDL Forum (SDL'03), Stuttgart, Germany, July 2003. LNCS 2708, 18 -35. URN and UML • Amyot, D. and Mussbacher, G. , On the Extension of UML with Use Case Maps Concepts. <<UML>> 2000. LNCS 1939, 16 -31, 2000. URN: Application and Research Areas 90

Aspect-oriented URN • G. Mussbacher, D. Amyot, and M. Weiss (2007) Visualizing Early Aspects with Use Case Maps, LNCS Journal on Transactions on Aspect-Oriented Software Development, to appear • Mussbacher, G. , Amyot, D. , Whittle, J. , and Weiss, M. (2007) Flexible and Expressive Composition Rules with Aspectoriented Use Case Maps (Ao. UCM). 10 th International Workshop On Early Aspects, Vancouver, Canada, March. • G. Mussbacher, D. Amyot, and M. Weiss (2007) Aspect-Oriented User Requirements Notation (Ao. URN): Modeling Goals and Scenarios of Crosscutting Concerns in a Unified Way. Mo. DELS (submitted) URN, Compliance and DOORS • Ghanavati, S. , Amyot, D. , and Peyton, L. (2007) Towards a Framework for Tracking Legal Compliance in Healthcare. 19 th Int. Conf. on Advanced Information Systems Engineering (CAi. SE'07), Trondheim, Norway, June. • Ghanavati, S. , Amyot, D. , and Peyton, L. (2007) A Requirements Management Framework for Privacy Compliance. 10 th Workshop on Requirements Engineering (WER’ 07), Toronto, Canada, May. • Peyton, L. , Ghanavati, S. , and Amyot, D. (2007) Designing for Privacy Compliance and Performance Management in Health Care. Design Journal (submitted) URN, Patterns, and Business Process Modelling • Mussbacher, G. (2007) Evolving Use Case Maps as a Scenario and Workflow Description Language, 10 th Workshop on Requirements Engineering (WER’ 07), Toronto, Canada, May. • Pourshahid, A. , Chen, P. , Amyot, D. , Forster, A. J. , and Weiss, M. (2007) Business Process Monitoring and Alignment: An Approach Based on the User Requirements Notation and Business Intelligence Tool. 10 th Workshop on Requirements Engineering (WER’ 07), Toronto, Canada, May. • Roy, J-F (2007) Requirement Engineering with URN: Integrating Goals and Scenarios, M. Sc. thesis, u. Ottawa, March • Weiss, M. and Amyot, D. (2006) Chapter VIII: Business Process Modeling with the User Requirements Notation. I. Lee (Ed. ), Advances in E-Business Research: E-Business Innovation and Process Management, Vol. 1, IGI Global, December, 162 -193. • Mussbacher, G. , Amyot, D. , and Weiss, M. (2007) Formalizing Patterns with the User Requirements Notation. T. Taibi (Ed. ), Design Pattern Formalization Techniques, IGI Global, March, 304 -325. • Weiss, M. and Amyot, D. , Business Model Design and Evolution. Management of Technology, World Scientific (submitted) «URN » D. Am yot u. Otta wa URN: Application and Research Areas 91

Softgoal Actor Satisficed Weakly Satisficed Belief Undecided Actor Boundary AND Weakly Denied Goal Denied Task Conflict Resource OR (a) GRL Elements (b) GRL Satisfaction Levels Contribution Correlation (c) Link Composition ? Break Hurt Some- Unknown Means-end Dependency Decomposition «URN » D. Am yot u. Otta wa (d) GRL Links Make Help Some+ Equal (e) GRL Contributions Types URN: Application and Research Areas 92

Start Point Path OR-Fork & Guarding [C 1] Conditions End Point … … Responsibility … Direction Arrow … … Timestamp Point … Failure Point … Shared Responsibility [C 3] AND-Fork … (a) UCM Path Elements «URN » D. Am yot u. Otta wa Continuation Trigger Path (asynchronous) Waiting Path … … OR-Join … … … AND-Join … (b) UCM Forks and Joins (c) UCM (Generic) Component Waiting Path Waiting Place … … [C 2] … … Timeout Path Timer Continuation Path … IN 1 OUT 1 S{IN 1} … Static Stub & Segments ID … Dynamic Stub Plug-in Map E{OUT 1} (d) UCM Stubs and Plug-ins Timer Release (synchronous) (e) UCM Waiting Places and Timers URN: Application and Research Areas 93
