User Interface Design Overview The Developers Responsibilities Goals

User Interface Design

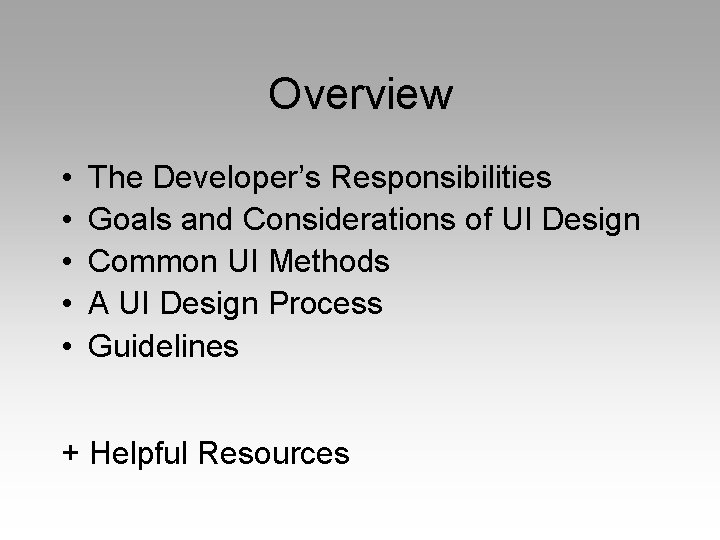

Overview • • • The Developer’s Responsibilities Goals and Considerations of UI Design Common UI Methods A UI Design Process Guidelines + Helpful Resources

The Developer’s Responsibilities

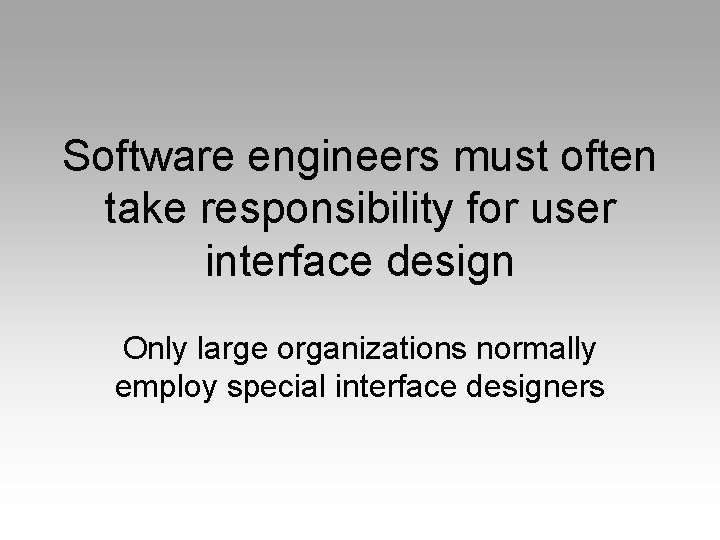

Software engineers must often take responsibility for user interface design Only large organizations normally employ special interface designers

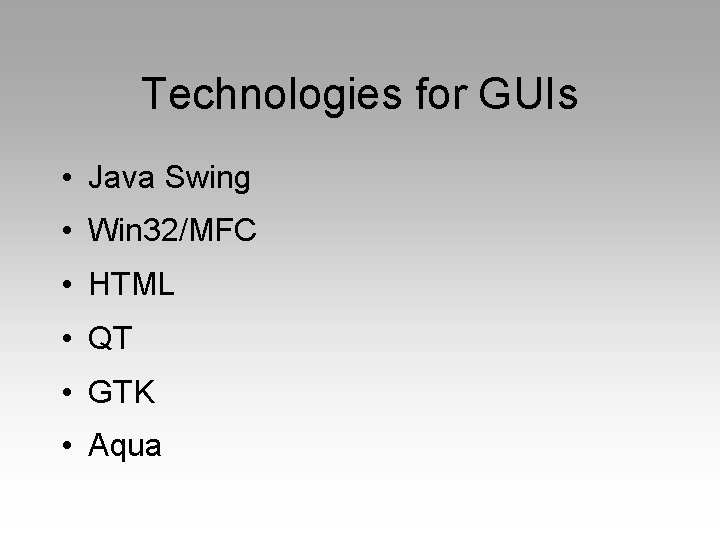

Technologies for GUIs • Java Swing • Win 32/MFC • HTML • QT • GTK • Aqua

Programmers may be proficient using these technologies However, the UIs they develop are often unattractive and inappropriate for their target users

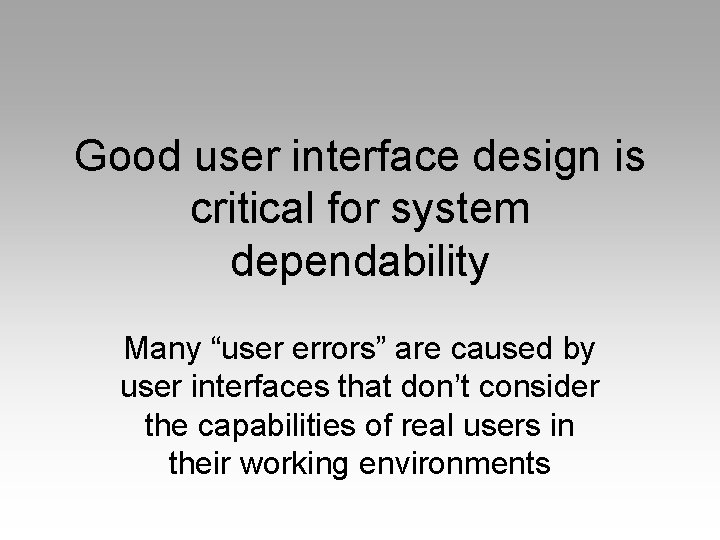

Good user interface design is critical for system dependability Many “user errors” are caused by user interfaces that don’t consider the capabilities of real users in their working environments

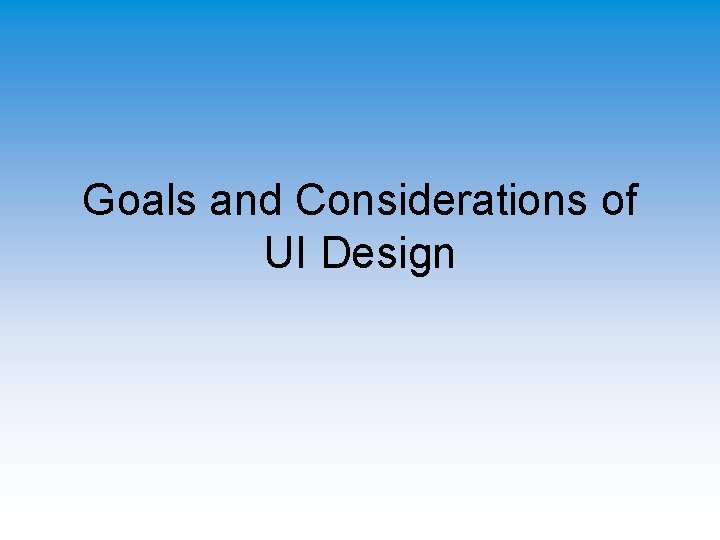

Goals and Considerations of UI Design

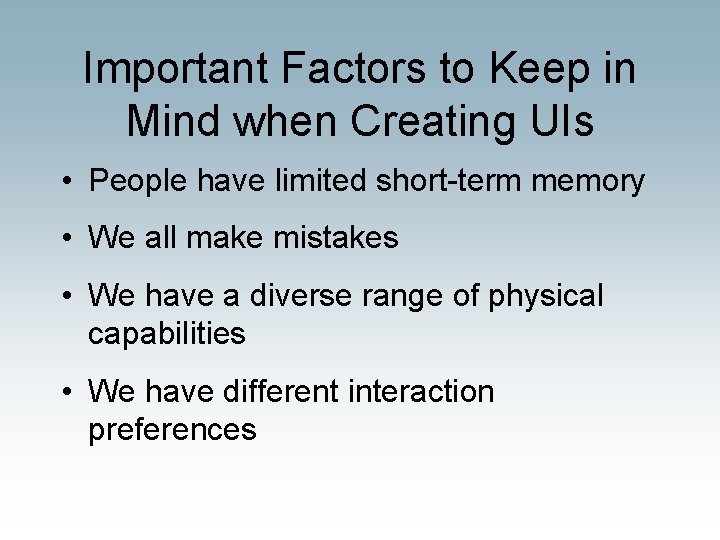

Important Factors to Keep in Mind when Creating UIs • People have limited short-term memory • We all make mistakes • We have a diverse range of physical capabilities • We have different interaction preferences

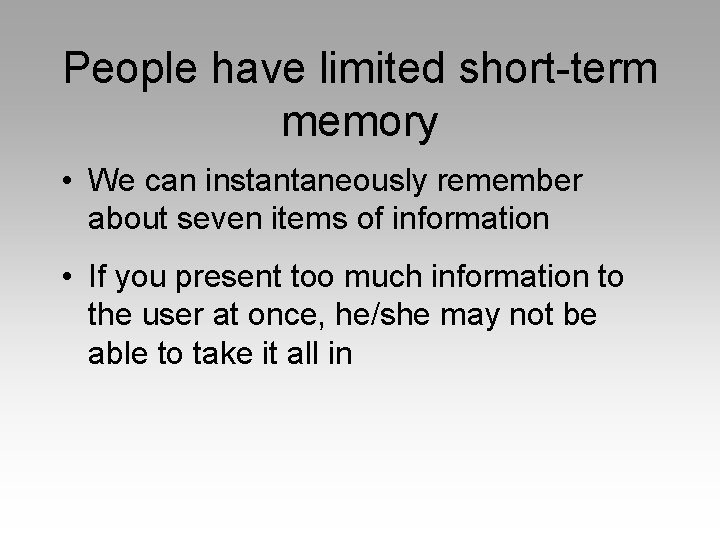

People have limited short-term memory • We can instantaneously remember about seven items of information • If you present too much information to the user at once, he/she may not be able to take it all in

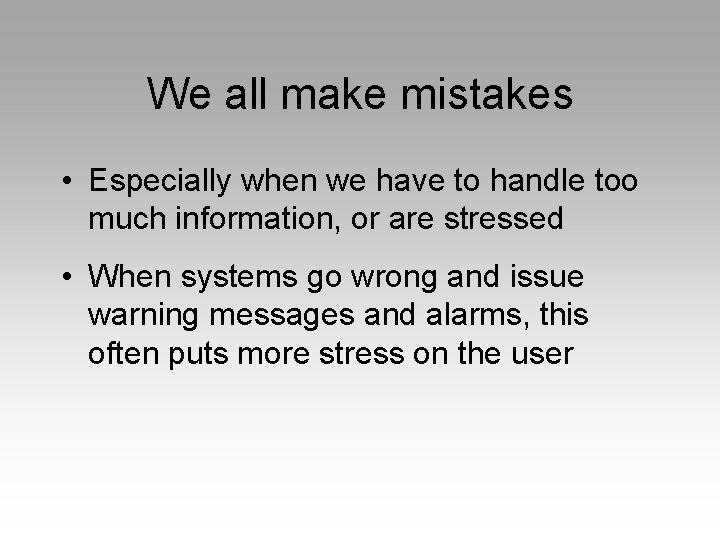

We all make mistakes • Especially when we have to handle too much information, or are stressed • When systems go wrong and issue warning messages and alarms, this often puts more stress on the user

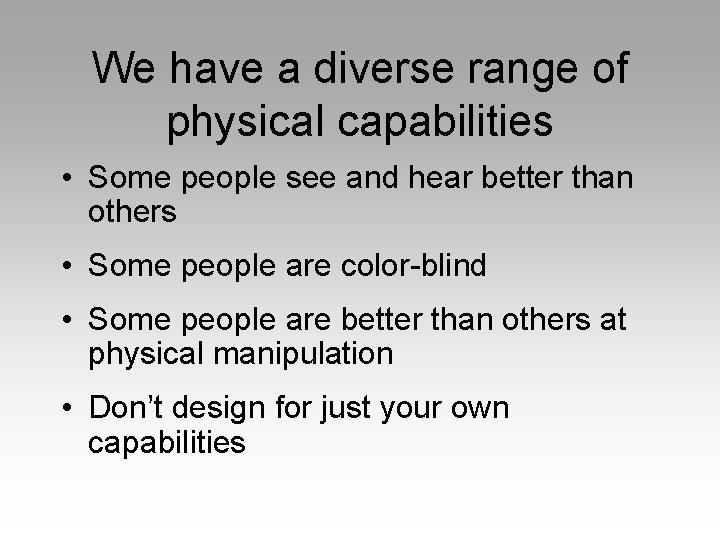

We have a diverse range of physical capabilities • Some people see and hear better than others • Some people are color-blind • Some people are better than others at physical manipulation • Don’t design for just your own capabilities

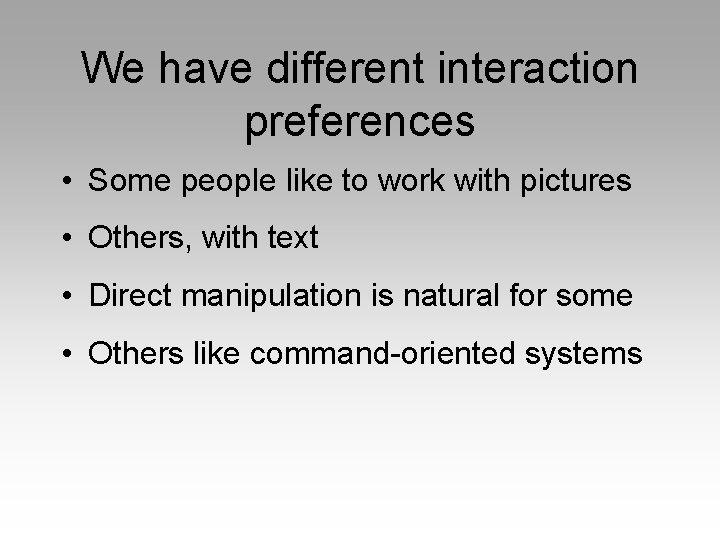

We have different interaction preferences • Some people like to work with pictures • Others, with text • Direct manipulation is natural for some • Others like command-oriented systems

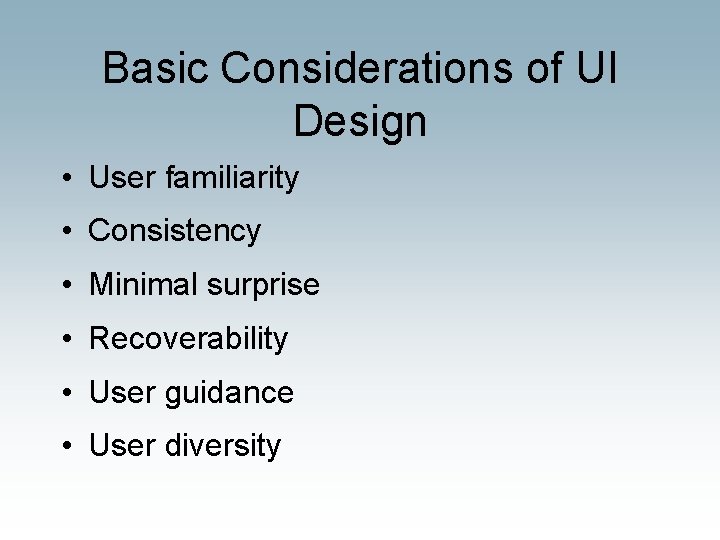

Basic Considerations of UI Design • User familiarity • Consistency • Minimal surprise • Recoverability • User guidance • User diversity

User familiarity • The interface should use terms and concepts drawn from the experience of the people who will make the most use of the system

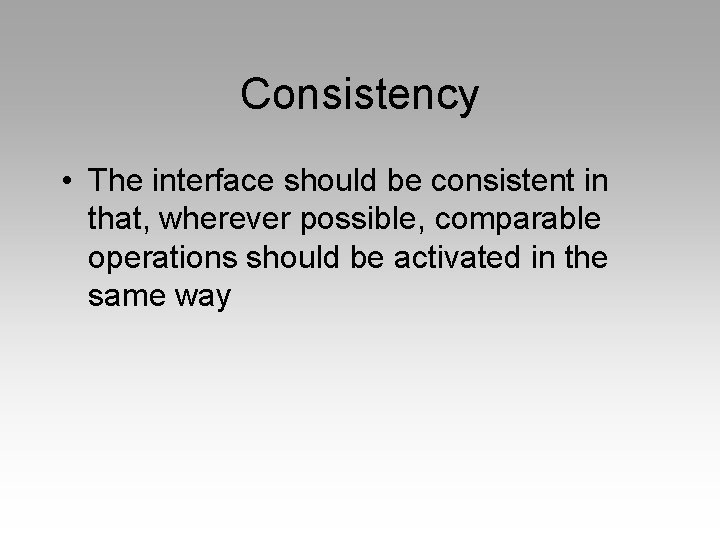

Consistency • The interface should be consistent in that, wherever possible, comparable operations should be activated in the same way

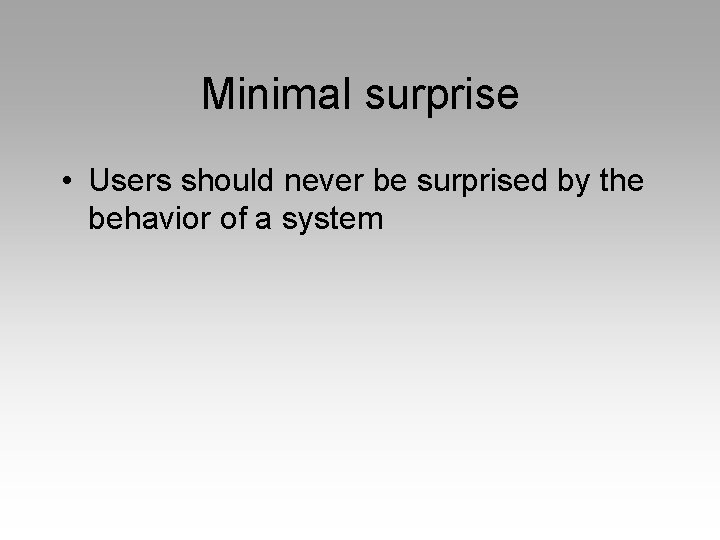

Minimal surprise • Users should never be surprised by the behavior of a system

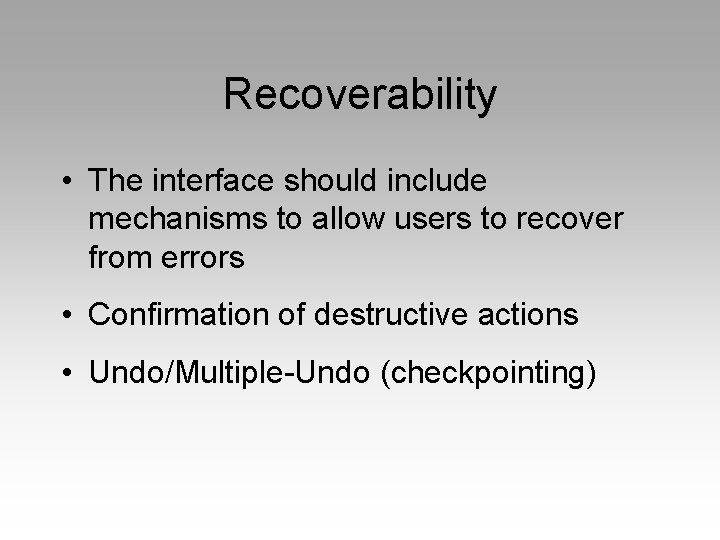

Recoverability • The interface should include mechanisms to allow users to recover from errors • Confirmation of destructive actions • Undo/Multiple-Undo (checkpointing)

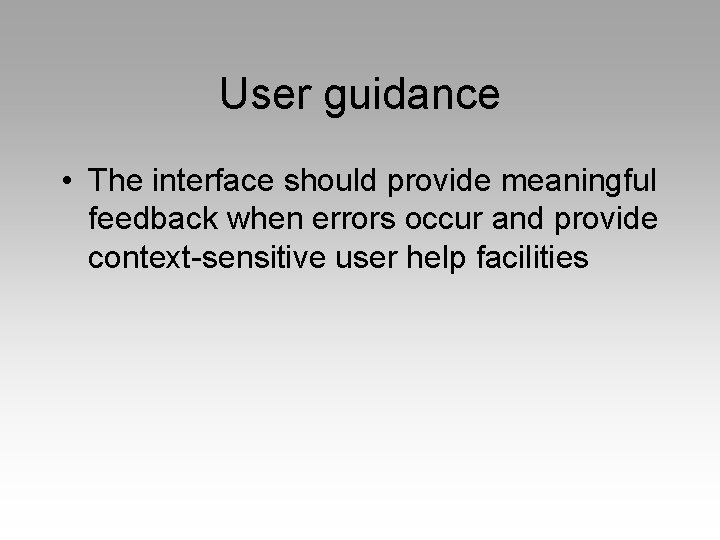

User guidance • The interface should provide meaningful feedback when errors occur and provide context-sensitive user help facilities

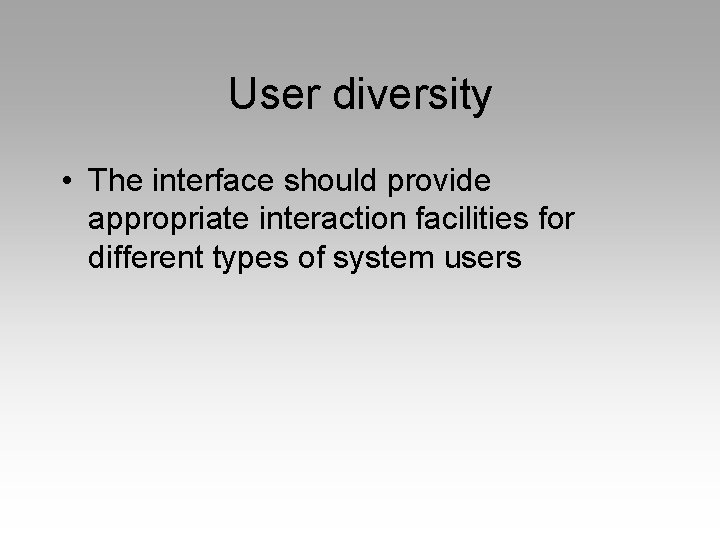

User diversity • The interface should provide appropriate interaction facilities for different types of system users

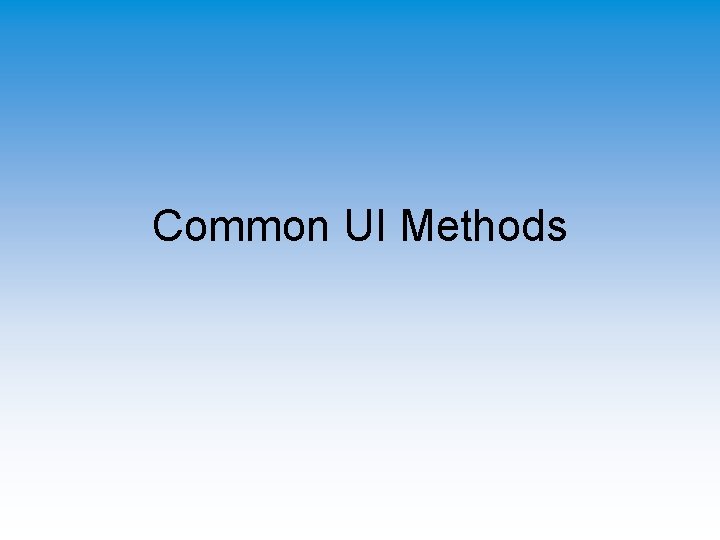

Common UI Methods

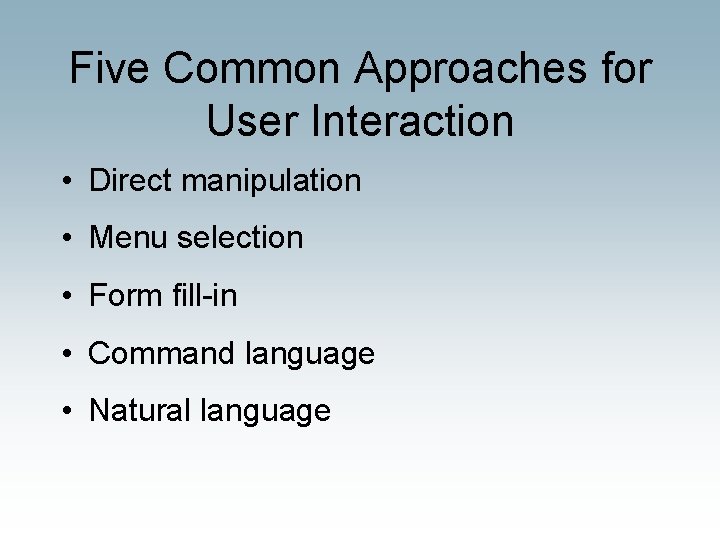

Five Common Approaches for User Interaction • Direct manipulation • Menu selection • Form fill-in • Command language • Natural language

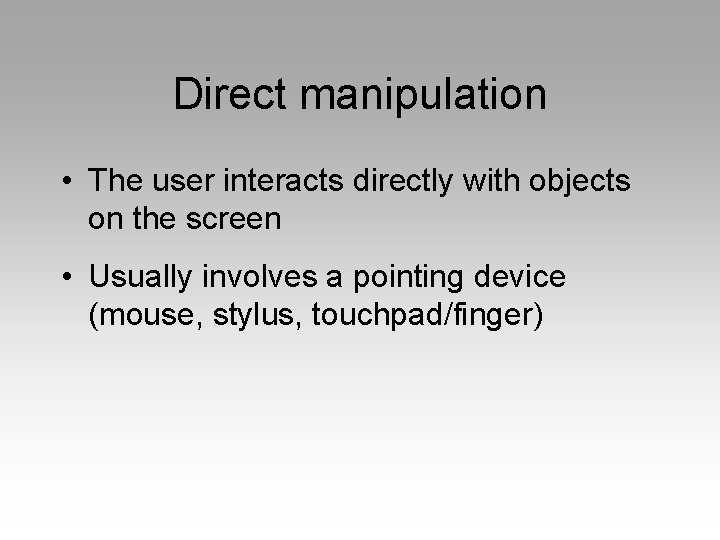

Direct manipulation • The user interacts directly with objects on the screen • Usually involves a pointing device (mouse, stylus, touchpad/finger)

Menu selection • Possible commands are categorized and listed in menus • So the user doesn’t have to remember exact command syntax

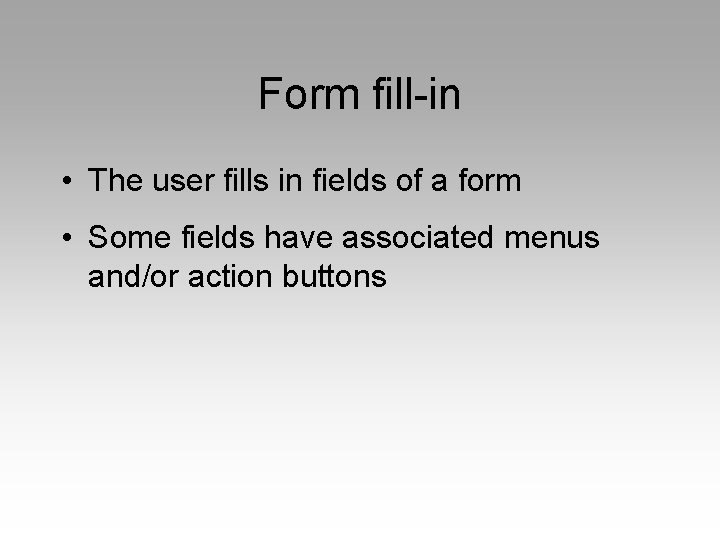

Form fill-in • The user fills in fields of a form • Some fields have associated menus and/or action buttons

Command language • Similar to command-line input • The user enters a command possibly a list of parameters

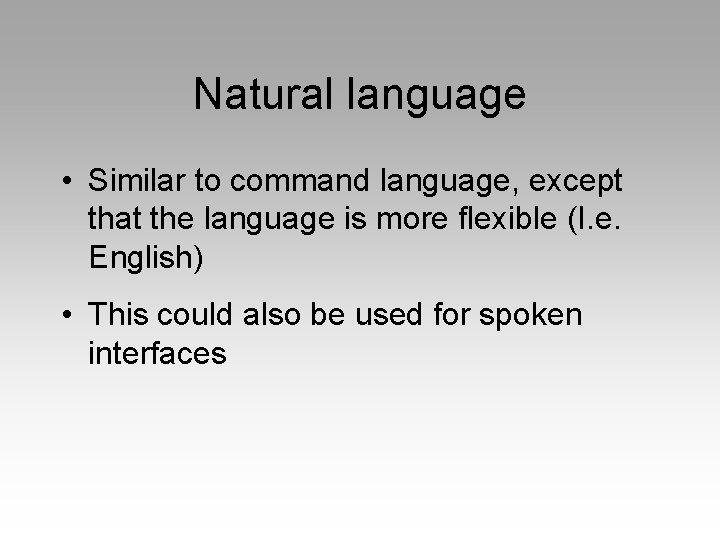

Natural language • Similar to command language, except that the language is more flexible (I. e. English) • This could also be used for spoken interfaces

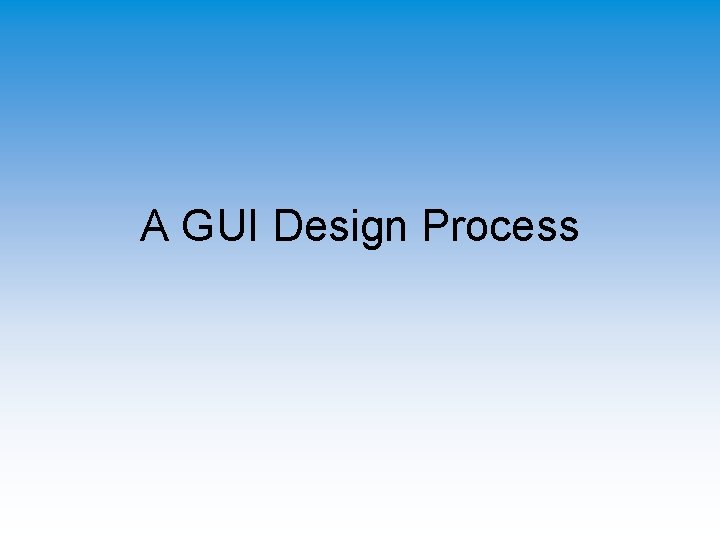

A GUI Design Process

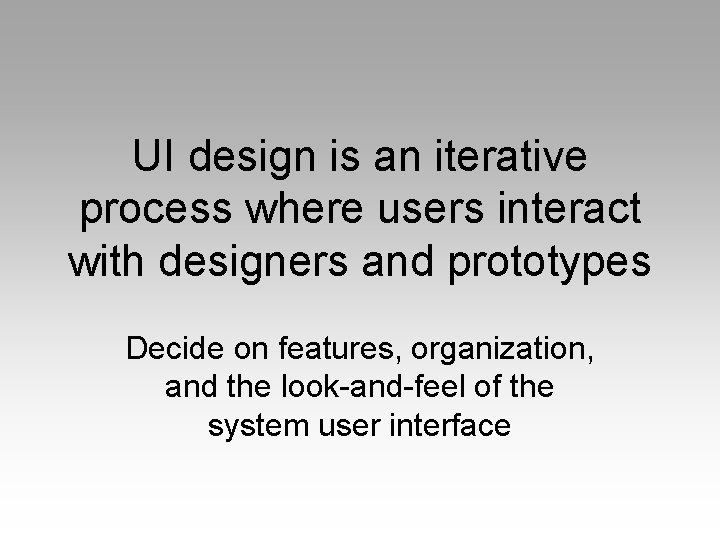

UI design is an iterative process where users interact with designers and prototypes Decide on features, organization, and the look-and-feel of the system user interface

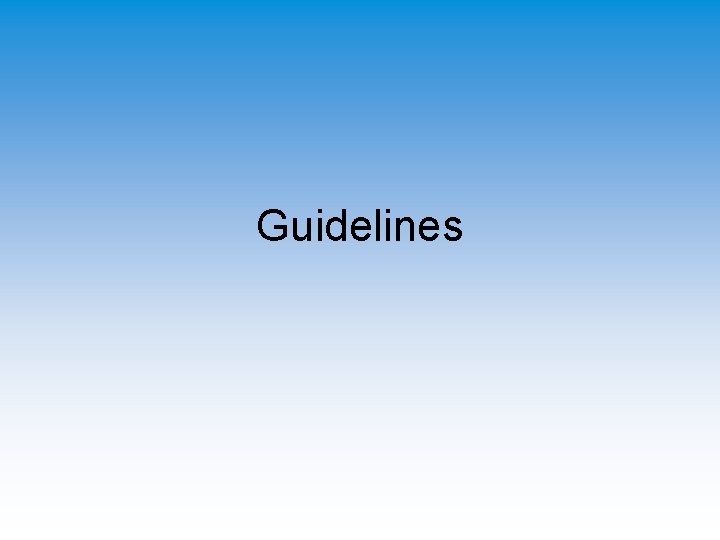

Guidelines

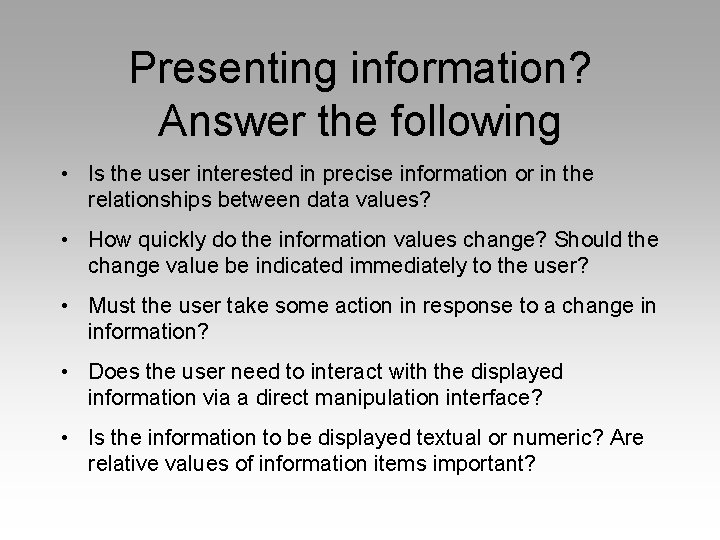

Presenting information? Answer the following • Is the user interested in precise information or in the relationships between data values? • How quickly do the information values change? Should the change value be indicated immediately to the user? • Must the user take some action in response to a change in information? • Does the user need to interact with the displayed information via a direct manipulation interface? • Is the information to be displayed textual or numeric? Are relative values of information items important?

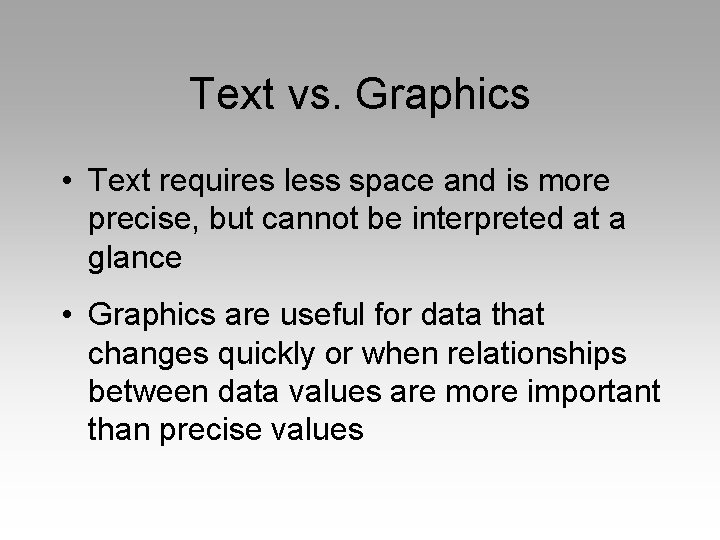

Text vs. Graphics • Text requires less space and is more precise, but cannot be interpreted at a glance • Graphics are useful for data that changes quickly or when relationships between data values are more important than precise values

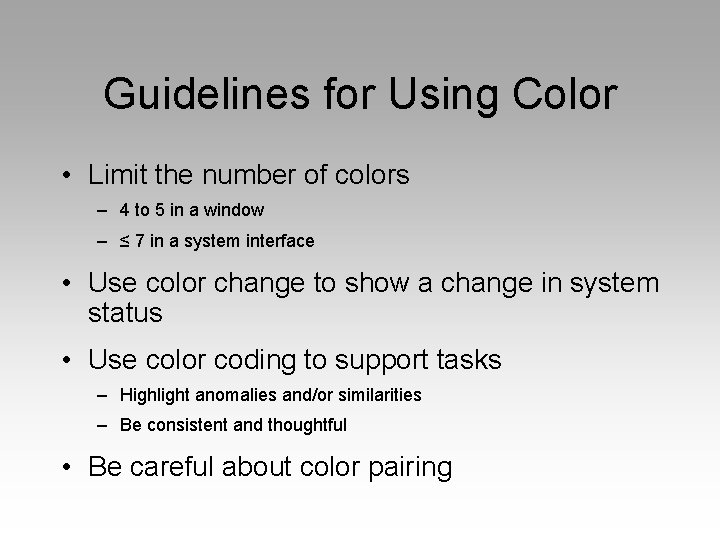

Guidelines for Using Color • Limit the number of colors – 4 to 5 in a window – ≤ 7 in a system interface • Use color change to show a change in system status • Use color coding to support tasks – Highlight anomalies and/or similarities – Be consistent and thoughtful • Be careful about color pairing

Error Messages

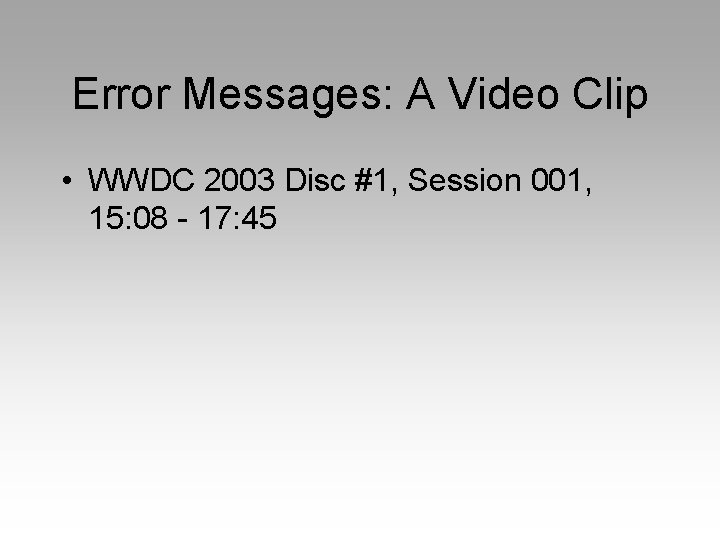

Error Messages: A Video Clip • WWDC 2003 Disc #1, Session 001, 15: 08 - 17: 45

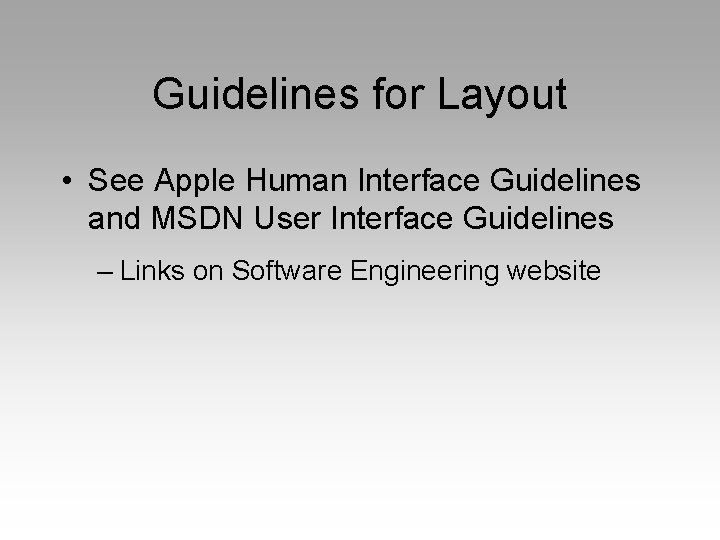

Guidelines for Layout • See Apple Human Interface Guidelines and MSDN User Interface Guidelines – Links on Software Engineering website

Layout: A Video Clip • WWDC 2003 Disc #1, Session 001, 22: 00 - 32: 47

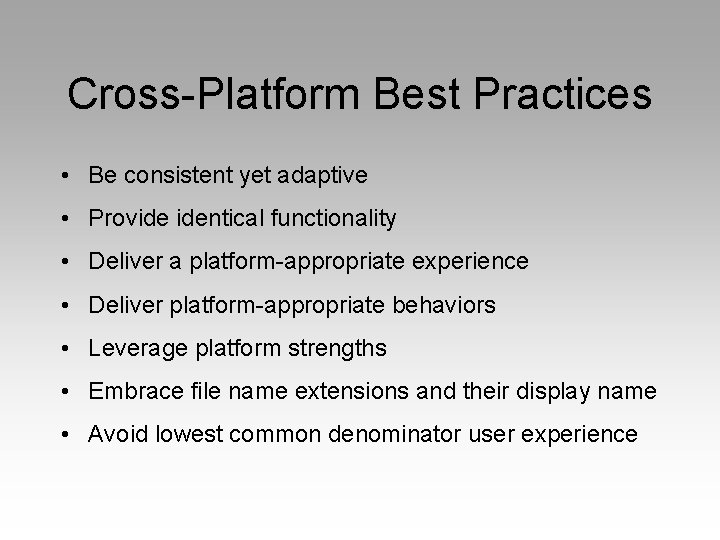

Cross-Platform Best Practices • Be consistent yet adaptive • Provide identical functionality • Deliver a platform-appropriate experience • Deliver platform-appropriate behaviors • Leverage platform strengths • Embrace file name extensions and their display name • Avoid lowest common denominator user experience

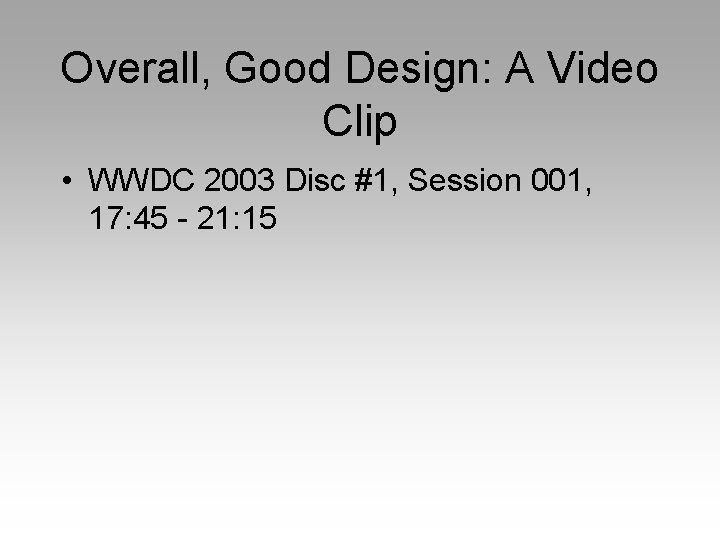

Overall, Good Design: A Video Clip • WWDC 2003 Disc #1, Session 001, 17: 45 - 21: 15
