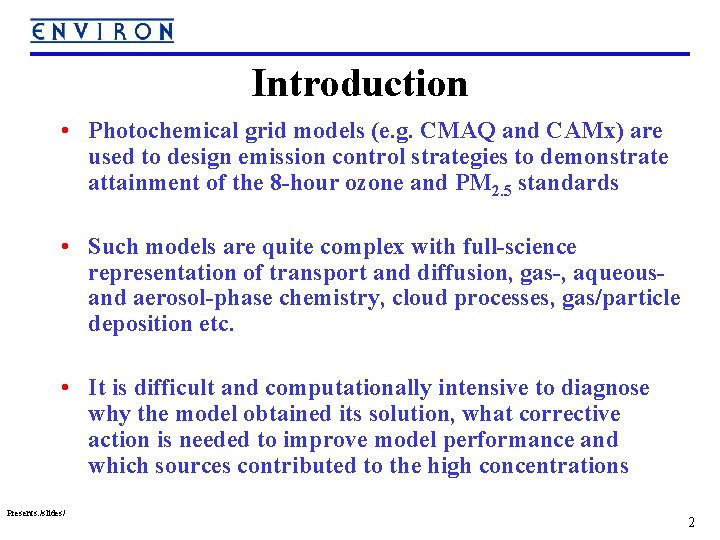

Introduction • Photochemical grid models (e. g. CMAQ and CAMx) are used to design emission control strategies to demonstrate attainment of the 8 -hour ozone and PM 2. 5 standards • Such models are quite complex with full-science representation of transport and diffusion, gas-, aqueousand aerosol-phase chemistry, cloud processes, gas/particle deposition etc. • It is difficult and computationally intensive to diagnose why the model obtained its solution, what corrective action is needed to improve model performance and which sources contributed to the high concentrations Presents: /slides/ 2

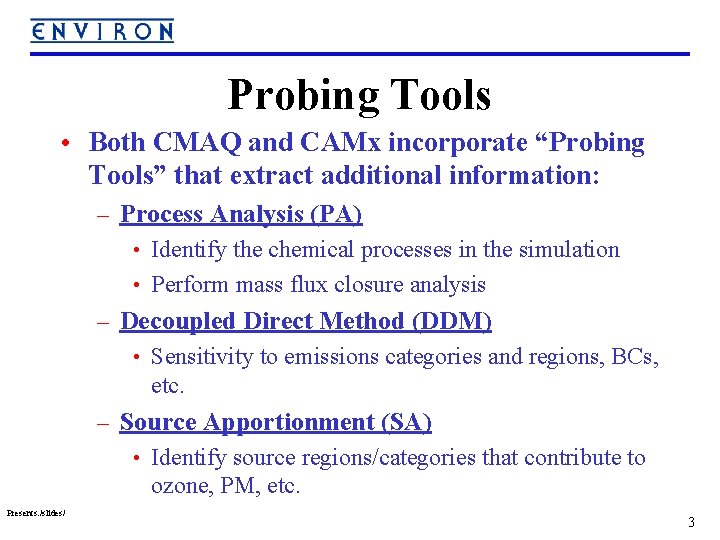

Probing Tools • Both CMAQ and CAMx incorporate “Probing Tools” that extract additional information: – Process Analysis (PA) • Identify the chemical processes in the simulation • Perform mass flux closure analysis – Decoupled Direct Method (DDM) • Sensitivity to emissions categories and regions, BCs, etc. – Source Apportionment (SA) • Identify source regions/categories that contribute to ozone, PM, etc. Presents: /slides/ 3

What is a Probing Tool? Probe verb, probed, prob‧ing, noun 1. to search into or examine thoroughly; question closely 2. to examine or explore with a probe 3. to examine or explore with or as if with a probe 4. a slender surgical instrument for exploring the depth or direction of a wound, sinus, or the like 5. an investigation, esp. by a legislative committee, of suspected illegal activity. Presents: /slides/ 4

Alien Probing Presents: /slides/ 5

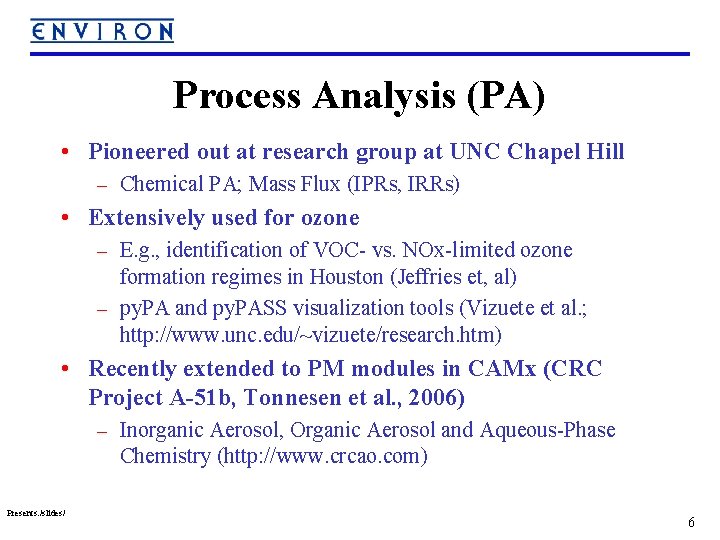

Process Analysis (PA) • Pioneered out at research group at UNC Chapel Hill – Chemical PA; Mass Flux (IPRs, IRRs) • Extensively used for ozone – E. g. , identification of VOC- vs. NOx-limited ozone formation regimes in Houston (Jeffries et, al) – py. PA and py. PASS visualization tools (Vizuete et al. ; http: //www. unc. edu/~vizuete/research. htm) • Recently extended to PM modules in CAMx (CRC Project A-51 b, Tonnesen et al. , 2006) – Inorganic Aerosol, Organic Aerosol and Aqueous-Phase Chemistry (http: //www. crcao. com) Presents: /slides/ 6

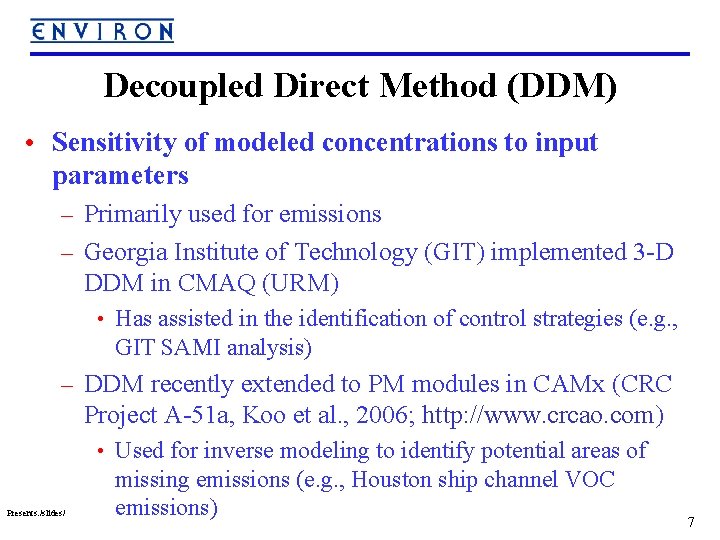

Decoupled Direct Method (DDM) • Sensitivity of modeled concentrations to input parameters – Primarily used for emissions – Georgia Institute of Technology (GIT) implemented 3 -D DDM in CMAQ (URM) • Has assisted in the identification of control strategies (e. g. , GIT SAMI analysis) – DDM recently extended to PM modules in CAMx (CRC Project A-51 a, Koo et al. , 2006; http: //www. crcao. com) • Used for inverse modeling to identify potential areas of Presents: /slides/ missing emissions (e. g. , Houston ship channel VOC emissions) 7

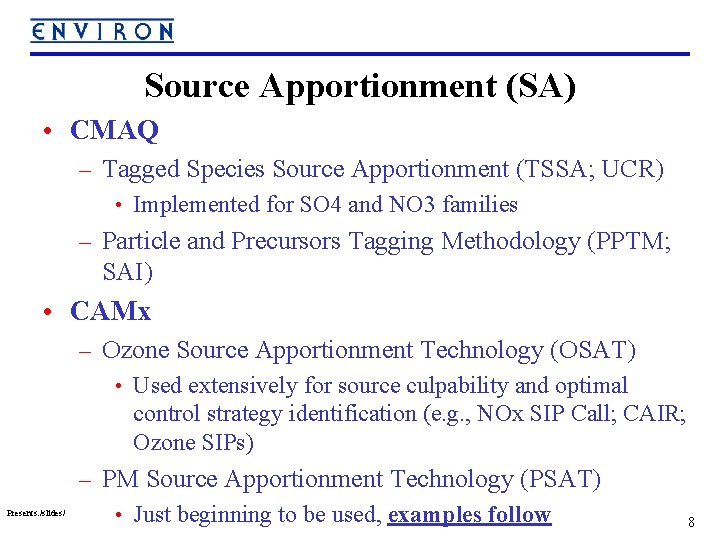

Source Apportionment (SA) • CMAQ – Tagged Species Source Apportionment (TSSA; UCR) • Implemented for SO 4 and NO 3 families – Particle and Precursors Tagging Methodology (PPTM; SAI) • CAMx – Ozone Source Apportionment Technology (OSAT) • Used extensively for source culpability and optimal control strategy identification (e. g. , NOx SIP Call; CAIR; Ozone SIPs) – PM Source Apportionment Technology (PSAT) Presents: /slides/ • Just beginning to be used, examples follow 8

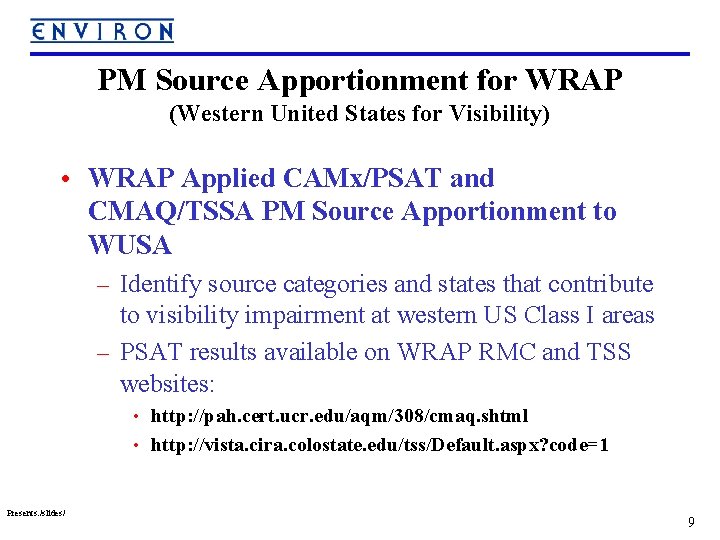

PM Source Apportionment for WRAP (Western United States for Visibility) • WRAP Applied CAMx/PSAT and CMAQ/TSSA PM Source Apportionment to WUSA – Identify source categories and states that contribute to visibility impairment at western US Class I areas – PSAT results available on WRAP RMC and TSS websites: • http: //pah. cert. ucr. edu/aqm/308/cmaq. shtml • http: //vista. cira. colostate. edu/tss/Default. aspx? code=1 Presents: /slides/ 9

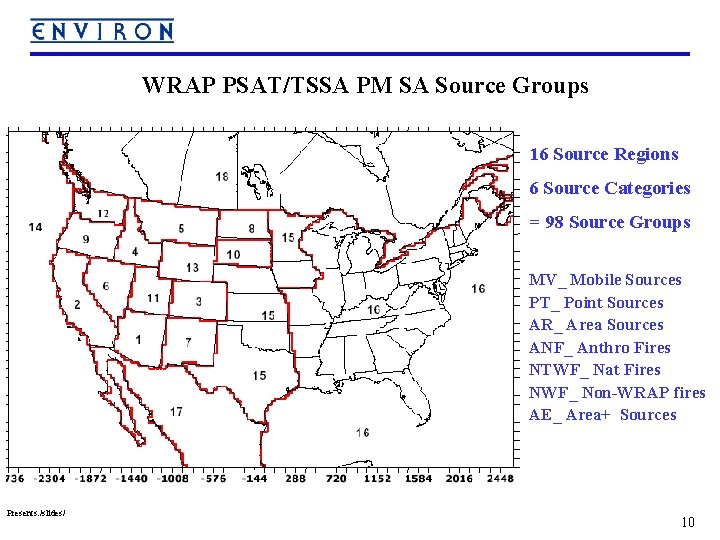

WRAP PSAT/TSSA PM SA Source Groups 16 Source Regions 6 Source Categories = 98 Source Groups MV_ Mobile Sources PT_ Point Sources AR_ Area Sources ANF_ Anthro Fires NTWF_ Nat Fires NWF_ Non-WRAP fires AE_ Area+ Sources Presents: /slides/ 10

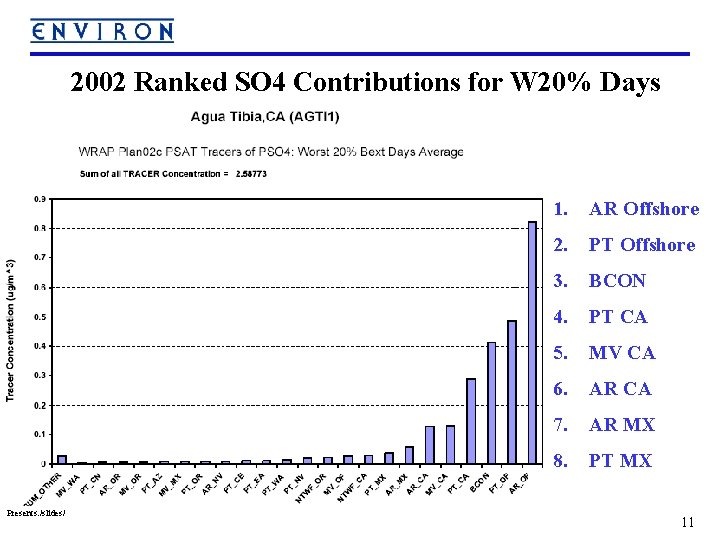

2002 Ranked SO 4 Contributions for W 20% Days Presents: /slides/ 1. AR Offshore 2. PT Offshore 3. BCON 4. PT CA 5. MV CA 6. AR CA 7. AR MX 8. PT MX 11

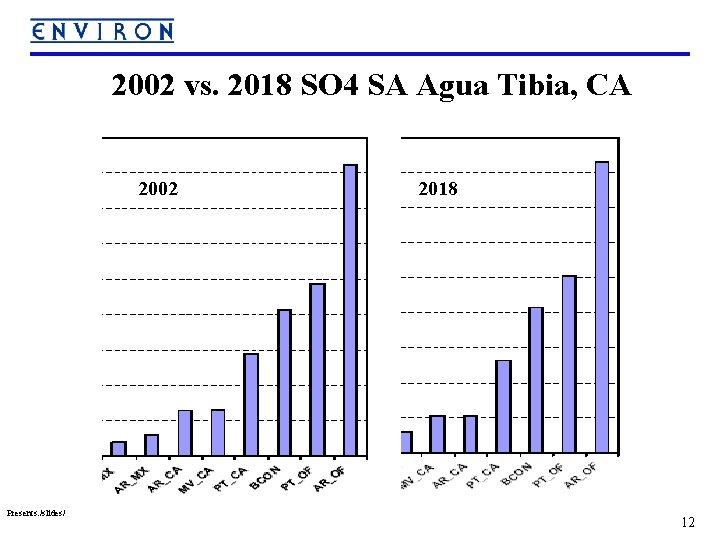

2002 vs. 2018 SO 4 SA Agua Tibia, CA 2002 Presents: /slides/ 2018 12

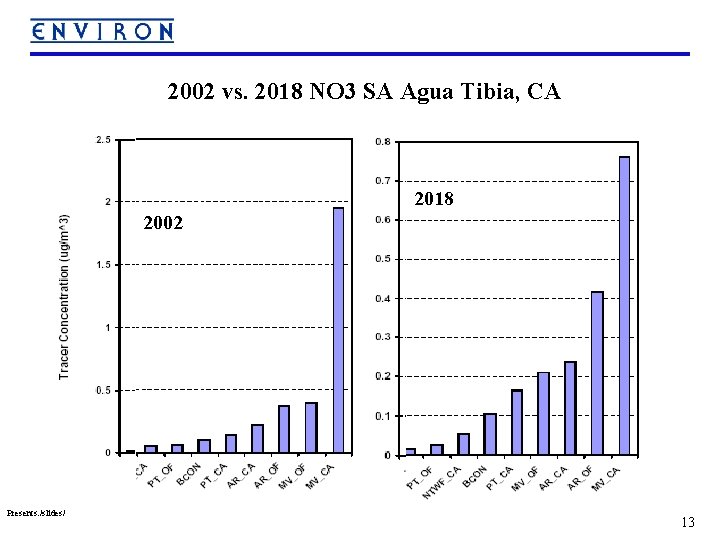

2002 vs. 2018 NO 3 SA Agua Tibia, CA 2018 2002 Presents: /slides/ 13

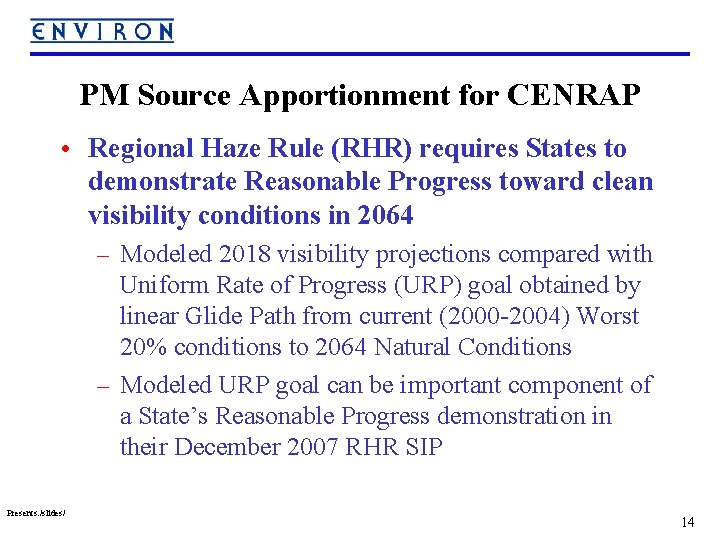

PM Source Apportionment for CENRAP • Regional Haze Rule (RHR) requires States to demonstrate Reasonable Progress toward clean visibility conditions in 2064 – Modeled 2018 visibility projections compared with Uniform Rate of Progress (URP) goal obtained by linear Glide Path from current (2000 -2004) Worst 20% conditions to 2064 Natural Conditions – Modeled URP goal can be important component of a State’s Reasonable Progress demonstration in their December 2007 RHR SIP Presents: /slides/ 14

Wichita Mtn, OK – Meets URP Goal Big Bend, TX – Does Not Meet UP Goal Presents: /slides/ Why WIMO, OK meets UP goal but BIBE, TX does not? Use SA to identify source regions and categories that contribute to visibility on W 20% days 15

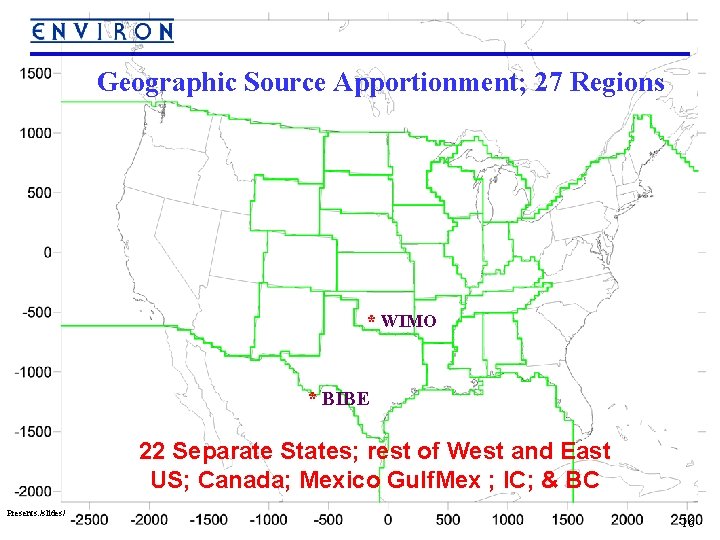

Geographic Source Apportionment; 27 Regions * WIMO * BIBE 22 Separate States; rest of West and East US; Canada; Mexico Gulf. Mex ; IC; & BC Presents: /slides/ 16

Contribution to Visibility Impairment (Mm-1) for W 20% Days at Wichita Mtn, OK in 2018 70 ~20% visibility extinction at WIMO SOA_B & SOA_A All Sources due to uncontrollable sources: Mex, Can, BCs (Global Transport) BC and SOA_B Mexico VISTAS + MANE-VU CENRAP Presents: /slides/ 17

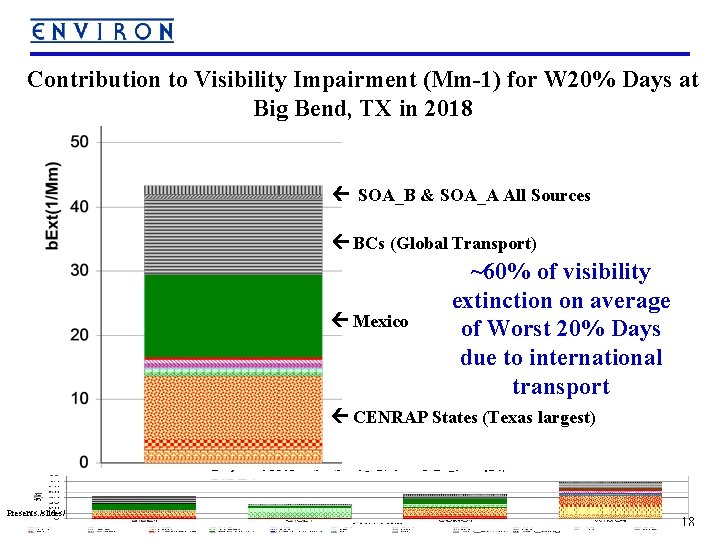

Contribution to Visibility Impairment (Mm-1) for W 20% Days at Big Bend, TX in 2018 SOA_B & SOA_A All Sources BCs (Global Transport) Mexico ~60% of visibility extinction on average of Worst 20% Days due to international transport CENRAP States (Texas largest) Presents: /slides/ 18

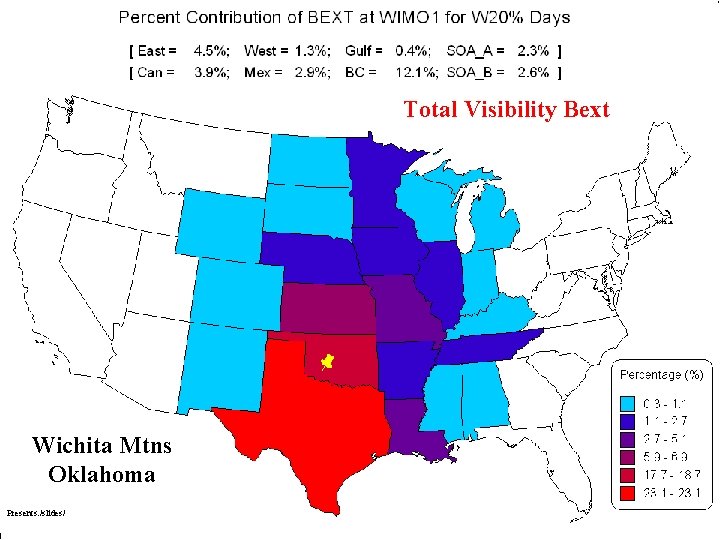

Total Visibility Bext Wichita Mtns Oklahoma Presents: /slides/ 19

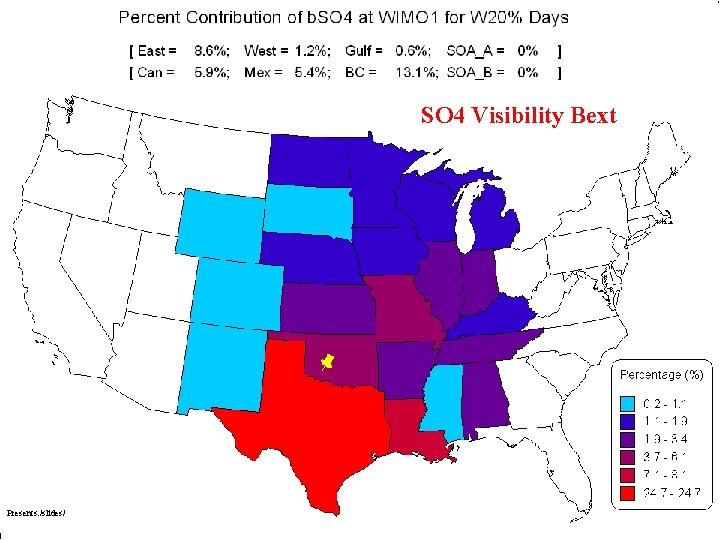

SO 4 Visibility Bext Presents: /slides/ 20

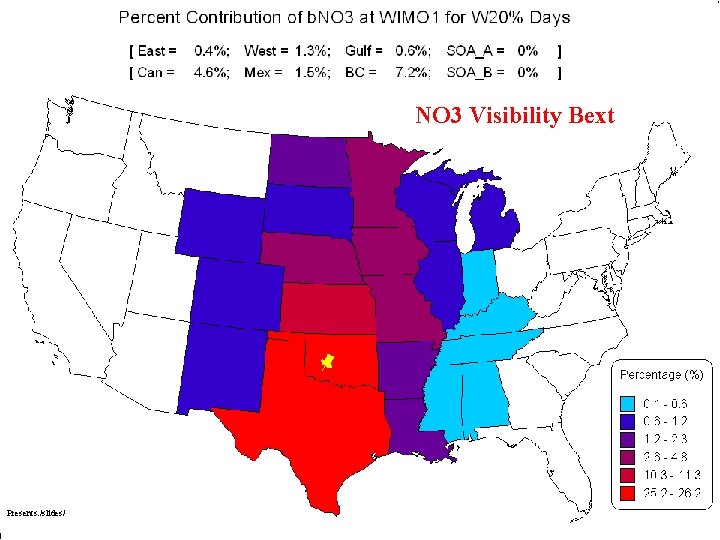

NO 3 Visibility Bext Presents: /slides/ 21

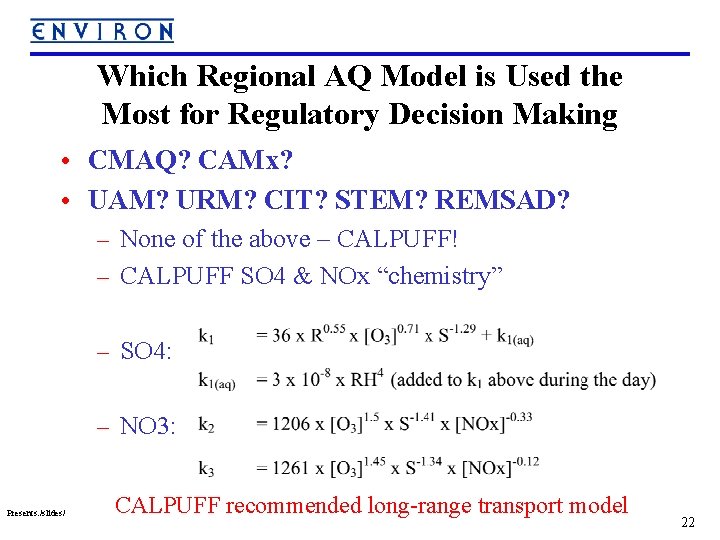

Which Regional AQ Model is Used the Most for Regulatory Decision Making • CMAQ? CAMx? • UAM? URM? CIT? STEM? REMSAD? – None of the above – CALPUFF! – CALPUFF SO 4 & NOx “chemistry” – SO 4: – NO 3: Presents: /slides/ CALPUFF recommended long-range transport model 22

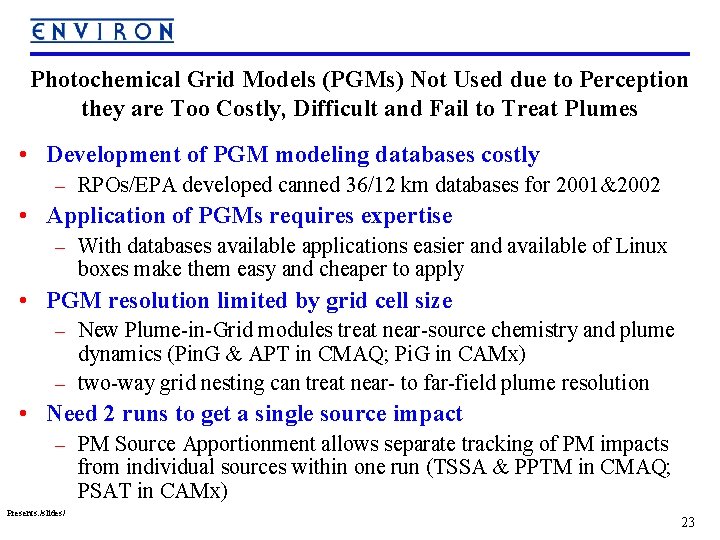

Photochemical Grid Models (PGMs) Not Used due to Perception they are Too Costly, Difficult and Fail to Treat Plumes • Development of PGM modeling databases costly – RPOs/EPA developed canned 36/12 km databases for 2001&2002 • Application of PGMs requires expertise – With databases available applications easier and available of Linux boxes make them easy and cheaper to apply • PGM resolution limited by grid cell size – New Plume-in-Grid modules treat near-source chemistry and plume dynamics (Pin. G & APT in CMAQ; Pi. G in CAMx) – two-way grid nesting can treat near- to far-field plume resolution • Need 2 runs to get a single source impact – PM Source Apportionment allows separate tracking of PM impacts from individual sources within one run (TSSA & PPTM in CMAQ; PSAT in CAMx) Presents: /slides/ 23

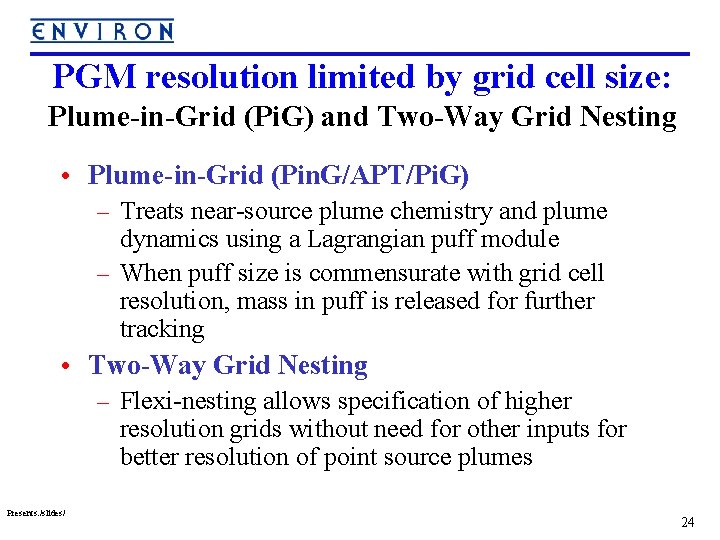

PGM resolution limited by grid cell size: Plume-in-Grid (Pi. G) and Two-Way Grid Nesting • Plume-in-Grid (Pin. G/APT/Pi. G) – Treats near-source plume chemistry and plume dynamics using a Lagrangian puff module – When puff size is commensurate with grid cell resolution, mass in puff is released for further tracking • Two-Way Grid Nesting – Flexi-nesting allows specification of higher resolution grids without need for other inputs for better resolution of point source plumes Presents: /slides/ 24

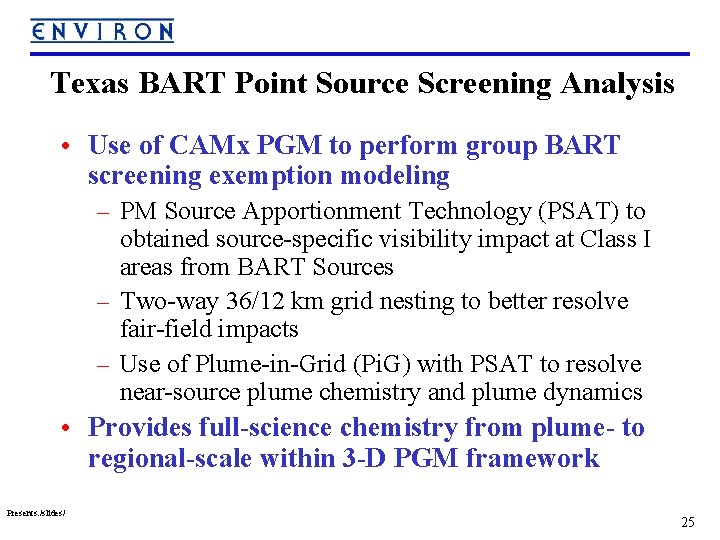

Texas BART Point Source Screening Analysis • Use of CAMx PGM to perform group BART screening exemption modeling – PM Source Apportionment Technology (PSAT) to obtained source-specific visibility impact at Class I areas from BART Sources – Two-way 36/12 km grid nesting to better resolve fair-field impacts – Use of Plume-in-Grid (Pi. G) with PSAT to resolve near-source plume chemistry and plume dynamics • Provides full-science chemistry from plume- to regional-scale within 3 -D PGM framework Presents: /slides/ 25

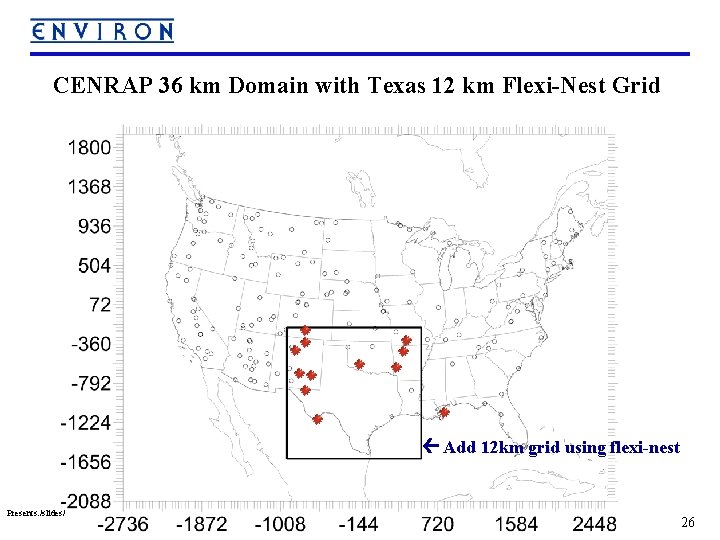

CENRAP 36 km Domain with Texas 12 km Flexi-Nest Grid Add 12 km grid using flexi-nest Presents: /slides/ 26

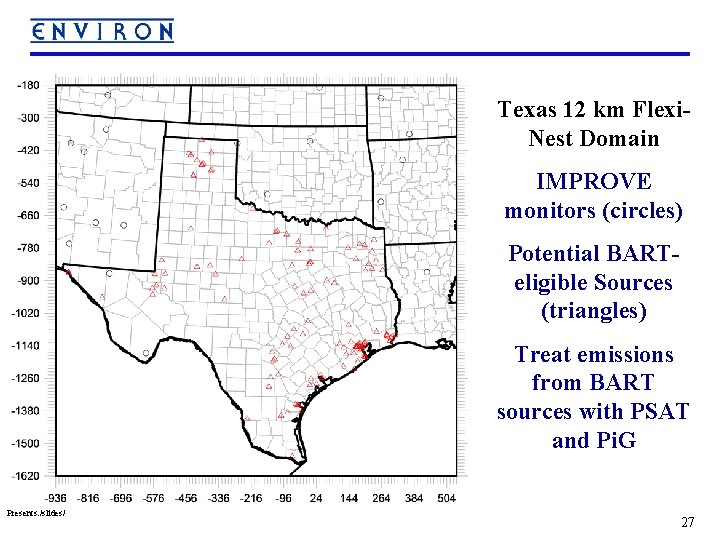

Texas 12 km Flexi. Nest Domain IMPROVE monitors (circles) Potential BARTeligible Sources (triangles) Treat emissions from BART sources with PSAT and Pi. G Presents: /slides/ 27

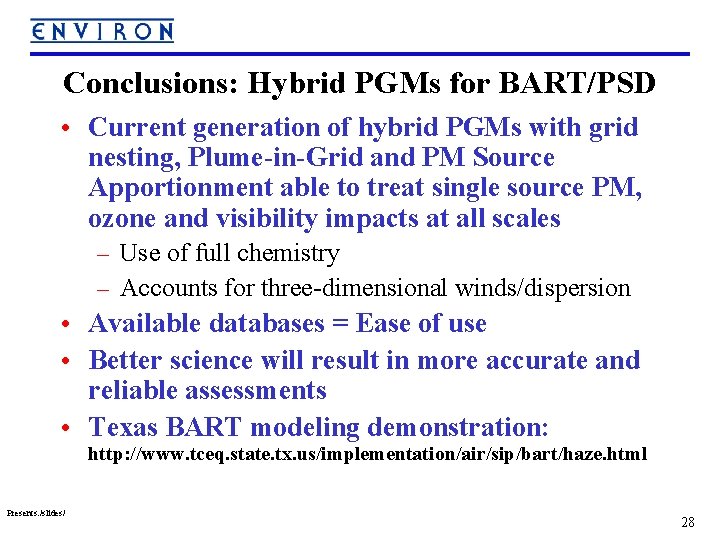

Conclusions: Hybrid PGMs for BART/PSD • Current generation of hybrid PGMs with grid nesting, Plume-in-Grid and PM Source Apportionment able to treat single source PM, ozone and visibility impacts at all scales – Use of full chemistry – Accounts for three-dimensional winds/dispersion • Available databases = Ease of use • Better science will result in more accurate and reliable assessments • Texas BART modeling demonstration: http: //www. tceq. state. tx. us/implementation/air/sip/bart/haze. html Presents: /slides/ 28
