USB 3. x – a connector for multiple applications Würth Elektronik By: Benjamin Arden Date 27. 06. 2017 | Technical Academy | Public | USB 3. 1 C © All rights reserved by Wurth Electronics, also in the event of industrial property rights. All rights of disposal such as copying and redistribution rights with us. 1 www. we-online. com

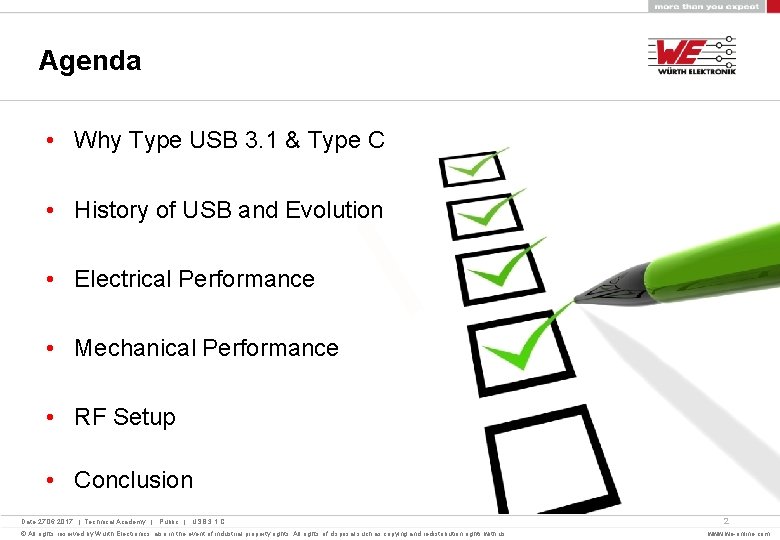

Agenda • Why Type USB 3. 1 & Type C • History of USB and Evolution • Electrical Performance • Mechanical Performance • RF Setup • Conclusion Date 27. 06. 2017 | Technical Academy | Public | USB 3. 1 C © All rights reserved by Wurth Electronics, also in the event of industrial property rights. All rights of disposal such as copying and redistribution rights with us. 2 www. we-online. com

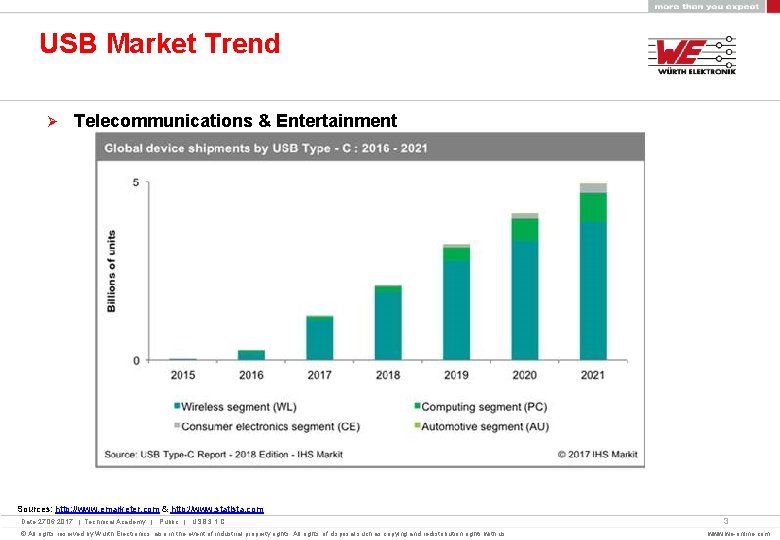

USB Market Trend Ø Telecommunications & Entertainment Sources: http: //www. emarketer. com & http: //www. statista. com Date 27. 06. 2017 | Technical Academy | Public | USB 3. 1 C © All rights reserved by Wurth Electronics, also in the event of industrial property rights. All rights of disposal such as copying and redistribution rights with us. 3 www. we-online. com

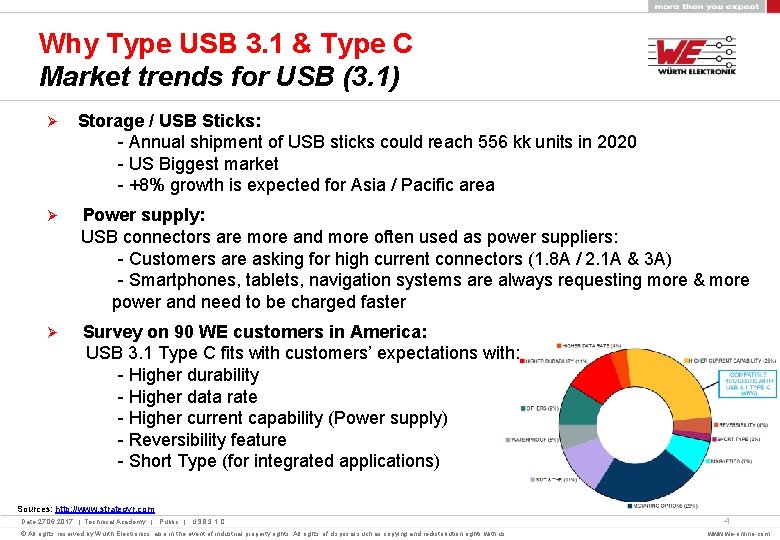

Why Type USB 3. 1 & Type C Market trends for USB (3. 1) Ø Storage / USB Sticks: - Annual shipment of USB sticks could reach 556 kk units in 2020 - US Biggest market - +8% growth is expected for Asia / Pacific area Ø Power supply: USB connectors are more and more often used as power suppliers: - Customers are asking for high current connectors (1. 8 A / 2. 1 A & 3 A) - Smartphones, tablets, navigation systems are always requesting more & more power and need to be charged faster Ø Survey on 90 WE customers in America: USB 3. 1 Type C fits with customers’ expectations with: - Higher durability - Higher data rate - Higher current capability (Power supply) - Reversibility feature - Short Type (for integrated applications) Sources: http: //www. strategyr. com Date 27. 06. 2017 | Technical Academy | Public | USB 3. 1 C © All rights reserved by Wurth Electronics, also in the event of industrial property rights. All rights of disposal such as copying and redistribution rights with us. 4 www. we-online. com

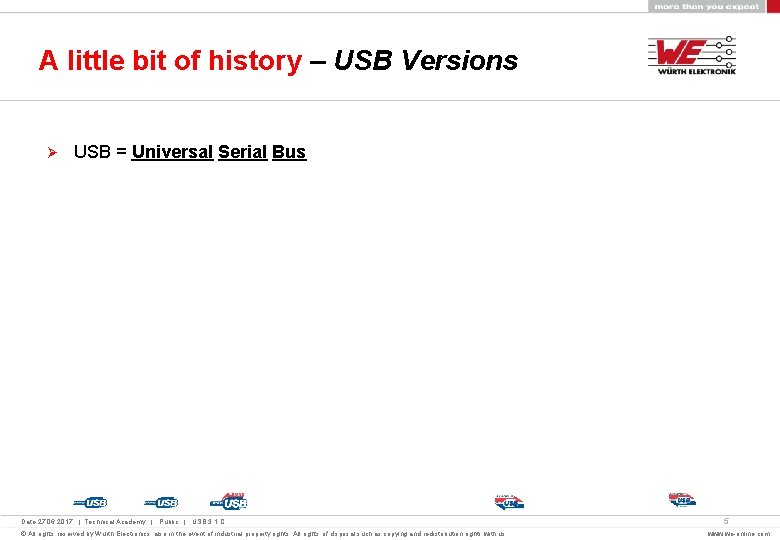

A little bit of history – USB Versions Ø USB = Universal Serial Bus Date 27. 06. 2017 | Technical Academy | Public | USB 3. 1 C © All rights reserved by Wurth Electronics, also in the event of industrial property rights. All rights of disposal such as copying and redistribution rights with us. 5 www. we-online. com

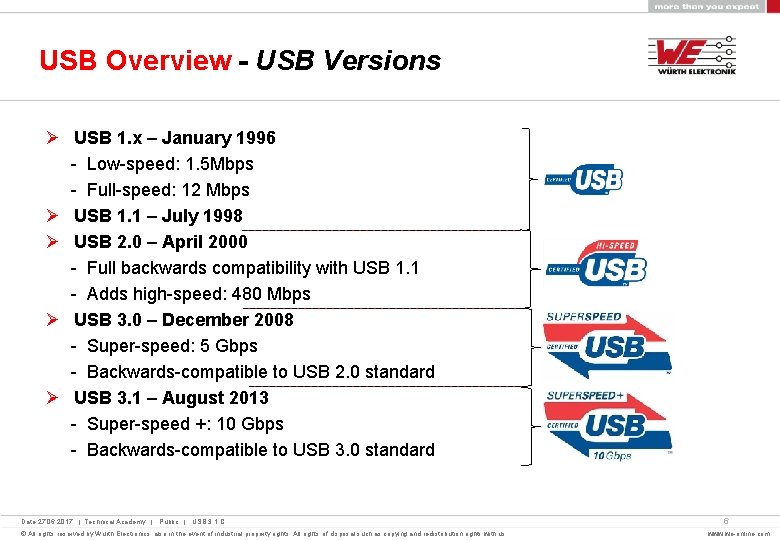

USB Overview - USB Versions Ø USB 1. x – January 1996 - Low-speed: 1. 5 Mbps - Full-speed: 12 Mbps Ø USB 1. 1 – July 1998 Ø USB 2. 0 – April 2000 - Full backwards compatibility with USB 1. 1 - Adds high-speed: 480 Mbps Ø USB 3. 0 – December 2008 - Super-speed: 5 Gbps - Backwards-compatible to USB 2. 0 standard Ø USB 3. 1 – August 2013 - Super-speed +: 10 Gbps - Backwards-compatible to USB 3. 0 standard Date 27. 06. 2017 | Technical Academy | Public | USB 3. 1 C © All rights reserved by Wurth Electronics, also in the event of industrial property rights. All rights of disposal such as copying and redistribution rights with us. 6 www. we-online. com

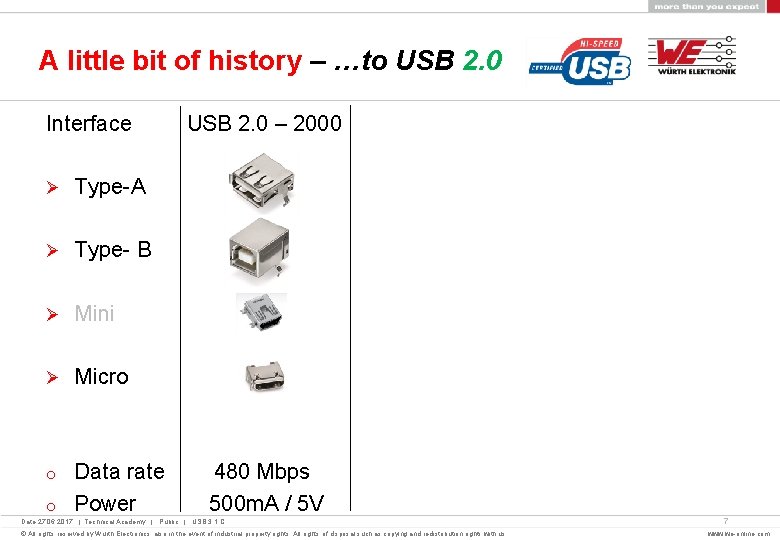

A little bit of history – …to USB 2. 0 Interface USB 2. 0 – 2000 Ø Type-A Ø Type- B Ø Mini Ø Micro Data rate 480 Mbps o Power 500 m. A / 5 V o Date 27. 06. 2017 | Technical Academy | Public | USB 3. 1 C © All rights reserved by Wurth Electronics, also in the event of industrial property rights. All rights of disposal such as copying and redistribution rights with us. 7 www. we-online. com

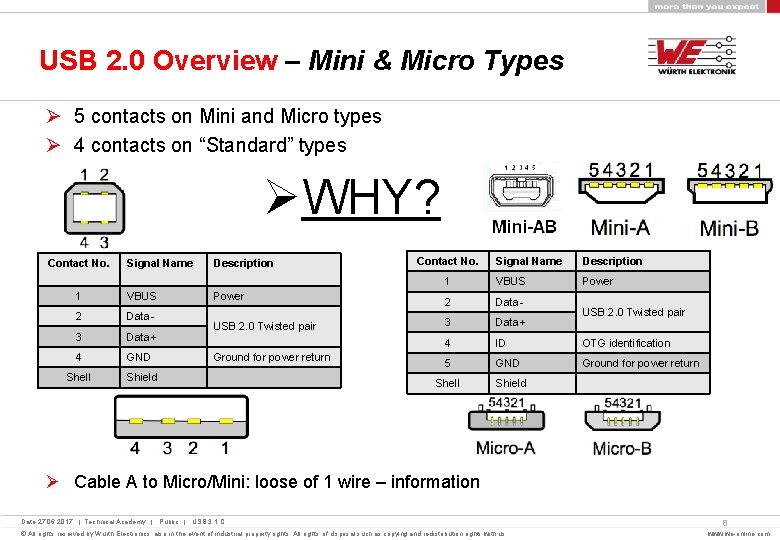

USB 2. 0 Overview – Mini & Micro Types Ø 5 contacts on Mini and Micro types Ø 4 contacts on “Standard” types ØWHY? Contact No. Signal Name Description 1 VBUS Power 2 Data- 3 Data+ 4 GND Shell Shield USB 2. 0 Twisted pair Ground for power return Contact No. Signal Name Description 1 VBUS Power 2 Data- 3 Data+ 4 ID OTG identification 5 GND Ground for power return Shell Shield USB 2. 0 Twisted pair Ø Cable A to Micro/Mini: loose of 1 wire – information Date 27. 06. 2017 | Technical Academy | Public | USB 3. 1 C © All rights reserved by Wurth Electronics, also in the event of industrial property rights. All rights of disposal such as copying and redistribution rights with us. 8 www. we-online. com

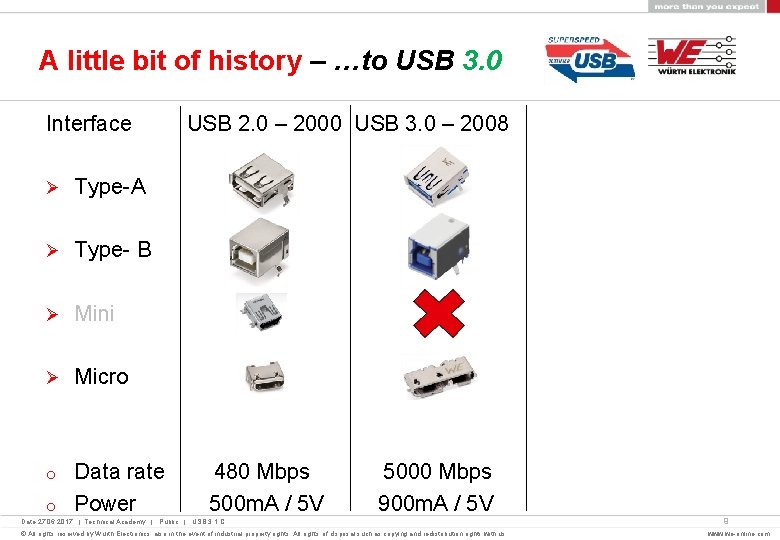

A little bit of history – …to USB 3. 0 Interface USB 2. 0 – 2000 USB 3. 0 – 2008 Ø Type-A Ø Type- B Ø Mini Ø Micro Data rate 480 Mbps 5000 Mbps o Power 500 m. A / 5 V 900 m. A / 5 V o Date 27. 06. 2017 | Technical Academy | Public | USB 3. 1 C © All rights reserved by Wurth Electronics, also in the event of industrial property rights. All rights of disposal such as copying and redistribution rights with us. 9 www. we-online. com

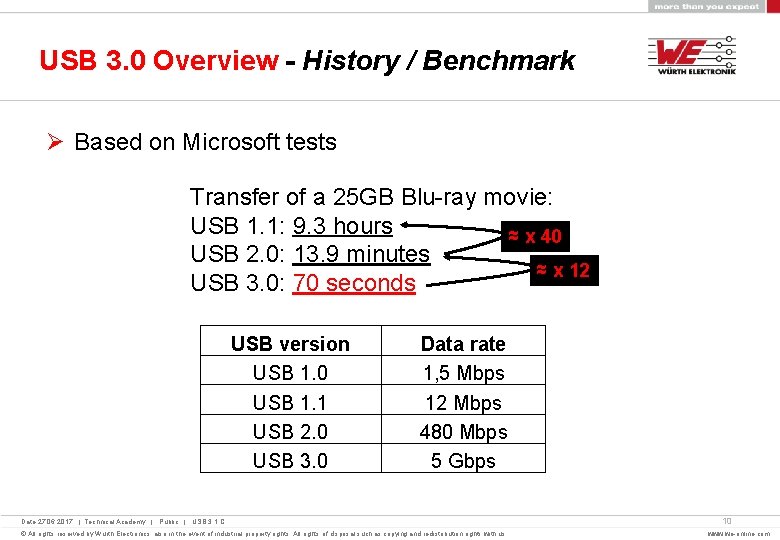

USB 3. 0 Overview - History / Benchmark Ø Based on Microsoft tests Transfer of a 25 GB Blu-ray movie: USB 1. 1: 9. 3 hours ≈ x 40 USB 2. 0: 13. 9 minutes ≈ x 12 USB 3. 0: 70 seconds USB version USB 1. 0 USB 1. 1 USB 2. 0 USB 3. 0 Data rate 1, 5 Mbps 12 Mbps 480 Mbps 5 Gbps Date 27. 06. 2017 | Technical Academy | Public | USB 3. 1 C © All rights reserved by Wurth Electronics, also in the event of industrial property rights. All rights of disposal such as copying and redistribution rights with us. 10 www. we-online. com

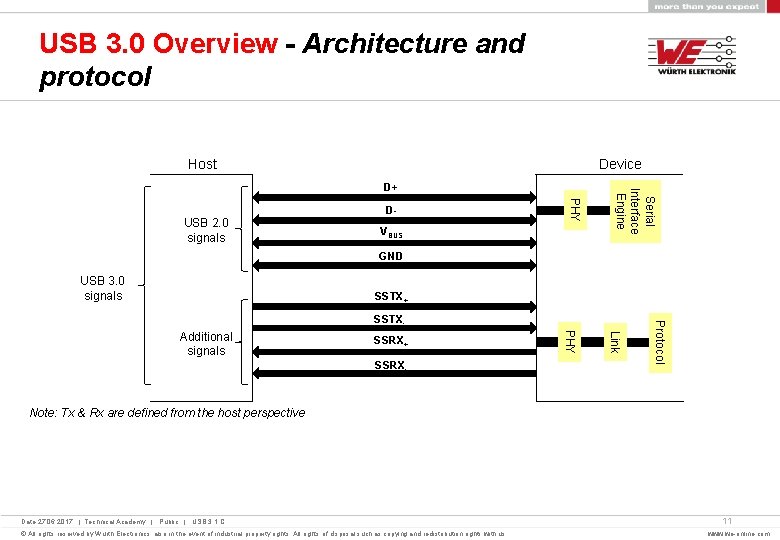

USB 3. 0 Overview - Architecture and protocol Host Device PHY D- USB 2. 0 signals VBUS Serial Interface Engine D+ GND USB 3. 0 signals SSTX+ SSRX- Link SSRX+ PHY Additional signals Protocol SSTX- Note: Tx & Rx are defined from the host perspective Date 27. 06. 2017 | Technical Academy | Public | USB 3. 1 C © All rights reserved by Wurth Electronics, also in the event of industrial property rights. All rights of disposal such as copying and redistribution rights with us. 11 www. we-online. com

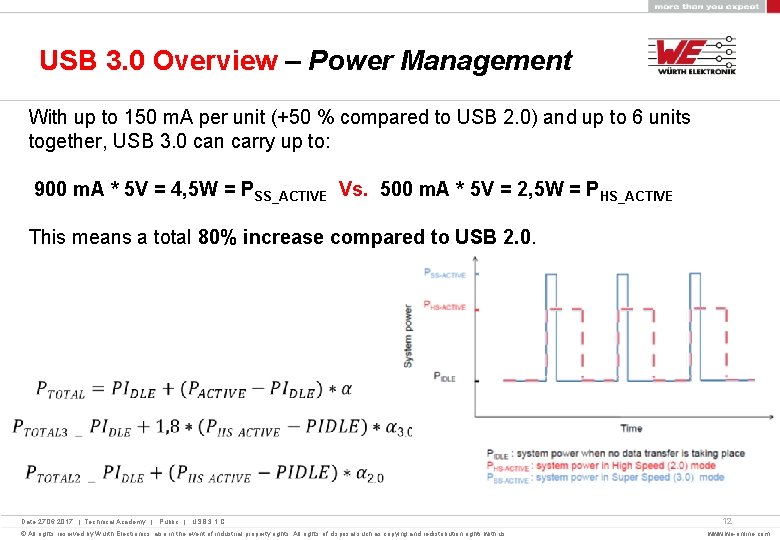

USB 3. 0 Overview – Power Management With up to 150 m. A per unit (+50 % compared to USB 2. 0) and up to 6 units together, USB 3. 0 can carry up to: 900 m. A * 5 V = 4, 5 W = PSS_ACTIVE Vs. 500 m. A * 5 V = 2, 5 W = PHS_ACTIVE This means a total 80% increase compared to USB 2. 0. Date 27. 06. 2017 | Technical Academy | Public | USB 3. 1 C © All rights reserved by Wurth Electronics, also in the event of industrial property rights. All rights of disposal such as copying and redistribution rights with us. 12 www. we-online. com

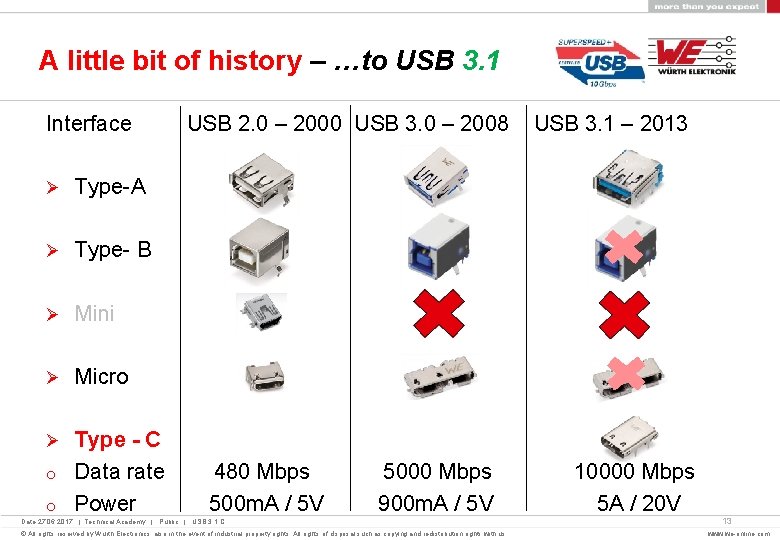

A little bit of history – …to USB 3. 1 Interface USB 2. 0 – 2000 USB 3. 0 – 2008 USB 3. 1 – 2013 Ø Type-A Ø Type- B Ø Mini Ø Micro Type - C o Data rate 480 Mbps 5000 Mbps 10000 Mbps o Power 500 m. A / 5 V 900 m. A / 5 V 5 A / 20 V Ø Date 27. 06. 2017 | Technical Academy | Public | USB 3. 1 C © All rights reserved by Wurth Electronics, also in the event of industrial property rights. All rights of disposal such as copying and redistribution rights with us. 13 www. we-online. com

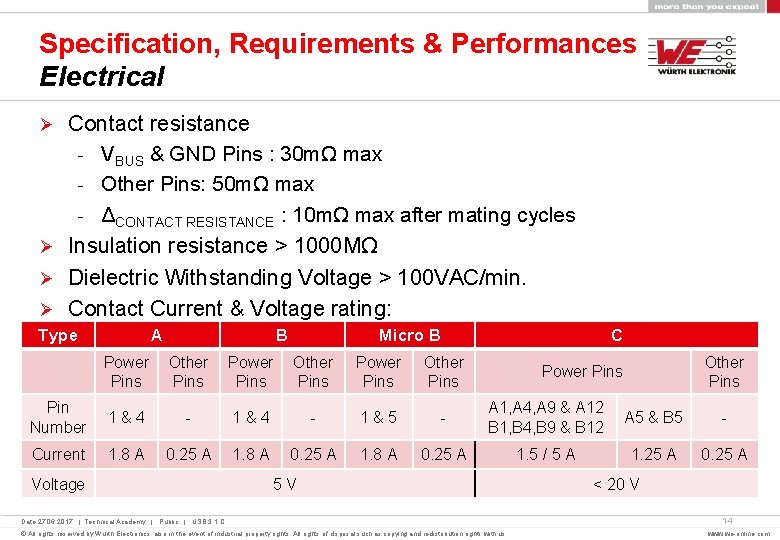

Specification, Requirements & Performances Electrical Contact resistance - VBUS & GND Pins : 30 mΩ max - Other Pins: 50 mΩ max - ΔCONTACT RESISTANCE : 10 mΩ max after mating cycles Ø Insulation resistance > 1000 MΩ Ø Dielectric Withstanding Voltage > 100 VAC/min. Ø Contact Current & Voltage rating: Ø Type A B Micro B C Power Other Pins Power Pins Other Pins Pin Number 1 & 4 - 1 & 5 - A 1, A 4, A 9 & A 12 B 1, B 4, B 9 & B 12 A 5 & B 5 - Current 1. 8 A 0. 25 A 1. 5 / 5 A 1. 25 A 0. 25 A Voltage Other Pins Power Pins 5 V Date 27. 06. 2017 | Technical Academy | Public | USB 3. 1 C © All rights reserved by Wurth Electronics, also in the event of industrial property rights. All rights of disposal such as copying and redistribution rights with us. < 20 V 14 www. we-online. com

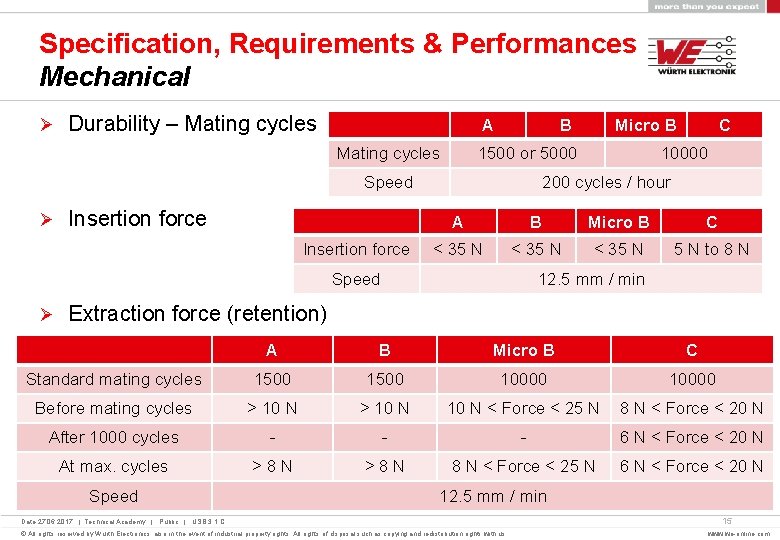

Specification, Requirements & Performances Mechanical Ø Durability – Mating cycles A Mating cycles B 1500 or 5000 Speed Ø Insertion force C 10000 200 cycles / hour A B Micro B C < 35 N to 8 N Speed Ø Micro B 12. 5 mm / min Extraction force (retention) A B Micro B C Standard mating cycles 1500 10000 Before mating cycles > 10 N < Force < 25 N 8 N < Force < 20 N After 1000 cycles - - - 6 N < Force < 20 N At max. cycles > 8 N 8 N < Force < 25 N 6 N < Force < 20 N Speed 12. 5 mm / min Date 27. 06. 2017 | Technical Academy | Public | USB 3. 1 C © All rights reserved by Wurth Electronics, also in the event of industrial property rights. All rights of disposal such as copying and redistribution rights with us. 15 www. we-online. com

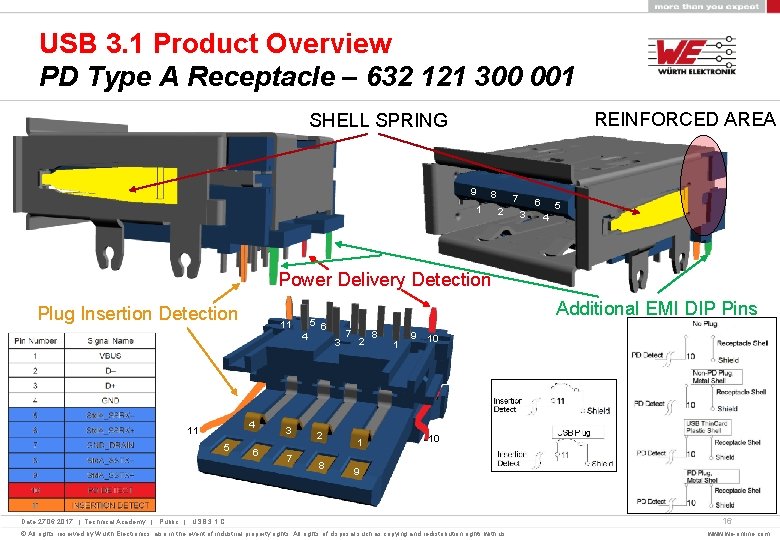

USB 3. 1 Product Overview PD Type A Receptacle – 632 121 300 001 REINFORCED AREA SHELL SPRING 9 8 1 7 2 6 3 5 4 Power Delivery Detection Plug Insertion Detection 11 4 4 11 5 6 3 7 Additional EMI DIP Pins 5 6 3 2 8 7 2 1 8 1 9 10 10 9 Date 27. 06. 2017 | Technical Academy | Public | USB 3. 1 C © All rights reserved by Wurth Electronics, also in the event of industrial property rights. All rights of disposal such as copying and redistribution rights with us. 16 www. we-online. com

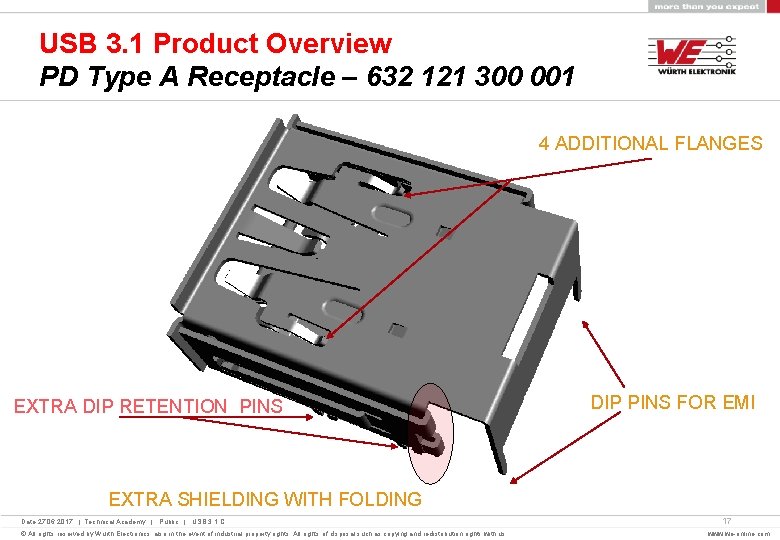

USB 3. 1 Product Overview PD Type A Receptacle – 632 121 300 001 4 ADDITIONAL FLANGES 9 8 1 7 2 EXTRA DIP RETENTION PINS 6 3 5 4 DIP PINS FOR EMI EXTRA SHIELDING WITH FOLDING Date 27. 06. 2017 | Technical Academy | Public | USB 3. 1 C © All rights reserved by Wurth Electronics, also in the event of industrial property rights. All rights of disposal such as copying and redistribution rights with us. 17 www. we-online. com

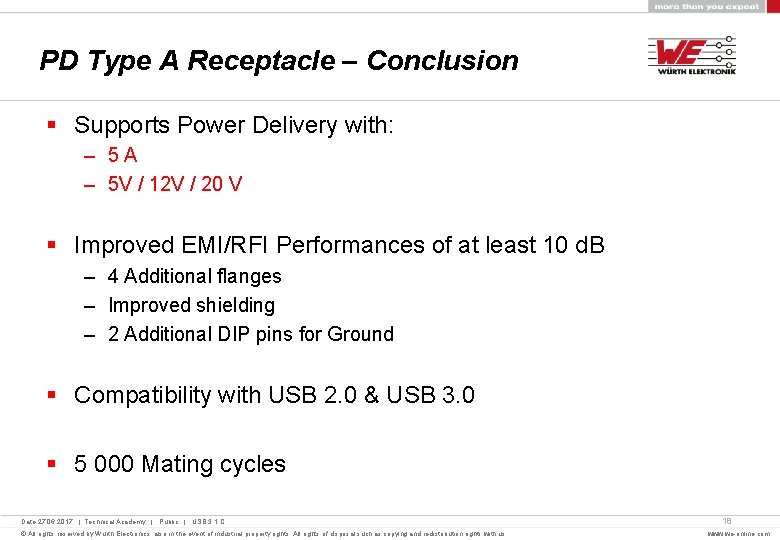

PD Type A Receptacle – Conclusion § Supports Power Delivery with: – 5 A – 5 V / 12 V / 20 V § Improved EMI/RFI Performances of at least 10 d. B – 4 Additional flanges – Improved shielding – 2 Additional DIP pins for Ground § Compatibility with USB 2. 0 & USB 3. 0 § 5 000 Mating cycles Date 27. 06. 2017 | Technical Academy | Public | USB 3. 1 C © All rights reserved by Wurth Electronics, also in the event of industrial property rights. All rights of disposal such as copying and redistribution rights with us. 18 www. we-online. com

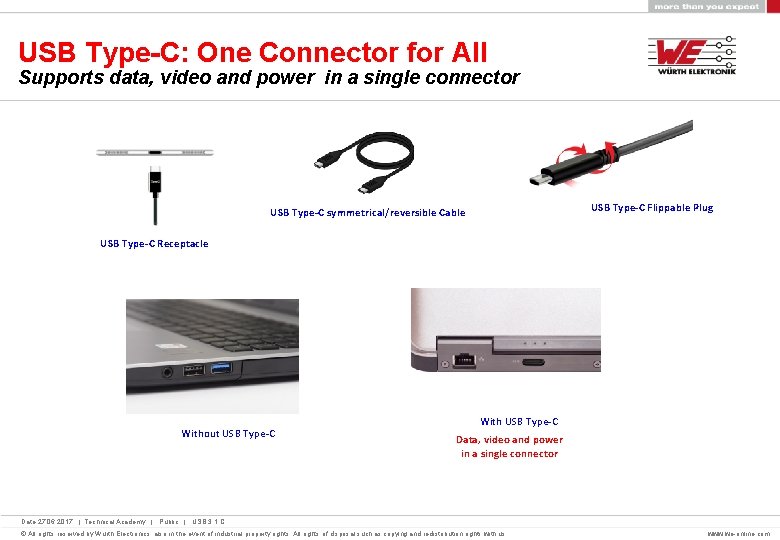

USB Type-C: One Connector for All Supports data, video and power in a single connector USB Type-C Flippable Plug USB Type-C symmetrical/reversible Cable USB Type-C Receptacle Without USB Type-C With USB Type-C Data, video and power in a single connector Date 27. 06. 2017 | Technical Academy | Public | USB 3. 1 C © All rights reserved by Wurth Electronics, also in the event of industrial property rights. All rights of disposal such as copying and redistribution rights with us. www. we-online. com

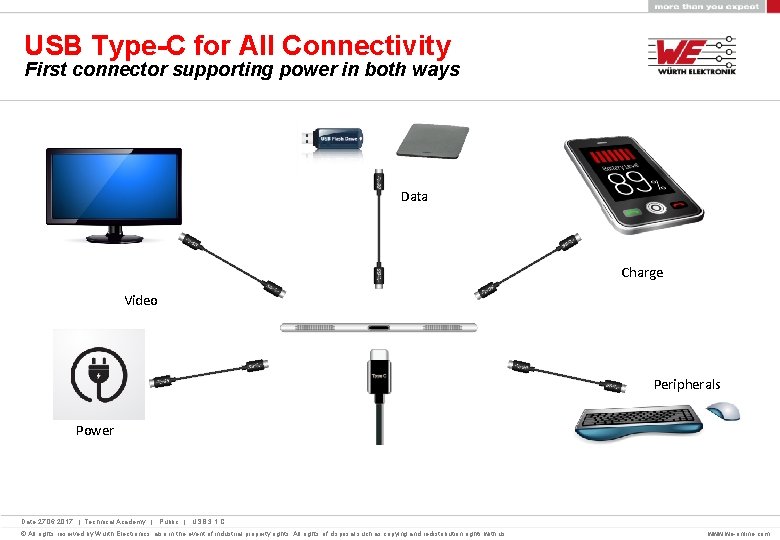

USB Type-C for All Connectivity First connector supporting power in both ways Data Charge Video Peripherals Power Date 27. 06. 2017 | Technical Academy | Public | USB 3. 1 C © All rights reserved by Wurth Electronics, also in the event of industrial property rights. All rights of disposal such as copying and redistribution rights with us. www. we-online. com

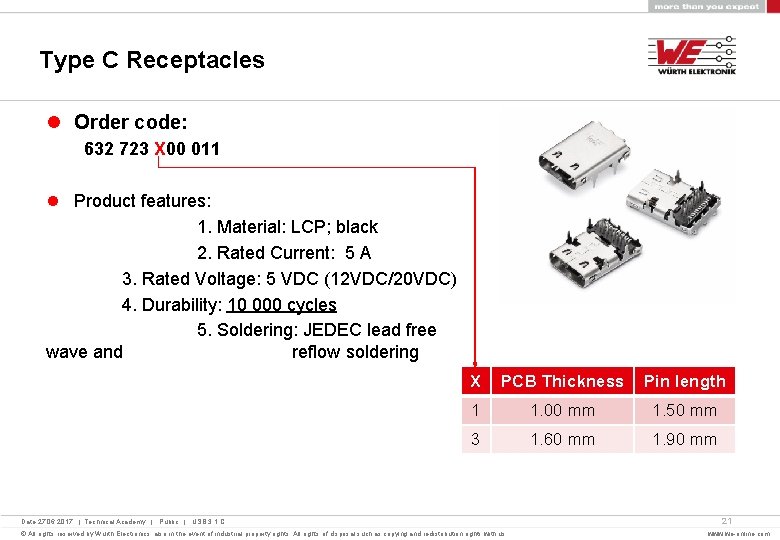

Type C Receptacles l Order code: 632 723 X 00 011 l Product features: 1. Material: LCP; black 2. Rated Current: 5 A 3. Rated Voltage: 5 VDC (12 VDC/20 VDC) 4. Durability: 10 000 cycles 5. Soldering: JEDEC lead free wave and reflow soldering X PCB Thickness Pin length 1 1. 00 mm 1. 50 mm 3 1. 60 mm 1. 90 mm Date 27. 06. 2017 | Technical Academy | Public | USB 3. 1 C © All rights reserved by Wurth Electronics, also in the event of industrial property rights. All rights of disposal such as copying and redistribution rights with us. 21 www. we-online. com

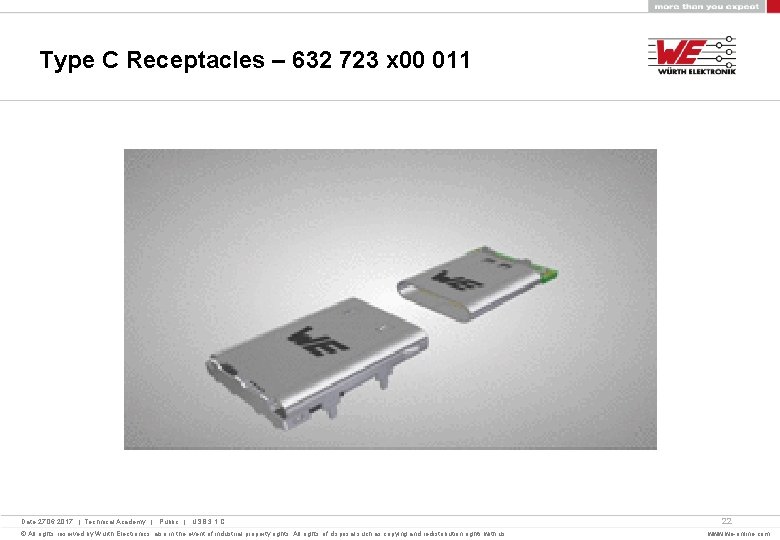

Type C Receptacles – 632 723 x 00 011 Date 27. 06. 2017 | Technical Academy | Public | USB 3. 1 C © All rights reserved by Wurth Electronics, also in the event of industrial property rights. All rights of disposal such as copying and redistribution rights with us. 22 www. we-online. com

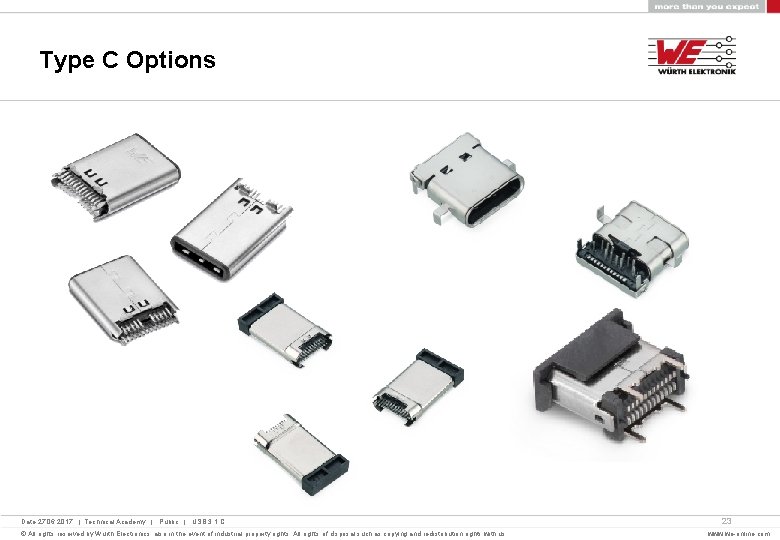

Type C Options Date 27. 06. 2017 | Technical Academy | Public | USB 3. 1 C © All rights reserved by Wurth Electronics, also in the event of industrial property rights. All rights of disposal such as copying and redistribution rights with us. 23 www. we-online. com

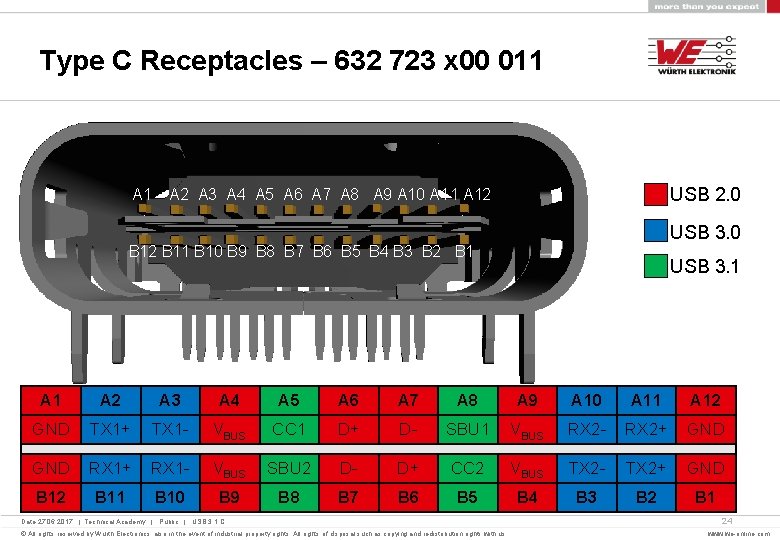

Type C Receptacles – 632 723 x 00 011 USB 2. 0 A 1 A 2 A 3 A 4 A 5 A 6 A 7 A 8 A 9 A 10 A 11 A 12 USB 3. 0 B 12 B 11 B 10 B 9 B 8 B 7 B 6 B 5 B 4 B 3 B 2 B 1 USB 3. 1 A 2 A 3 A 4 A 5 A 6 A 7 A 8 A 9 A 10 A 11 A 12 GND TX 1+ TX 1 - VBUS CC 1 D+ D- SBU 1 VBUS RX 2 - RX 2+ GND RX 1+ RX 1 - VBUS SBU 2 D- D+ CC 2 VBUS TX 2 - TX 2+ GND B 12 B 11 B 10 B 9 B 8 B 7 B 6 B 5 B 4 B 3 B 2 B 1 Date 27. 06. 2017 | Technical Academy | Public | USB 3. 1 C © All rights reserved by Wurth Electronics, also in the event of industrial property rights. All rights of disposal such as copying and redistribution rights with us. 24 www. we-online. com

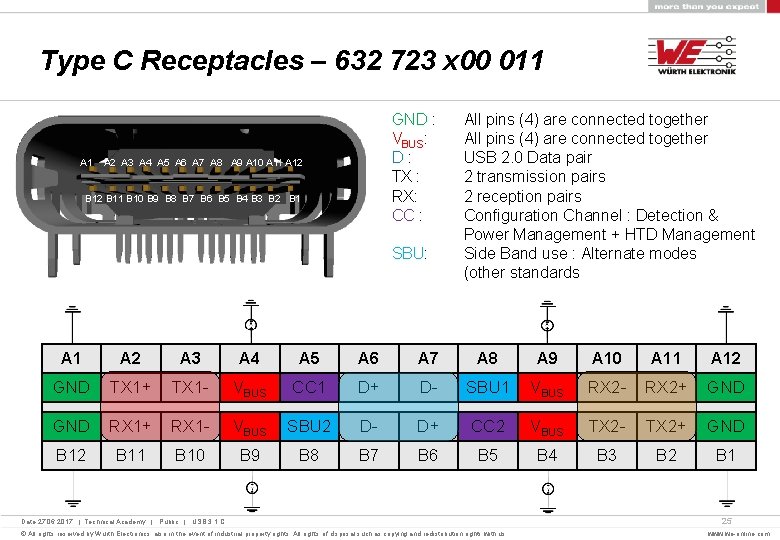

Type C Receptacles – 632 723 x 00 011 GND : VBUS: D : TX : RX: CC : A 1 A 2 A 3 A 4 A 5 A 6 A 7 A 8 A 9 A 10 A 11 A 12 B 11 B 10 B 9 B 8 B 7 B 6 B 5 B 4 B 3 B 2 B 1 SBU: All pins (4) are connected together USB 2. 0 Data pair 2 transmission pairs 2 reception pairs Configuration Channel : Detection & Power Management + HTD Management Side Band use : Alternate modes (other standards A 1 A 2 A 3 A 4 A 5 A 6 A 7 A 8 A 9 A 10 A 11 A 12 GND TX 1+ TX 1 - VBUS CC 1 D+ D- SBU 1 VBUS RX 2 - RX 2+ GND RX 1+ RX 1 - VBUS SBU 2 D- D+ CC 2 VBUS TX 2 - TX 2+ GND B 12 B 11 B 10 B 9 B 8 B 7 B 6 B 5 B 4 B 3 B 2 B 1 Date 27. 06. 2017 | Technical Academy | Public | USB 3. 1 C © All rights reserved by Wurth Electronics, also in the event of industrial property rights. All rights of disposal such as copying and redistribution rights with us. 25 www. we-online. com

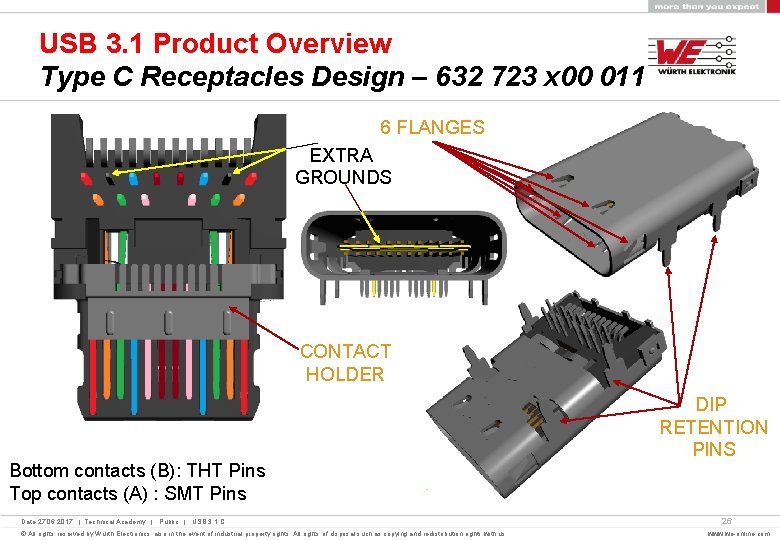

USB 3. 1 Product Overview Type C Receptacles Design – 632 723 x 00 011 6 FLANGES EXTRA GROUNDS CONTACT HOLDER Bottom contacts (B): THT Pins Top contacts (A) : SMT Pins Date 27. 06. 2017 | Technical Academy | Public | USB 3. 1 C © All rights reserved by Wurth Electronics, also in the event of industrial property rights. All rights of disposal such as copying and redistribution rights with us. DIP RETENTION PINS 26 www. we-online. com

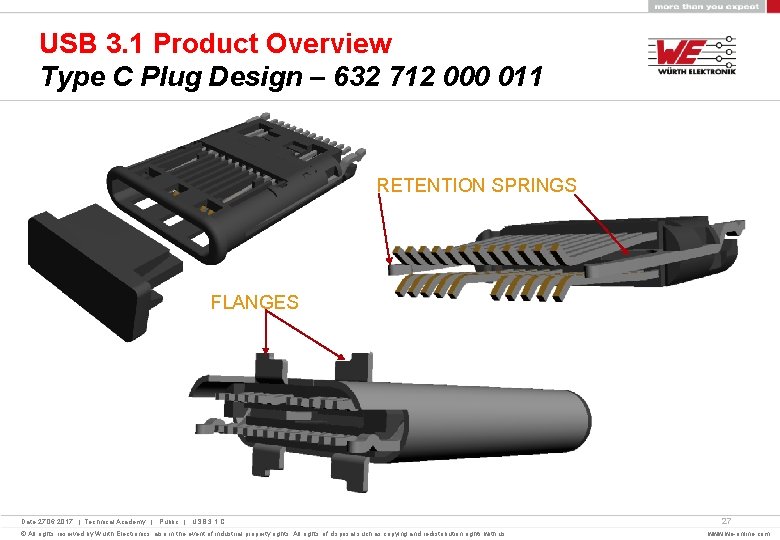

USB 3. 1 Product Overview Type C Plug Design – 632 712 000 011 RETENTION SPRINGS FLANGES Date 27. 06. 2017 | Technical Academy | Public | USB 3. 1 C © All rights reserved by Wurth Electronics, also in the event of industrial property rights. All rights of disposal such as copying and redistribution rights with us. 27 www. we-online. com

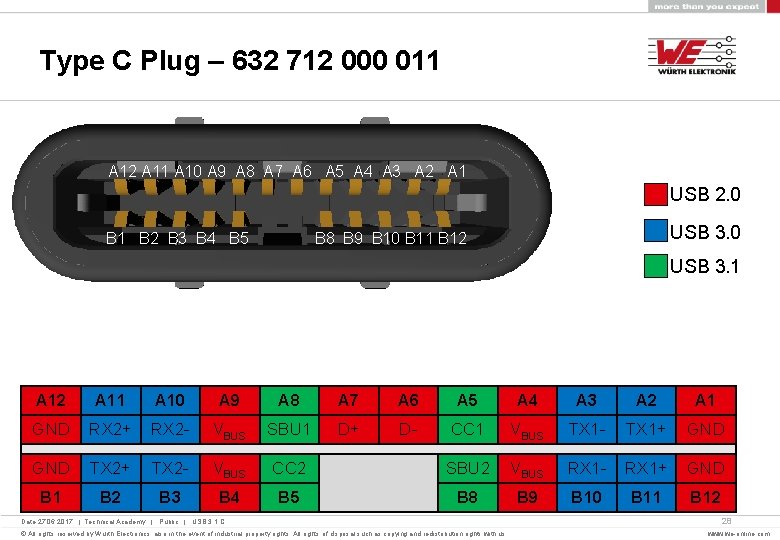

Type C Plug – 632 712 000 011 A 12 A 11 A 10 A 9 A 8 A 7 A 6 A 5 A 4 A 3 A 2 A 1 A 2 A 3 A 4 A 5 A 6 A 7 A 8 A 9 A 10 A 11 A 12 USB 2. 0 USB 3. 0 B 1 B 2 B 3 B 4 B 5 B 8 B 9 B 10 B 11 B 12 B 11 B 10 B 9 B 8 B 7 B 6 B 5 B 4 B 3 B 2 B 1 USB 3. 1 A 12 A 11 A 10 A 9 A 8 A 7 A 6 A 5 A 4 A 3 A 2 A 1 GND RX 2+ RX 2 - VBUS SBU 1 D+ D- CC 1 VBUS TX 1 - TX 1+ GND TX 2+ TX 2 - VBUS CC 2 SBU 2 VBUS RX 1 - RX 1+ GND B 1 B 2 B 3 B 4 B 5 B 8 B 9 B 10 B 11 B 12 Date 27. 06. 2017 | Technical Academy | Public | USB 3. 1 C © All rights reserved by Wurth Electronics, also in the event of industrial property rights. All rights of disposal such as copying and redistribution rights with us. 28 www. we-online. com

USB 3. 1 Product Overview Type C Plug Design – 632 712 000 011 Receptacle – Side crossed view Date 27. 06. 2017 | Technical Academy | Public | USB 3. 1 C © All rights reserved by Wurth Electronics, also in the event of industrial property rights. All rights of disposal such as copying and redistribution rights with us. Plug – Side crossed view 29 www. we-online. com

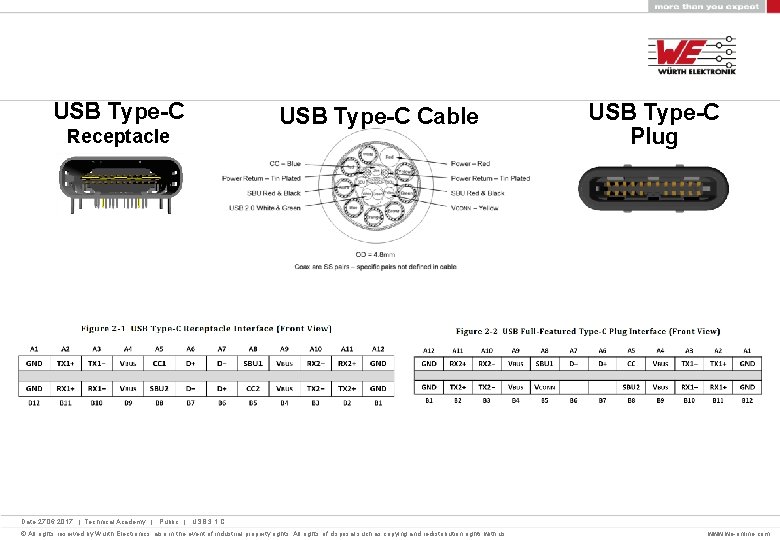

USB Type-C Receptacle USB Type-C Cable USB Type-C Plug Date 27. 06. 2017 | Technical Academy | Public | USB 3. 1 C © All rights reserved by Wurth Electronics, also in the event of industrial property rights. All rights of disposal such as copying and redistribution rights with us. www. we-online. com

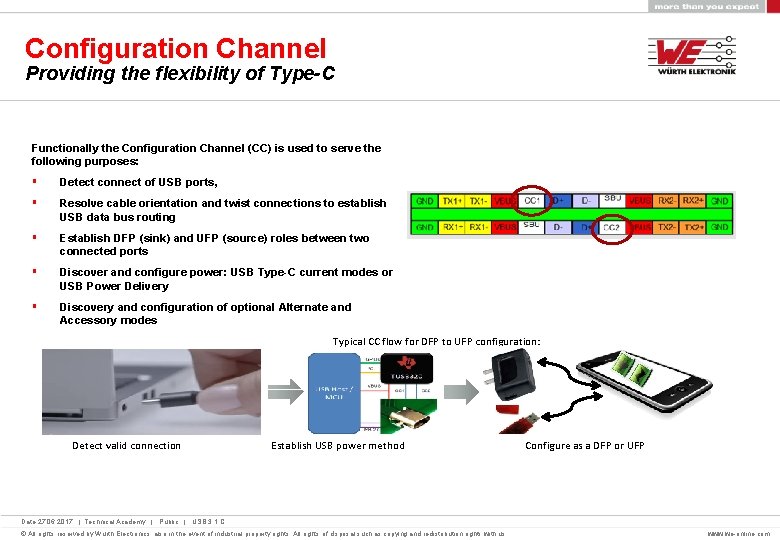

Configuration Channel Providing the flexibility of Type-C Functionally the Configuration Channel (CC) is used to serve the following purposes: § Detect connect of USB ports, § Resolve cable orientation and twist connections to establish USB data bus routing § Establish DFP (sink) and UFP (source) roles between two connected ports § Discover and configure power: USB Type-C current modes or USB Power Delivery § Discovery and configuration of optional Alternate and Accessory modes Typical CC flow for DFP to UFP configuration: Detect valid connection Establish USB power method Configure as a DFP or UFP Date 27. 06. 2017 | Technical Academy | Public | USB 3. 1 C © All rights reserved by Wurth Electronics, also in the event of industrial property rights. All rights of disposal such as copying and redistribution rights with us. www. we-online. com

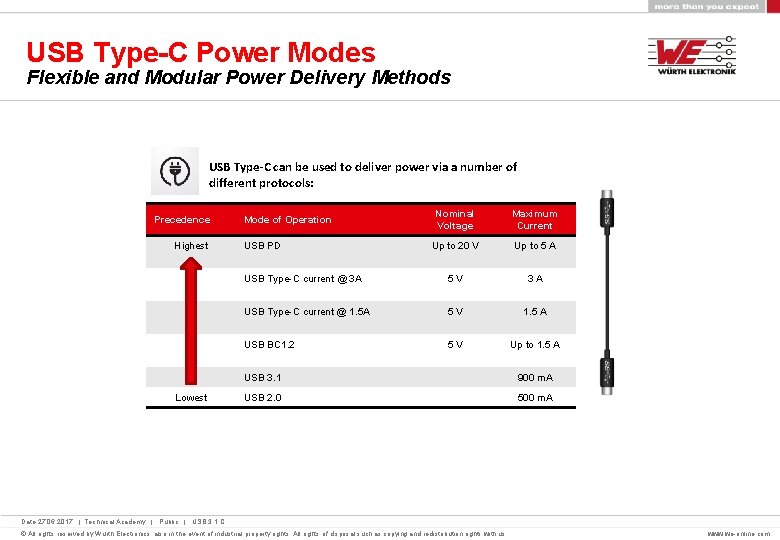

USB Type-C Power Modes Flexible and Modular Power Delivery Methods USB Type-C can be used to deliver power via a number of different protocols: Precedence Highest Lowest Nominal Voltage Maximum Current Up to 20 V Up to 5 A USB Type-C current @ 3 A 5 V 3 A USB Type-C current @ 1. 5 A 5 V 1. 5 A USB BC 1. 2 5 V Up to 1. 5 A Mode of Operation USB PD USB 3. 1 900 m. A USB 2. 0 500 m. A Date 27. 06. 2017 | Technical Academy | Public | USB 3. 1 C © All rights reserved by Wurth Electronics, also in the event of industrial property rights. All rights of disposal such as copying and redistribution rights with us. www. we-online. com

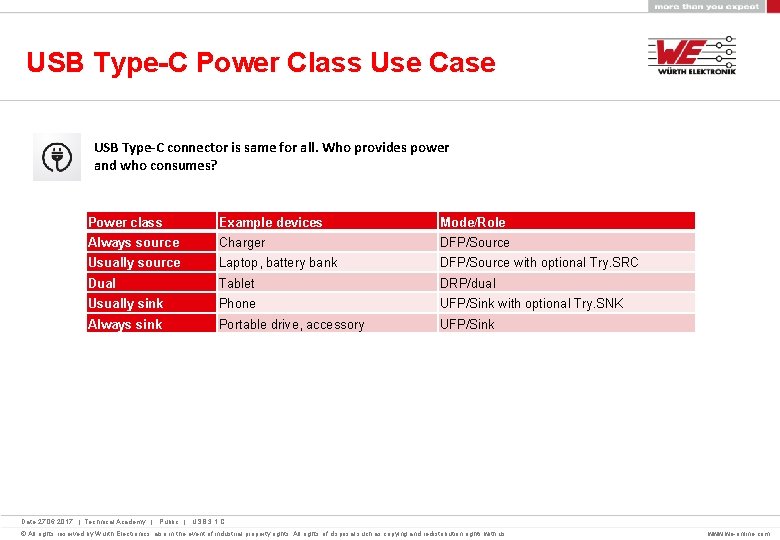

USB Type-C Power Class Use Case USB Type-C connector is same for all. Who provides power and who consumes? Power class Example devices Mode/Role Always source Charger DFP/Source Usually source Laptop, battery bank DFP/Source with optional Try. SRC Dual Tablet DRP/dual Usually sink Phone UFP/Sink with optional Try. SNK Always sink Portable drive, accessory UFP/Sink Date 27. 06. 2017 | Technical Academy | Public | USB 3. 1 C © All rights reserved by Wurth Electronics, also in the event of industrial property rights. All rights of disposal such as copying and redistribution rights with us. www. we-online. com

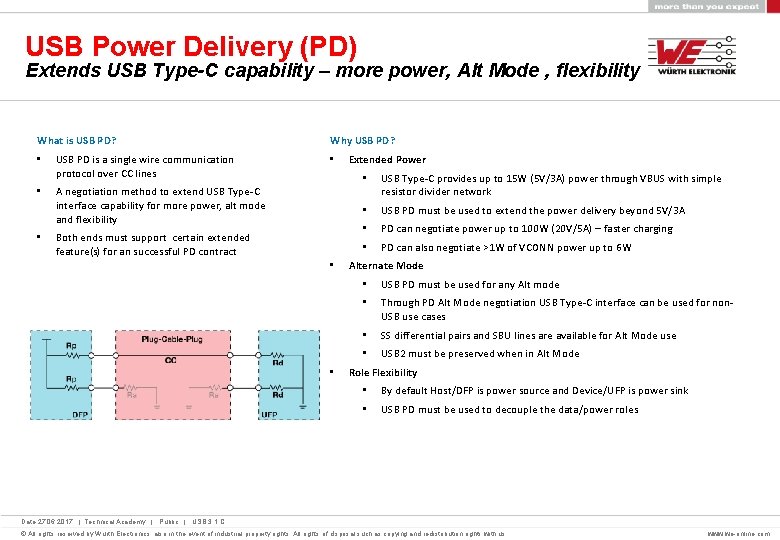

USB Power Delivery (PD) Extends USB Type-C capability – more power, Alt Mode , flexibility What is USB PD? Why USB PD? • USB PD is a single wire communication protocol over CC lines • • A negotiation method to extend USB Type-C interface capability for more power, alt mode and flexibility USB Type-C provides up to 15 W (5 V/3 A) power through VBUS with simple resistor divider network • USB PD must be used to extend the power delivery beyond 5 V/3 A Both ends must support certain extended feature(s) for an successful PD contract • PD can negotiate power up to 100 W (20 V/5 A) – faster charging • PD can also negotiate >1 W of VCONN power up to 6 W • • Extended Power Alternate Mode • USB PD must be used for any Alt mode • Through PD Alt Mode negotiation USB Type-C interface can be used for non. USB use cases • SS differential pairs and SBU lines are available for Alt Mode use • USB 2 must be preserved when in Alt Mode Role Flexibility • By default Host/DFP is power source and Device/UFP is power sink • USB PD must be used to decouple the data/power roles Date 27. 06. 2017 | Technical Academy | Public | USB 3. 1 C © All rights reserved by Wurth Electronics, also in the event of industrial property rights. All rights of disposal such as copying and redistribution rights with us. www. we-online. com

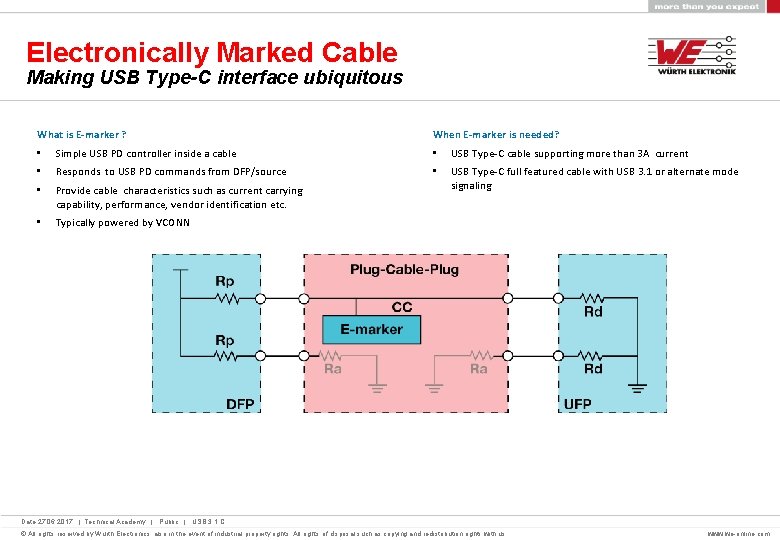

Electronically Marked Cable Making USB Type-C interface ubiquitous What is E-marker ? When E-marker is needed? • Simple USB PD controller inside a cable • USB Type-C cable supporting more than 3 A current • Responds to USB PD commands from DFP/source • • Provide cable characteristics such as current carrying capability, performance, vendor identification etc. USB Type-C full featured cable with USB 3. 1 or alternate mode signaling • Typically powered by VCONN Date 27. 06. 2017 | Technical Academy | Public | USB 3. 1 C © All rights reserved by Wurth Electronics, also in the event of industrial property rights. All rights of disposal such as copying and redistribution rights with us. www. we-online. com

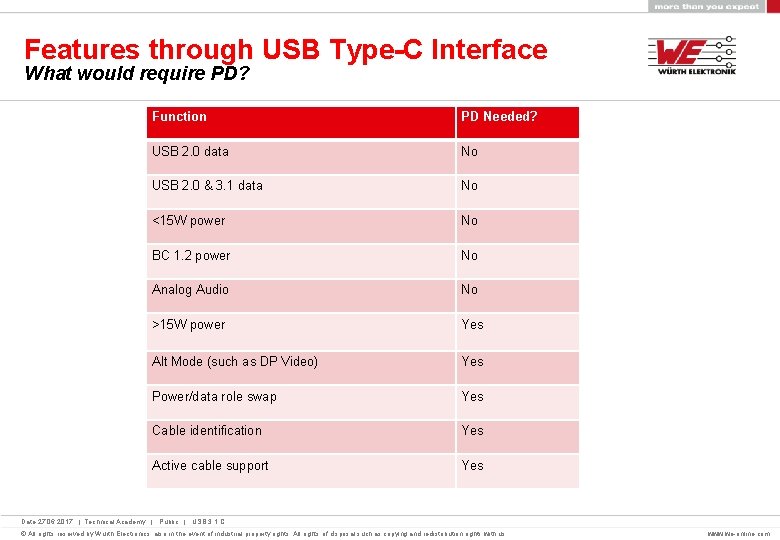

Features through USB Type-C Interface What would require PD? Function PD Needed? USB 2. 0 data No USB 2. 0 & 3. 1 data No <15 W power No BC 1. 2 power No Analog Audio No >15 W power Yes Alt Mode (such as DP Video) Yes Power/data role swap Yes Cable identification Yes Active cable support Yes Date 27. 06. 2017 | Technical Academy | Public | USB 3. 1 C © All rights reserved by Wurth Electronics, also in the event of industrial property rights. All rights of disposal such as copying and redistribution rights with us. www. we-online. com

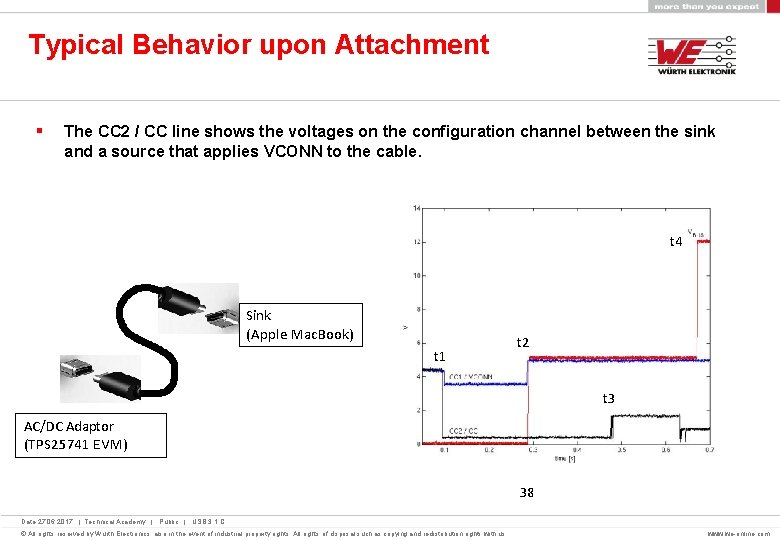

Typical Behavior upon Attachment § The CC 2 / CC line shows the voltages on the configuration channel between the sink and a source that applies VCONN to the cable. t 4 Sink (Apple Mac. Book) t 1 t 2 t 3 AC/DC Adaptor (TPS 25741 EVM) 38 Date 27. 06. 2017 | Technical Academy | Public | USB 3. 1 C © All rights reserved by Wurth Electronics, also in the event of industrial property rights. All rights of disposal such as copying and redistribution rights with us. www. we-online. com

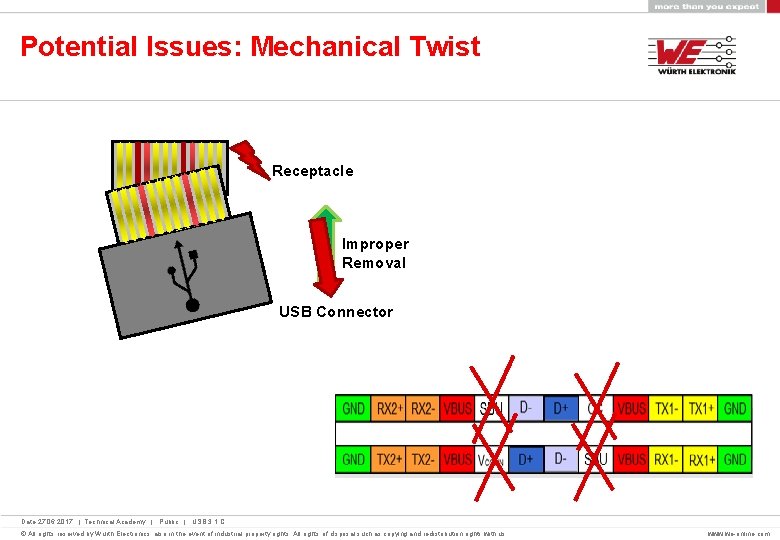

Potential Issues: Mechanical Twist Receptacle Improper Removal USB Connector Date 27. 06. 2017 | Technical Academy | Public | USB 3. 1 C © All rights reserved by Wurth Electronics, also in the event of industrial property rights. All rights of disposal such as copying and redistribution rights with us. www. we-online. com

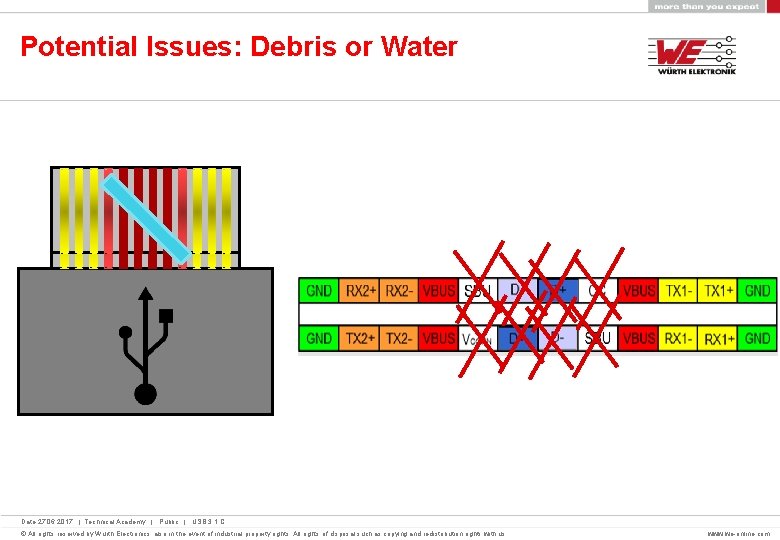

Potential Issues: Debris or Water Date 27. 06. 2017 | Technical Academy | Public | USB 3. 1 C © All rights reserved by Wurth Electronics, also in the event of industrial property rights. All rights of disposal such as copying and redistribution rights with us. www. we-online. com

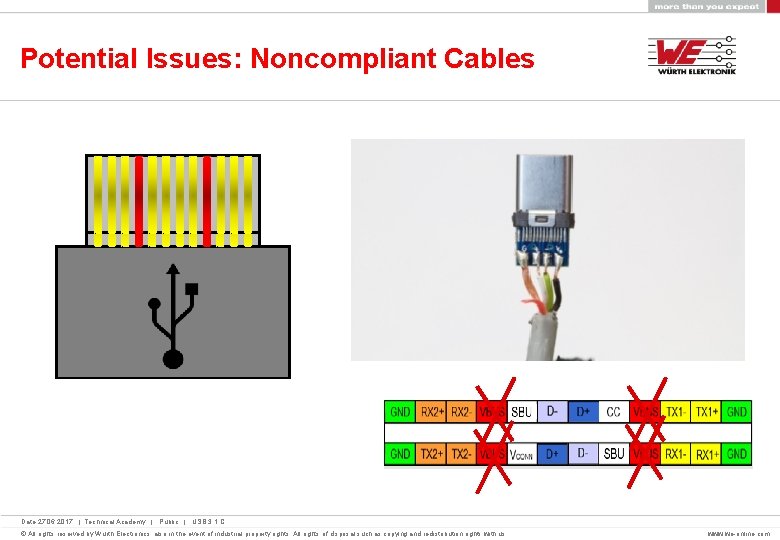

Potential Issues: Noncompliant Cables Date 27. 06. 2017 | Technical Academy | Public | USB 3. 1 C © All rights reserved by Wurth Electronics, also in the event of industrial property rights. All rights of disposal such as copying and redistribution rights with us. www. we-online. com

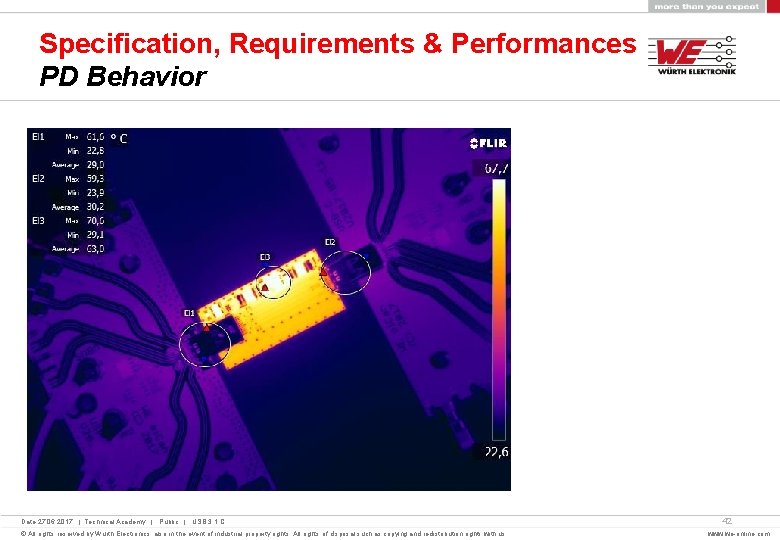

Specification, Requirements & Performances PD Behavior Date 27. 06. 2017 | Technical Academy | Public | USB 3. 1 C © All rights reserved by Wurth Electronics, also in the event of industrial property rights. All rights of disposal such as copying and redistribution rights with us. 42 www. we-online. com

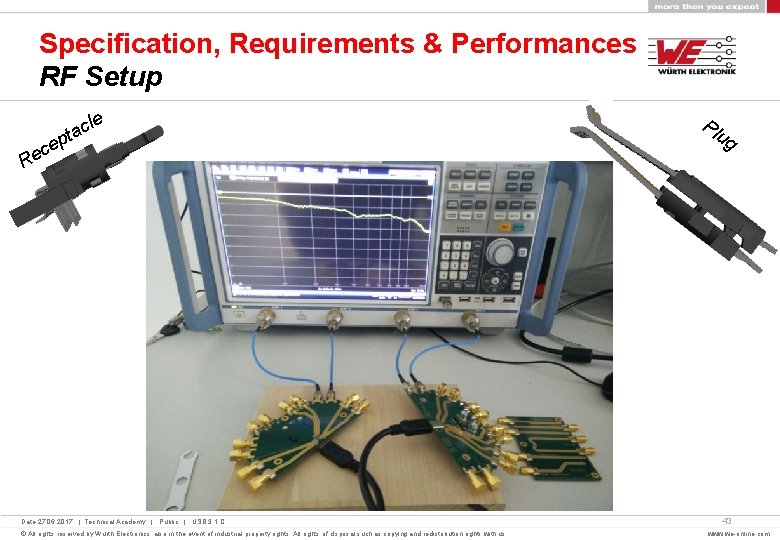

Specification, Requirements & Performances RF Setup le c a pt e c Re Date 27. 06. 2017 | Technical Academy | Public | USB 3. 1 C © All rights reserved by Wurth Electronics, also in the event of industrial property rights. All rights of disposal such as copying and redistribution rights with us. Pl ug 43 www. we-online. com

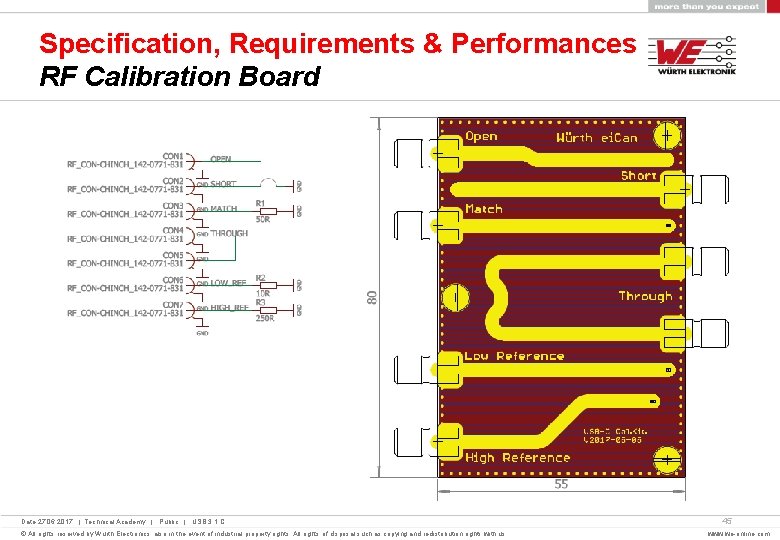

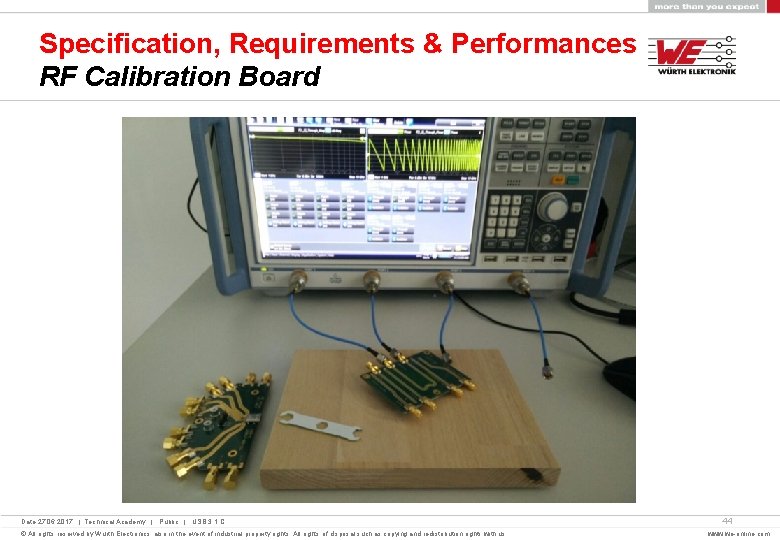

Specification, Requirements & Performances RF Calibration Board Date 27. 06. 2017 | Technical Academy | Public | USB 3. 1 C © All rights reserved by Wurth Electronics, also in the event of industrial property rights. All rights of disposal such as copying and redistribution rights with us. 44 www. we-online. com

Specification, Requirements & Performances RF Calibration Board Date 27. 06. 2017 | Technical Academy | Public | USB 3. 1 C © All rights reserved by Wurth Electronics, also in the event of industrial property rights. All rights of disposal such as copying and redistribution rights with us. 45 www. we-online. com

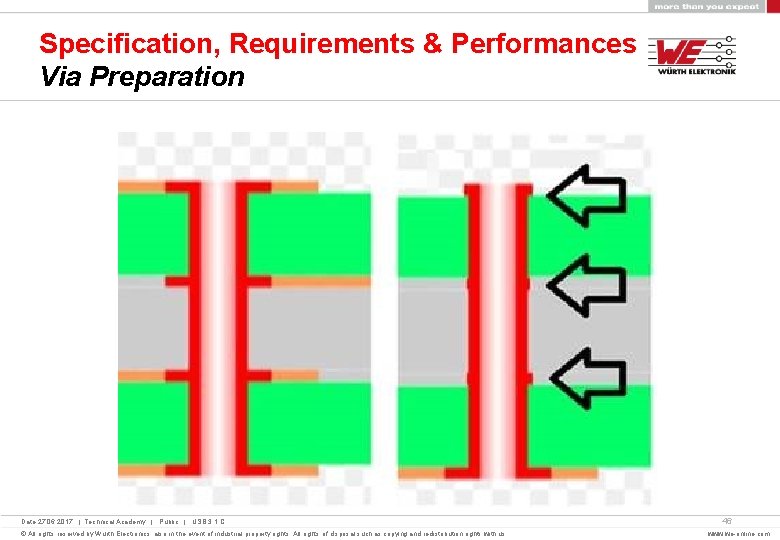

Specification, Requirements & Performances Via Preparation Date 27. 06. 2017 | Technical Academy | Public | USB 3. 1 C © All rights reserved by Wurth Electronics, also in the event of industrial property rights. All rights of disposal such as copying and redistribution rights with us. 46 www. we-online. com

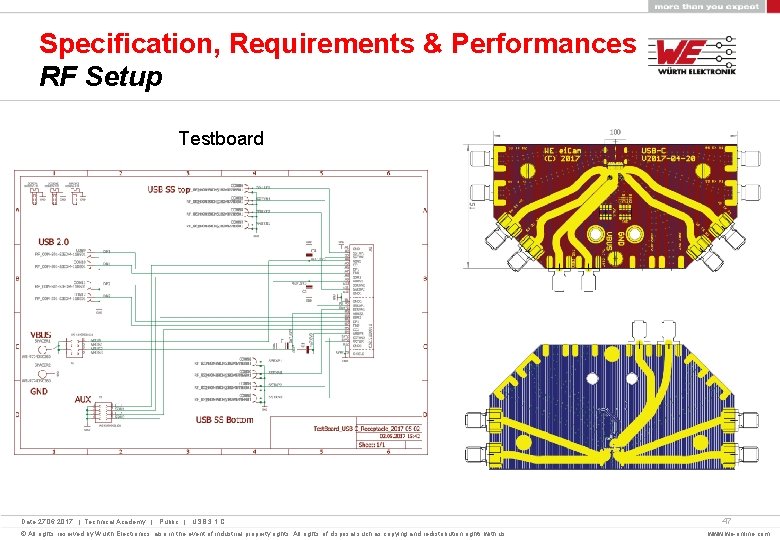

Specification, Requirements & Performances RF Setup Testboard Date 27. 06. 2017 | Technical Academy | Public | USB 3. 1 C © All rights reserved by Wurth Electronics, also in the event of industrial property rights. All rights of disposal such as copying and redistribution rights with us. 47 www. we-online. com

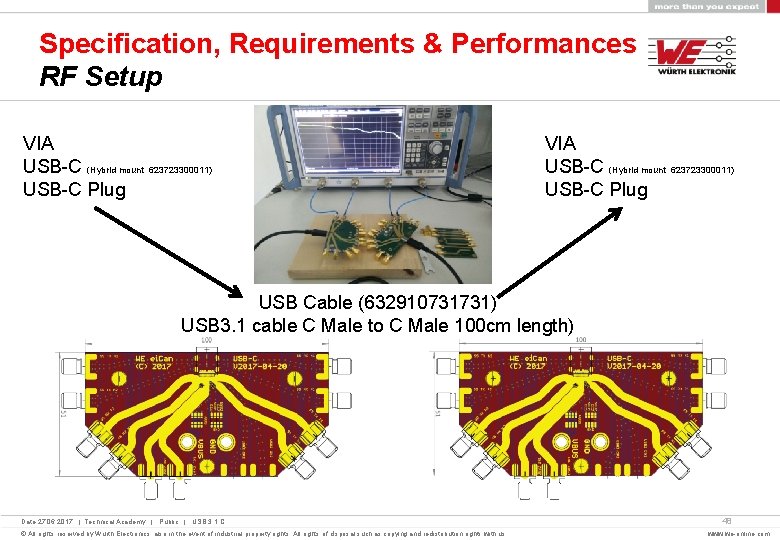

Specification, Requirements & Performances RF Setup VIA USB-C (Hybrid mount 623723300011) USB-C Plug USB Cable (632910731731) USB 3. 1 cable C Male to C Male 100 cm length) Date 27. 06. 2017 | Technical Academy | Public | USB 3. 1 C © All rights reserved by Wurth Electronics, also in the event of industrial property rights. All rights of disposal such as copying and redistribution rights with us. 48 www. we-online. com

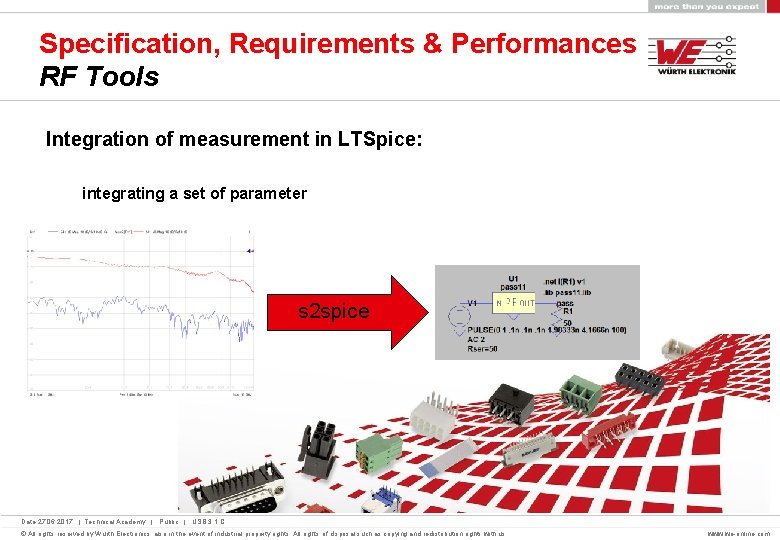

Specification, Requirements & Performances RF Tools Integration of measurement in LTSpice: integrating a set of parameter s 2 spice Date 27. 06. 2017 | Technical Academy | Public | USB 3. 1 C © All rights reserved by Wurth Electronics, also in the event of industrial property rights. All rights of disposal such as copying and redistribution rights with us. www. we-online. com

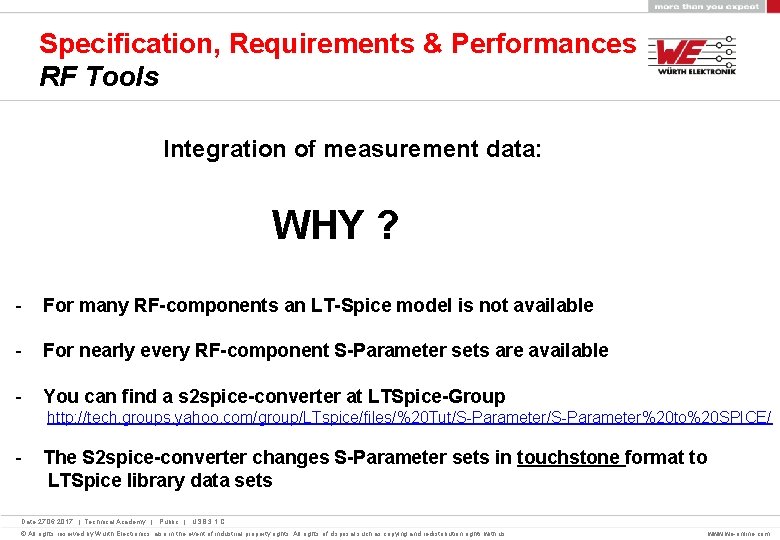

Specification, Requirements & Performances RF Tools Integration of measurement data: WHY ? - For many RF-components an LT-Spice model is not available - For nearly every RF-component S-Parameter sets are available - You can find a s 2 spice-converter at LTSpice-Group http: //tech. groups. yahoo. com/group/LTspice/files/%20 Tut/S-Parameter%20 to%20 SPICE/ - The S 2 spice-converter changes S-Parameter sets in touchstone format to LTSpice library data sets Date 27. 06. 2017 | Technical Academy | Public | USB 3. 1 C © All rights reserved by Wurth Electronics, also in the event of industrial property rights. All rights of disposal such as copying and redistribution rights with us. www. we-online. com

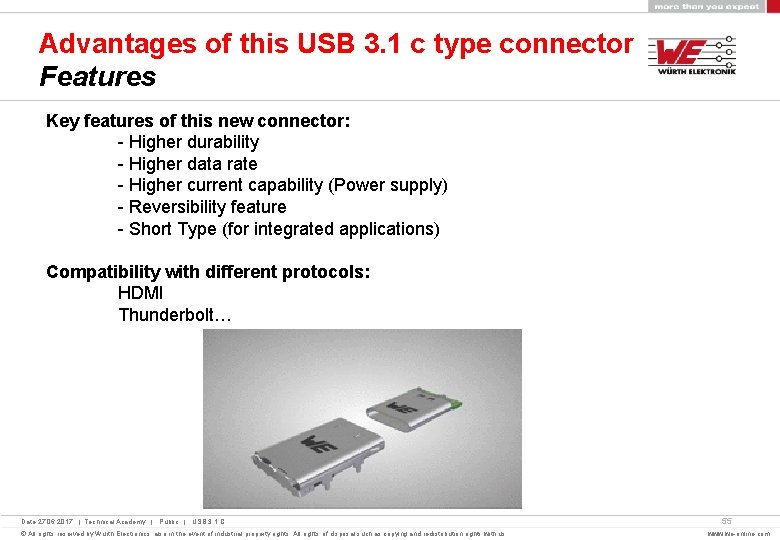

Advantages of this USB 3. 1 c type connector Features Key features of this new connector: - Higher durability - Higher data rate - Higher current capability (Power supply) - Reversibility feature - Short Type (for integrated applications) Compatibility with different protocols: HDMI Thunderbolt… Date 27. 06. 2017 | Technical Academy | Public | USB 3. 1 C © All rights reserved by Wurth Electronics, also in the event of industrial property rights. All rights of disposal such as copying and redistribution rights with us. 55 www. we-online. com

Where to use it ? Applications for USB (3. 1 C type) Source: https: //www. golem. de/news/ueberblick-wir-entwirren-den-kabelsalat-um-usb-typ-c-1601 -118667. html Date 27. 06. 2017 | Technical Academy | Public | USB 3. 1 C © All rights reserved by Wurth Electronics, also in the event of industrial property rights. All rights of disposal such as copying and redistribution rights with us. 56 www. we-online. com

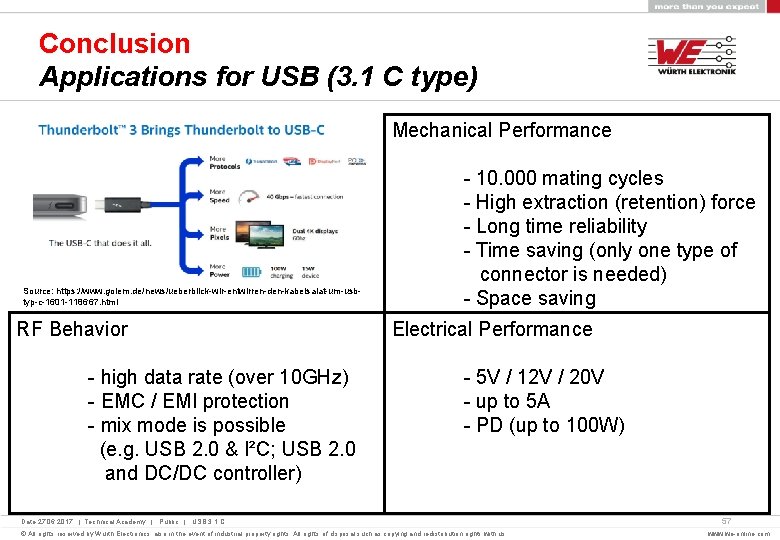

Conclusion Applications for USB (3. 1 C type) Mechanical Performance Source: https: //www. golem. de/news/ueberblick-wir-entwirren-den-kabelsalat-um-usbtyp-c-1601 -118667. html - 10. 000 mating cycles - High extraction (retention) force - Long time reliability - Time saving (only one type of connector is needed) - Space saving RF Behavior Electrical Performance - high data rate (over 10 GHz) - 5 V / 12 V / 20 V - EMC / EMI protection - up to 5 A - mix mode is possible - PD (up to 100 W) (e. g. USB 2. 0 & I²C; USB 2. 0 and DC/DC controller) Date 27. 06. 2017 | Technical Academy | Public | USB 3. 1 C © All rights reserved by Wurth Electronics, also in the event of industrial property rights. All rights of disposal such as copying and redistribution rights with us. 57 www. we-online. com

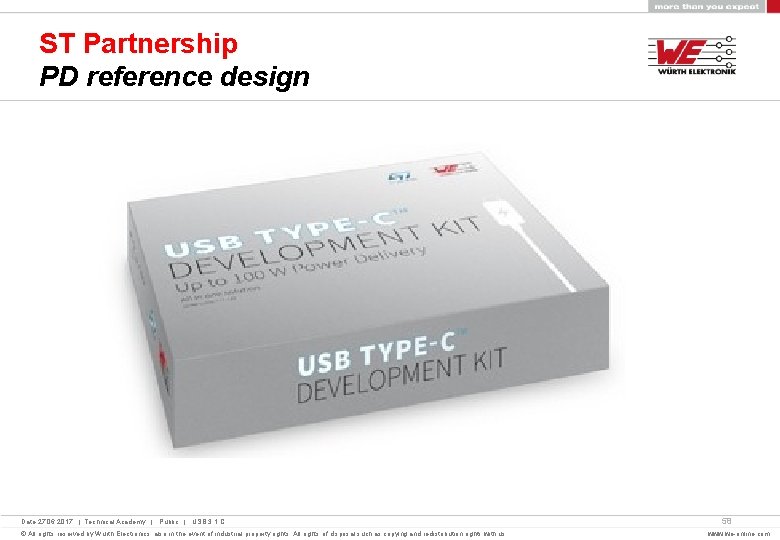

ST Partnership PD reference design Date 27. 06. 2017 | Technical Academy | Public | USB 3. 1 C © All rights reserved by Wurth Electronics, also in the event of industrial property rights. All rights of disposal such as copying and redistribution rights with us. 58 www. we-online. com

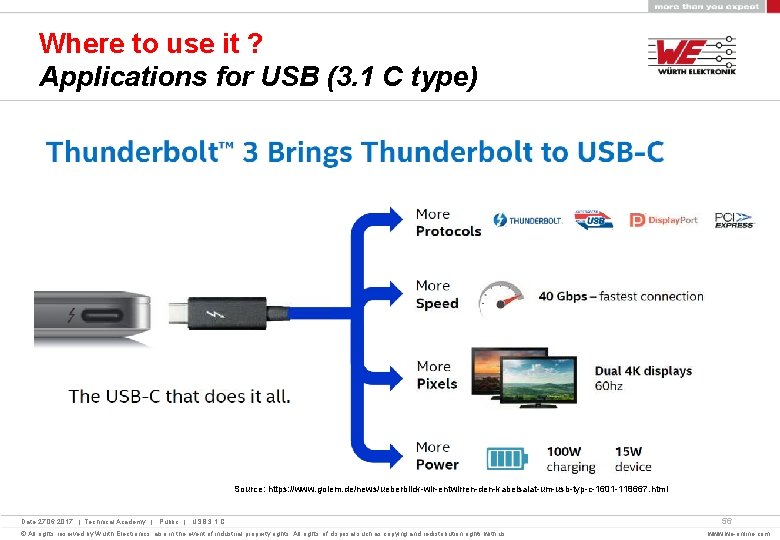

Where to use it ? Applications for USB (3. 1 C type) Date 27. 06. 2017 | Technical Academy | Public | USB 3. 1 C © All rights reserved by Wurth Electronics, also in the event of industrial property rights. All rights of disposal such as copying and redistribution rights with us. www. we-online. com
