USARTS CS 423 Dick Steflik USART Universal Synchronous

USARTS CS 423 Dick Steflik

USART ● ● Universal Synchronous Asynchronous Receiver Transmitter used to send and receive small packets over a serial line full or half duplex ● ● ● typically asynchronously 5 – 8 bits of data 2 or 3 framing bits ● ● start bit 1 or 2 stop bits 0 or 1 parity bits

Data Format ● Must be agreed on by sender and receiver before any exchanges can be made ● stop bit (1 to 0 transition) ● 5 – 8 data bits ● 0 or 1 parity bits (odd or even parity) ● 1 or 2 stop bits (logic 0)

Parity ● error detection mechanism ● odd parity ● even parity ● ● if an even number of data bits are 1 the parity bit is set to 1 to ensure an odd number of 1 s if an off number of data bits are 1 the parity bit is set to 1 to ensure an even number of bits are 1 s calculated and set by transmitter recalculated buy receiver and compared to transmitted value, if no match a bit was either picked or dropped in transmission.

Programming Model ● Data input register ● Data output register ● Control register ● Status register ● speed, data bits, parity, stop bits, start, stop data ready, transmitting interrupts overflow, underflow, data ready, data sent

Sending data ● Remember synchronization is on a character by character basis ● check status ● load data register ● start transmit ● ● wait for transmission complete status or for interrupt repeat

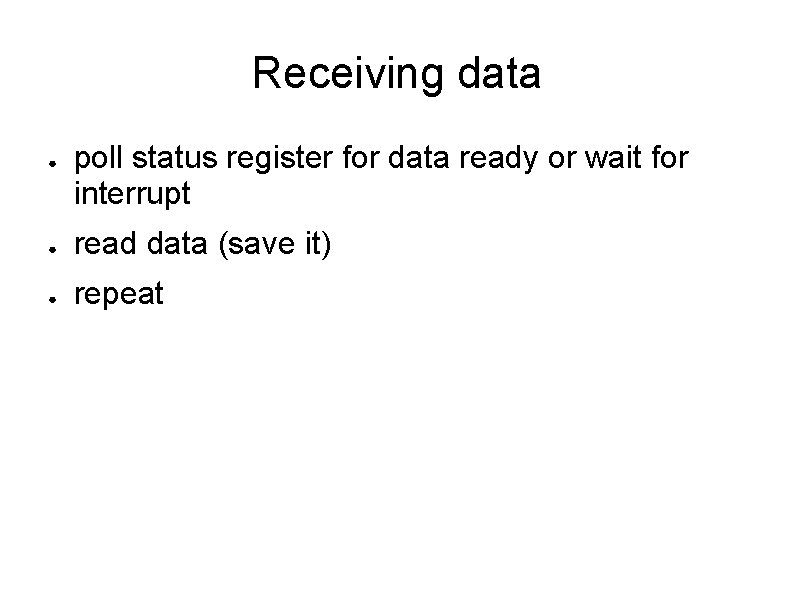

Receiving data ● poll status register for data ready or wait for interrupt ● read data (save it) ● repeat

ATtiny 2313 ● UDR – Data Register read / write (depending on context) ● UBRRL & UBRRH – Baud Rate Register ● UCSRB – Control Register ● writable UCSRA – Status Register readable

UCSRA ● ● ● ● 7 – RXC – Receive Complete 6 – TXC – Transmit Complete 5 – UDRE – Data Register Empty 4 – FE – Frame Error 3 – DOR – Data Overrun Error 2 – UPE – Parity Error 1 – U 2 X - Double the speed (Async mode only) 0 – MPCM – Multi-processor Communication Mode

UCSRB ● 7 – RXCIE – Rx Comp Interrupt Enable ● 6 – TXCIE – Tx Comp Interrupt Enable ● 5 – UDRIE – Dara Reg Empty Interrupt Enable ● 4 – RXEN – Receiver Enable ● 3 – TXEN – Transmitter Enable ● 2 – UCSZ 2 – Character size MSB ● 1 – RXB 8 – 9 th bit if frame size is 9 ● 0 – TXB 8 – 9 th bit if frame size is 9

UCSRC ● 6 - UMSEL – (0 -async, 1 -sync) ● 5, 4 – UPM 1, UPM 0 USART Parity Mode ● ● ● 0 0 disabled 0 1 reserved 1 0 even parity enabled 1 1 odd parity enabled 3 – UCBS – Number of stop bits ( 0 – 1 bit , 1 – 2 bits) 2, 1 – UCSZ 1, UCSZ 0 - USART Character Size used with UCSZ 2 bit in UCSRB 0 – UCPOL – used in sync mode for clock polarity
