Urine routine and microscopy KEM Hospital Mumbai Urinanalysis

Urine routine and microscopy KEM Hospital, Mumbai.

�Urinanalysis is fundamental test that should be performed in all urologic patients. �It will help in conveying the structural and functional status of urinary system and associated abnormalities in it.

Collection of urine specimen� In the male patient, a midstream urine sample is obtained after retracting the prepuce. � In female before obtaining sample clean the vulva and separate the labia. Mid stream urine is collected. � To evaluate for a possible infection in a female, a catheterized urine sample should always be obtained. � In infants sterile plastic bag with adhesive collar over genitalia can be used. Suprapubic aspirate can be used. � Need to be examined within 1 hour

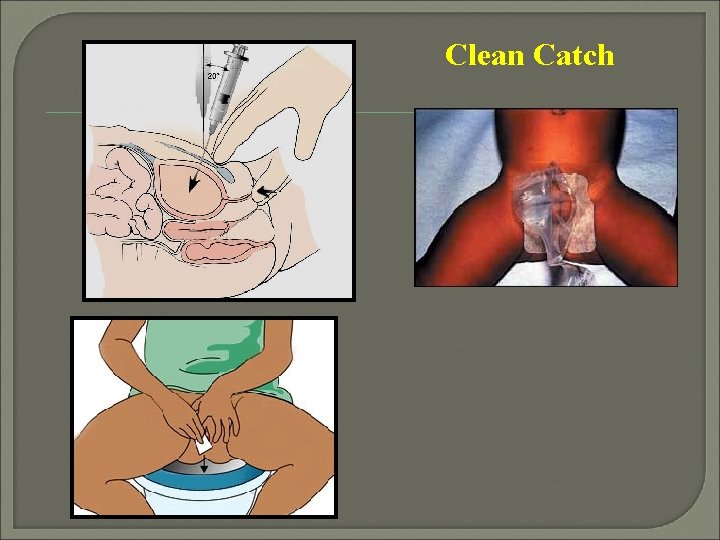

Clean Catch

Routine urine analysis includes�Physical examination �Chemical examination �Microscopic examination

Physical examination �Urine volume �Colour �Turbidity �PH �Specific gravity (SG) & Osmolality

Urine dipstick analysis- Urine Dipstick Glucose Bilirubin Ketones Specific Gravity Blood p. H Protein Urobilinogen Nitrite Leukocyte Esterase

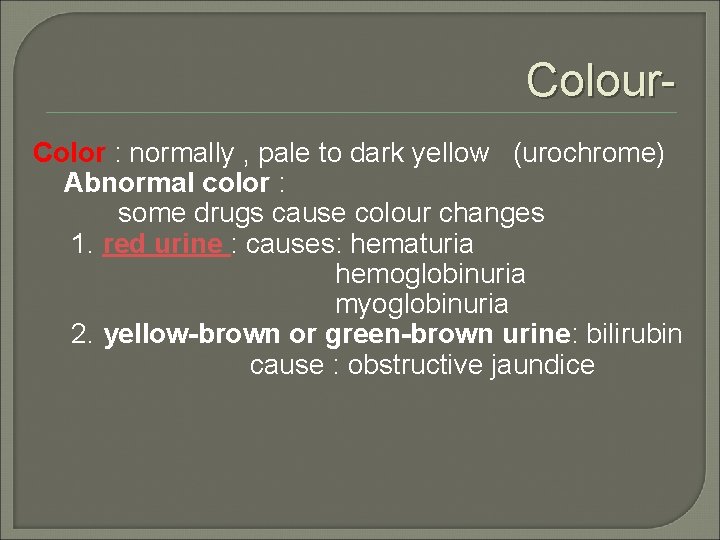

Colour. Color : normally , pale to dark yellow (urochrome) Abnormal color : some drugs cause colour changes 1. red urine : causes: hematuria hemoglobinuria myoglobinuria 2. yellow-brown or green-brown urine: bilirubin cause : obstructive jaundice

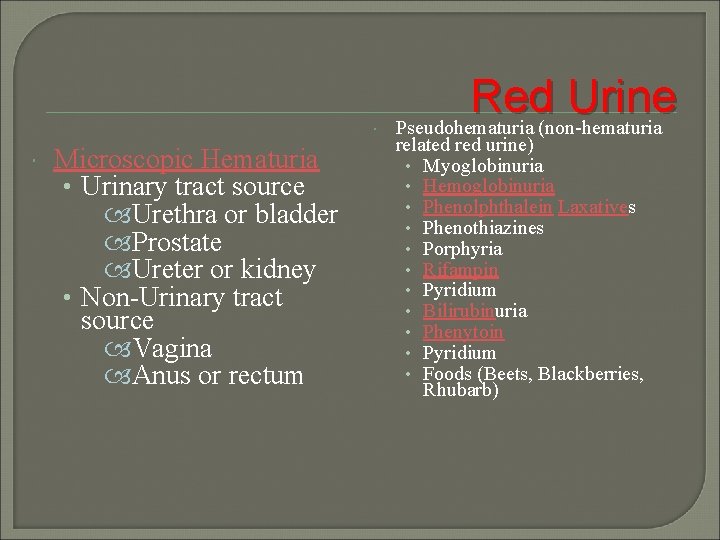

Microscopic Hematuria • Urinary tract source Urethra or bladder Prostate Ureter or kidney • Non-Urinary tract source Vagina Anus or rectum Red Urine Pseudohematuria (non-hematuria related red urine) • Myoglobinuria • Hemoglobinuria • Phenolphthalein Laxatives • Phenothiazines • Porphyria • Rifampin • Pyridium • Bilirubinuria • Phenytoin • Pyridium • Foods (Beets, Blackberries, Rhubarb)

Appearance � Clarity: normally, clear Abnormal colour: cloudy urine/turbidity Causes: 1. crystals or nonpathologic salts phosphate, carbonate in alkaline urine (dissolve---add acetic acid) uric acid in acid urine (dissolve---warming to 60℃) 2. various cellular elements: leukocytes, RBCs, epithelial cells 3. Chyluria, Lipiduria 4. Hyperoxaluria, Hyperuricosuria

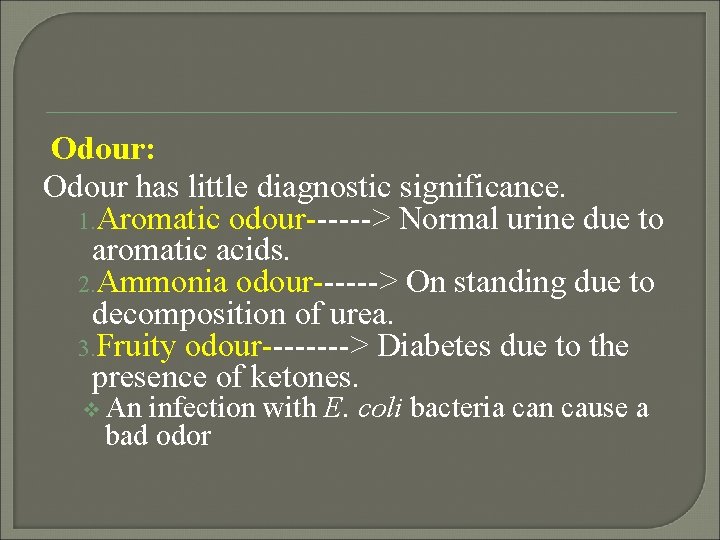

Odour: Odour has little diagnostic significance. 1. Aromatic odour------> Normal urine due to aromatic acids. 2. Ammonia odour------> On standing due to decomposition of urea. 3. Fruity odour----> Diabetes due to the presence of ketones. v An infection with E. coli bacteria can cause a bad odor

�The Urine volume average adult : 1000 ml to 2000 ml/24 h �Increase Polyuria---more than 2000 ml of urine in 24 hr 1. physiological states: water intake, some drugs, intravenous solutions 2. pathologic states: diabetes mellitus, diabetes insipidus

� Decrease Urine volume Oliguria---less than 400 ml of urine in 24 hours Anuria---less than 100 ml of urine in 24 hours 1. prerenal: hemorrhage, dehydration, congestive heart failure 2. postrenal: obstruction of the urinary tract (may be stones, carcinoma) 3. renal parenchymal disease: acute tubular necrosis, chronic renal failure

Specific gravity (SG) � � � Reflect the density of the urine Ranges from 1. 001 to 1. 035 Increase(>1. 020): Dehydration、Decreased fluid intake, Diabetes mellitus, SIADH. � Decrease(<1. 008): Increased water intake, diabetes insipidus, diuretics, decreased renal concentrating ability. Fixed specific gravity of 1. 010 is seen in renal insufficiency either acute or chronic. � Urine osmolality ranges from 50 to 1200 mosm/lit �

The Urine Dipstick: Specific Gravity 1. 000 1. 005 1. 010 1. 015 1. 020 1. 025 1. 030 Chemical Principle X+ + Polymethyl vinyl ether / maleic anhydride --------> X+-Polymethyl vinyl ether / maleic anhydride + H+ H+ interacts with a Bromthymol Blue indicator to form a colored complex. Read up to 2 minutes RR: 1. 003 -1. 035

Urine PH� Normal PH- Ranges from 4. 5 -8 The average ranges from 5. 5 to 6. 5 � Higher PH---alkaline urine 1. drugs: sodium bicarbonate 2. Renal tubular acidosis type I 3. alkalosis (metabolic or respiratory) � Lower PH---acid urine 1. drugs: ammonium chloride 2. acidosis (metabolic or respiratory)

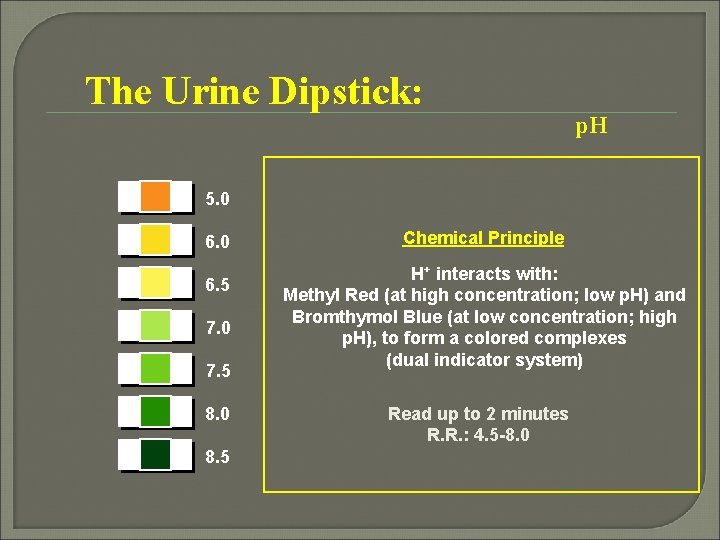

The Urine Dipstick: p. H 5. 0 6. 5 7. 0 7. 5 8. 0 8. 5 Chemical Principle H+ interacts with: Methyl Red (at high concentration; low p. H) and Bromthymol Blue (at low concentration; high p. H), to form a colored complexes (dual indicator system) Read up to 2 minutes R. R. : 4. 5 -8. 0

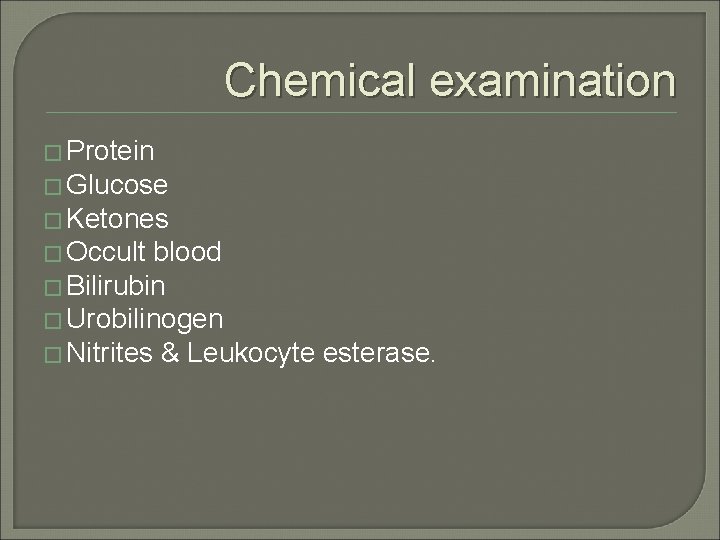

Chemical examination � Protein � Glucose � Ketones � Occult blood � Bilirubin � Urobilinogen � Nitrites & Leukocyte esterase.

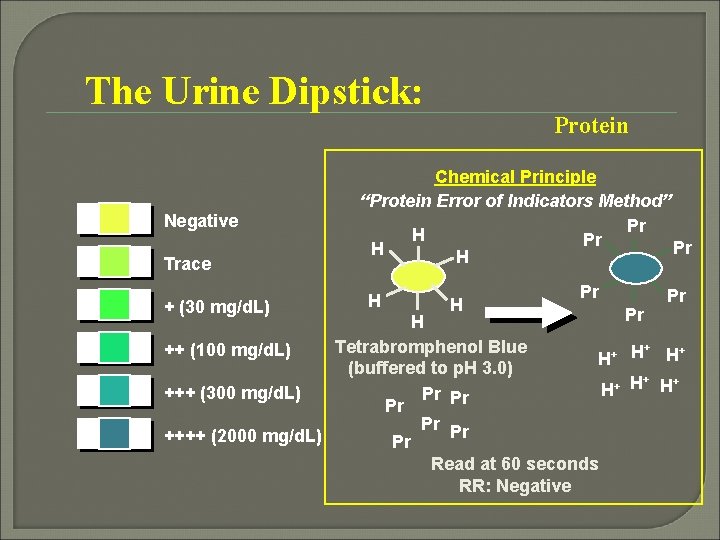

The Urine Dipstick: Negative Trace + (30 mg/d. L) Protein Chemical Principle “Protein Error of Indicators Method” Pr H Pr Pr H H Pr Pr Pr H + Tetrabromphenol Blue + ++ (100 mg/d. L) H+ H H (buffered to p. H 3. 0) + + H H +++ (300 mg/d. L) Pr Pr Pr ++++ (2000 mg/d. L) Pr Read at 60 seconds RR: Negative

Proteins in urine � Normal adult excrete less than 150 mg of protein in urine within 24 hours. � Urine proteins come from plasma protein(albumin, globulins) and Tamm-Horsfall (T-H) glycoprotein. � More than 150 mg proteins in urine in 24 hours is called as proteinuria. � It can be quantified asheavy proteinuria----＞ 4. 0 g/24 hours moderate proteinuria----1. 0 -4. 0 g/24 hours minimal proteinuria----＜ 1. 0 g/24 hours

Pathophysiological causes 1)Glomerular proteinuria: � damage to glomerular basement membrane but tubular function is normal � It can be selective proteinuria-chiefly albumin or nonselective proteinuria � heavy proteinuria � acute glomerulonephritis, Diabetes

2)Tubular proteinuria-Renal tubular disease damage tubular function but glomerular function is normal -Moderate proteinuria - disease: pyelonephritis � 3)Overflow proteinuria. Excess levels of a protein in the circulation, hemoglobin, myoglobin, etc. The renal function is normal � Ø Ø Hemoglobinuria Myoglobinuria Multiple Myeloma Amyloidosis

Glucose in urine� Normally all glucose filtered is absorbed in PCT. � Renal threashold for serum glucose is 180 mg/dl � Glycosuria 1. hyperglycemia: diabetes mellitus Cushing’s syndrom 2. without hyperglycemia: renal tubular dysfunction such as pyelonephritis

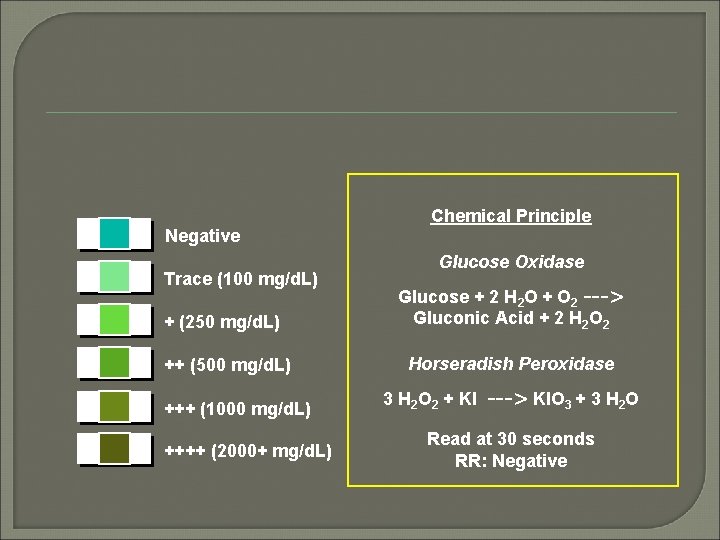

Negative Trace (100 mg/d. L) Chemical Principle Glucose Oxidase + (250 mg/d. L) Glucose + 2 H 2 O + O 2 ---> Gluconic Acid + 2 H 2 O 2 ++ (500 mg/d. L) Horseradish Peroxidase +++ (1000 mg/d. L) ++++ (2000+ mg/d. L) 3 H 2 O 2 + KI ---> KIO 3 + 3 H 2 O Read at 30 seconds RR: Negative

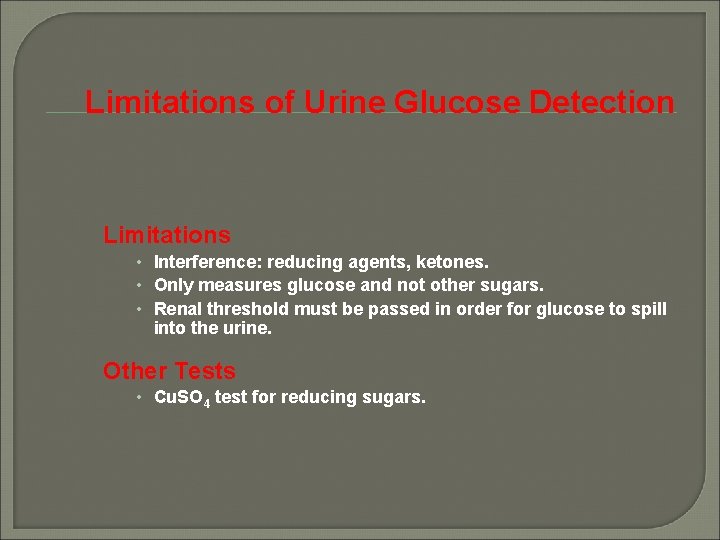

Limitations of Urine Glucose Detection Limitations • Interference: reducing agents, ketones. • Only measures glucose and not other sugars. • Renal threshold must be passed in order for glucose to spill into the urine. Other Tests • Cu. SO 4 test for reducing sugars.

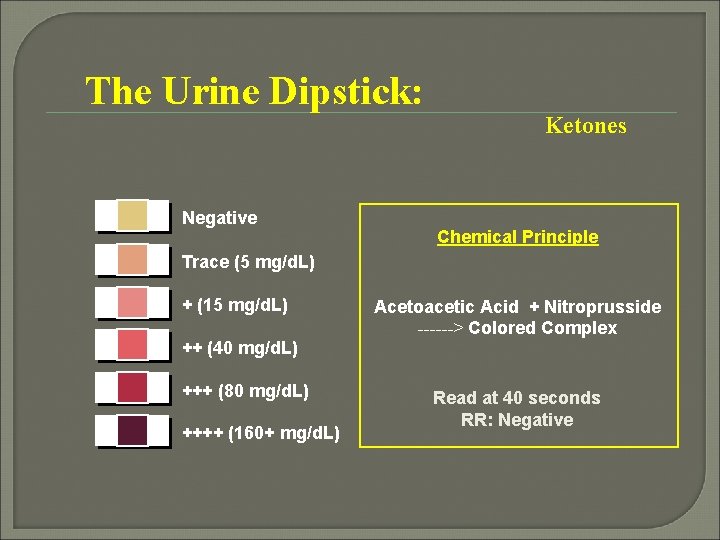

The Urine Dipstick: Negative Ketones Chemical Principle Trace (5 mg/d. L) + (15 mg/d. L) ++ (40 mg/d. L) +++ (80 mg/d. L) ++++ (160+ mg/d. L) Acetoacetic Acid + Nitroprusside ------> Colored Complex Read at 40 seconds RR: Negative

Uses and Limitations of Urine Ketone Detection Normally not seen in urine. Significance - Diabetic ketoacidosis - Prolonged fasting -pregnancy -rapid weight loss Limitations - Interference: expired reagents (degradation with exposure to moisture in air) - Only measures acetoacetate not other ketone bodies(acetone, beta hydroxy butyric acid)

The Urine Dipstick: Bilirrubin Negative Chemical Principle + (weak) Acidic Azobilirubin Bilirubin + Diazo salt -----> ++ (moderate) +++ (strong) Read at 30 seconds RR: Negative

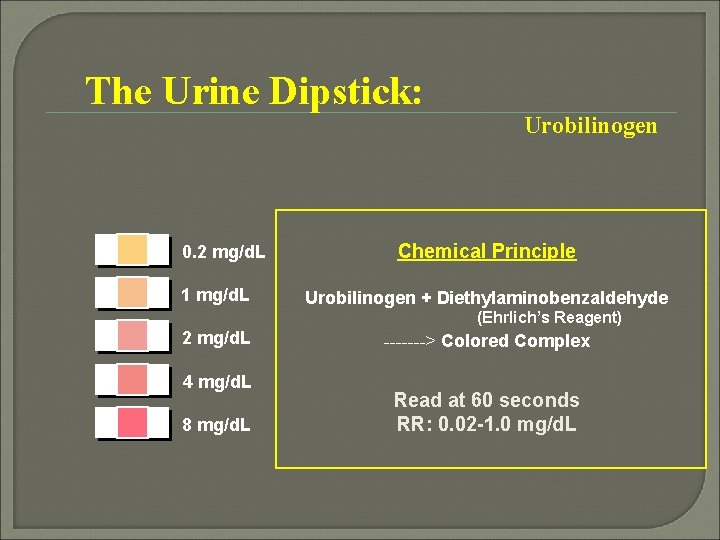

The Urine Dipstick: 0. 2 mg/d. L 1 mg/d. L Urobilinogen Chemical Principle Urobilinogen + Diethylaminobenzaldehyde (Ehrlich’s Reagent) 2 mg/d. L 4 mg/d. L 8 mg/d. L -------> Colored Complex Read at 60 seconds RR: 0. 02 -1. 0 mg/d. L

Significance - Increased direct bilirubin seen in obstructive jaundice. -Increased urobilinogen is seen in hemolysis and hepatocellular diseases. Limitations - Interference: prolonged exposure of sample to light - Only measures direct bilirubin--will not pick up indirect bilirubin - Serum test for total and direct bilirubin is more informative

The Urine Dipstick: Negative Trace (non-hemolyzed) Moderate (non-hemolyzed) Trace (hemolyzed) + (weak) ++ (moderate) +++ (strong) Blood Chemical Principle Lysing agent to lyse red blood cells Diisopropylbenzene dihydroperoxide + Tetramethylbenzidine Heme ------> Colored Complex Read at 60 seconds RR: Negative Analytic Sensitivity: 10 RBCs

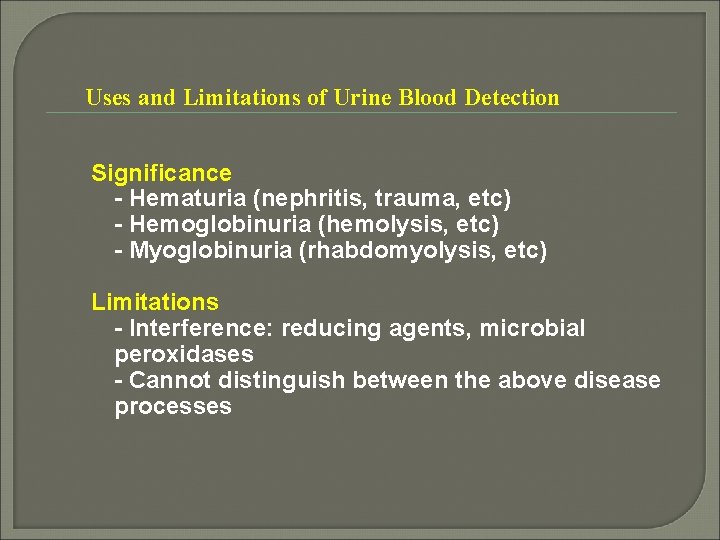

Uses and Limitations of Urine Blood Detection Significance - Hematuria (nephritis, trauma, etc) - Hemoglobinuria (hemolysis, etc) - Myoglobinuria (rhabdomyolysis, etc) Limitations - Interference: reducing agents, microbial peroxidases - Cannot distinguish between the above disease processes

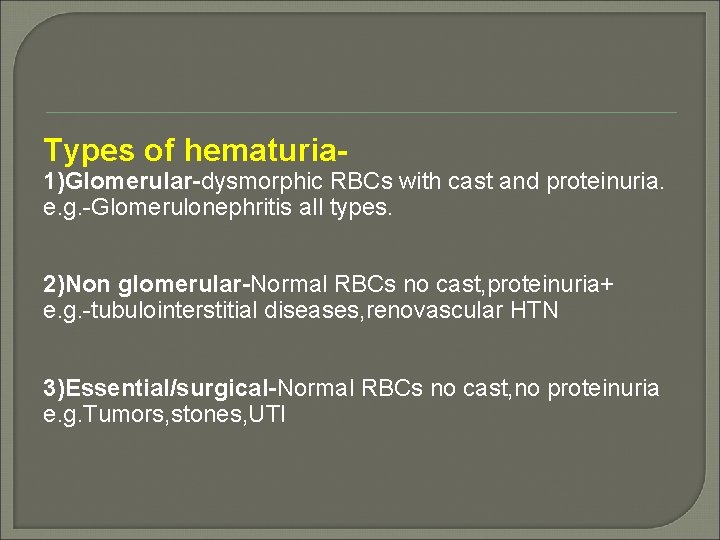

Types of hematuria- 1)Glomerular-dysmorphic RBCs with cast and proteinuria. e. g. -Glomerulonephritis all types. 2)Non glomerular-Normal RBCs no cast, proteinuria+ e. g. -tubulointerstitial diseases, renovascular HTN 3)Essential/surgical-Normal RBCs no cast, no proteinuria e. g. Tumors, stones, UTI

The Urine Dipstick: Nitrite Chemical Principle Negative Positive Acidic Nitrite + p-arsenilic acid -------> Diazo compound + Tetrahydrobenzoquinol -----> Colored Complex Read at 60 seconds RR: Negative

Uses and Limitations of Nitrite Detection Significance - Gram negative bacteriuria(convert nitrate to nitrites) Limitations - Interference: bacterial overgrowth - Only able to detect bacteria that reduce nitrate to nitrite Other Tests - Correlate with leukocyte esterase and - Urine microscopic examination (bacteria) - Urine culture

The Urine Dipstick: Leukocyte Esterase Chemical Principle Negative Trace + (weak) ++ (moderate) +++ (strong) Derivatized pyrrole amino acid ester Esterases ------> 3 -hydroxy-5 -phenyl pyrrole + diazo salt -------> Colored Complex Read at 2 minutes RR: Negative Analytic Sensitivity: 3 -5 WBCs

Leukocyte Esterase Detection Indicates presence of WBCs in urine. Significance - Pyuria - Acute inflammation - Renal calculus Both leucocyte esterase test and nitrite test used in conjuction to screen for UTI. If these tests are positive then microscopic analysis of urine should be done.

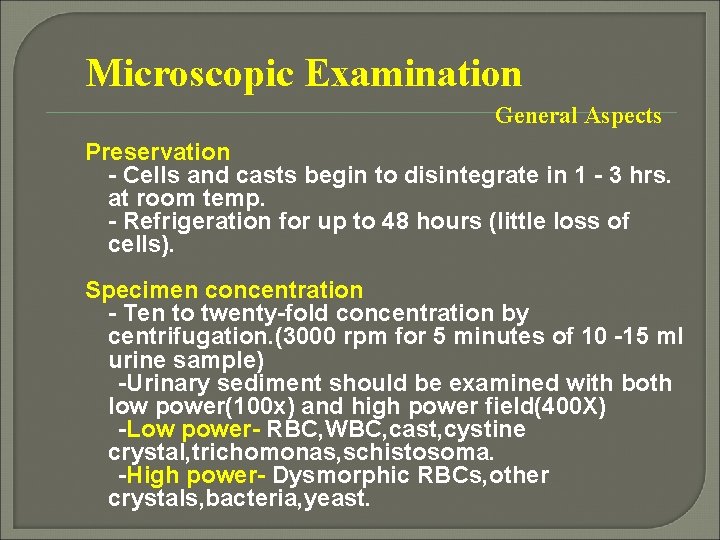

Microscopic Examination General Aspects Preservation - Cells and casts begin to disintegrate in 1 - 3 hrs. at room temp. - Refrigeration for up to 48 hours (little loss of cells). Specimen concentration - Ten to twenty-fold concentration by centrifugation. (3000 rpm for 5 minutes of 10 -15 ml urine sample) -Urinary sediment should be examined with both low power(100 x) and high power field(400 X) -Low power- RBC, WBC, cast, cystine crystal, trichomonas, schistosoma. -High power- Dysmorphic RBCs, other crystals, bacteria, yeast.

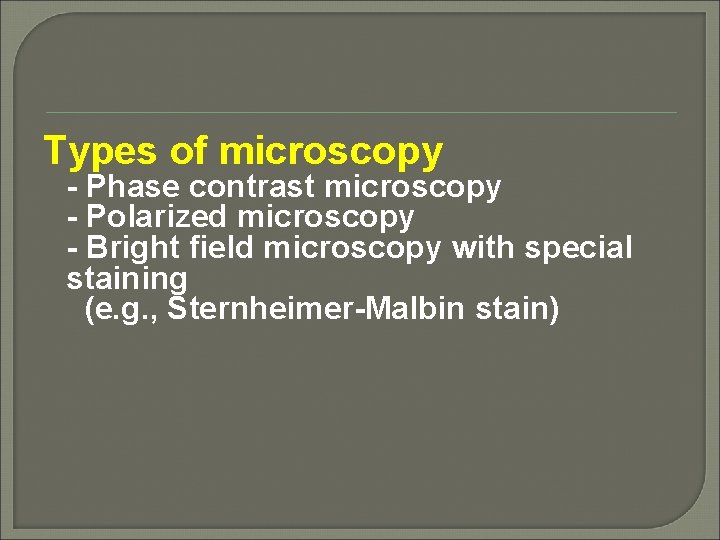

Types of microscopy - Phase contrast microscopy - Polarized microscopy - Bright field microscopy with special staining (e. g. , Sternheimer-Malbin stain)

Microscopic Examination Abnormal Findings Per High Power Field (HPF) (400 x) – – > 3 erythrocytes > 5 leukocytes > 2 renal tubular cells > 5 bacteria Per Low Power Field (LPF) (200 x) – > 3 hyaline casts or > 1 granular cast – > 10 squamous cells (indicative of contaminated specimen) – Any other cast (RBCs, WBCs) Presence of: – Fungal hyphae or yeast, parasite, viral inclusions – Pathological crystals (cystine, leucine, tyrosine) – Large number of uric acid or calcium oxalate crystals

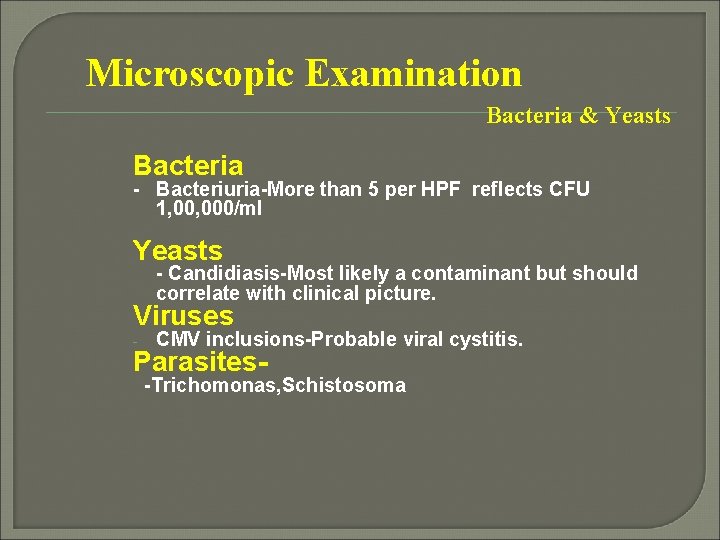

Microscopic Examination Bacteria & Yeasts Bacteria - Bacteriuria-More than 5 per HPF reflects CFU 1, 000/ml Yeasts - Candidiasis-Most likely a contaminant but should correlate with clinical picture. Viruses - CMV inclusions-Probable viral cystitis. Parasites- -Trichomonas, Schistosoma

Urinary casts are cylindrical structures produced by the kidney and present in the urine in certain disease states. • They are protein coagulum formed in the distal convoluted tubule (DCT) and collecting ducts of nephrons and traps any luminal contents within matrix then dislodge and pass into the urine, where they can detected by microscopy. -Urinary casts may be made up of cells (such as white blood cells, red blood cells, kidney cells) or substances such as Tamm-Horsfall mucoprotein. •

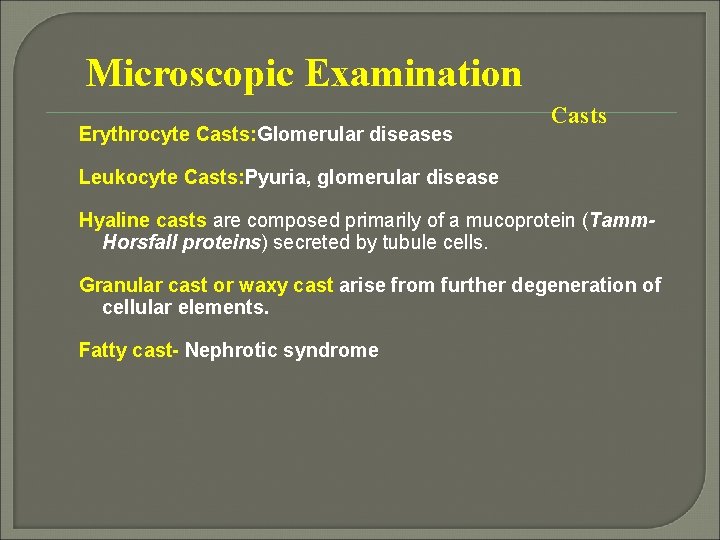

Microscopic Examination Erythrocyte Casts: Glomerular diseases Casts Leukocyte Casts: Pyuria, glomerular disease Hyaline casts are composed primarily of a mucoprotein (Tamm. Horsfall proteins) secreted by tubule cells. Granular cast or waxy cast arise from further degeneration of cellular elements. Fatty cast- Nephrotic syndrome

Hyaline Casts appear Transparent

Red Cell Casts 45

White Cell Casts 46

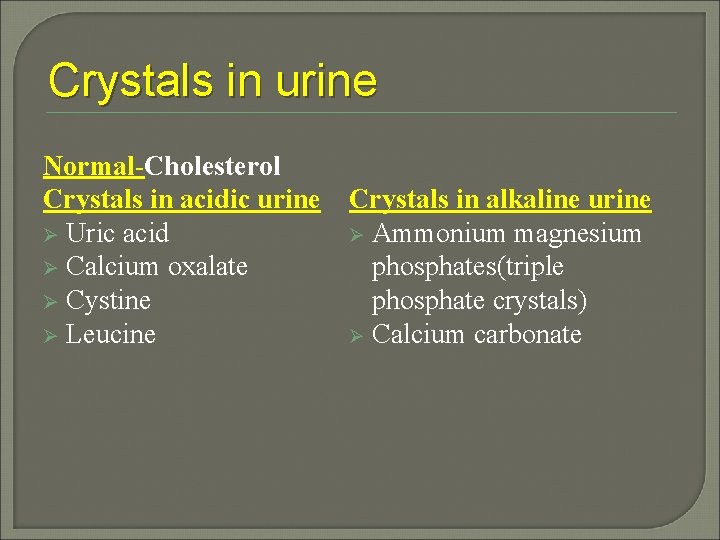

Crystals in urine Normal-Cholesterol Crystals in acidic urine Ø Uric acid Ø Calcium oxalate Ø Cystine Ø Leucine Crystals in alkaline urine Ø Ammonium magnesium phosphates(triple phosphate crystals) Ø Calcium carbonate

Calcium Oxalate dihydrate Crystals-Envelope shaped

Calcium Oxalate monohydrate Crystals-Dumbell shaped Dumbbell Shape

Triple Phosphate Crystalscoffin lid shaped.

Urate Crystals-rhomboid

Microscopic Examination Leucine Crystals

Cystine Crystals-Hexagonal

Microscopic Examination Ammonium Biurate Crystals

Microscopic Examination Cholesterol Crystals

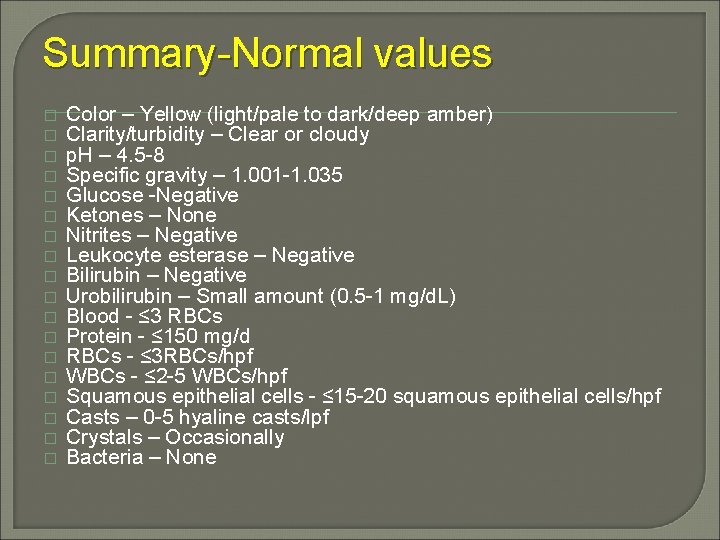

Summary-Normal values � � � � � Color – Yellow (light/pale to dark/deep amber) Clarity/turbidity – Clear or cloudy p. H – 4. 5 -8 Specific gravity – 1. 001 -1. 035 Glucose -Negative Ketones – None Nitrites – Negative Leukocyte esterase – Negative Bilirubin – Negative Urobilirubin – Small amount (0. 5 -1 mg/d. L) Blood - ≤ 3 RBCs Protein - ≤ 150 mg/d RBCs - ≤ 3 RBCs/hpf WBCs - ≤ 2 -5 WBCs/hpf Squamous epithelial cells - ≤ 15 -20 squamous epithelial cells/hpf Casts – 0 -5 hyaline casts/lpf Crystals – Occasionally Bacteria – None
