Urinary system n n 2 Kidneys 2 ureters
- Slides: 37
Urinary system n n 2 Kidneys. 2 ureters. Urinary bladder. Urethera.

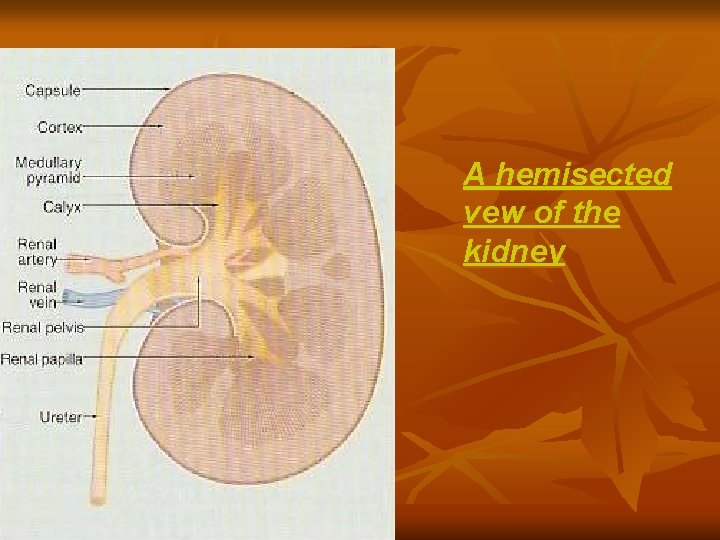

A hemisected vew of the kidney
Kidney Cortex---Dark brown and granular. n Medulla---6 -12 pyramid-shape regions (renal pyramids) The base of pyramid is toward the cortex (corticomedullary border) The apex (renal papilla) toward the hilum that perforated by 12 openings of the ducts of Bellini in region called area cribrosa. The apex is surrounded by minor calyx. n Pyramids are separated by cortical columns of Bertin n 3 or 4 minor calyces join to form 3 or 4 major calyces that form renal pelvis. n
Cortical arch Is formed of: n Renal corpuscles (red dots). n Convoluted tubules (cortical labyrinth). n Medullary rays (cortical continuation of pyramids). n NB. Lobe of the kidney is formed of: a- Renal pyramid. b-Cortical columns. c-Cortical arch *Each medullary ray with part of the cortical labyrinth surrounding it form kidney lobule.

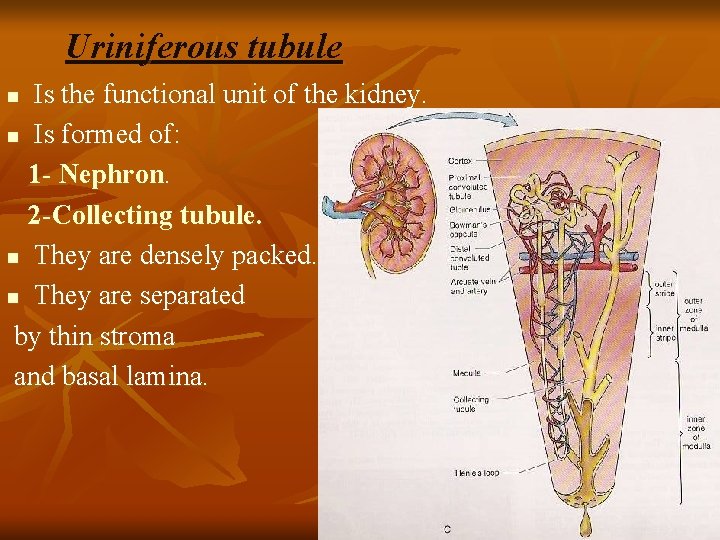

Uriniferous tubule Is the functional unit of the kidney. n Is formed of: 1 - Nephron. 2 -Collecting tubule. n They are densely packed. n They are separated by thin stroma and basal lamina. n

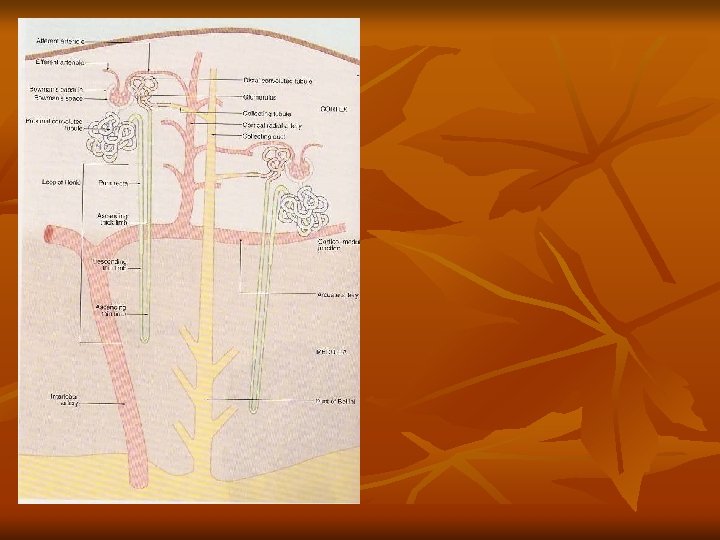

Nephron There are 2 types: a-Cortical nephrons. b-Juxtamedullary nephrons. *It is formed of : 1 -Renal corpuscle. 2 -Proximal tubule. 3 -Thin limbs of Henle’s loop. 4 -Distal tubule n
Renal corpuscle n n n Glomerulus (tuft of fenestrated capillaries) Bowman’s capsule (Parietal layer, urinary or glomerular space and visceral layer or podocytes). Mesangial cells (intraglomerular & extraglomerular).

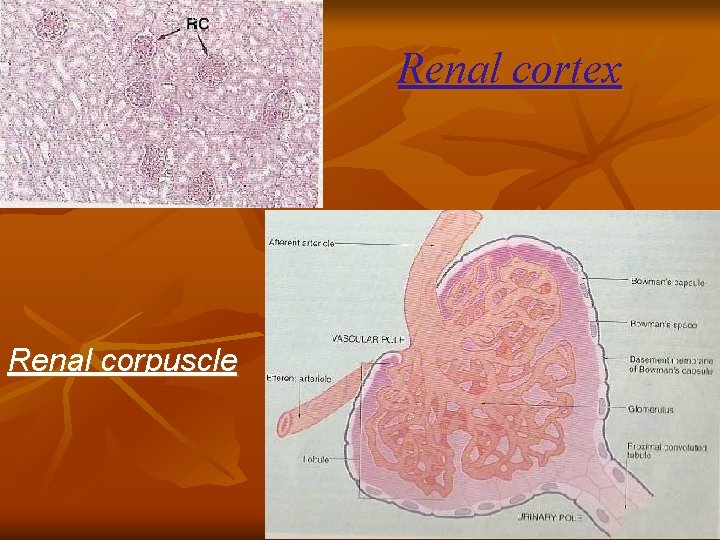

Renal cortex Renal corpuscle
Blood-Renal Barrier

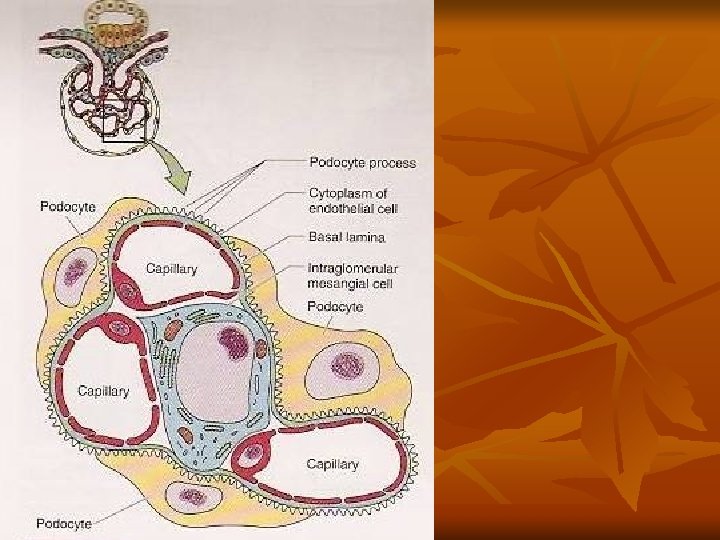

Filtration barrier Endothelial wall of the capillaries. n The basal lamina (inner and outer laminae rarae and middle lamina densa). n Visceral layer of Bowman’s capsule (podocytes) n Podocytes have primary (major) processes and secondary (minor) processes (pedicles). n Between pedicles (on the surface of capillaries) there are filtration slits that have slit diaphragm n
Proximal tubule It has 2 regions: 1 -Pars convoluta (Proximal convoluted tubule). 2 -Pars recta (descending thick limb of Henle’s loop). It is composed of simple cuboidal epith. with acidophilic cytoplasm. The cells have striated or brush border and lateral interdigitations. They have well-defined basal lamina. n
Cell of proximal tubule
Thin limb of Henle’s loop It has 3 regions: 1 -Descending thin limb. 2 -Henle’s loop. 3 -Ascending thin limb. NB. It is longer in juxtamedullary nephron than in cortical nephron. • It is composed of simple • squamous epith. n
Renal medulla
Distal tubule It has 3 regions: 1 -Ascending limb of Henle’s loop (low cuboidal epith. ). 2 -macula densa (tall &narrow cells). 3 -Pars convoluta (distal convoluted tubule) formed of low cuboidal epith. NB. Because distal convoluted are much shorter than proximal convoluted tubules, any section of renal cortex presents many more sections of proximal convoluted tubules. *Distal tubules drain into collecting tubules. *Aldosterone hormone increase the active rebsorbtion of sodium from the lumen of tubule into interstitium. n
Distal tubule cells.
Juxtaglomerular apparatus
Juxtaglomerular apparatus n n It has 3 components: A-The macula densa of distal tubule. B-Juxtaglomerular cells of afferent glomerular arteriole (modified smooth muscle of tunica media). They secrete renin, angiotensin-converting enzyme and angiotensin. C-The extraglomerular mesangial cells.
Juxtaglomerular apparatus
Collecting tubules Are composed of simple cuboidal epithelium. n They aren’t part of nephron. n They have 3 regions: 1 -Cortical. 2 -Medullary. 3 -Papillary (ducts of Bellini) they open in area of cribrosa. *They are formed of: a-principle cells. and b-intercalated cells. *They are impermeable to water except in presence of antidiuretic hormone. n
Cells of collecting tubule
Renal interstitium n n It is a very flimsy, scant amount of CT contains. 1 -Fibroblasts. 2 -Macrophages. 3 -Interstitial cells (their nuclei are elongated and they contain lipid droplets). They secrete medullipin I, which is converted in the liver into medullipin II, that lowers blood pressure.

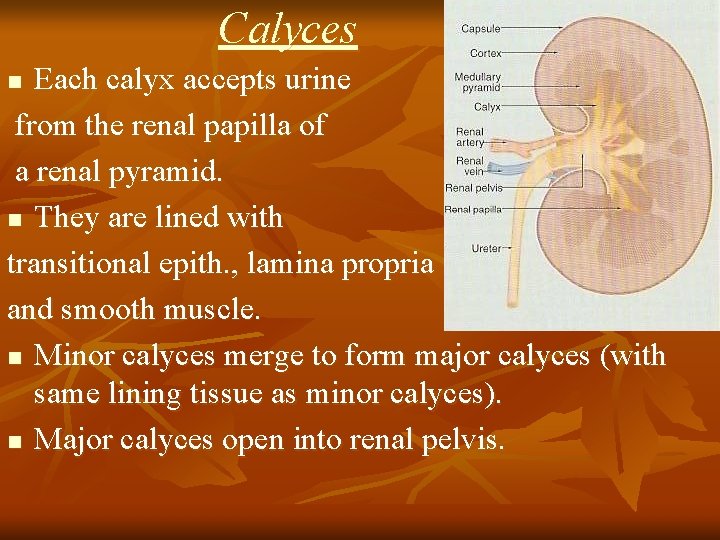

Calyces Each calyx accepts urine from the renal papilla of a renal pyramid. n They are lined with transitional epith. , lamina propria and smooth muscle. n Minor calyces merge to form major calyces (with same lining tissue as minor calyces). n Major calyces open into renal pelvis. n
Renal papilla and minor calyx.
Ureter 1. Mucosa is formed of transitional epith. And lamina propria. n 2. Muscularis (muscular coat) n is formed of 2 layers of smooth muscle: A-Inner longitudinal. B-Outer circular. n 3. Adventitia (fibrous CT covering).
Urinary bladder It has the same structure as the ureter EXCEPT: n The dome-shaped cells have plaques (rigid, thickened regions of plasmalemma) n Between plaques there are normal cell membrane (interplaque regions). n It has 3 layers of smooth muscle, inner and outer longitudinal and middle circular. n Its outer covering is serosa. n
Urinary bladder

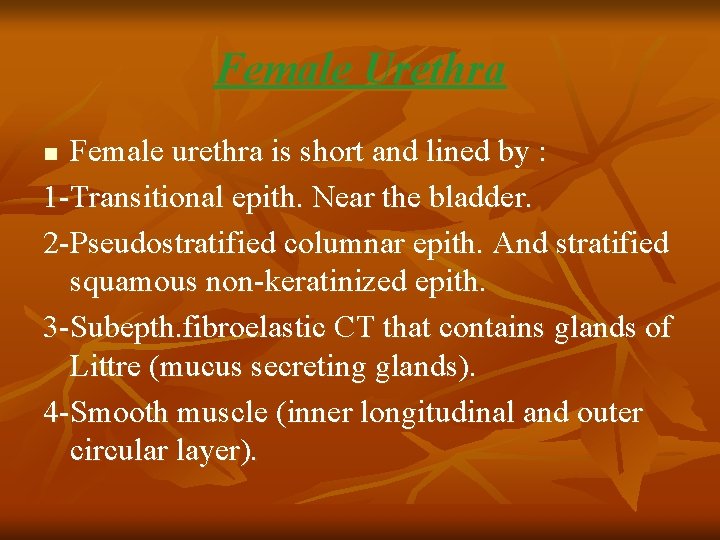

Female Urethra Female urethra is short and lined by : 1 -Transitional epith. Near the bladder. 2 -Pseudostratified columnar epith. And stratified squamous non-keratinized epith. 3 -Subepth. fibroelastic CT that contains glands of Littre (mucus secreting glands). 4 -Smooth muscle (inner longitudinal and outer circular layer). n
Male Urethra It is long and is divided into 3 regions: 1 -The prostatic urethra—lined with transitional epith. 2 -Membranous urethra---lined with pseudustratified columnar and stratified columnar epith. 3 -Penile (spongy) urethra---lined with pseudostratified columnar, stratified columnar and stratified squamous non-keratinized epith. * Its lamina propria contains mucus secreting glands of Littre. n
Kidney-Cortex &Medulla
Ureter
Urinary bladder
