Urinary System Models The Kidney Nephron the functional

Urinary System Models

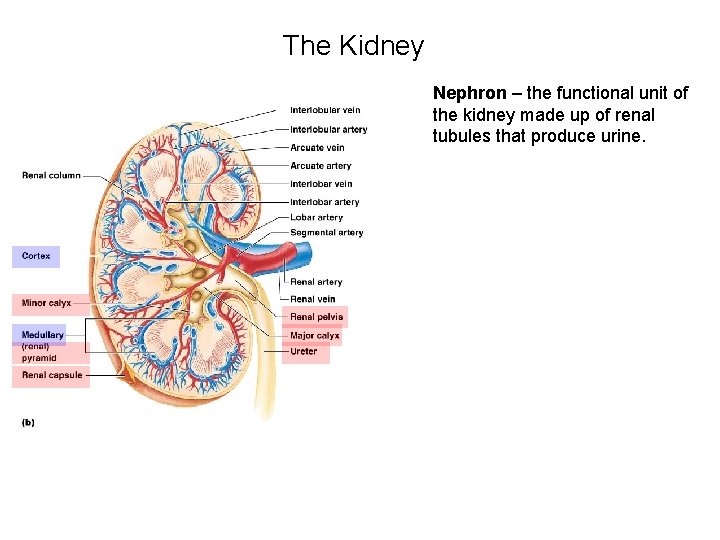

The Kidney Nephron – the functional unit of the kidney made up of renal tubules that produce urine.

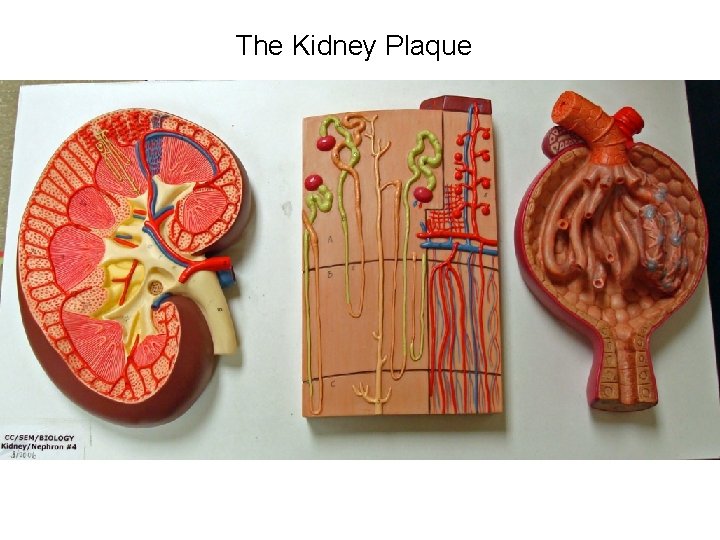

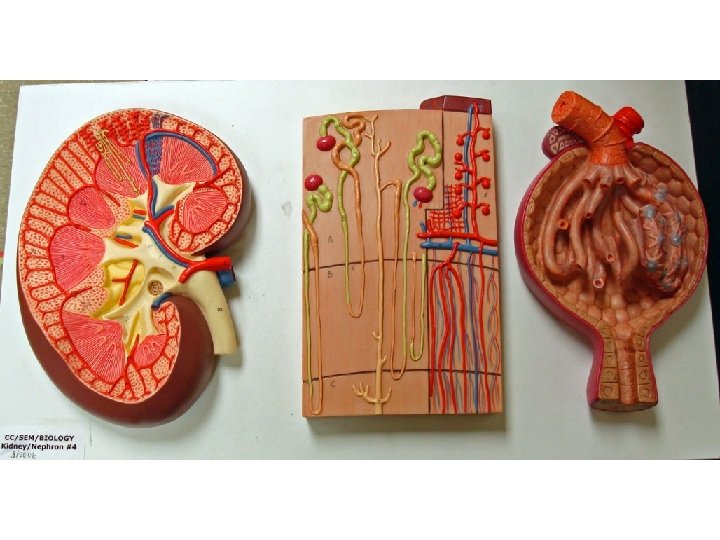

The Kidney Plaque

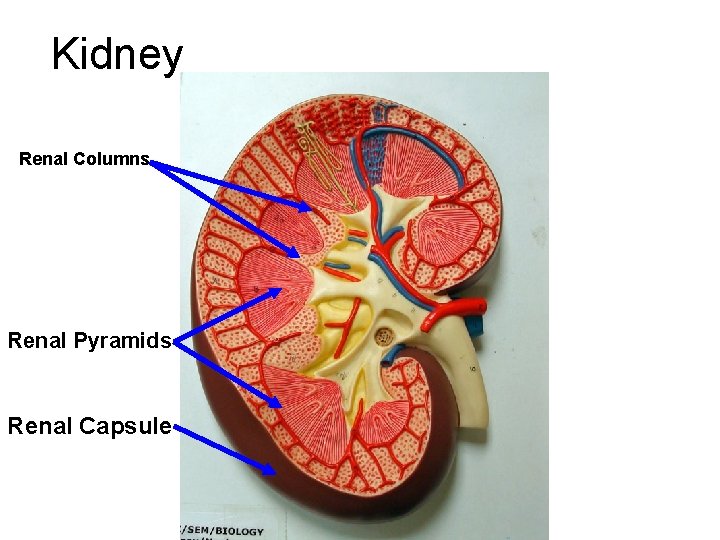

Kidney Renal Columns Renal Pyramids Renal Capsule

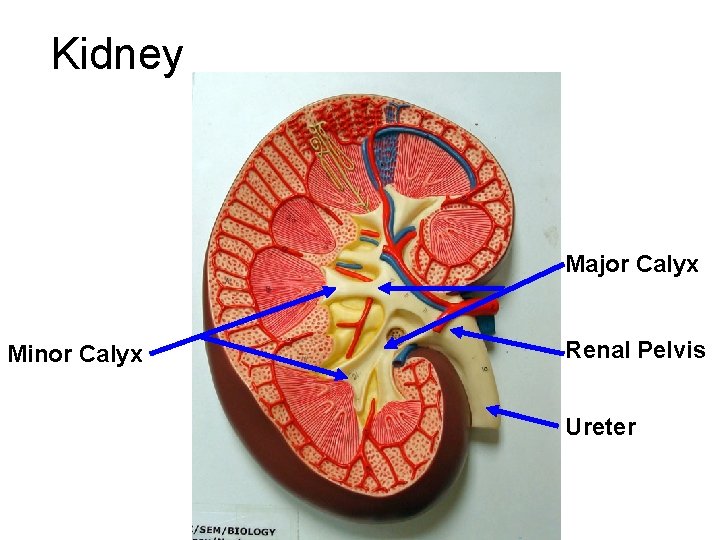

Kidney Major Calyx Minor Calyx Renal Pelvis Ureter

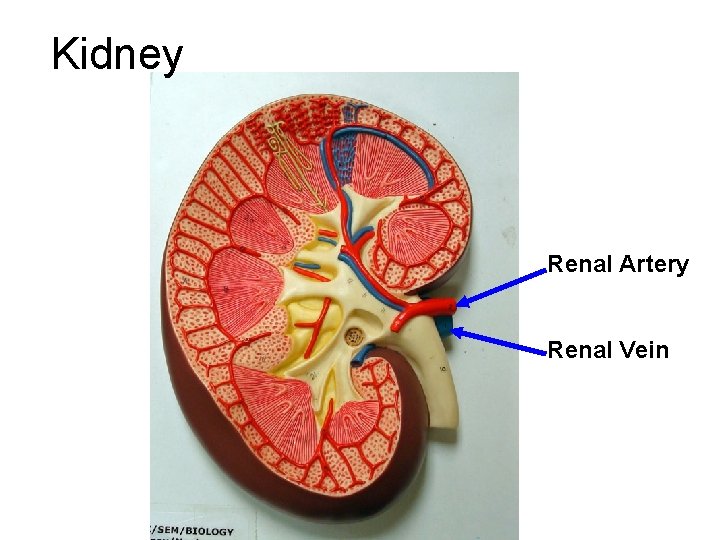

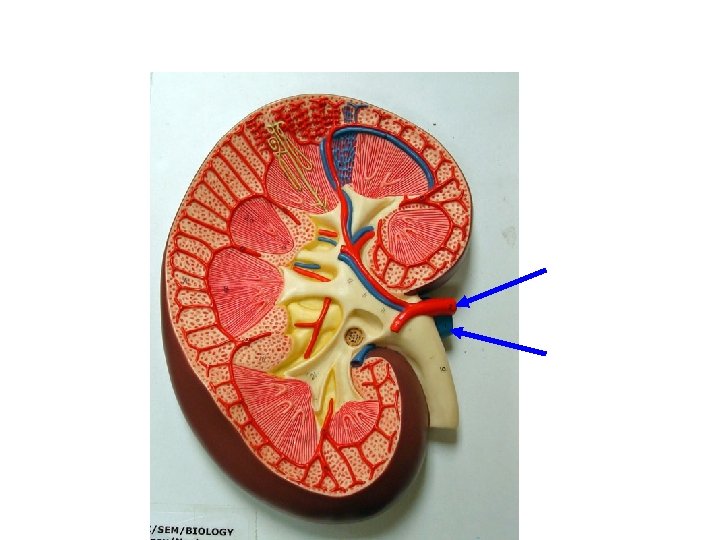

Kidney Renal Artery Renal Vein

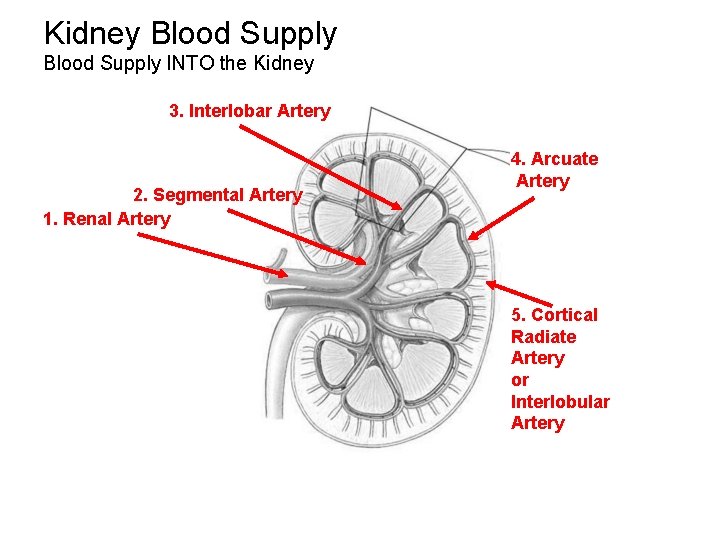

Kidney Blood Supply INTO the Kidney 3. Interlobar Artery 2. Segmental Artery 1. Renal Artery 4. Arcuate Artery 5. Cortical Radiate Artery or Interlobular Artery

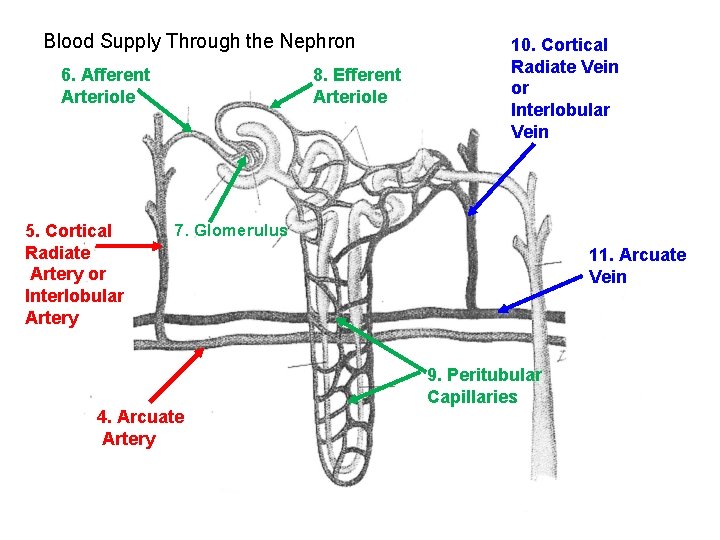

Blood Supply Through the Nephron 6. Afferent Arteriole 5. Cortical Radiate Artery or Interlobular Artery 8. Efferent Arteriole 10. Cortical Radiate Vein or Interlobular Vein 7. Glomerulus 11. Arcuate Vein 9. Peritubular Capillaries 4. Arcuate Artery

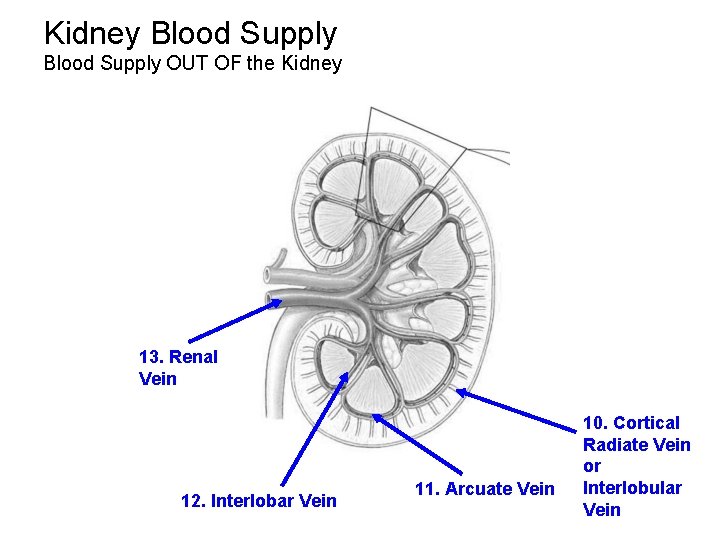

Kidney Blood Supply OUT OF the Kidney 13. Renal Vein 12. Interlobar Vein 11. Arcuate Vein 10. Cortical Radiate Vein or Interlobular Vein

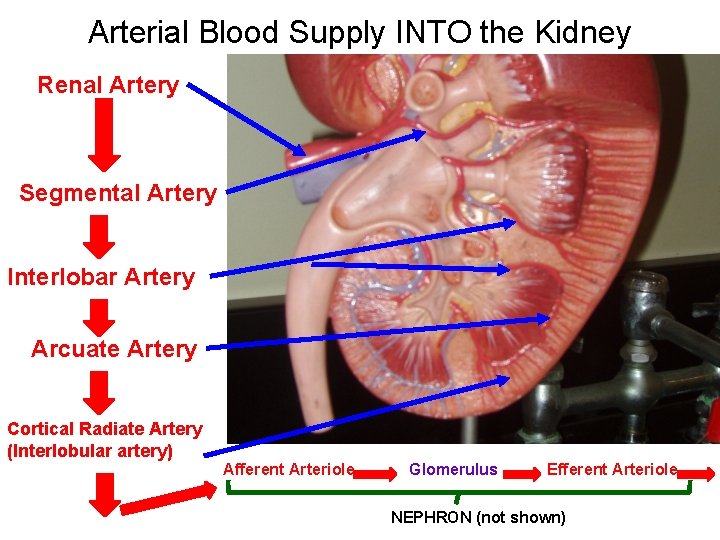

Arterial Blood Supply INTO the Kidney Renal Artery Segmental Artery Interlobar Artery Arcuate Artery Cortical Radiate Artery (Interlobular artery) Afferent Arteriole Glomerulus Efferent Arteriole NEPHRON (not shown)

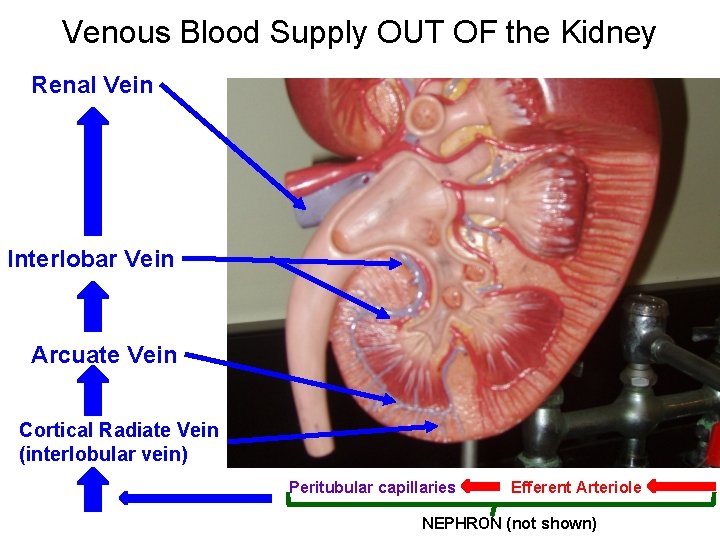

Venous Blood Supply OUT OF the Kidney Renal Vein Interlobar Vein Arcuate Vein Cortical Radiate Vein (interlobular vein) Peritubular capillaries Efferent Arteriole NEPHRON (not shown)

The Kidney Plaque

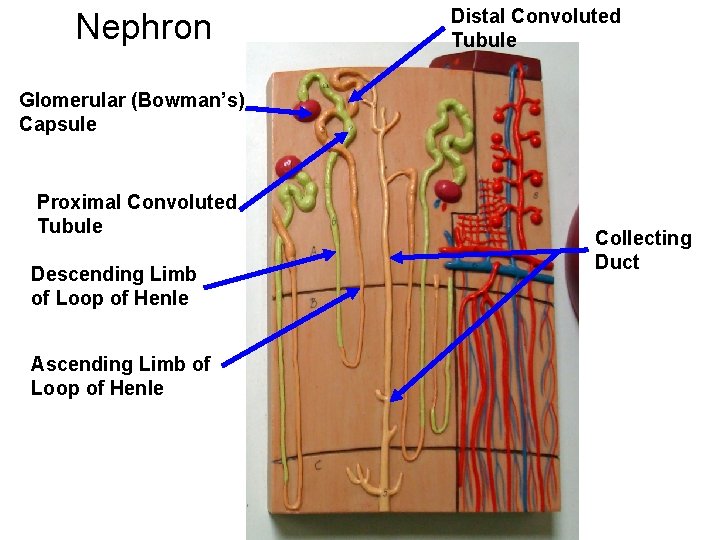

Nephron Distal Convoluted Tubule Glomerular (Bowman’s) Capsule Proximal Convoluted Tubule Descending Limb of Loop of Henle Ascending Limb of Loop of Henle Collecting Duct

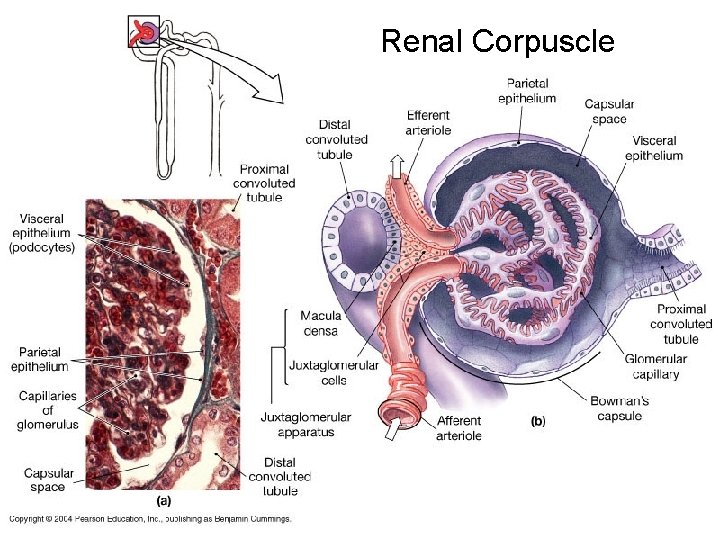

Renal Corpuscle

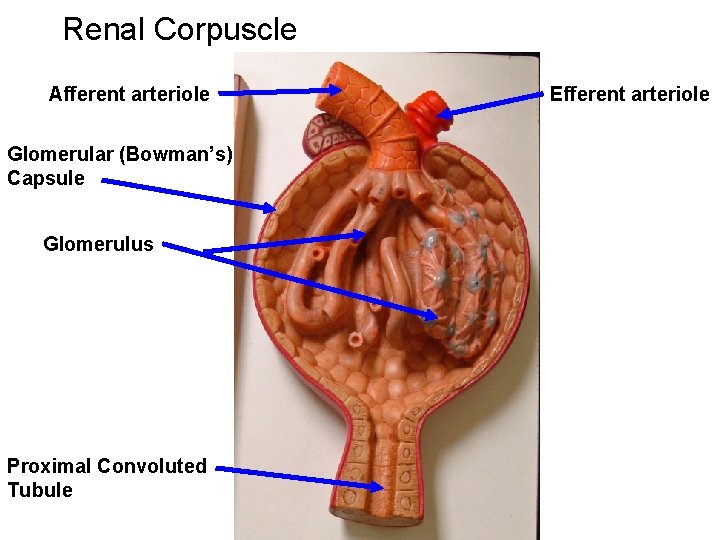

Renal Corpuscle Afferent arteriole Glomerular (Bowman’s) Capsule Glomerulus Proximal Convoluted Tubule Efferent arteriole

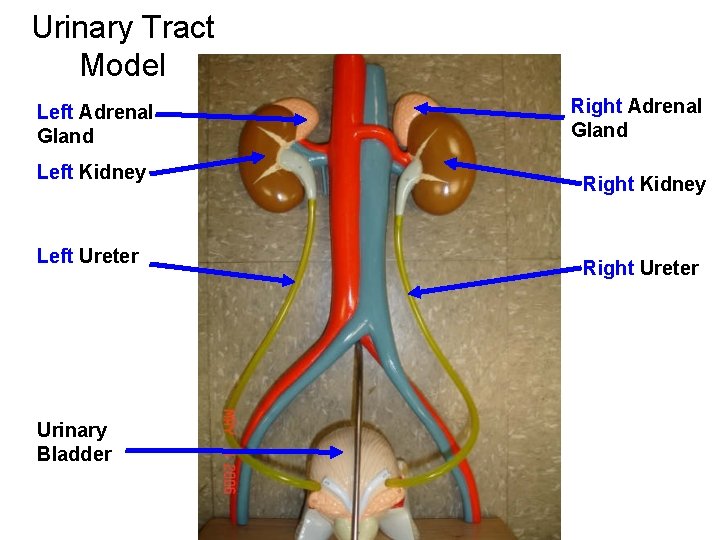

Urinary Tract Model Left Adrenal Gland Left Kidney Left Ureter Urinary Bladder Right Adrenal Gland Right Kidney Right Ureter

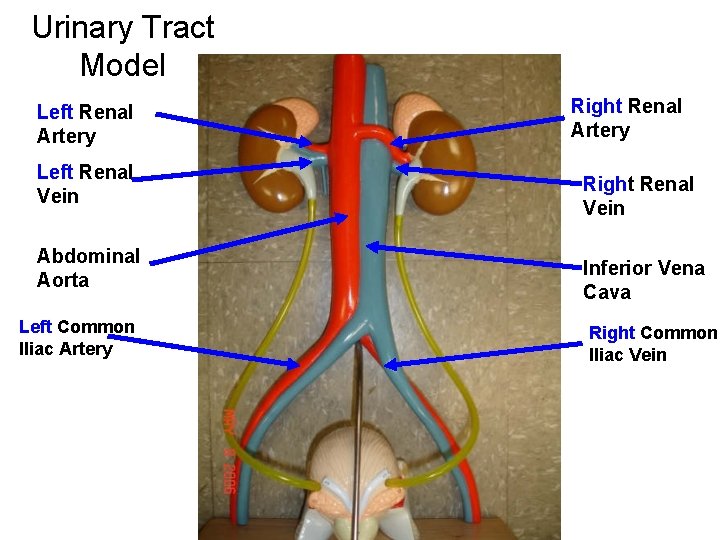

Urinary Tract Model Left Renal Artery Left Renal Vein Abdominal Aorta Left Common Iliac Artery Right Renal Vein Inferior Vena Cava Right Common Iliac Vein

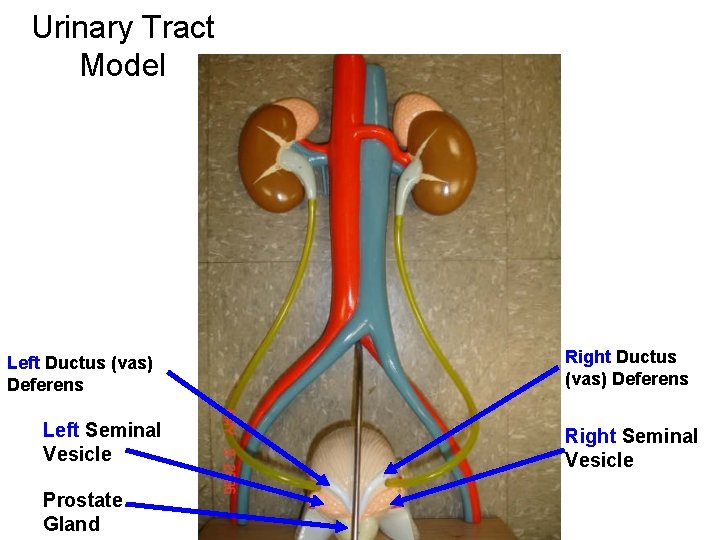

Urinary Tract Model Left Ductus (vas) Deferens Left Seminal Vesicle Prostate Gland Right Ductus (vas) Deferens Right Seminal Vesicle

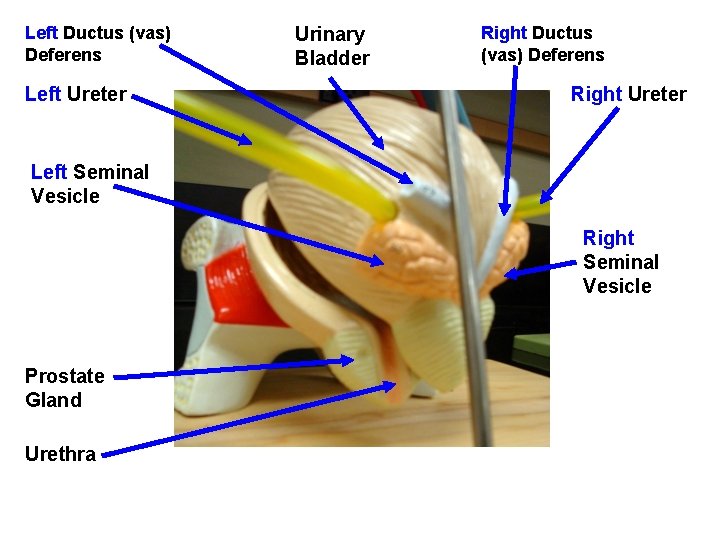

Left Ductus (vas) Deferens Left Ureter Urinary Bladder Right Ductus (vas) Deferens Right Ureter Left Seminal Vesicle Right Seminal Vesicle Prostate Gland Urethra

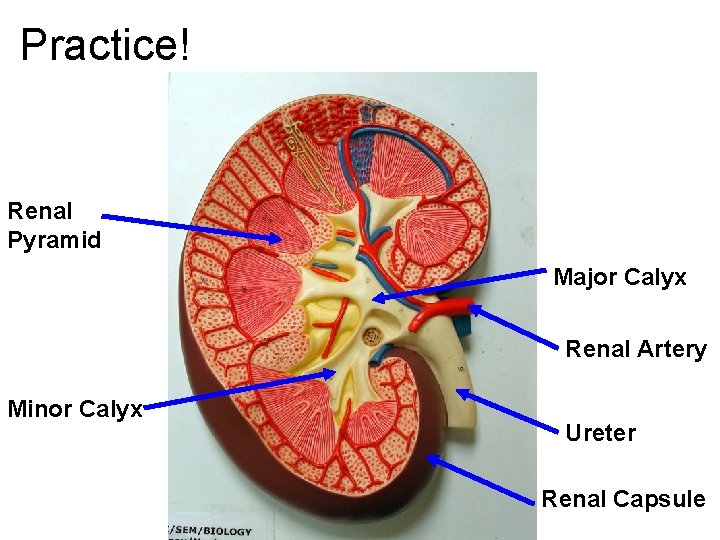

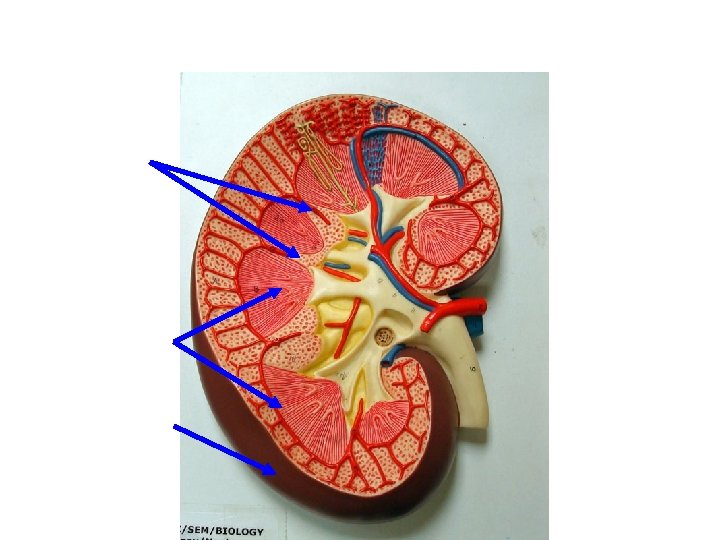

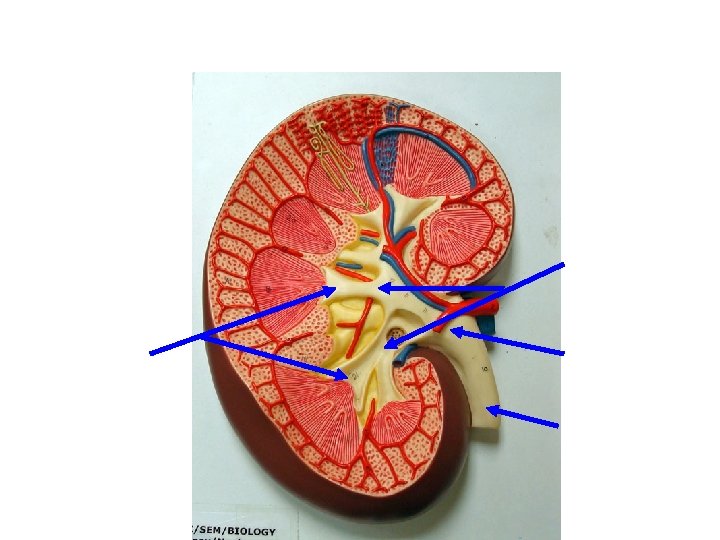

Practice! Renal Pyramid Major Calyx Renal Artery Minor Calyx Ureter Renal Capsule

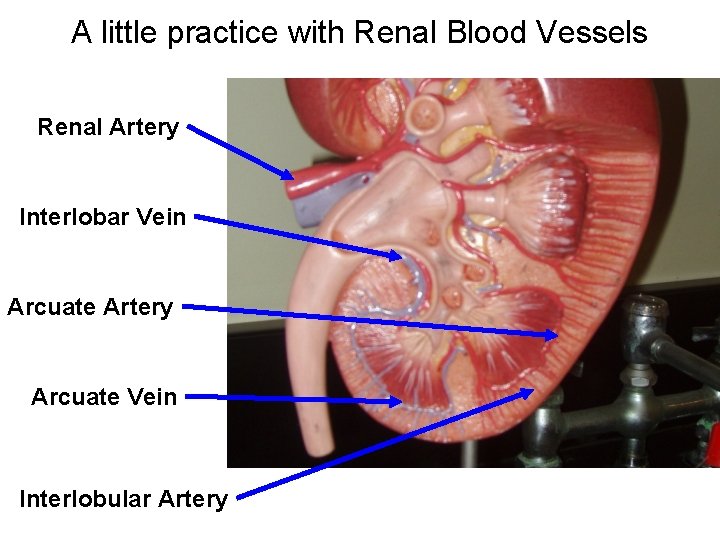

A little practice with Renal Blood Vessels Renal Artery Interlobar Vein Arcuate Artery Arcuate Vein Interlobular Artery

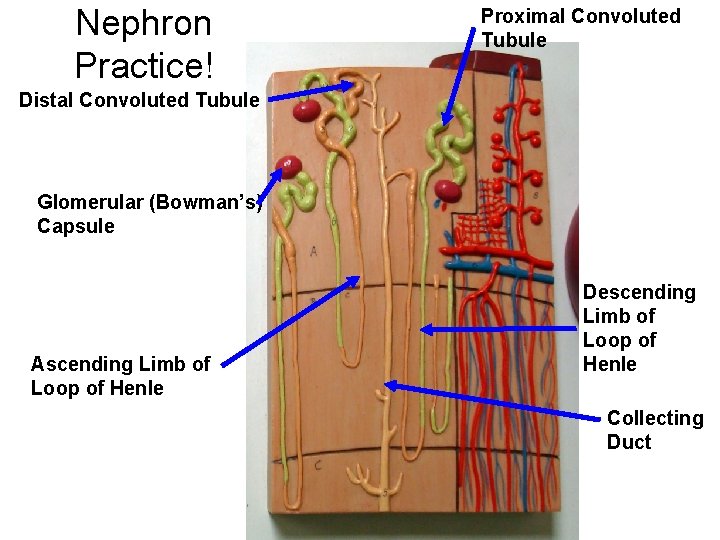

Nephron Practice! Proximal Convoluted Tubule Distal Convoluted Tubule Glomerular (Bowman’s) Capsule Ascending Limb of Loop of Henle Descending Limb of Loop of Henle Collecting Duct

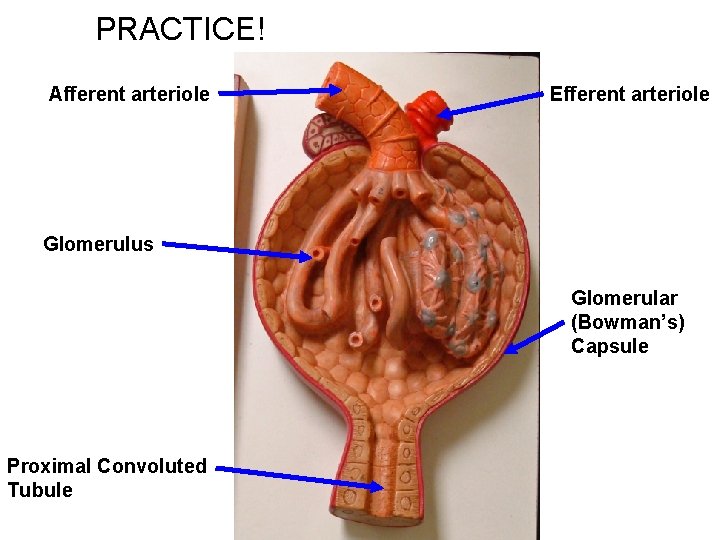

PRACTICE! Afferent arteriole Efferent arteriole Glomerulus Glomerular (Bowman’s) Capsule Proximal Convoluted Tubule

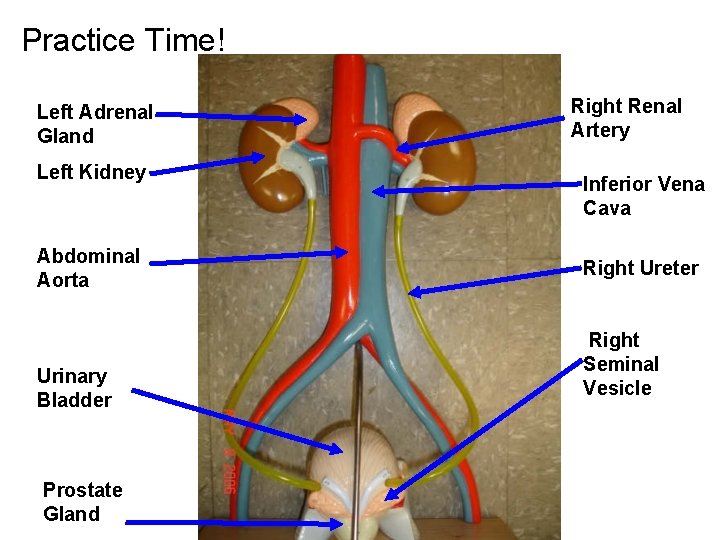

Practice Time! Left Adrenal Gland Left Kidney Abdominal Aorta Urinary Bladder Prostate Gland Right Renal Artery Inferior Vena Cava Right Ureter Right Seminal Vesicle

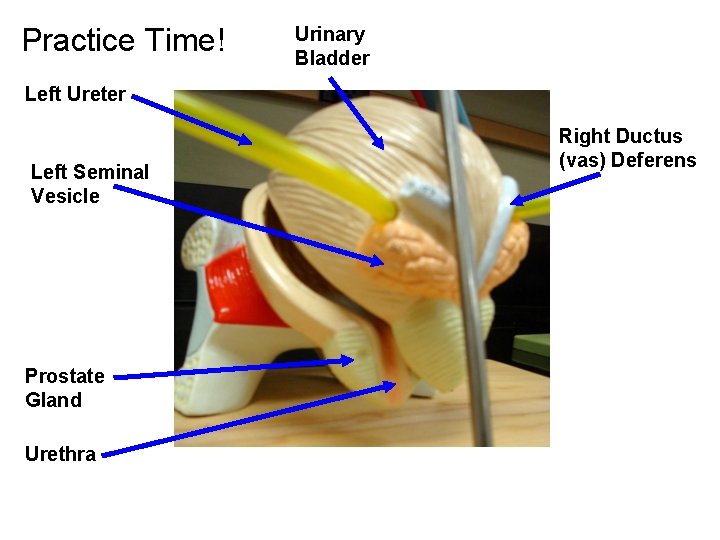

Practice Time! Urinary Bladder Left Ureter Left Seminal Vesicle Prostate Gland Urethra Right Ductus (vas) Deferens

Practice Slides for Labeling

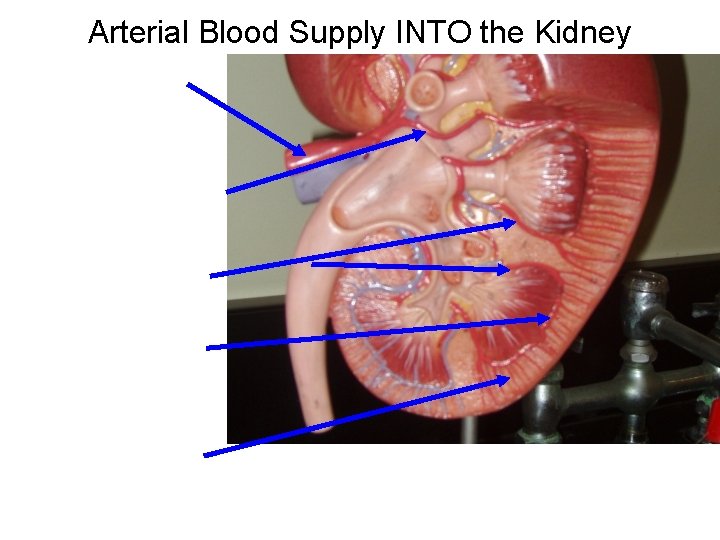

Arterial Blood Supply INTO the Kidney

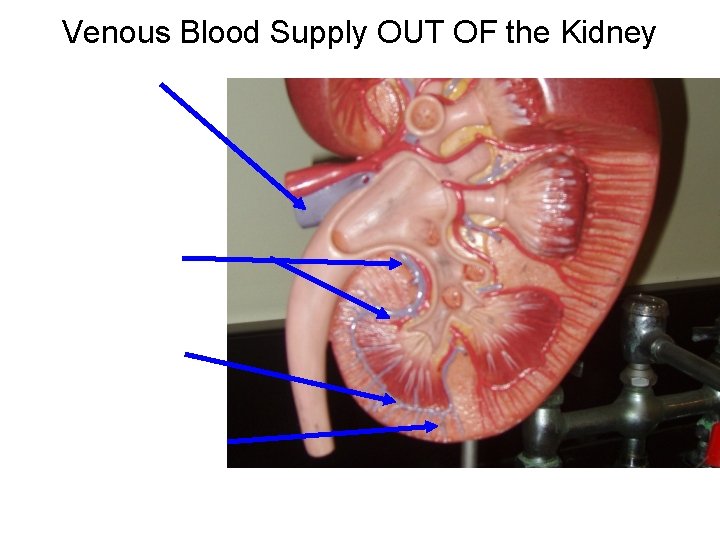

Venous Blood Supply OUT OF the Kidney

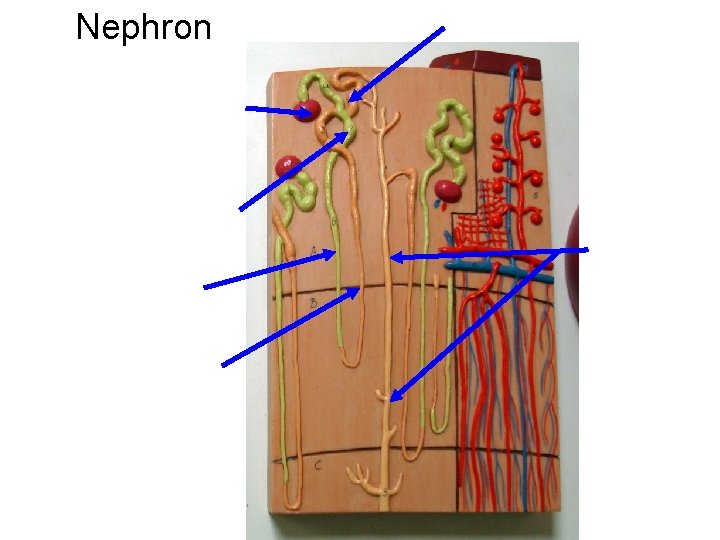

Nephron

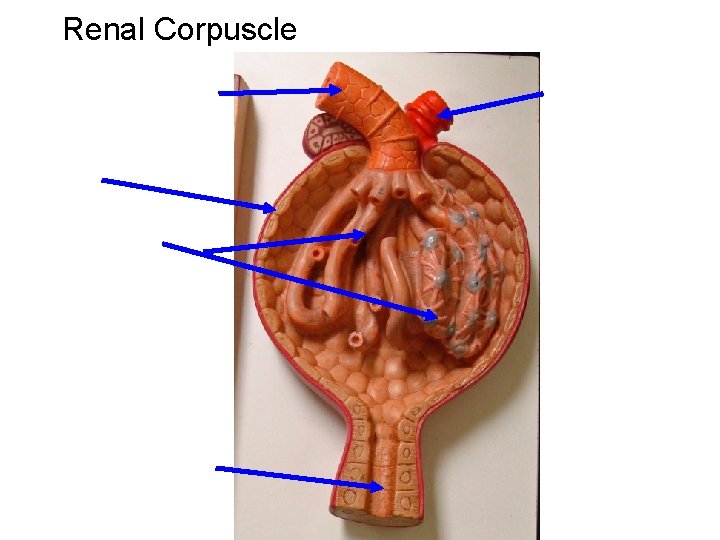

Renal Corpuscle

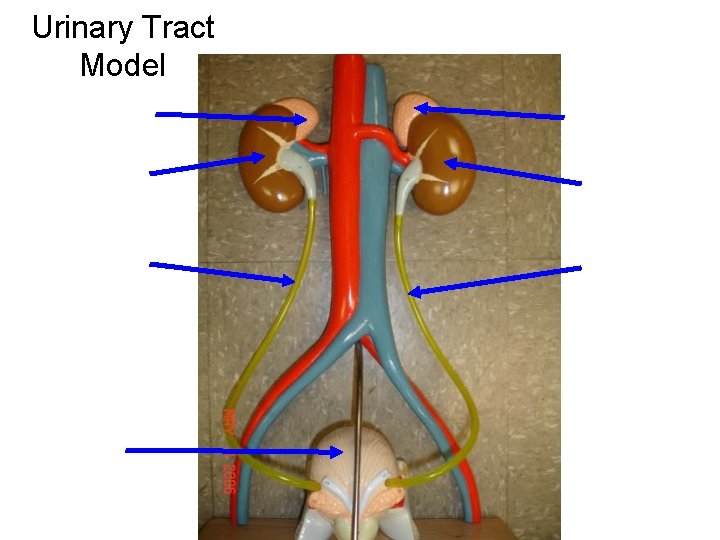

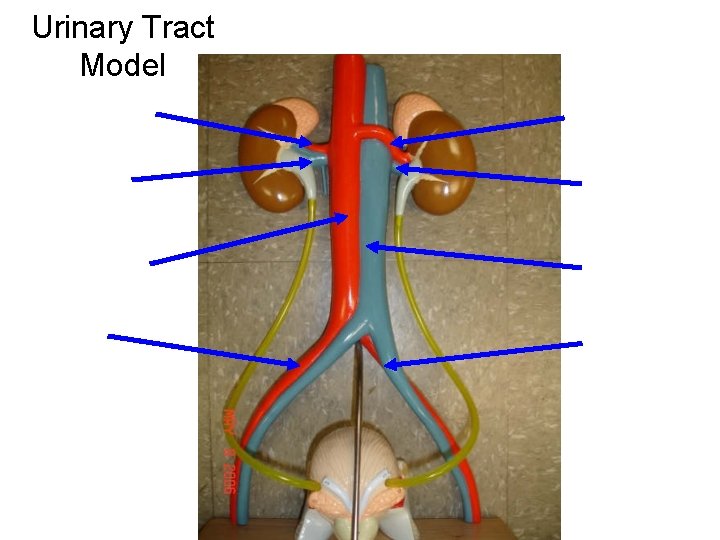

Urinary Tract Model

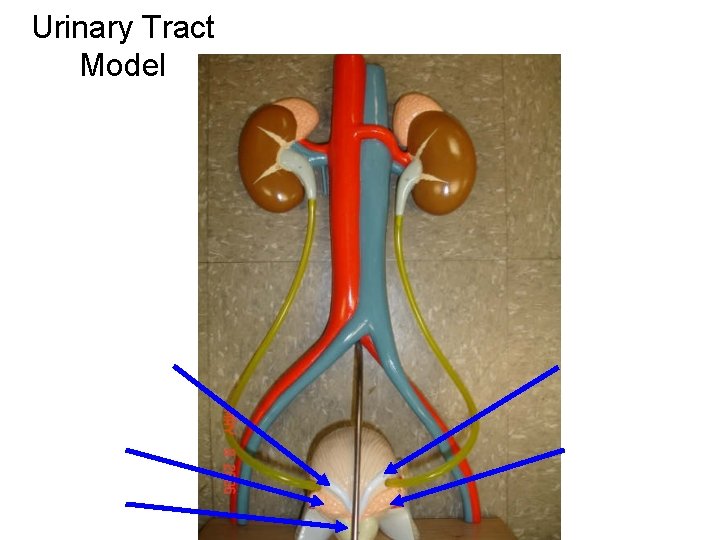

Urinary Tract Model

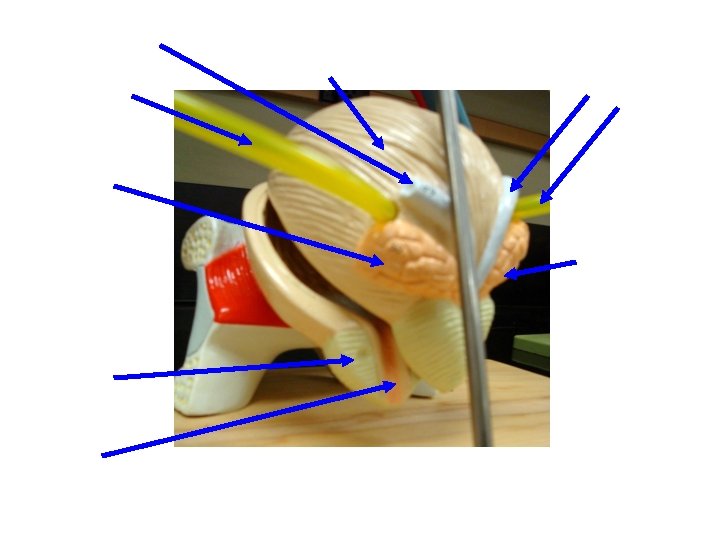

Urinary Tract Model
