URETERS URINARY BLADDER URETHRA OBJECTIVES At the end

URETERS URINARY BLADDER URETHRA

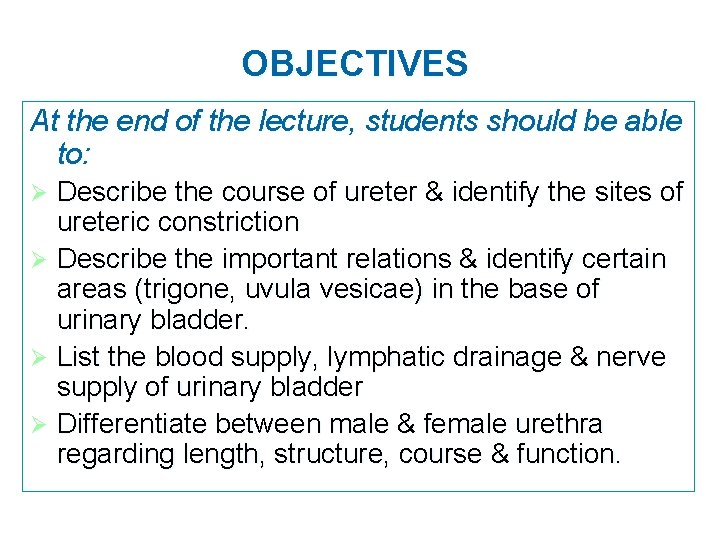

OBJECTIVES At the end of the lecture, students should be able to: Describe the course of ureter & identify the sites of ureteric constriction Ø Describe the important relations & identify certain areas (trigone, uvula vesicae) in the base of urinary bladder. Ø List the blood supply, lymphatic drainage & nerve supply of urinary bladder Ø Differentiate between male & female urethra regarding length, structure, course & function. Ø

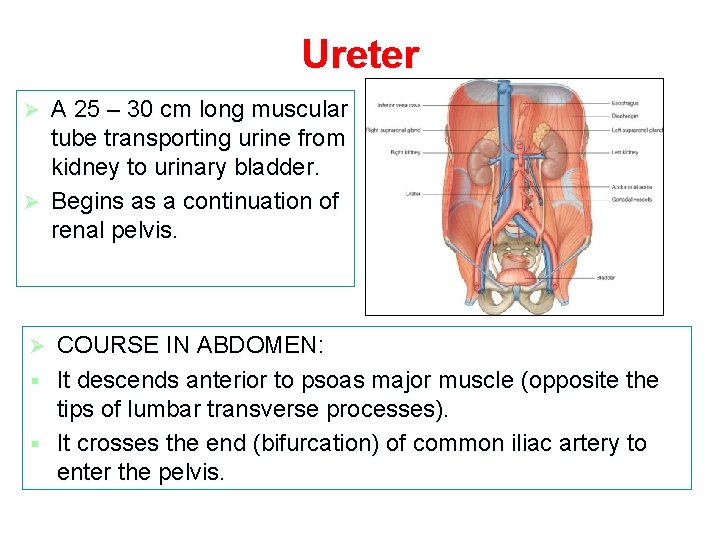

Ureter A 25 – 30 cm long muscular tube transporting urine from kidney to urinary bladder. Ø Begins as a continuation of renal pelvis. Ø COURSE IN ABDOMEN: § It descends anterior to psoas major muscle (opposite the tips of lumbar transverse processes). § It crosses the end (bifurcation) of common iliac artery to enter the pelvis. Ø

Ø § § COURSE IN PELVIS & TERMINATION: Runs downward in front to internal iliac artery, reaches ischial spine Turns forward and medially , enters the upper lateral angle of urinary bladder Near its termination, is crossed by the vas deferens Passes obliquely through the wall of bladder for about ¾ inch before opening into the bladder cavity. Bladder muscle contraction mechanically closes off ureteral orifice which prevents a reverse flow of urine toward the kidney

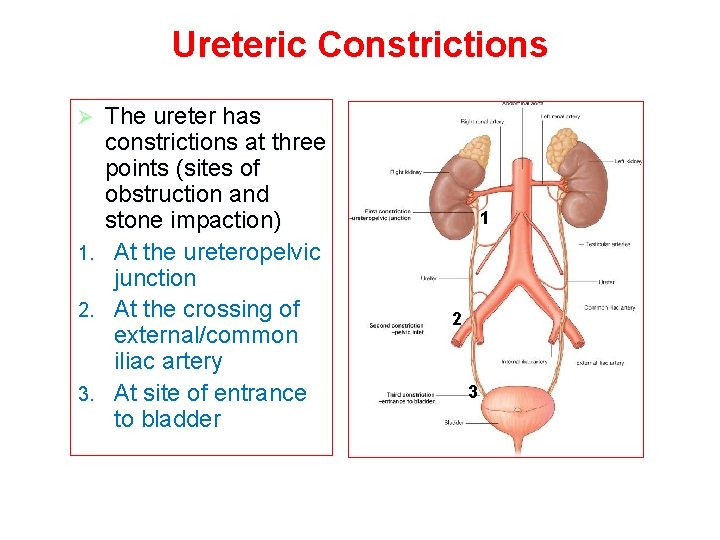

Ureteric Constrictions Ø 1. 2. 3. The ureter has constrictions at three points (sites of obstruction and stone impaction) At the ureteropelvic junction At the crossing of external/common iliac artery At site of entrance to bladder 1 2 3

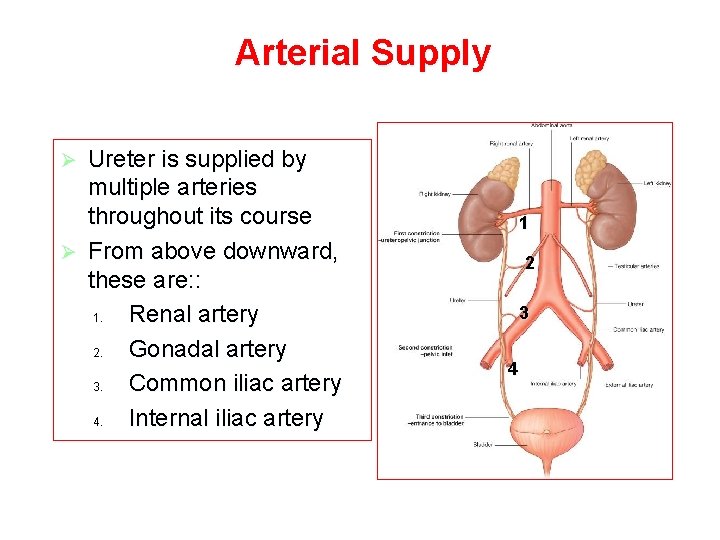

Arterial Supply Ureter is supplied by multiple arteries throughout its course Ø From above downward, these are: : 1. Renal artery 2. Gonadal artery 3. Common iliac artery 4. Internal iliac artery Ø 1 2 3 4

Urinary Bladder Located immediately behind the pubic symphysis Ø Shape and relations vary according to the amount of urine it contains Ø An empty bladder: l In adults, is entirely a pelvic organ; as it fills, rises up into the hypogastric region. l In young children, it projects above the pelvic inlet Ø

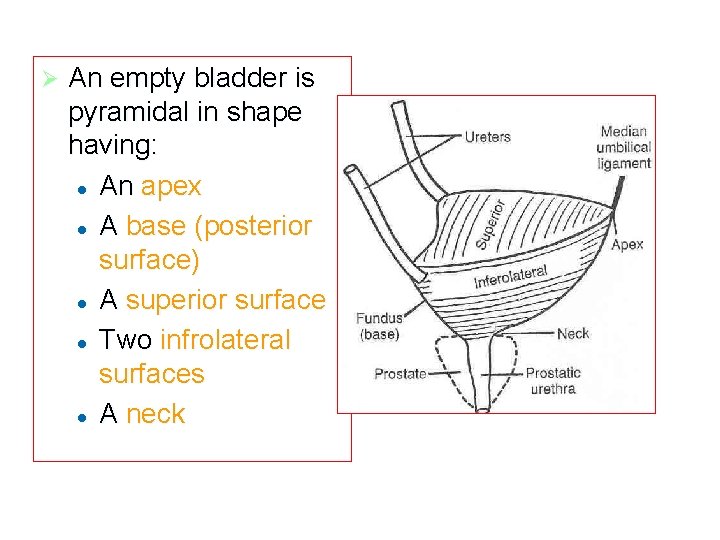

Ø An empty bladder is pyramidal in shape having: l An apex l A base (posterior surface) l A superior surface l Two infrolateral surfaces l A neck

Apex Directed forward Ø Lies behind the upper margin of the symphysis pubis § Is connected to umbilicus by the median umbilical ligament (remnant of urachus) Ø

Base or Posterior surface Triangular in shape Ø Upper part covered by peritoneum Ø Lower part related to: l In males: vas deferentia and seminal vesicles l In females: vagina Ø

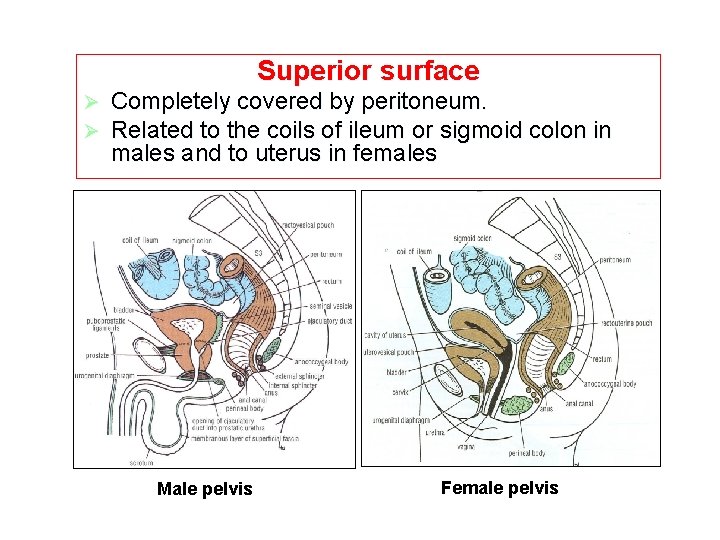

Superior surface Ø Ø Completely covered by peritoneum. Related to the coils of ileum or sigmoid colon in males and to uterus in females Male pelvis Female pelvis

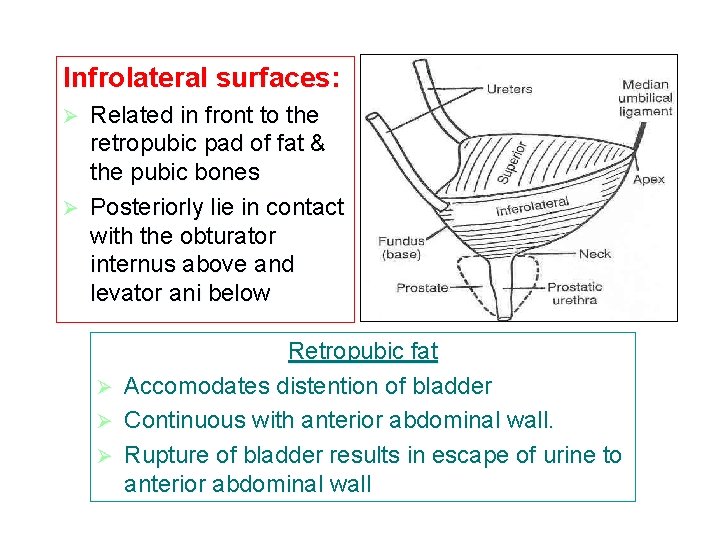

Infrolateral surfaces: Related in front to the retropubic pad of fat & the pubic bones Ø Posteriorly lie in contact with the obturator internus above and levator ani below Ø Retropubic fat Ø Accomodates distention of bladder Ø Continuous with anterior abdominal wall. Ø Rupture of bladder results in escape of urine to anterior abdominal wall

Neck: Lies inferiorly, and is the most fixed part of the bladder Ø Is related to lower border of symphysis pubis Ø In male, rests on the upper surface of prostate. Here, the smooth muscle fibers of the bladder are continuous with those of the prostate Ø The circular muscle fibers thickened to form the sphincter vesicae Ø

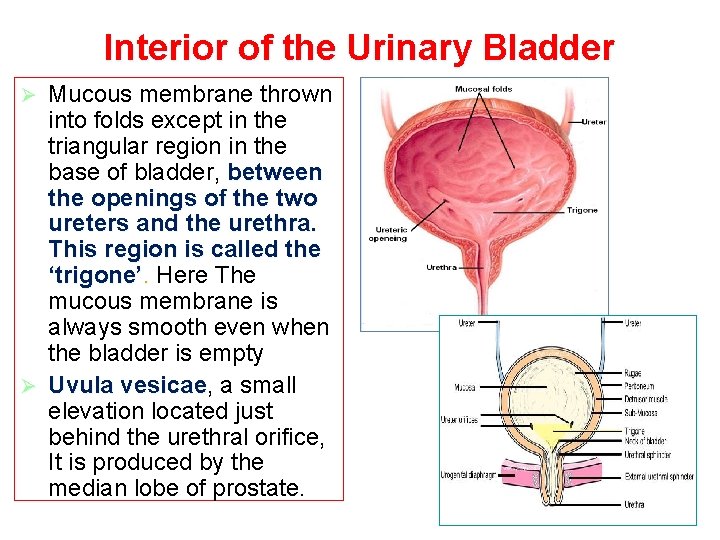

Interior of the Urinary Bladder Mucous membrane thrown into folds except in the triangular region in the base of bladder, between the openings of the two ureters and the urethra. This region is called the ‘trigone’. Here The mucous membrane is always smooth even when the bladder is empty Ø Uvula vesicae, vesicae a small elevation located just behind the urethral orifice, It is produced by the median lobe of prostate. Ø

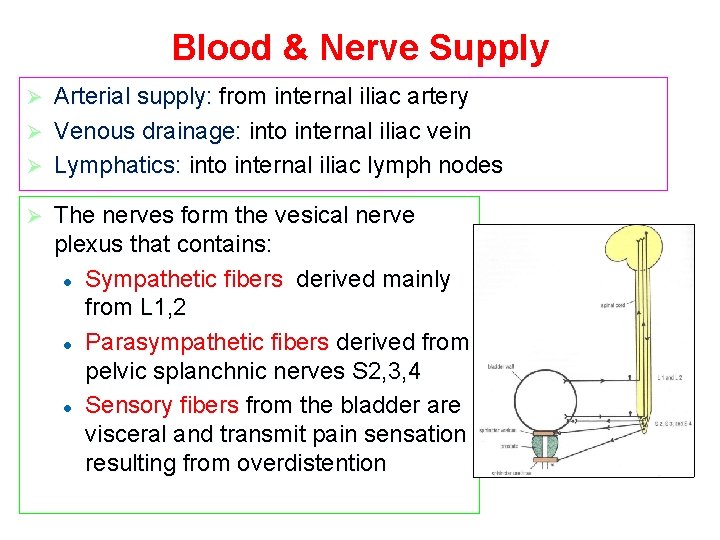

Blood & Nerve Supply Arterial supply: from internal iliac artery Ø Venous drainage: into internal iliac vein Ø Lymphatics: into internal iliac lymph nodes Ø Ø The nerves form the vesical nerve plexus that contains: l Sympathetic fibers derived mainly from L 1, 2 l Parasympathetic fibers derived from pelvic splanchnic nerves S 2, 3, 4 l Sensory fibers from the bladder are visceral and transmit pain sensation resulting from overdistention

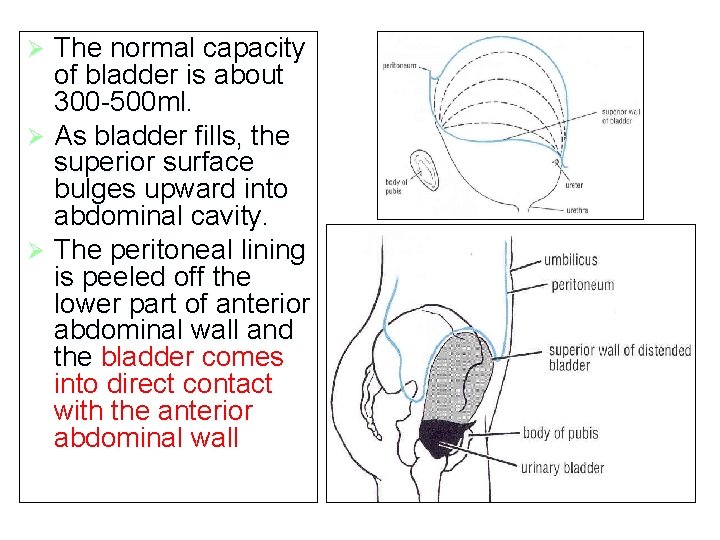

The normal capacity of bladder is about 300 -500 ml. Ø As bladder fills, the superior surface bulges upward into abdominal cavity. Ø The peritoneal lining is peeled off the lower part of anterior abdominal wall and the bladder comes into direct contact with the anterior abdominal wall Ø

Male Urethra About 8 inches (20 cm) long Ø Extends from the neck of bladder to the external urinary meatus on the tip of the glans penis Ø Divided into three parts: l Prostatic l Membranous l Penile Ø

Prostatic urethra Ø Ø Length=3 cm Widest & most dilatable Extends from neck of bladder inside prostate gland Structures openings into prostatic urethra: § Ejaculatory ducts § Ducts of prostate gland Ø Membranous urethra Length=1 cm Ø Surrounded by external urethral sphincter Ø Penile (spongy) urethra Length=16 cm Ø narrowest part of whole urethra § Extends inside penis & opens externally through external urethral orifice Ø

Female Urethra Extends from neck of urinary bladder to open externally through the external urethral orifice (anterior to the vaginal opening) § Has only urinary function §
