URBDP 422 URBAN AND REGIONAL GEOSPATIAL ANALYSIS Lecture

URBDP 422 URBAN AND REGIONAL GEO-SPATIAL ANALYSIS Lecture 11: Modeling Spatial Phenomena: the Land Cover Change Model Lab: Exc. 11, Network Analysis FEB 11, 2014

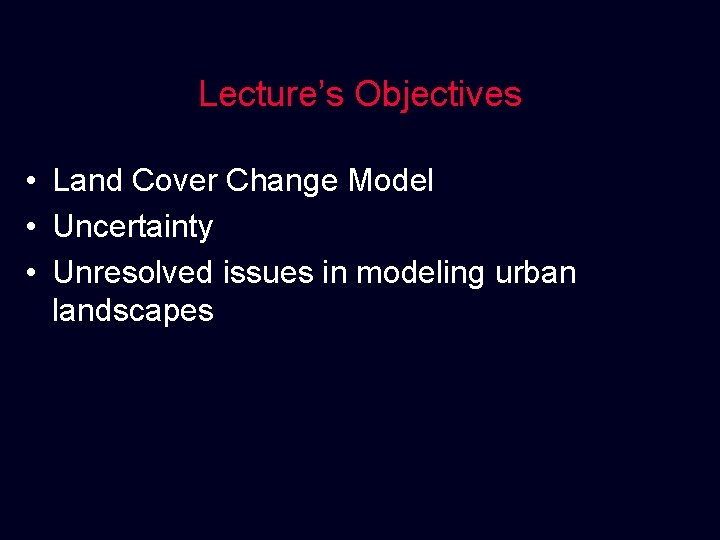

Lecture’s Objectives • Land Cover Change Model • Uncertainty • Unresolved issues in modeling urban landscapes

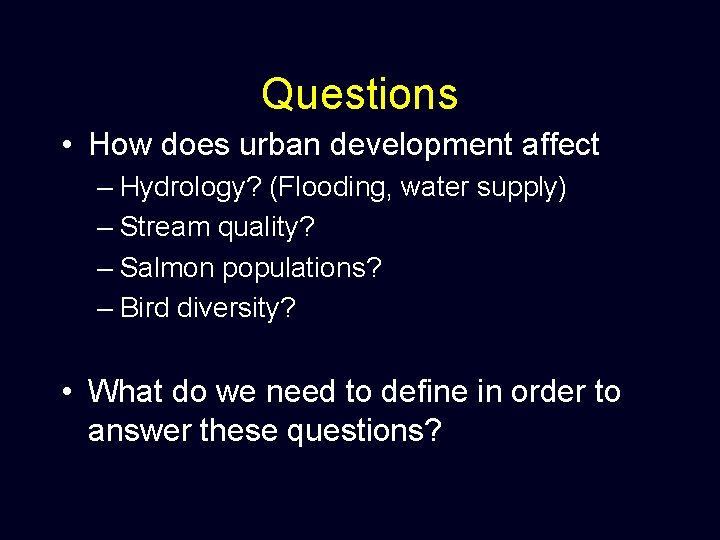

Questions • How does urban development affect – Hydrology? (Flooding, water supply) – Stream quality? – Salmon populations? – Bird diversity? • What do we need to define in order to answer these questions?

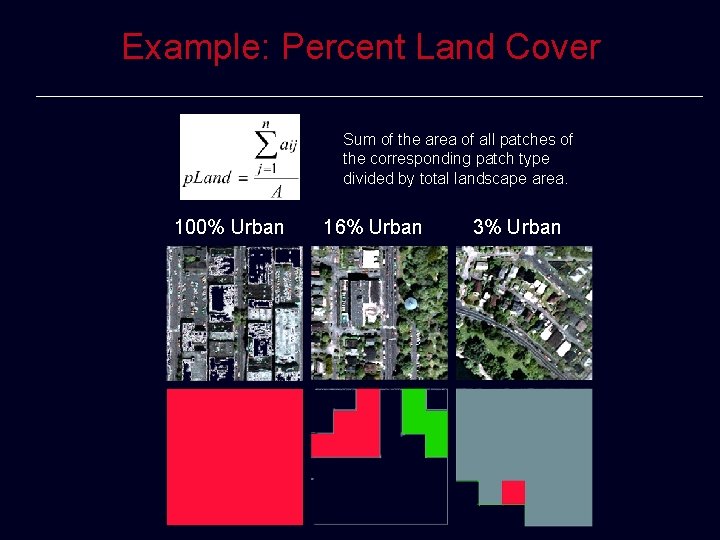

Example: Percent Land Cover Sum of the area of all patches of the corresponding patch type divided by total landscape area. 100% Urban 16% Urban 3% Urban

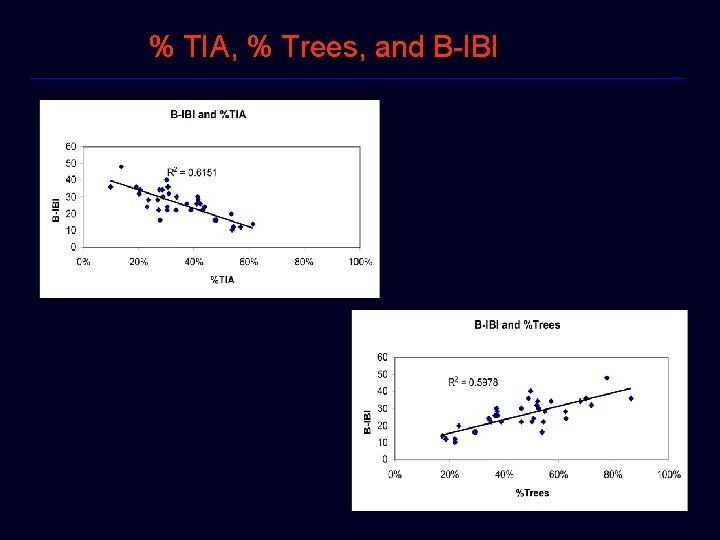

% TIA, % Trees, and B-IBI

Example: Aggregation Index AI equals the number of like adjacencies divided by the maximum possible number of like adjacencies involving a specified class High Medium Low

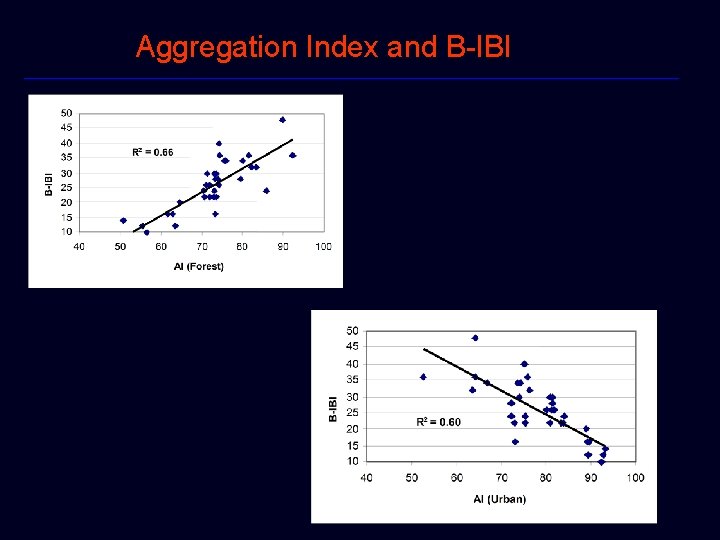

Aggregation Index and B-IBI

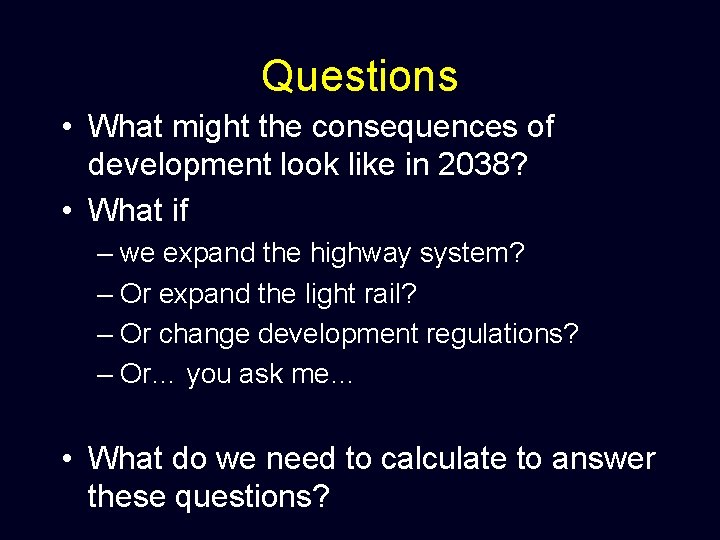

Questions • What might the consequences of development look like in 2038? • What if – we expand the highway system? – Or expand the light rail? – Or change development regulations? – Or… you ask me… • What do we need to calculate to answer these questions?

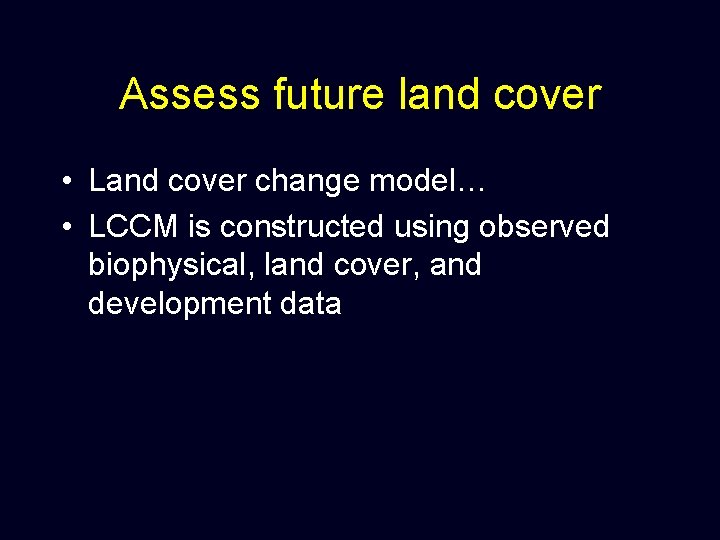

Assess future land cover • Land cover change model… • LCCM is constructed using observed biophysical, land cover, and development data

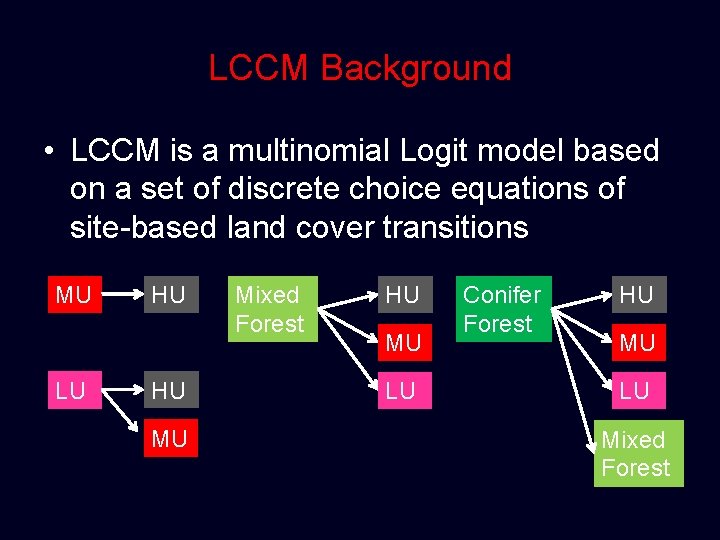

LCCM Background • LCCM is a multinomial Logit model based on a set of discrete choice equations of site-based land cover transitions MU LU HU HU MU Mixed Forest HU MU LU Conifer Forest HU MU LU Mixed Forest

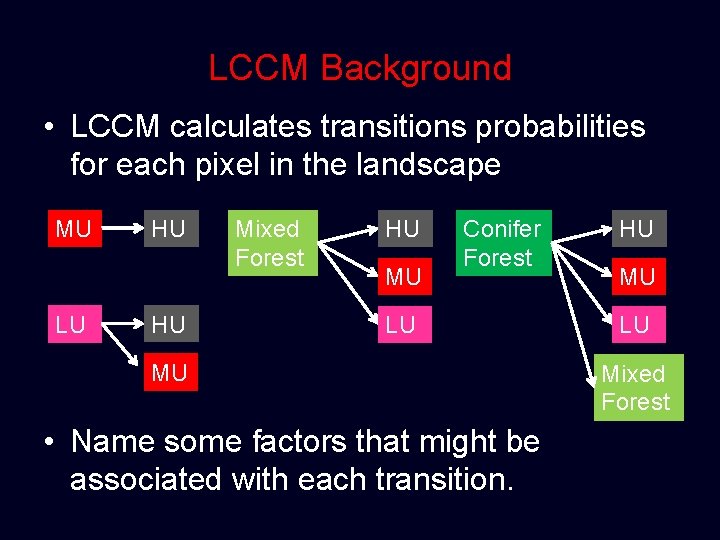

LCCM Background • LCCM calculates transitions probabilities for each pixel in the landscape MU LU HU HU Mixed Forest HU MU Conifer Forest LU MU • Name some factors that might be associated with each transition. HU MU LU Mixed Forest

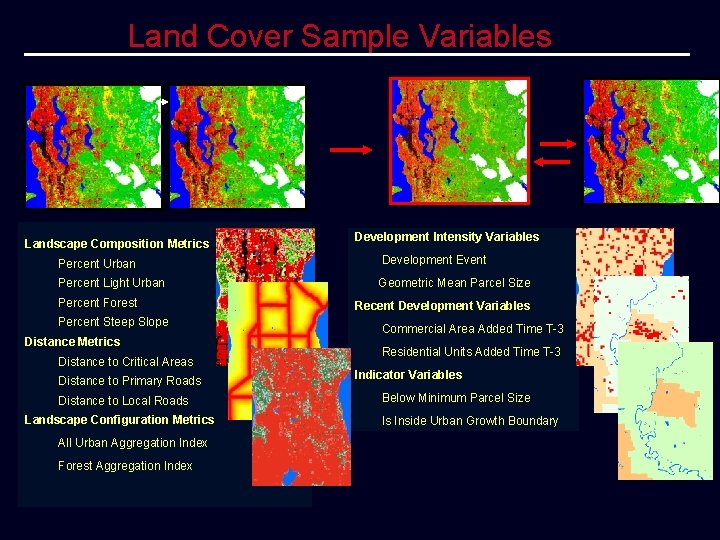

Land Cover Sample Variables Landscape Composition Metrics Development Intensity Variables Percent Urban Development Event Percent Light Urban Geometric Mean Parcel Size Percent Forest Percent Steep Slope Distance Metrics Distance to Critical Areas Distance to Primary Roads Distance to Local Roads Landscape Configuration Metrics All Urban Aggregation Index Forest Aggregation Index Recent Development Variables Commercial Area Added Time T-3 Residential Units Added Time T-3 Indicator Variables Below Minimum Parcel Size Is Inside Urban Growth Boundary

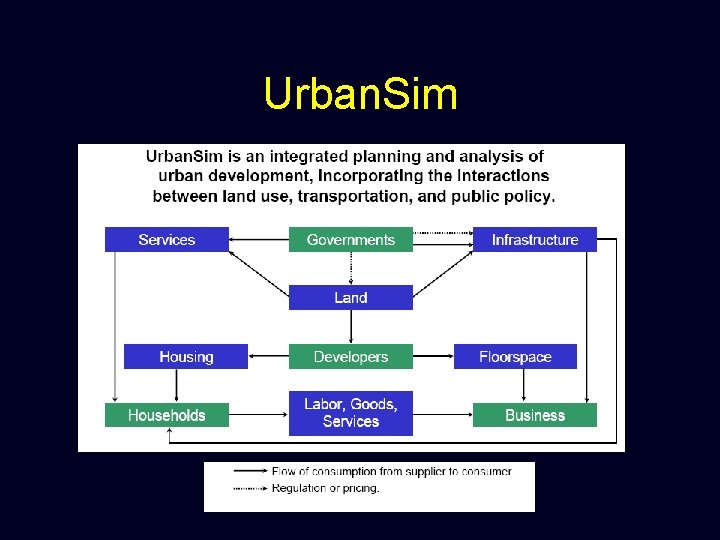

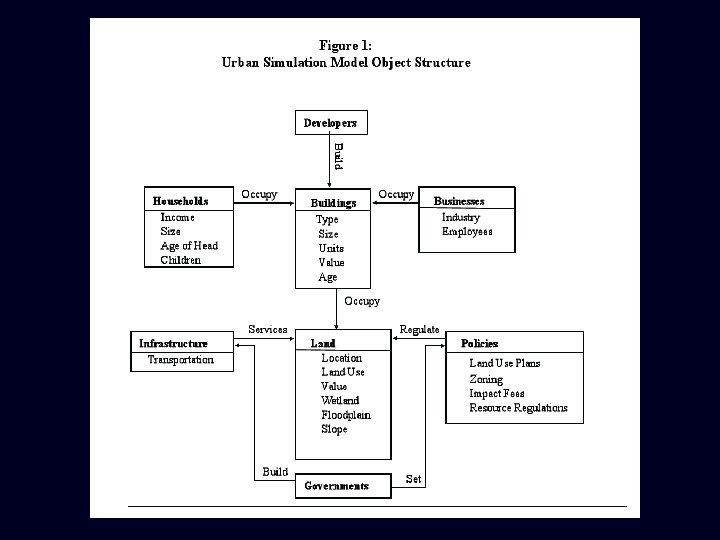

Urban. Sim

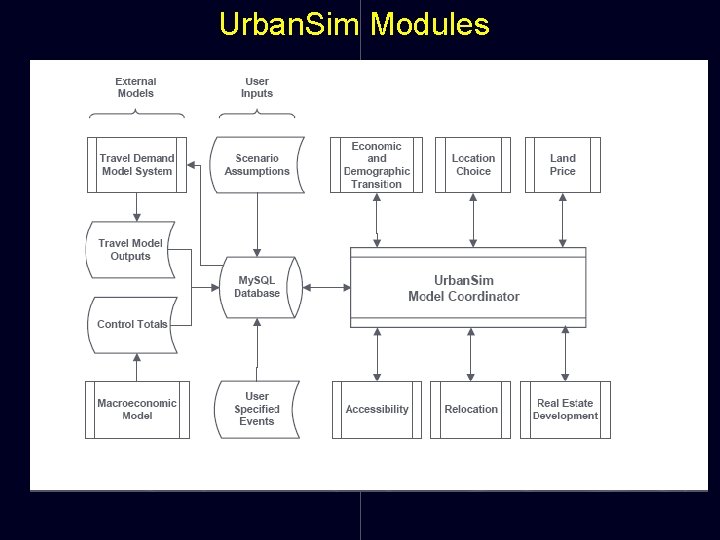

Urban. Sim Modules

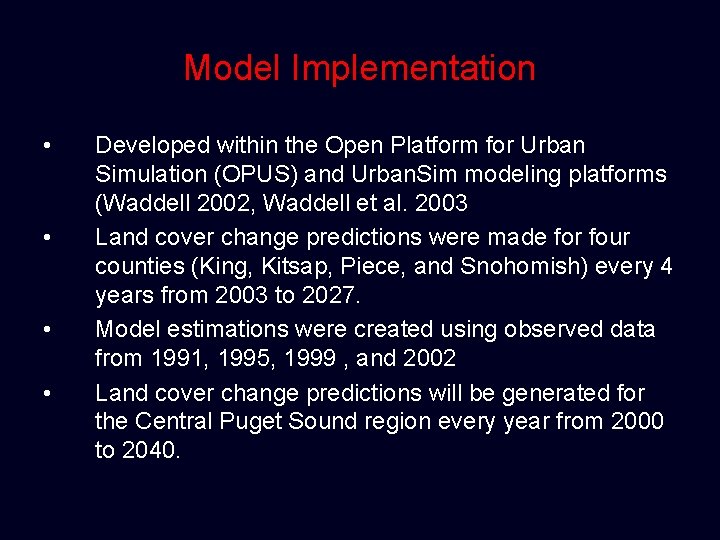

Model Implementation • • Developed within the Open Platform for Urban Simulation (OPUS) and Urban. Sim modeling platforms (Waddell 2002, Waddell et al. 2003 Land cover change predictions were made for four counties (King, Kitsap, Piece, and Snohomish) every 4 years from 2003 to 2027. Model estimations were created using observed data from 1991, 1995, 1999 , and 2002 Land cover change predictions will be generated for the Central Puget Sound region every year from 2000 to 2040.

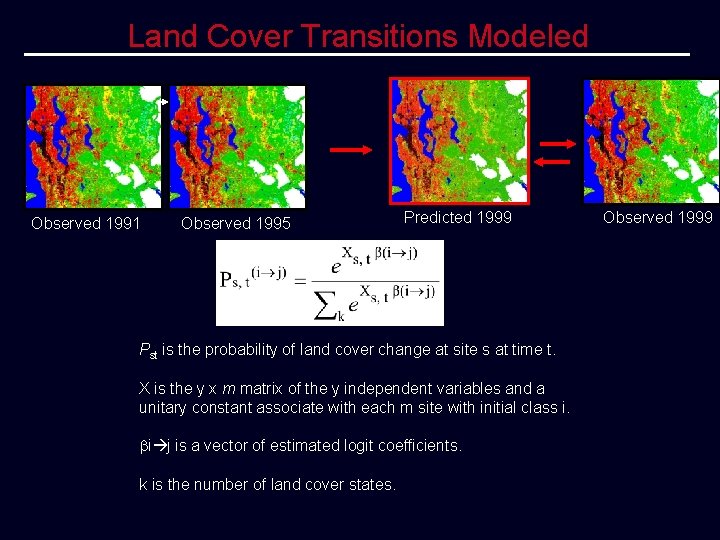

Land Cover Transitions Modeled Observed 1991 Observed 1995 Predicted 1999 Pst is the probability of land cover change at site s at time t. X is the y x m matrix of the y independent variables and a unitary constant associate with each m site with initial class i. i j is a vector of estimated logit coefficients. k is the number of land cover states. Observed 1999

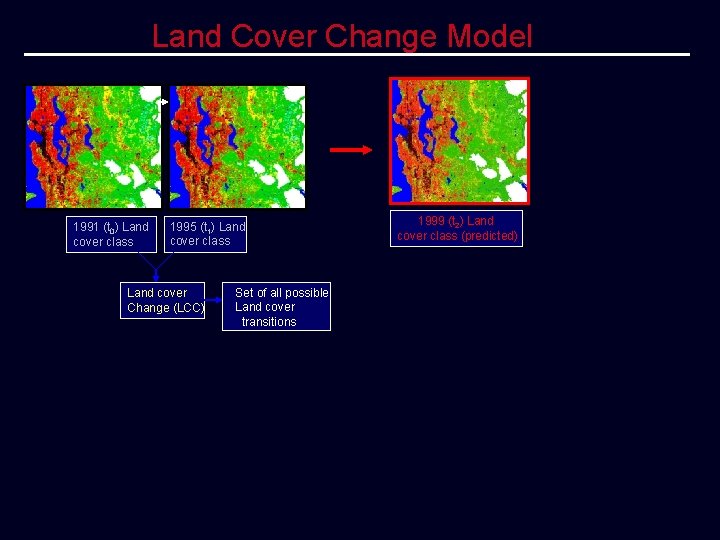

Land Cover Change Model 1991 (t 0) Land cover class 1995 (t 1) Land cover class Land cover Change (LCC) Set of all possible Land cover transitions 1999 (t 2) Land cover class (predicted)

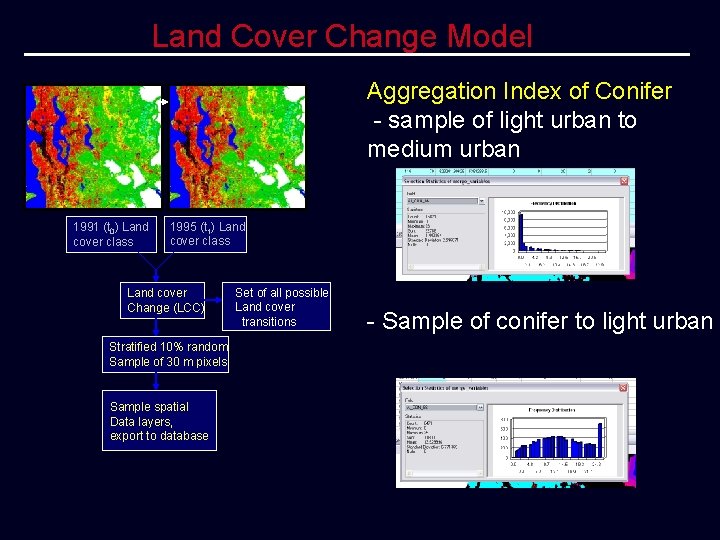

Land Cover Change Model Aggregation Index of Conifer - sample of light urban to medium urban 1991 (t 0) Land cover class 1995 (t 1) Land cover class Land cover Change (LCC) Stratified 10% random Sample of 30 m pixels Sample spatial Data layers, export to database Set of all possible Land cover transitions - Sample of conifer to light urban

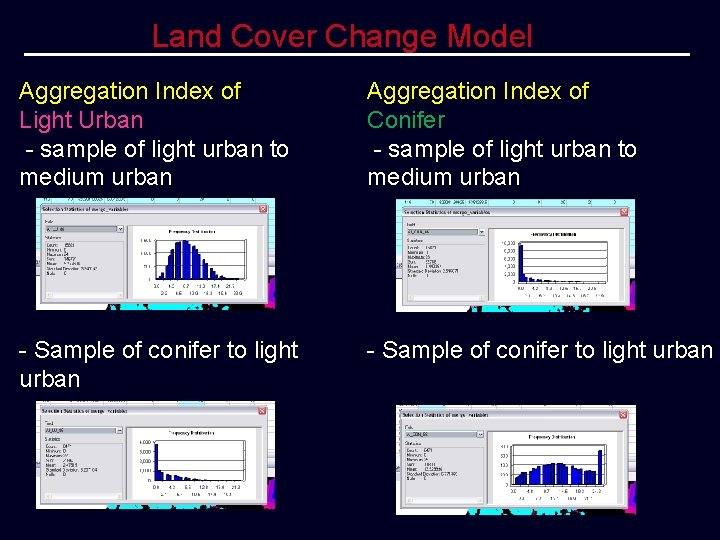

Land Cover Change Model Aggregation Index of Light Urban - sample of light urban to medium urban Aggregation Index of Conifer - sample of light urban to medium urban - Sample of conifer to light urban

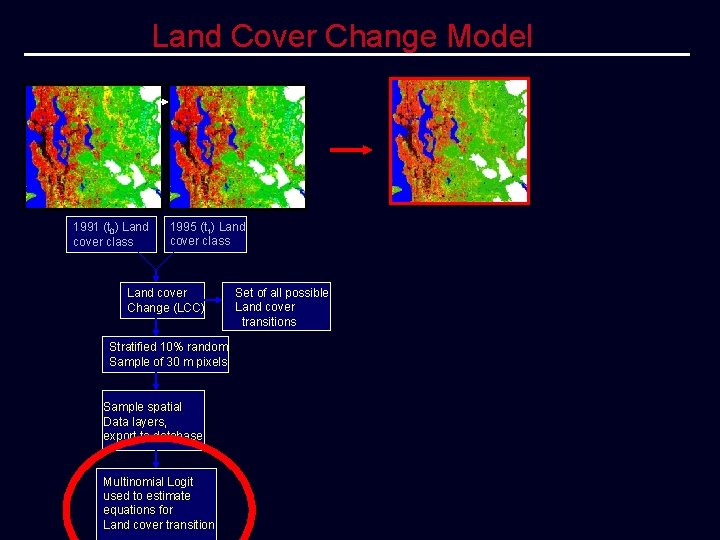

Land Cover Change Model 1991 (t 0) Land cover class 1995 (t 1) Land cover class Land cover Change (LCC) Stratified 10% random Sample of 30 m pixels Sample spatial Data layers, export to database Multinomial Logit used to estimate equations for Land cover transition Set of all possible Land cover transitions

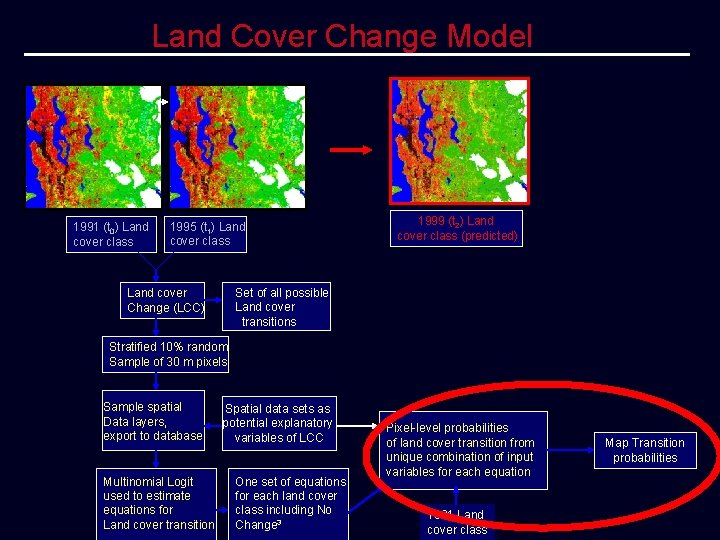

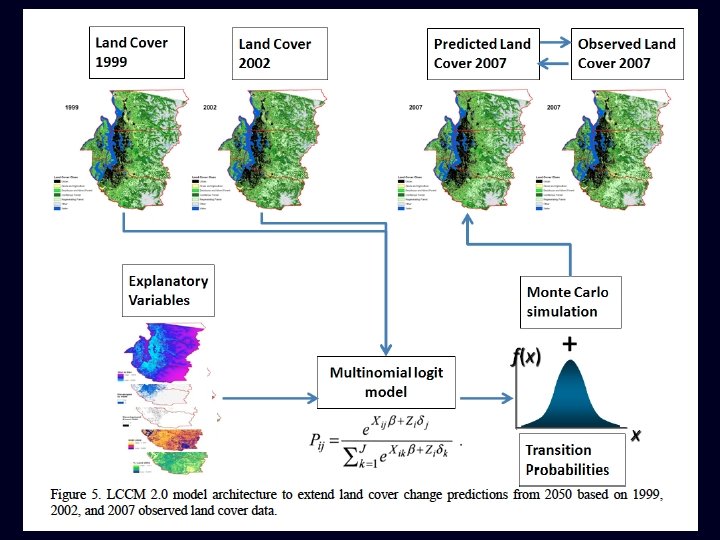

Land Cover Change Model 1991 (t 0) Land cover class 1995 (t 1) Land cover class 1999 (t 2) Land cover class (predicted) Set of all possible Land cover transitions Land cover Change (LCC) Stratified 10% random Sample of 30 m pixels Sample spatial Data layers, export to database Multinomial Logit used to estimate equations for Land cover transition Spatial data sets as potential explanatory variables of LCC One set of equations for each land cover class including No Change 3 Pixel-level probabilities of land cover transition from unique combination of input variables for each equation 1991 Land cover class Map Transition probabilities

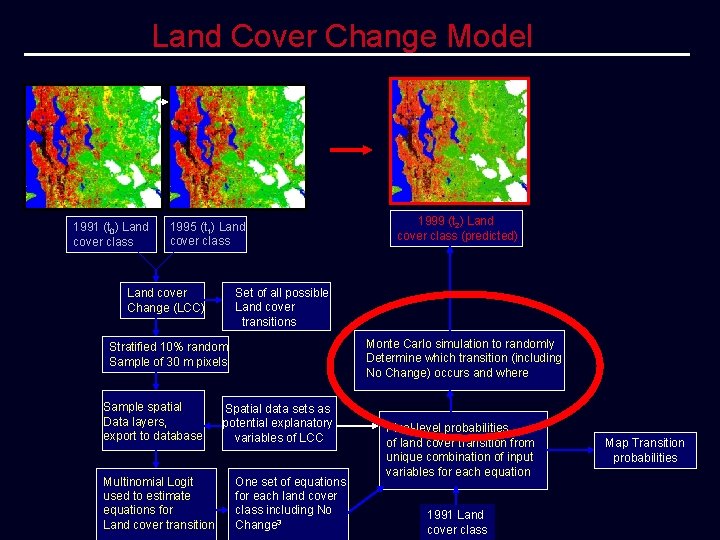

Land Cover Change Model 1991 (t 0) Land cover class 1995 (t 1) Land cover class Set of all possible Land cover transitions Land cover Change (LCC) Monte Carlo simulation to randomly Determine which transition (including No Change) occurs and where Stratified 10% random Sample of 30 m pixels Sample spatial Data layers, export to database Multinomial Logit used to estimate equations for Land cover transition 1999 (t 2) Land cover class (predicted) Spatial data sets as potential explanatory variables of LCC One set of equations for each land cover class including No Change 3 Pixel-level probabilities of land cover transition from unique combination of input variables for each equation 1991 Land cover class Map Transition probabilities

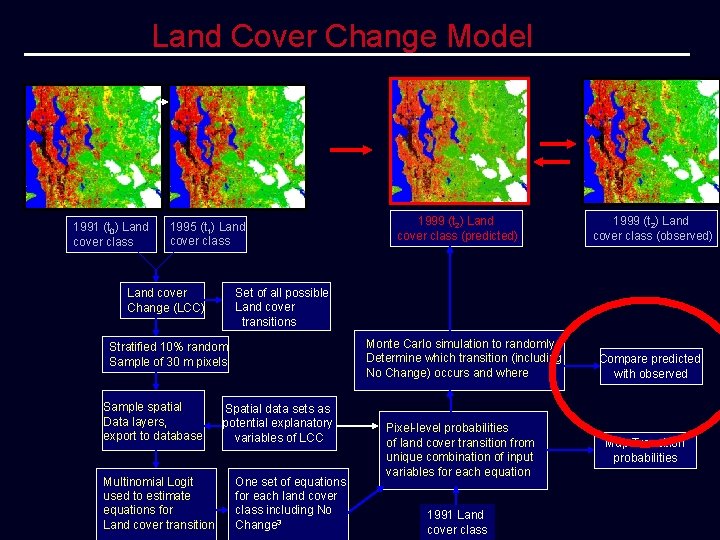

Land Cover Change Model 1991 (t 0) Land cover class 1995 (t 1) Land cover class Monte Carlo simulation to randomly Determine which transition (including No Change) occurs and where Stratified 10% random Sample of 30 m pixels Multinomial Logit used to estimate equations for Land cover transition 1999 (t 2) Land cover class (observed) Set of all possible Land cover transitions Land cover Change (LCC) Sample spatial Data layers, export to database 1999 (t 2) Land cover class (predicted) Spatial data sets as potential explanatory variables of LCC One set of equations for each land cover class including No Change 3 Pixel-level probabilities of land cover transition from unique combination of input variables for each equation 1991 Land cover class Compare predicted with observed Map Transition probabilities

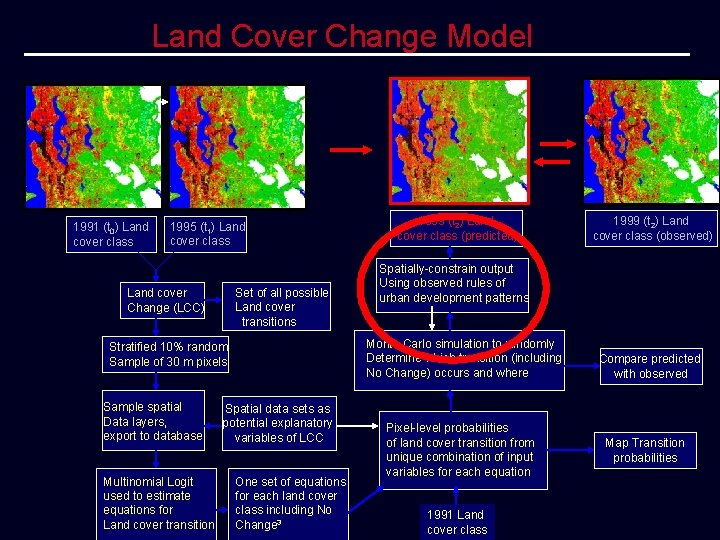

Land Cover Change Model 1991 (t 0) Land cover class 1995 (t 1) Land cover class Set of all possible Land cover transitions Land cover Change (LCC) Multinomial Logit used to estimate equations for Land cover transition Spatial data sets as potential explanatory variables of LCC One set of equations for each land cover class including No Change 3 1999 (t 2) Land cover class (observed) Spatially-constrain output Using observed rules of urban development patterns Monte Carlo simulation to randomly Determine which transition (including No Change) occurs and where Stratified 10% random Sample of 30 m pixels Sample spatial Data layers, export to database 1999 (t 2) Land cover class (predicted) Pixel-level probabilities of land cover transition from unique combination of input variables for each equation 1991 Land cover class Compare predicted with observed Map Transition probabilities

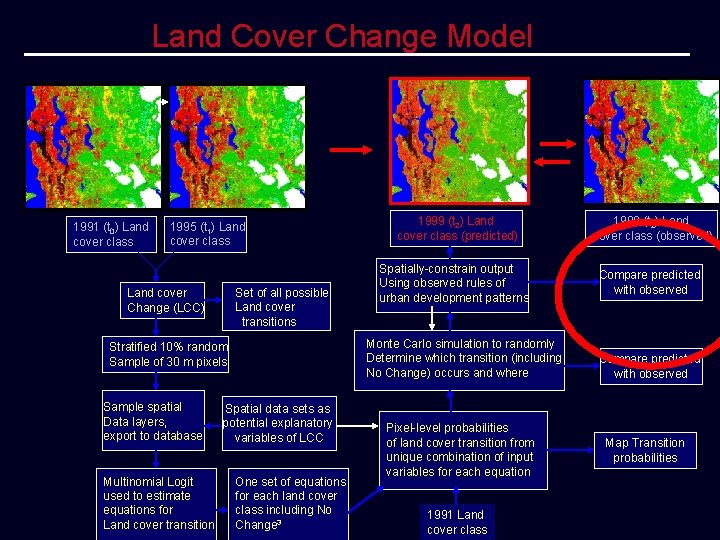

Land Cover Change Model 1991 (t 0) Land cover class 1995 (t 1) Land cover class Set of all possible Land cover transitions Land cover Change (LCC) Multinomial Logit used to estimate equations for Land cover transition Spatially-constrain output Using observed rules of urban development patterns Monte Carlo simulation to randomly Determine which transition (including No Change) occurs and where Stratified 10% random Sample of 30 m pixels Sample spatial Data layers, export to database 1999 (t 2) Land cover class (predicted) Spatial data sets as potential explanatory variables of LCC One set of equations for each land cover class including No Change 3 Pixel-level probabilities of land cover transition from unique combination of input variables for each equation 1991 Land cover class 1999 (t 2) Land cover class (observed) Compare predicted with observed Map Transition probabilities

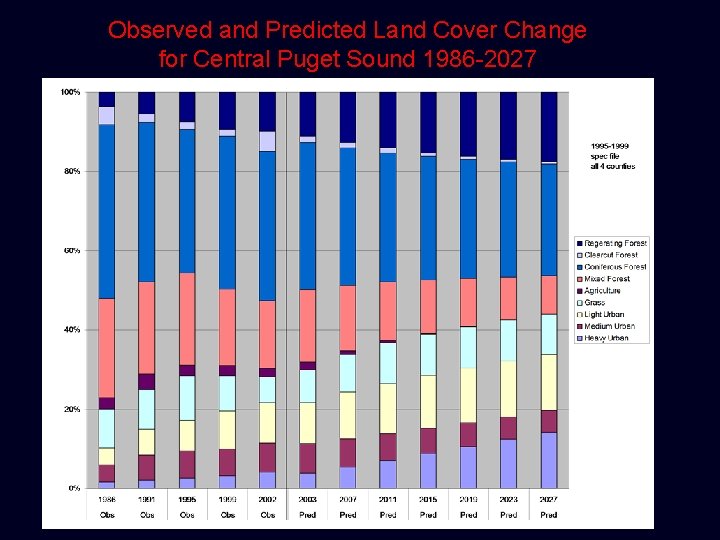

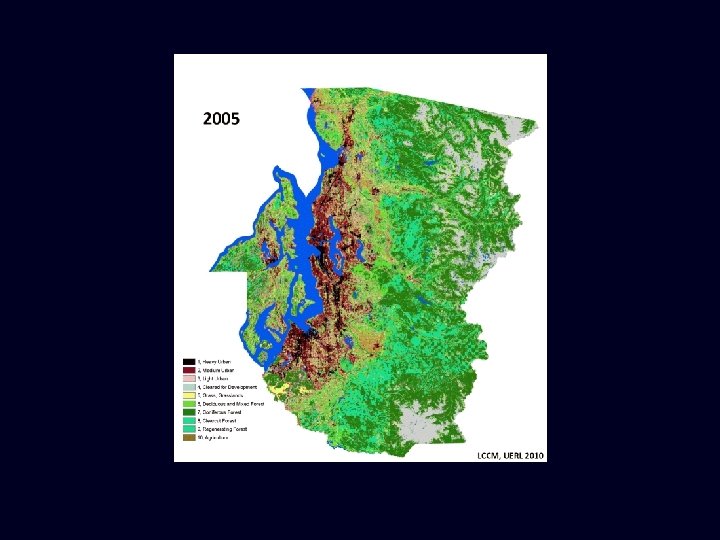

Observed and Predicted Land Cover Change for Central Puget Sound 1986 -2027

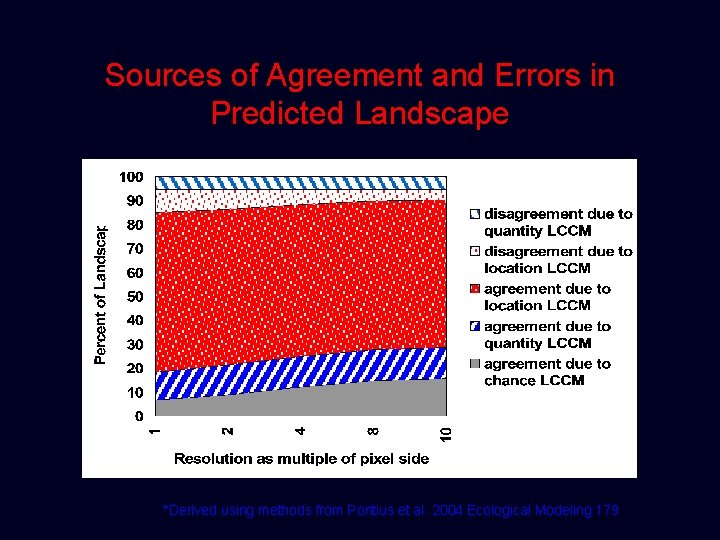

Sources of Agreement and Errors in Predicted Landscape *Derived using methods from Pontius et al. 2004 Ecological Modeling 179

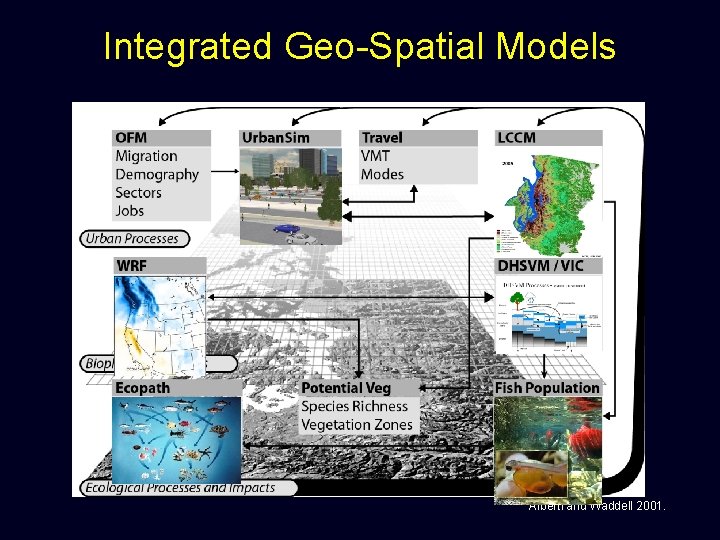

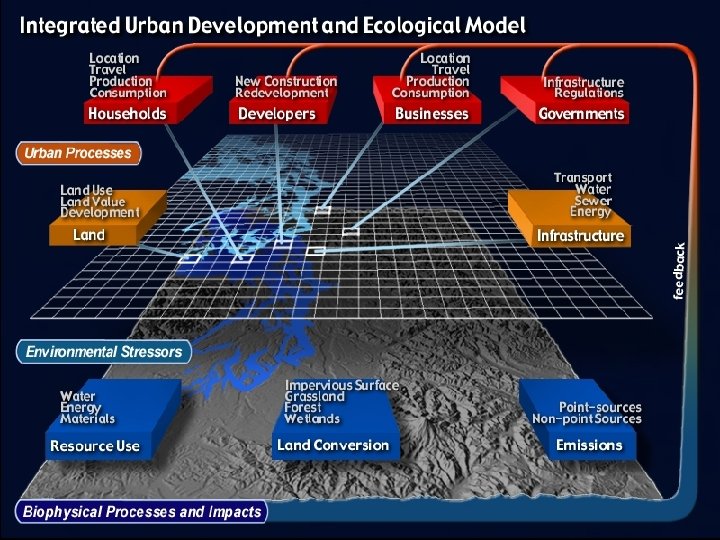

Integrated Geo-Spatial Models Alberti and Waddell 2001.

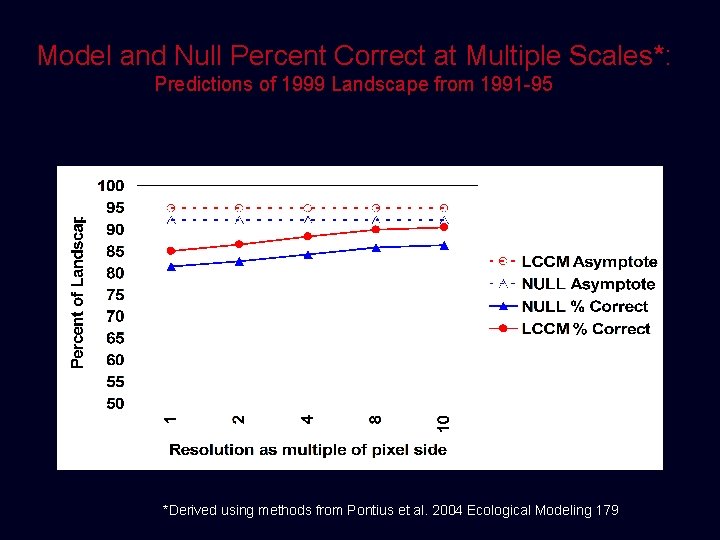

Model and Null Percent Correct at Multiple Scales*: Predictions of 1999 Landscape from 1991 -95 *Derived using methods from Pontius et al. 2004 Ecological Modeling 179

Partitioning the Model

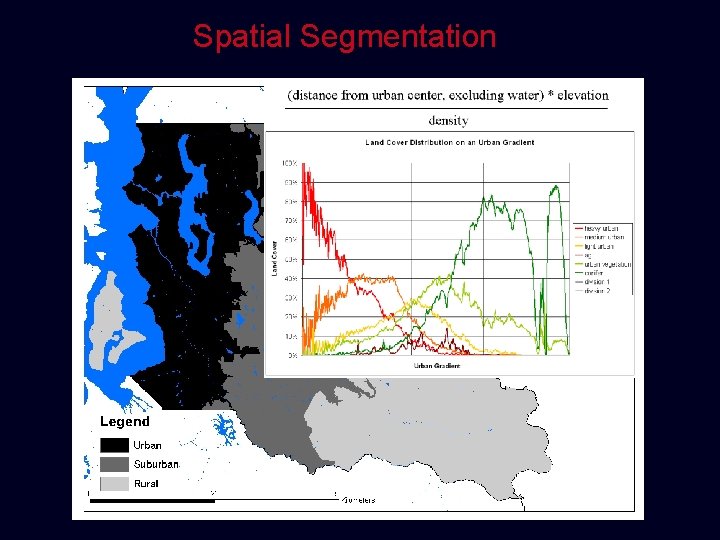

Spatial Segmentation

Spatial Dependence Spatial structure may occur due to: a) positive spatial autocorrelation among the locations and/or b) spatial dependence due to human and ecological responses to underlying environmental conditions (Wagner and Fortin 2005)

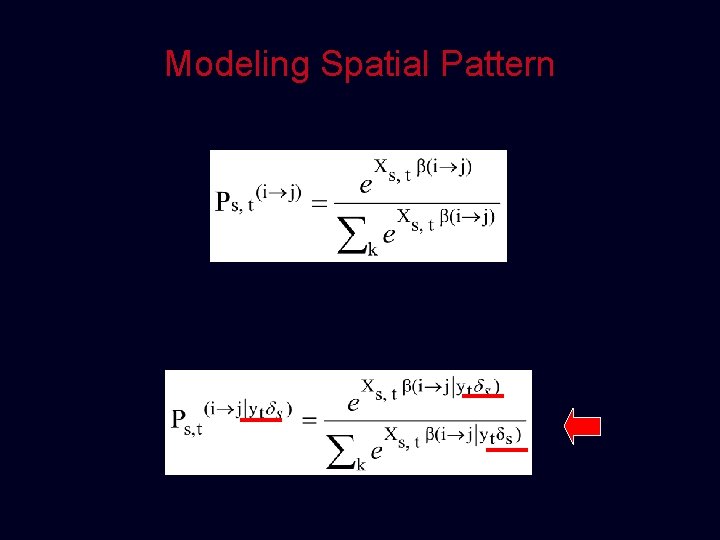

Modeling Spatial Pattern

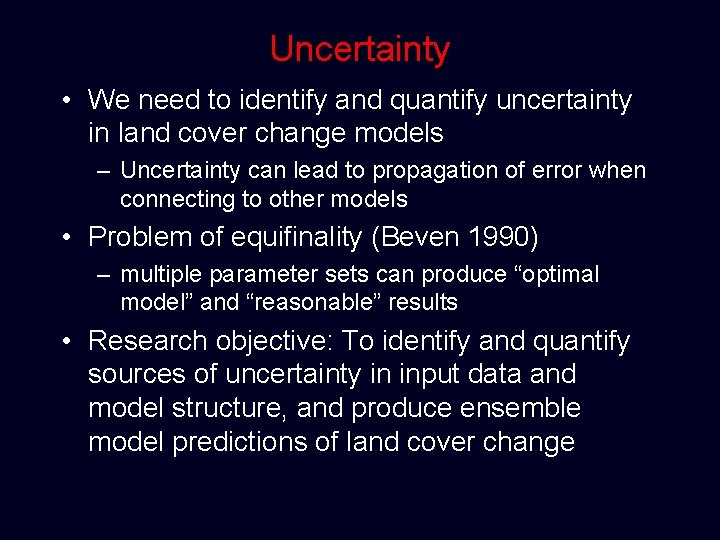

Uncertainty • We need to identify and quantify uncertainty in land cover change models – Uncertainty can lead to propagation of error when connecting to other models • Problem of equifinality (Beven 1990) – multiple parameter sets can produce “optimal model” and “reasonable” results • Research objective: To identify and quantify sources of uncertainty in input data and model structure, and produce ensemble model predictions of land cover change

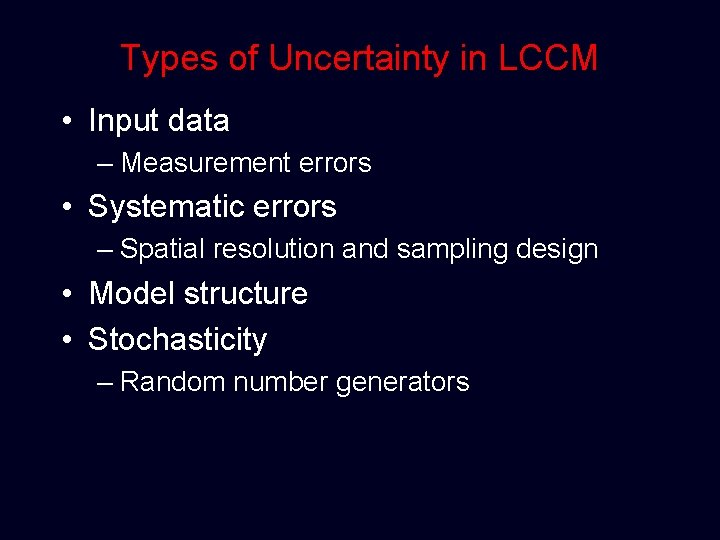

Types of Uncertainty in LCCM • Input data – Measurement errors • Systematic errors – Spatial resolution and sampling design • Model structure • Stochasticity – Random number generators

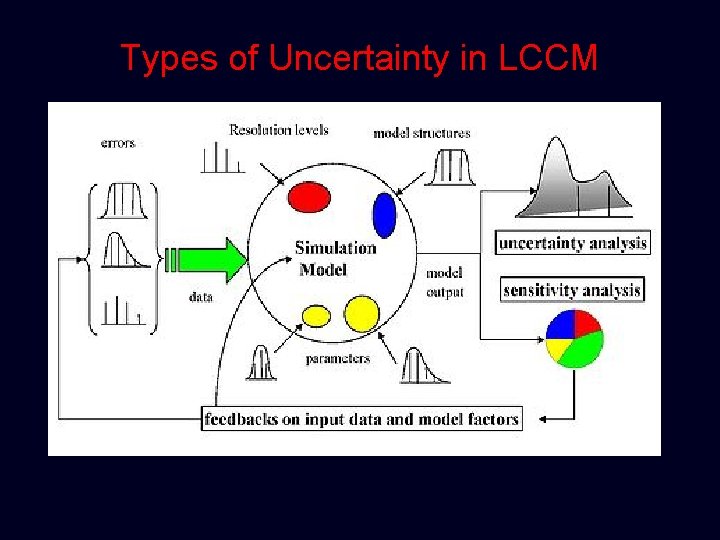

Types of Uncertainty in LCCM

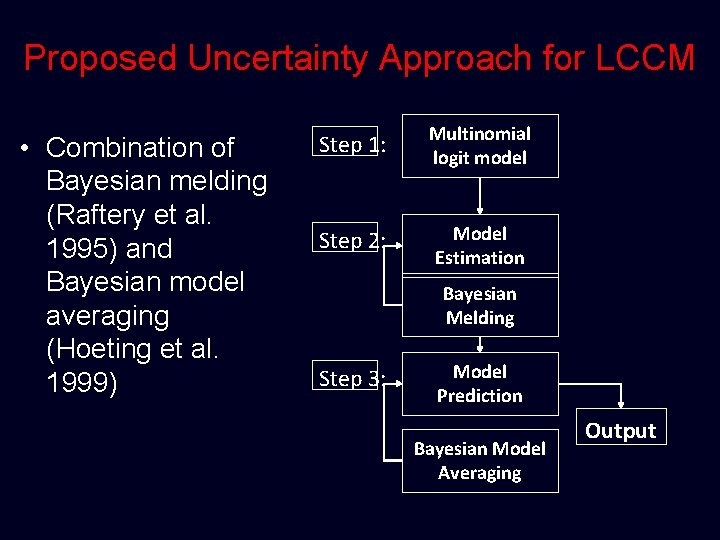

Proposed Uncertainty Approach for LCCM • Combination of Bayesian melding (Raftery et al. 1995) and Bayesian model averaging (Hoeting et al. 1999) Step 1: Multinomial logit model Step 2: Model Estimation Bayesian Melding Step 3: Model Prediction Bayesian Model Averaging Output

Implications for Future Models - Problem definition - Multiple actors - Time - Space - Feedback - Uncertainty

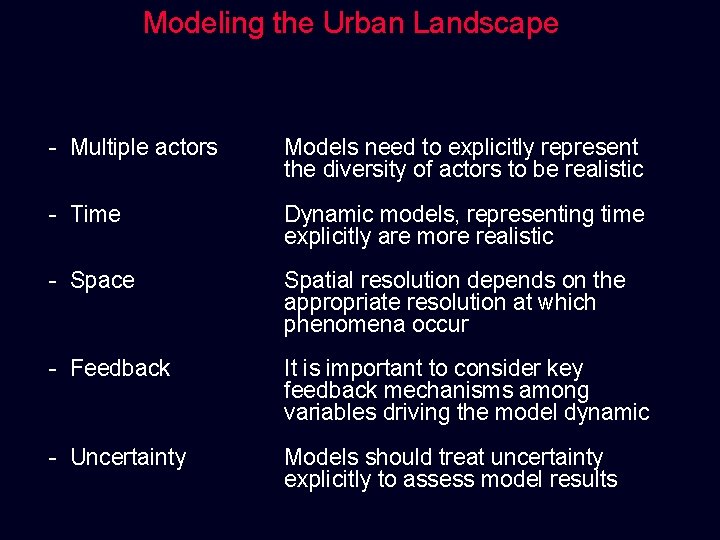

Modeling the Urban Landscape - Multiple actors Models need to explicitly represent the diversity of actors to be realistic - Time Dynamic models, representing time explicitly are more realistic - Space Spatial resolution depends on the appropriate resolution at which phenomena occur - Feedback It is important to consider key feedback mechanisms among variables driving the model dynamic - Uncertainty Models should treat uncertainty explicitly to assess model results
