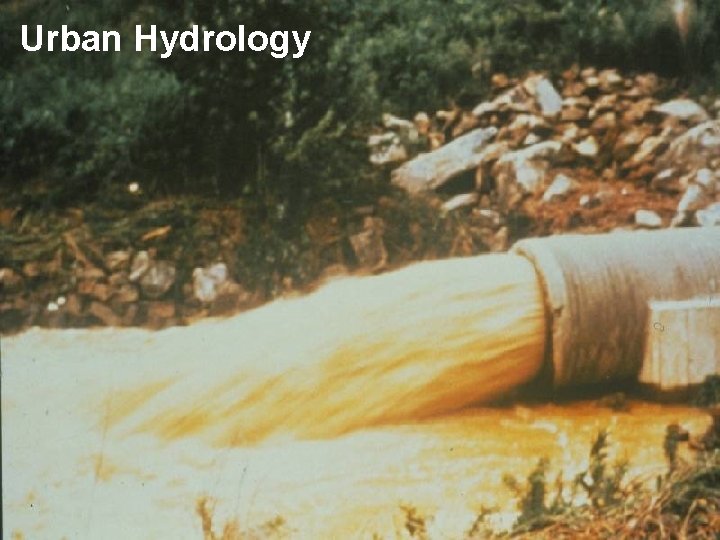

Urban Hydrology Construction Impacts Disturbed areas allow erosion
Urban Hydrology
Construction Impacts • Disturbed areas allow erosion to occur • High concentrations of sediment can impact creeks and ponds • Construction General Permit • Storm Water Pollution Prevention Plan (SWPPP) must be prepared for project • Plan specifies measures to reduce discharge of sediment

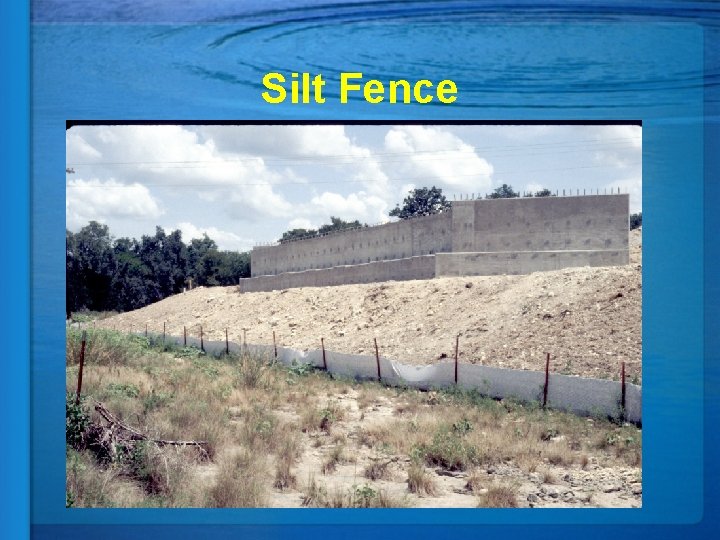

Silt Fence
Hydromulch
Control Failure
Degradation of Hill Country Streams Green Hole on Lick Creek, west Travis County, Summer 2003 Green Hole on July 27, 2004, after rainfall caused overflow from the West Cypress Hills subdivision detention pond for development construction
Degradation of Hill Country Streams (cont. ) Dead Mans Hole on Dead Mans Creek, east Hays County, before construction of a small dam in the watershed Dead Mans Hole after construction of the dam
Degradation of Hill Country Streams (cont. ) Hamilton Pool prior to June 2007 Road cut for land development in Hamilton Creek basin began June, 2007
Degradation of Hill Country Streams (cont. ) Road cut along Hamilton Creek Hamilton Pool--first rain after road cut construction began
Bee Creek near Hwy 71, West Travis County, prior to development in basin Bee Creek, August 2007, immediately after development began in basin

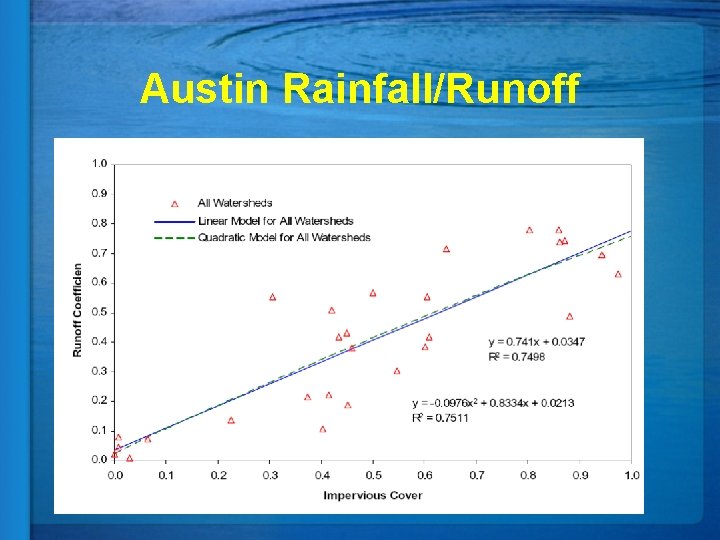

Austin Rainfall/Runoff
Channel Degradation Bear Creek Fort Branch Shoal Creek Boggy Creek
More of the Same Little Walnut Creek E. Bouldin Creek Shoal Creek Walnut Creek Tannehill Branch
Shoal Creek
Types of Pollution • Point Sources – Conventionally industrial or wastewater treatment – Any discharge from a pipe or ditch • Non-Point Source – Agriculture
Constituents in Urban Runoff • • Bacteria Nutrients Insecticides Herbicides Metals – zinc, copper, lead Hydrocarbons – PAHs Sediment
Sources of Pollutants • • Vehicles – Tires, Brake pads, Fluids, Tracking Atmospheric Deposition Fertilizers Pesticides Pets Pavement abrasion Channel Erosion
Buildup of Pollutants
First Flush of Pollutants Stenstrom & Kayhanian, 2005
Zinc vs. Impervious Cover

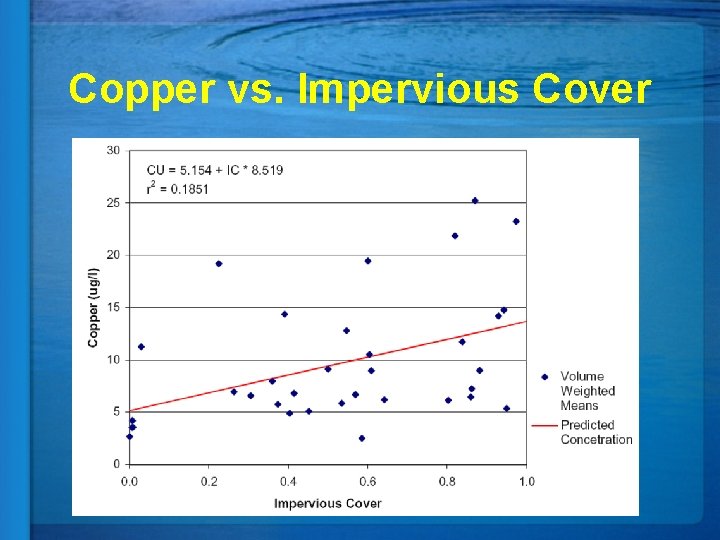

Copper vs. Impervious Cover
TSS vs. Impervious Cover
Runoff Concentrations Constituent Avg. C Standard Exceedance ? ? ? 0 100% Lead 49 mg/L 0. 66 97% Copper 39 mg/L 3. 2 97% Zinc 207 mg/L 41 52% 1415 400 42% Gross Solids Fecal C.
Runoff Concentrations Constituent Avg. C Sediment 100 mg/L Nitrate 0. 93 mg/L TKN 2. 1 mg/L Total P 0. 11 mg/L Diss. P 1415
Other Sources of Pollutants Sealants reapplied every few years. About 600, 000 gallons of sealant are applied annually in Austin. coal-tarasphaltunsealed emulsion- asphalt or sealed concrete
Sewer Lines in Creeks – Tannehill Branch
Barton Creek Wastewater Leak Algae blooms March 2, 2002
Regulatory Strategies • • Do nothing Do something (structural) Meet a performance standard Meet water quality standards
Local Requirements • Austin – Achieve pollutant reduction comparable to a sand filter system, or “no discharge” of stormwater. • LCRA – Reduce TSS, TP, and O&G by 75% • TCEQ – Reduce the increase in TSS discharged by 80%. • Houston – Do something
Filter System – Lamar & Loop 360
Uniform Distributed Small-scale Controls Maintaining Natural Hydrology Functions
