UPS SG-CE Series 160 -300 k. VA Sales presentation

PRODUCT HIGHLIGHT 2 SG-CE Series 160 -300 k. VA S 1 Sales presentation SAP_SGS_XCE_M 16_M 30_1 GB_V 020. ppt

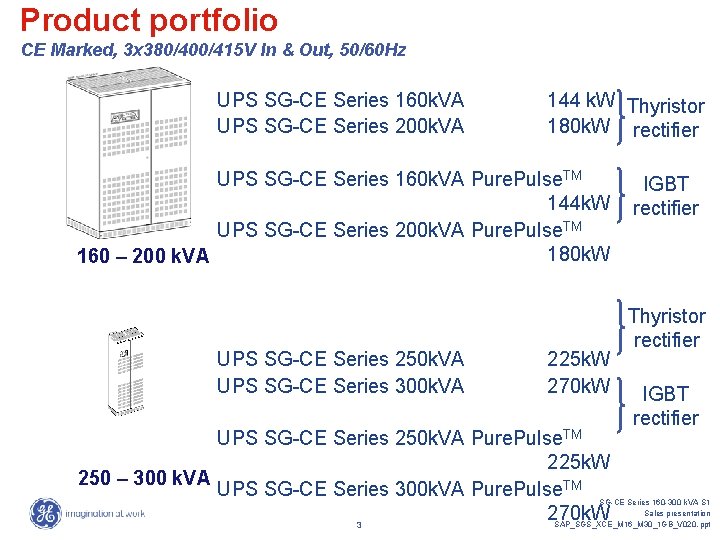

Product portfolio CE Marked, 3 x 380/400/415 V In & Out, 50/60 Hz UPS SG-CE Series 160 k. VA UPS SG-CE Series 200 k. VA 144 k. W Thyristor 180 k. W rectifier UPS SG-CE Series 160 k. VA Pure. Pulse. TM 144 k. W UPS SG-CE Series 200 k. VA Pure. Pulse. TM 180 k. W 160 – 200 k. VA UPS SG-CE Series 250 k. VA UPS SG-CE Series 300 k. VA 225 k. W 270 k. W UPS SG-CE Series 250 k. VA Pure. Pulse. TM 225 k. W 250 – 300 k. VA UPS SG-CE Series 300 k. VA Pure. Pulse. TM 270 k. W 3 IGBT rectifier Thyristor rectifier IGBT rectifier SG-CE Series 160 -300 k. VA S 1 Sales presentation SAP_SGS_XCE_M 16_M 30_1 GB_V 020. ppt

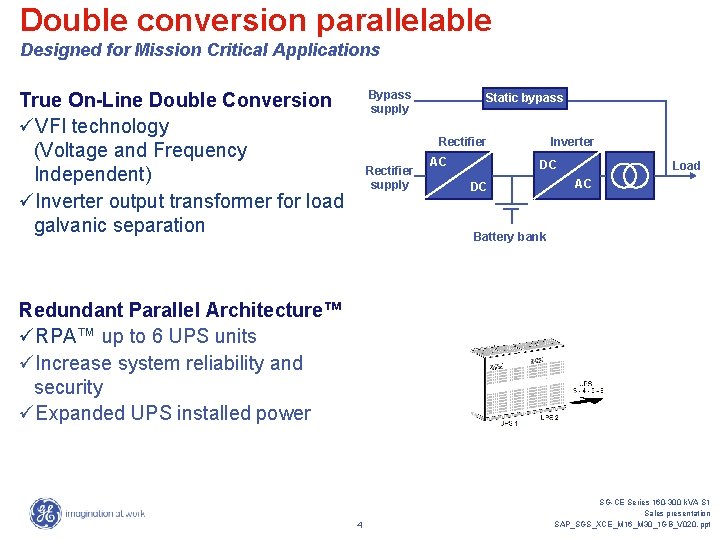

Double conversion parallelable Designed for Mission Critical Applications Bypass supply True On-Line Double Conversion üVFI technology (Voltage and Frequency Independent) üInverter output transformer for load galvanic separation Static bypass Rectifier supply AC Inverter DC DC Load AC Battery bank Redundant Parallel Architecture™ üRPA™ up to 6 UPS units üIncrease system reliability and security üExpanded UPS installed power 4 SG-CE Series 160 -300 k. VA S 1 Sales presentation SAP_SGS_XCE_M 16_M 30_1 GB_V 020. ppt

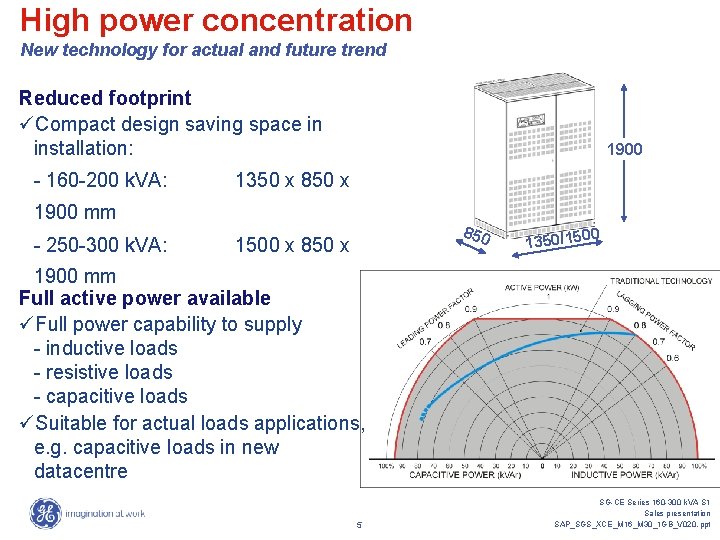

High power concentration New technology for actual and future trend Reduced footprint üCompact design saving space in installation: - 160 -200 k. VA: 1900 1350 x 850 x 1900 mm - 250 -300 k. VA: 850 1500 x 850 x 00 1350/15 1900 mm Full active power available üFull power capability to supply - inductive loads - resistive loads - capacitive loads üSuitable for actual loads applications, e. g. capacitive loads in new datacentre 5 SG-CE Series 160 -300 k. VA S 1 Sales presentation SAP_SGS_XCE_M 16_M 30_1 GB_V 020. ppt

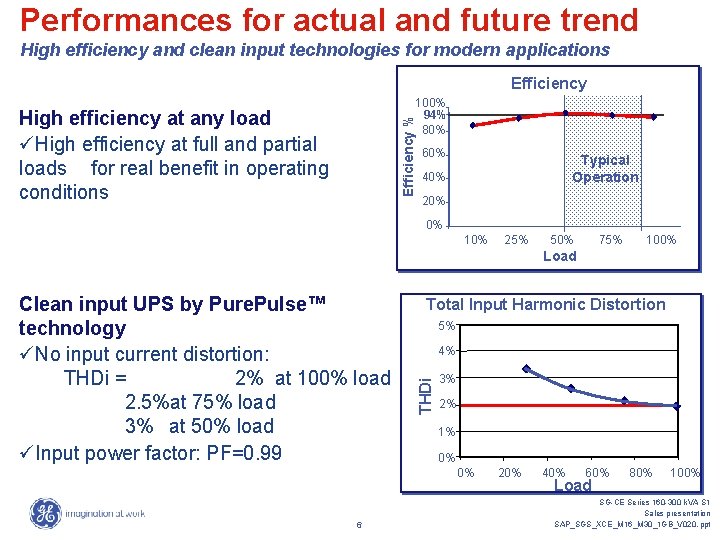

Performances for actual and future trend High efficiency and clean input technologies for modern applications Efficiency 100% 94% 80% Efficiency % High efficiency at any load üHigh efficiency at full and partial loads for real benefit in operating conditions 60% Typical Operation 40% 20% 0% 10% 25% 50% 75% 100% Load Total Input Harmonic Distortion 5% 4% THDi Clean input UPS by Pure. Pulse™ technology üNo input current distortion: THDi = 2% at 100% load 2. 5%at 75% load 3% at 50% load üInput power factor: PF=0. 99 3% 2% 1% 0% 0% 6 20% 40% 60% Load 80% 100% SG-CE Series 160 -300 k. VA S 1 Sales presentation SAP_SGS_XCE_M 16_M 30_1 GB_V 020. ppt

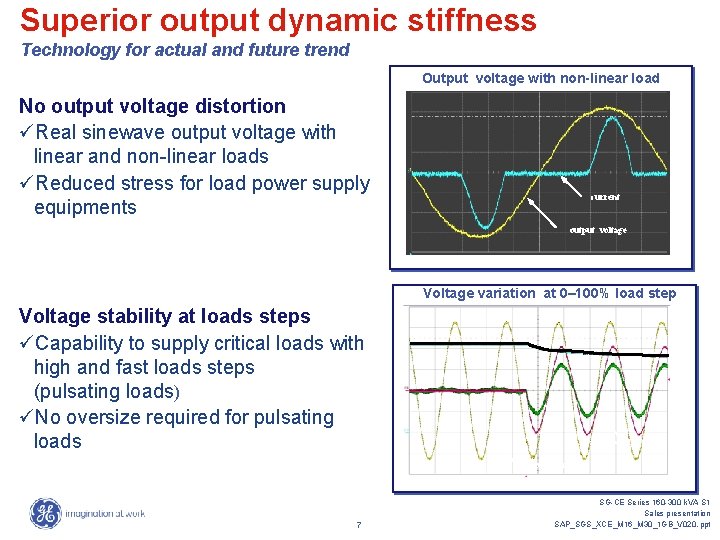

Superior output dynamic stiffness Technology for actual and future trend Output voltage with non-linear load No output voltage distortion üReal sinewave output voltage with linear and non-linear loads üReduced stress for load power supply equipments current output voltage Voltage variation at 0– 100% load step Voltage stability at loads steps üCapability to supply critical loads with high and fast loads steps (pulsating loads) üNo oversize required for pulsating loads output voltage current load step 0 -100% output voltage 7 SG-CE Series 160 -300 k. VA S 1 Sales presentation SAP_SGS_XCE_M 16_M 30_1 GB_V 020. ppt

TYPICAL APPLICATIONS 8 SG-CE Series 160 -300 k. VA S 1 Sales presentation SAP_SGS_XCE_M 16_M 30_1 GB_V 020. ppt

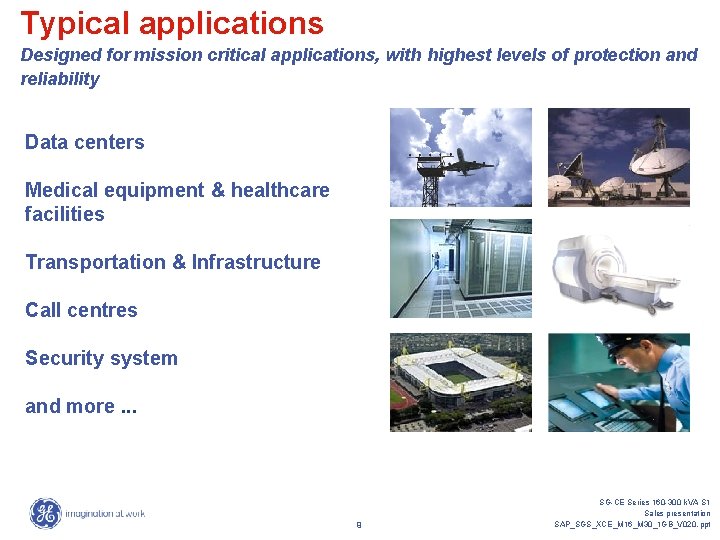

Typical applications Designed for mission critical applications, with highest levels of protection and reliability Data centers Medical equipment & healthcare facilities Transportation & Infrastructure Call centres Security system and more. . . 9 SG-CE Series 160 -300 k. VA S 1 Sales presentation SAP_SGS_XCE_M 16_M 30_1 GB_V 020. ppt

IEC 62040 -3 CLASSIFICATION 10 SG-CE Series 160 -300 k. VA S 1 Sales presentation SAP_SGS_XCE_M 16_M 30_1 GB_V 020. ppt

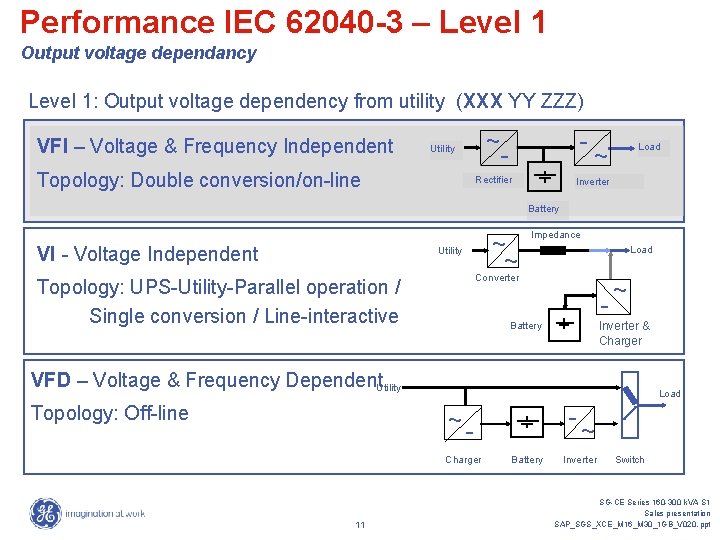

Performance IEC 62040 -3 – Level 1 Output voltage dependancy Level 1: Output voltage dependency from utility (XXX YY ZZZ) VFI – Voltage & Frequency Independent ~ Utility Topology: Double conversion/on-line - - Rectifier Load ~ Inverter Battery VI - Voltage Independent Utility ~ ~ Impedance Load Converter Topology: UPS-Utility-Parallel operation / Single conversion / Line-interactive - ~ Inverter & Charger Battery VFD – Voltage & Frequency Dependent. Utility Topology: Off-line Load - ~Charger 11 Battery ~ Inverter Switch SG-CE Series 160 -300 k. VA S 1 Sales presentation SAP_SGS_XCE_M 16_M 30_1 GB_V 020. ppt

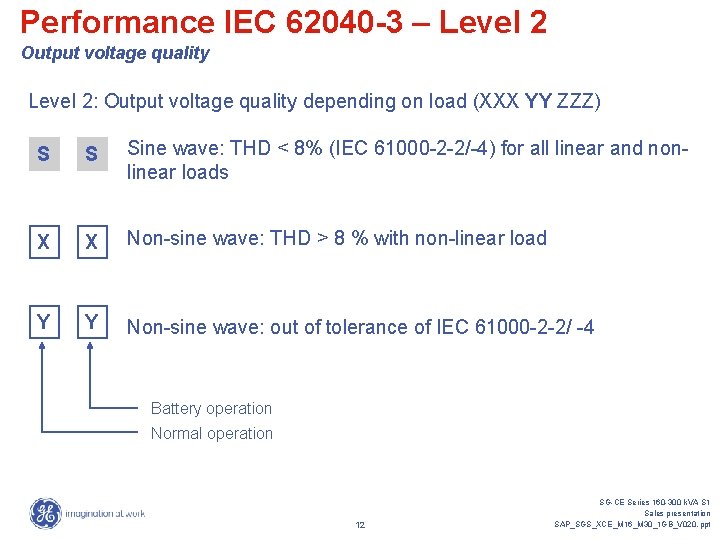

Performance IEC 62040 -3 – Level 2 Output voltage quality Level 2: Output voltage quality depending on load (XXX YY ZZZ) S S Sine wave: THD < 8% (IEC 61000 -2 -2/-4) for all linear and nonlinear loads X X Non-sine wave: THD > 8 % with non-linear load Y Y Non-sine wave: out of tolerance of IEC 61000 -2 -2/ -4 Battery operation Normal operation 12 SG-CE Series 160 -300 k. VA S 1 Sales presentation SAP_SGS_XCE_M 16_M 30_1 GB_V 020. ppt

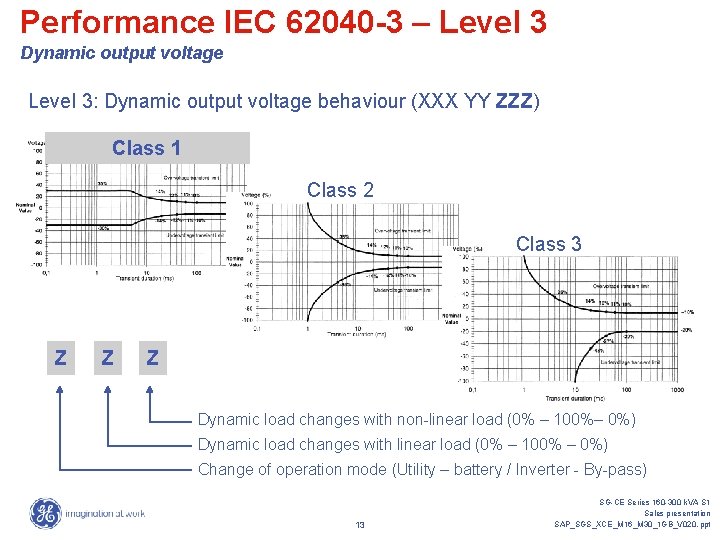

Performance IEC 62040 -3 – Level 3 Dynamic output voltage Level 3: Dynamic output voltage behaviour (XXX YY ZZZ) Class 1 Class 2 Class 3 Z Z Z Dynamic load changes with non-linear load (0% – 100%– 0%) Dynamic load changes with linear load (0% – 100% – 0%) Change of operation mode (Utility – battery / Inverter - By-pass) 13 SG-CE Series 160 -300 k. VA S 1 Sales presentation SAP_SGS_XCE_M 16_M 30_1 GB_V 020. ppt

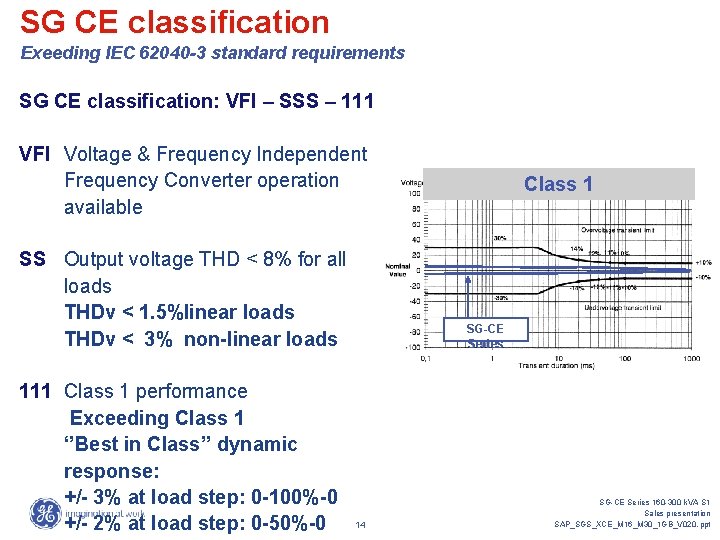

SG CE classification Exeeding IEC 62040 -3 standard requirements SG CE classification: VFI – SSS – 111 VFI Voltage & Frequency Independent Frequency Converter operation available SS Output voltage THD < 8% for all loads THDv < 1. 5%linear loads THDv < 3% non-linear loads 111 Class 1 performance Exceeding Class 1 ‘’Best in Class’’ dynamic response: +/- 3% at load step: 0 -100%-0 +/- 2% at load step: 0 -50%-0 Class 1 SG-CE Series 14 SG-CE Series 160 -300 k. VA S 1 Sales presentation SAP_SGS_XCE_M 16_M 30_1 GB_V 020. ppt

CHARACTERISTICS & PERFORMANCES 15 SG-CE Series 160 -300 k. VA S 1 Sales presentation SAP_SGS_XCE_M 16_M 30_1 GB_V 020. ppt

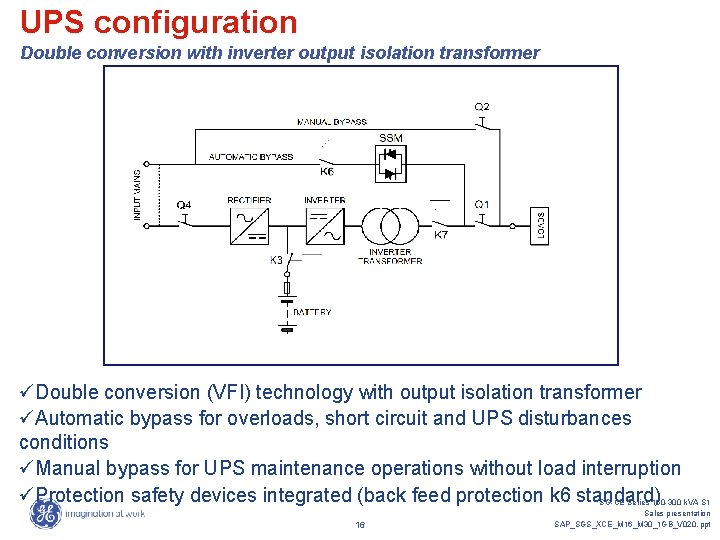

UPS configuration Double conversion with inverter output isolation transformer üDouble conversion (VFI) technology with output isolation transformer üAutomatic bypass for overloads, short circuit and UPS disturbances conditions üManual bypass for UPS maintenance operations without load interruption üProtection safety devices integrated (back feed protection k 6 standard) 16 SG-CE Series 160 -300 k. VA S 1 Sales presentation SAP_SGS_XCE_M 16_M 30_1 GB_V 020. ppt

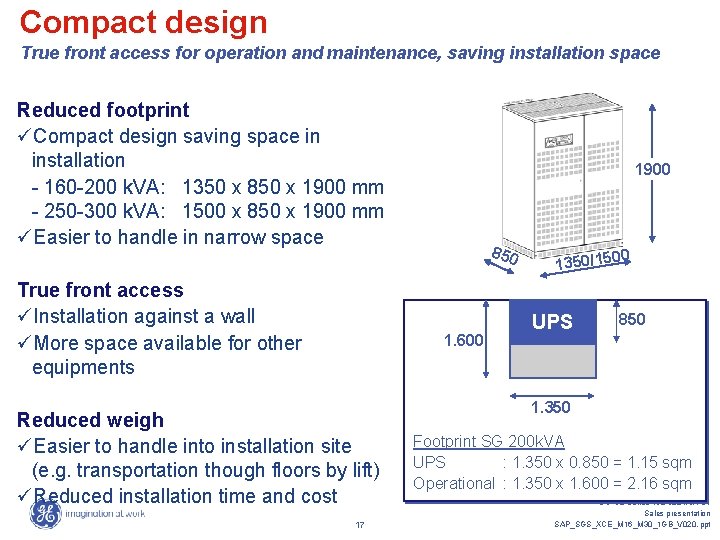

Compact design True front access for operation and maintenance, saving installation space Reduced footprint üCompact design saving space in installation - 160 -200 k. VA: 1350 x 850 x 1900 mm - 250 -300 k. VA: 1500 x 850 x 1900 mm üEasier to handle in narrow space True front access üInstallation against a wall üMore space available for other equipments 1900 850 1. 600 Reduced weigh üEasier to handle into installation site (e. g. transportation though floors by lift) üReduced installation time and cost 17 00 1350/15 UPS 850 1. 350 Footprint SG 200 k. VA UPS : 1. 350 x 0. 850 = 1. 15 sqm Operational : 1. 350 x 1. 600 = 2. 16 sqm SG-CE Series 160 -300 k. VA S 1 Sales presentation SAP_SGS_XCE_M 16_M 30_1 GB_V 020. ppt

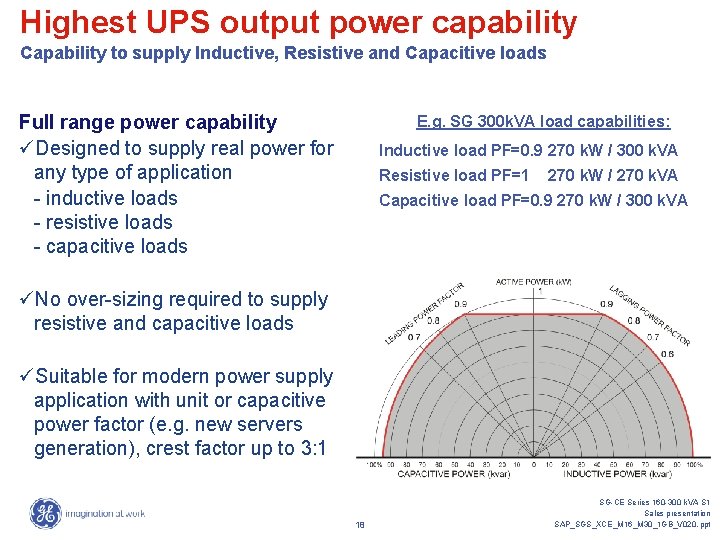

Highest UPS output power capability Capability to supply Inductive, Resistive and Capacitive loads Full range power capability üDesigned to supply real power for any type of application - inductive loads - resistive loads - capacitive loads E. g. SG 300 k. VA load capabilities: Inductive load PF=0. 9 270 k. W / 300 k. VA Resistive load PF=1 270 k. W / 270 k. VA Capacitive load PF=0. 9 270 k. W / 300 k. VA üNo over-sizing required to supply resistive and capacitive loads üSuitable for modern power supply application with unit or capacitive power factor (e. g. new servers generation), crest factor up to 3: 1 18 SG-CE Series 160 -300 k. VA S 1 Sales presentation SAP_SGS_XCE_M 16_M 30_1 GB_V 020. ppt

Input rectifier performances Wide input window to preserve battery autonomy and lifetime Input window Wide input voltage and frequency windows üLimited use of battery üPreserve battery autonomy for real input mains failures üIncrease battery lifetime Input frequency +10% 50 Hz -10% -15% 400 V +15% Input voltage Soft start üRectifier can be activated gradually, controlling the input current üPreventing instable situation for Gen. Set üAvoids false trip of upfront protection devices üSequential softstart for parallel UPS 19 Soft start UPS input current UPS 1 100% UPS 2 0% time SG-CE Series 160 -300 k. VA S 1 Sales presentation SAP_SGS_XCE_M 16_M 30_1 GB_V 020. ppt

Backfeed protection IEC 62040 -1 : ……“For fixed installation UPS, backfeed protection may be provided internally or externally to the UPS in the a. c. input line” Standard feature inside UPS cabinet üNo additional cost required üNo addition installation required Backfeed contactor static bypass Input mains Fully compliant with IEC 62040 -1 üCompliance to UPS installation safety requirements Rectifier Inverter DC AC DC Load AC Battery bank Safer operating condition üSafer operation for end users and service engineers preventing feedback to the mains from the inverter in case of mains failure and a fault in the bypass circuit 20 SG-CE Series 160 -300 k. VA S 1 Sales presentation SAP_SGS_XCE_M 16_M 30_1 GB_V 020. ppt

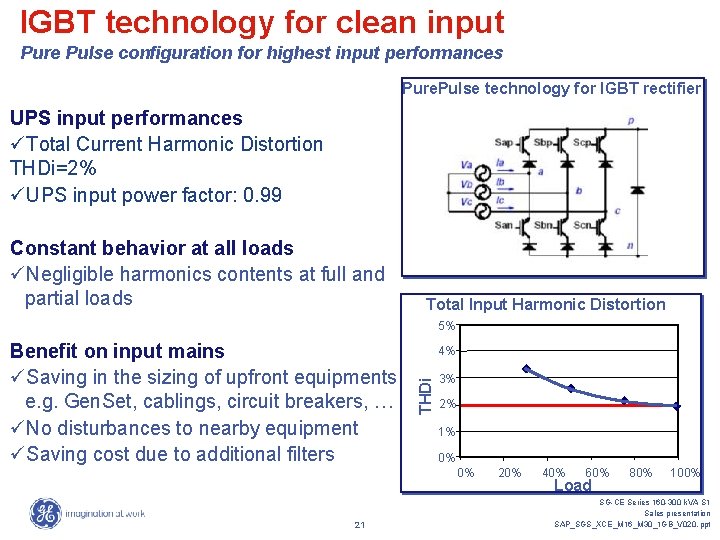

IGBT technology for clean input Pure Pulse configuration for highest input performances Pure. Pulse technology for IGBT rectifier UPS input performances üTotal Current Harmonic Distortion THDi=2% üUPS input power factor: 0. 99 Constant behavior at all loads üNegligible harmonics contents at full and partial loads Total Input Harmonic Distortion 5% 4% THDi Benefit on input mains üSaving in the sizing of upfront equipments e. g. Gen. Set, cablings, circuit breakers, … üNo disturbances to nearby equipment üSaving cost due to additional filters 3% 2% 1% 0% 0% 21 20% 40% 60% Load 80% 100% SG-CE Series 160 -300 k. VA S 1 Sales presentation SAP_SGS_XCE_M 16_M 30_1 GB_V 020. ppt

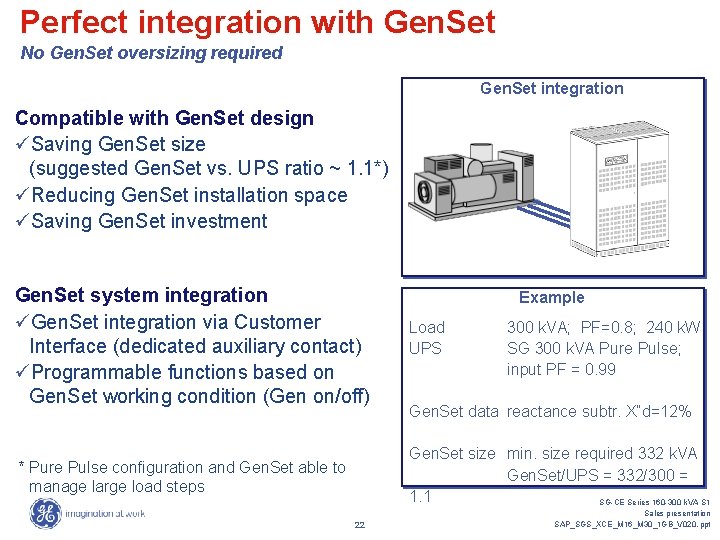

Perfect integration with Gen. Set No Gen. Set oversizing required Gen. Set integration Compatible with Gen. Set design üSaving Gen. Set size (suggested Gen. Set vs. UPS ratio ~ 1. 1*) üReducing Gen. Set installation space üSaving Gen. Set investment Gen. Set system integration üGen. Set integration via Customer Interface (dedicated auxiliary contact) üProgrammable functions based on Gen. Set working condition (Gen on/off) Load UPS * Pure Pulse configuration and Gen. Set able to manage large load steps Gen. Set size min. size required 332 k. VA Gen. Set/UPS = 332/300 = 1. 1 SG-CE Series 160 -300 k. VA S 1 22 Example 300 k. VA; PF=0. 8; 240 k. W SG 300 k. VA Pure Pulse; input PF = 0. 99 Gen. Set data reactance subtr. X“d=12% Sales presentation SAP_SGS_XCE_M 16_M 30_1 GB_V 020. ppt

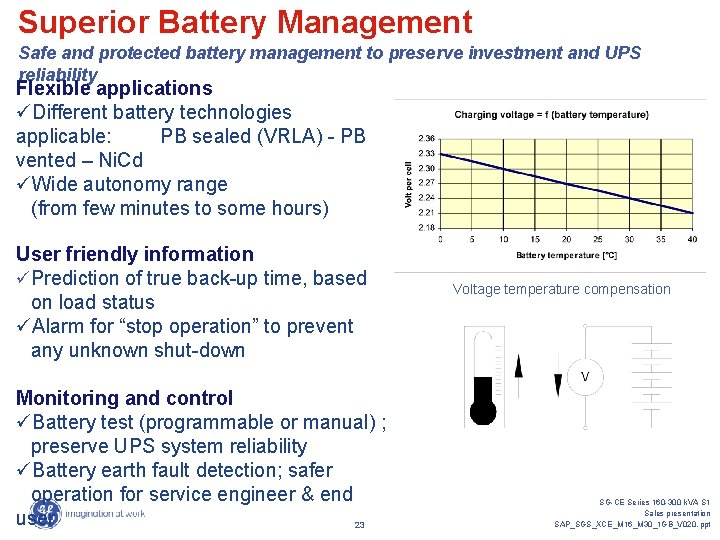

Superior Battery Management Safe and protected battery management to preserve investment and UPS reliability Flexible applications üDifferent battery technologies applicable: PB sealed (VRLA) - PB vented – Ni. Cd üWide autonomy range (from few minutes to some hours) User friendly information üPrediction of true back-up time, based on load status üAlarm for “stop operation” to prevent any unknown shut-down Monitoring and control üBattery test (programmable or manual) ; preserve UPS system reliability üBattery earth fault detection; safer operation for service engineer & end user 23 Voltage temperature compensation SG-CE Series 160 -300 k. VA S 1 Sales presentation SAP_SGS_XCE_M 16_M 30_1 GB_V 020. ppt

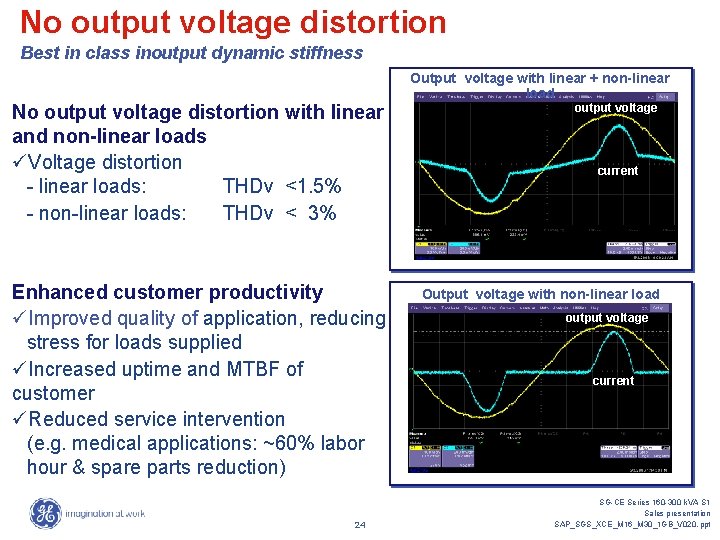

No output voltage distortion Best in class inoutput dynamic stiffness No output voltage distortion with linear and non-linear loads üVoltage distortion - linear loads: THDv <1. 5% - non-linear loads: THDv < 3% Enhanced customer productivity üImproved quality of application, reducing stress for loads supplied üIncreased uptime and MTBF of customer üReduced service intervention (e. g. medical applications: ~60% labor hour & spare parts reduction) 24 Output voltage with linear + non-linear load output voltage current Output voltage with non-linear load output voltage current SG-CE Series 160 -300 k. VA S 1 Sales presentation SAP_SGS_XCE_M 16_M 30_1 GB_V 020. ppt

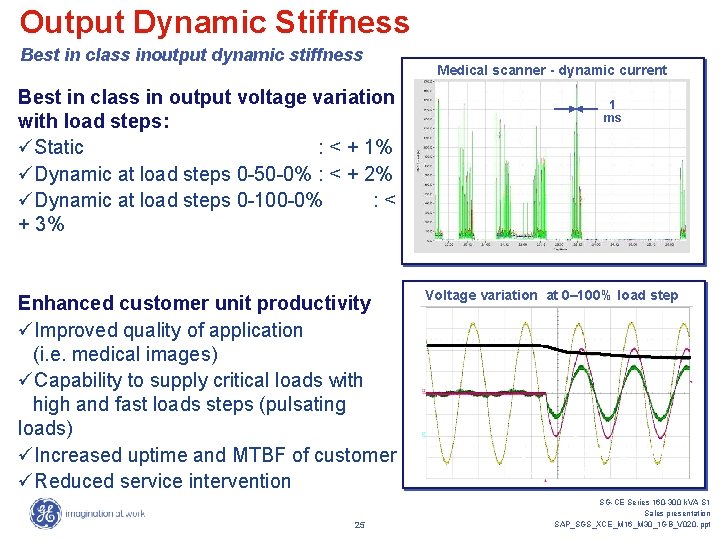

Output Dynamic Stiffness Best in class inoutput dynamic stiffness Best in class in output voltage variation with load steps: üStatic : < + 1% üDynamic at load steps 0 -50 -0% : < + 2% üDynamic at load steps 0 -100 -0% : < + 3% Enhanced customer unit productivity üImproved quality of application (i. e. medical images) üCapability to supply critical loads with high and fast loads steps (pulsating loads) üIncreased uptime and MTBF of customer üReduced service intervention 25 Medical scanner - dynamic current absorbtion 1 ms Voltage variation at 0– 100% load step 0 -100% output voltage SG-CE Series 160 -300 k. VA S 1 Sales presentation SAP_SGS_XCE_M 16_M 30_1 GB_V 020. ppt

EFFICIENCY 26 SG-CE Series 160 -300 k. VA S 1 Sales presentation SAP_SGS_XCE_M 16_M 30_1 GB_V 020. ppt

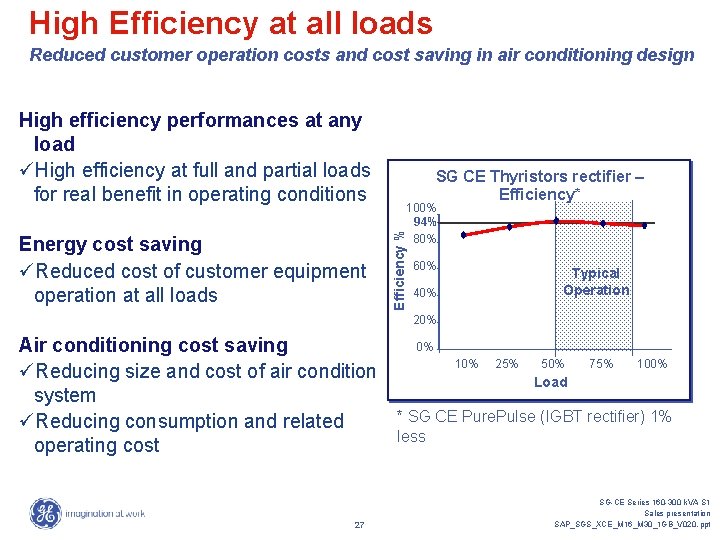

High Efficiency at all loads Reduced customer operation costs and cost saving in air conditioning design Energy cost saving üReduced cost of customer equipment operation at all loads SG CE Thyristors rectifier – Efficiency* 100% 94% 80% Efficiency % High efficiency performances at any load üHigh efficiency at full and partial loads for real benefit in operating conditions 60% Typical Operation 40% 20% Air conditioning cost saving üReducing size and cost of air condition system üReducing consumption and related operating cost 27 0% 10% 25% 50% 75% 100% Load * SG CE Pure. Pulse (IGBT rectifier) 1% less SG-CE Series 160 -300 k. VA S 1 Sales presentation SAP_SGS_XCE_M 16_M 30_1 GB_V 020. ppt

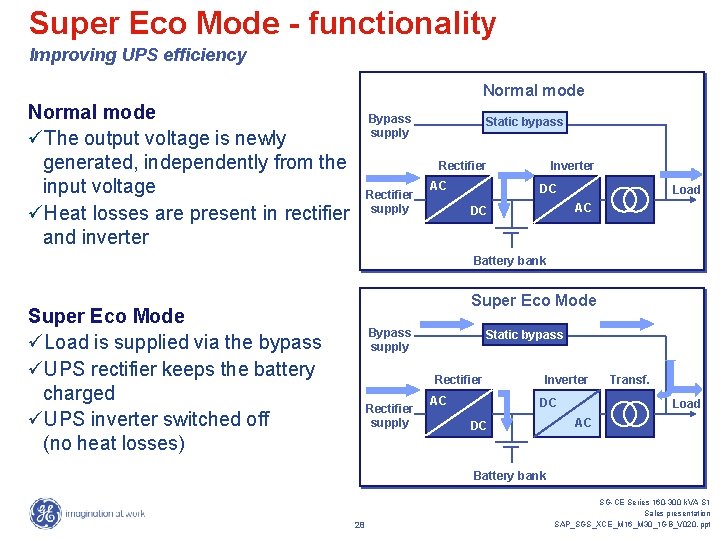

Super Eco Mode - functionality Improving UPS efficiency Normal mode üThe output voltage is newly generated, independently from the input voltage üHeat losses are present in rectifier and inverter Bypass supply Static bypass Rectifier supply AC Inverter DC Load AC DC Battery bank Super Eco Mode üLoad is supplied via the bypass üUPS rectifier keeps the battery charged üUPS inverter switched off (no heat losses) Bypass supply Static bypass Rectifier supply AC Inverter DC DC Transf. Load AC Battery bank 28 SG-CE Series 160 -300 k. VA S 1 Sales presentation SAP_SGS_XCE_M 16_M 30_1 GB_V 020. ppt

Super Eco Mode - benefit High efficiency, preserving protection to critical load < 2 ms High efficiency: 98% üprevents heat losses üsaving customer utility bill Fast transfer time to inverter: <2 ms üGuaranteed safe energy for the application Configurable according to load requirement üAdjustable bypass supply tolerance - voltage: +/- 10% (adjustable) - frequency: +/- 5% (adjustable) 29 Output voltage Bypass on/off Inverter current Inverte r control SG-CE Series 160 -300 k. VA S 1 Sales presentation SAP_SGS_XCE_M 16_M 30_1 GB_V 020. ppt

RPA 30 SG-CE Series 160 -300 k. VA S 1 Sales presentation SAP_SGS_XCE_M 16_M 30_1 GB_V 020. ppt

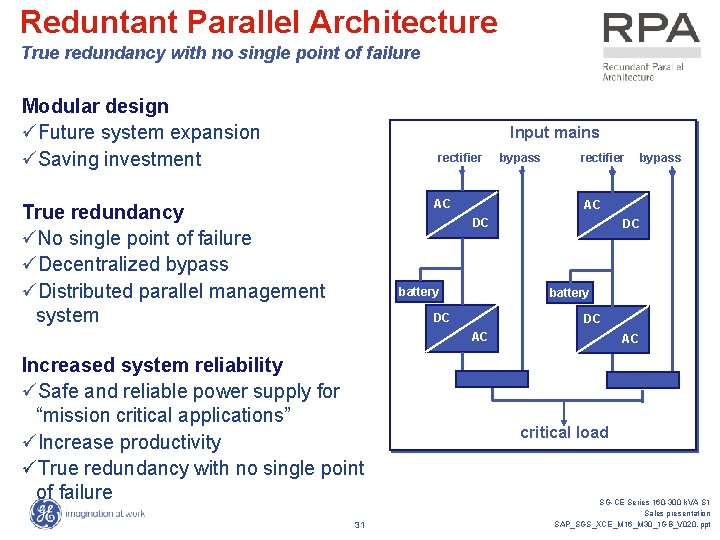

Reduntant Parallel Architecture True redundancy with no single point of failure Modular design üFuture system expansion üSaving investment Input mains rectifier AC True redundancy üNo single point of failure üDecentralized bypass üDistributed parallel management system bypass rectifier AC DC battery DC DC AC Increased system reliability üSafe and reliable power supply for “mission critical applications” üIncrease productivity üTrue redundancy with no single point of failure 31 bypass AC critical load SG-CE Series 160 -300 k. VA S 1 Sales presentation SAP_SGS_XCE_M 16_M 30_1 GB_V 020. ppt

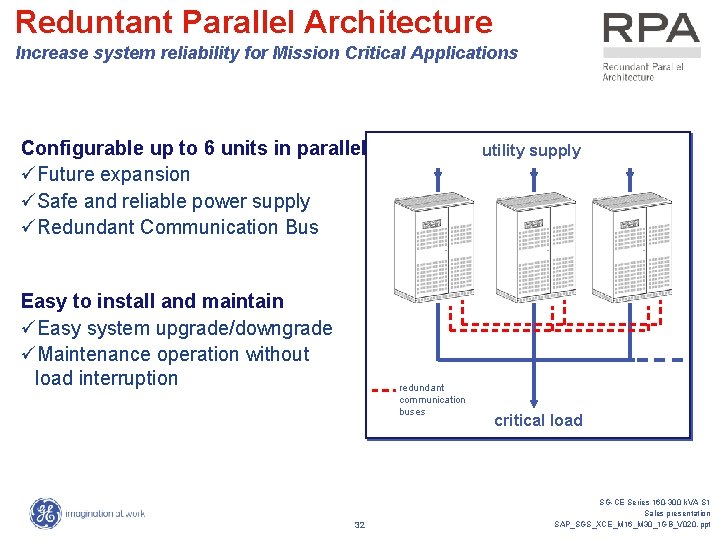

Reduntant Parallel Architecture Increase system reliability for Mission Critical Applications Configurable up to 6 units in parallel üFuture expansion üSafe and reliable power supply üRedundant Communication Bus Easy to install and maintain üEasy system upgrade/downgrade üMaintenance operation without load interruption utility supply redundant communication buses 32 critical load SG-CE Series 160 -300 k. VA S 1 Sales presentation SAP_SGS_XCE_M 16_M 30_1 GB_V 020. ppt

EMC 33 SG-CE Series 160 -300 k. VA S 1 Sales presentation SAP_SGS_XCE_M 16_M 30_1 GB_V 020. ppt

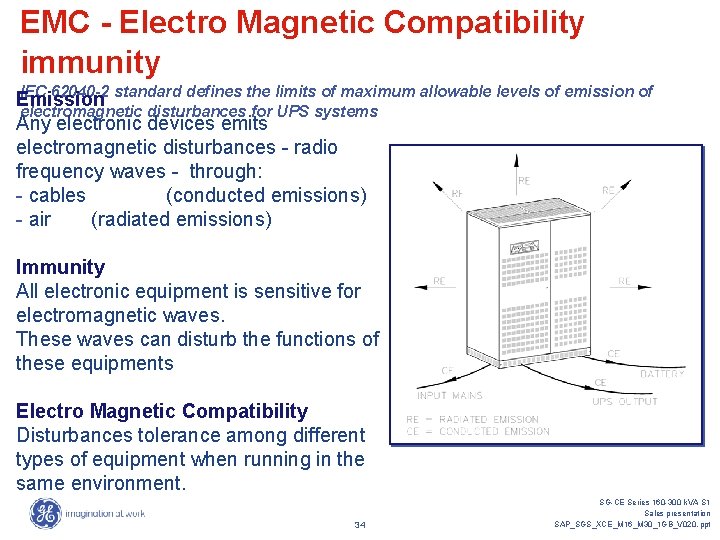

EMC - Electro Magnetic Compatibility immunity IEC 62040 -2 standard defines the limits of maximum allowable levels of emission of Emission electromagnetic disturbances for UPS systems Any electronic devices emits electromagnetic disturbances - radio frequency waves - through: - cables (conducted emissions) - air (radiated emissions) Immunity All electronic equipment is sensitive for electromagnetic waves. These waves can disturb the functions of these equipments Electro Magnetic Compatibility Disturbances tolerance among different types of equipment when running in the same environment. 34 SG-CE Series 160 -300 k. VA S 1 Sales presentation SAP_SGS_XCE_M 16_M 30_1 GB_V 020. ppt

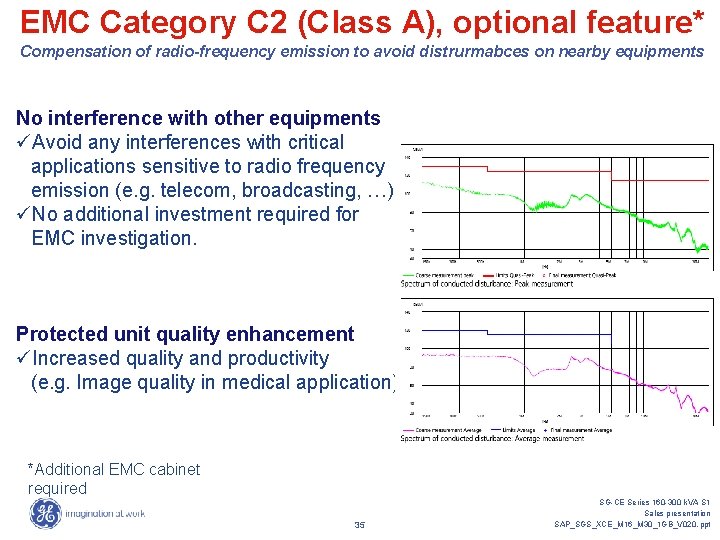

EMC Category C 2 (Class A), optional feature* Compensation of radio-frequency emission to avoid distrurmabces on nearby equipments No interference with other equipments üAvoid any interferences with critical applications sensitive to radio frequency emission (e. g. telecom, broadcasting, …) üNo additional investment required for EMC investigation. Protected unit quality enhancement üIncreased quality and productivity (e. g. Image quality in medical application) *Additional EMC cabinet required 35 SG-CE Series 160 -300 k. VA S 1 Sales presentation SAP_SGS_XCE_M 16_M 30_1 GB_V 020. ppt

SERVICEABILITY 36 SG-CE Series 160 -300 k. VA S 1 Sales presentation SAP_SGS_XCE_M 16_M 30_1 GB_V 020. ppt

Designed for serviceability Saving time and cost in service Easy maintenance interventention üReducing time and cost on maintenance intervention üReducing down-time, increasing availability 37 SG-CE Series 160 -300 k. VA S 1 Sales presentation SAP_SGS_XCE_M 16_M 30_1 GB_V 020. ppt

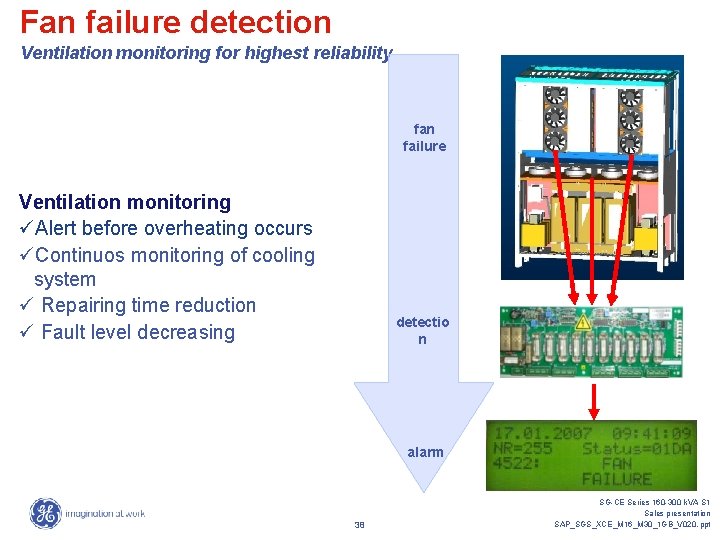

Fan failure detection Ventilation monitoring for highest reliability fan failure Ventilation monitoring üAlert before overheating occurs üContinuos monitoring of cooling system ü Repairing time reduction ü Fault level decreasing detectio n alarm 38 SG-CE Series 160 -300 k. VA S 1 Sales presentation SAP_SGS_XCE_M 16_M 30_1 GB_V 020. ppt

POWER QUALITY SYSTEMS 39 SG-CE Series 160 -300 k. VA S 1 Sales presentation SAP_SGS_XCE_M 16_M 30_1 GB_V 020. ppt

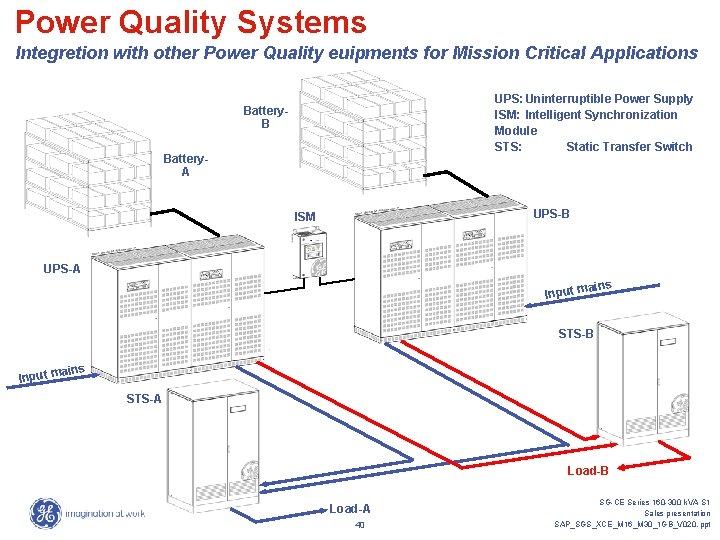

Power Quality Systems Integretion with other Power Quality euipments for Mission Critical Applications UPS: Uninterruptible Power Supply ISM: Intelligent Synchronization Module STS: Static Transfer Switch Battery. B Battery. A UPS-B ISM UPS-A ains Input m STS-B ains Input m STS-A Load-B Load-A 40 SG-CE Series 160 -300 k. VA S 1 Sales presentation SAP_SGS_XCE_M 16_M 30_1 GB_V 020. ppt

INTEGRATION WITH BMS 41 SG-CE Series 160 -300 k. VA S 1 Sales presentation SAP_SGS_XCE_M 16_M 30_1 GB_V 020. ppt

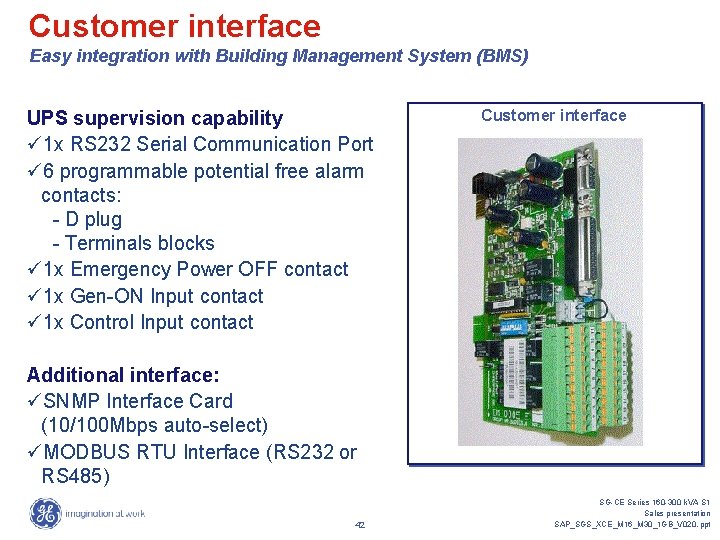

Customer interface Easy integration with Building Management System (BMS) UPS supervision capability ü 1 x RS 232 Serial Communication Port ü 6 programmable potential free alarm contacts: - D plug - Terminals blocks ü 1 x Emergency Power OFF contact ü 1 x Gen-ON Input contact ü 1 x Control Input contact Customer interface Additional interface: üSNMP Interface Card (10/100 Mbps auto-select) üMODBUS RTU Interface (RS 232 or RS 485) 42 SG-CE Series 160 -300 k. VA S 1 Sales presentation SAP_SGS_XCE_M 16_M 30_1 GB_V 020. ppt

CONNECTIVITY 43 SG-CE Series 160 -300 k. VA S 1 Sales presentation SAP_SGS_XCE_M 16_M 30_1 GB_V 020. ppt

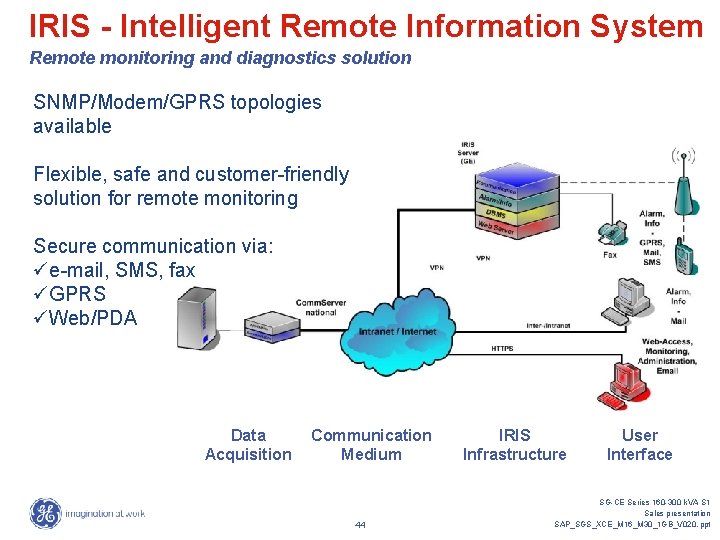

IRIS - Intelligent Remote Information System Remote monitoring and diagnostics solution SNMP/Modem/GPRS topologies available Flexible, safe and customer-friendly solution for remote monitoring Secure communication via: üe-mail, SMS, fax üGPRS üWeb/PDA Data Acquisition Communication Medium 44 IRIS Infrastructure User Interface SG-CE Series 160 -300 k. VA S 1 Sales presentation SAP_SGS_XCE_M 16_M 30_1 GB_V 020. ppt
