UPS series PROTECT 1 M Scalable UPS in
UPS series PROTECT 1. M Scalable UPS in n+x technology Modularity with double conversion UPS modules True sine wave - output
PROTECT 1. modular the new generation of uninterruptible power supplies (UPS)
PROTECT 1. M · Comparison to standard UPS systems PROTECT 1. modular Scalable single-phase & three-phase uninterruptible power supply (UPS) PROTECT 1. modular provides
PROTECT 1. M · UPS modules from 4 k. VA up to 24 k. VA Structure for UPS power module Static bypass switch L 1 L 2 L 3 u High Power reserves as a result u of a max. 24 k. VA total output u High Safety reserves as a result of n+x technology Three phase or single phase connection with automatic recognition u Independent UPS modules (no central control) slide-in types; suitable for rackmount
PROTECT 1. M · n + x Redundancy Capacity n+x parallel redundancy u Higher reliability u Easy to increase overall capacity u Modules hot-swappable without any interruption
PROTECT 1. M · Technology u double-conversion design ( true online ): Classification VFI ( acc. to IEC 62040 – 3 ) Resolves various VFI – technology ( IEC 62040 - 3 ) power problems: Static Bypass mains rectifier u Interruption u Weakening u Noise u Surge u Instant voltage drop u Thunderbolt u Transients changes u Frequency changes inverter load battery
PROTECT 1. M · Power connections INPUT Single phase & Three phase automatically self–recognize OUTPUT Single phase INPUT ( Load 70% ) 1 ph~ 140 Vac – 300 Vac 3 ph~ 242 Vac – 520 Vac OUTPUT 1 ph~ 230 Vac ± 2%
PROTECT 1. M · Operating LCD Display PT 1. M

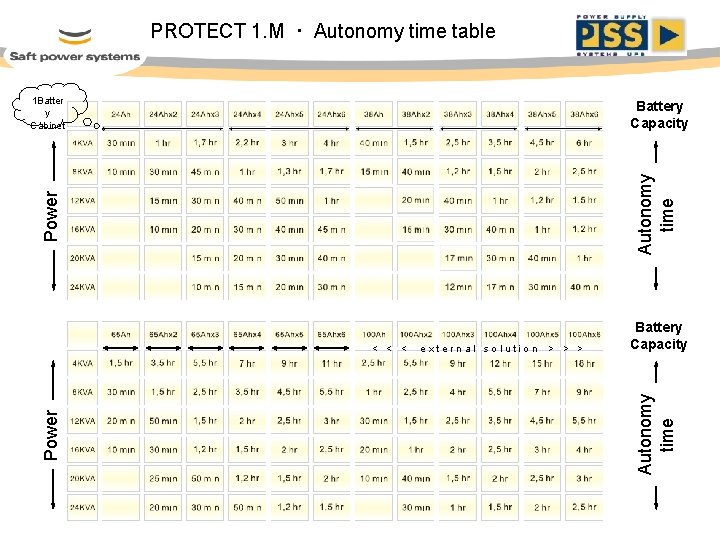

PROTECT 1. M · Autonomy time table 1 Batter y Cabinet Power < < < external solution > > > Battery Capacity Autonomy time Power Autonomy time Battery Capacity
