UProx IP IP Wireless Access Control IP Technology
- Slides: 51
U-Prox IP IP – Wireless Access Control
IP Technology DBMS MSSQL IP Video Systems IP technology is the foundation of modern communications, connecting the world together. Because of its versatility, scalability and reliability, many systems are now created based on this technology. The U-Prox IP access control system allows: o Use of different technologies: o Wi-Fi, Ethernet (LAN), Internet (WAN) ACS Clients IP Wi-Fi or Ethernet Control Panels ACS Server REST server ISM control panels Web app Mobile app Open protocol for integration Use of existing computer network infrastructure Easy installation and set up of panels Integration with surveillance systems Creation of a simple interface (via SDK) for integration into any system o Use of large scale database systems (SQL server) allowing construction of large access control systems (ACS) o Implementation of globally distributed access control systems (ACS) o o
Network scheme ACS Mobile Clients ACS Client Global antipassback Wireless locks subsystem Wireless network Wi-Fi A/Point ACS Web Clients Po. E ACS Mobile Clients Wired network Internet Elevator access control ACS PC Client ACS Server ”U-Prox IP” ACS Web Clients
Worldwide distributed Access Control Globalization has led to the creation of multinational companies, with offices located in many countries. IP technology already connects them, mainly by private networks (VPN) to share files and documents as well as using Vo. IP for communication. Some organizations have also deployed global security systems based on IP, incorporating access control and video surveillance. U-Prox IP can empower your organisation to join these early adopters U-Prox IP includes ü ü ü IP ready control panels Remote workstations which can work over the Internet. Mobile and WEB clients Integration with distributed video surveillance systems. Support for multiple time zones and daylight saving time
Wi-Fi & Ethernet U-Prox IP Access Control Panels incorporate embedded Wi-Fi and Ethernet chip sets. Wi-Fi : o IEEE 802. 11 b/g/n compatible o Open, WPA-PSK, WPA 2 -PSK encryption o DHCP and DNS support Ethernet : o IEEE 802. 3 compatible o 100 Mbit o 4 wire cable connection o DHCP and DNS support
Power over Ethernet (Po. E) provides power to the remote device over the standard Ethernet twisted pair along with the data. U-Prox IP Po. E : o Complies with IEEE 802. 3 af standard o Po. E class 1: 4. 5 W per Po. E port o U-Prox IC-A, o U-Prox IC-L o U-Prox HE o Po. E class 0: 15. 4 W per Po. E port o U-Prox IP 400 o Locks and strikes consuming less than 0. 5 A may be powered from U-Prox IP 400 directly, without additional power supply
IP Security & Connection backup Data Packet ID o o Device SN Encrypted packet Ethe r-net Wi-Fi SSI D 1 ACS addr 2 ACS addr 1 U-Prox IP operates securely locally & over the internet and is hacker-resistant via: SSID 2 ACS addr 2 Protocol encryption (256 bits length) Device unique serial number control Data packet ID control Communication channel supervision by periodical test signal U-Prox IP access control panels support advanced connection backup: o Using IP or DNS address of the ACS server o In Wi-Fi mode - up to 2 SSID identifiers
ACS Overview Remote clients Video module RF ID Readers ACS U-Prox IP (SERVER) REST server WEB clients U-Prox IP is a modern, professional security system, which meets the requirements of a wide range of users - from small offices to distributed enterprise systems. Wiegand Wi-Fi or Ethernet Mobile clients Wireless locks system Access control panels o Based on client/server model. o Supports Windows XP SP 3, Windows Vista, Windows 7, Windows 8, Windows 2003 Server, Windows 2008 Server, Windows 2012 Server o Works with MS SQL Server 2008 o Additional modules further extend the capabilities of the system - video module matches events with video on DVR o Supports up to 10 remote client workstations o Uses IP/ Wi-Fi ready control panels over LAN and WAN
FREE SOFTWARE FOR MOST PROJECTS U-Prox Access Control software is designed for small, medium and large scale projects. For small and medium projects the software is available without charge. It supports 2000 credentials, 5 remote clients, an unlimited number of controllers & includes ALL functionality including employee time and attendance. Paid software is available for larger project requirements.
Basic features U-Prox IP software conforms to the familiar Windows graphical user interface. Adjustment elements are combined into groups with clear and logical structure. These elements are available in the program window to operators dealing with the system depending on their system access rights

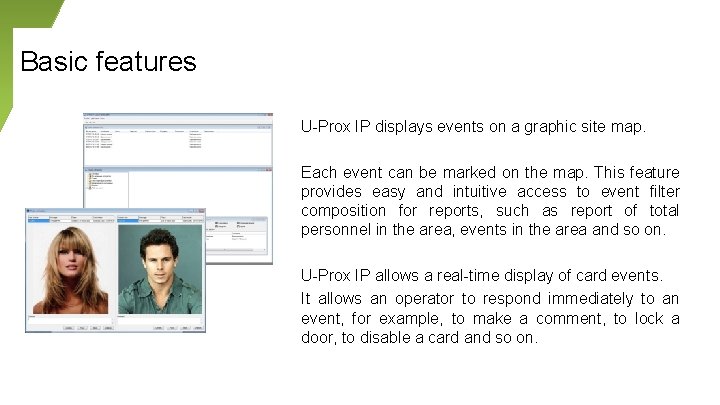

Basic features U-Prox IP displays events on a graphic site map. Each event can be marked on the map. This feature provides easy and intuitive access to event filter composition for reports, such as report of total personnel in the area, events in the area and so on. U-Prox IP allows a real-time display of card events. It allows an operator to respond immediately to an event, for example, to make a comment, to lock a door, to disable a card and so on.
Basic features Advanced time and attendance o o o. Permits the use of schedules with different repetition factors, including sliding time-table Permits the setting of deviations to working schedules Allows the creation of exceptions (sick-list, vacation, business trip and so on) Offers self customization of report formats (number and order of columns, sorting) Automatically produces Timesheets / Reports
Basic features Badge Production Creation and printing of badges, including template creation with place holders for database fields (graphics, text and pictures). Printing of cards. Supports one or multiple templates on a single print page.
Video integration U-Prox IP is integrated with: o o o DVRs and NVRs from Dahua DVRs and NVRs from Hikvision DVRs from. Pinetron DVRs and NVRs from Teksar DVRs and NVRs from RCI DVRs from Partizan
Video integration Association of any Access event with a video sequence recorded by DVR / NVR. o Retrieves video associated with events o Displays a window containing information about current event, including video from a camera and photo of a card user. o Archives and synchronizes video sequences from DVR / NVR Server with access event log. o Simple adjustment of PTZ position and image resolution based on events o Up to 64 videos on workstations of access control system, online tag lockout o Video and still image export
Video integration Advantages of ACS and Video System integration: o Instant live video from access point displayed on control room monitoring screen for video verification o Live video from the place of alarm event for instant guard response o Smart video archive replay based on ACS events
WEB applications U-Prox IP provides browser based WEB applications targeting PC workstations with almost the same functionality as classical applications for the most demanded ACS functions. This is a redefining of the classical interface to an understandable, simple and convenient view, oriented to a particular organizational role, yet still harnessing the power of the system. Typical Web based PC workstation applications: o o o Personal organizer - time & attendance self service terminal Headquarters' quick reports - reports for late, absent or on time employees Front Desk / Reception- with photo or video verification and access points management
Mobile applications Mobile devices are the easiest and convenient way to control and supervise your ACS from any point of the globe. Mobile applications provide the most demanded system functions depending on the user’s access rights. Functions available to mobile clients: o o o Personal organizer – time & attendance self service terminal Access point control - remote door opening, blocking or unblocking Alerts - alarm event viewing Headquarters' quick repots - reports for late, absent or on time employees Personnel access control - quick ID blocking in case of loss or theft
Network architecture U-Prox access control panels are designed for use in any computer network, both Ethernet and wireless. Its design provides reliable and secure connections in the local area network and via the Internet, creating a true distributed Global access control system. o Supports wireless or wired connection o Notification mode - control–panel can initialize event sending o Controlled connection to ACS server with periodical test events o Advanced connection backup mode for both wired and wireless networks o Advanced IP security: MIM attack (Man in the Middle) and hacking resistant o Configure connection parameters via USB port
Smart Wireless U-Prox IP 550 o o o USE a Smartphone as the credential Bluetooth Low Energy (BLE or Bluetooth Smart) Determined by the distance to the door Works autonomously or in the wireless lock system Programmable from your smartphone (free app)
Smart Wireless U-Prox IP 550 A new kind of access control panel - incorporating Pin Pad, RF ID reader, Bluetooth reader with Wireless interconnection o o o Works stand alone, or in the wireless lock system Bluetooth Low Energy (Bluetooth Smart) with a smartphone as credential Wireless device two-way communication - 915. 5 -927. 5 MHz o Range up to 20 m Built-in keypad and RF ID reader: ASK, FSK, ASK+FSK. o Read range up to 80 mm Additional external reader supported 1000 tags in stand alone mode or 3000 tags in the system 6000 events, 250 Time zones, 250 weekly schedules, 250 holidays, floating shifts Power supply: 12 V DC Two wired inputs and Two Relays (each C /NO/ NC) - 24 V 1 А Use BLE or Wireless for configuration Dimensions : 120 mm x 66 mm x 21 mm.
Wireless locks subsystem o o o Door control panel: all in one device, means no cost for lock, reader, physical wiring, etc. Wireless controllers are installed instead of hard wiring IDEAL FOR RETROFITTING TO MECHANICAL MORTICE LOCKS Use existing network framework for data transfer from wireless subsystem hubs to the central control panel via local area network (wired or wireless) Wireless system of locks, unlike standalone locks, provides full control and management: o o o U-Prox IP 500 U-Prox IC-L Smart handle U-Prox IP 550 Online addition of cards and locks at any time Receives information about the access and movement of staff Оpen or lock doors in emergencies
Wireless locks subsystem o Fast system deployment based on existing network framework. o Data transfer from wireless subsystem hubs to the central control panel via local area network (wired or wireless): o RF used for data exchange between hubs and control panels o Hubs connected to the existing computer network with Wi-Fi or Ethernet o Control panels provide automatic data destination adjustment o Hubs have both power sources - Po. E or micro-USB adapter
Wireless locks subsystem ACS Server U-Prox IP Wired network Wireless network U-Prox HE U-Prox IP 500 U-Prox HE U-Prox IC L U-Prox IP 550 U-Prox HW U-Prox IP 500
Wireless locks subsystem U-Prox IC L An intelligent controller. Intended for management of the wireless locks subsystems. o Manage up to 250 control panels o Data communication (Ethernet 100 Mbit) : o With U-Prox IP 500 and U-Prox IP 550 via U-Prox HE and U-Prox HW o Direct communication over RF with U-Prox IP 500: o RF two-way communication: 915. 5 -927. 5 MHz o Wireless range up to 20 m o Up to 3. 84 W power supply: Po. E class 1 or USB (micro B) o Network settings adjustment: o Autoconfiguration in LAN o USB (micro B)
Wireless locks subsystem U-Prox HE U-Prox HW U-Prox HE, U-Prox HW media converters. Using IP, standard solutions can be installed in any network location. o Works with control panels U-Prox IP 500 under control of U-Prox IC L o RF two-way communication o 915. 5 -927. 5 MHz o Wireless range up to 20 m o Up to 8 control panels (U-Prox IP 500 / IP 550) per device o Power supply: o U-Prox HE: up to 3. 84 W - Po. E class 1 or USB (micro B or 12 VDC) o U-Prox HW: USB (micro B) or 12 VDC o Communication: o U-Prox HE: Ethernet 100 Mbit o U-Prox HW: IEEE 802. 11 b/g/n (Open, WPA-PSK, WPA 2 -PSK) o Network settings adjustment : o Auto-configuration via LAN or USB (micro B)
Wireless locks subsystem U-Prox IP 500 Smart Handle A new kind of access control panel integrated into an escutcheon with a reader. Easy to install, reliable, flexible and scalable. o Works under control of U-Prox IC L o RF two-way communication o 915. 5 -927. 5 MHz o Wireless range up to 20 m o Built-in RF ID reader. o Read Range: up to 40 mm o 3000 tags o Power supply - 3 AAA batteries, o Battery Lifetime - 30, 000 openings, up to 2 years
Global antipassback Isolated access points are joined into one multi-door access point virtual door group with the central control panel – U-Prox IC A. • • • The facility is divided into rooms - zones of access or areas Passage in the area is possible through various access points Control panel tracks the location of the person who has multiple credentials
Global antipassback U-Prox IC A Wired network Event notification is based on two address - the first ID is the ACS server, the second ID is the address of U-Prox IC A Multilevel decision rule…. . • Check the general access rules. • Is group in anti passback area? • Request to U-Prox IC A and receive access confirmation or denial ACS Server U-Prox IP Wireless network
Tracking the violations With the use of global antipassback it is possible to suppress: o o o Passback Use of duplicate card for infiltration (sudden appearance inside) Transfer of the credential to another person
Merging access zones • In case of loss of communication with the access control panels, forced entry, free pass, etc. U-Prox IC A merges access areas together , considering that personnel may be in either area. • After restoring the normal state of access or resuming communication with the control panels, all areas are unmerged • U-Prox IP 400, U-Prox IP 100, U-Prox IP 300, NDC F 18 IP panels can be configured with two variants of behavior in case of communication loss : • • Not just anyone has permission to pass; Pass all, according to the rules of the local antipassback
Global antipassback An intelligent controller. Intended for managing the global antipassback system. U-Prox IC A o o 32 000 tags Manage up to 250 control panels Up to 32 independent virtual door groups Data communication (Ethernet 100 Mbit) : o with U-Prox IP 100, U-Prox IP 300, U-Prox IP 400 and NDC F 18 IP o Up to 3. 84 W power supply: Po. E class 1 or USB (micro. B) o Network settings adjustment: o Autoconfiguration in LAN o USB micro B
IP access control panels U-Prox IP access control panels are designed to work in any Ethernet (wired), and Wi-Fi (wireless) networks. o o o o Automatic operation after loading the access rules; Easy to install and configure devices; A wide range of functions; Large memory; Fast communication with the server; Works in complex, dynamically changing computer networks; Supports Po. E; Firmware upgrade via network when expanding functional devices
IP Control panel U-Prox IP 400 A new kind of access control panel. Fully functional access control panel with modern communications. o IP Ready (Ethernet 100 Mbit) o Two Wiegand RF ID reader ports o 31, 768 tags for employees and 1000 tags for visitors, o 47, 000 events, 250 Time zones, 250 weekly schedules, 250 holidays, floating shifts o Eight End-of-Line supervised inputs o Two relays (C /NO/ NC) rated 24 V 5 А o Two relays (C /NO) rated 24 V 1 А o USB micro B for initial network settings o Metal box (not shown) o AUX (Power output) 12 VDC up to 500 m. A
IP Control panel Modern looking, extremely slim design with many features in a small form factor: U-Prox IP 100 & U-Prox IP 100 MF o IP Ready: o o o U-Prox IP 100 - Built-in keypad and RF ID reader: o o o o ASK, FSK, ASK+FSK U-Prox IP 100 MF - Built-in keypad and RF ID ISO 14443 A reader: o o Wi-Fi 802. 11 b/g/n (Open, WPA-PSK, WPA 2 -PSK) Ethernet 100 Mbit (4 wire) Mifare® Standard, Hi-Memory, Ultralight, Classic 1 K, Classic 4 K, Classic 7 UID, DESFire Read Range: up to 50 mm Supports additional external reader 47, 000 events, 250 time zones, 250 weekly schedules, 250 holidays, floating shifts 31, 768 tags for employees and 1000 tags for visitors, Two wired inputs Relay (C / NO / NC) 24 V 1 А USB for initial network settings Dimensions: 120 mm x 66 mm x 21 mm Weight: 240 g
Elevator control panel o o o Access to the floor in accordance with the access rights of the presented credential Ready for the next credential immediately after selecting a floor on the elevator panel; Sends events to the ACS allowing access to the floor when you click on the selection panel in an elevator; Providing access remotely to the floor, via the control room operator, and by means of fault (short circuit) loop corresponding input module U-Prox RM; Deactivation via ACS controller controlling an elevator in case of emergency situations: o o Failure of the main control module U-Prox IC-E Failure or lack of power to the relay module U-Prox RM Emergency input break on the relay module U-Prox RM By the operator of the ACS
Elevator control panel Wired network ACS Server U-Prox IP U-Prox IC E Up to 4 -х U-Prox RM U-Prox mini 485 RS-48 5 Outputs (relays) parallel the elevator press buttons Or any Wiegand compatible reader connected to U-Prox WRS 485 Automatic machinery Inputs - Confirm floor selection - Grant access remotely RS-485 Elevator Cage Elevator control room
Elevator control panel U-Prox IC E An intelligent elevator control panel. o o 32, 000 tags Data communication - Ethernet 100 Mbit Up to 32 floors RS-485 interface for U-Prox RM relay modules, U-Prox WRS 485 interface convertors and U‑Prox Mini 485 readers connection o Up to 4 U-Prox RM relay modules can be connected o o Isolated Ethernet port: 10 BASE-T/100 BASE-TX External power supply: 12 VDC
Elevator control panel U-Prox RM Relay module for elevator control panel. o o o RS-485 interface Inputs: 8 Emergency input Outputs: 8 Tamper External power supply: 12 VDC
IP Control panels Configurator The uniform configuration utility is used to manage IP access control panels. Intended for initial setup & network settings adjustment. Simple interface Reading and writing settings Uses a settings template file Sets the operating mode of the control panel - Wi-Fi or Ethernet o Sets the ACS server addresses o Sets parameters to connect to Wi-Fi access points o Configures Ethernet settings - IP address, subnet mask, gateways. o o
IP control panels Auto-configuration DHCP Server U-Prox IP auto-configuration algorithm and DHCP server presence provide ‘plug-and-play’ functionality ACS Server U-Prox IP New control panels list Response from the server Setting the server address Switching to the 'point-to-point’ mode Dynamically configures IP addresses on LAN Sending test signals U-Prox IP 400 U-Prox IC A Sending test signals U-Prox IP 300
U-Prox IC can form the server for both the wireless subsystem (U-Prox HUB panels) and for panels forming virtual door groups. U-Prox IC central control panel incorporates network setting auto-configuration along with the U-Prox IP system server, & provides easy and fast network setting adjustment of both the wireless subsystem and the control room access subsystem with virtual door groups. IP control panels Auto-configuration DHCP Server U-Prox IC L ACS Server U-Prox IP New control panels list U-Prox IC-E Dynamically configures IP addresses on LAN Response from the server Setting the server address Switching to the 'point-to-point’ mode U-Prox HE U-Prox HW U-Prox IP 500
Proximity readers U-Prox have developed a wide range of wireless RFID readers, including ASK, FSK readers as well as ISO 14443 A standard readers. Our readers are unique, when considering multistandard tag reading & variety of interfaces. U-Prox Keypad MF, U-Prox mini MF, U-Prox IP 100 MF and U-Prox IP 300 MF support…. o o o o Mifare® Standard Mifare® Hi-Memory Mifare® Ultralight Mifare® Classic 1 K, Mifare® Classic 4 K, Mifare® Classic 7 UID, Mifare® DESFire

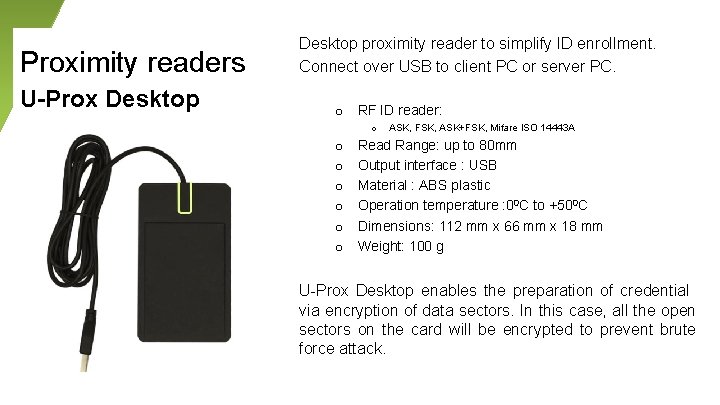

Proximity readers U-Prox Desktop proximity reader to simplify ID enrollment. Connect over USB to client PC or server PC. o RF ID reader: o o o o ASK, FSK, ASK+FSK, Mifare ISO 14443 A Read Range: up to 80 mm Output interface : USB Material : ABS plastic Operation temperature : 00 C to +500 C Dimensions: 112 mm x 66 mm x 18 mm Weight: 100 g U-Prox Desktop enables the preparation of credential via encryption of data sectors. In this case, all the open sectors on the card will be encrypted to prevent brute force attack.
Proximity readers U-Prox mini A new line of proximity readers. Modern looking, extremely slim design with many features in a small form factor: o RF ID reader: ASK, FSK, ASK+FSK o Read Range: up to 60 mm o Output interfaces: o o o o o Wiegand 26/37/42/Auto (W 2/W 3/W 4/WS); RS-232 Touch. Memory Voltage: 4. 7 to 16 VDC Voltage ripple: 500 m. V@12 VDC Material: ABS plastic Operation temperature: -350 C to +600 C Dimensions: 80 mm x 45 mm x 12. 5 mm Weight: 65 g Easy to install
Proximity readers U-Prox mini MF A new line of proximity readers. Modern looking, extremely slim design with many features in a small form factor: o RF ID reader: o Mifare® Standard, Mifare® Hi-Memory, Mifare® Ultralight, Mifare® Classic 1 K, Mifare® Classic 4 K, Mifare® Classic 7 UID, Mifare® DESFire o Read Range: up to 50 mm o Output interfaces: o o o o o Wiegand 26/32/37/40/42 RS-232 Touch. Memory Voltage: 9 to 16 VDC Voltage ripple : 500 m. V@12 VDC Material: ABS plastic Operation temperature: -350 C to+600 C Dimensions: 80 mm x 45 mm x 12. 5 mm Weight: 65 g
Proximity readers U-Prox Keypad Modern looking, slim design proximity reader with keypad: o o RFID reader: ASK, FSK, ASK+FSK Built-in keypad Read Range: up to 100 mm Output interfaces: o o o o o Wiegand 26/37/42/Auto (W 2/W 3/W 4/WS); RS-232 Touch Memory Voltage: 9 to 16 VDC Voltage ripple: 500 m. V@12 VDC Material: ABS plastic Operation temperature: 00 C to +550 C Dimensions: 120 mm x 66 mm x 18 mm Weight: 140 g Easy to install
Proximity readers U-Prox Keypad MF Modern looking, slim design proximity reader with keypad: o RF ID reader: o Mifare® Standard, Mifare® Hi-Memory, Mifare® Ultralight, Mifare® Classic 1 K, Mifare® Classic 4 K, Mifare® Classic 7 UID, Mifare® DESFire o Built-in keypad o Read Range: up to 50 mm o Output interfaces: o o o o o Wiegand 26/37/42/Auto (W 2/W 3/W 4/WS); RS-232 Touch Memory Voltage: 9 to 16 VDC Voltage ripple: 500 m. V@12 VDC Material: ABS plastic Operation temperature: 00 C to +550 C Dimensions: 120 mm x 65 mm x 18 mm Weight: 140 g
Proximity readers U-Prox mini 485 A new line of proximity readers. Modern looking, extremely slim design with many features in a small form factor: o RF ID reader: ASK, FSK, ASK+FSK o Read Range: up to 60 mm o Output interface: RS-485, o o o o cable length up to 1000 m Voltage: 9 to 16 VDC Voltage ripple : 500 m. V@12 VDC Material: ABS plastic Operation temperature: -350 C to +600 C Dimensions: 80 mm x 45 mm x 12. 5 mm Weight: 70 g Easy to install
Proximity readers Mifare personification MF readers support a mode in which they read out only the code of the credential with specially encrypted sectors. In addition, the U-Prox mini MF reader enables the preparation of credentials via encryption of data sectors. In this case, all the open sectors on the card will be encrypted to prevent brute force attack. ******* ? Section A is encrypted with this password
Converter U-Prox WRS 485 Wiegand to RS 485 converter. Can be used to connect Wiegand readers to an elevator control panel. Using two converters, ACS and U-Prox mini 485 reader can be connected over a significant distance (up to 1000 m) o Interface: RS-485 o Voltage: 12 VDC o Wiegand port: o o o Power (+12), Data (D 0, D 1). Indication o (Red - RLD, Green GLD, Buzzer – BUZ) o Wiegand standards: o 6, 32, 34, 37, 40, 42 bit, Wiegand automatic o Keypad codes standards: o o Batch character-oriented, Character-oriented DORADO
