Upper limb orthoses 3 Committee on ProtheticsOrthotics EducationCPOE
상지보조기 (Upper limb orthoses)

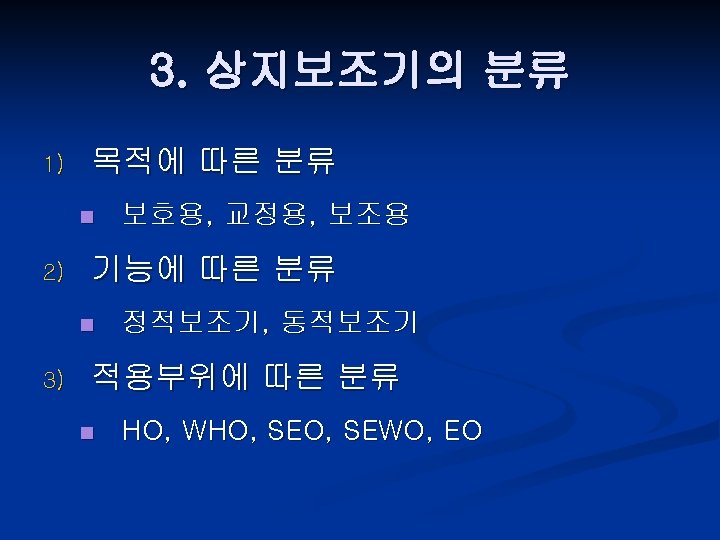

3) 적용부위에 따른 분류 • Committee on Prothetics-Orthotics Education(CPOE)에서 사용하는 약어 (1) HO : hand orthosis. 수부보조기 (2) WHO : Wrist hand orthosis, 수근관절-수부 보조기 (3) SEO : shoulder elbow orthosis, 견주관절보조기 (4) SEWO: shoulder elbow wrist orthosis, 견주완관절보조기 (5) EO: elbow orthosis 주관절보조기
Suspension sling Overhead sling n 169 p. 그림 4 -11, 12 n Forearm cuff로 주관절과 손목을 지지 n Cuff는 머리위 스프링과 연결되어 있다 n Quadriplegia에 적용 n

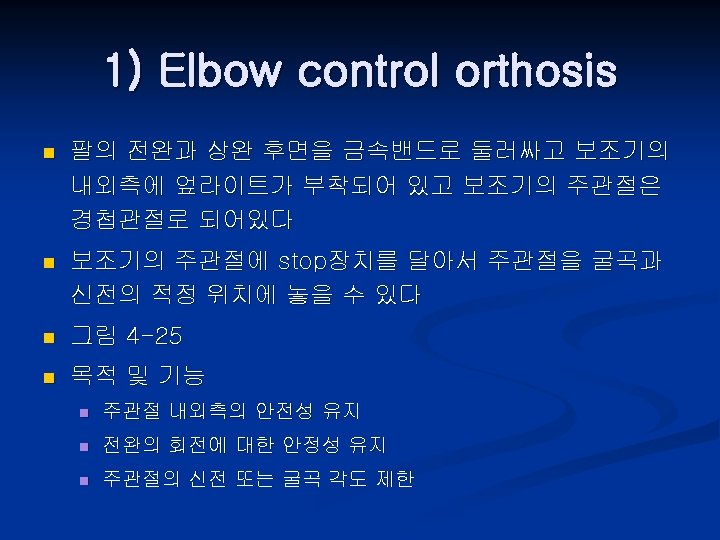

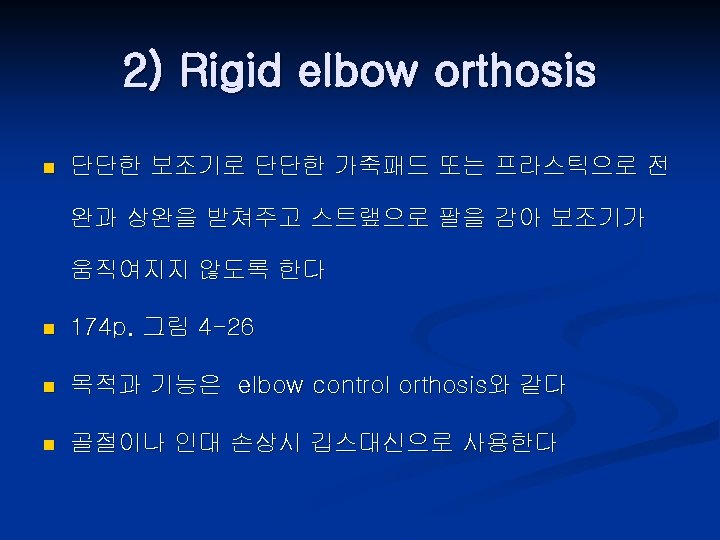

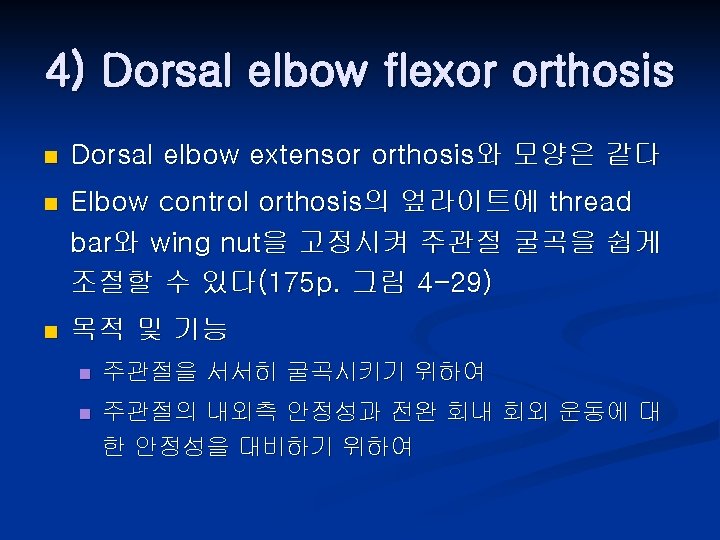

4 -2 주관절에 대한 보조기 n n 1. 2. 3. 4. 주관절은 hinge joint로서 굴곡과 신전운동, 회 외와 회내운동이 일어난다 고정을 위한 static과 움직임을 보조하기 위한 dynamic splint가 있다 Elbow control orthosis Rigid elbow orthosis Dorsal elbow extensor orthosis Dorsal elbow flexor orthosis

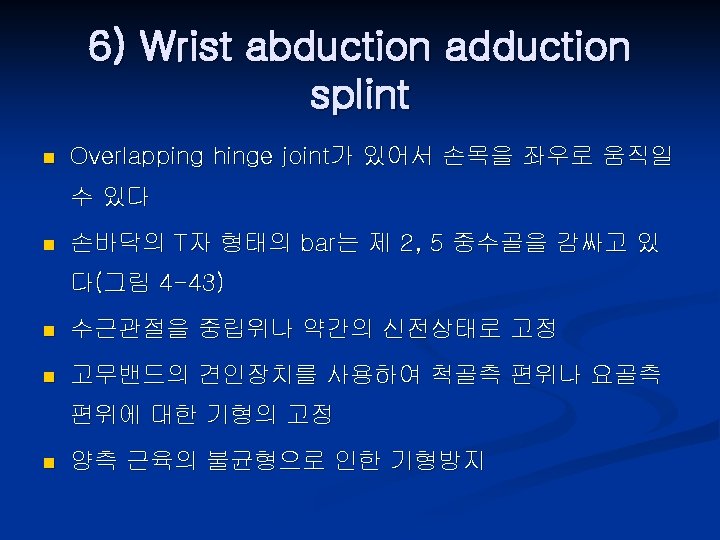

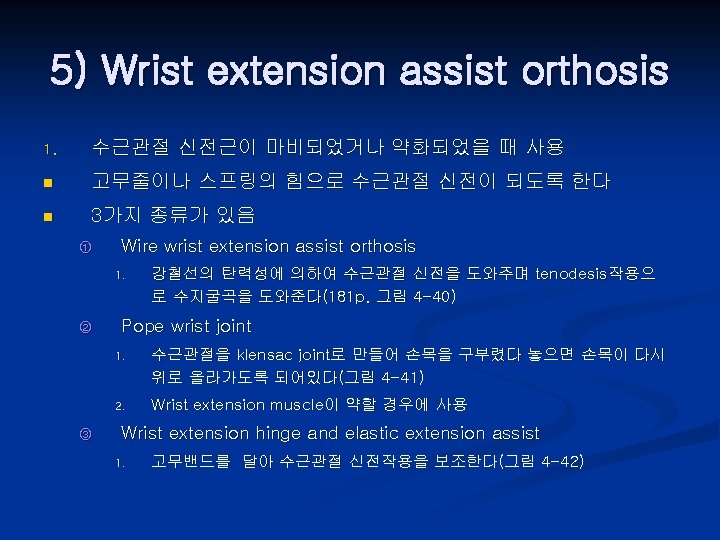

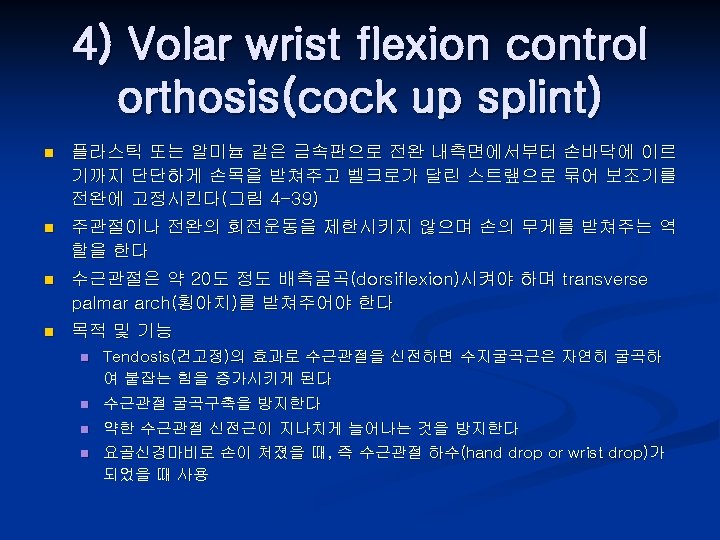

2. 수근관절에 대한 보조기 1. 2. 3. 4. 5. 6. 7. Opponens orthosis with wrist control attachment Volar wrist hand stabilizer Dorsal wrist hand stabilizer Volar wrist flexion control orthosis Wrist extension assist orthosis Wrist abduction adduction splint Bunnell dorsal wrist splint

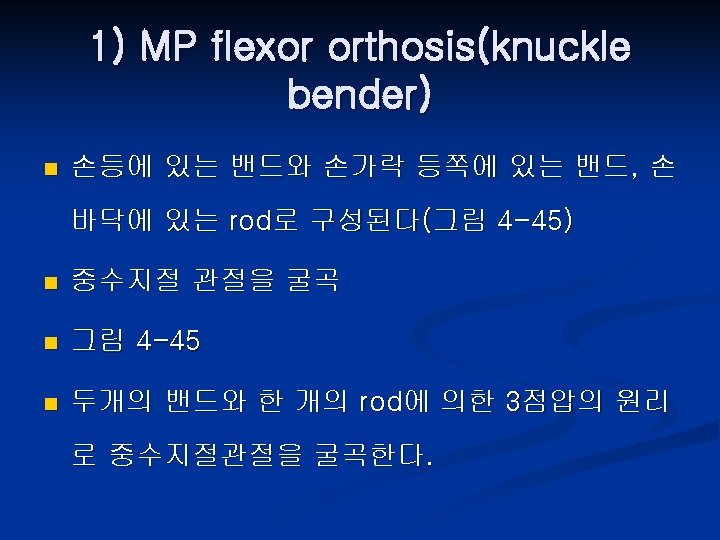

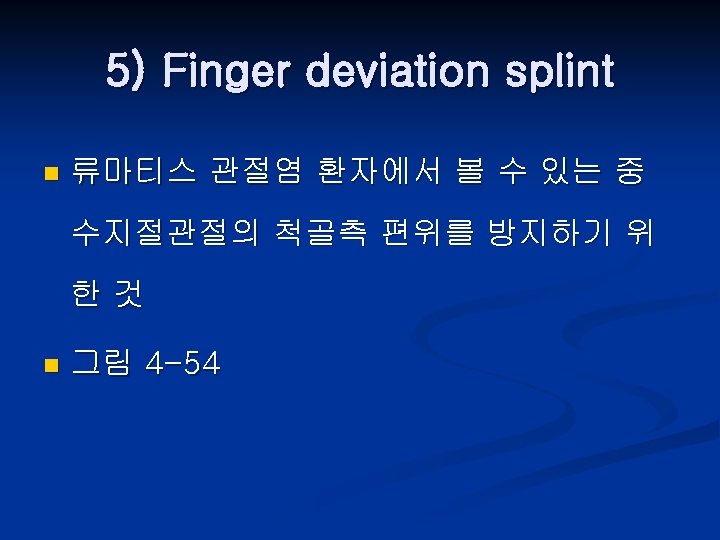

3. 중수지절관절에 대한 보조기 1) 2) 3) 4) 5) MP flexor orthosis MP extensor assist MP extensor stop assembly Finger deviation splint

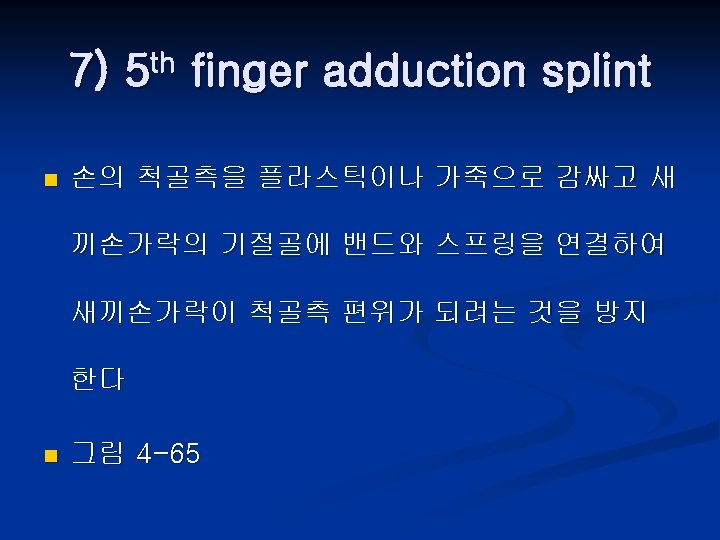

4. 지절간 관절에 대한 보조기 1. 2. 3. 4. 5. 6. 7. Finger platform orthosis IP flexor orthosis IP exrtensor orthosis Finger extension assist assembly 1 st dirsal interosseus assist 5 th finger adduction splint
1) Finger platform orthosis n Opponens orthosis의 dorsal bar에 platform splint attachment를 고정시켜 굴 곡된 손가락을 신전상태로 유지하기 위한 것(그림 4 -55) n Hand sandwich와 pancake splint가 이와 유사하다(그림 4 -56, 57)

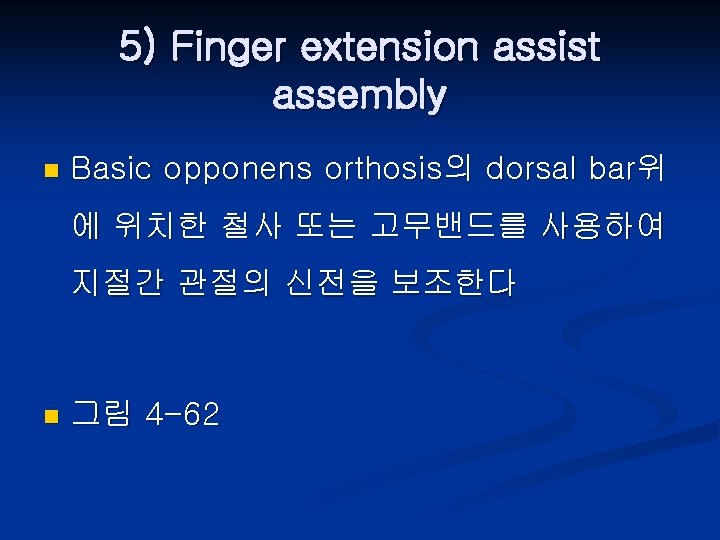

5) Finger extension assist assembly n Basic opponens orthosis의 dorsal bar위 에 위치한 철사 또는 고무밴드를 사용하여 지절간 관절의 신전을 보조한다 n 그림 4 -62
6) 1 st dorsal interosseus assist n Basic opponens orthosis에 little outrigger를 연결하여 검지손가락의 요골 측 편위를 조절할 수 있도록 한 보조기 n 그림 4 -64
6. 붙잡는 기능을 도와주는 보조기 1. 2. 3. 4. 5. 6. Finger driven prehension hand orthosis Finger driven wrist-hand orthosis Wrist driven prehension orthosis Passive prehension orthosis Elctrically driven prehension orthosis Utensil holders 정리할 것
