Upper GI Bleed Sameer Lapsia, MD Anupama Chawla, MD Stony Brook Children’s Hospital 2013 Resident Education Series Reviewed by Christine Waasdorp Hurtado, MD of the Professional Education Committee
Definition • Upper GI bleeding is defined as bleeding in the gastrointestinal tract proximal to the ligament of Treitz Ligament of Treitz
Epidemiology • UGI bleeding in children is uncommon. • Studies report incidence in the PICU to be between 6 -25%1 • 5% of upper endoscopies are performed due to an upper GI bleed 2 • Life-threatening UGI bleeding occurs in only 0. 4% of children 3 1. 2. 3. Chaibou M, Tucci M, Dugas MA. Clinically significant upper gastrointestinal bleeding acquired in a pediatric intensive care unit: a prospective study. Pediatrics. 1998; 102: 933 -938. Franciosi JP, Fiorino K, Ruchelli E. Changing indications for upper endoscopy in children during a 20 -year period. JPGN. 2010; 51: 443 -447. Gilger MA & Whitfield KL. Upper Gastrointestinal Bleeding. In Walker’s Pediatric Gastrointestinal Disease 5 Volume 2. Shelton, CT: People’s Medical Publishing House. 1

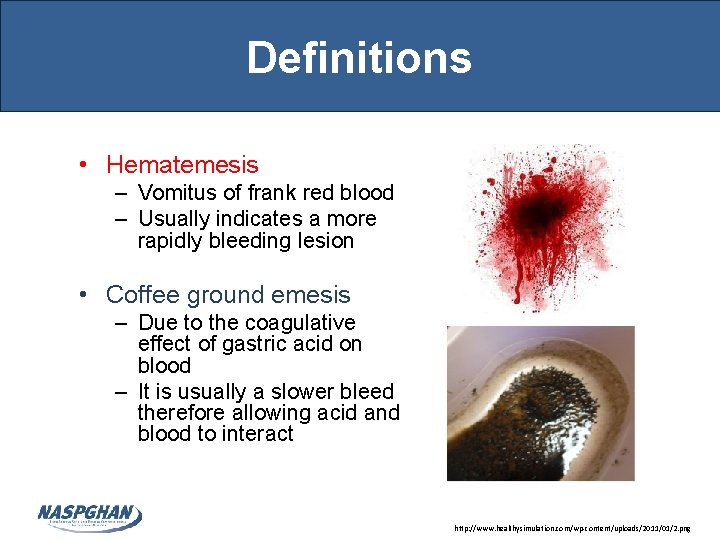

Definitions • Hematemesis – Vomitus of frank red blood – Usually indicates a more rapidly bleeding lesion • Coffee ground emesis – Due to the coagulative effect of gastric acid on blood – It is usually a slower bleed therefore allowing acid and blood to interact http: //www. healthysimulation. com/wp-content/uploads/2011/01/2. png
Definitions • Melena – Black, tarry stools – Can be produced by relatively small amounts of blood (50 -100 cc) in the stomach – Can persist for 3 -5 days following an acute bleed – Black color most likely due to hematin, the oxidative product of heme following interaction with intestinal bacteria http: //www. medicalassessment. com/terms. php? R=642&L=B
Blood or not blood? : That is the question • Many items can appear as blood if vomited such as foods containing red food coloring (Jelly, Kool Aid), tomatoes, strawberries, and beets • Many items can appear as melena such as spinach, licorice, grape juice and certain medications such as Pepto-Bismol (due to bismuth) and Iron • Question is best answered by performing a guiac or gastroccult

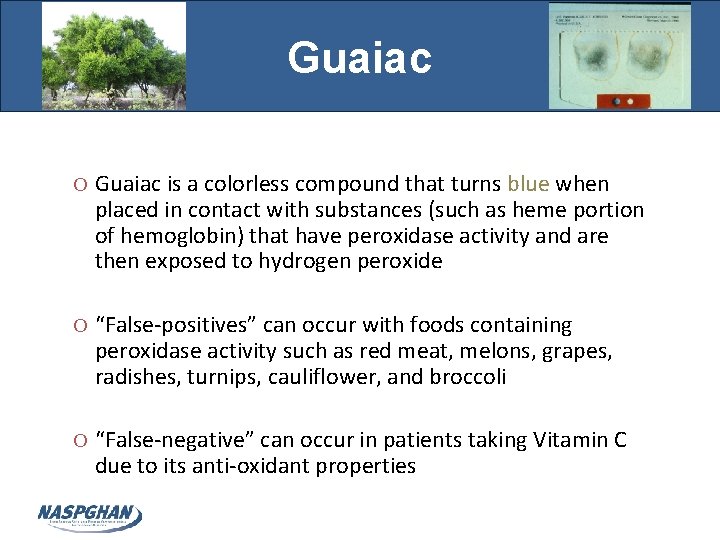

Guaiac O Guaiac is a colorless compound that turns blue when placed in contact with substances (such as heme portion of hemoglobin) that have peroxidase activity and are then exposed to hydrogen peroxide O “False-positives” can occur with foods containing peroxidase activity such as red meat, melons, grapes, radishes, turnips, cauliflower, and broccoli O “False-negative” can occur in patients taking Vitamin C due to its anti-oxidant properties

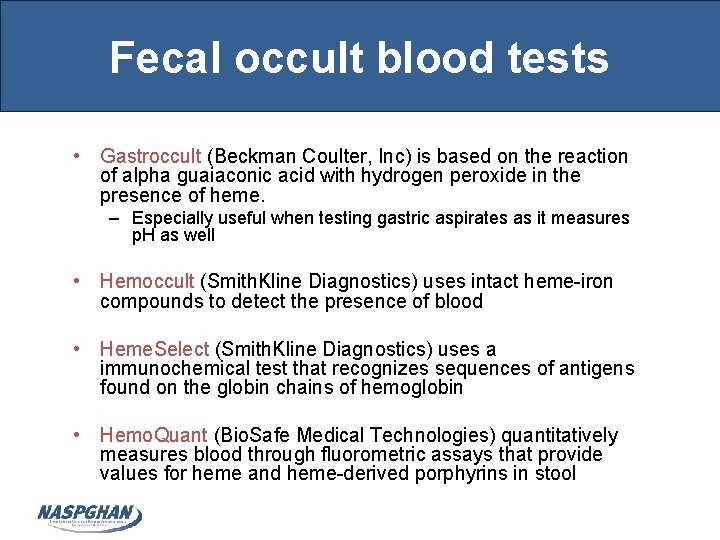

Fecal occult blood tests • Gastroccult (Beckman Coulter, Inc) is based on the reaction of alpha guaiaconic acid with hydrogen peroxide in the presence of heme. – Especially useful when testing gastric aspirates as it measures p. H as well • Hemoccult (Smith. Kline Diagnostics) uses intact heme-iron compounds to detect the presence of blood • Heme. Select (Smith. Kline Diagnostics) uses a immunochemical test that recognizes sequences of antigens found on the globin chains of hemoglobin • Hemo. Quant (Bio. Safe Medical Technologies) quantitatively measures blood through fluorometric assays that provide values for heme and heme-derived porphyrins in stool

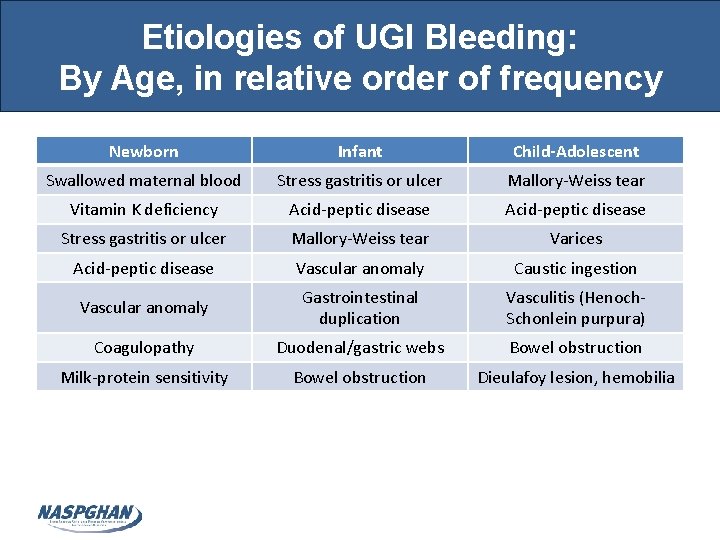

Etiologies of UGI Bleeding: By Age, in relative order of frequency Newborn Infant Child-Adolescent Swallowed maternal blood Stress gastritis or ulcer Mallory-Weiss tear Vitamin K deficiency Acid-peptic disease Stress gastritis or ulcer Mallory-Weiss tear Varices Acid-peptic disease Vascular anomaly Caustic ingestion Vascular anomaly Gastrointestinal duplication Vasculitis (Henoch. Schonlein purpura) Coagulopathy Duodenal/gastric webs Bowel obstruction Milk-protein sensitivity Bowel obstruction Dieulafoy lesion, hemobilia

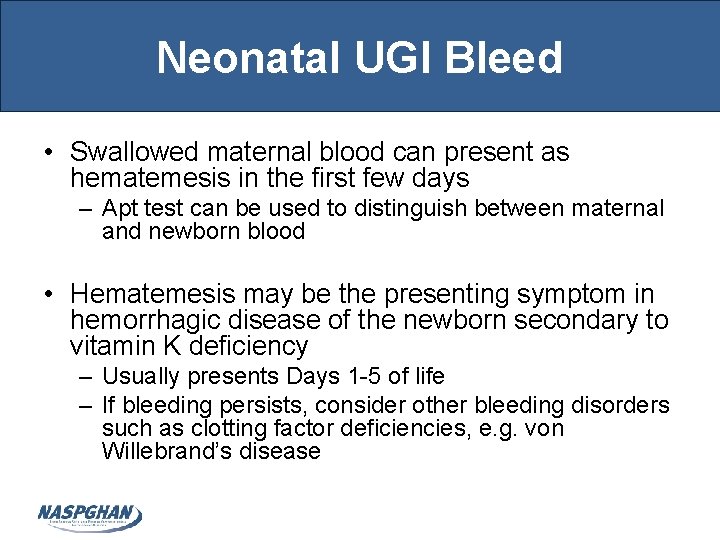

Neonatal UGI Bleed • Swallowed maternal blood can present as hematemesis in the first few days – Apt test can be used to distinguish between maternal and newborn blood • Hematemesis may be the presenting symptom in hemorrhagic disease of the newborn secondary to vitamin K deficiency – Usually presents Days 1 -5 of life – If bleeding persists, consider other bleeding disorders such as clotting factor deficiencies, e. g. von Willebrand’s disease
Neonatal UGI Bleed • Sensitivity to milk and soy proteins can present as hematemesis – Hematochezia is the more common presentation • Uncommon etiologies of neonatal UGI bleeding include pyloric stenosis, antral/duodenal webs, and indomethacin use • Shock causing ischemic mucosal injury from various causes including sepsis can lead to significant UGI bleed

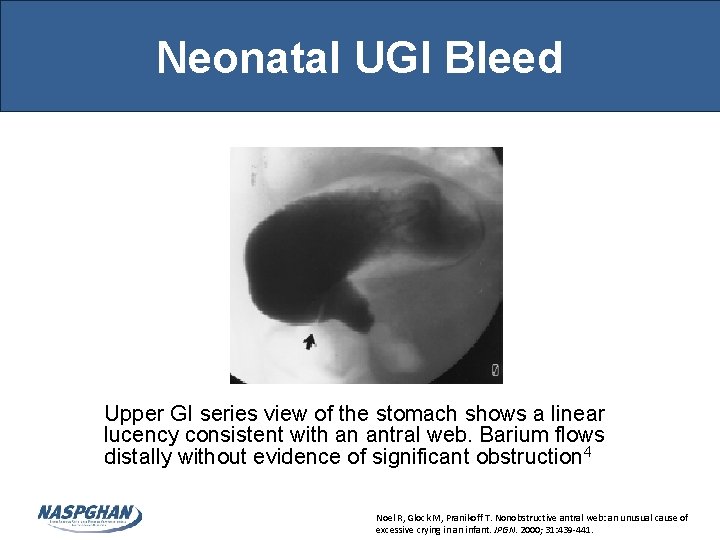

Neonatal UGI Bleed Upper GI series view of the stomach shows a linear lucency consistent with an antral web. Barium flows distally without evidence of significant obstruction 4 Noel R, Glock M, Pranikoff T. Nonobstructive antral web: an unusual cause of excessive crying in an infant. JPGN. 2000; 31: 439 -441.
UGI Bleed in Infants • Stress gastritis and ulceration can occur in critically ill neonates and infants resulting in UGI bleeds – Causes of stress and mucosal injury: – – – Surgery Burns Infections (both viral and bacterial) Medications Ischemia Mechanical trauma from foreign bodies or enteral feeding tubes – Tumors
UGI Bleed in Infants: Differential • Acid-peptic disease, such as esophagitis, gastritis, and ulcer – Other findings include irritability with feeds, feeding refusal, and spitting up episodes • Eosinophilic esophagitis • Opportunistic infections such as cytomegalovirus, herpes, and fungal infections

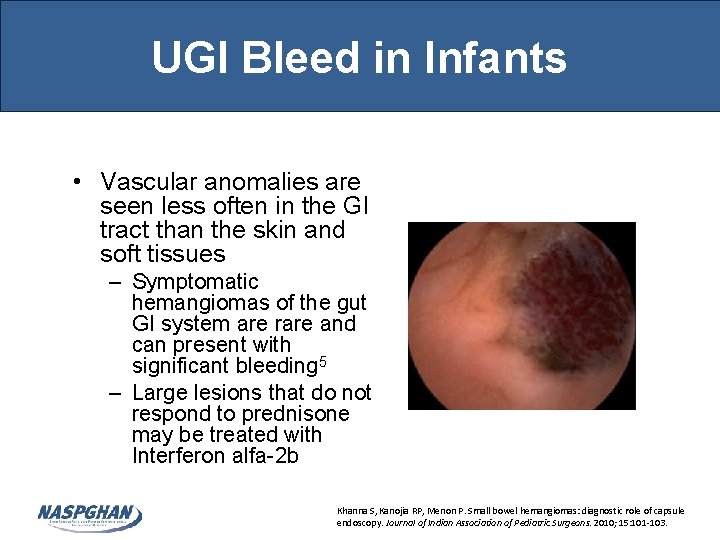

UGI Bleed in Infants • Vascular anomalies are seen less often in the GI tract than the skin and soft tissues – Symptomatic hemangiomas of the gut GI system are rare and can present with significant bleeding 5 – Large lesions that do not respond to prednisone may be treated with Interferon alfa-2 b Khanna S, Kanojia RP, Menon P. Small bowel hemangiomas: diagnostic role of capsule endoscopy. Journal of Indian Association of Pediatric Surgeons. 2010; 15: 101 -103.
UGI Bleed in Infants • Anatomic abnormalities such as duplication cysts can cause UGI bleeding as these lesions contain gastric mucosa that can ulcerate and bleed http: //www. clinicalimagingscience. org/article. asp? issn=21567514; year=2011; volume=1; issue=1; spage=19; epage=19; aulast=Herliczek

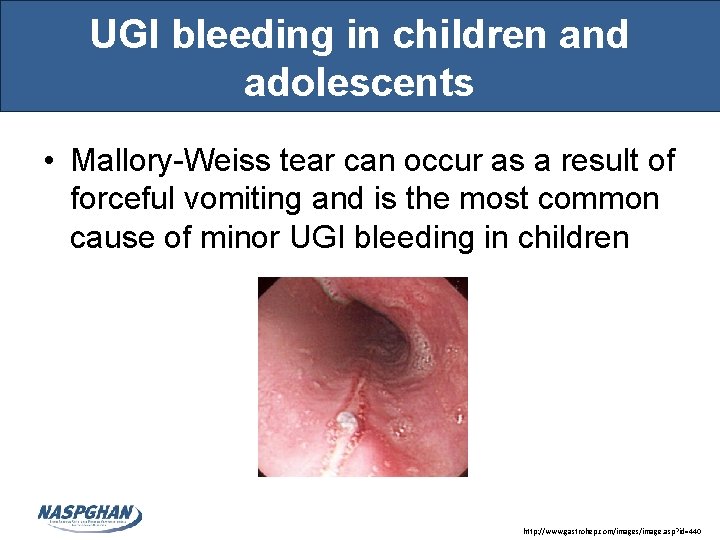

UGI bleeding in children and adolescents • Mallory-Weiss tear can occur as a result of forceful vomiting and is the most common cause of minor UGI bleeding in children http: //www. gastrohep. com/images/image. asp? id=440

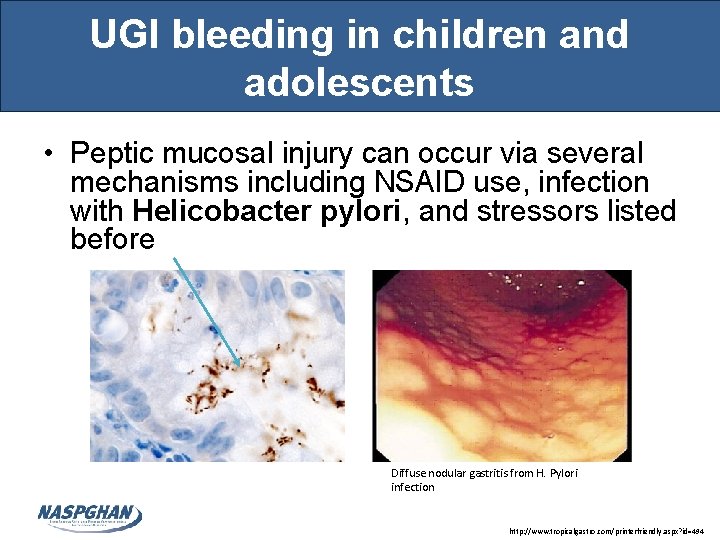

UGI bleeding in children and adolescents • Peptic mucosal injury can occur via several mechanisms including NSAID use, infection with Helicobacter pylori, and stressors listed before Diffuse nodular gastritis from H. Pylori infection http: //www. tropicalgastro. com/printerfriendly. aspx? id=494
UGI bleeding in children and adolescents • Variceal bleeding – Most common cause of severe UGI bleeding in children – Most common location is the esophagus • Due to high-pressure, turbulent flow in the thin-walled superficial vessels of the distal esophagus – Bleeding spontaneously stops in 50% with rebleeding in 40% – Nonspecific abdominal pain may precede variceal bleeding for up to 48 hours – May present as either hematemesis or melena
Varices Esophageal varices with red wale sign (longitudinal red streaks on varices indicated a recent bleed) http: //www. gastrointestinalatlas. com/English/Esophagus/Varices/varices. html
Causes of UGI bleeding in children & adolescents • Foreign body ingestion usually from a sharp object such as a safety pin • Caustic ingestion, however, this is usually a late finding • Crohn’s disease of the upper GI tract

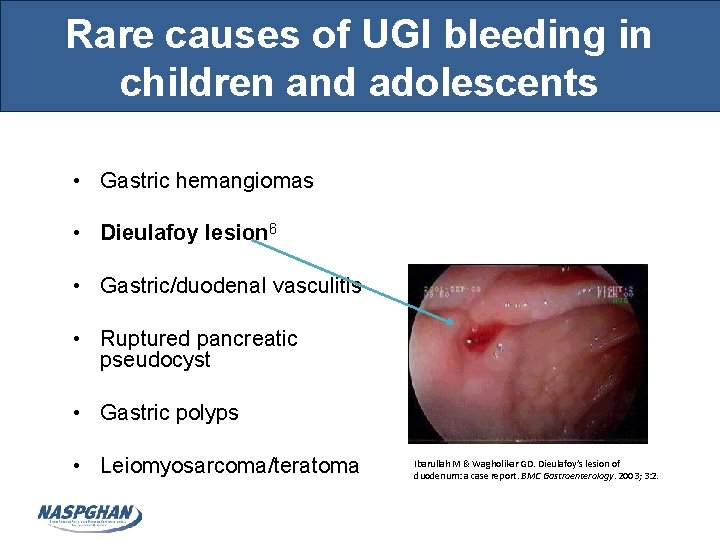

Rare causes of UGI bleeding in children and adolescents • Gastric hemangiomas • Dieulafoy lesion 6 • Gastric/duodenal vasculitis • Ruptured pancreatic pseudocyst • Gastric polyps • Leiomyosarcoma/teratoma Ibarullah M & Wagholikar GD. Dieulafoy’s lesion of duodenum: a case report. BMC Gastroenterology. 2003; 3: 2.

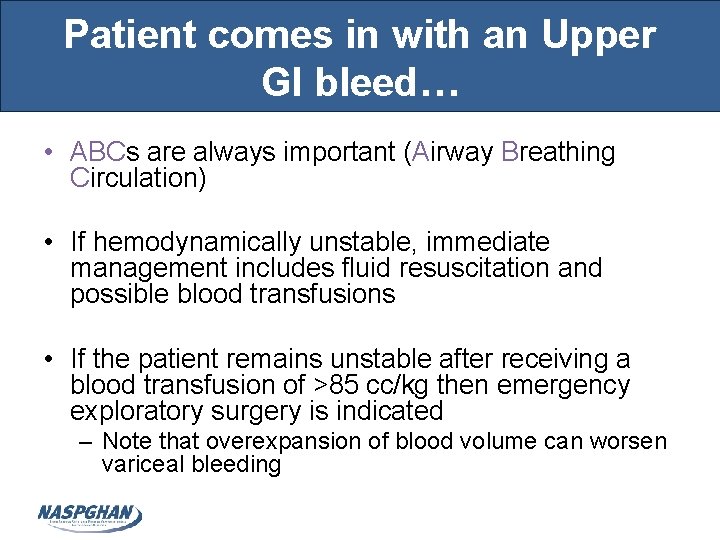

Patient comes in with an Upper GI bleed… • ABCs are always important (Airway Breathing Circulation) • If hemodynamically unstable, immediate management includes fluid resuscitation and possible blood transfusions • If the patient remains unstable after receiving a blood transfusion of >85 cc/kg then emergency exploratory surgery is indicated – Note that overexpansion of blood volume can worsen variceal bleeding
Patient comes in with an Upper GI bleed… • Once the patient is hemodynamically stable, further workup is warranted 3 Laboratory Studies that should be Considered in Initial Evaluation of an Upper GI Bleed CBC with reticulocyte count Coags (Protime/partial thromboplastin time) Liver function tests (to evaluate for underlying liver disease) Blood urea nitrogen/Creatinine (to evaluate for azotemia) Blood type and Cross match Gastroccult!
Dermatological Clues • Skin findings in liver disease include caput madusa (black arrows), spider angiomata (red arrow), and jaundice http: //radiographics. rsna. org/cgi/content-nw/full/21/3/691/F 10 http: //www. skinsight. com/adult/spider. Angioma. htm
Dermatological Clues • Other skin lesions include: hemangiomas (red arrow) and telangiectasias (blue arrow) which can also be present in the GI tract

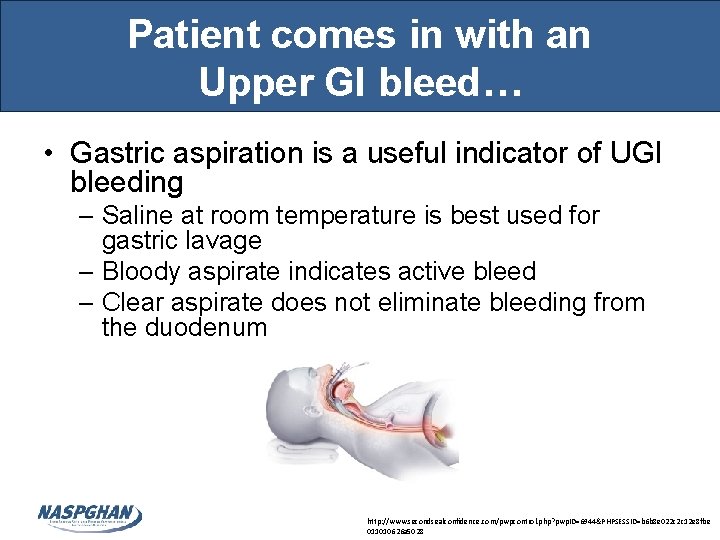

Patient comes in with an Upper GI bleed… • Gastric aspiration is a useful indicator of UGI bleeding – Saline at room temperature is best used for gastric lavage – Bloody aspirate indicates active bleed – Clear aspirate does not eliminate bleeding from the duodenum http: //www. secondsealconfidence. com/pwpcontrol. php? pwp. ID=6944&PHPSESSID=b 6 b 8 e 022 c 2 c 12 e 8 fbe 011010626 a 5028

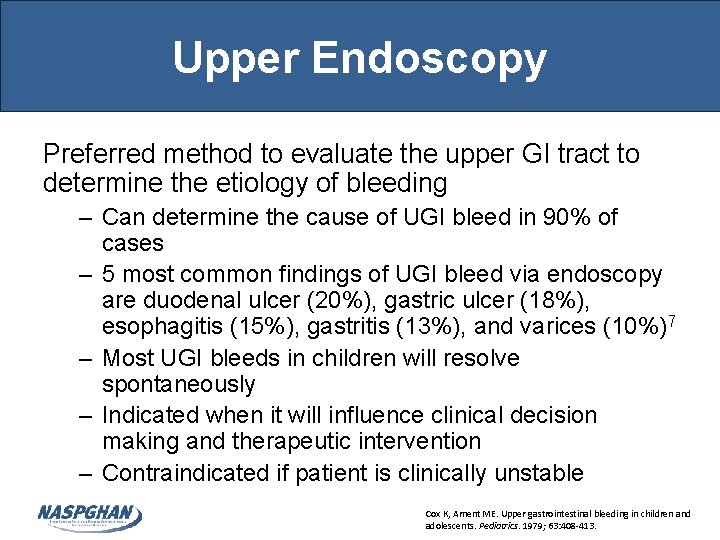

Upper Endoscopy Preferred method to evaluate the upper GI tract to determine the etiology of bleeding – Can determine the cause of UGI bleed in 90% of cases – 5 most common findings of UGI bleed via endoscopy are duodenal ulcer (20%), gastric ulcer (18%), esophagitis (15%), gastritis (13%), and varices (10%)7 – Most UGI bleeds in children will resolve spontaneously – Indicated when it will influence clinical decision making and therapeutic intervention – Contraindicated if patient is clinically unstable Cox K, Ament ME. Upper gastrointestinal bleeding in children and adolescents. Pediatrics. 1979; 63: 408 -413.

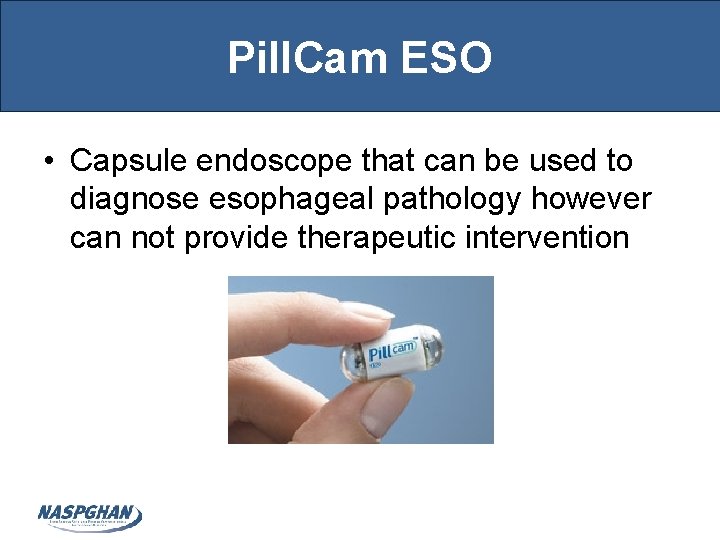

Pill. Cam ESO • Capsule endoscope that can be used to diagnose esophageal pathology however can not provide therapeutic intervention

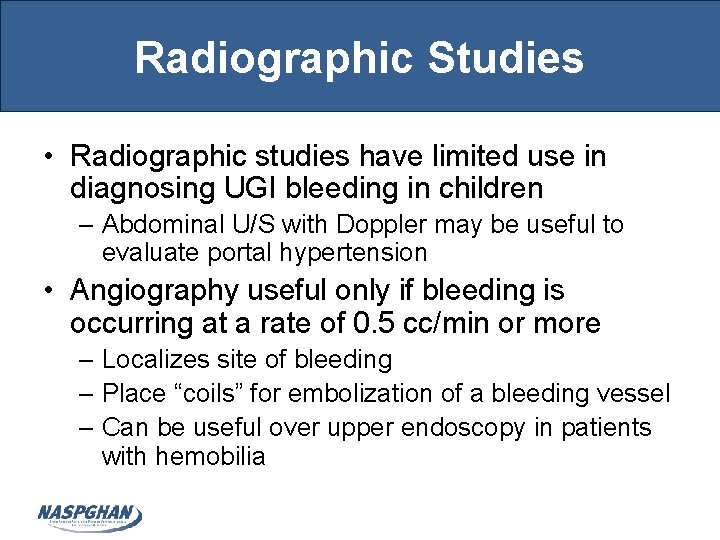

Radiographic Studies • Radiographic studies have limited use in diagnosing UGI bleeding in children – Abdominal U/S with Doppler may be useful to evaluate portal hypertension • Angiography useful only if bleeding is occurring at a rate of 0. 5 cc/min or more – Localizes site of bleeding – Place “coils” for embolization of a bleeding vessel – Can be useful over upper endoscopy in patients with hemobilia

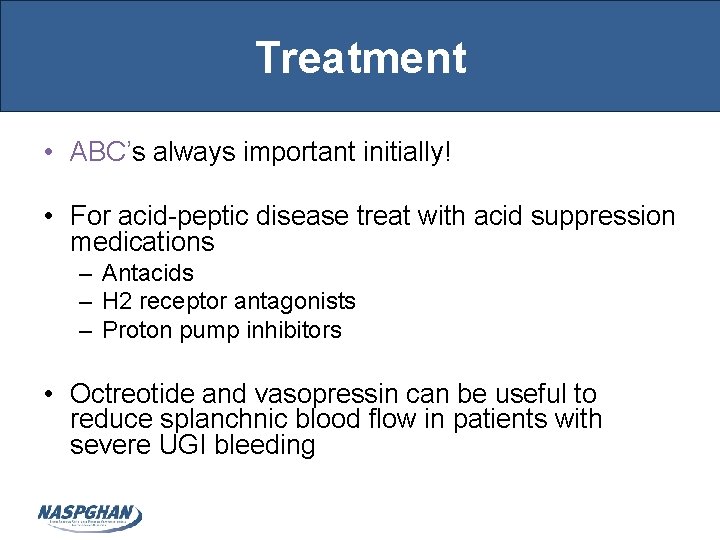

Treatment • ABC’s always important initially! • For acid-peptic disease treat with acid suppression medications – Antacids – H 2 receptor antagonists – Proton pump inhibitors • Octreotide and vasopressin can be useful to reduce splanchnic blood flow in patients with severe UGI bleeding

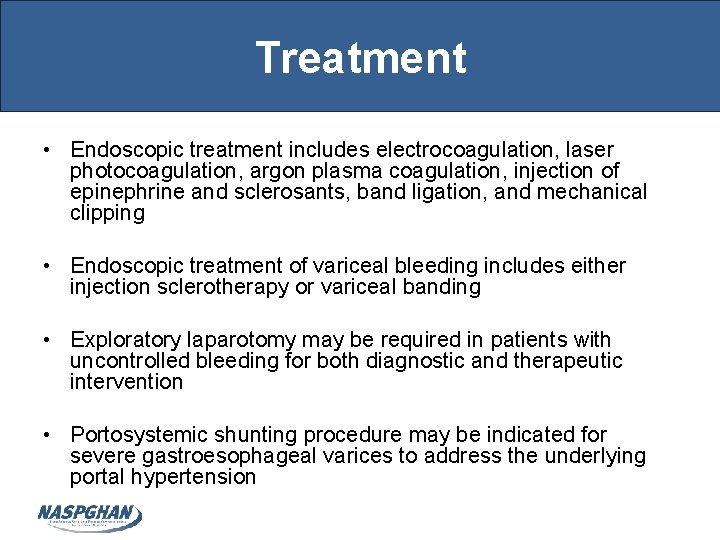

Treatment • Endoscopic treatment includes electrocoagulation, laser photocoagulation, argon plasma coagulation, injection of epinephrine and sclerosants, band ligation, and mechanical clipping • Endoscopic treatment of variceal bleeding includes either injection sclerotherapy or variceal banding • Exploratory laparotomy may be required in patients with uncontrolled bleeding for both diagnostic and therapeutic intervention • Portosystemic shunting procedure may be indicated for severe gastroesophageal varices to address the underlying portal hypertension
References • Chaibou M, Tucci M, Dugas MA. Clinically significant upper gastrointestinal bleeding acquired in a pediatric intensive care unit: a prospective study. Pediatrics. 1998; 102: 933938. • Franciosi JP, Fiorino K, Ruchelli E. Changing indications for upper endoscopy in children during a 20 -year period. JPGN. 2010; 51: 443 -447. • Gilger MA & Whitfield KL. Upper Gastrointestinal Bleeding. In Walker’s Pediatric Gastrointestinal Disease 5 Volume 2. Shelton, CT: People’s Medical Publishing House. • Noel R, Glock M, Pranikoff T. Nonobstructive antral web: an unusual cause of excessive crying in an infant. JPGN. 2000; 31: 439 -441. • Khanna S, Kanojia RP, Menon P. Small bowel hemangiomas: diagnostic role of capsule endoscopy. Journal of Indian Association of Pediatric Surgeons. 2010; 15: 101 -103. • Ibarullah M & Wagholikar GD. Dieulafoy’s lesion of duodenum: a case report. BMC Gastroenterology. 2003; 3: 2. • Cox K, Ament ME. Upper gastrointestinal bleeding in children and adolescents. Pediatrics. 1979; 63: 408 -413.
