Upper Air Charts Before the Internet or AWIPS

Upper Air Charts • Before the Internet or AWIPS, DIFAX maps were the basic weather analysis and forecast charts used by meteorologists • They were only available through a fax machine connected to a dedicated landline • Currently, you can find charts on the internet, as well as through other weather analysis software (like AWIPS-II)

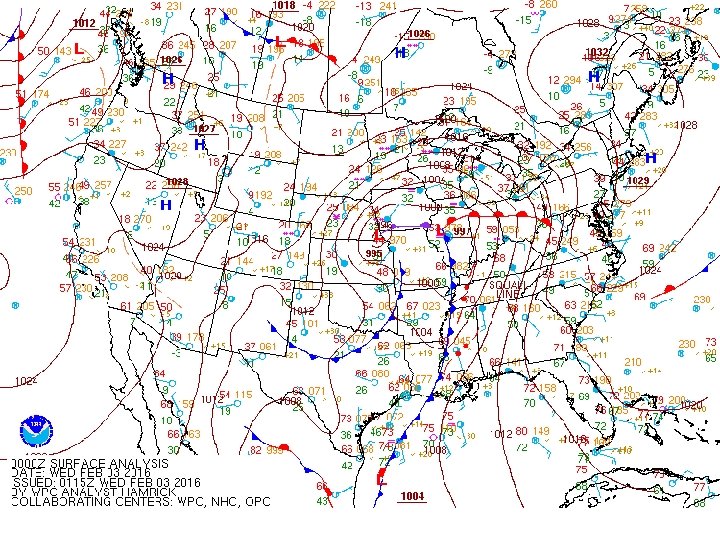

Surface Charts • Analyzed charts issued every 3 hours (00 Z – 21 Z) • Data includes – Hourly synoptic stations – Ship reports – Buoy reports • Maps can be found from the WPC: http: //www. wpc. ncep. noaa. gov/

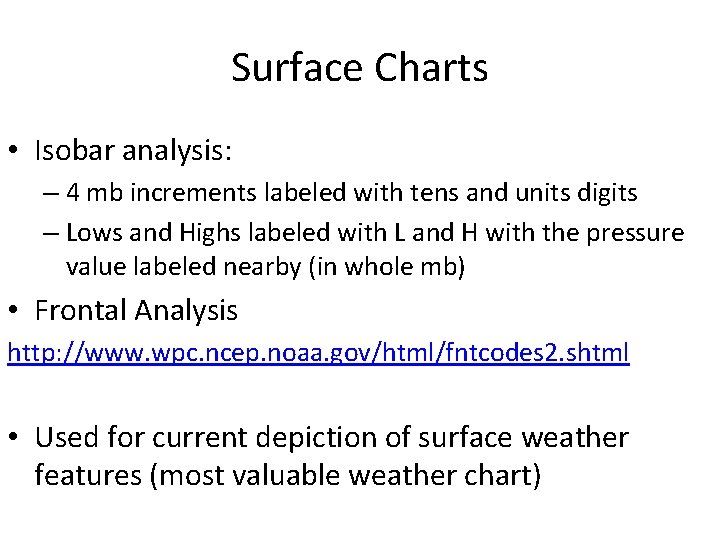

Surface Charts • Isobar analysis: – 4 mb increments labeled with tens and units digits – Lows and Highs labeled with L and H with the pressure value labeled nearby (in whole mb) • Frontal Analysis http: //www. wpc. ncep. noaa. gov/html/fntcodes 2. shtml • Used for current depiction of surface weather features (most valuable weather chart)

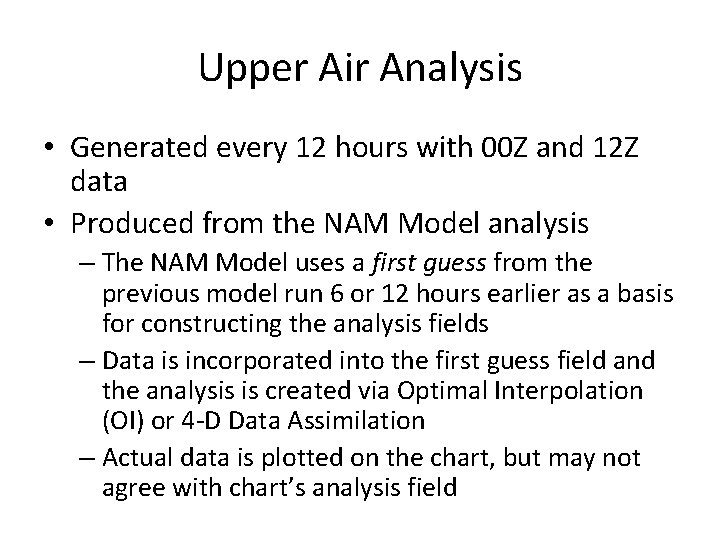

Upper Air Analysis • Generated every 12 hours with 00 Z and 12 Z data • Produced from the NAM Model analysis – The NAM Model uses a first guess from the previous model run 6 or 12 hours earlier as a basis for constructing the analysis fields – Data is incorporated into the first guess field and the analysis is created via Optimal Interpolation (OI) or 4 -D Data Assimilation – Actual data is plotted on the chart, but may not agree with chart’s analysis field

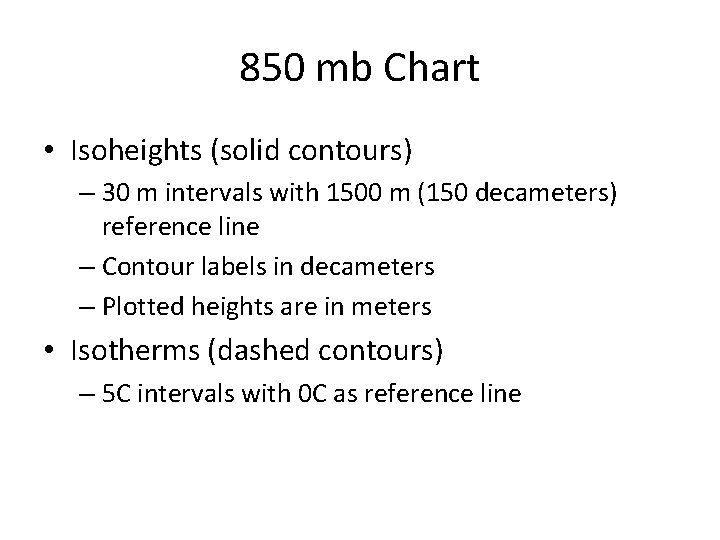

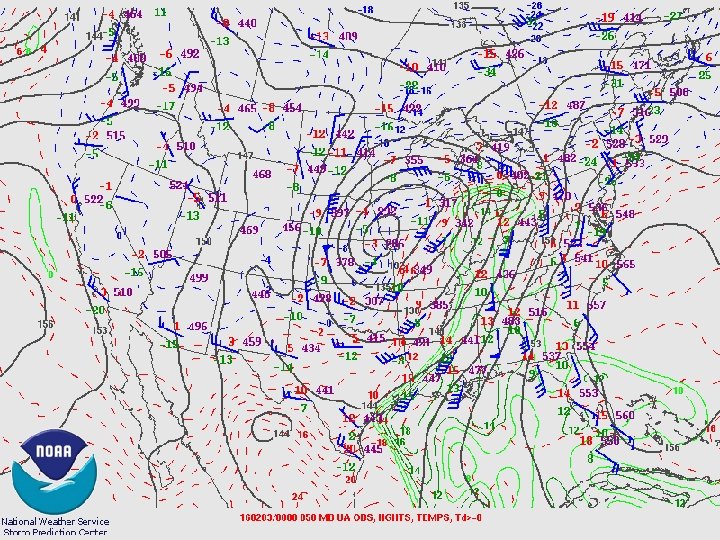

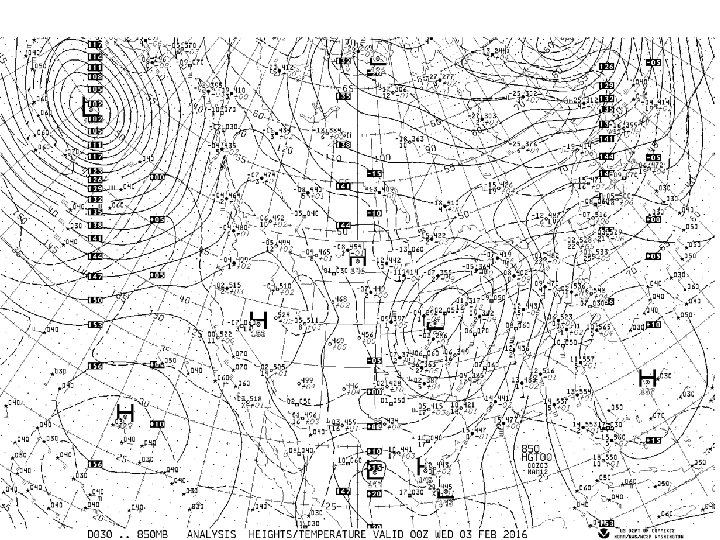

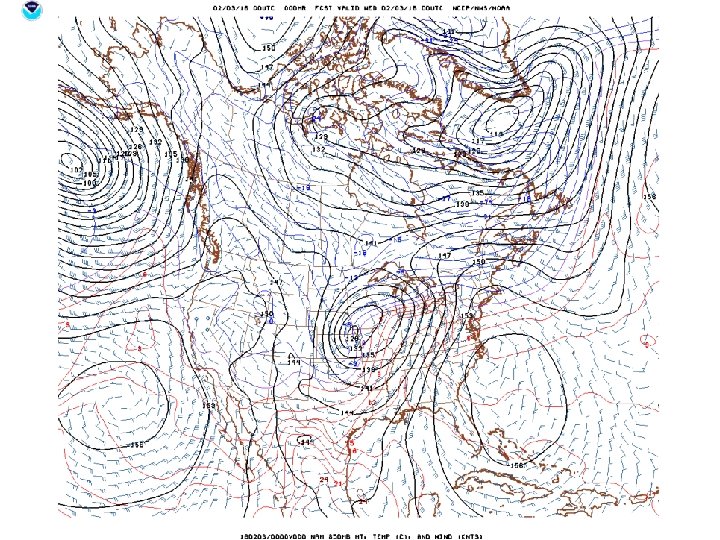

850 mb Chart • Isoheights (solid contours) – 30 m intervals with 1500 m (150 decameters) reference line – Contour labels in decameters – Plotted heights are in meters • Isotherms (dashed contours) – 5 C intervals with 0 C as reference line

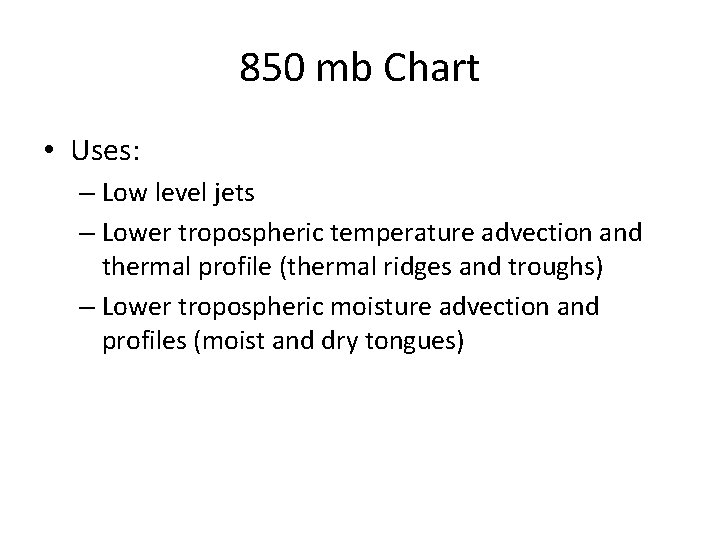

850 mb Chart • Uses: – Low level jets – Lower tropospheric temperature advection and thermal profile (thermal ridges and troughs) – Lower tropospheric moisture advection and profiles (moist and dry tongues)

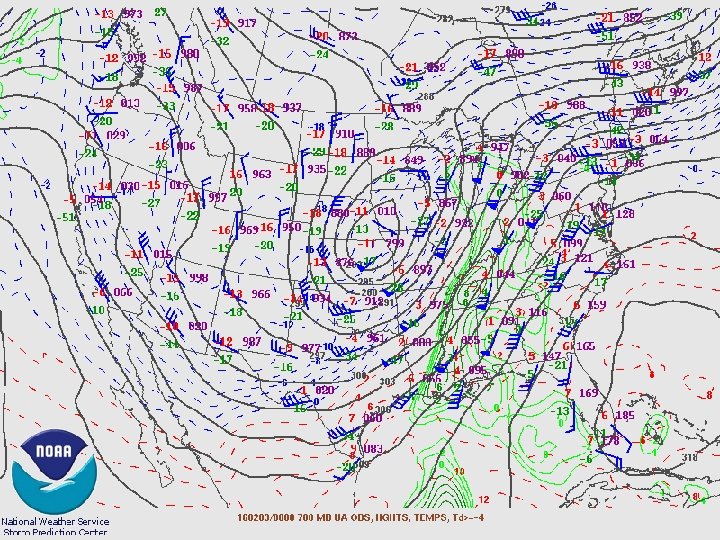

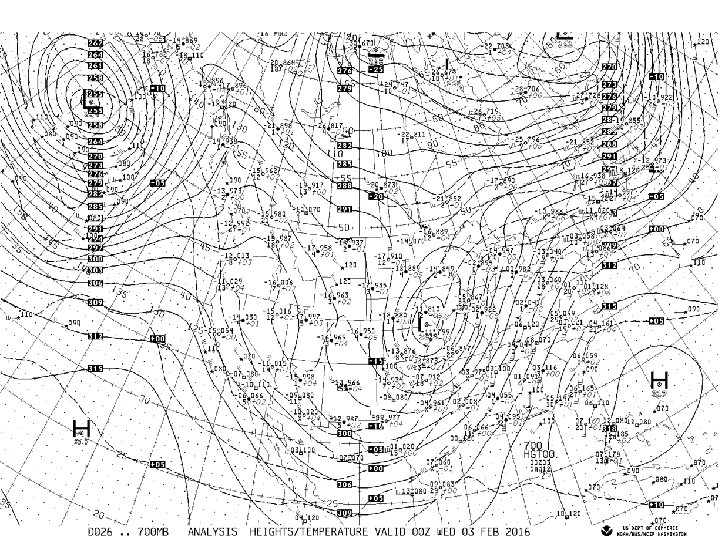

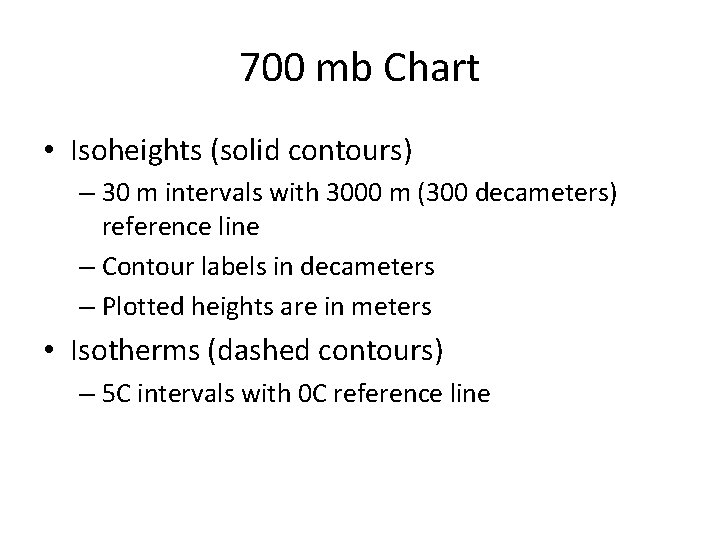

700 mb Chart • Isoheights (solid contours) – 30 m intervals with 3000 m (300 decameters) reference line – Contour labels in decameters – Plotted heights are in meters • Isotherms (dashed contours) – 5 C intervals with 0 C reference line

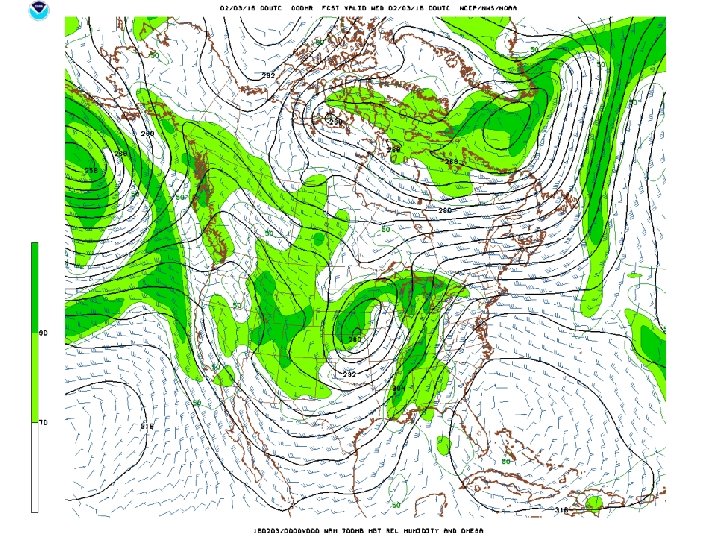

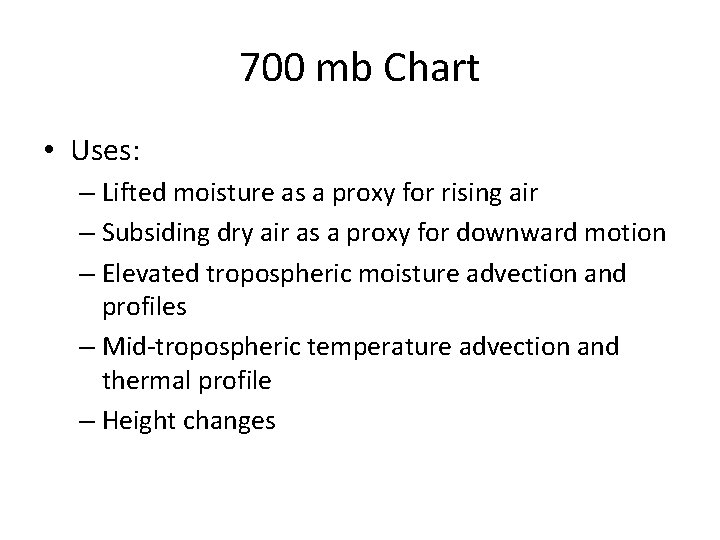

700 mb Chart • Uses: – Lifted moisture as a proxy for rising air – Subsiding dry air as a proxy for downward motion – Elevated tropospheric moisture advection and profiles – Mid-tropospheric temperature advection and thermal profile – Height changes

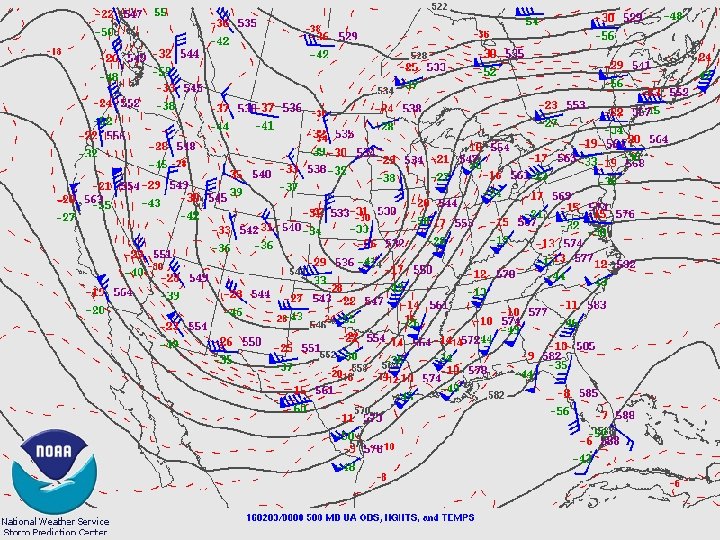

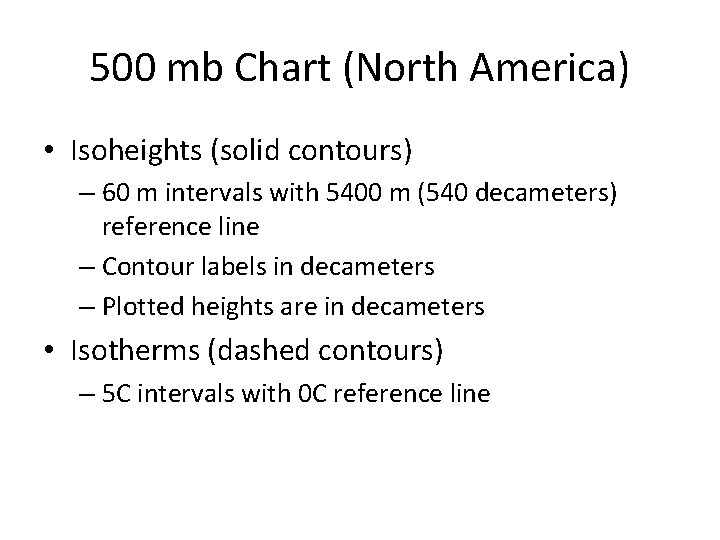

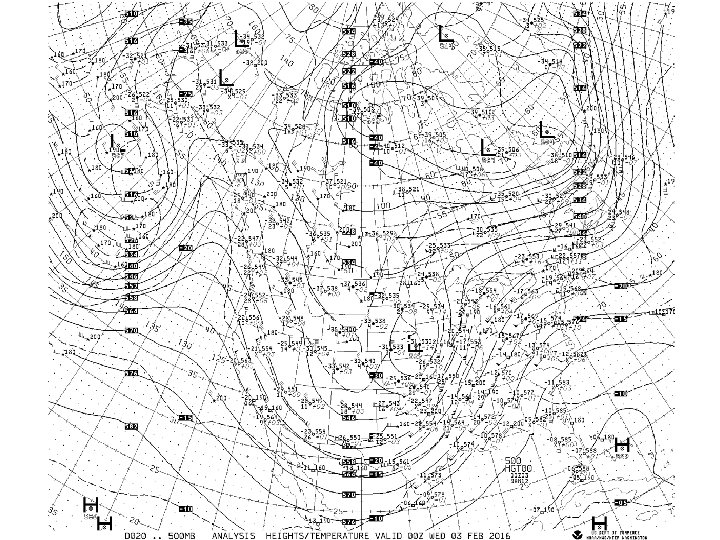

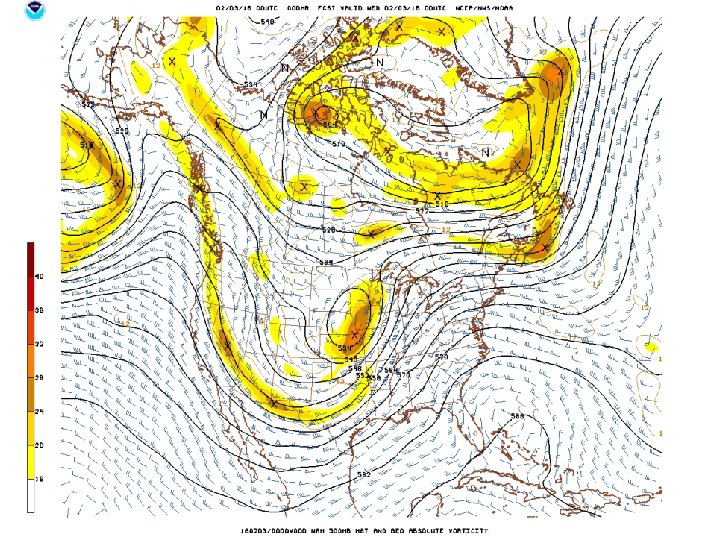

500 mb Chart (North America) • Isoheights (solid contours) – 60 m intervals with 5400 m (540 decameters) reference line – Contour labels in decameters – Plotted heights are in decameters • Isotherms (dashed contours) – 5 C intervals with 0 C reference line

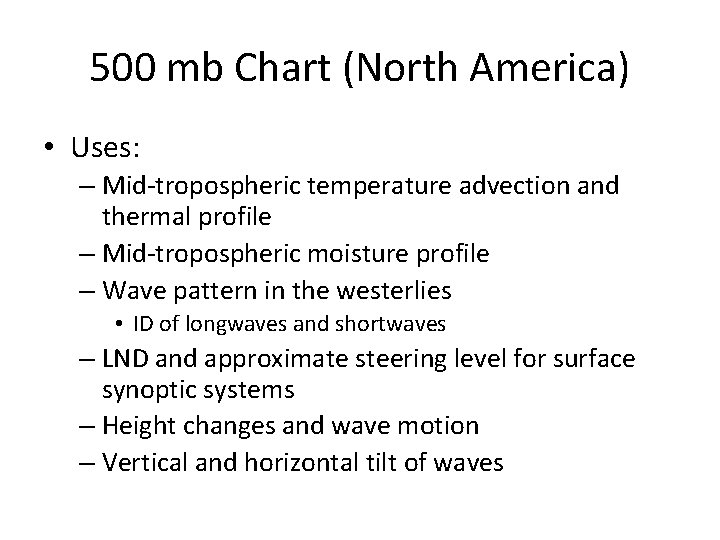

500 mb Chart (North America) • Uses: – Mid-tropospheric temperature advection and thermal profile – Mid-tropospheric moisture profile – Wave pattern in the westerlies • ID of longwaves and shortwaves – LND and approximate steering level for surface synoptic systems – Height changes and wave motion – Vertical and horizontal tilt of waves

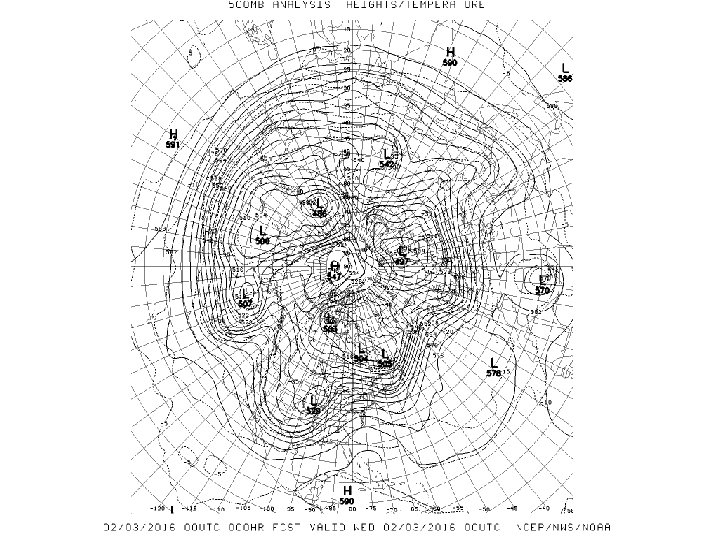

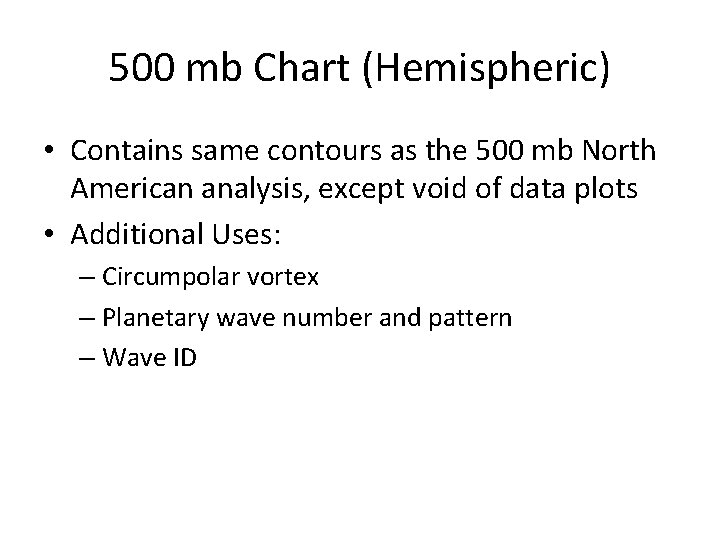

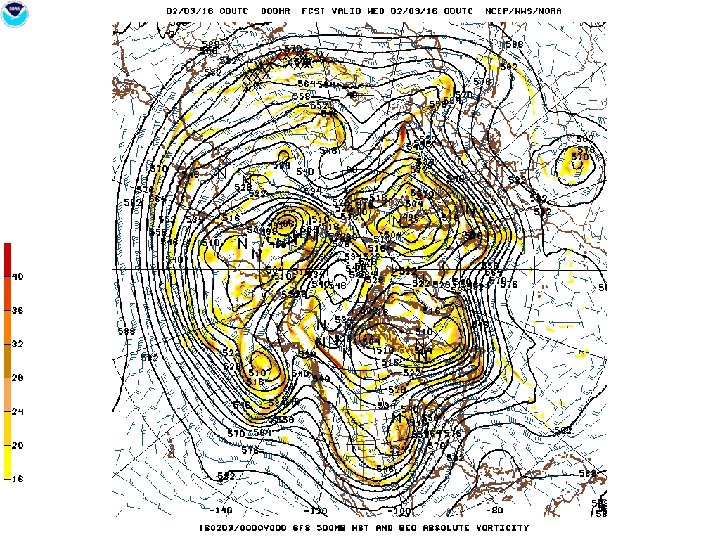

500 mb Chart (Hemispheric) • Contains same contours as the 500 mb North American analysis, except void of data plots • Additional Uses: – Circumpolar vortex – Planetary wave number and pattern – Wave ID

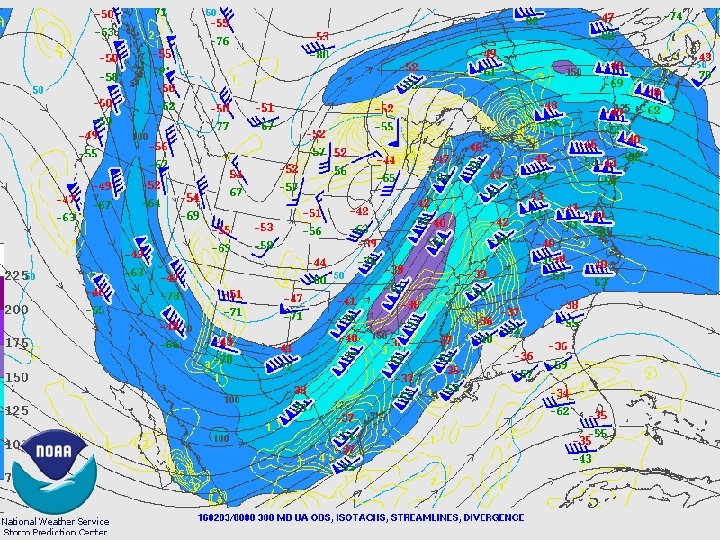

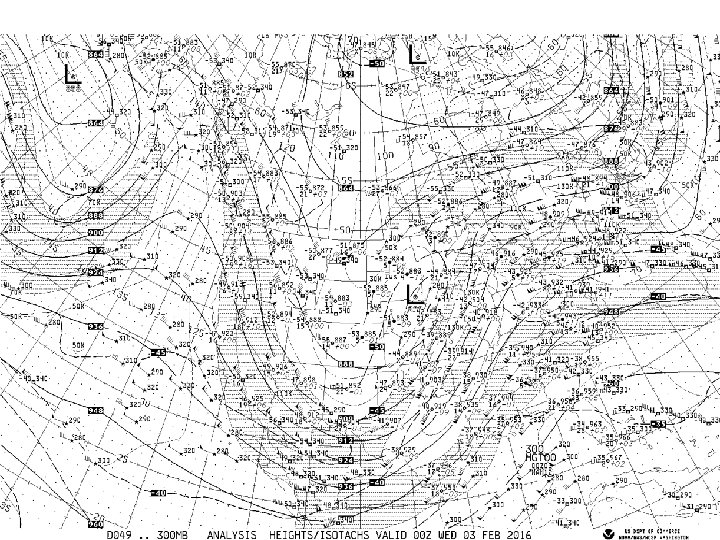

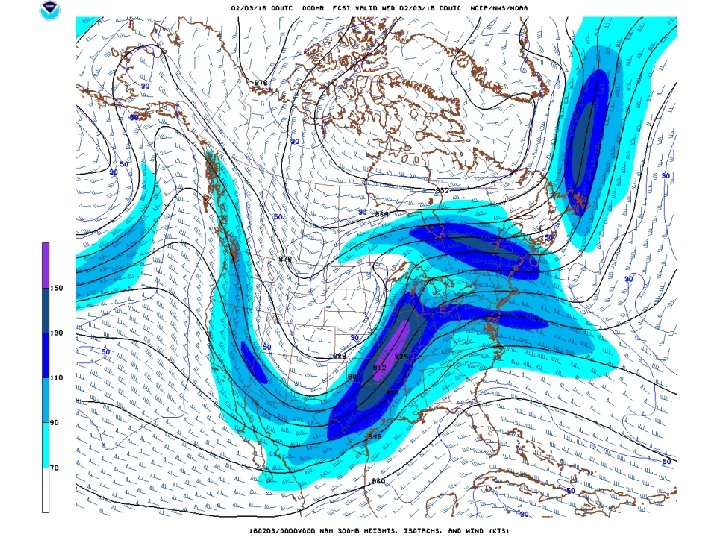

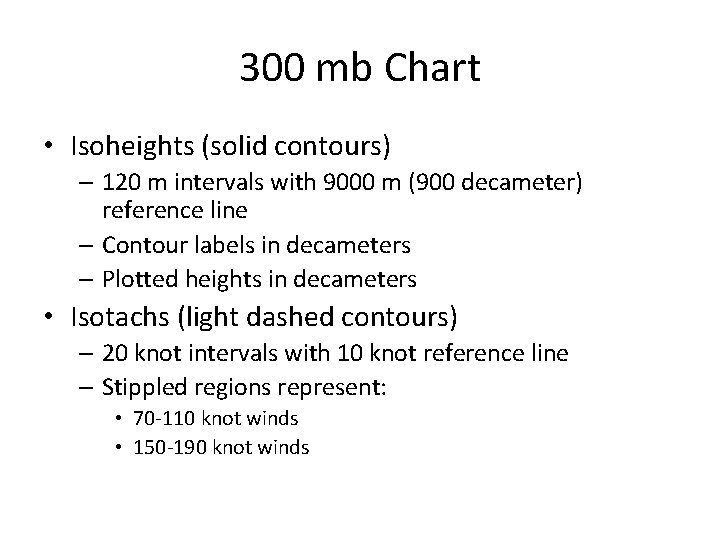

300 mb Chart • Isoheights (solid contours) – 120 m intervals with 9000 m (900 decameter) reference line – Contour labels in decameters – Plotted heights in decameters • Isotachs (light dashed contours) – 20 knot intervals with 10 knot reference line – Stippled regions represent: • 70 -110 knot winds • 150 -190 knot winds

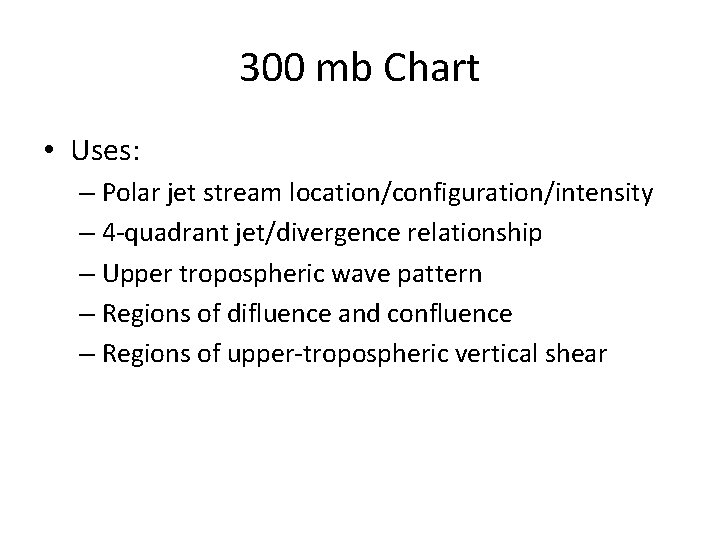

300 mb Chart • Uses: – Polar jet stream location/configuration/intensity – 4 -quadrant jet/divergence relationship – Upper tropospheric wave pattern – Regions of difluence and confluence – Regions of upper-tropospheric vertical shear

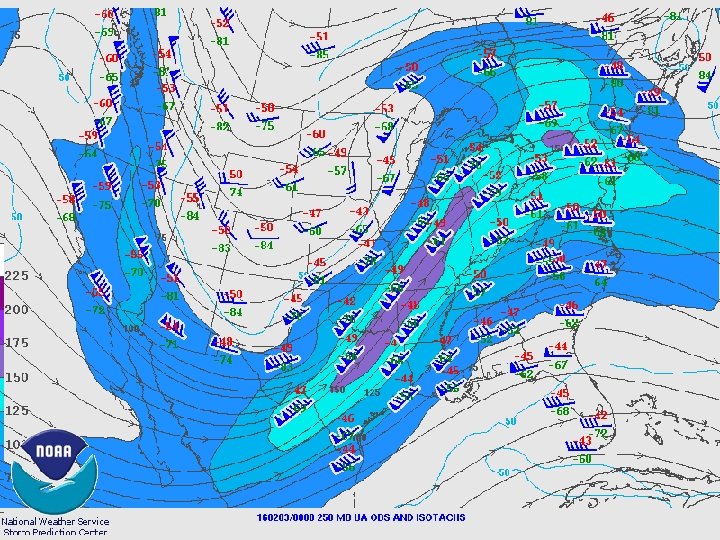

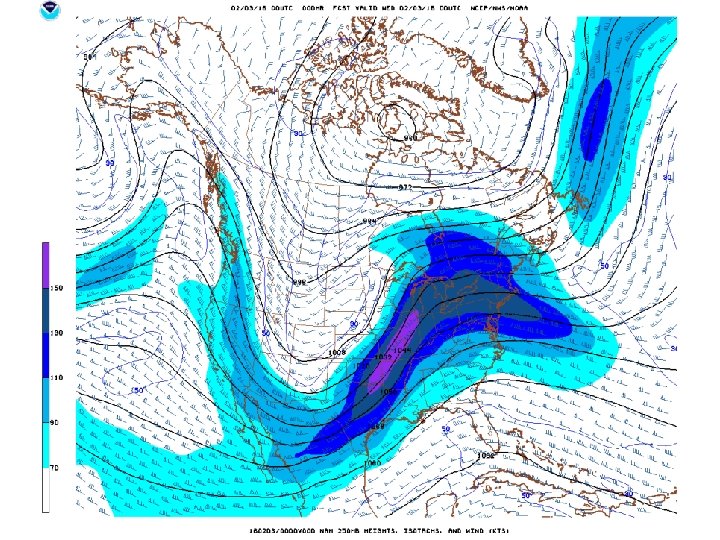

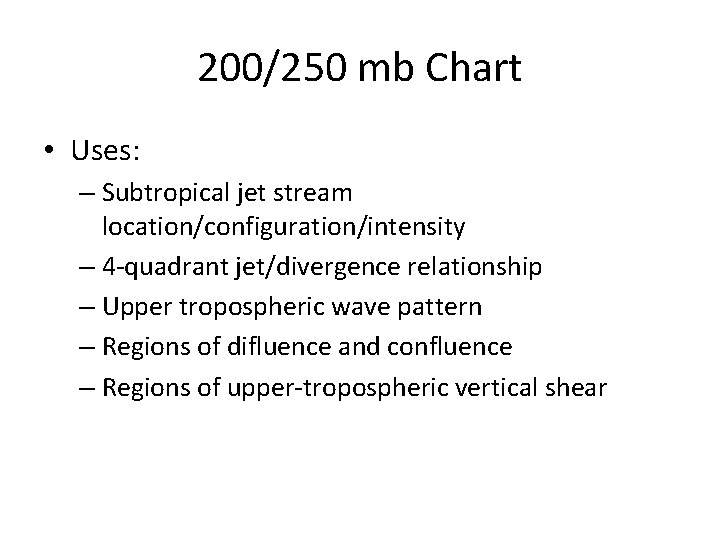

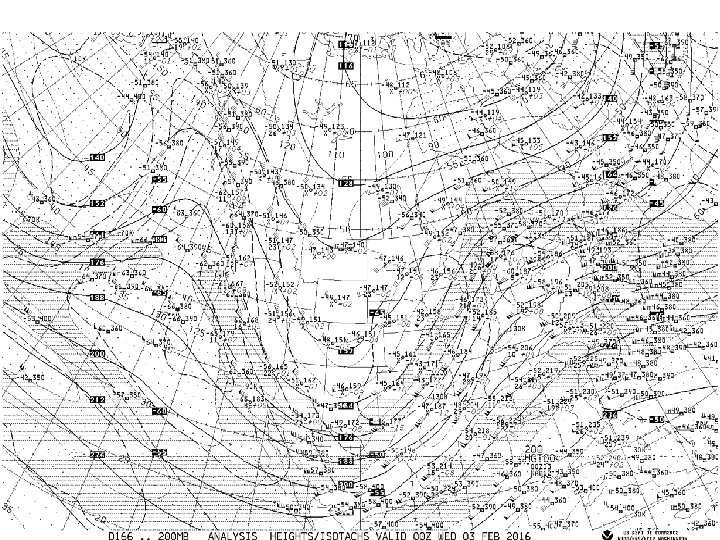

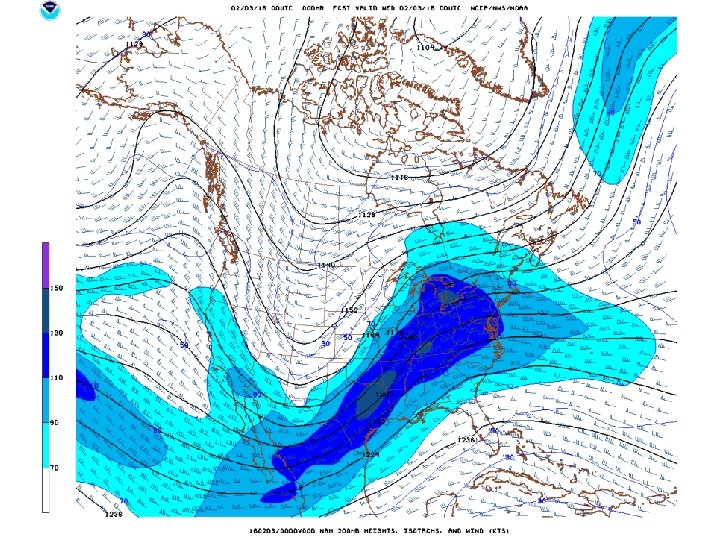

200/250 mb Chart • Uses: – Subtropical jet stream location/configuration/intensity – 4 -quadrant jet/divergence relationship – Upper tropospheric wave pattern – Regions of difluence and confluence – Regions of upper-tropospheric vertical shear

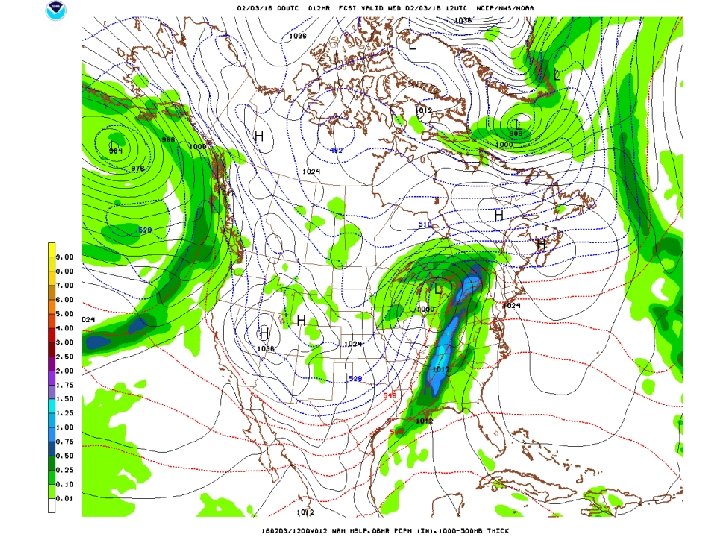

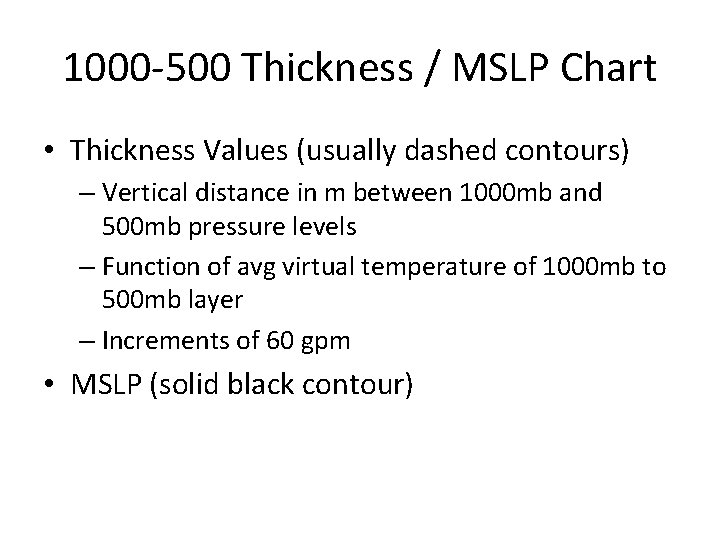

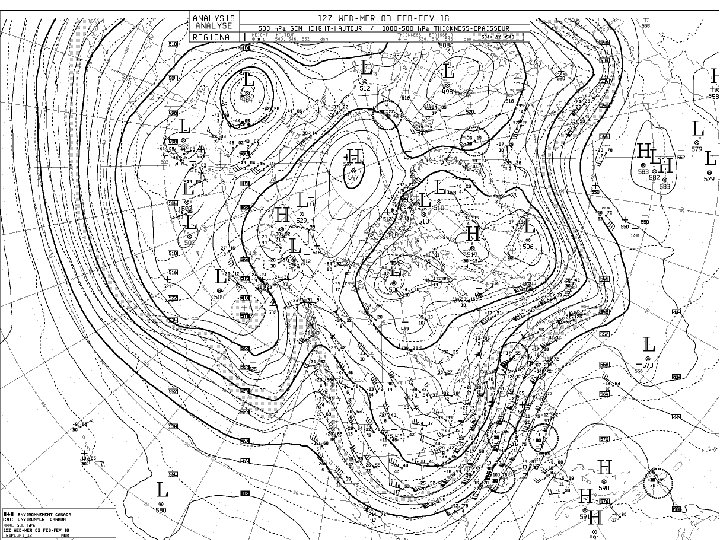

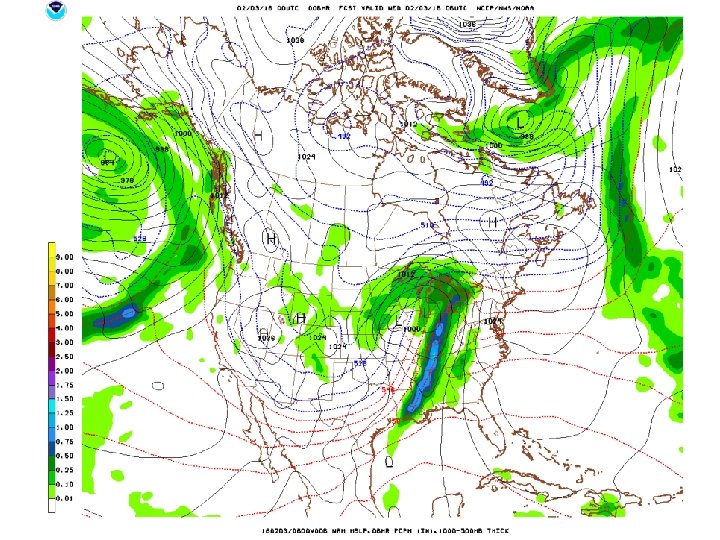

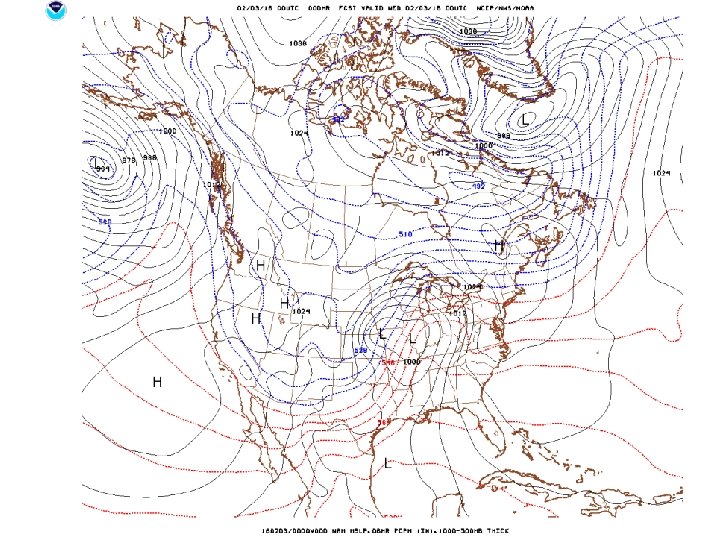

1000 -500 Thickness / MSLP Chart • Thickness Values (usually dashed contours) – Vertical distance in m between 1000 mb and 500 mb pressure levels – Function of avg virtual temperature of 1000 mb to 500 mb layer – Increments of 60 gpm • MSLP (solid black contour)

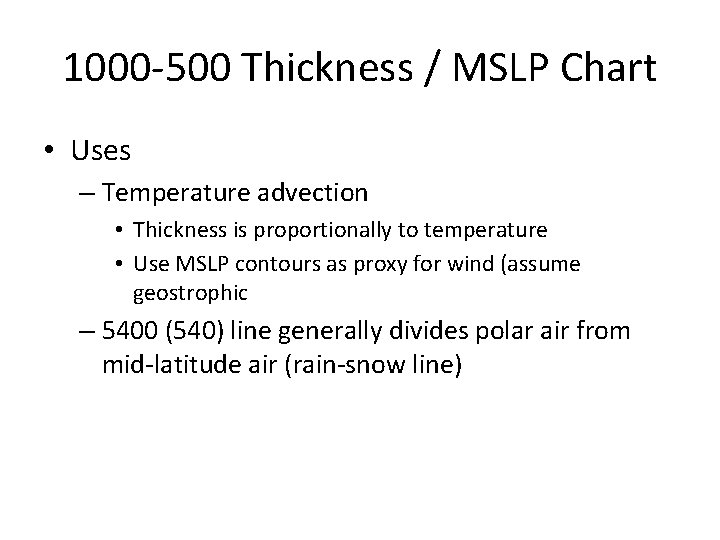

1000 -500 Thickness / MSLP Chart • Uses – Temperature advection • Thickness is proportionally to temperature • Use MSLP contours as proxy for wind (assume geostrophic – 5400 (540) line generally divides polar air from mid-latitude air (rain-snow line)
