Upgrade CS OTE Jakub Jcha Duan pelina Logica

Upgrade CS OTE Jakub Jícha Dušan Špelina © Logica 2008. All rights reserved

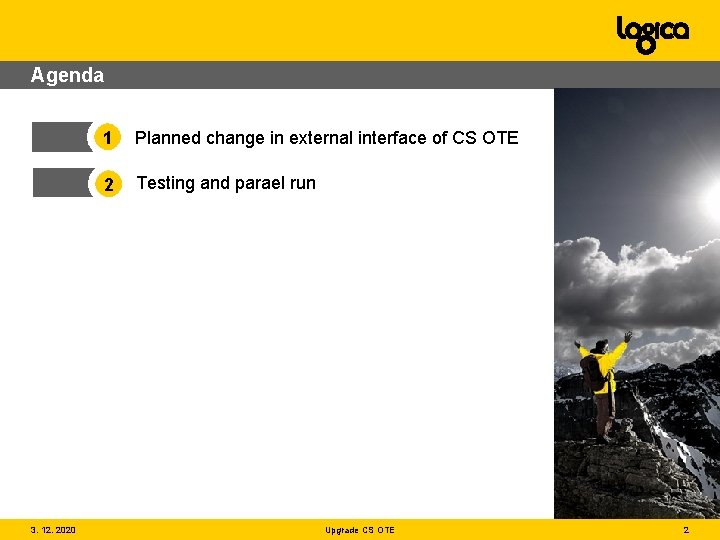

Agenda 3. 12. 2020 1 Planned change in external interface of CS OTE 2 Testing and parael run Upgrade CS OTE 2

Interface of CS OTE • Access to CS OTE via – Web services - HTTPS/SOAP – SMTP (email) • Formats of messages – XML according to std. OTE – XML according to std. ETSO – EDI according to std. OTE (based on EDINE) 3. 12. 2020 Upgrade CS OTE 3

Web services interface • New specification of web services – Synchronious communication via SOAP protocol ver. 1. 1, type SOAP-Document ◦ Used for structured data (XML) exchange – Synchronious communication via SOAP protocol ver. 1. 1, simplified version ◦ Used for EDI message trasfer in mode client/server only • Ways of communication – client-server – initialization is from clients side. Client systém have to support web services according defined standard. – server-server – inicialization from both sides. Clients systém must have accessible web services according to OTE std. This way is possible to use only for SOAP-Document type of comm. 3. 12. 2020 Upgrade CS OTE 4

Nová struktura SOAP • SOAP-Document – Header WS (SOAP: Header) – Message Body ◦ XML signature ◦ XML structure according to concreate specification of message • SOAP – simplified version for EDI transfer – Header WS – not used – Body – ◦ 1 parameter (element) DATA, that have to contain digitally singned message in form PKCS#7 with encryption base 64. 3. 12. 2020 Upgrade CS OTE 5

XML messages formats – changes in Upgrade CS OTE • Formats XML according to OTE standard – Extension of MASTERDATA structure, new comm. scenarios ◦ assignment / change – subject of settlement (individually or within the supplier change process) ◦ assignment / change the role of observer at OPM ◦ Electronical assignment of repsponsibility for imbalance – Finished support for registration of bilateral contracts (replaced by evidence of realization diagrams according to std. ETSO) – Support for communication merged markets ČR/SR ◦ New indetification EIC (not relevant for market participants) ◦ Data exchange between coordinators of short-term markets and TSO ◦ New comm. scenarios – For market participants – Information about market coupling capacity (MCC)(ETSO ECAN. Capacity. Document / ESR. Status. Request / EAD. Acknowledgement. Document ) – SFVOT reports modification 3. 12. 2020 Upgrade CS OTE 6

XML formats – changes in Upgrade CS OTE • XML messages according to ETSO – For communication in area of „registration of realization diagrams “ are used standard XML messages according to ETSO specification: ◦ ETSO Scheduling System (ESS) V 3 R 1 ◦ ETSO Acknoledgement Process V 5 R 0 ◦ ETSO Status Request V 1 R 1 – For communication between OTE – ČEPS and SEPS in area of market couplingare used XML messages according to following ETSO standards: ◦ ◦ ◦ ETSO Scheduling system ESS – Version 3 Release 1 ETSO Capacity Allocation and Nomination ECAN – Version 4 Release 0 ETSO Acknowledgement Document EAD – Version 5 Release 0 ETSO Status Request V 1 R 1 ETSO Acknoledgement Process V 5 R 0 – ETSO formats will be implemented in exact format that is published at ETSO web site http: //www. entsoe. eu/ 3. 12. 2020 Upgrade CS OTE 7

EDI messages – changes in Upgrade CS OTE • External interface of automatic communication will support EDI (std EDINE with statutory requirements adjustments) for following processes: – Communication in area of measured data ◦ For input in format MSCONS ◦ For confirmation in format APERAK – Communication in area of additional invoicing data for distributors VO (DUF VO) ◦ For input in format MSCONS ◦ For confirmation in format APERAK – A scope and form of messages will not differ from current implementation. – Support of other EDI messages will be closed. 3. 12. 2020 Upgrade CS OTE 8

Documentation • Documentation is available in draft version 1. 0. During implementation can be changed in case of new demands. OTE will inform all market participants. Dokument Popis D 1. 4. 1_Formaty_EDI_V 1_0 EDI messages D 1. 4. 2_Formaty_XML_V 1_0 XML messages including XSD templates D 1. 4. 3_Rozhrani_web_sluzeb_V 1_0 Description of web services D 1. 4. 4_Rozhrani_automaticke_komunik ace_IS_OTE_V 1_0 IS OTE interface –XML formats for trading, realization diagrams, settlement results (updated current documentation) Specifikace formátů ETSO XML messages according to ETSO. http: //www. entsoe. eu/resources/edi/ 3. 12. 2020 Upgrade CS OTE 9

Agenda 3. 12. 2020 1 Change in interfaces of CS OTE 2 Testing and parael run Upgrade CS OTE 10

Testing • Complex testing – KV 1 ◦ In test enviroment with simulated interface with each type of interface, basic functionality tests ◦ OTE and Logica – KV 2 ◦ In test enviroment with 2 -3 ext. Subjects – interfaces test incl. Test of comm. Abilities of CS OTE (benchmark) – KV 3 ◦ In test enviroment with connected key market participants (all distributors incl. Local ones, TSO, one selected local distributor and 3 traders with electricity) incl. Basic functionalities test (web interface) of Ugraded CS OTE. 3. 12. 2020 Upgrade CS OTE 11

Parael run • Parael run current and upgraded CS OTE – Primary system – current system CS OTE that is operated in production till the end of year 2009. – Secondary system for evaluation – upgraded system • Purpose of parael run – It is ment for evaluation and adaptation of upgraded system by market participants. – An optional comparison of results and outputs from upgrade CS OTE 3. 12. 2020 Upgrade CS OTE 12

Phases of parael run • I. Phase – data processing check (parael data input to both enviroments) – The purpose is evaluation and comparison of modules that have not been modified in scope of upgrade or modules that were modified during a year 2009 in both enviroments. This phase will affect mostly Center of Data Services (processing of measured data, aggregations, reallocation and outputs for subjects of settlement that are input for settlement of imbalance process. ) – Cooperation of OTE and Logica • II. Phase – evaluation of external interfaces and new features of upgraded systém with market participants – The aim is to evaluate whether all market participants are all set to go-live (productive run) from 1. 1. 2010. Above all in those areas: ◦ Modification of external interfaces ◦ Evaluation of market participants readiness to all amended functionalities and features even possible changes of their processes & systems. • III. Phase – complex operation examination (simulation of production run) – The main target of this phase is complex evaluation of all activities during a trading day (or days) that will include collection of data, their processing and settlement. 3. 12. 2020 Upgrade CS OTE 13

Parael run – Phase II. – evaluation of external interfaces and new features • CS OTE enviroment will be created as an copy of productive system to date 31. 10. 2009 • Market participants – Setup of all interfaces (with cooperation of OTE/Logica) – Test of used communication scenarios – Recommended for all market participants 3. 12. 2020 Upgrade CS OTE 14

Parael run - Phase III. Complex evaluation • Evaluation of all processes in one trading day • Introduction of all new interfaces (web + automatical communication) • Participants – Simulation of complex operations ◦ Trading (all markets), registration of diagrams, supplier change process, measured data … ◦ Open for all market participants (the more contributors the better evaluation) 3. 12. 2020 Upgrade CS OTE 15

Access items for the parael run • To establish an encrypted channel for automatic communication during KV 2 and KV 3 phases we offer following variants of certificates: – SW certificates that will be valid after parael run and will be used for testing/training enviroment – they’ll be handed out free of charge. Be warned that sw certificate has possible security breach of copying this access item and with the knowledge of a password it can grant the access to historical data stored within the testing / training system. – HW certificates that will be used for testing / training after period of parael run – those certificates will be issued on standard commerce terms either from OTECA or I. Certification authority. – Usage of currently issued testing certificates – some of participants have HW certificates for testing purposes today. Those certificates can be used during testing phases KV 2 and KV 3 and all parael run. 3. 12. 2020 Upgrade CS OTE 16

Extract from Project schedule 3. 12. 2020 Upgrade CS OTE 17

Thank you for your attention 3. 12. 2020 Upgrade CS OTE 18
