Updates on ESS Handbook for Radiation Protection Lena

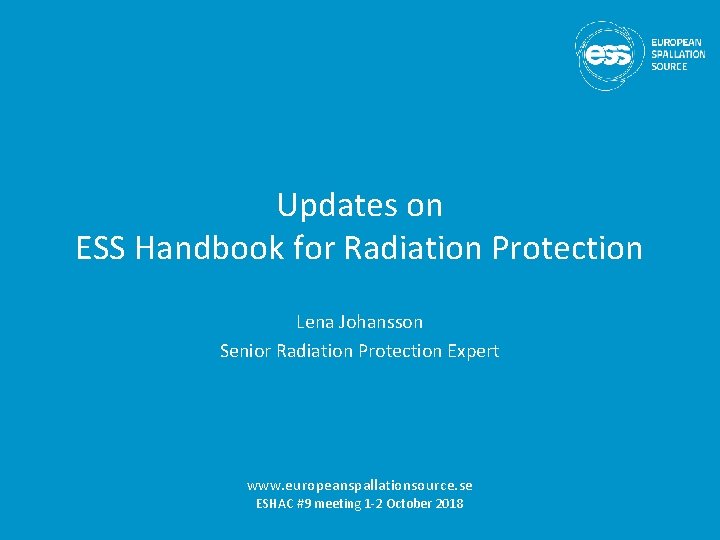

Updates on ESS Handbook for Radiation Protection Lena Johansson Senior Radiation Protection Expert www. europeanspallationsource. se ESHAC #9 meeting 1 -2 October 2018

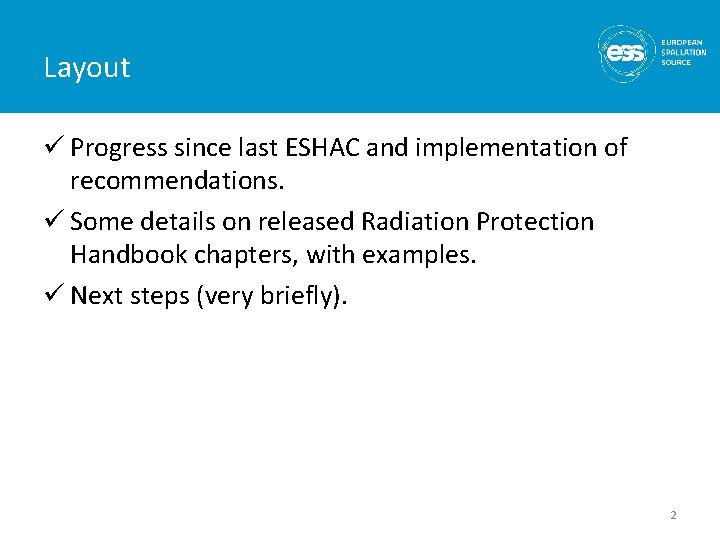

Layout ü Progress since last ESHAC and implementation of recommendations. ü Some details on released Radiation Protection Handbook chapters, with examples. ü Next steps (very briefly). 2

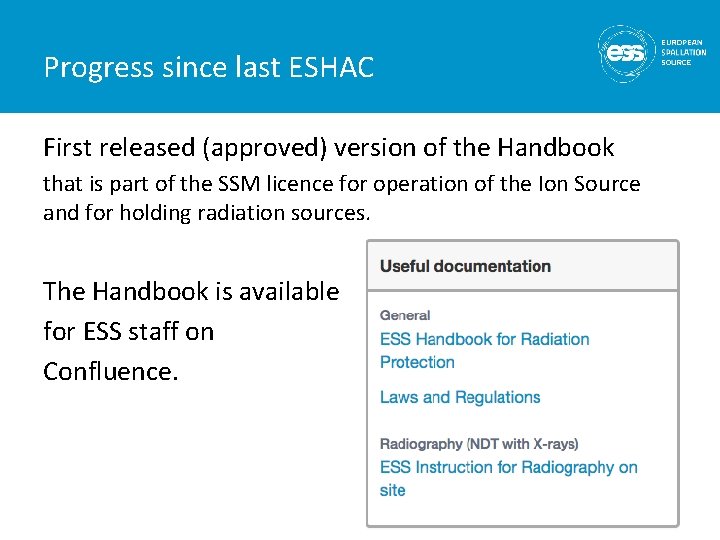

Progress since last ESHAC First released (approved) version of the Handbook that is part of the SSM licence for operation of the Ion Source and for holding radiation sources. The Handbook is available for ESS staff on Confluence. 3

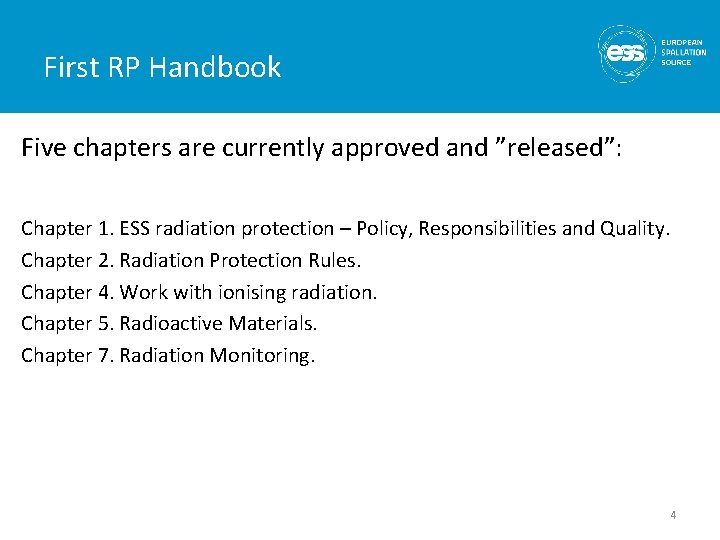

First RP Handbook Five chapters are currently approved and ”released”: Chapter 1. ESS radiation protection – Policy, Responsibilities and Quality. Chapter 2. Radiation Protection Rules. Chapter 4. Work with ionising radiation. Chapter 5. Radioactive Materials. Chapter 7. Radiation Monitoring. 4

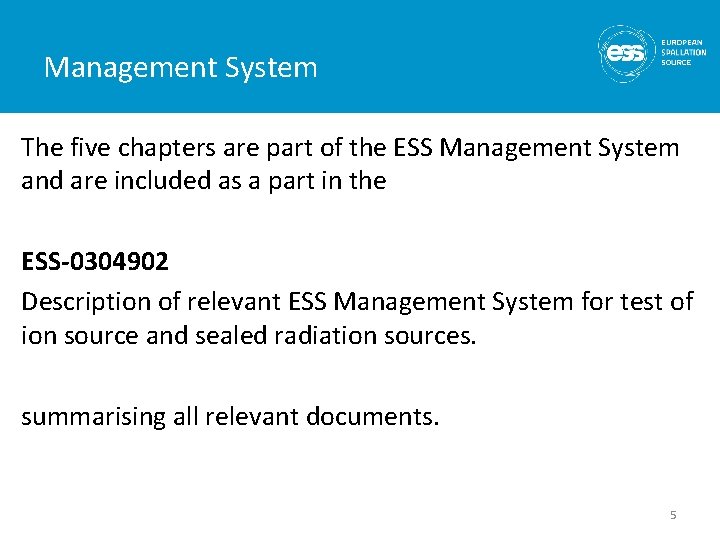

Management System The five chapters are part of the ESS Management System and are included as a part in the ESS-0304902 Description of relevant ESS Management System for test of ion source and sealed radiation sources. summarising all relevant documents. 5

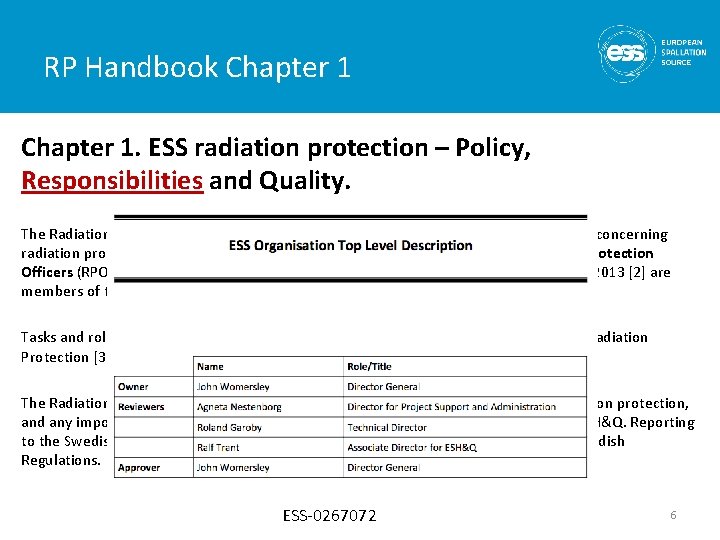

RP Handbook Chapter 1. ESS radiation protection – Policy, Responsibilities and Quality. The Radiation Protection (RP) group within the ESH division is responsible for all aspects concerning radiation protection at ESS. The ESS Radiation Protection Experts (RPE) and Radiation Protection Officers (RPO) as defined in the Council Directive 2013/59/EURATOM from 5 December 2013 [2] are members of the RP group. Tasks and roles for the RP group are further described in the Functional description for Radiation Protection [3] and subsidiary documents. The Radiation Protection group has a responsibility to report regularly concerning radiation protection, and any important matter within shortest possible delay, to the Associate Director of ESH&Q. Reporting to the Swedish Radiation Safety Authority (SSM) will be done in compliance with the Swedish Regulations. ESS-0267072 6

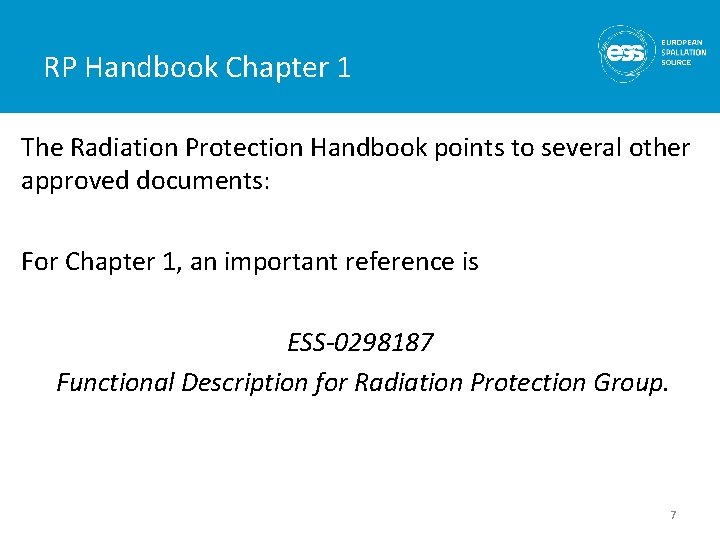

RP Handbook Chapter 1 The Radiation Protection Handbook points to several other approved documents: For Chapter 1, an important reference is ESS-0298187 Functional Description for Radiation Protection Group. 7

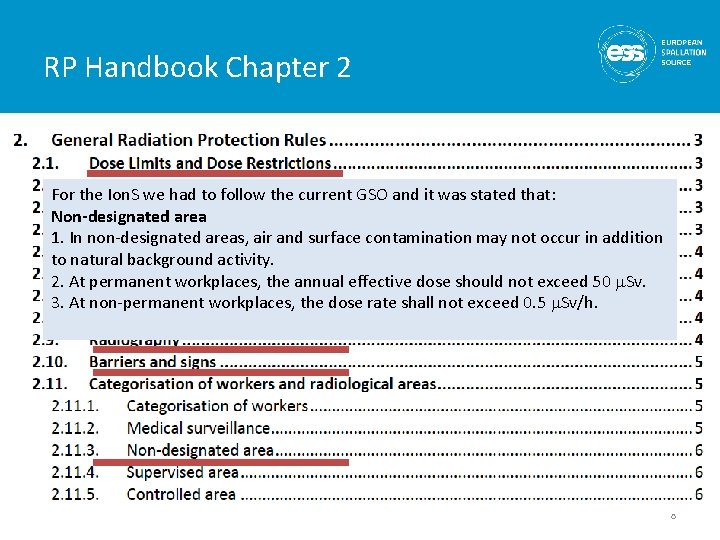

RP Handbook Chapter 2 For the Ion. S we had to follow the current GSO and it was stated that: Non-designated area 1. In non-designated areas, air and surface contamination may not occur in addition to natural background activity. 2. At permanent workplaces, the annual effective dose should not exceed 50 m. Sv. 3. At non-permanent workplaces, the dose rate shall not exceed 0. 5 m. Sv/h. 8

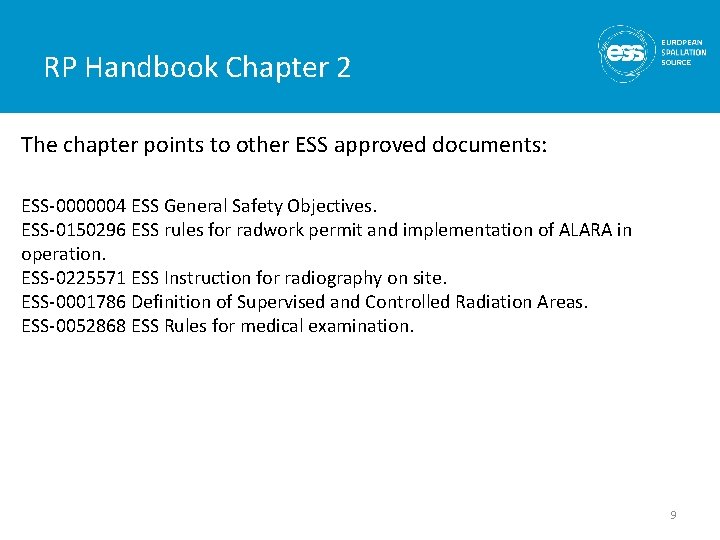

RP Handbook Chapter 2 The chapter points to other ESS approved documents: ESS-0000004 ESS General Safety Objectives. ESS-0150296 ESS rules for radwork permit and implementation of ALARA in operation. ESS-0225571 ESS Instruction for radiography on site. ESS-0001786 Definition of Supervised and Controlled Radiation Areas. ESS-0052868 ESS Rules for medical examination. 9

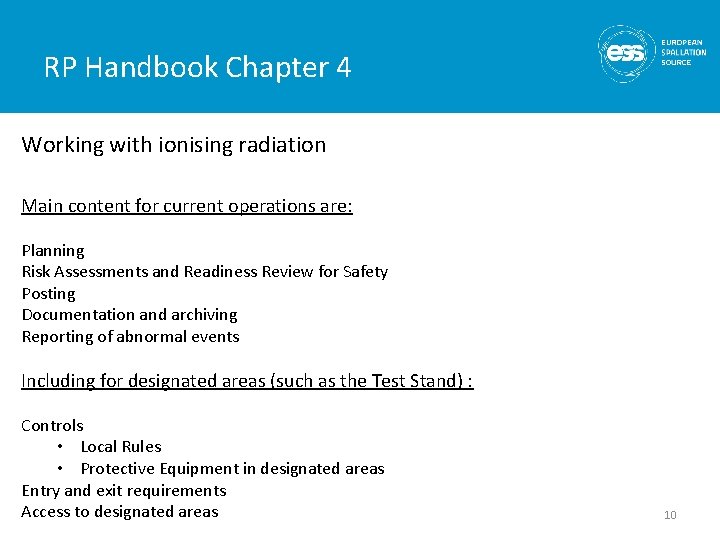

RP Handbook Chapter 4 Working with ionising radiation Main content for current operations are: Planning Risk Assessments and Readiness Review for Safety Posting Documentation and archiving Reporting of abnormal events Including for designated areas (such as the Test Stand) : Controls • Local Rules • Protective Equipment in designated areas Entry and exit requirements Access to designated areas 10

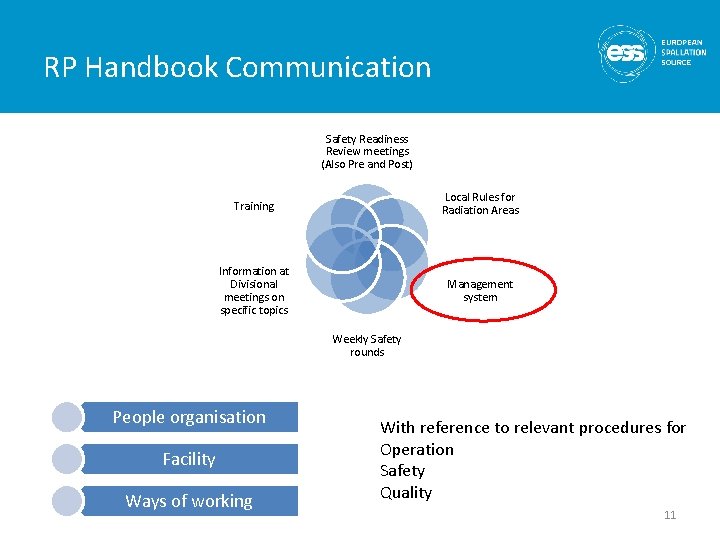

RP Handbook Communication Safety Readiness Review meetings (Also Pre and Post) Training Local Rules for Radiation Areas Information at Divisional meetings on specific topics Management system Weekly Safety rounds People organisation Facility Ways of working With reference to relevant procedures for Operation Safety Quality 11

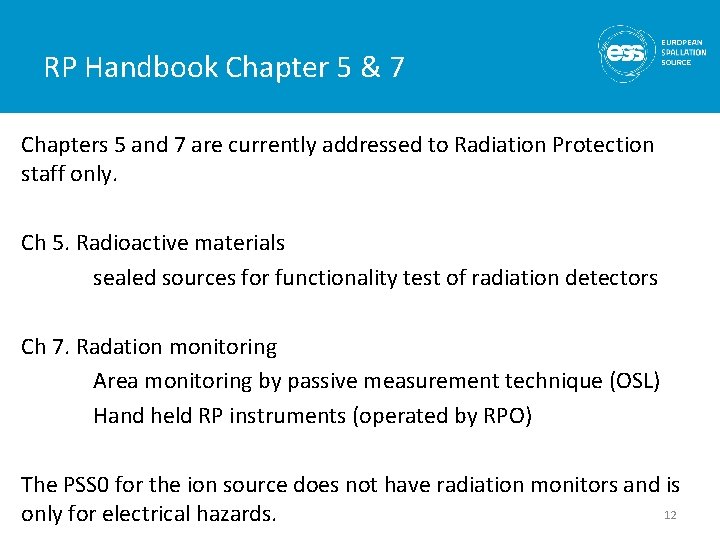

RP Handbook Chapter 5 & 7 Chapters 5 and 7 are currently addressed to Radiation Protection staff only. Ch 5. Radioactive materials sealed sources for functionality test of radiation detectors Ch 7. Radation monitoring Area monitoring by passive measurement technique (OSL) Hand held RP instruments (operated by RPO) The PSS 0 for the ion source does not have radiation monitors and is 12 only for electrical hazards.

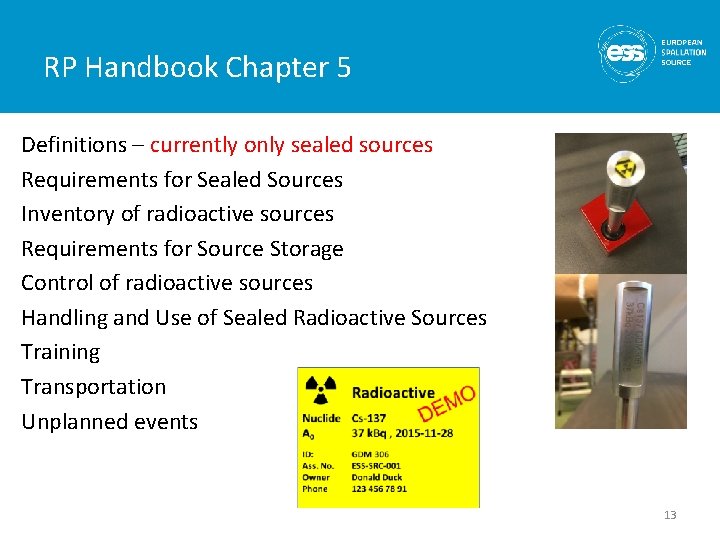

RP Handbook Chapter 5 Definitions – currently only sealed sources Requirements for Sealed Sources Inventory of radioactive sources Requirements for Source Storage Control of radioactive sources Handling and Use of Sealed Radioactive Sources Training Transportation Unplanned events 13

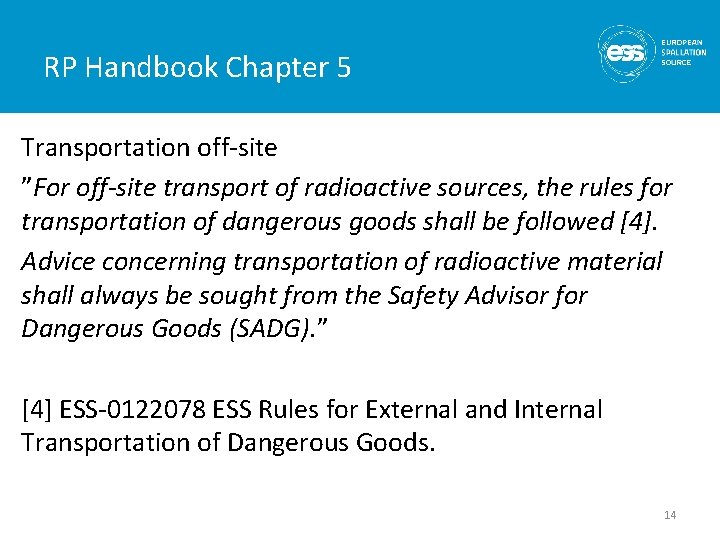

RP Handbook Chapter 5 Transportation off-site ”For off-site transport of radioactive sources, the rules for transportation of dangerous goods shall be followed [4]. Advice concerning transportation of radioactive material shall always be sought from the Safety Advisor for Dangerous Goods (SADG). ” [4] ESS-0122078 ESS Rules for External and Internal Transportation of Dangerous Goods. 14

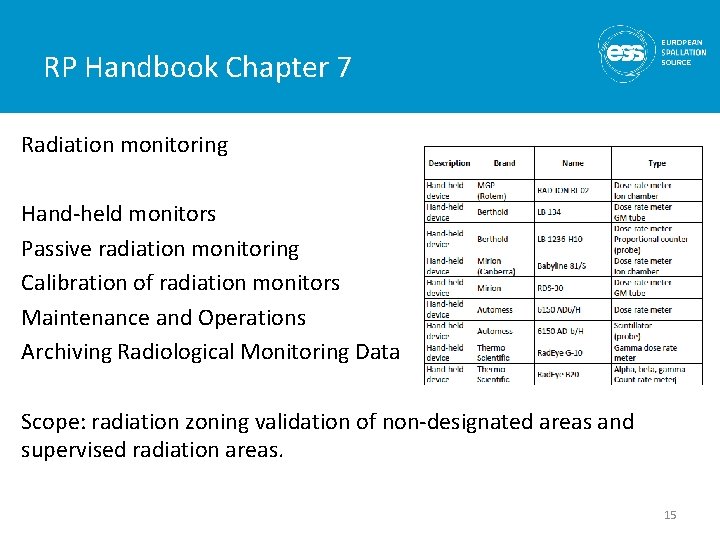

RP Handbook Chapter 7 Radiation monitoring Hand-held monitors Passive radiation monitoring Calibration of radiation monitors Maintenance and Operations Archiving Radiological Monitoring Data Scope: radiation zoning validation of non-designated areas and supervised radiation areas. 15

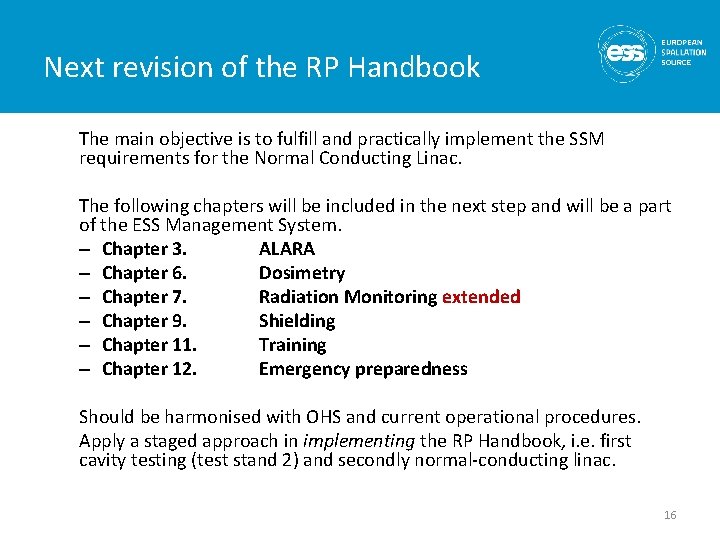

Next revision of the RP Handbook The main objective is to fulfill and practically implement the SSM requirements for the Normal Conducting Linac. The following chapters will be included in the next step and will be a part of the ESS Management System. – Chapter 3. ALARA – Chapter 6. Dosimetry – Chapter 7. Radiation Monitoring extended – Chapter 9. Shielding – Chapter 11. Training – Chapter 12. Emergency preparedness Should be harmonised with OHS and current operational procedures. Apply a staged approach in implementing the RP Handbook, i. e. first cavity testing (test stand 2) and secondly normal-conducting linac. 16

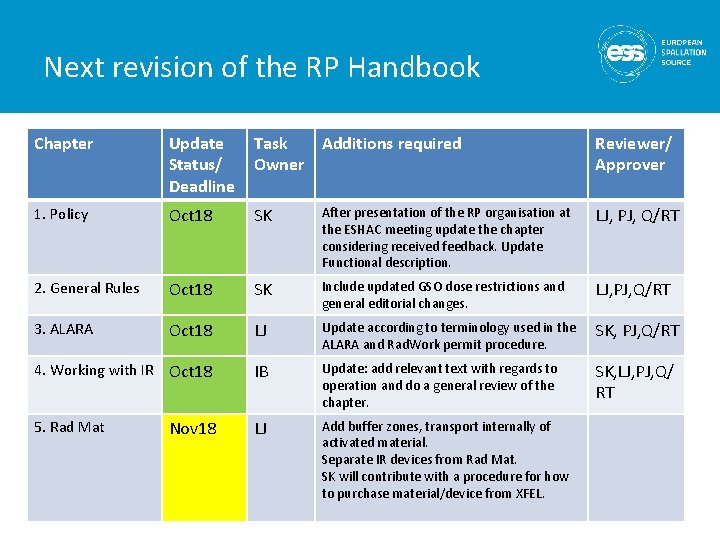

Next revision of the RP Handbook Chapter Update Status/ Deadline Task Additions required Owner Reviewer/ Approver 1. Policy Oct 18 SK After presentation of the RP organisation at the ESHAC meeting update the chapter considering received feedback. Update Functional description. LJ, PJ, Q/RT 2. General Rules Oct 18 SK Include updated GSO dose restrictions and general editorial changes. LJ, PJ, Q/RT 3. ALARA Oct 18 LJ Update according to terminology used in the ALARA and Rad. Work permit procedure. SK, PJ, Q/RT 4. Working with IR Oct 18 IB Update: add relevant text with regards to operation and do a general review of the chapter. SK, LJ, PJ, Q/ RT Nov 18 LJ Add buffer zones, transport internally of activated material. Separate IR devices from Rad Mat. SK will contribute with a procedure for how to purchase material/device from XFEL. 5. Rad Mat 17

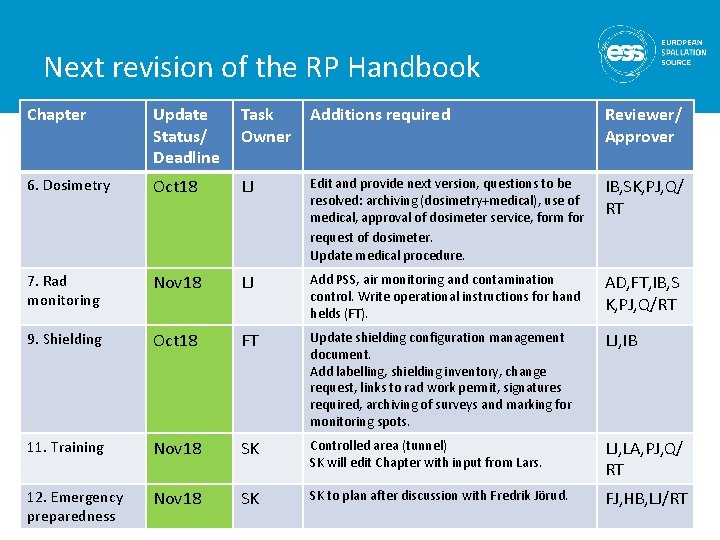

Next revision of the RP Handbook Chapter Update Status/ Deadline Task Owner Additions required Reviewer/ Approver 6. Dosimetry Oct 18 LJ Edit and provide next version, questions to be resolved: archiving (dosimetry+medical), use of medical, approval of dosimeter service, form for request of dosimeter. Update medical procedure. IB, SK, PJ, Q/ RT 7. Rad monitoring Nov 18 LJ Add PSS, air monitoring and contamination control. Write operational instructions for hand helds (FT). AD, FT, IB, S K, PJ, Q/RT 9. Shielding Oct 18 FT Update shielding configuration management document. Add labelling, shielding inventory, change request, links to rad work permit, signatures required, archiving of surveys and marking for monitoring spots. LJ, IB 11. Training Nov 18 SK Controlled area (tunnel) SK will edit Chapter with input from Lars. LJ, LA, PJ, Q/ RT 12. Emergency preparedness Nov 18 SK SK to plan after discussion with Fredrik Jörud. FJ, HB, LJ/RT 18
