Updated Radar-Based Techniques for Tornado Warning Guidance in the Northeastern United States Brian J. Frugis & Thomas A. Wasula NOAA/NWS Albany, New York NROW XVI – 4 -5 November 2015

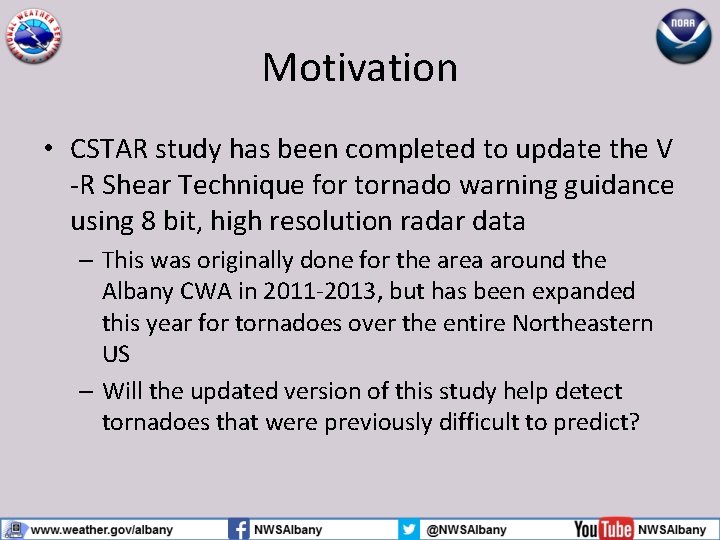

Motivation • CSTAR study has been completed to update the V -R Shear Technique for tornado warning guidance using 8 bit, high resolution radar data – This was originally done for the area around the Albany CWA in 2011 -2013, but has been expanded this year for tornadoes over the entire Northeastern US – Will the updated version of this study help detect tornadoes that were previously difficult to predict?

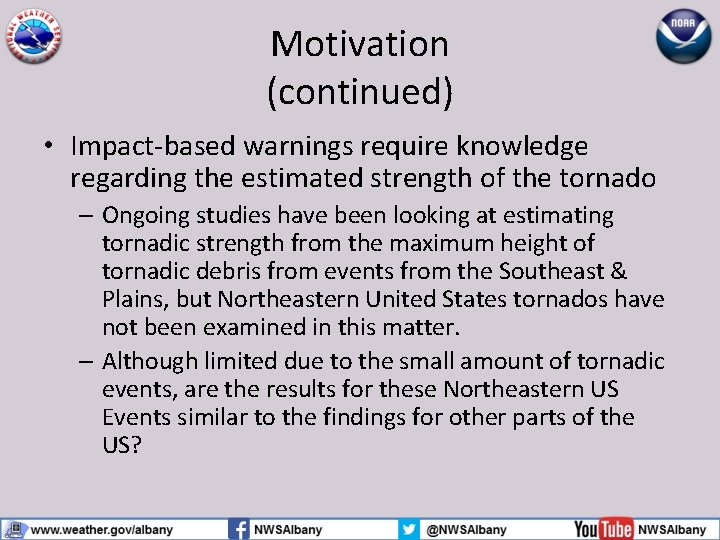

Motivation (continued) • Impact-based warnings require knowledge regarding the estimated strength of the tornado – Ongoing studies have been looking at estimating tornadic strength from the maximum height of tornadic debris from events from the Southeast & Plains, but Northeastern United States tornados have not been examined in this matter. – Although limited due to the small amount of tornadic events, are the results for these Northeastern US Events similar to the findings for other parts of the US?

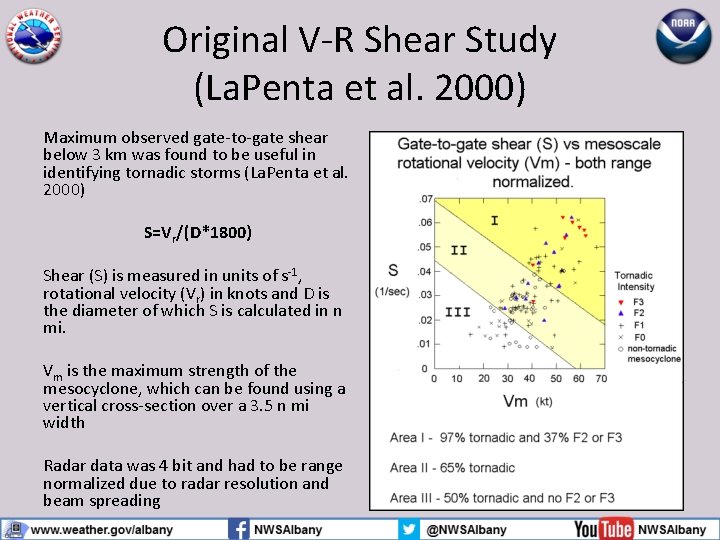

Original V-R Shear Study (La. Penta et al. 2000) Maximum observed gate-to-gate shear below 3 km was found to be useful in identifying tornadic storms (La. Penta et al. 2000) S=Vr/(D*1800) Shear (S) is measured in units of s-1, rotational velocity (Vr) in knots and D is the diameter of which S is calculated in n mi. Vm is the maximum strength of the mesocyclone, which can be found using a vertical cross-section over a 3. 5 n mi width Radar data was 4 bit and had to be range normalized due to radar resolution and beam spreading

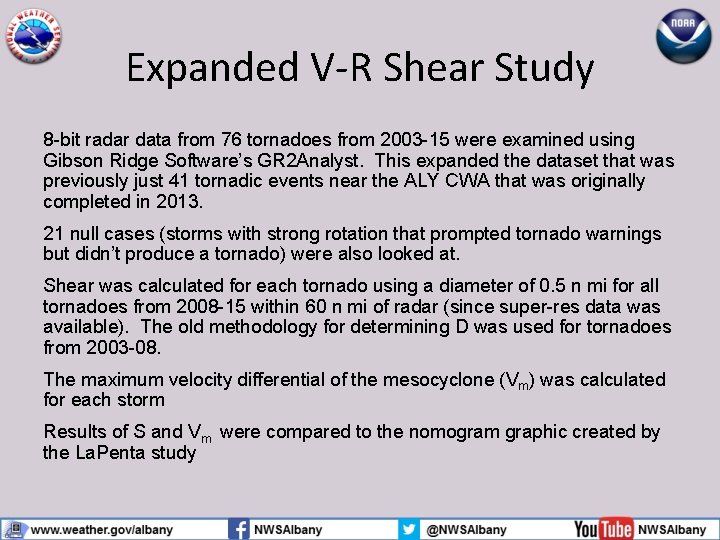

Expanded V-R Shear Study 8 -bit radar data from 76 tornadoes from 2003 -15 were examined using Gibson Ridge Software’s GR 2 Analyst. This expanded the dataset that was previously just 41 tornadic events near the ALY CWA that was originally completed in 2013. 21 null cases (storms with strong rotation that prompted tornado warnings but didn’t produce a tornado) were also looked at. Shear was calculated for each tornado using a diameter of 0. 5 n mi for all tornadoes from 2008 -15 within 60 n mi of radar (since super-res data was available). The old methodology for determining D was used for tornadoes from 2003 -08. The maximum velocity differential of the mesocyclone (Vm) was calculated for each storm Results of S and Vm were compared to the nomogram graphic created by the La. Penta study

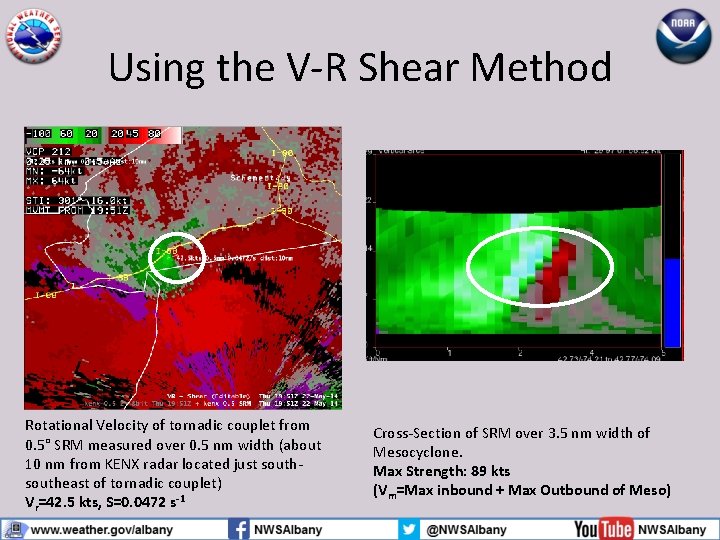

Using the V-R Shear Method Rotational Velocity of tornadic couplet from 0. 5° SRM measured over 0. 5 nm width (about 10 nm from KENX radar located just southeast of tornadic couplet) Vr=42. 5 kts, S=0. 0472 s-1 Cross-Section of SRM over 3. 5 nm width of Mesocyclone. Max Strength: 89 kts (Vm=Max inbound + Max Outbound of Meso)

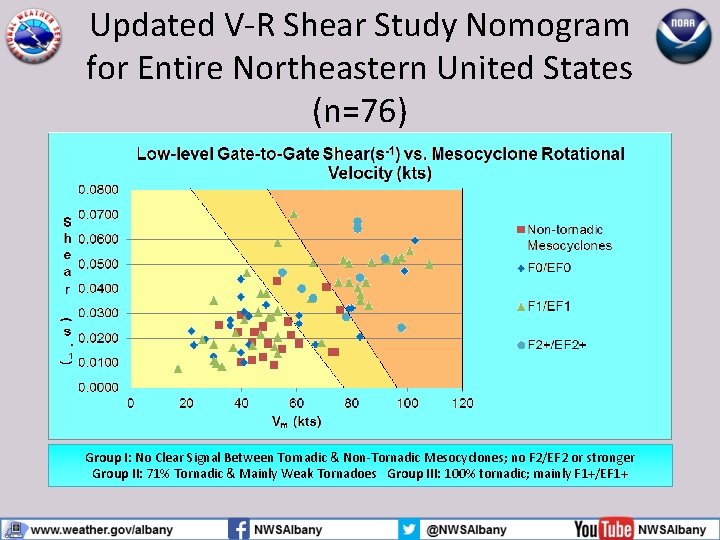

Updated V-R Shear Study Nomogram for Entire Northeastern United States (n=76) Group I: No Clear Signal Between Tornadic & Non-Tornadic Mesocyclones; no F 2/EF 2 or stronger Group II: 71% Tornadic & Mainly Weak Tornadoes Group III: 100% tornadic; mainly F 1+/EF 1+

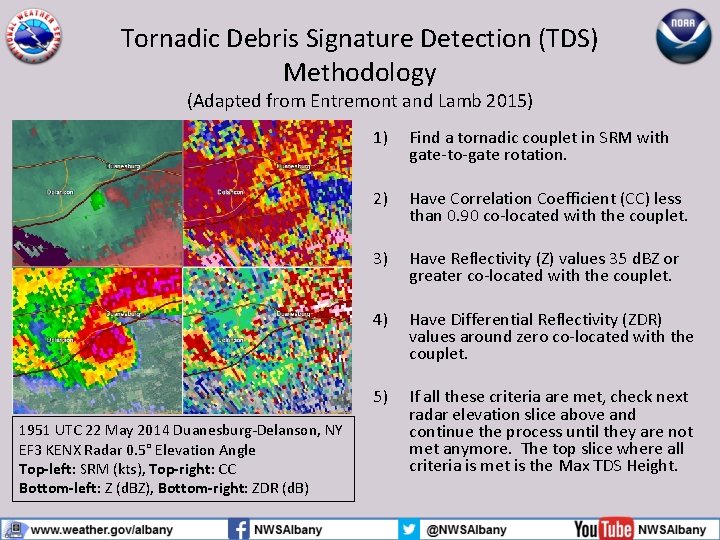

Tornadic Debris Signature Detection (TDS) Methodology (Adapted from Entremont and Lamb 2015) 1951 UTC 22 May 2014 Duanesburg-Delanson, NY EF 3 KENX Radar 0. 5° Elevation Angle Top-left: SRM (kts), Top-right: CC Bottom-left: Z (d. BZ), Bottom-right: ZDR (d. B) 1) Find a tornadic couplet in SRM with gate-to-gate rotation. 2) Have Correlation Coefficient (CC) less than 0. 90 co-located with the couplet. 3) Have Reflectivity (Z) values 35 d. BZ or greater co-located with the couplet. 4) Have Differential Reflectivity (ZDR) values around zero co-located with the couplet. 5) If all these criteria are met, check next radar elevation slice above and continue the process until they are not met anymore. The top slice where all criteria is met is the Max TDS Height.

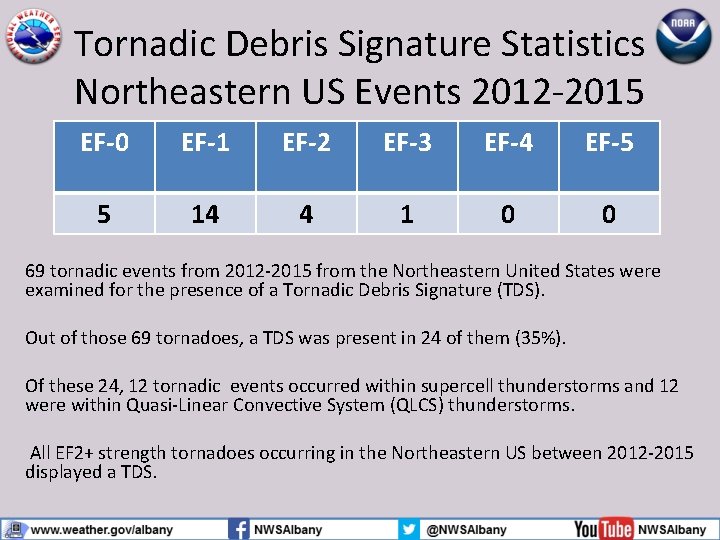

Tornadic Debris Signature Statistics Northeastern US Events 2012 -2015 EF-0 EF-1 EF-2 EF-3 EF-4 EF-5 5 14 4 1 0 0 69 tornadic events from 2012 -2015 from the Northeastern United States were examined for the presence of a Tornadic Debris Signature (TDS). Out of those 69 tornadoes, a TDS was present in 24 of them (35%). Of these 24, 12 tornadic events occurred within supercell thunderstorms and 12 were within Quasi-Linear Convective System (QLCS) thunderstorms. All EF 2+ strength tornadoes occurring in the Northeastern US between 2012 -2015 displayed a TDS.

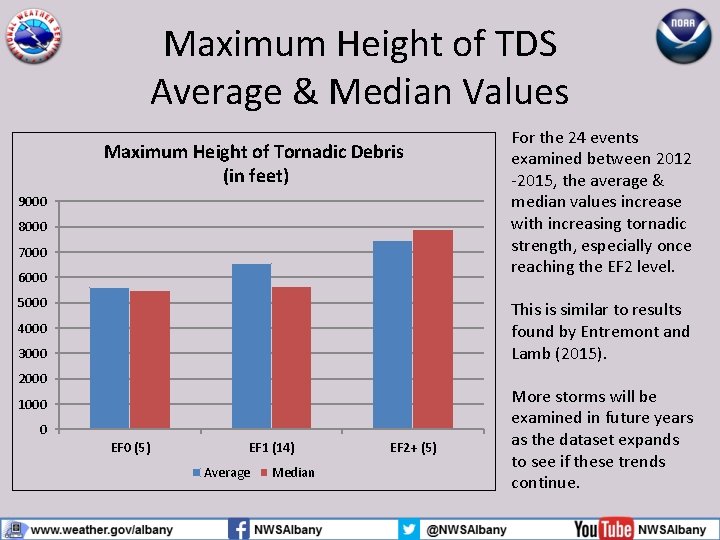

Maximum Height of TDS Average & Median Values Maximum Height of Tornadic Debris (in feet) 9000 8000 7000 6000 5000 For the 24 events examined between 2012 -2015, the average & median values increase with increasing tornadic strength, especially once reaching the EF 2 level. This is similar to results found by Entremont and Lamb (2015). 4000 3000 2000 1000 0 EF 0 (5) EF 1 (14) Average Median EF 2+ (5) More storms will be examined in future years as the dataset expands to see if these trends continue.

Maximum Height of TDS vs. EF Scale Strength vs. Range Weak tornadic events (EF 0) were generally only see close to the radar, as debris generally didn’t get very high and beam height rising over distance would prevent these further away storms from being seen. Max TDS Height (feet) Max TDS Height vs. EF Scale Strength vs. Range (n=24) 18000 16000 14000 12000 10000 8000 6000 4000 2000 0 0 20 EF 0 40 Range (nm) EF 1 EF 2+ 60 80 Hard to seen much difference between EF 0/EF 1 storms with this plot.

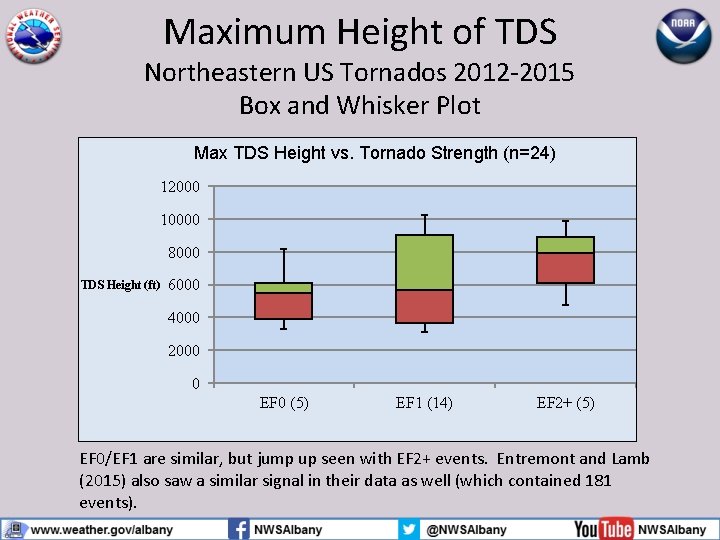

Maximum Height of TDS Northeastern US Tornados 2012 -2015 Box and Whisker Plot Max TDS Height vs. Tornado Strength (n=24) 12000 10000 8000 TDS Height (ft) 6000 4000 2000 0 EF 0 (5) EF 1 (14) EF 2+ (5) EF 0/EF 1 are similar, but jump up seen with EF 2+ events. Entremont and Lamb (2015) also saw a similar signal in their data as well (which contained 181 events).

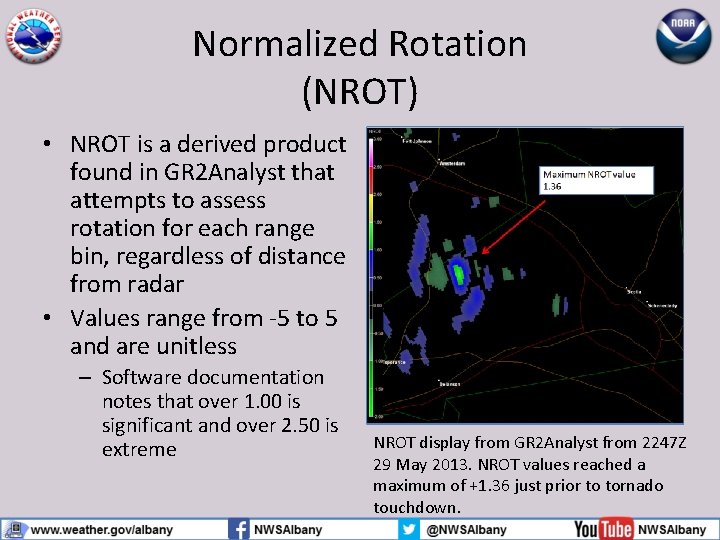

Normalized Rotation (NROT) • NROT is a derived product found in GR 2 Analyst that attempts to assess rotation for each range bin, regardless of distance from radar • Values range from -5 to 5 and are unitless – Software documentation notes that over 1. 00 is significant and over 2. 50 is extreme NROT display from GR 2 Analyst from 2247 Z 29 May 2013. NROT values reached a maximum of +1. 36 just prior to tornado touchdown.

Normalized Rotation (NROT) Data & Analysis • 137 tornadic events from 2003 -2015 from the Northeastern United States were examined using Gibson Ridge’s software GR 2 Analyst. • The value of Normalized Rotation (NROT) was recorded at the onset for each tornadic event. • In addition, 42 null events were examined as well. Null events showed enough rotation to warrant a tornado warning, but a tornado was not reported.

Normalized Rotation (NROT) As Compared to Storm Strength NROT Values at Tornado Formation (n=137) Northeastern US Tornadic Events 2003 -2015 1. 60 1. 40 1. 20 1. 00 NROT 0. 80 0. 60 0. 40 0. 20 0. 00 -0. 20 EF 0 (49) EF 1 (75) EF 2+ (13)

Normalized Rotation (NROT) Null vs. Tornadic Events NROT Values at Time of Actual Tornado or Tornado Warning for Null Events (n=179) 1. 80 Northeastern United States 2003 -2015 1. 60 1. 40 1. 20 1. 00 NROT 0. 80 0. 60 0. 40 0. 20 0. 00 Null Events (42) Tornadic Events (137)

Conclusions: Expanded V-R Shear Study • The updated V-R Shear technique shows similar results as the previous study done by La. Penta et al. in 2000, but now accounts for the improvements in radar resolution. – Expanded dataset over entire Northeastern US helps increase confidence in study results • Weak Tornadoes (EF 0/EF 1) continue to be difficult to detect via radar – Expanded V-R Shear Study still shows little skill differentiating between null mesocyclones & weak tornadoes • Strong tornadoes for the Northeast (EF 2+) show a strong correlation between increasing amounts of low-level shear and the increased strength within the mid-level mesocyclone

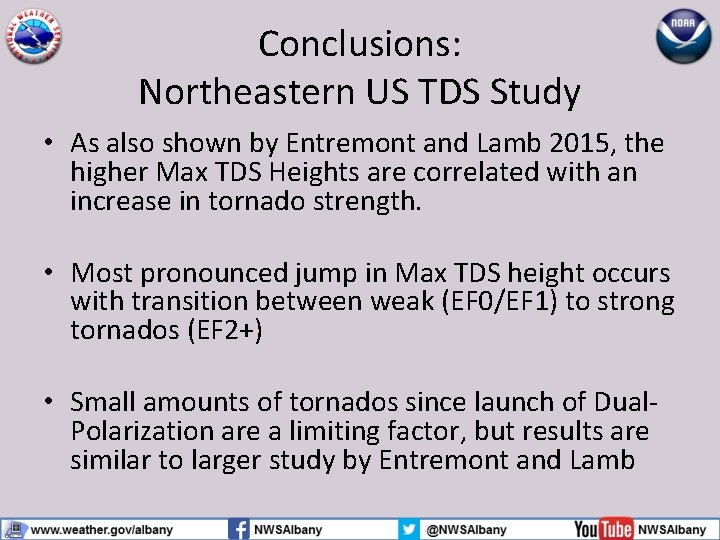

Conclusions: Northeastern US TDS Study • As also shown by Entremont and Lamb 2015, the higher Max TDS Heights are correlated with an increase in tornado strength. • Most pronounced jump in Max TDS height occurs with transition between weak (EF 0/EF 1) to strong tornados (EF 2+) • Small amounts of tornados since launch of Dual. Polarization are a limiting factor, but results are similar to larger study by Entremont and Lamb

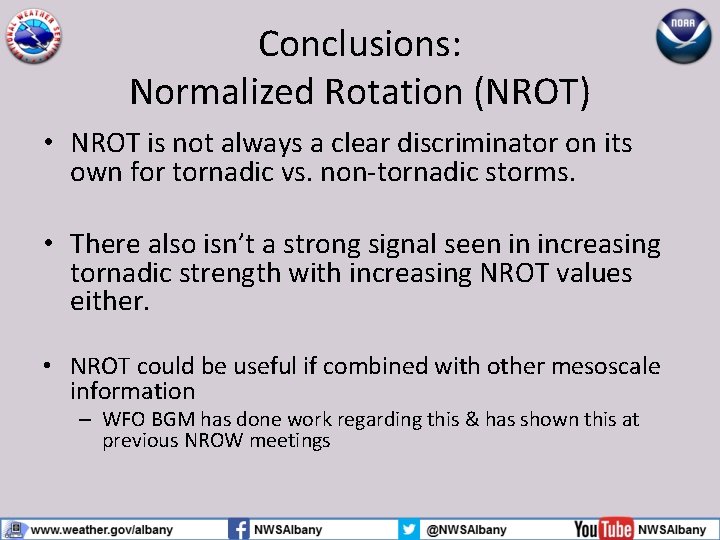

Conclusions: Normalized Rotation (NROT) • NROT is not always a clear discriminator on its own for tornadic vs. non-tornadic storms. • There also isn’t a strong signal seen in increasing tornadic strength with increasing NROT values either. • NROT could be useful if combined with other mesoscale information – WFO BGM has done work regarding this & has shown this at previous NROW meetings
