Unix Startup procedure Boot strap ROM Kernel Initialization

Unix Startup procedure Boot strap ROM Kernel Initialization, Hardware probing. Creation of Swapper&init Single User Mode Init executes single or rc scripts multi-user? /etc/ttys (BSD) Init reads terminal configuration file Getty process started Unix Administration /etc/inittab (System V) Getty process started 1 CSIE. NCKU

ROM & Boot strap 4 ROM: that contains a program the machine executes when the power first comes on. – IBM PC – UNIX hardware has some form of prompt to allow administrator to • specify where to boot the machine from (boot partition corrupt, then from another HD, CD-ROM, floppy, tape drive) • come up in single user or multi-user mode. Unix Administration 2 CSIE. NCKU

ROM & Bootstrapping 4 The Bootstrap Program – The code stored in the boot block is referred to as a bootstrap program, executed by ROM – responsible for locating and loading the kernel of UNIX operating system into memory from disk. – On some systems, it also performs some additional hardware probing. Unix Administration 3 CSIE. NCKU

Kernel Initialization 4 Test RAM & reserve part of RAM for kernel, or print available RAM 4 initialize its internal data structures, Unix Administration 4 CSIE. NCKU

Kernel Initialization 4 Perform some further hardware checking for major devices supposed to be connected, 4 Probe bus for devices and ask drivers. If no positive response, disable it. 4 Create the following so called spontaneous processes, because they are not created by fork(). – – PID=0: swapper/sched (BSD/Sys V) PID=1, init/init PID=2, pagedaemon/various handler (BSD/System V) Under Linux • no visible PID 0, • init & kflushd, kupdate, kpiod, kswapd Unix Administration 5 CSIE. NCKU

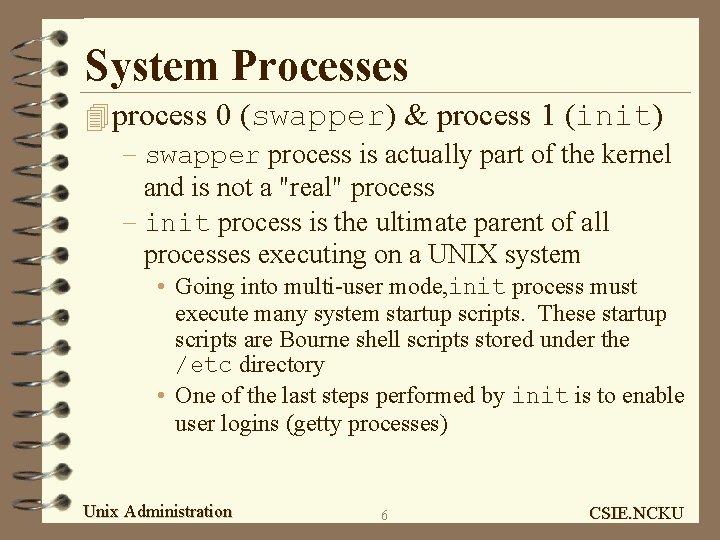

System Processes 4 process 0 (swapper) & process 1 (init) – swapper process is actually part of the kernel and is not a "real" process – init process is the ultimate parent of all processes executing on a UNIX system • Going into multi-user mode, init process must execute many system startup scripts. These startup scripts are Bourne shell scripts stored under the /etc directory • One of the last steps performed by init is to enable user logins (getty processes) Unix Administration 6 CSIE. NCKU

Single/Multi-User 4 All UNIX machine can be in 2 basic states – multi-user mode • standard mode for a UNIX machine. • Multiple users are allowed to log in, all the daemons and all the services provided by the machine are available. – single user mode. • system maintenance mode. • In single user mode only the bare minimum of services are available. Unix Administration 7 CSIE. NCKU

Single/Multi-User – single user mode. • Only one user (the root user) will be able to log in, only the root file system will be mounted automatically (others may be able to be mounted manually) and most of the daemons and services will not be available. 4 two reasons to come up in single user mode – root wanted to perform system maintenance. – the boot procedure has failed, caused by some errors in the initialisation files or by fsck detecting errors that it could not fix by itself. Unix Administration 8 CSIE. NCKU

Operator Intervention, manual boot only(RH) 4 The init process is notified via command-line flag passed in by kernel. (e. g. typing ‘I’ during boot up or single-user mode in Red. Hat) 4 Entering a shell if root password is correctly entered or continuing with the boot process if ^D or exit is pressed. 4 Able to execute all commands except those mounted on other filesystem than /, /bin, /sbin, /etc – the daemon processes like mail will not work correctly. – (Red Hat automatically mount all the filesystems) 4 fsck must be run by hand, if required. Unix Administration 9 CSIE. NCKU

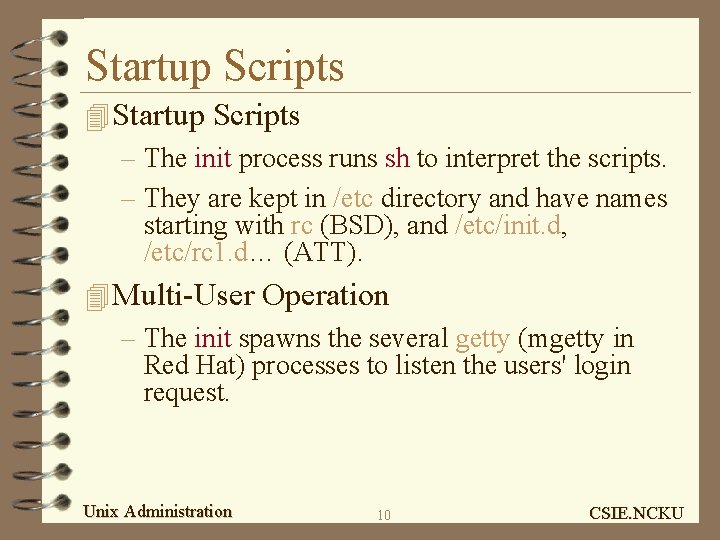

Startup Scripts 4 Startup Scripts – The init process runs sh to interpret the scripts. – They are kept in /etc directory and have names starting with rc (BSD), and /etc/init. d, /etc/rc 1. d… (ATT). 4 Multi-User Operation – The init spawns the several getty (mgetty in Red Hat) processes to listen the users' login request. Unix Administration 10 CSIE. NCKU

System V Run Levels 4 Later versions of System V based Unix added a number of different run levels shown in Table. 4 Run level classify the scripts into groups by level 4 command “who -r” can be used to display the run level Unix Administration 11 CSIE. NCKU

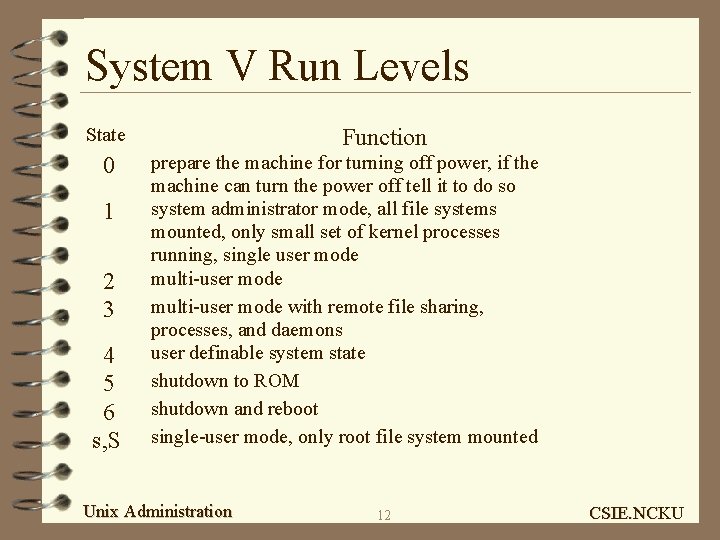

System V Run Levels State 0 1 2 3 4 5 6 s, S Function prepare the machine for turning off power, if the machine can turn the power off tell it to do so system administrator mode, all file systems mounted, only small set of kernel processes running, single user mode multi-user mode with remote file sharing, processes, and daemons user definable system state shutdown to ROM shutdown and reboot single-user mode, only root file system mounted Unix Administration 12 CSIE. NCKU

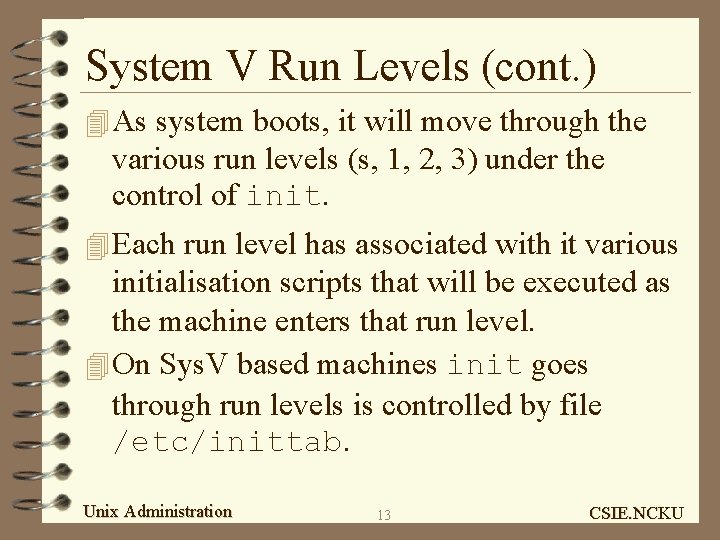

System V Run Levels (cont. ) 4 As system boots, it will move through the various run levels (s, 1, 2, 3) under the control of init. 4 Each run level has associated with it various initialisation scripts that will be executed as the machine enters that run level. 4 On Sys. V based machines init goes through run levels is controlled by file /etc/inittab. Unix Administration 13 CSIE. NCKU

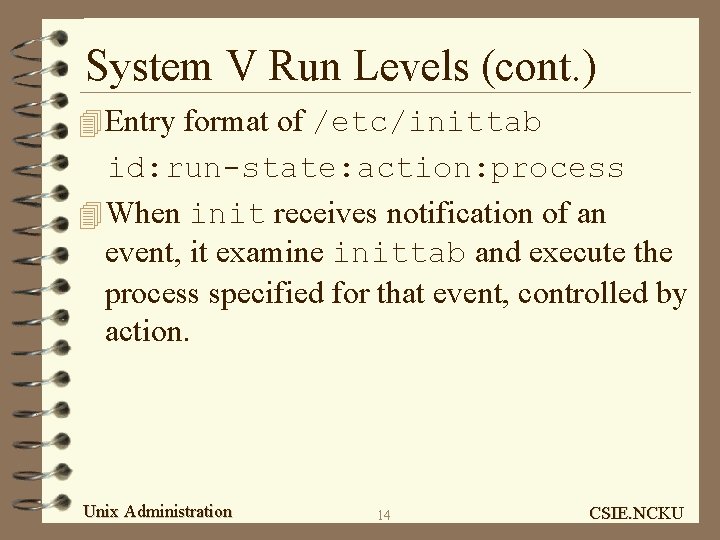

System V Run Levels (cont. ) 4 Entry format of /etc/inittab id: run-state: action: process 4 When init receives notification of an event, it examine inittab and execute the process specified for that event, controlled by action. Unix Administration 14 CSIE. NCKU

System V Run Levels (cont. ) 4 Entry format of /etc/inittab id: run-state: action: process Unix Administration 15 CSIE. NCKU

System V Run Levels (cont. ) 4 Example values for action include 4 respawn: If process doesn’t exist, create it but don't wait for termination, carry on immediately. If at any stage the process terminates, restart it (getty for terminals). 4 Wait: start the process and wait for the process to finish. The process is never executed again until the system receives notification of the event again (This is how system execute initialisation scripts. ) Unix Administration 16 CSIE. NCKU

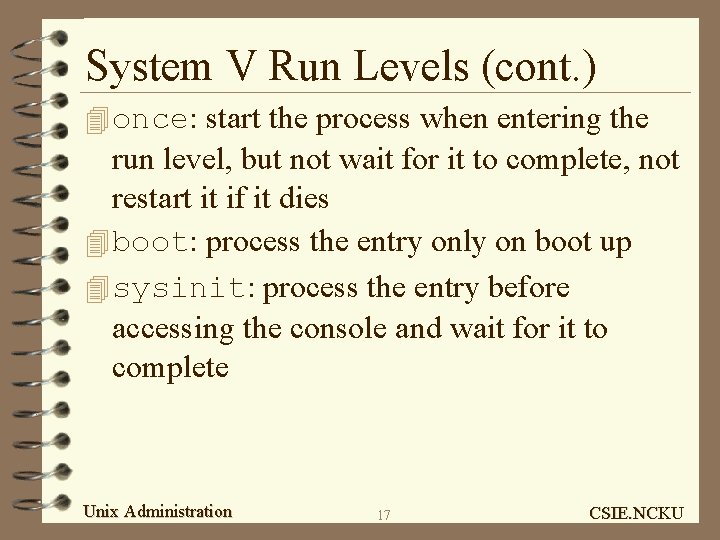

System V Run Levels (cont. ) 4 once: start the process when entering the run level, but not wait for it to complete, not restart it if it dies 4 boot: process the entry only on boot up 4 sysinit: process the entry before accessing the console and wait for it to complete Unix Administration 17 CSIE. NCKU

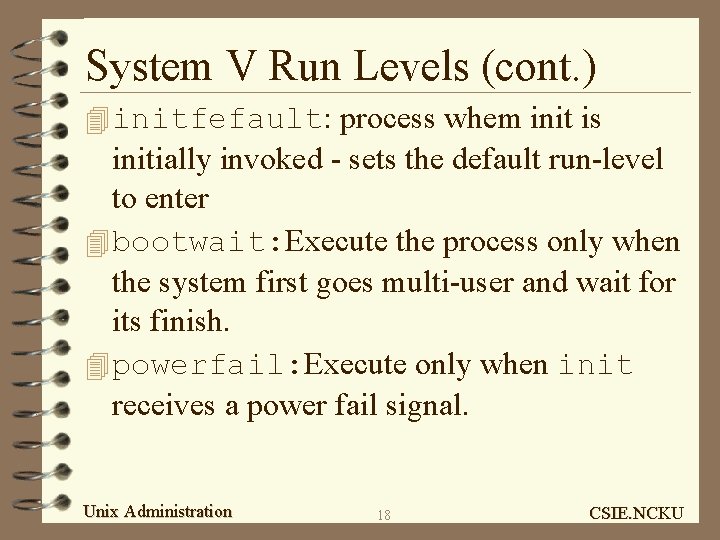

System V Run Levels (cont. ) 4 initfefault: process whem init is initially invoked - sets the default run-level to enter 4 bootwait: Execute the process only when the system first goes multi-user and wait for its finish. 4 powerfail: Execute only when init receives a power fail signal. Unix Administration 18 CSIE. NCKU

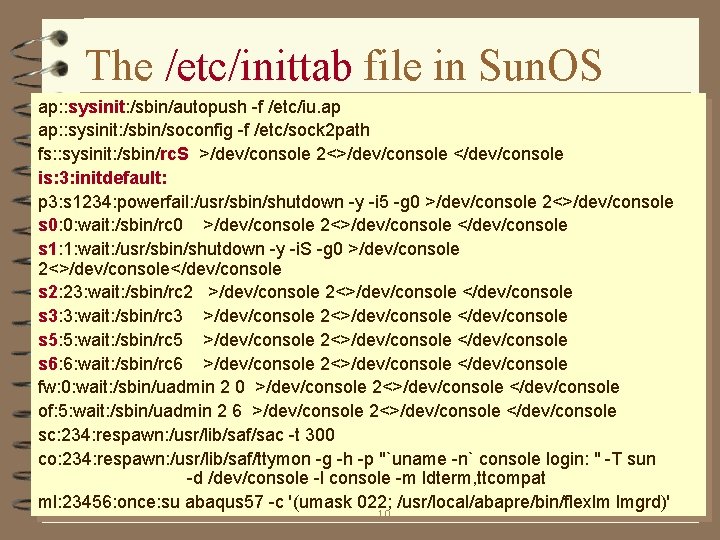

The /etc/inittab file in Sun. OS ap: : sysinit: /sbin/autopush -f /etc/iu. ap ap: : sysinit: /sbin/soconfig -f /etc/sock 2 path fs: : sysinit: /sbin/rc. S >/dev/console 2<>/dev/console </dev/console is: 3: initdefault: p 3: s 1234: powerfail: /usr/sbin/shutdown -y -i 5 -g 0 >/dev/console 2<>/dev/console s 0: 0: wait: /sbin/rc 0 >/dev/console 2<>/dev/console </dev/console s 1: 1: wait: /usr/sbin/shutdown -y -i. S -g 0 >/dev/console 2<>/dev/console</dev/console s 2: 23: wait: /sbin/rc 2 >/dev/console 2<>/dev/console </dev/console s 3: 3: wait: /sbin/rc 3 >/dev/console 2<>/dev/console </dev/console s 5: 5: wait: /sbin/rc 5 >/dev/console 2<>/dev/console </dev/console s 6: 6: wait: /sbin/rc 6 >/dev/console 2<>/dev/console </dev/console fw: 0: wait: /sbin/uadmin 2 0 >/dev/console 2<>/dev/console </dev/console of: 5: wait: /sbin/uadmin 2 6 >/dev/console 2<>/dev/console </dev/console sc: 234: respawn: /usr/lib/saf/sac -t 300 co: 234: respawn: /usr/lib/saf/ttymon -g -h -p "`uname -n` console login: " -T sun -d /dev/console -l console -m ldterm, ttcompat ml: 23456: once: su abaqus 57 -c '(umask 022; /usr/local/abapre/bin/flexlm lmgrd)' Unix Administration CSIE. NCKU 19

The Startup Scripts 4 Init’s responsible run sys. startup scripts. 4 scripts are executed after the kernel initialised but before normal users are allowed to log on. 4 These scripts will typically – check the integrity of the machine’s file systems using fsck, – mount the file systems, – designate paging and swap areas, – check disk quotas, Unix Administration 20 CSIE. NCKU

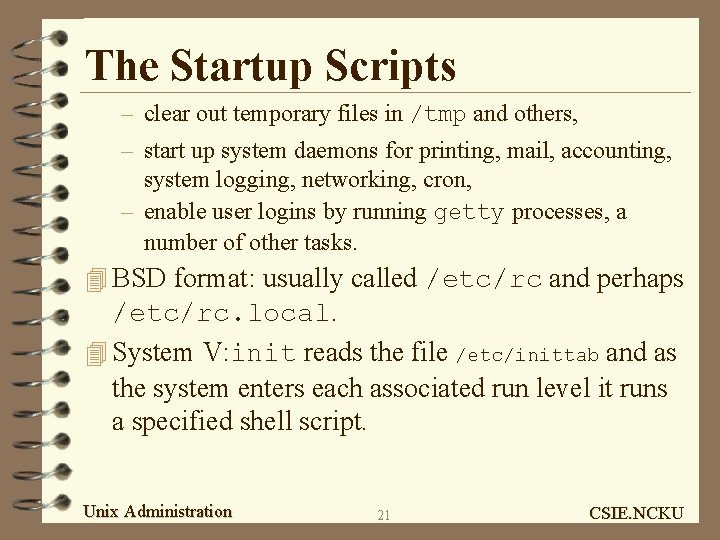

The Startup Scripts – clear out temporary files in /tmp and others, – start up system daemons for printing, mail, accounting, system logging, networking, cron, – enable user logins by running getty processes, a number of other tasks. 4 BSD format: usually called /etc/rc and perhaps /etc/rc. local. 4 System V: init reads the file /etc/inittab and as the system enters each associated run level it runs a specified shell script. Unix Administration 21 CSIE. NCKU

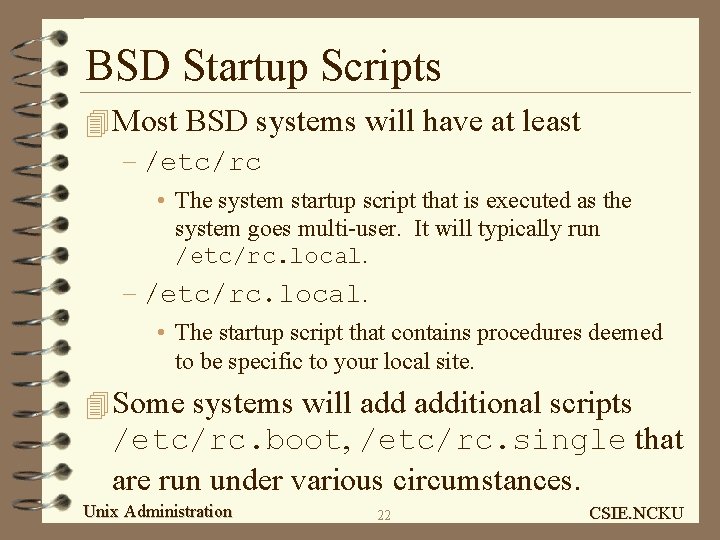

BSD Startup Scripts 4 Most BSD systems will have at least – /etc/rc • The system startup script that is executed as the system goes multi-user. It will typically run /etc/rc. local. – /etc/rc. local. • The startup script that contains procedures deemed to be specific to your local site. 4 Some systems will additional scripts /etc/rc. boot, /etc/rc. single that are run under various circumstances. Unix Administration 22 CSIE. NCKU

Sys. V Startup Scripts – Under Sys. V, /etc/inittab informs init which startup scripts it should execute. Each run level associate a particular startup script. – generally the format /etc/rc. L (these files may be located in /sbin on later versions). – The purpose of these scripts is to execute all the shell scripts stored in a directory called with the name /etc/rc. L. d. Unix Administration 23 CSIE. NCKU

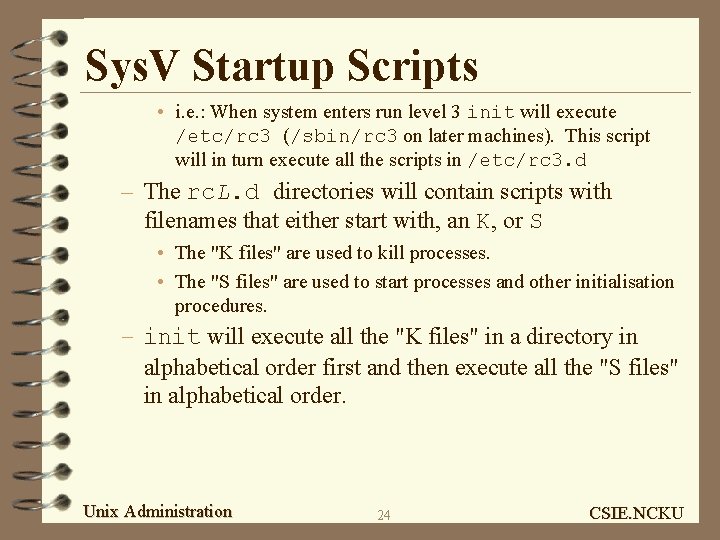

Sys. V Startup Scripts • i. e. : When system enters run level 3 init will execute /etc/rc 3 (/sbin/rc 3 on later machines). This script will in turn execute all the scripts in /etc/rc 3. d – The rc. L. d directories will contain scripts with filenames that either start with, an K, or S • The "K files" are used to kill processes. • The "S files" are used to start processes and other initialisation procedures. – init will execute all the "K files" in a directory in alphabetical order first and then execute all the "S files" in alphabetical order. Unix Administration 24 CSIE. NCKU

The init Process in Sun. OS 4 Init executes the scripts for entries with sysinit in the action field, eg /sbin/rc. S, and then /sbin/rc 2, /sbin/rc 3, … according the run level. 4 Those rc scripts will execute the scripts in the directories /etc/rc. S. d/, /etc/rc 2. d/, /etc/rc 3. d/, … respectively. 4 The scripts in the /etc/rc#. d/ directories begin with either the letter K or S. These scripts have names of the form: [K, S][00 - 99]filename – The K (kill) files are run first for killing the existing processes, – The S (start) files run next to start the various daemons needed for that run level. Unix Administration 25 CSIE. NCKU

Why Won't My System Boot? 4 Possible reasons include – hardware problems, • Both hardware failure and problems caused by human error (e. g. the power cord isn't plugged in, the drive cable is the wrong way around) – defective boot floppies, drives or tapes, – damaged file systems, – improperly configured kernels, • A kernel configured to use SCSI drives won't boot on a system that uses an IDE drive controller. – errors in the rc scripts. Unix Administration 26 CSIE. NCKU

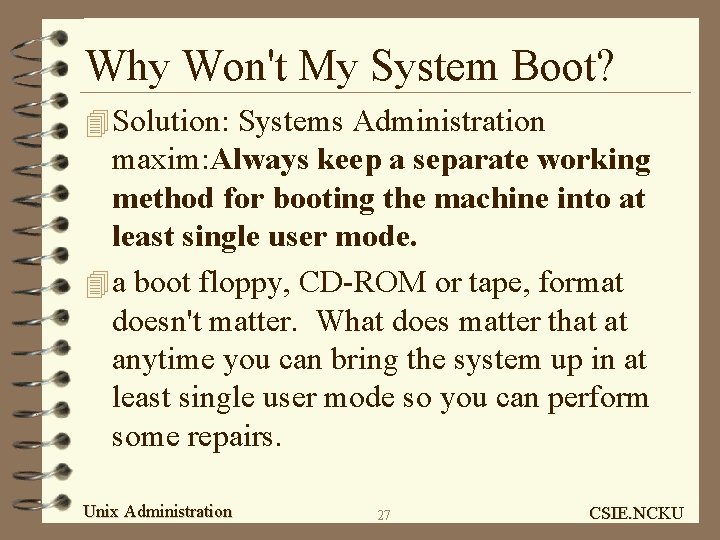

Why Won't My System Boot? 4 Solution: Systems Administration maxim: Always keep a separate working method for booting the machine into at least single user mode. 4 a boot floppy, CD-ROM or tape, format doesn't matter. What does matter that at anytime you can bring the system up in at least single user mode so you can perform some repairs. Unix Administration 27 CSIE. NCKU

Hardware Problems 4 Some guidelines to solving hardware problems – check the power supply and its connections, • Don’t laugh, there are many cases I know of in which the whole problem was caused by the equipment not being plugged in properly or not at all. – check the cables and plugs on the devices, – check any fault lights on the hardware, Unix Administration 28 CSIE. NCKU

Hardware Problems – power cycle the equipment (power off, power on), there is an old Systems Administration maxim. If something doesn’y work turn it off, count to 10 very slowly and turn it back on again (usually with the fingers crossed). – try rebooting system without selected pieces of hardware, – It may be only one faulty device that is causing the problem. Try isolating the problem device. – use any diagnostic programs that are available, or as a last resort, call a technician or a vendor. Unix Administration 29 CSIE. NCKU

Hardware Problems 4 Damaged File Systems – First always have backups of all file systems so that you can quickly recover some information. – Try using fsck to fix the problem. – If worse comes to worse resort to your backups. 4 Improperly Configured Kernels – Reasons why you might change the kernel will be discussed in a later chapter. – When you do change the kernel you should always keep a backup working version of kernel that you can use to reboot the system. Unix Administration 30 CSIE. NCKU

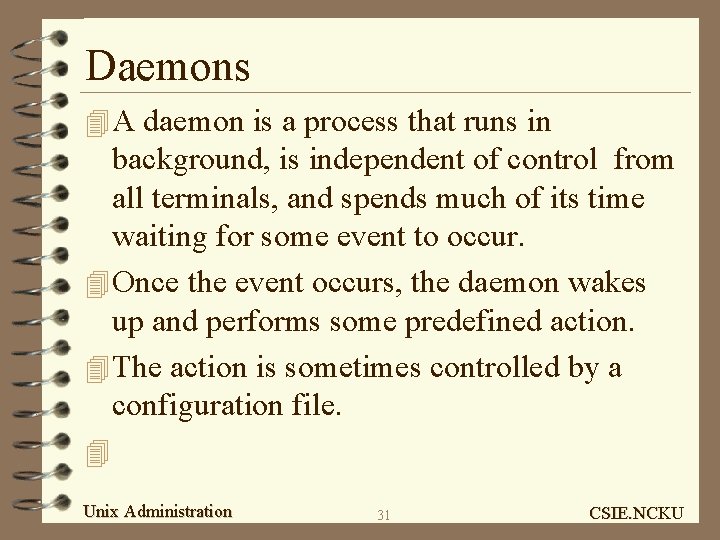

Daemons 4 A daemon is a process that runs in background, is independent of control from all terminals, and spends much of its time waiting for some event to occur. 4 Once the event occurs, the daemon wakes up and performs some predefined action. 4 The action is sometimes controlled by a configuration file. 4 Unix Administration 31 CSIE. NCKU

Daemons 4 Ways to start a daemon – from rc, start up script, root – From inet superserver – from cron – from at command – use & sign – <error messages to syslogd> 4 common daemons on a UNIX machine. – Init: itself can be classed as a daemon. – Inetd: the main network server Unix Administration 32 CSIE. NCKU

Daemons – named: Name server, provides dynamic hostname data for TCP/IP networking – timed: Time daemon used to synchronise different system clocks – sendmail: the mail daemon, responsible for delivering mail locally and to remote hosts – nfsd: nfs file exporting daemon – ypbind&ypserv: NIS (yellow pages) daemons – syslogd: System logging daemon, records various events. Unix Administration 33 CSIE. NCKU

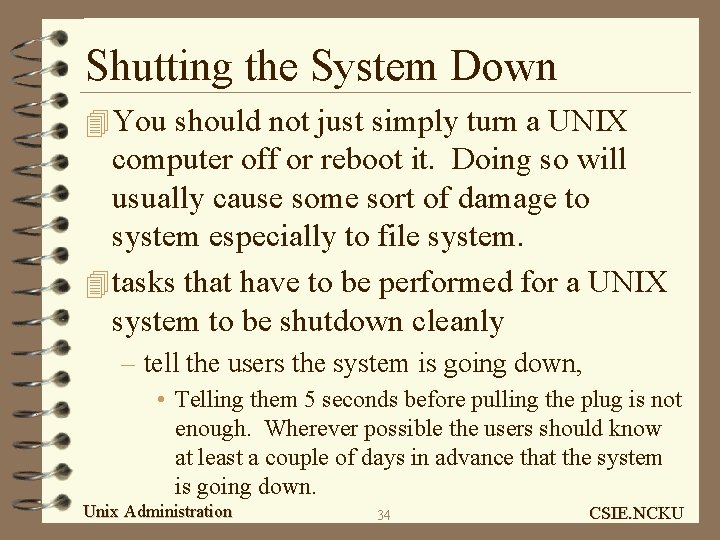

Shutting the System Down 4 You should not just simply turn a UNIX computer off or reboot it. Doing so will usually cause some sort of damage to system especially to file system. 4 tasks that have to be performed for a UNIX system to be shutdown cleanly – tell the users the system is going down, • Telling them 5 seconds before pulling the plug is not enough. Wherever possible the users should know at least a couple of days in advance that the system is going down. Unix Administration 34 CSIE. NCKU

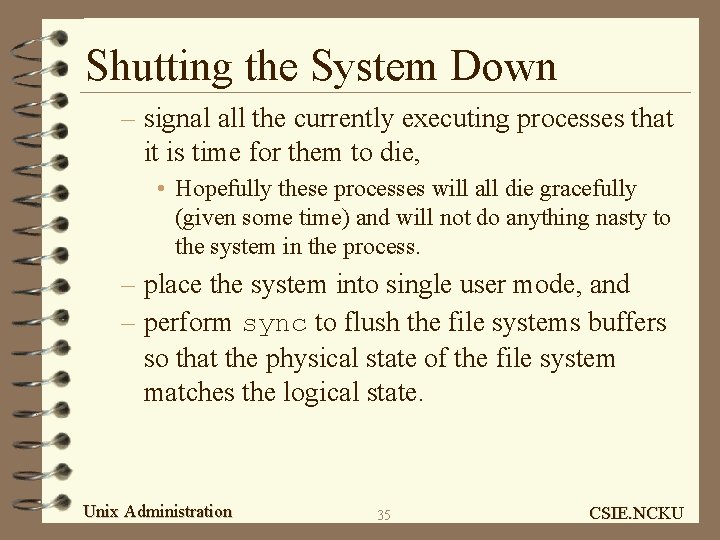

Shutting the System Down – signal all the currently executing processes that it is time for them to die, • Hopefully these processes will all die gracefully (given some time) and will not do anything nasty to the system in the process. – place the system into single user mode, and – perform sync to flush the file systems buffers so that the physical state of the file system matches the logical state. Unix Administration 35 CSIE. NCKU

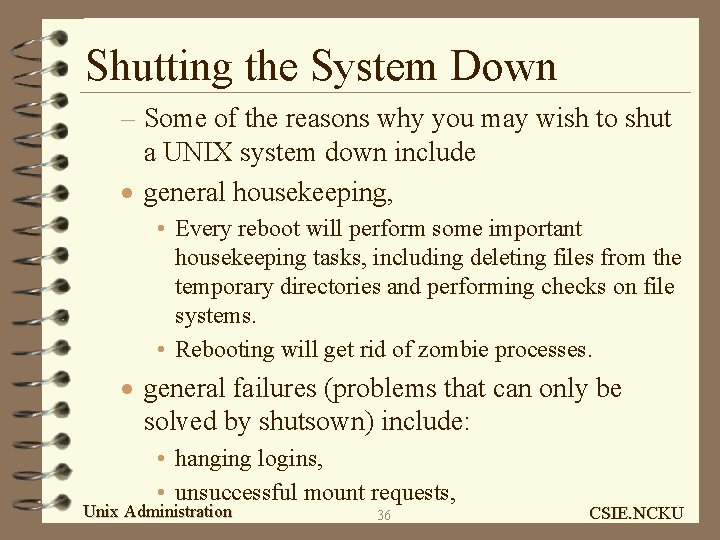

Shutting the System Down – Some of the reasons why you may wish to shut a UNIX system down include · general housekeeping, • Every reboot will perform some important housekeeping tasks, including deleting files from the temporary directories and performing checks on file systems. • Rebooting will get rid of zombie processes. · general failures (problems that can only be solved by shutsown) include: • hanging logins, • unsuccessful mount requests, Unix Administration 36 CSIE. NCKU

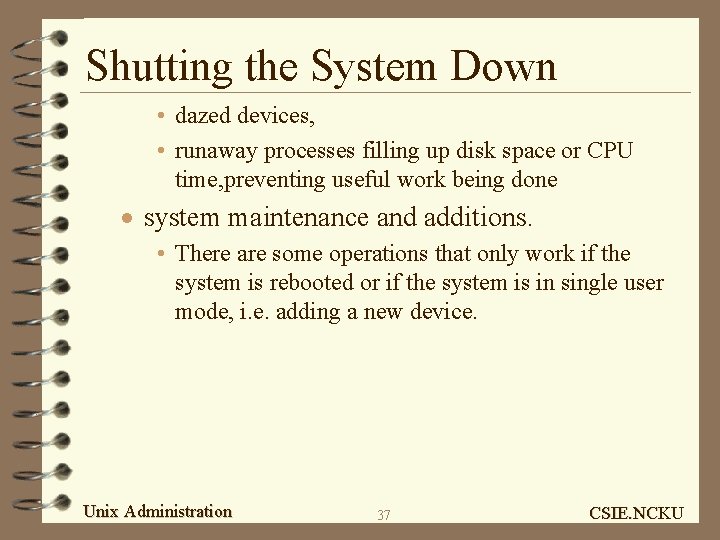

Shutting the System Down • dazed devices, • runaway processes filling up disk space or CPU time, preventing useful work being done · system maintenance and additions. • There are some operations that only work if the system is rebooted or if the system is in single user mode, i. e. adding a new device. Unix Administration 37 CSIE. NCKU

Shutting the System Down 4 The following command is an example of what not to do. shutdown -g 0 – On a SVR 4 box this results in a message like this appearing on user's terminal THE SYSTEM IS BEING SHUT DOWN NOW! Log off now or risk your files being damaged. 4 Guidelines of how and when to perform shutdowns Unix Administration 38 CSIE. NCKU

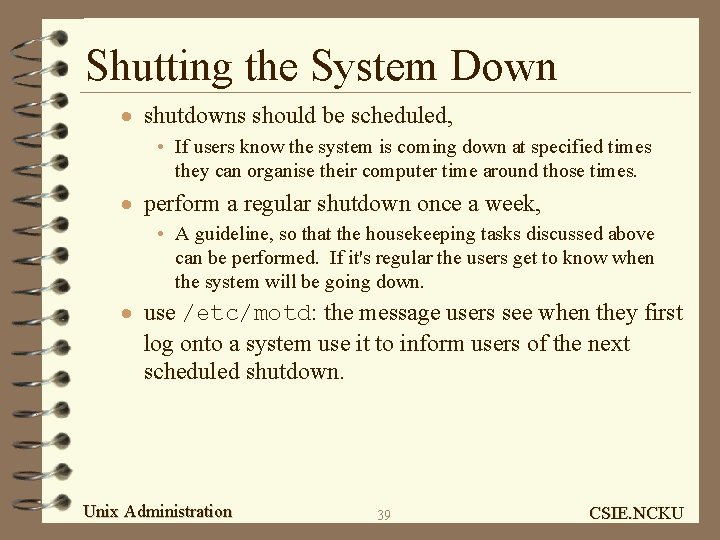

Shutting the System Down · shutdowns should be scheduled, • If users know the system is coming down at specified times they can organise their computer time around those times. · perform a regular shutdown once a week, • A guideline, so that the housekeeping tasks discussed above can be performed. If it's regular the users get to know when the system will be going down. · use /etc/motd: the message users see when they first log onto a system use it to inform users of the next scheduled shutdown. Unix Administration 39 CSIE. NCKU

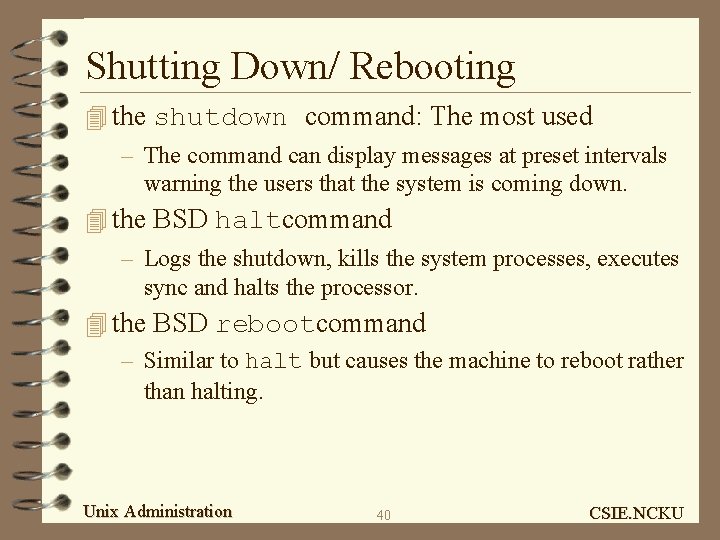

Shutting Down/ Rebooting 4 the shutdown command: The most used – The command can display messages at preset intervals warning the users that the system is coming down. 4 the BSD haltcommand – Logs the shutdown, kills the system processes, executes sync and halts the processor. 4 the BSD rebootcommand – Similar to halt but causes the machine to reboot rather than halting. Unix Administration 40 CSIE. NCKU

Commands Shutting Down/ Rebooting 4 sending init a TERM signal – init will usually interpret a TERM signal (signal number 15) as a command to go into single user mode. It will kill user processes and daemons. The command is kill -15 1 (It may not work or be safe on all machines. ) 4 BSD fasthalt or fastboot commands – Shell scripts which create a file /fastboot before calling halt or reboot. When the system reboots and it finds a file /fastboot it will not perform a fsck on the file systems. Unix Administration 41 CSIE. NCKU

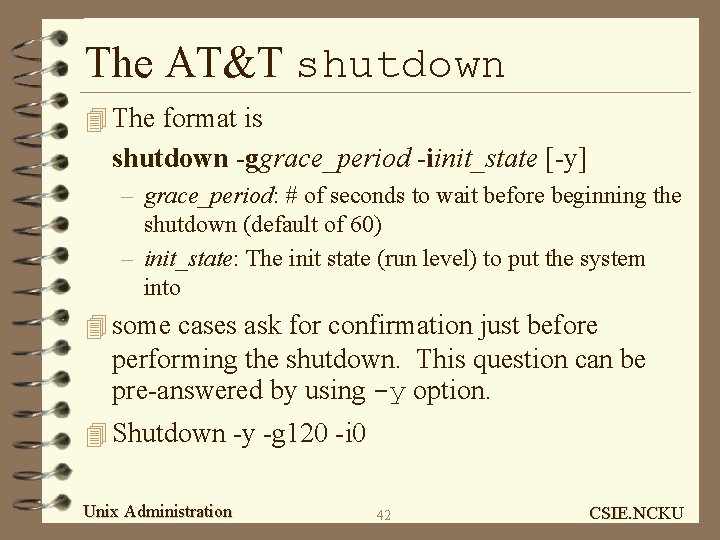

The AT&T shutdown 4 The format is shutdown -ggrace_period -iinit_state [-y] – grace_period: # of seconds to wait before beginning the shutdown (default of 60) – init_state: The init state (run level) to put the system into 4 some cases ask for confirmation just before performing the shutdown. This question can be pre-answered by using -y option. 4 Shutdown -y -g 120 -i 0 Unix Administration 42 CSIE. NCKU

The BSD shutdown 4 The format is shutdown [-fhknr]time [warning-message] – actually calls on the halt command to perform the actual work of halting the system. – It just displays messages before calling halt. 4 Parameters Meaning: – f: file systems will not be checked on system restart (create /fastboot file) – k: simulate shutdown, WON'T actually do it – h: simply halt the system (same as halt) Unix Administration 43 CSIE. NCKU

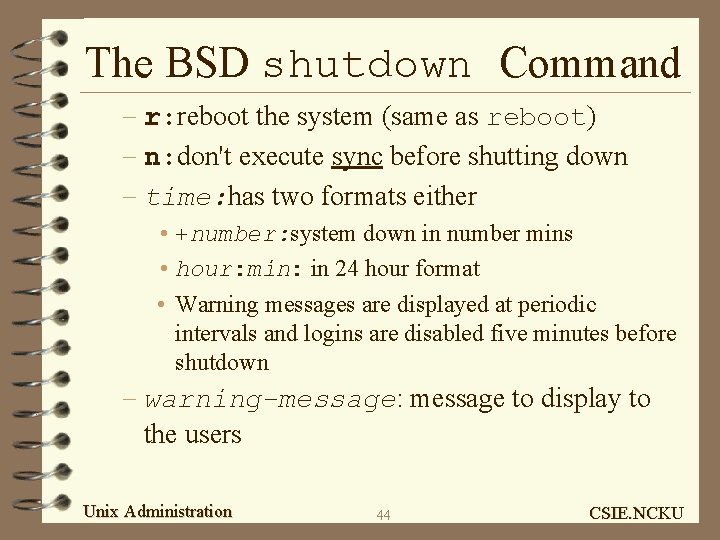

The BSD shutdown Command – r: reboot the system (same as reboot) – n: don't execute sync before shutting down – time: has two formats either • +number: system down in number mins • hour: min: in 24 hour format • Warning messages are displayed at periodic intervals and logins are disabled five minutes before shutdown – warning-message: message to display to the users Unix Administration 44 CSIE. NCKU

The BSD shutdown 4 The halt and reboot commands are actually used by the shutdown command. 4 The halt command performs a sync on the disks and stops the processors. The format of halt is. halt [-nqy] – -n: don't sync the disks before stopping – -q: do a quick halt (create /fastboot file so that file systems are not fscked on reboot) – -y: halt the system Unix Administration 45 CSIE. NCKU

The BSD shutdown 4 reboot shuts system down and restarts it: reboot [-dnq][boot arguments] – -d: dump a copy of the kernels memory (system core) before rebooting (some machines recognize this but don't do anything) 4 -n avoid the sync call. 4 -q reboot quickly and ungracefully 4 boot arguments: specify how system should restart (e. g. single user mode). Some machines ignore these arguments. Unix Administration 46 CSIE. NCKU

Sun PROM and SGI Indy 4 Sun PROM 4 Interact with PROM by holding down the “STOP” key (L 1 key on older KB) and pressing “a” key 4 “break” key if terminal keyboard 4 ok prompt 4 specify boot device: b device(controller#, unit#, file#)pathname args OR Unix Administration 47 CSIE. NCKU

Sun PROM and SGI Indy boot device(controller#, unit#, file#)pathname args 4 example: – ok boot or ok boot -s 4 ok probe-scsi 4 SGI Indy PROM 4 printenv 4 setenv 4 >> boot dksc(controller#, unit#, file#)pathname Unix Administration 48 CSIE. NCKU

Boot Up Sequence in x 86 Linux BIOS LILO run level 5 Linux Kernel xdm init Shell MBR First 512 -byte segment of the first boot disk run level 3 X-login getty Console login Other OS Unix Administration 49 CSIE. NCKU

Using LILO in Linux 4 LILO (LInux LOader) is a separate boot loader which resides on your hard disk. (it is not an OS) 4 It is executed when the system boots from the hard drive (Master Boot Record, MBR). boot manager capable of booting MS-DOS, or Windows. 4 Installing and Reconfiguring LILO: – Editing the lilo. conf file – Run the /sbin/lilo command to update the boot sector and create the /boot/map file. 4 Examples of LILO’s boot time options: root=/dev/foo tells kernel to use /dev/foo as the root device. single enter single user mode init=/sbin/init tells kernel to use /sbin/init as its init program. Unix Administration 50 CSIE. NCKU

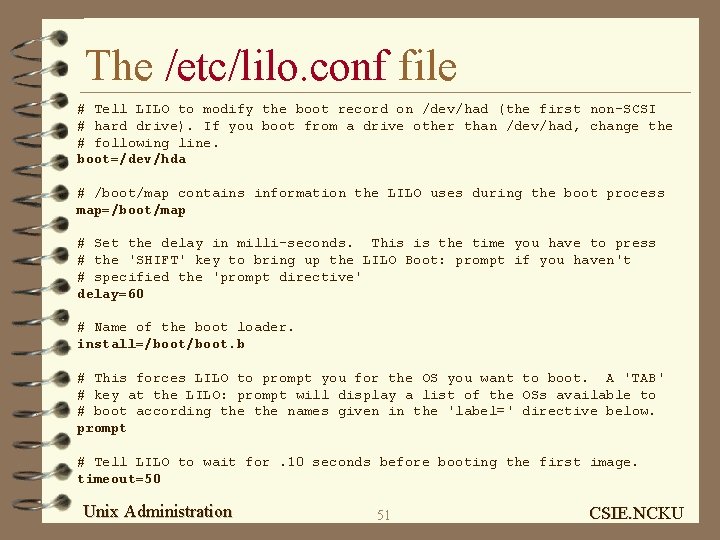

The /etc/lilo. conf file # Tell LILO to modify the boot record on /dev/had (the first non-SCSI # hard drive). If you boot from a drive other than /dev/had, change the # following line. boot=/dev/hda # /boot/map contains information the LILO uses during the boot process map=/boot/map # Set the delay in milli-seconds. This is the time you have to press # the 'SHIFT' key to bring up the LILO Boot: prompt if you haven't # specified the 'prompt directive' delay=60 # Name of the boot loader. install=/boot. b # This forces LILO to prompt you for the OS you want to boot. A 'TAB' # key at the LILO: prompt will display a list of the OSs available to # boot according the names given in the 'label=' directive below. prompt # Tell LILO to wait for. 10 seconds before booting the first image. timeout=50 Unix Administration 51 CSIE. NCKU

The /etc/lilo. conf file (con't) # Set the default booting image. default=linux # Different entries of OSs password=Linux # password for entering the boot image (case-sensitive) image=/boot/vmlinuz-2. 2. 12 -20 label=linux initrd=/boot/initrd-2. 2. 12 -20. img #file for initial RAM disk read-only # mount read only root=/dev/hda 1 # location of root partition restricted # require password only for command line input Other=/dev/hda 2 label=msdos table=/dev/hda • # location of partition table for /dev/hda 2 Read the files under /usr/share/doc/lilo-21. 4. 4 directory for more information. Unix Administration 52 CSIE. NCKU

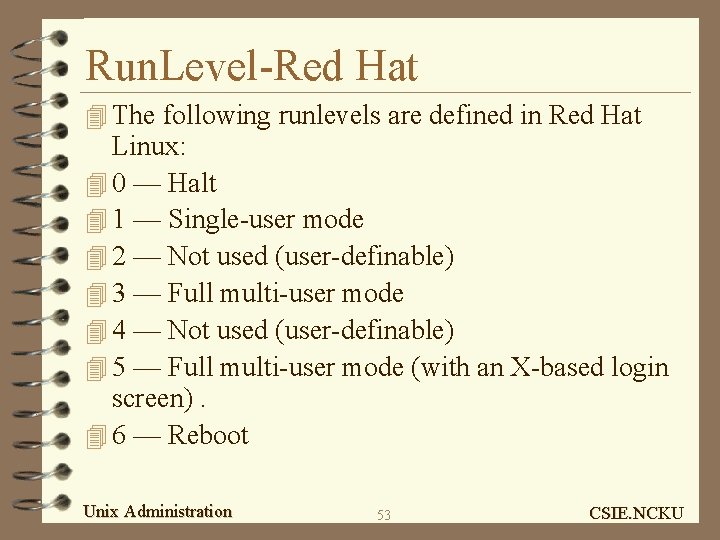

Run. Level-Red Hat 4 The following runlevels are defined in Red Hat Linux: 4 0 — Halt 4 1 — Single-user mode 4 2 — Not used (user-definable) 4 3 — Full multi-user mode 4 4 — Not used (user-definable) 4 5 — Full multi-user mode (with an X-based login screen). 4 6 — Reboot Unix Administration 53 CSIE. NCKU
