Unix Pipes n Pipe sets up communication channel

Unix Pipes n Pipe sets up communication channel between two (related) processes. Two processes connected by a pipe 37

n n n One process writes to the pipe, the other reads from the pipe. Looks exactly the same as reading from/to a file. System call: int fd[2] ; pipe(&fd[0]) ; fd[0] now holds descriptor to read from pipe fd[1] now holds descriptor to write into pipe

Simple Example #include <unistd. h> /* for Solaris */ #include <fcntl. h> #include <stdio. h> char *message = "This is a message!!!" ; main() { char buf[1024] ; int fd[2]; pipe(fd); /*create pipe*/ if (fork() != 0) { /* I am the parent */ write(fd[1], message, strlen (message) + 1) ; } else { /*Child code */ read(fd[0], buf, 1024) ; printf("Got this from Ma. Ma!!: %sn", buf) ; } }

Create a Pipeline n Sometimes useful to connect a set of processes in a pipeline. Process Pipe c Process Pipe Process A writes to pipe AB, Process B reads from AB and writes to BC Process C reads from BC and writes to CD …. . D

Inherited File Descriptors n Process created with three files: stdin, stdout, and stderr (file descriptors 0, 1, 2). n n write(1, “EEEE”, 10) ; // goes to stdout (terminal) or printf read(0, buf, 4) ; //read from terminal

Redirecting stdin and stdout n Can due on command line: n n . /a. out > tmp // write output to tmp rather than terminal. . /a. out < foo // read from foo not terminal. When processing in a pipeline useful to redirect stdout of pipe n to stdin of pipe n+1. Key: When Unix allocates file descriptor, it always chooses the lowest available. n If close stdin and open new file, e. g. , close(0), fd = open(“foo”, …. ) then fd = 0 and all subsequent reads from stdin will read instead from “foo”.

main() { int fd ; printf("this goes to stdoutn"); close(1); /* close stdout */ fd = open("foo", O_CREAT | O_WRONLY); /* fd = 1! */ printf("fd = %dn", fd) ; //goes to file "foo" printf("Should not see this either!n") ; //ditto }

Dup System Call n int dupfd = dup(fd); n Duplicates a file descriptor -- “aliased” n n n Both point to same file, that being the argument to dup. Reads/writes from fd and dupfd going to the same file. Useful for situation such as: n want to write some output to standard out, then to a file, then back to standard out -- all using printf. n Redirecting I/O for pipeline.

pipeline (process 1, process 2) /* program names */ char *process 1, *process 2 ; { char buf[1024] ; int fd[2]; pipe(&fd[0]); /*create pipe*/ if (fork() != 0) { /* parent */ close(fd[0]); //don't need. close(STD_OUTPUT); dup(fd[1]); /* sets stdout to this pipe end */ close(fd[1]) ; //don’t need. Already set stdout to pipe. execl(process 2, 0); }

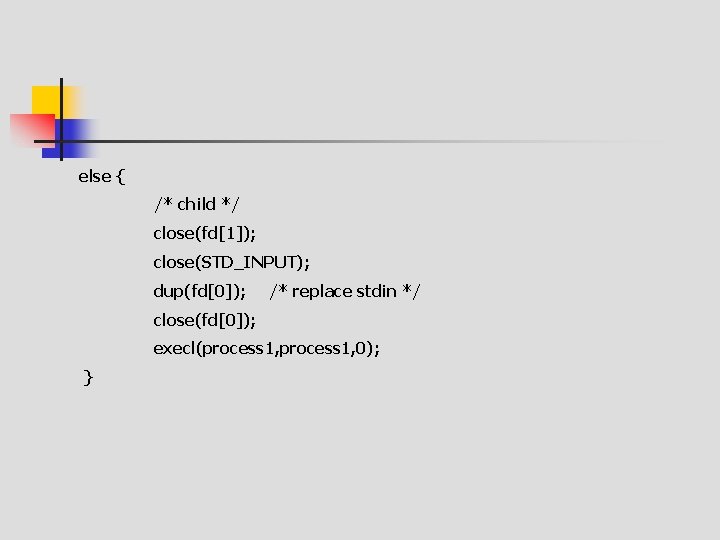

else { /* child */ close(fd[1]); close(STD_INPUT); dup(fd[0]); /* replace stdin */ close(fd[0]); execl(process 1, 0); }

fork() exec stdout stdin

Single and Multithreaded Processes

Benefits n Responsiveness: Separate thread to handle user input. n n Web server spawns separate thread to handle incoming request. Resource Sharing: e. g. , one code, data segment. Economy: Much cheaper to create and switch than processes. Utilization of MP Architectures: Assign each thread to a separate processor if available.

n Lightweight process. n n State: n n Threads share all process resources. Thread ID, program counter, register set, and stack. User-level threads and kernel-level threads.

User Threads n n Thread management done by user-level threads library. Advantages: n n Very fast: Does not involve kernel in creation, scheduling, or switching. Disadvantages: n When a thread blocks, whole process blocks.

Kernel Threads n Supported by the Kernel. n n Advantage: n n n Kernel creates, schedules, and switches threads. When one thread blocks, the whole process does not have to block. Thus can overlap I/O and computation. Disadvantage: n Slower since kernel is involved.

Multithreading Models n Many-to-One n One-to-One n Many-to-Many

Many-to-One n n Many user-level threads mapped to single kernel thread. Used on systems that do not support kernel threads.

Many-to-One Model

One-to-One n n Each user-level thread maps to kernel thread. Examples - Windows 95/98/NT/2000 - OS/2

One-to-one Model

Many-to-Many Model n n Allows many user level threads to be mapped to many kernel threads. Allows the operating system to create a sufficient number of kernel threads. Solaris 2 Windows NT/2000 with the Thread. Fiber package

Many-to-Many Model

Threading Issues n n Semantics of fork() and exec() system calls. Thread cancellation.

Pthreads n n n a POSIX standard (IEEE 1003. 1 c) API for thread creation and synchronization. API specifies behavior of the thread library, implementation is up to development of the library. Common in UNIX operating systems.

Solaris 2 Threads

Solaris Process

Windows 2000 Threads n n Implements the one-to-one mapping. Each thread contains - a thread id - register set - separate user and kernel stacks - private data storage area
